Alpine MRV-M500

500W RMS Class D V-Power Series Monoblock Car Amplifier

Alpine
Shop all Alpine
Product videos
highlight-star-icon

• 300 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

Learn more about the mrvm500

We apologize

This item has been discontinued


Loading...
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

43DSC3504 main

Kicker DSC350 (43DSC3504)

160W Peak (40W RMS) 3.5" DS Series 2-Way 4-ohm Coaxial Car Speakers

15
-15.39%

$54.99

List price $64.99

Limited time!
R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34
-11.11%

$39.99

List price $44.99

Product Highlights


• 300 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

Description


Alpine brand icon

Authorized dealer


Alpine MRV-M500


Raising the Bar

The new V-Power products are now Class D digital amplifiers, resulting in a huge efficiency gain versus their predecessors without draining your battery or your pockets. Class-D provides continuous clean power to your speakers, operating at 80% efficiency far greater than conventional Class A or B amplifiers. Translation: Enjoy cleaner bass, even during extreme power demands.


Big Power, Small Package

V-Power amplifiers are known for their compact size, but don’t underestimate their power capacity. Although they have a 40% smaller footprint than their predecessors, they produce the same amount of power as before. Get the power you need, even if you have limited installation space.


Product Details:

  • V Power Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 channel
    • 2 ohm: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • Wired bass remote control Alpine RUX-KNOB (optional, sold separately)
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Automatic signal-sensing remote turn-on
  • 4-way protect circuitry (over current, over/under voltage, and thermal protection)
  • High-efficiency MOSFET power supply and output stage
  • Continuously adjustable gain control for precise level matching
  • Continuously Adjustable Gain Control
  • S.T.A.R. Circuit board circuitry connection
  • Top-mounted blue LED power indicator
  • Multi-stage power limits for advanced thermal control
  • Two-sided terminal layout for easier installation
  • Integrated wire and mounting screw terminals
  • Input sensitivity:
    • Low level: 0.15 - 4.0 volts
    • High level: 0.4 - 10 volts
  • Frequency Response: 7 - 400 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 85 dB
  • Variable low-pass filter: 50 - 400 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 60A
  • 4 AWG gauge amplifier wiring kit is recommended for installation.
  • Dimensions: 7-7/8" L x 7-7/8" W x 2-3/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MRV-M500

Product history:

Alpine MRV-M500 thumbnail
(newest, current model)
Alpine MRP-M500 thumbnail
(previous model, replaced by Alpine MRV-M500)
Alpine MRP-M650 thumbnail
(previous model, replaced by Alpine MRP-M500)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Compact Design
Speaker Level Inputs
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Series
V Power Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
7 - 400 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
0.15 - 4.0 volts
High-Level Input Sensitivity
0.4 - 10 volts
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
One spare fuse
High-level input wiring harness w/ molex connector
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MRV-M500

Weight:

5.07lbs

Internal SKU:

mrvm500

Internal Product ID:

76304

Product and How-to Videos


Customer Ratings & Reviews


Alpine MRV-M500 thumbnail image

5 star
87%
4 star
11%
3 star
2%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.8
Design
5
Usability
5

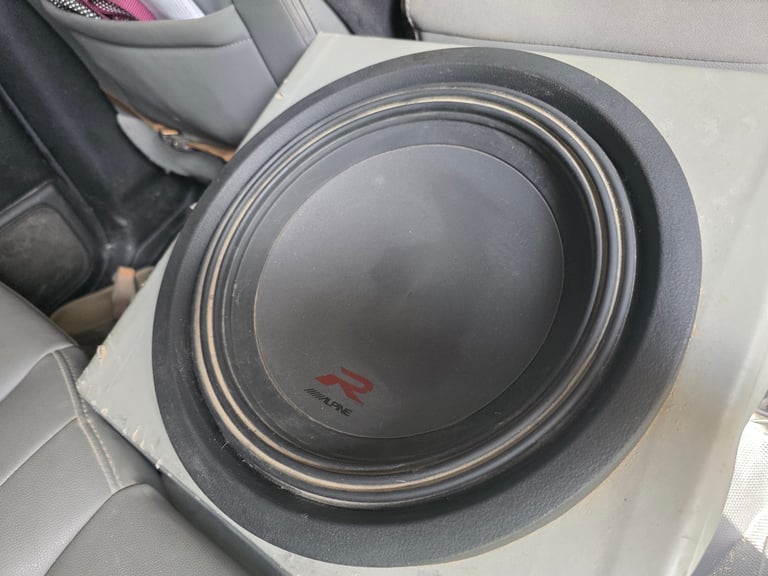

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Really good

Have this amp connected to my Dodge factory head unit using high level output connected to 2- 12inch pioneer champion series at 300 RMS 4ohm. unbelievable quality and sound. Once you tune your subwoofer and amp to specs you wil have no problem. more that enough bass needed, Great amp!!

By Ricky on July 29, 2014

125 found this helpful


The perfect amp for my needs!

This little amp puts out just the right amount of power for my system. I mounted it behind an internal side panel so that it would be out of sight, and it fit perfectly. I haven't had any problems with it what so ever, and it really brought good sounding base to my sub woofer. I would definitely recommend this amp to my friends.

By Gregar on January 14, 2015

118 found this helpful


Alpine MRV-M500

My buddy had 1 of these running to pioneer 10s and it sound great Hit pretty hard great amp over all.Probably does a little more then rated 550/600 maybe.Very clean looking amp sturdy feeling and great clean sound

By josh on March 17, 2014

115 found this helpful


Big power with little space

Not a bad little amp. I run 2 kenwood 12's @ 2 ohm with this amp and I love every minute of it. I am sometimes tempted to turn the gain down but it runs so clean I never do.

By Drum4life on April 8, 2014

101 found this helpful


Beautiful

I just bought this amp, I upgraded from a power acoustic 870 watt 4 channel, and its powering 2 12 inch audiobahns, and it's amazing! It is definitely worth the money. I would recommend this to anyone

By Adam on February 23, 2014

99 found this helpful


Great Amp

Powerful small amp. I brought this amp to pair with a 10" Sundown Audio woofer in a 2012 Fors Mustang and it sounds great.

By Prince on July 22, 2019 Checkmark Icon Verified purchase

87 found this helpful


Solid sound

Good amp. Not alot of power but it is a work horse

By Anonymous on August 31, 2019 Checkmark Icon Verified purchase

84 found this helpful


Great amp

Good clean power this little amplifier can push a pair of rockford fosgates hard I definitely recommend it.

By Anonymous on August 12, 2019 Checkmark Icon Verified purchase

83 found this helpful


Tiny Monster

Finally replaced my m500 after 7 years of 500rms. These things are durable, dependable little beasts and underrated. Excellent value.

By Anonymous on August 12, 2019

80 found this helpful


Great amp for the price

Alpine makes good products and this amp is no exception. I have it hook up to an Alpine SWS D4, 12" sub and it sounds great. True rms watts, can't go wrong with Alpine.

By Anonymous on October 12, 2019 Checkmark Icon Verified purchase

75 found this helpful




XC6410 small

Clarion XC6410

500W 4-Channel Marine XC Series Power Amplifier

(4)

$269.99

List price $499.99

SMD-DISTRIBUTION-BLOCK-32SLOT small

smddistrotofuse

25" Power / Ground Distribution Bar (32 Slot)

(1)

$135.99

List price $181.98

PS475 small

Jensen PS475

4-Channel Amplifier

$84.99

List price $109.99

Python-Responder-LE small

Python Responder LC 333 (P/N 3303P)

2-Way Paging Responder LC Car Alarm with Keyless Entry, One LCD Remote and One 5-Button Remote

(3)

$139.99

List price $499.99

RAM-HOL-UN7BU-T small

RAM Mount RAM-HOL-UN7BU-T

Universal X-Grip Cell/iPhone Cradle

$24.99

List price $27.99

EVD-4500 small

Absolute EVD-4500

4500W Max, Evolution Series Class D Monoblock Amplifier (EVD4500)

$319.99

List price $699.99

050149 small

Boom Mat 050149

Sound Deadening Side Window Kit for select 2011-2015 Wrangler (Black)

$109.99

List price $134.28

VIBE412 small

Lanzar VIBE412

1000W Max 4-Channel Class AB Car Amplifier w/ Remote Bass Knob (Vibe 412)

$74.99

List price $272.00

C2-600 small

JL Audio C2-600

120W RMS 6" C2 Series 2-Way 4-ohm Component Speaker System

(5)

$329.99

List price $329.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Lexus RX330

2016 Audi RS7

2008 Audi TT

2012 Dodge Durango

2010 Dodge Nitro

2017 Ford C-Max

1990 Eagle Premier

2012 BMW X5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
