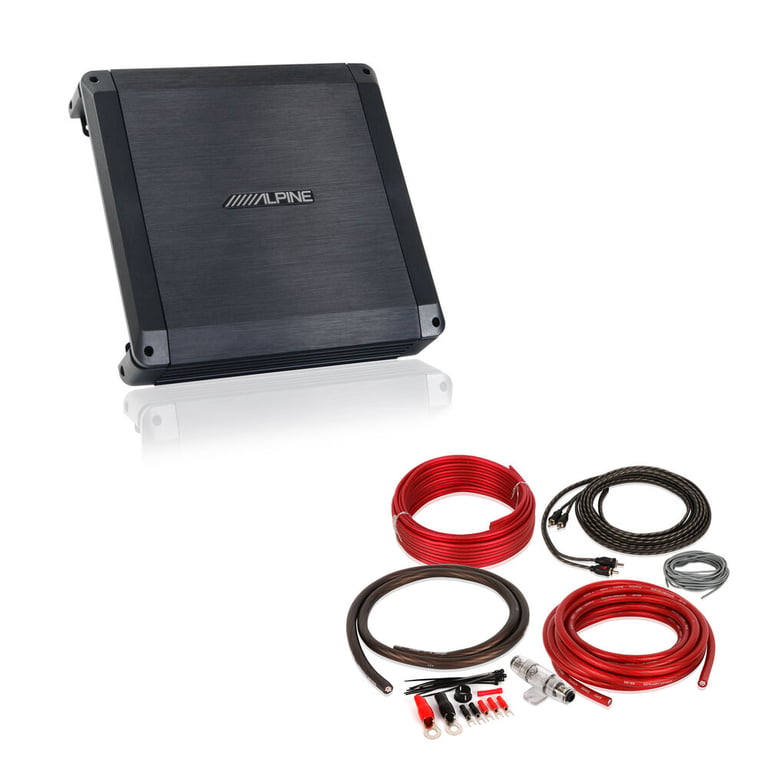

Alpine BBX-T600 with Amplifier Wiring Kit

600W Max (280W RMS) BBX Series 2-ohm Stable 2 Channel Class-A/B Amplifier

Alpine
Shop all Alpine
highlight-star-icon

• 50 Watts RMS x 2 @ 4 ohm
• 70 Watts RMS x 2 @ 2 ohm
• 130 Watts RMS x 1 @ 4 ohm
• Total Peak Power: 600 Watts
• Includes Amplifier Wiring Kit

Learn more about the bbxt600_bak42

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

VPRO8BM main

NVX VPRO8BM (Sold Individually)

500W Peak (250W RMS) 8" V-Series Pro Midrange Loudspeaker

1
-40.48%

$49.99

List price $83.99

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Description


Alpine brand icon

Authorized dealer

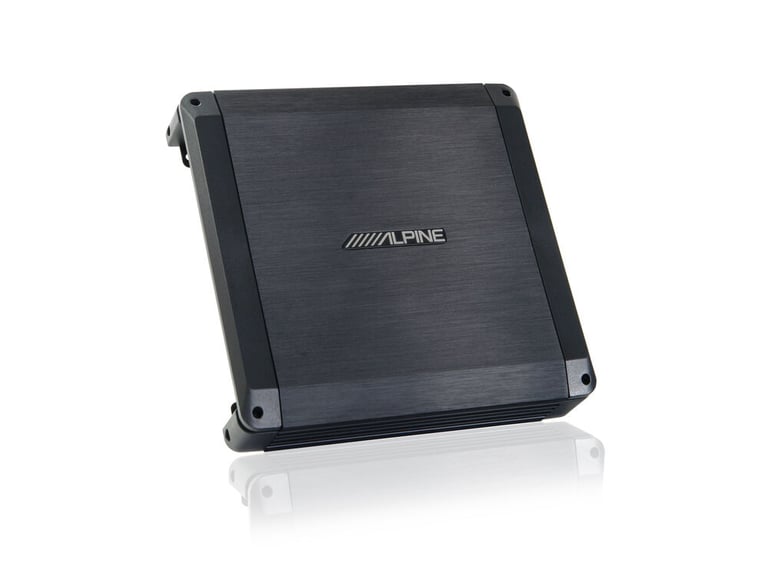

Alpine BBX-T600

300W Peak (140W RMS) BBX Series Class-A/B 2 Channel Amplifier
Quantity: 1

Product Details:

  • BBX Series Class A/B 2 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 2 channel
    • 2 ohm: 70 watts x 2 channel
    • Bridged: 130 watts x 1 channel @ 4 ohm
  • Total power output: 140 watts
  • LED Power/Protect Light
  • 1 pair of pre-amp outputs
  • 3-way protection circuitry (Over-Current, Over-Voltage, and Thermal Protection)

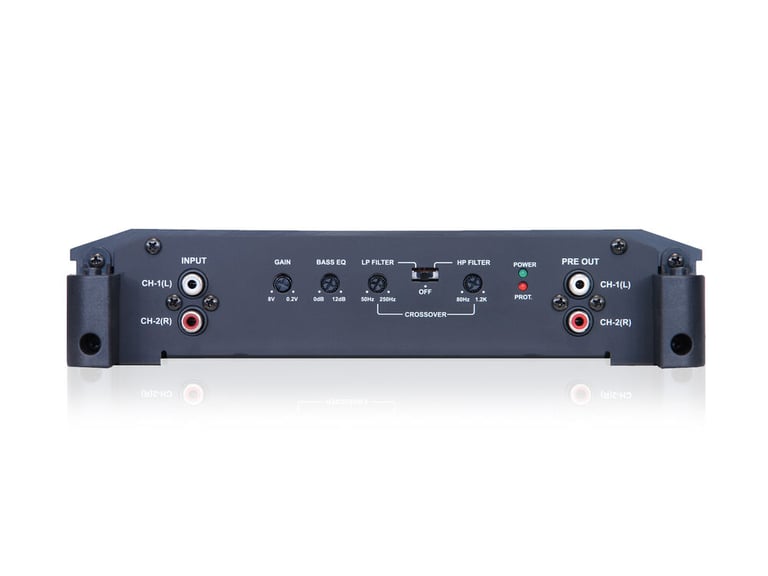

  • Input sensitivity: .2 - 8 volts
  • Frequency Response: 5 - 50,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: 95 dB
  • Variable high-pass filter: 80 - 1200 Hz
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 12 dB

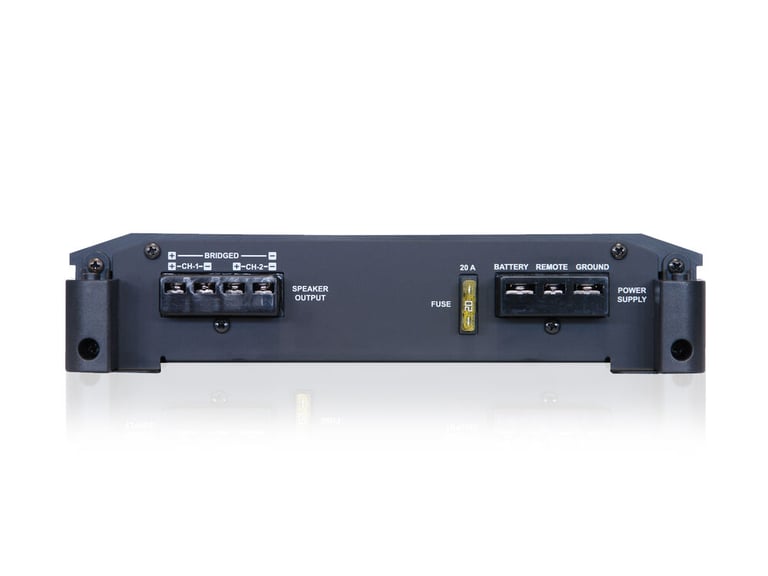

  • Fuse Rating: 20A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 9.84" L x 9.45" W x 2.05" H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • MFR #: BBX-T600

Check out the Alpine BBX-T600 Owner's Manual

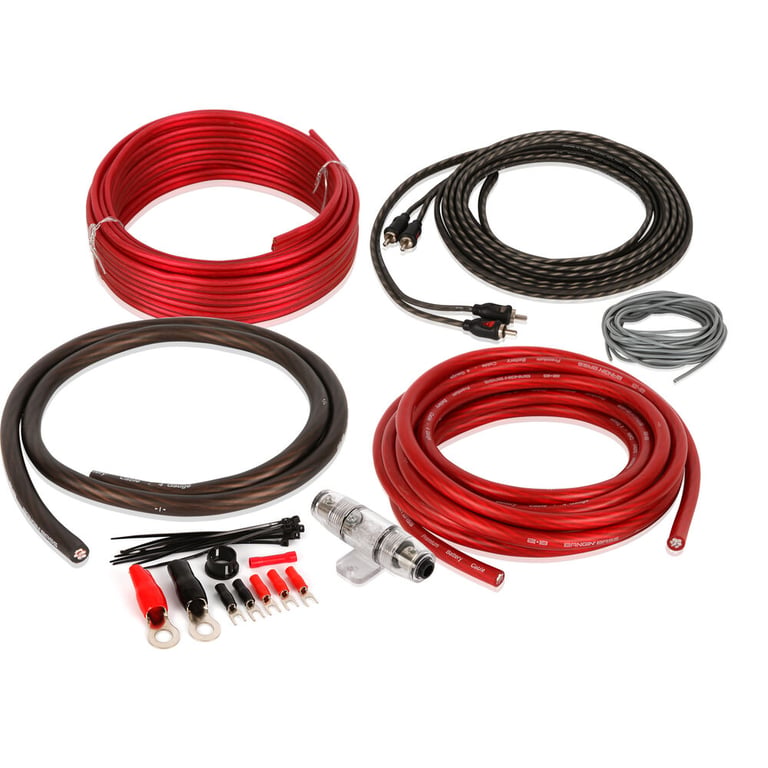

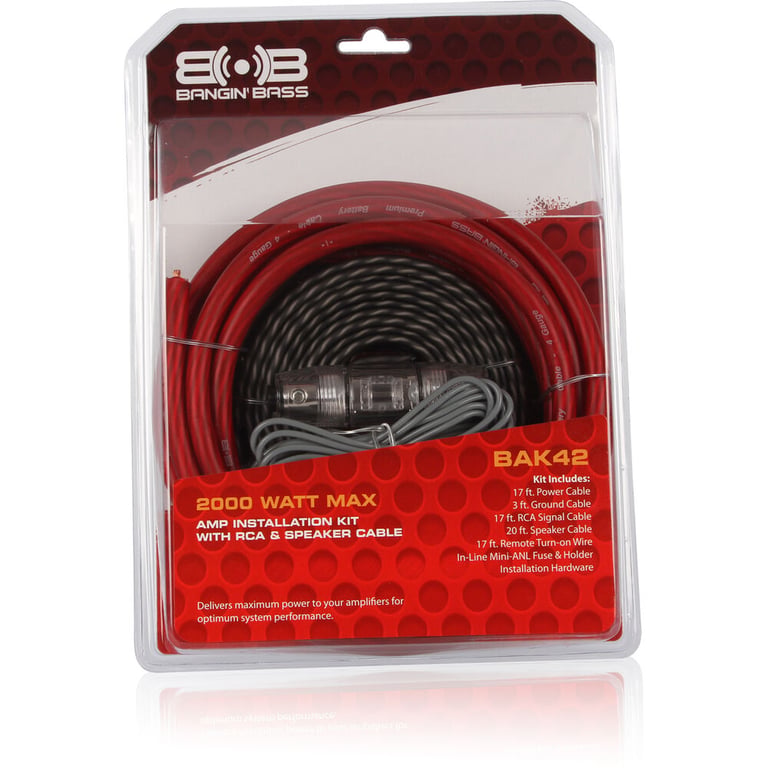

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

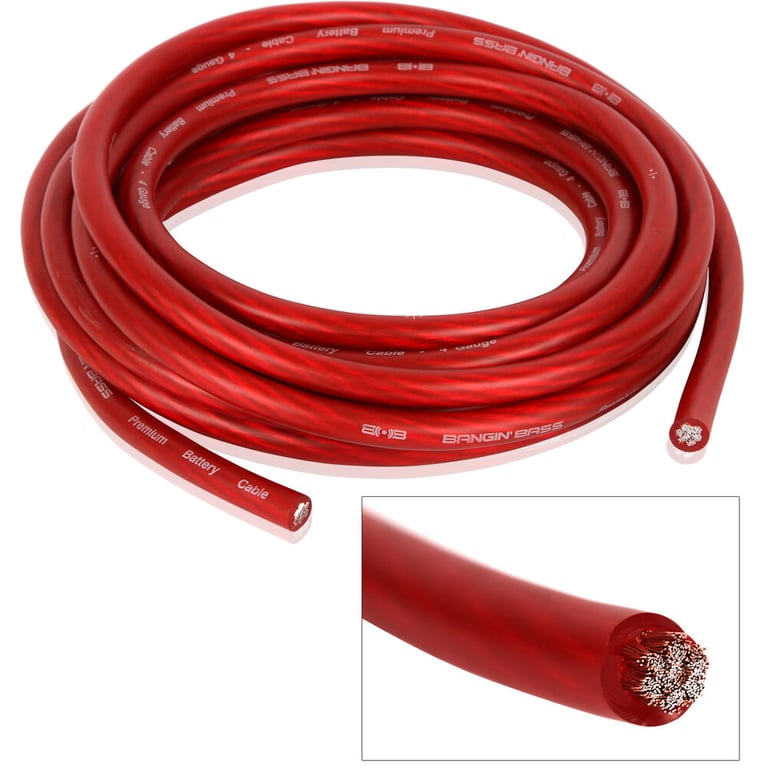

  1. 17 ft. Gray 4 gauge power wire

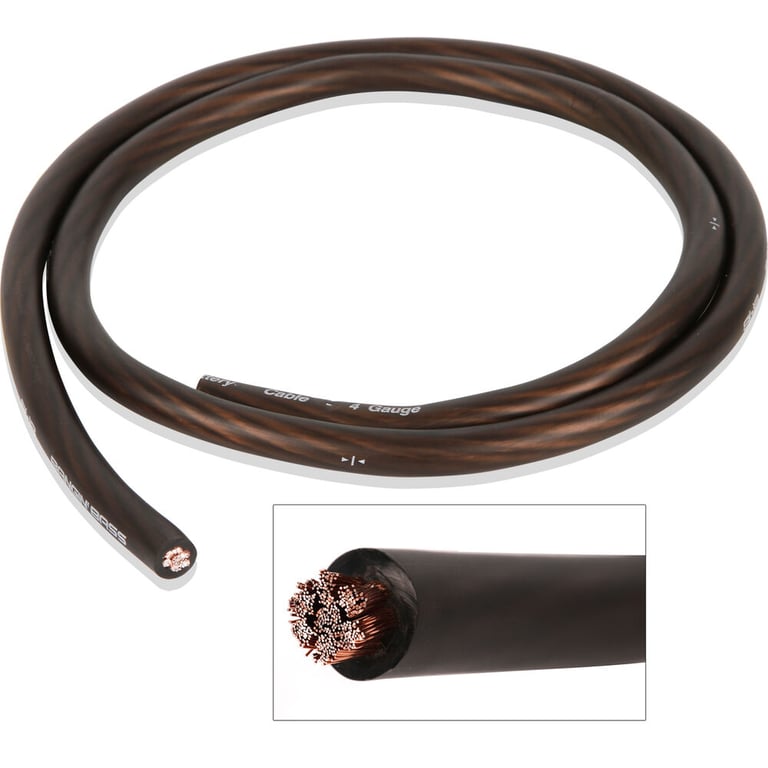

  2. 3 ft. Black 4 gauge ground wire

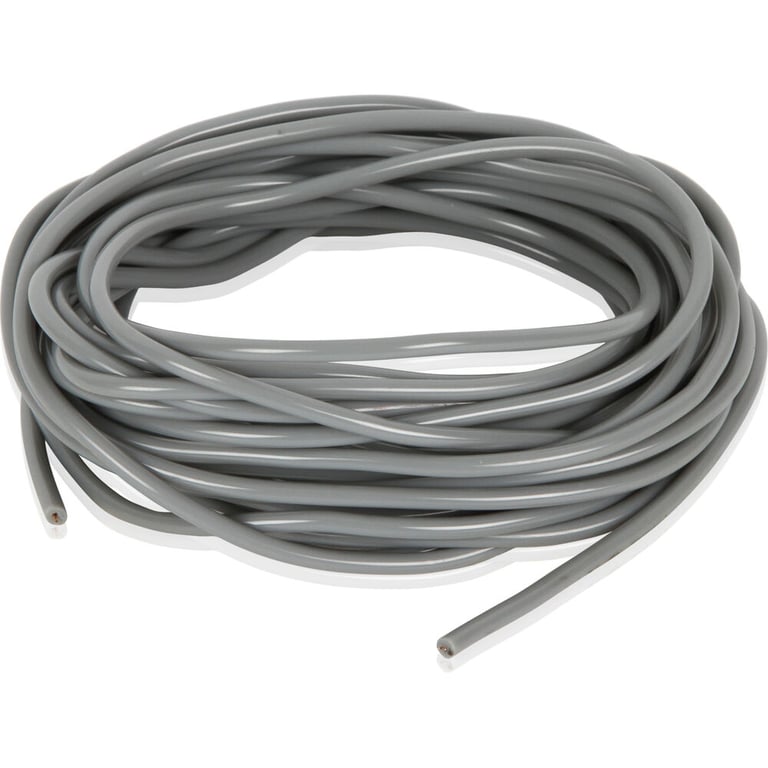

  3. 17 ft. Gray 18 gauge remote lead wire

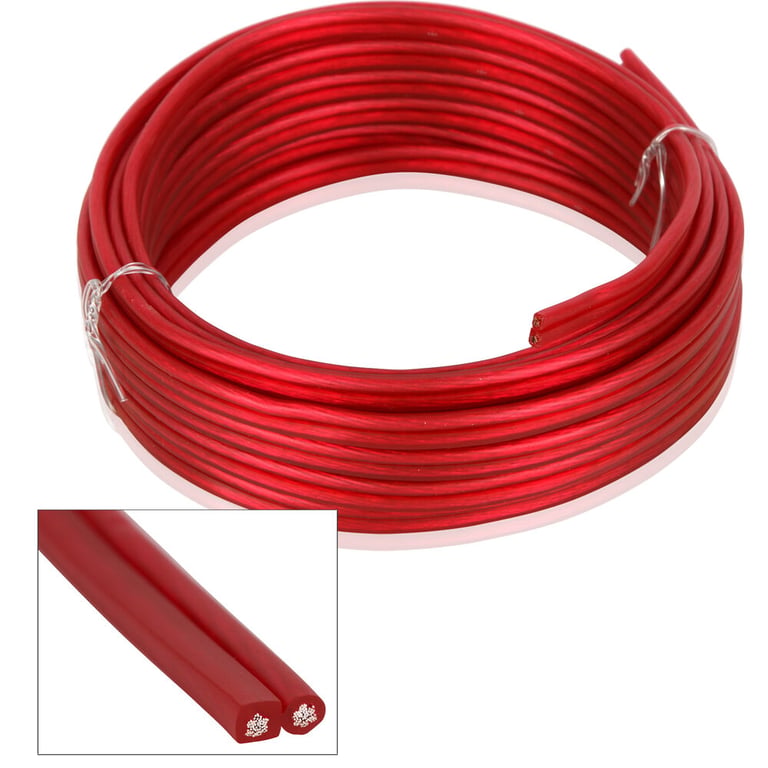

  4. 20 ft. 16 gauge speaker wire

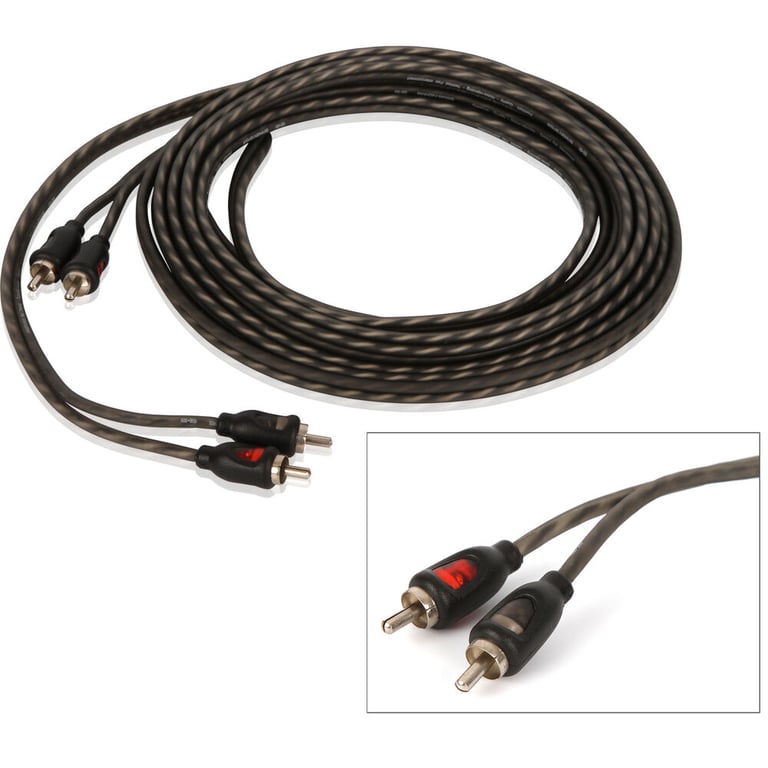

  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

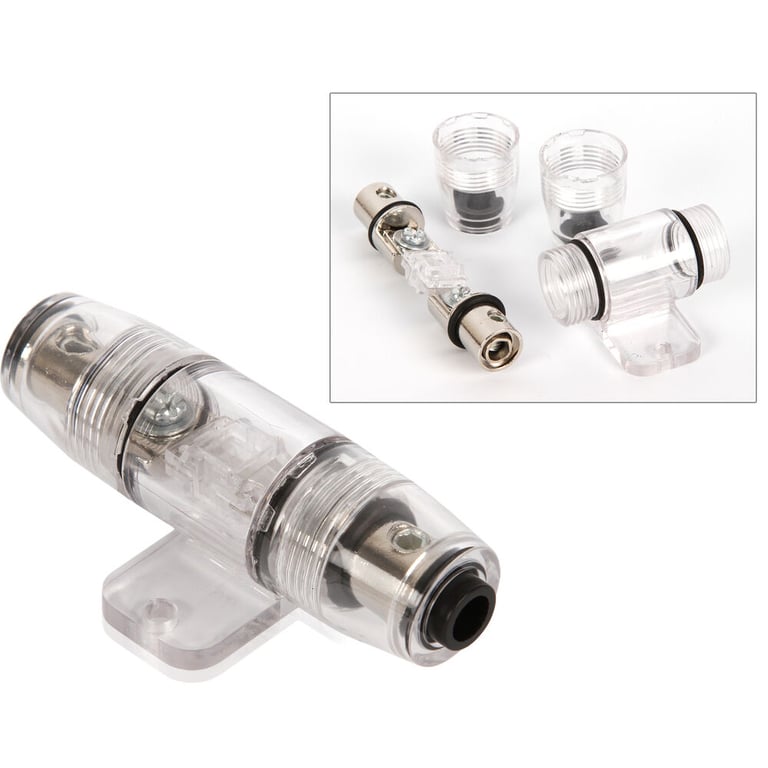

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse

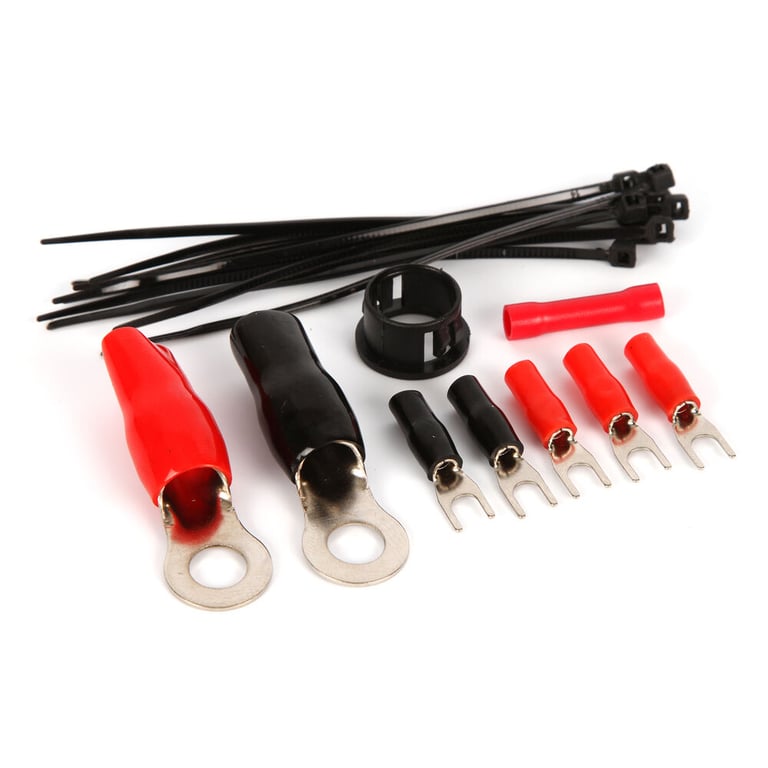

  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(216)

$574.48

List price $609.98

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 2 channel
RMS Power @ 2 ohms
70 watts x 2 channel
Bridged RMS Power
130 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
140 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
80 - 1200 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
20A x 1
Total Fuse Rating
20
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

BBX-T600, bak42

Weight:

7.60lbs

Internal SKU:

bbxt600_bak42

Internal Product ID:

186199

Customer Ratings & Reviews


Alpine BBX-T600 with Amplifier Wiring Kit thumbnail image

5 star
82%
4 star
11%
3 star
6%
2 star
0%
1 star
2%



Durability
4.7
Value
4.8
Features
4.5
Design
4.7
Usability
4.5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Quality Product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Works very well with my Rockford Fosgate sub system in my car.

By Ronald on December 11, 2014

135 found this helpful


good deal!

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Pretty decent value for the price. Worked out great, thanks.

By Brett on January 29, 2015

130 found this helpful


Usable

The following review is for BAK42BK, which is a part of the bundle you are viewing.

The wiring has done me right so far but the only thing I don't like is the speaker wires. You have to carefully split it so the wire doesn't show. Other than that minor thing everything was great and a great value!

By tyler on November 18, 2014

126 found this helpful


price is right

The following review is for BAK42BK, which is a part of the bundle you are viewing.

the price is right for this setup. the ground wire and the power wire are to big for my amp but i made them fit. better to have to much than not enough so if i upgrade to a larger amp it will be fine.

By Mark on November 13, 2014

123 found this helpful


Accessories for product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Just what I needed and made installation so much easier. Thanks

By Susie on February 9, 2015

113 found this helpful


awesome products

The following review is for BAK42BK, which is a part of the bundle you are viewing.

I run 2 12inch audiobahn exursions on this amp and it pushes them very well. The size is perfect not to big and fits right unerneath the seat or small space. The best part is it stays pretty cool even after running most the day.

By CJ on March 22, 2015

108 found this helpful


good wires

The following review is for BAK42BK, which is a part of the bundle you are viewing.

I like the wire kit I got with my amp it seems to be holding up goo it handles the power of the amp I got but I would of gave it 5 stars all the way around but I wold of like the ground at less 2 more feet for good use but over all its a nice kit

By jay on March 8, 2015

100 found this helpful


Good stuff

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Great product last a long time good value for the money.

By Brandon on December 7, 2014

106 found this helpful


Cable

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Good product fast shipping awsome seller... keep up the good work.....

By Rondell on November 9, 2015

84 found this helpful


Perfect kit

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Comes with everything you need. Works good with my 800w system

By Chad on May 14, 2020 Checkmark Icon Verified purchase

69 found this helpful




RSM1.4000D, BAK82 small

Soundstream RSM1.4000D with Amplifier Wiring Kit

4000W Peak (1200W RMS) Reserve Series Class D Monoblock Car Amplifier with Bass Remote

(100)

$142.48

List price $179.98

PZ2-4030.1D, BAK42 small

Crunch PZ2-4030.1D with Amplifier Wiring Kit

4000W RMS Powerzone 2 Series Class-D Monoblock Car Amplifier Package

(169)

$164.48

List price $359.98

PS-TRUCK30-M small

Echomaster PS-TRUCK30-M

COMPLETE TRUCK REAR SENSOR KIT WITH EXTENDED 30' HARNESS

$143.99

List price $229.00

PD 800.2, BAK82 small

Crunch PD800.2 800w 2-Channel Amplifier Car Audio Power Drive Class AB+Amp Kit

800W Max Power Drive Series 2-Ohm Stable Bridgeable 2-Channel Amplifier + Complete 8 Gauge Amplifier Wiring Kit Package

(100)

$67.95

List price $199.98

JH300-RB_HFi12D4 small

600W Complete MTX Audio + Hifonics Bass Package

MTX Audio JackHammer JH300 Amplifier + Hifonics HFi12D4 12" Sub + 8 GA Amp Kit + Sealed Enclosure

(106)

$178.89

List price $439.96

GTR-1001 XKIT42 small

JBL GTR-1001 with FREE 100% Copper True Spec Installation Kit

2600W Max (1000W RMS) GTR Series 2-Ohm Stable Monoblock Subwoofer Amplifier + 100% Copper, True Spec 8 Gauge Amplifier Installation Kit

(125)

$499.95

List price $743.94

BBX-F1200, XFLOC4, BAK44 small

Alpine BBX-F1200 + NVX XFLOC4 Line-Output-Converter + Amp Kit

600W Max (280W RMS) 4-Channel Amplifier + NVX 4-Channel L.O.C. + 4 Gauge Amp Kit

$200.05

List price $334.98

SQ 3 12-GRAY small

Ground Shaker SQ 3 12-GRAY

12” Triple Sealed Square Subwoofer Box

$119.95

List price $159.95

GM1520B small

Scosche GM1520B / GM1520

Double DIN or Single DIN w/ Pocket Installation Kit for select 2005-2011 Aveo and Aveo5 and G3 Vehicles

(2)

$13.99

List price $17.70

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Audi A4 Quattro

2014 Kia Optima

2005 Dodge Viper

1989 Mercury Topaz

1988 Isuzu Pickup

1991 Jeep Cherokee

2000 Toyota Solara

2006 Toyota Camry

2009 Volvo S80

1981 Oldsmobile Ninety Eight Regency

Vehicle
Store
Delete

2024 Can-Am Defender XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
