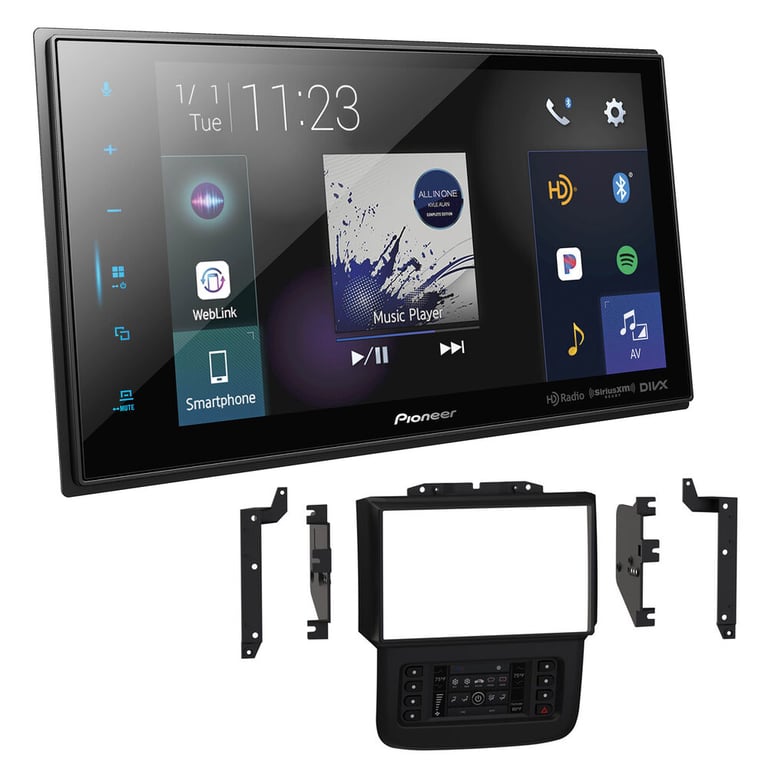

Pioneer DMH-C5500NEX Package for Ram 2013-2017

Modular Solutions

Pioneer’s Modular Solutions receivers are designed for applications, often recent vehicles, with limited depth behind the dash that disables the installation of a traditional 1DIN or 2DIN receiver. This installation flexibility is achieved by physically separating the LCD touchscreen display from the sub-chassis that contains the CPU, control system, terrestrial radio tuner, amplifier and input/output connections. This allows the sub-chassis to be mounted in a different location* or different horizontal/vertical orientation within the vehicle.

General Features:

• Pioneer Pioneer DMH-C5500NEX In-Dash Receiver
• CEA-2006 compliant
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels
• NON-DIN/Modular Unit
• CD text information display
• Apple CarPlay & Android Auto
• Spotify®, Works with Pandora®, SiriusXM Ready
• 8" Clear resistive WVGA touchsreen
• MP3 ID3 Tag Display (Title/Artist/Album)
• AM/FM tuner with 18FM/6AM presets
• Remote control included
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

Navigation Features:

• Use your favorite navigation apps from your phone
• Add in-stereo navigation with the Pioneer AVIC-U280

Playback and Audio Features:

• MP3/WMA/AAC/WAV/FLAC/MPEG-1/MPEG2/MPEG4/AVI/DivX/WMV/JPEG Playback via USB
• Compatible with Apple iPhone 6/6+ and iOS 8 software
• 13-band graphic with selectable tone curves on Easy EQ
• 3.5mm Rear A/V Auxiliary Input
• Rear USB Input
• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
• PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
• SYNC: Synchronization Profile enables the synchronization of Personal Information Manager (PIM) items
• SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
• Works with most Bluetooth enabled cell phones
• Includes a (external wired/built-in) microphone for clear, convenient, distortion-free talking
• Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

• SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
• HD Radio Built-in
• Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.
