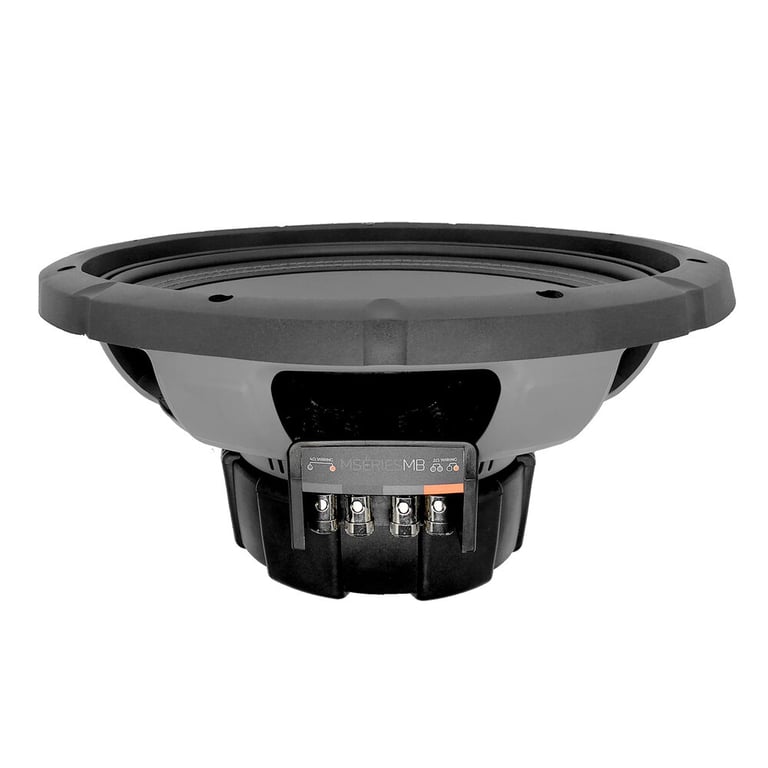

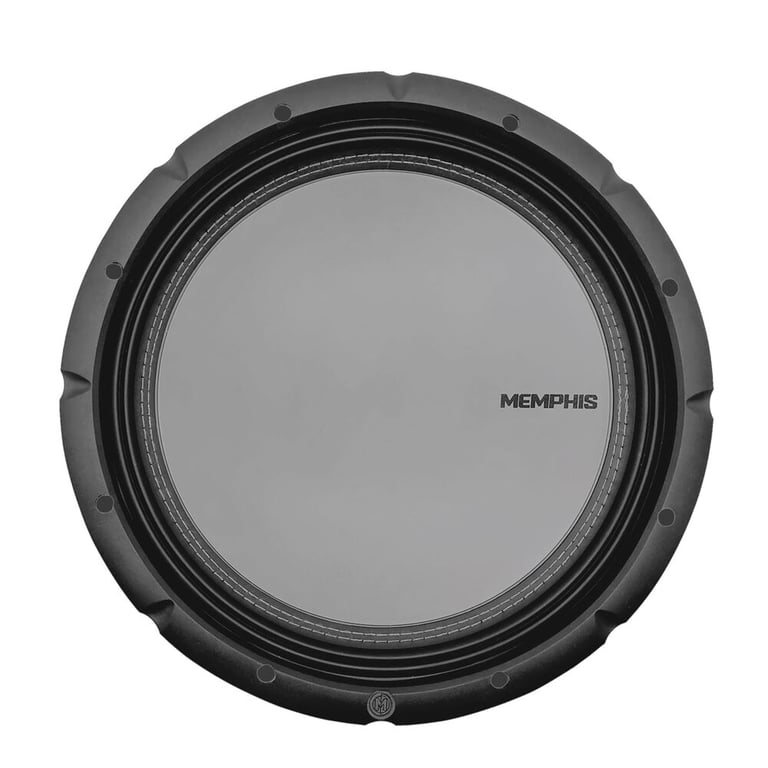

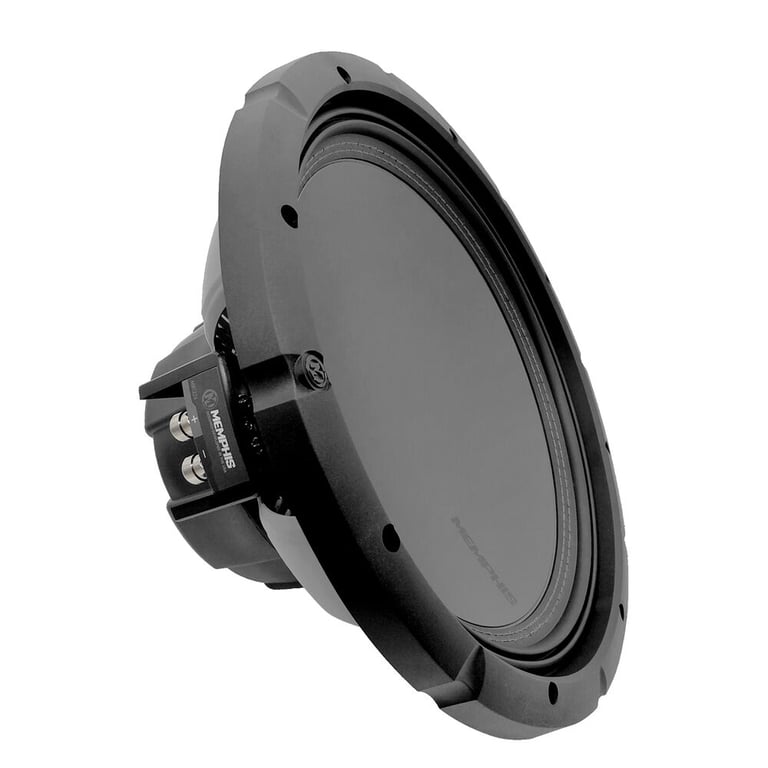

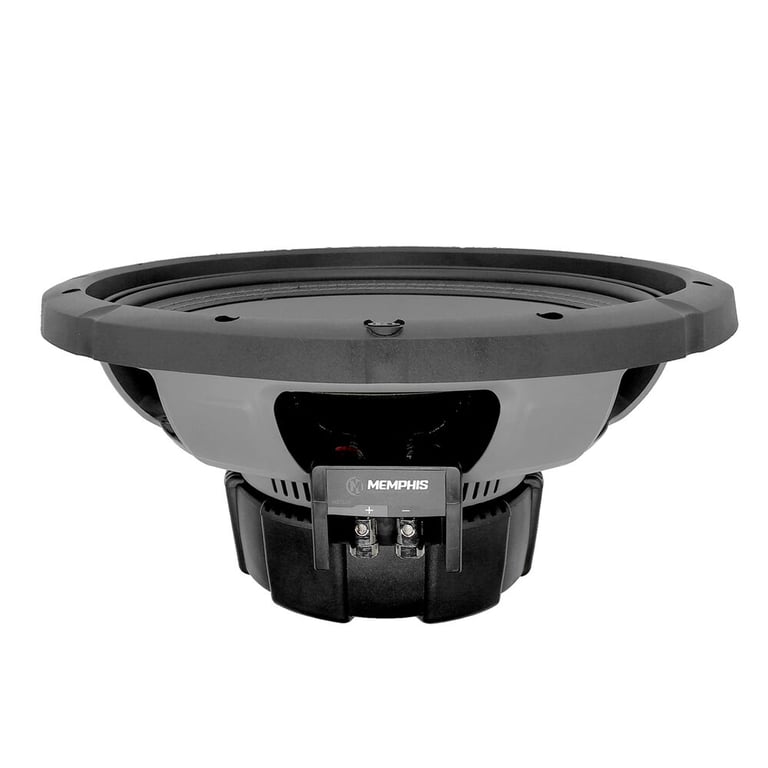

Memphis MB1224

1000W Peak (500W RMS) 12" MB Series Single 4-Ohm Car Subwoofer

Memphis
Shop all Memphis
highlight-star-icon

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Paper Cone
• Rubber Surround
• Impedance: Single 2 or 4 ohm
• Mount depth: 5-3/8"
• Sensitivity: 86.8 dB

Learn more about the mb1224

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

86
51KSC6804 main

Kicker KSC68 (51KSC6804)

150W Peak (75W RMS) 6x8" KS Series 2 Way Coaxial 4-ohm Speakers

3
-13.33%

$129.99

List price $149.99

51KSS6804 main

Kicker KSS68 (51KSS6804)

500W Peak (250 RMS) 6x8" KS-Series 2-way 4-ohm Component Speaker System (KSS6804)

-10.71%

$249.99

List price $279.99

Description


Memphis brand icon

Authorized dealer

MSeries MB subwoofers are packed with advanced technology making them one of the most versatile, high-performance subwoofers on the market. The unique selectable impedance technology allows you to switch a single subwoofer between 2Ω and 4Ω via the included jumper cable. The highly advanced multi-voice coil and selectable terminal work in conjunction to produce a true 2" and 4Ω impedance unlike other selectable systems on the market. Memphis took cues from their flagship VIV1422 subwoofer to make the MB subwoofer a performance machine. The V-Groove surround allows for maximum excursion without sacrificing surface area and the DVVC Voice Coil Cooling technology pulls air out of the subwoofer much more efficiently than traditional pole venting. These subwoofers are built with performance and versatility in mind and will make the perfect solution for any audio system.

Product Details:

  • 12" Single 2 or 4 ohm MB Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Paper Cone
  • Rubber Surround
  • Selectable Impedance design: 2 Ohm or 4 Ohm
  • 4-layer Aluminum multi-coil
  • DVVC Dual layer vented voice coil
  • Woven tinsel leads
  • 2" High Temperature Aluminum Voice coil
  • 11.43 mm Xmax
  • 60 oz. Single Stacked magnet motor structure
  • Frequency Response: 32 - 150 Hz
  • Resonance Frequency (Fs): 33 Hz
  • Sensitivity: 86.8 dB
  • Sealed box volume: 0.95 cubic feet
  • Ported box volume: 1.83 cubic feet
  • Top-mount depth: 5-3/8"
  • Cutout diameter: 11-1/16"
  • Grille not included
  • Authorized Internet Dealer
  • Protective subwoofer grille: No
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Memphis MB1224 Subwoofer

Mono Amp

Wiring Guide to Wire 2 Memphis MB1224 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Memphis MB1224 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Memphis MB1224 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
MB Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2"
Frequency Response
32 - 150 Hz
Sensitivity
86.8 dB
Xmax (millimeters)
11.43 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Magnet weight
60 oz.
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.95 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.83 cubic feet
Maximum Ported Box Volume
2.88 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/8"
Cutout Diameter
11-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
67.69 liters
Total Speaker Q Value (Qts)
0.72 - 0.61
Electrical Q Value (Qes)
0.83 - 0.69
Mechanical Q Value (Qms)
5.3 - 5.22
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MB1224

Weight:

12.10lbs

Internal SKU:

mb1224

Internal Product ID:

186641
