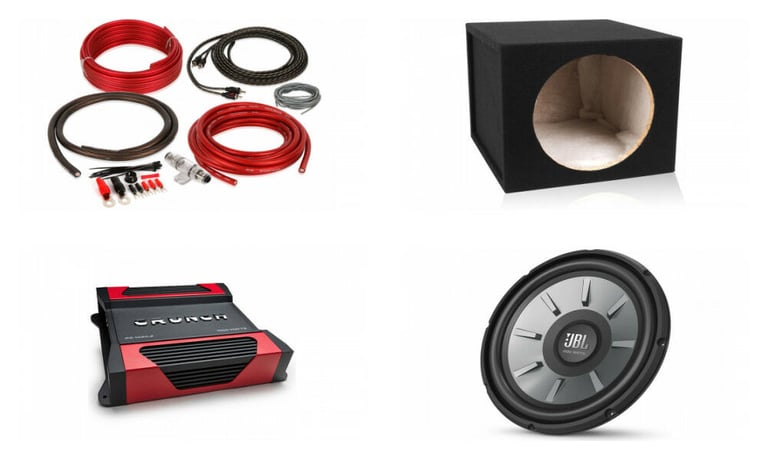

Crunch PZ-1020.4 (PZ10204) + JBL Stage1210D + Sealed Enclosure and Amp Kit

General Features:

• Crunch Powerzone Series PZ-1020.4
• Class-A/B Full Range 2 ohm Stable 4-Channel Amplifier
• Max Power Rating:
• 4 ohm: 125 watts x 4 chan.
• 2 ohm: 250 watts x 4 chan.
• 1 ohm: ------------N/A------------
• Bridged, 4 ohm: 500 watts x 2 chan.
• Total power output: 1000 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• 4/3/2 channel operation
• Speaker-level (high-level) inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Frequency Response: 10 - 45000 Hz
• Total Harmonic Distortion (THD): .05%
• Signal to Noise Ratio: >90dB
• Variable high-pass filter: 60 - 1200 Hz
• Variable low-pass filter: 30 - 250 Hz
• Switchable Bass Boost: 0, +6, +12 dB bass boost
• Fuse Rating: 15A x 2
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

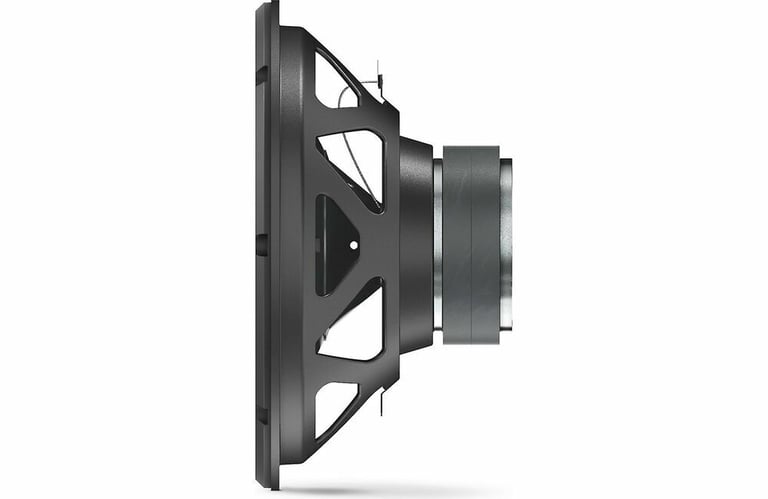

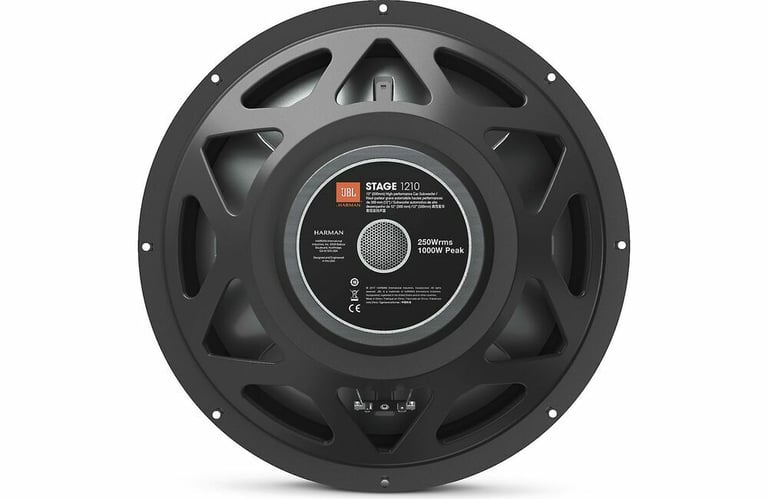

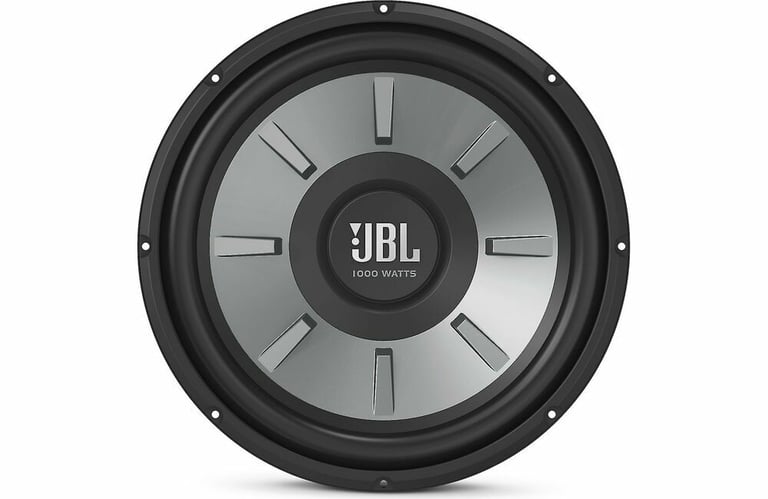

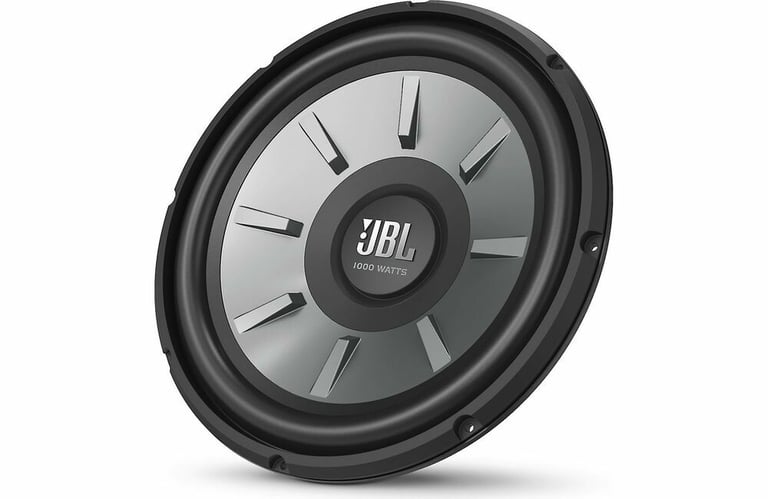

• 12" Single 4 ohm JBL Stage Series Subwoofer
• Power Handling:
• Peak: 1000 watts
• RMS: 250 watts
• Polypropylene Cone
• Rubber Surround
• Highest Grade Materials for Super Reliability
• Harman Standard Reliability Testing
• Competitively Tuned
• 2" High Temperature Voice Coil Material
• 11.35 mm Xmax
• Frequency Response: 34 - 200 Hz
• Resonance Frequency (Fs): 31.7 Hz
• Sensitivity: 91 dB
• Sealed box volume: 1.4 cubic feet
• Ported box volume: 1.6 cubic feet
• Top-mount depth: 6-7/16"
• Cutout diameter: 11-1/16"
• Authorized Internet Dealer
• Protective subwoofer grille: No
• 1-year Manufacturer's Warranty



Priced Individually

General Features:

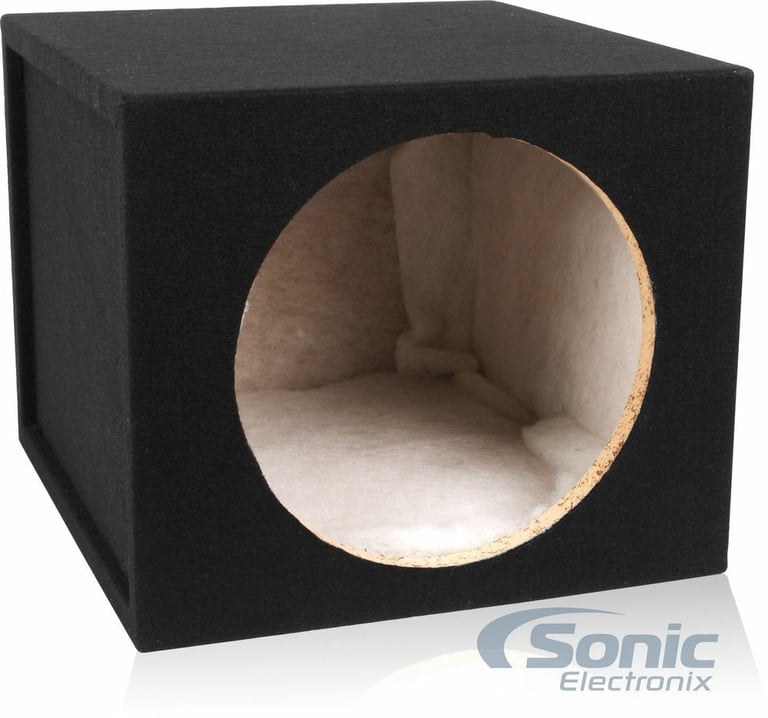

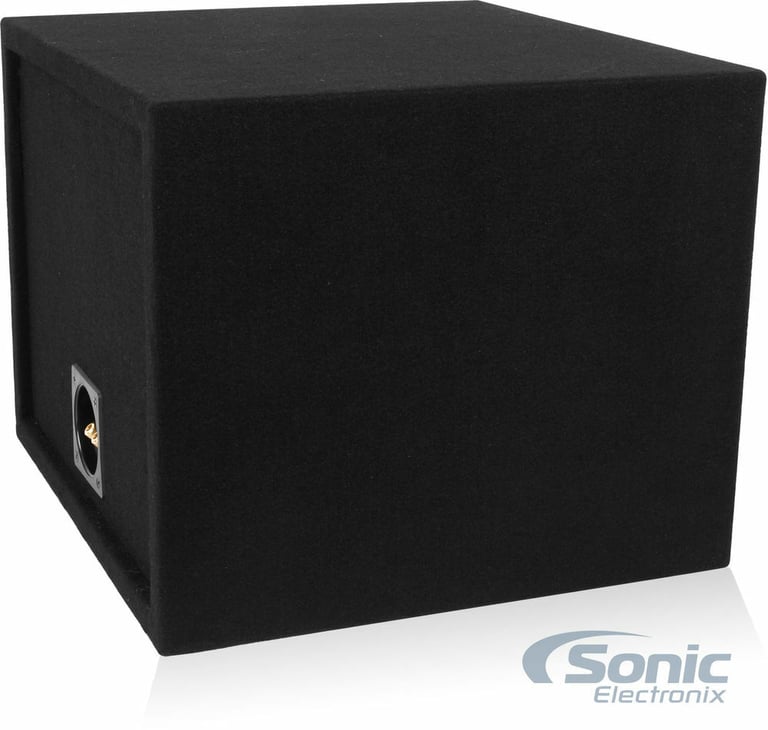

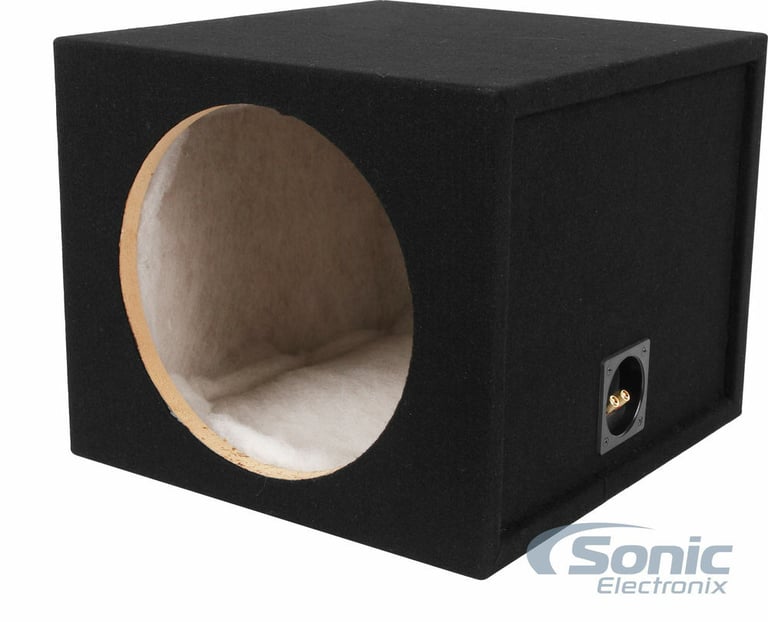

• Single Sealed 12" Enclosure
• Internal box volume: 1.5 cubic ft
• High Quality 3/4" MDF Construction
• Durable black carpeting

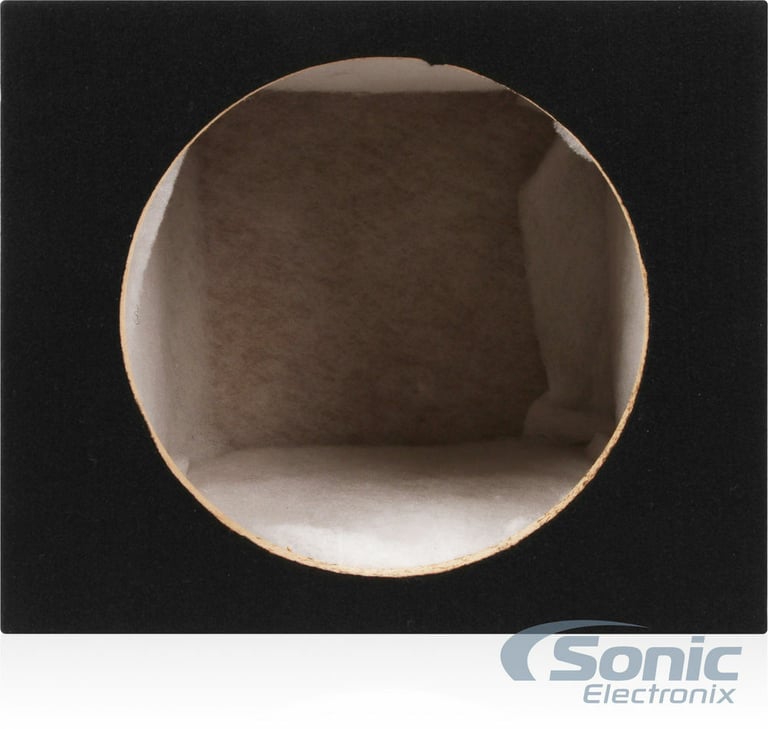

• Pre-lined with Poly-Fil
• Seams are fully caulked for better efficiency

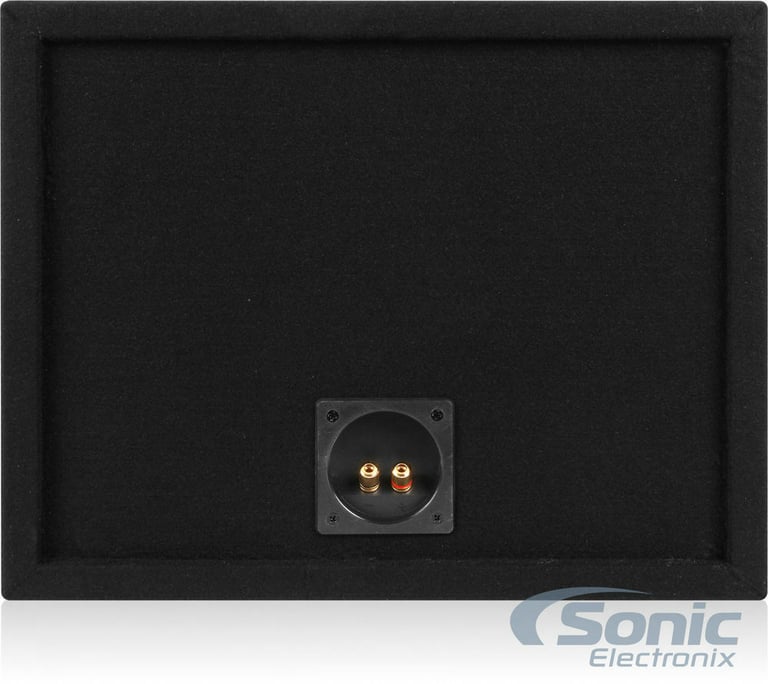

• Gold post terminals for clean and easy wiring access
• Box Dimensions: 16"L x 17"D x 13-1/2"H
• 30 Day return policy

Product Details:

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition

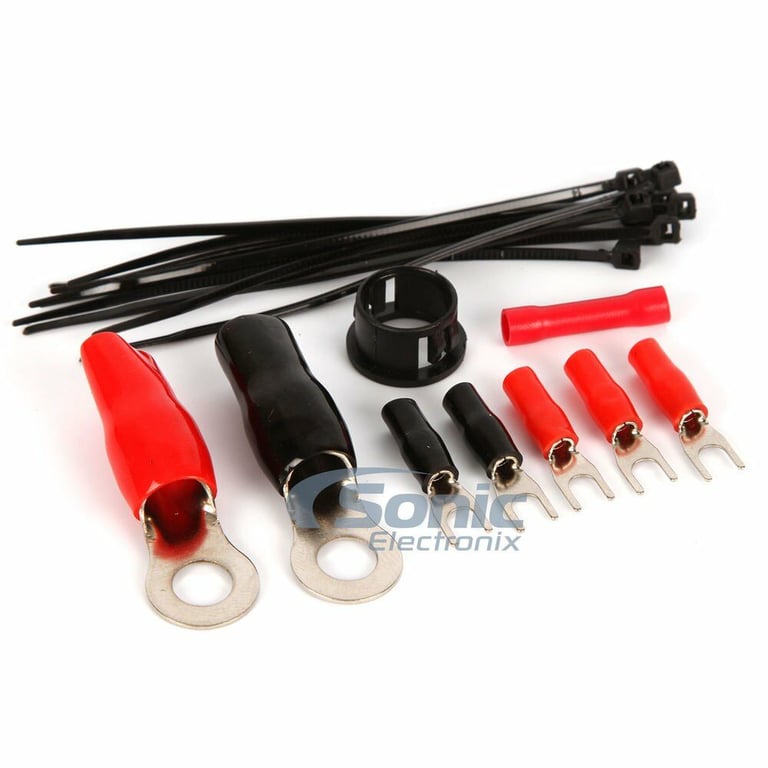

• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Gray 4 gauge power wire

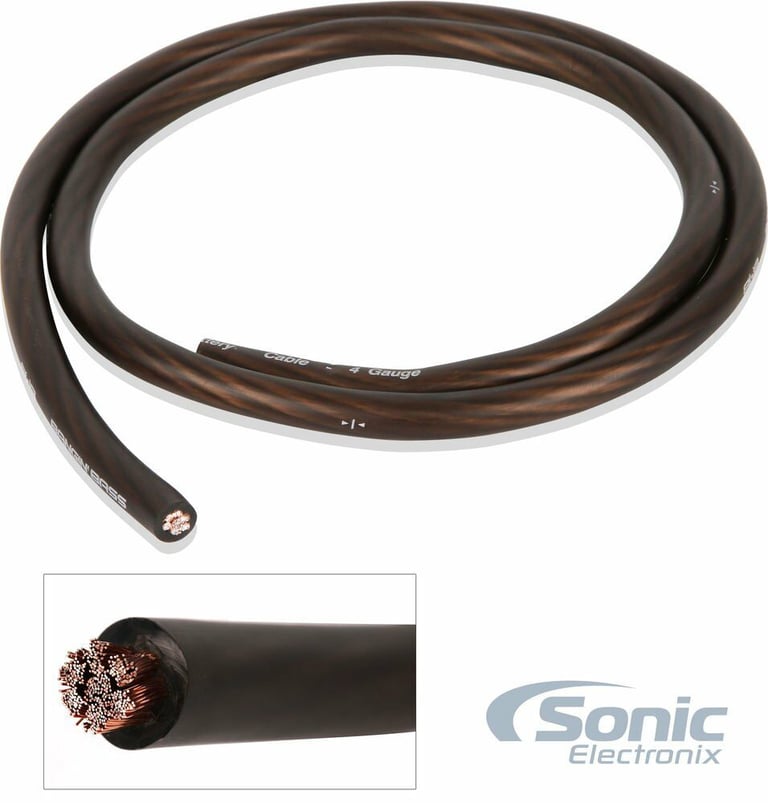

2. 3 ft. Black 4 gauge ground wire
3. 17 ft. Gray 18 gauge remote lead wire
4. 20 ft. 16 gauge speaker wire
5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

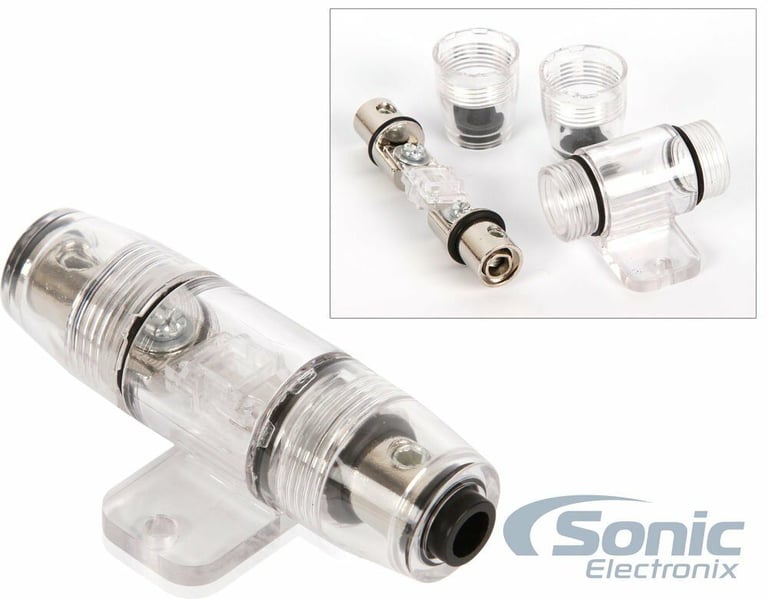

6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties
