Description


Infinity brand icon

Authorized dealer

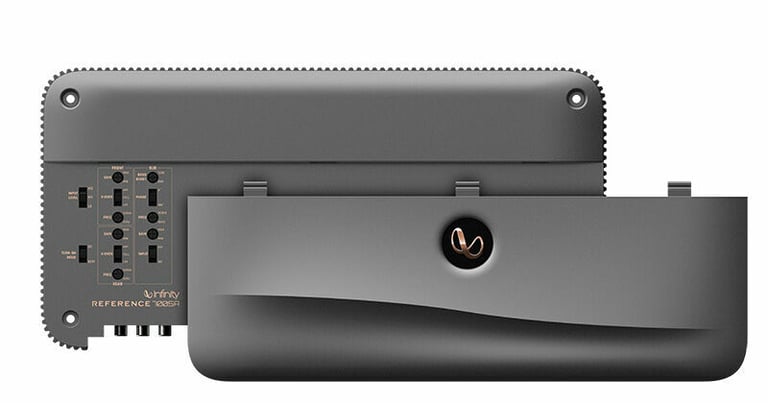

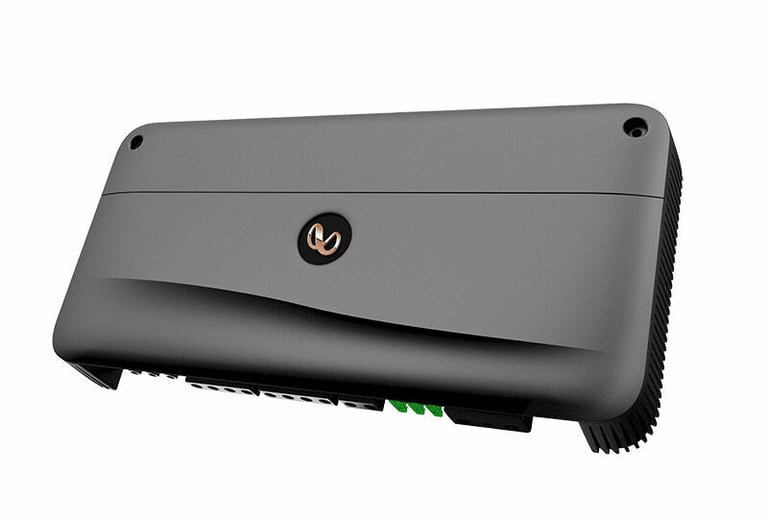

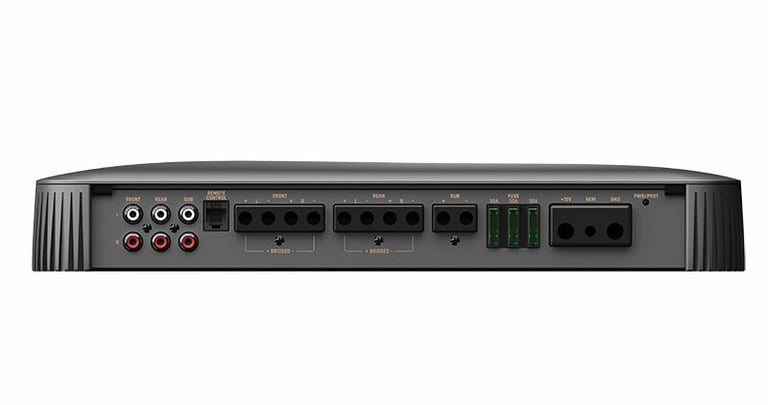

Infinity Reference 7005A (AMPRF7005AAM)

760W RMS Class AB/D Reference Series 5 Channel Car Amplifier
Quantity: 1

Product Details:

  • Reference Series Class AB / D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 channel + 320 watts x 1 channel
    • 2 ohm: 65 watts x 4 channel + 500 watts x 1 channel
    • Bridged: 140 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
  • Total power output: 760 watts
  • LED Power/Protect Light
  • RBC wired bass level remote control included
  • Speaker-level (high-level) inputs
  • High and low level input
  • Compact size/small footprint
  • Variable crossover and bass boost allows fine-tuning
  • Low noise and distortion produce tight bass with low distortion at high SPL
  • Input Level Control adjusts input sensitivity between 200mVrms and 2Vrms
  • Full on-board protection protect from shorts, temperature, overvoltage/under voltage
  • Phase Switch function changes input phase to invented or non invented
  • Turn-on mode changes DC to REM to adapt to high or low level signals
  • Input sensitivity:
    • Low level: 200mV - 2 volts
    • High level: 2 - 20 volts
  • Frequency Response: 10 - 40000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: >80 dB
  • Variable high-pass filter: 32 - 320 Hz
  • Variable low-pass filter: 32 - 320 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 90A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 14-3/16" L x 7-1/8" W x 2-3/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: AMPRF7005A

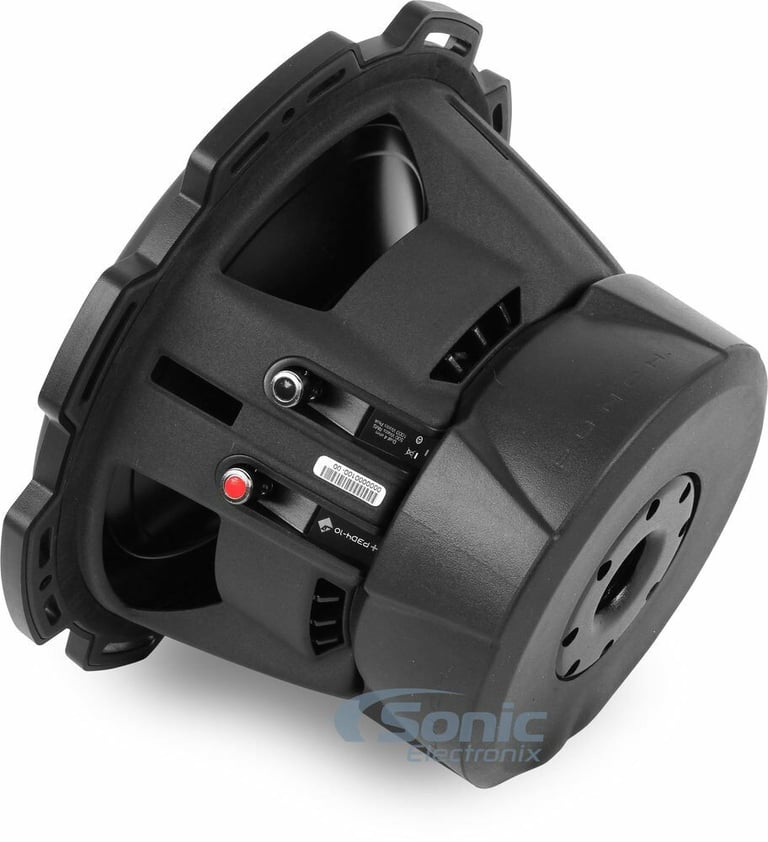

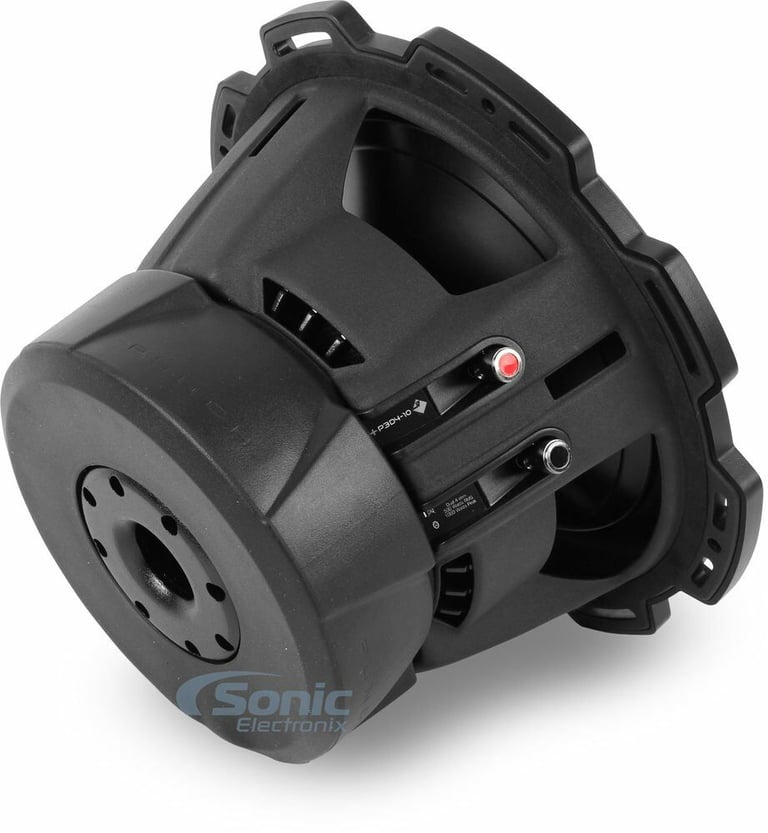

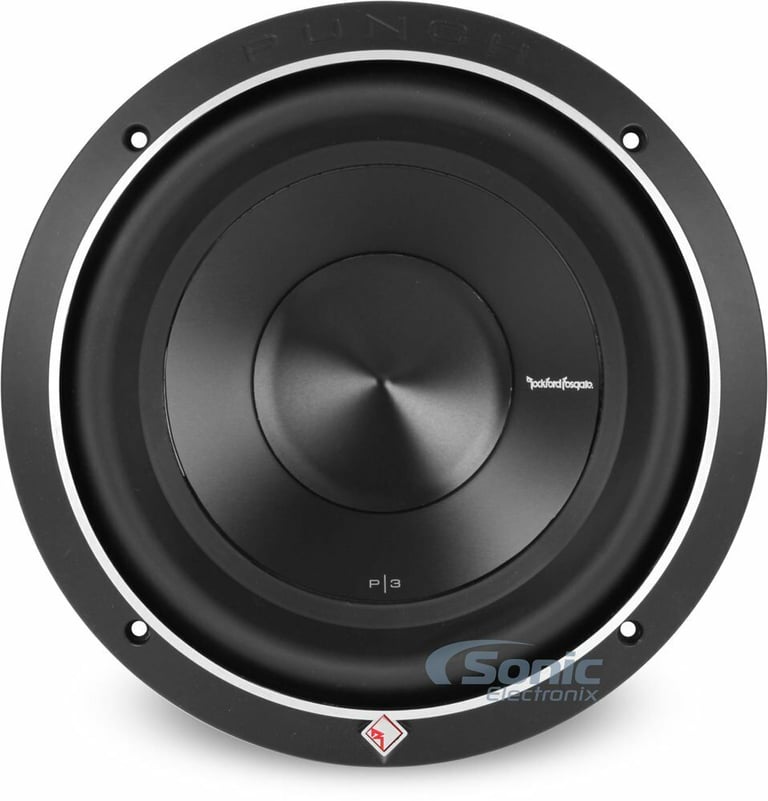

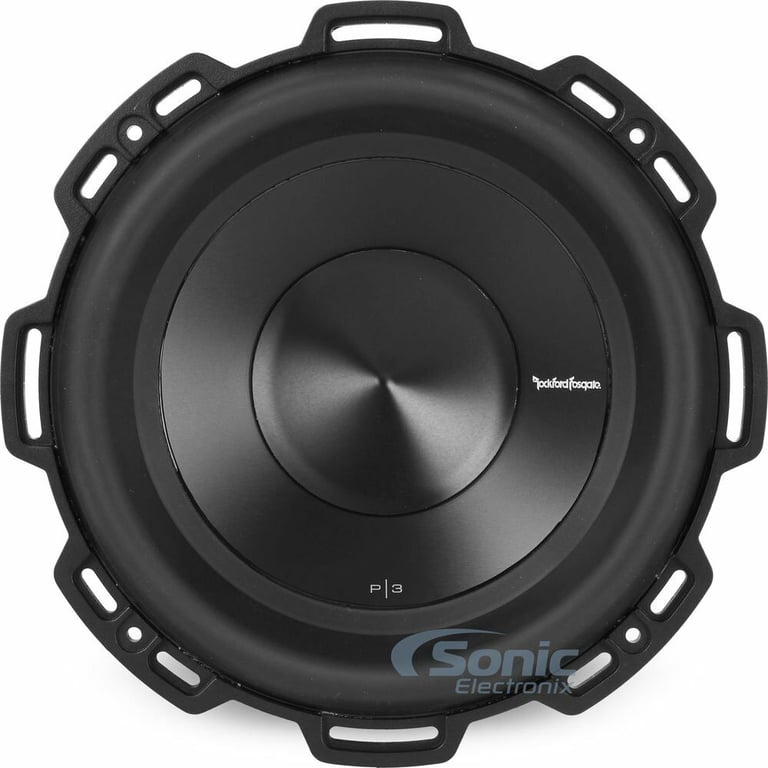

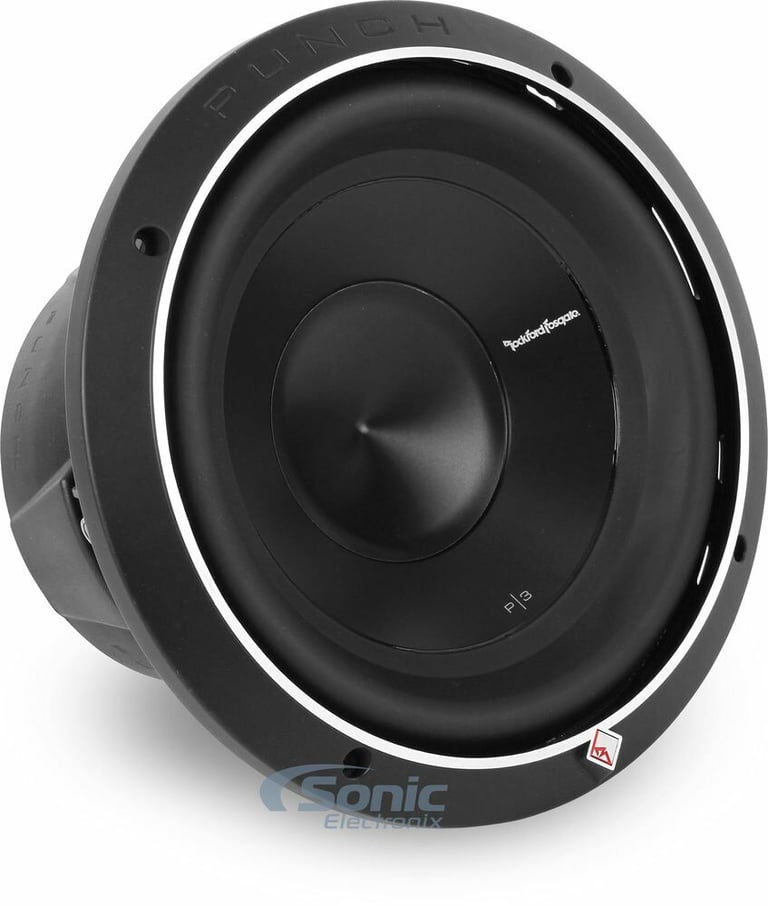

Rockford Fosgate Punch P3 P3D4-10

1000W Peak (500W RMS) 10" Punch Series Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohm Punch Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Anodized Aluminum Cone
  • Santoprene Rubber Surround
  • Spun-laced Nomex re-enforcement collar
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Protective PVC textured magnet cover
  • Extended pole piece and bumped vented backplate
  • Stamp Cast basket with integrated spider venting

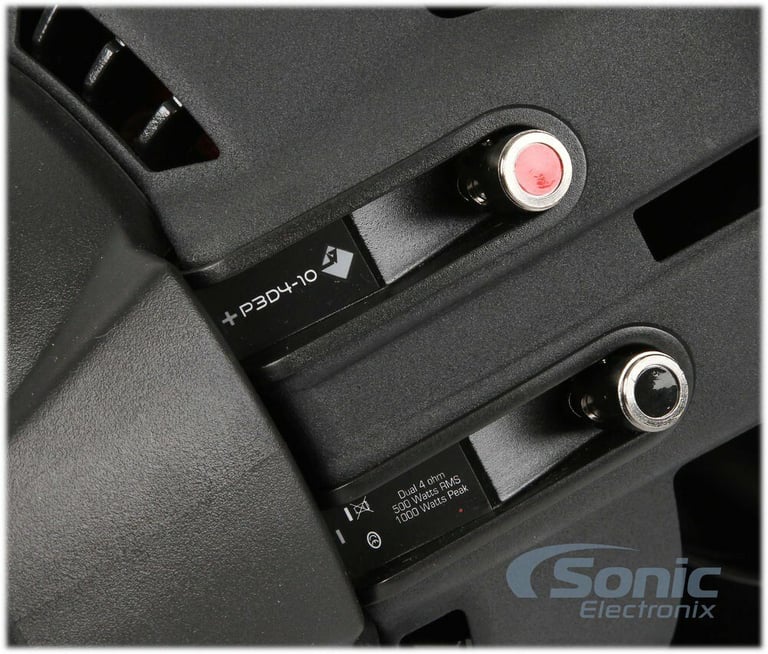

  • Custom 10-AWG nickel plated push terminals
  • Diamond cut cast aluminum trim ring
  • 2.5" High Temperature Aluminum Voice coil
  • 15.9 mm Xmax
  • 81 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 28 - 250 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Sensitivity: 82 dB
  • Recommended sealed box volume: 0.5 cubic feet - 0.75 cubic feet
  • Recommended ported box volume: 1.4 cubic feet
  • Cutout diameter: 9.13"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • Optional subwoofer grille Rockford Fosgate P2P3G-10 (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

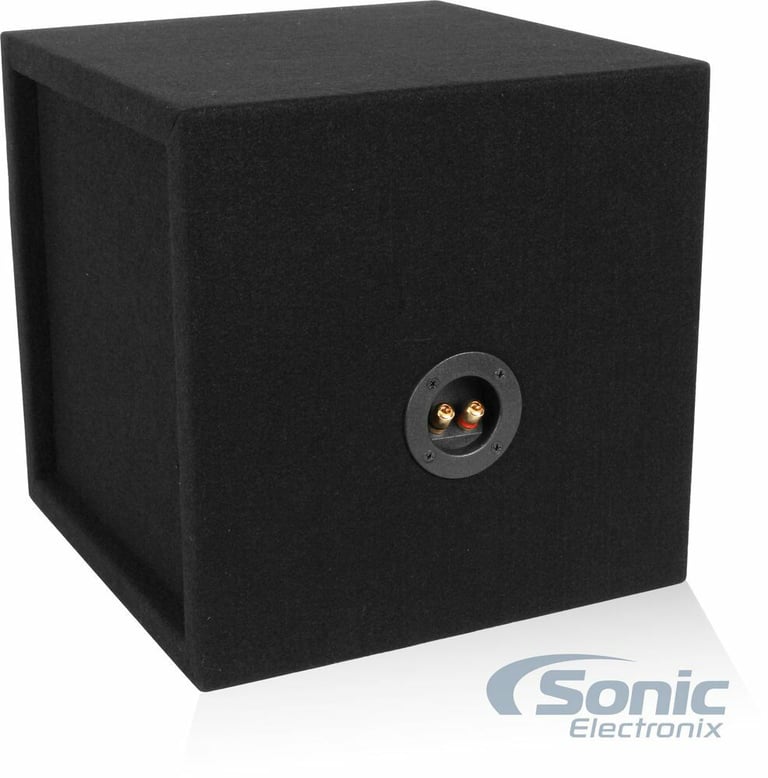

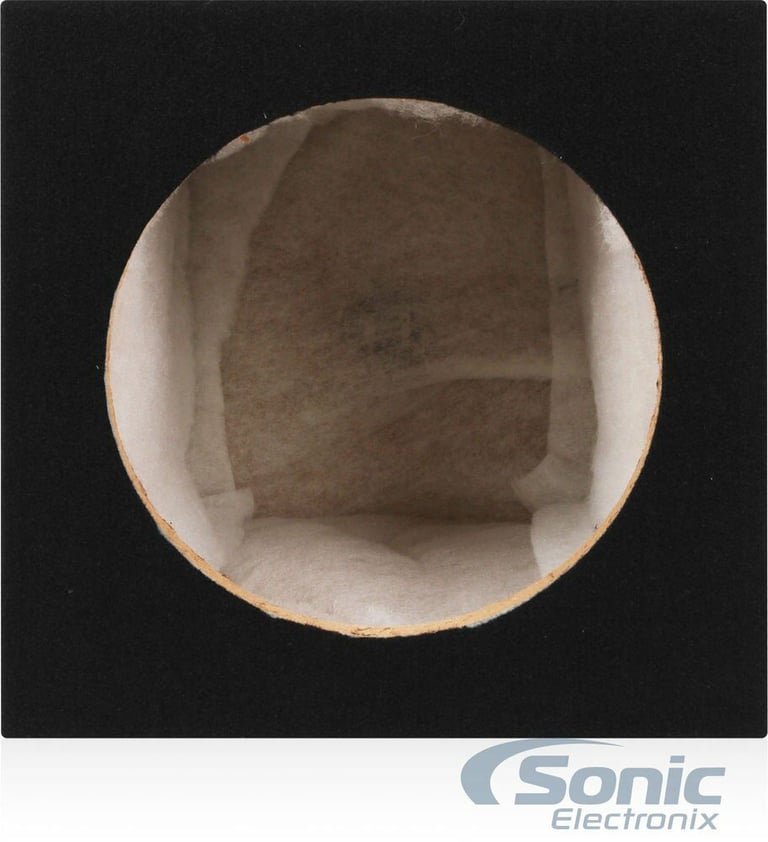

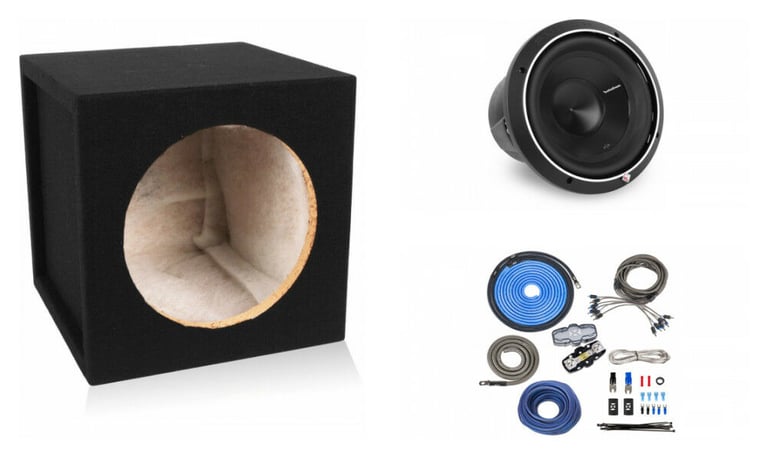

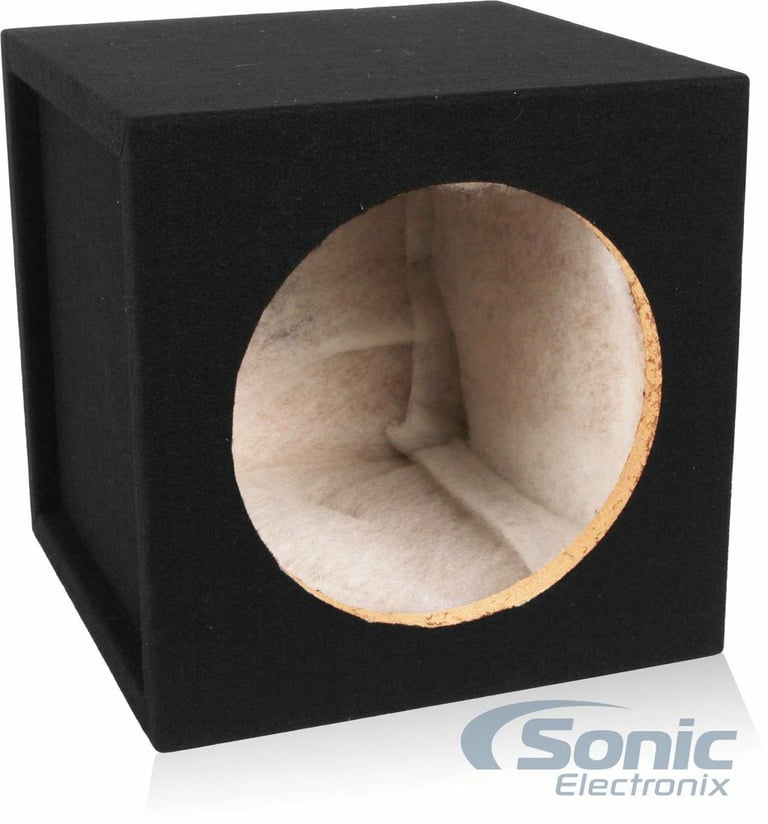

Single 10" Sealed MDF Subwoofer Enclosure (Belva MDFS10)

10-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (0.77 cu ft airspace 10SQTC)
Quantity: 1

General Features:

  • Single Sealed 10" Enclosure
  • Internal box volume: 0.77 cubic ft
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 12-1/2"L x 12-1/2"D x 12-1/2"H
  • 30 Day return policy

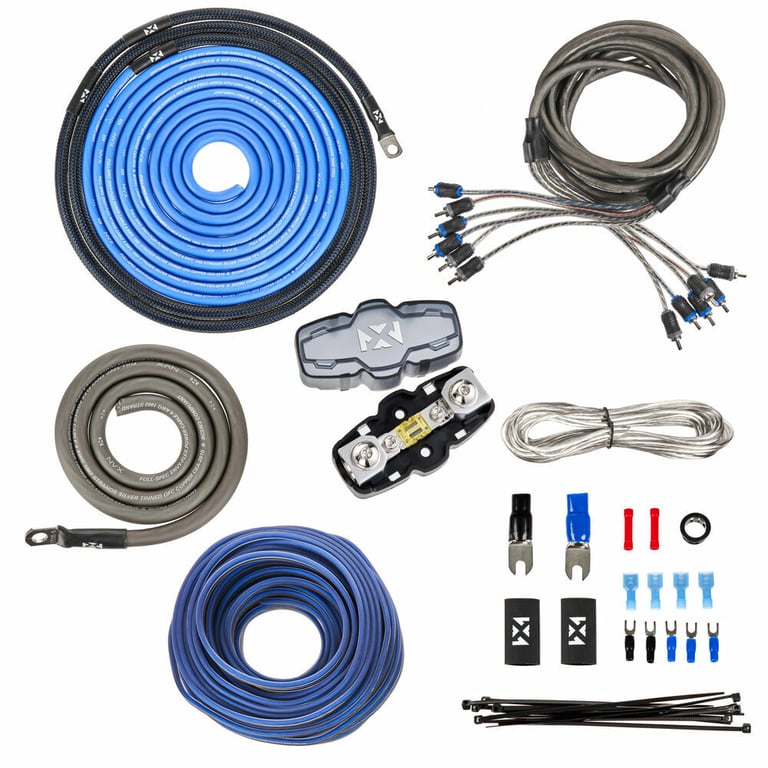

NVX XKIT46

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

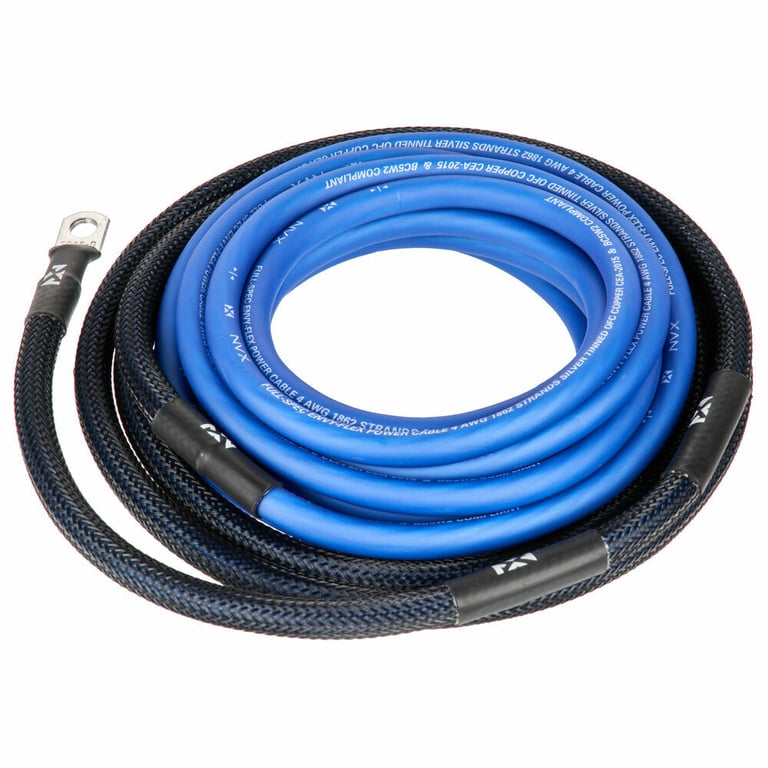

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

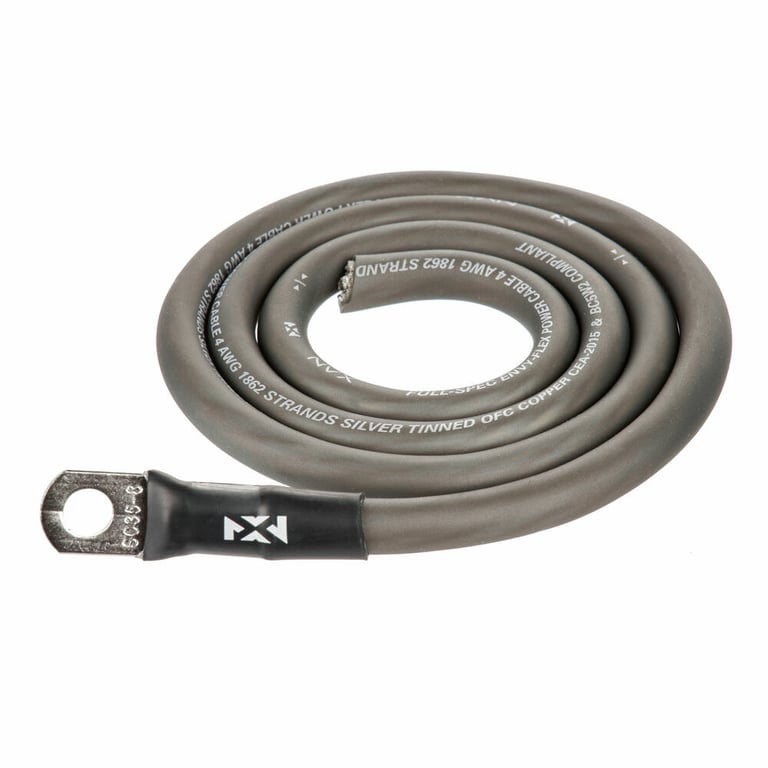

  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

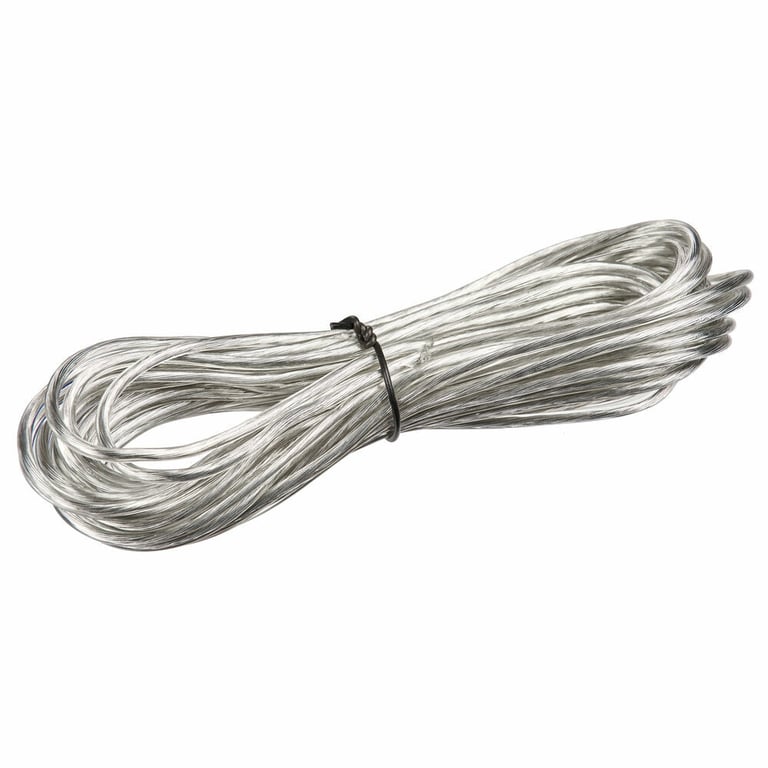

  3. 17 ft. Clear 18 gauge remote lead wire

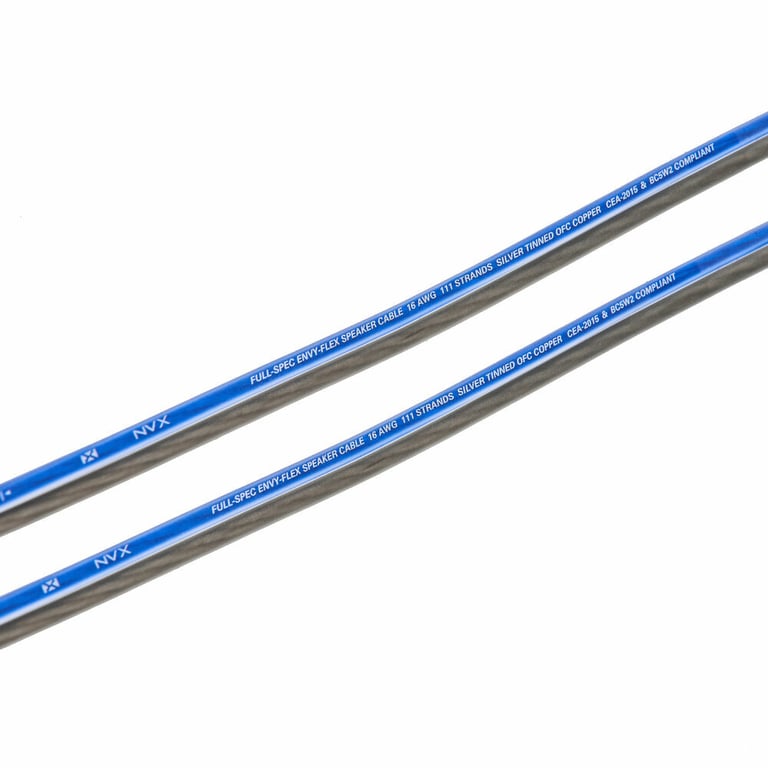

  4. 60 ft. Frosted Black/Blue 16 gauge speaker wire

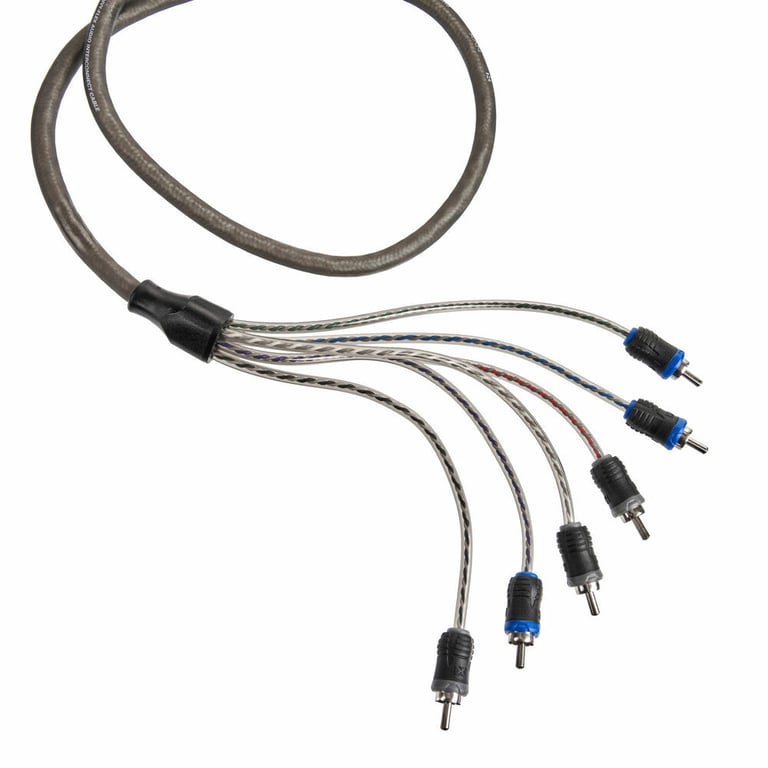

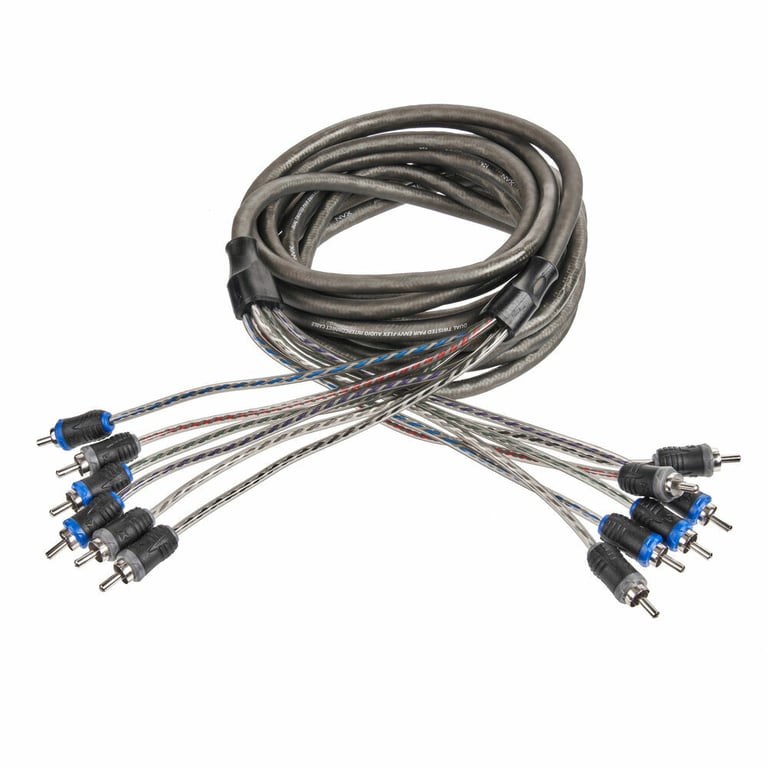

  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
  6. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

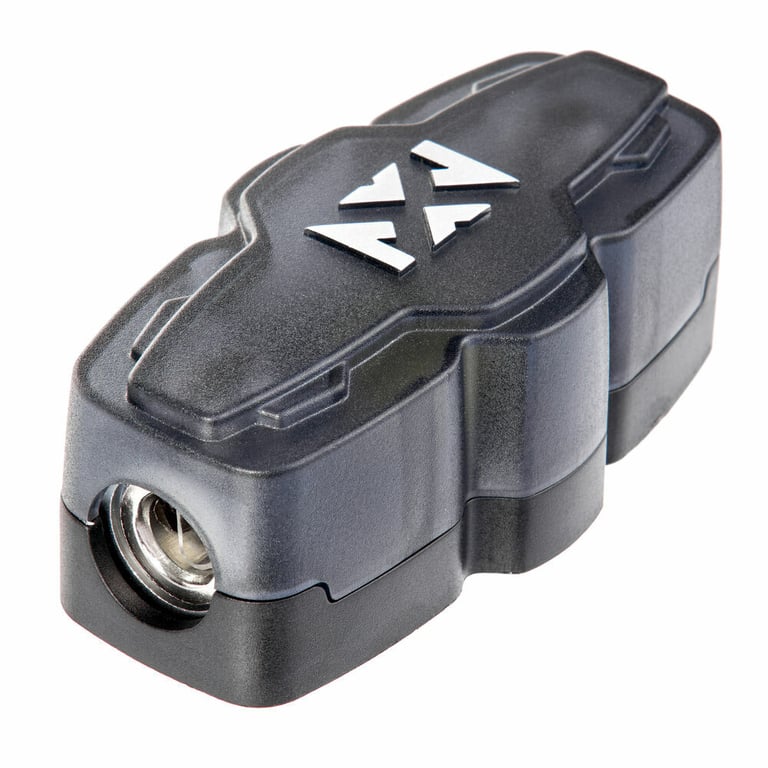

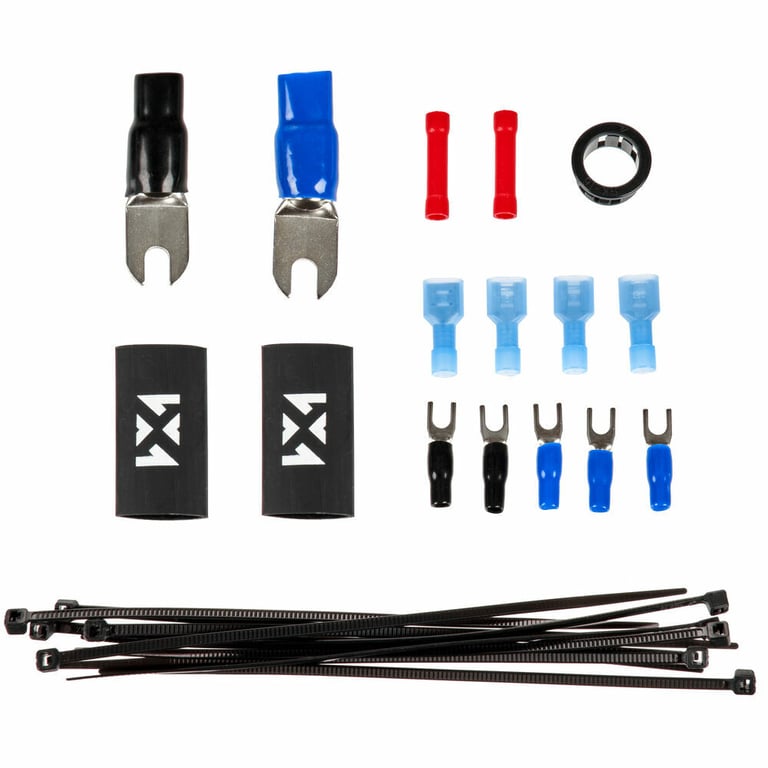

  7. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  8. One Black rubber firewall grommet
  9. Two 4 Gauge Nickel Plated spade terminals
  10. Four 18 Gauge Spade terminal
  11. Two 18 Gauge Red butt connectors
  12. Four 16 Gauge quick disconnect
  13. Five 16 Gauge Nickel Plated spade terminals
  14. Two Heat Shrink tubes with the NVX logo
  15. Ten 6" Black zip ties
