NVX MVPA4 + NVX XFLOC4 Line-Output-Converter

600W RMS 4-Channel Class D Compact Marine Amplifier + NVX 4-Channel L.O.C. + 8 Gauge Amp Kit

NVX
Shop all NVX
highlight-star-icon

• 4-Channel Micro Class D Amplifier
• 100W x 4-Chan. @ 4 ohm
• 150W x 4-Chan. @ 2 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Extremely Small Footprint!

Learn more about the mvpa4_xfloc4_bak84

We apologize

This item has been discontinued


Loading...
40-EU10 main

Metra 40-EU10 Antenna Adapter

Install a New Car Stereo and Retain Factory Antenna in select 2000-2017 vehicles from BMW, Mercedes-Benz, Ford

44
-14.30%

$11.99

List price $13.99

AXABH-BM1 main

Axxess AXABH-BM1

Amplifier Bypass Harness for select 2006-2025 vehicles from BMW, MINI

-12.50%

$27.99

List price $31.99

99-9302 main

Metra 99-9302 Dash Kit

Install a new Single-DIN car stereo in select 2002-2008 Cooper convertible

1
-47.07%

$17.99

List price $33.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

C3-600 main

JL Audio C3-600

300W Peak (150W RMS) 6” Evolution C3 Series 2-way 4-ohm Convertible Component Speaker System

1

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Description


NVX brand icon

Authorized dealer

Big Power in a Small Package

Don’t let the size fool you! The Marine-V Series Amplifiers packs a massive punch when it comes to power. NVX knows how important space is when installing anything aftermarket. The Marine-V Series Amps are capable of being installed anywhere and everywhere in your vehicle. Whether you are installing it in your motorcycle, UTVs, ATVs, boats, and golf carts, the Marine-V Series Amps will take up little space. Amplifiers of similar size produce half the power output compared to other amplifiers on the market. The MVPA2 and MVPA4 amps both boast an output of 600W RMS, while the slightly larger MVPA6 boast an output of 900W RMS.

Built to Withstand the Elements

The Marine-V Series Amplifiers are created for outdoor vehicles. NVX wants to make sure your amplifier is safe no matter the application. Most amplifiers on the market claim to be meant for boats, motorcycles, and other outdoor vehicles, but lack any real measures to protect their amps. NVX’s marine amplifiers are truly ready for the elements and have an IPX67waterproof rating. This is due to their conformally coated circuit boards and carefully designed sealed aluminum chassis.

Class-D Technology for Efficiency & Performance

The Marine-V Series amps are Class-D amplifiers, meaning they run at or over 90% efficiency. This efficiency is extremely high compared to Class-A/B amps, which run at less than 78% efficiency. So, what does this mean for you? This translates to smaller heat shrinks, less power draw from your vehicle’s charging system, and it makes smaller internal components possible, allowing the overall footprint of the amplifier to be smaller as well. Therefore, being a Class D amplifier allows these amps to waste far less energy and pack more power into a smaller chassis.

Designed with 3.5mm AUX Signal Input

All Marine-V Series Amplifiers are fitted with 3.5mm AUX signal input to work seamlessly with NVX’s Bluetooth controllers (like the XUBT4 or XUBT3). This also allows you to have a direct connection to your device’s headphone jack. As an added bonus, all Marine-V Series Amps come with a bass knob, allowing you to have full usage of a subwoofer if you decide to bridge two channels together.

NVX MVPA4

1200W Peak (600W RMS) Class D Marine-V Series 4-Channel Marine/Powersports/Motorcycle Amplifier
Quantity: 1

Product Details:

  • Marine V Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 channel
    • 2 ohm: 150 watts x 4 channel
    • Bridged: 300 watts x 2 channel @ 4 ohm
  • Total power output: 600 watts
  • CEA-2006 compliant amplifier
  • Power and protection LED lights status indicator
  • Wired bass level remote control included
  • 3-way protection circuitry (thermal, voltage, and speaker short protection)
  • IRS full class-D topology offers efficiency and performance
  • Designed specifically for all powersports, marine, motorcycle application
  • Ultra mini size for easy and hassle-free installation
  • Surface mount component technology
  • Audio precision quality control verification
  • Stable and reliable four layers PCB trace layout
  • Top tune controls access
  • Features AUX and RCAs multi-input
  • Input sensitivity: 0.2 - 10 volts
  • Frequency Response: 20 - 20000 Hz
  • Total Harmonic Distortion (THD): 0.3%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 40 - 400 Hz
  • Variable low-pass filter: 40 - 400 Hz
  • Fuse Rating: 30A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 4.4" L x 9.7" W x 1.7" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

product manual icon NVX MVPA4 owner’s manual

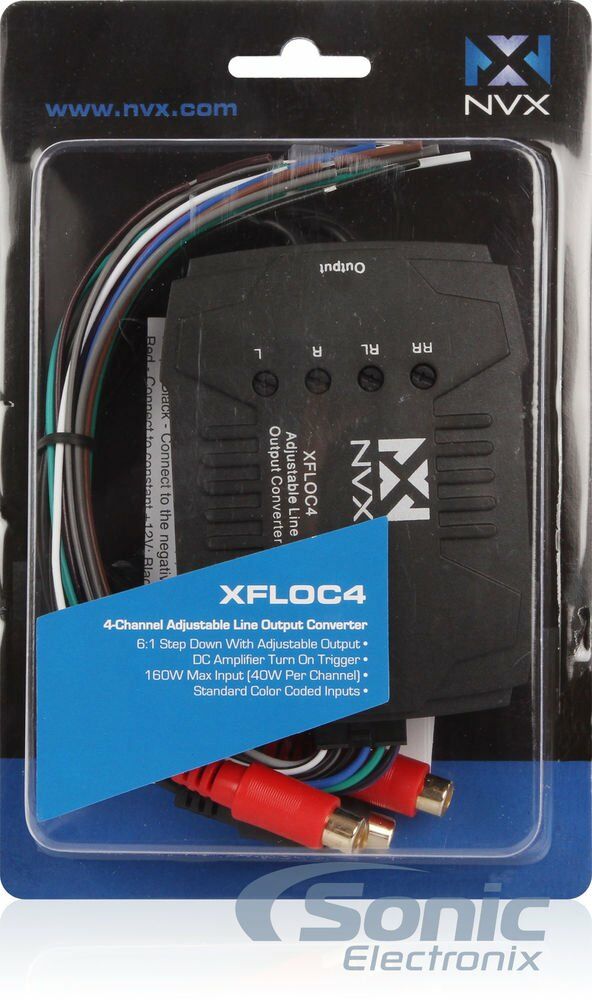

NVX XFLOC4

4-Channel 160W Adjustable Line Output Converter with Remote Turn On
Quantity: 1

Product Features:

  • 4-channel Premium adjustable line output converter
  • Digital Noise Filter + Line Driver
  • 3:1 Step Down With Adjustable Output
  • DC Amplifier Turn On Trigger
  • 160w Maximum Input Total (40w Per Channel)
  • Super Low Distortion
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK84

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Red 8 gauge power wire
  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 40 ft. 16 gauge speaker wire
  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

AXLOC-CH5 small

Axxess AXLOC-CH5

• Active 2-Channel Line Output Converter
• Designed to provide 2-channels of low-level audio
• Includes gain level controller to adjust the overall output
• Compatible with select 2011-2025 vehicles from Ram, Dodge, Jeep with non-amplified systems

(10)

$93.99

List price $104.99

APSUB-CH41 small

PAC APSUB-CH41

• Amplifier and subwoofer integration interface for select 2013-2024 vehicles from Ram, Jeep, Dodge
• Compatible with amplified vehicle systems
• Provides 2-channel non-fading output
• For use with an aftermarket amplifier and subwoofer
• Delivers 5V RMS pre-amp output with bass equalization and level control

$239.00

List price $329.00

AXDSPX-ETH1 small

Axxess AXDSPX-ETH1

• Plug and Play T-harness for faster installation
• For select 2019-2024 vehicles from Chevrolet, GMC, Cadillac
• Designed for Ethernet amplifiers
• Designed to be used with factory radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

(3)

$517.99

List price $613.99

AXLOC-FD2 small

Axxess AXLOC-FD2

• Active 2-Channel Line Output Converter
• Designed to provide 2-channels of low-level audio
• Includes gain level controller to adjust the overall output
• Compatible with select 2011-2025 vehicles from Ford with non-amplified systems

(3)

$93.99

List price $104.99

APSUB-CH42 small

PAC APSUB-CH42

• Amplifier and subwoofer integration interface for select 2021-2026 vehicles from Ram, Jeep, Dodge
• Compatible with amplified vehicle systems
• Provides 2-channel non-fading output
• For use with an aftermarket amplifier and subwoofer
• Delivers 5V RMS pre-amp output with bass equalization and level control

$239.00

List price $329.00

AOEM-FRD24 small

PAC AOEM-FRD24

• Amplifier integration interface for select 2003-2014 vehicles from Ford, Lincoln, Mercury
• Compatible for vehicles without amplified THX and Sony systems
• 4-channel RCA output
• Linear 20-20000 Hz sound reproduction
• For use with an aftermarket amplifier

(26)

$56.99

List price $129.00

AXDSPX-GMM50 small

Axxess AXDSPX-GMM50

• Plug and Play T-harness for faster installation
• For select 2010-2021 vehicles from Chevrolet, GMC, Cadillac
• Designed for MOST amplified systems
• Designed to be used with factory radios
• Selectable 31-band graphic EQ or 5-band parametric EQ
• Settings adjusted via Bluetooth in a smart device
• Selectable high pass, low pass, or bandpass filters

$638.99

List price $709.99

AP4GM71 small

PAC AP4-GM71

• Amplifier integration interface for select 2019-2025 vehicles from Chevrolet, GMC, Cadillac
• Vehicle must be amplified and with a factory Bose system
• Provides a 6-channel pre-amp output
• Delivers 5V RMS pre-amp output with bass equalization and level control

(4)

$479.00

List price $549.00

AXLOC-TY3 small

Axxess AXLOC-TY3

• Active 2-Channel Line Output Converter
• Designed to provide 2-channels of low-level audio
• Includes gain level controller to adjust the overall output
• Compatible with select 2018-2025 vehicles from Toyota with non-amplified systems

(3)

$93.99

List price $104.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
200 watts x 4 channel
Peak Power @ 2 ohms
300 watts x 4 channel
Bridged Peak/Max Power
600 watts x 2 channel
Amplifier Specifications
Series
Marine V Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
150 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.3%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
>90 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Strappable
No
Sonic Certified Amplifier
Yes
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

MVPA4, XFLOC4, BAK84

Weight:

4.55lbs

Internal SKU:

mvpa4_xfloc4_bak84

Internal Product ID:

187755

Customer Ratings & Reviews


NVX MVPA4 + NVX XFLOC4 Line-Output-Converter thumbnail image

5 star
87%
4 star
6%
3 star
3%
2 star
1%
1 star
4%



Durability
4.6
Value
4.7
Features
4.7
Design
4.8
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great little amp!

The following review is for MVPA4, which is a part of the bundle you are viewing.

I just hooked this amp up on my motorcycle after my Kenwood KAC-1502S amp finally stopped working (after 3 years in a saddlebag). I have (2) 5.25" JL Audio speakers up on my bars in a PVC tube enclosure. Let's just say that this amp rocks those speakers! You can spend your $700 - $1000 on those Hawg Wired/J & M Rokker amps/speakers (Harley guys!). For a fraction of the cost, my setup sounds better (IMHO). Going to buy another one to do the same on a bicycle (will add 2 more speakers). I will be the 'entertainment' portion of the bike trail/stops along the way. For, this setup gets insanely loud, and still sounds crisp/clean. So far, the amp just gets warm to the touch (even in a saddlebag). The PVC tube speakers may not be the 'cleanest/most aesthetic looking' as chrome bullet speakers, but they sound way better. I painted them a satin black. They look just fine. And, sound even better!!!!

By Dubs on August 18, 2014

152 found this helpful


hard little hitter

The following review is for MVPA4, which is a part of the bundle you are viewing.

I bought this because of the size and specs, its pretty easy to in stall.
The amp was for a motorcycle, hooked it up to two 6x9 5way pioneer speakers and it sounds great.
Pros: good amp, love the performance
Cons: length and width were fine but just a little thicker than anticipated. Wouldn't fit under my shield so I had to put it in my saddle bag

By Chaos on January 12, 2015

152 found this helpful


Great

The following review is for MVPA4, which is a part of the bundle you are viewing.

Only upgrade to this amp would be the NVX JAD series or the JL audio HD400v2 Based on SN/ and THD, on my car with power seats this amp fits perfectly without getting in the way of me moving my seat back. Since the amp does get hot since its so ultra tiny under the seat is a good place. You wont be able to tell the sound quality apart unless you buy some really expensive speakers with high end tweeter. I got the P65c3 with Flac files from my phone and the Jl audio line booster I got my factory stereo to give out 8volts High input of power before distortion into the MVP4A , With the car on I got 12.4Volts out from the MVP4 with no speakers attached b4 distortion about 38watts, my load though is 3.5ohms so I get a little more than that wich is more than enough loudness .

you wont find another 100+SN amp at this price and this small - I cant wait for their next version .

By The Master on July 27, 2014

147 found this helpful


Very good unit

The following review is for MVPA4, which is a part of the bundle you are viewing.

This unit is one of the smallest amps with power and I am amazed on its performance. They did a great job on making an amp you can fit into tight places and have some speaker power. I installed this on my Harley Ultra Classic next to the CB module, it is that small. It is smaller and more powerful and half the cost of Hogtunes and J&M 360 amps which I had both. Hogtunes does have a nice design which has the by-pass to daisy chain another amp when using more the 4 speakers at 2 ohms which is nice maybe Sonic could add it in the future amps. Still very nice amp people! I would buy another one ..

By BillJess on May 15, 2014

151 found this helpful


Another great product from NVX.

The following review is for MVPA4, which is a part of the bundle you are viewing.

I use this and the MVPA1 under the dash in my 2011 F150. I was apprehensive at first powering all 4 of my 2ohm door speakers. No reason to be. It works great. I also bought the NVX 8ga wiring kit. With the amps under the dash I had lots of wire left over. Be aware that it is difficult to get a 10ga connector on to the amp let alone an 8ga. I used one 8ga from the batt then split into 2 10ga for the amps.

By Feathermerchant on February 10, 2014

142 found this helpful


Powerful for its size

The following review is for MVPA4, which is a part of the bundle you are viewing.

I upgraded my H D Electra Glide Classic with an amp and four speakers. The installation went smoothly as this was my first time and the instructions were easy to follow. The only problem I had was the adjustment screw on the far right was stripped and blew out my speakers. I installed a second set of speakers and attempted to make an adjustment by turning the screw counter clockwise. The results were the same: blown speakers. The agent at Sonic suggested that I find a shop to repair it myself before returning . I'm not satisfied

By Alec on March 17, 2015

140 found this helpful


NVX MVPA4 A TWIST

The following review is for MVPA4, which is a part of the bundle you are viewing.

I used this mini amp to boost the power on a 40 watt mono pa on o tour boat. I used it in the bridged configuration hitting it with the hot signal from the pa then into a barely 4 ohm load. Under a full load, music, for a couple hours it got pretty hot but did not shut down. Normaly the pa use is off and on so in that it could take the full load it will hang in there for the normal use. The size was great our space was limited. It was the only 12 volt amp I could find that could handle the hot signal so I could daisey chain it. The output binding block is kinda a pain, so small. Other wise thumbs up !!!

By Pete mack on September 4, 2014

141 found this helpful


Lots of power in a small package

The following review is for MVPA4, which is a part of the bundle you are viewing.

I used this on my motorcycle, Harley roadglide, it fit just on top of the factory radio. It's a nice upgrade if your also upgrading your speakers.
It gets very loud.

By Stan on August 10, 2014

140 found this helpful


I had the last laugh

The following review is for MVPA4, which is a part of the bundle you are viewing.

My installer laughed at this little amp (and me) almost to the point to where I got angry and took my business elsewhere. But when the last wire was connected and the system was powered on. OMG the look on their faces was priceless. Clear and very powerful. I had a smile from ear to ear, and I was so happy I had the last laugh.

By timothy on December 27, 2014

141 found this helpful


Great amp!

The following review is for MVPA4, which is a part of the bundle you are viewing.

Bought this amp to install in an ice chest radio. I have it paired up with a pair of 6.5" wet sound speakers and this little amp performs great! Would definetly purchase another.

By Marcus on November 10, 2014

139 found this helpful




DTX-750.4 small

RE Audio DTX-750.4 (DTX750.4)

320W DTX Series Class AB 4-Channel Amplifier

(1)

$94.95

List price $249.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Isuzu Trooper

2007 MINI Cooper

2009 Mazda B4000

2014 BMW M6

1982 Cadillac Eldorado

2018 Ford Explorer

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
