Rockford Fosgate P600X4 | 600W Class AB 4-Channel Amplifier

Rockford Fosgate Punch P600X4 + NVX XFLOC4 Line-Output-Converter + Amp Kit

600W 4-Channel Amplifier + NVX 4-Channel L.O.C. + 4 Gauge Amp Kit

600W 4-Channel Amplifier + NVX 4-Channel L.O.C. + 4 Gauge Amp Kit

• 75W x 4-Chan. @ 4 ohms
• 150W x 4-Chan. @ 2 ohms
• Built In NOMAD "Real Time" Analog Computer
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• MESHA3 Reduces MOSFET Temperatures for Improved Durability

4.6

(78)
List price $644.97
Save: $204.98

$439.99

In Stock with warranty
Thanks , You Pay:
Order within 8 hrs 39 mins to ship 7/26

FREE delivery: Wed, July 28 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
Rockford Fosgate

Authorized dealer

Feel the Punch!

The Punch P600X4 multi-channel amplifier is versatile to power any audio system configuration. In addition to 4-channel stereo mode, you can bridge both channels to create a high power 2-channel amp, or run stereo speakers on the front with subwoofers on the rear in 3-channel mode. The variable HP/LP crossover and built-in Punch EQ allows for precise tuning of Bass frequencies and the Pass-Thru RCA jacks provide flexibility as your system grows and keeping Y-adapters to a minimum.

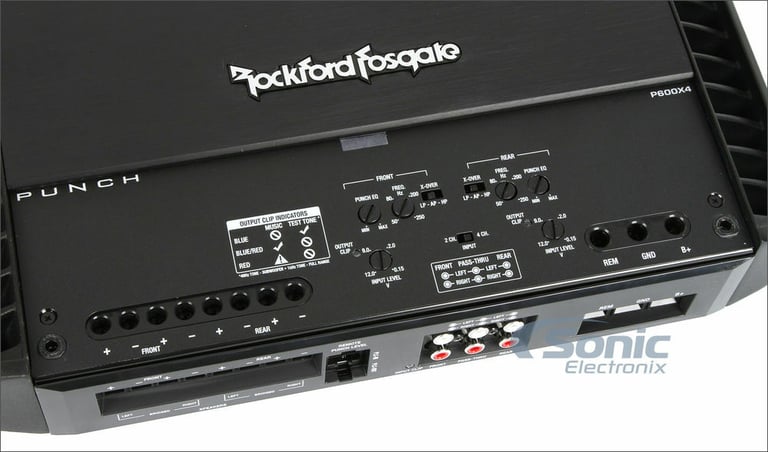

Rockford Fosgate Punch P600X4

600W Punch Series 4-Channel Stereo Class AB Car Power Amplifier
Quantity: 1

General Features









  • Punch Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 chan.
    • 2 ohms: 150 watts x 4 chan.
    • Bridged, 4 ohms: 300 watts x 2 chan.
  • CEA-2006 compliant amplifier
  • Features C.L.E.A.N. Set-up with 10-step set-up procedure
    w/ input/output clip detection and indicator LEDs
  • MOSFET power supply
  • Muted turn on
  • Cast aluminum heatsink
  • 12dB/octave Butterworth crossover
  • Stealth top mounted control panel
  • LED power, thermal, and protect indicators
  • Nickel-plated captive C-clamp terminals
  • Ultra efficient Class BD circuitry to maximize amplifier power efficiency
  • On-board differential inputs eliminates noise picked up by the signal cable
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • High level input capable with Auto Turn-On circuit (RFIF2SW required, sold separately. Up to TWO adapters needed for this amplifier.)
  • MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
  • Built in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
  • Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across entire amplifier heatsink to efficiently keep the amplifier temperatures low
  • DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving efficiency of the circuit and lowers operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
  • Input sensitivity: 150mV - 12V
  • On-board Punch EQ
    • Bass: 0dB to +18dB boost @ 45Hz.
    • Treble: 0dB to +12dB boost @ 12.5kHz .
    • Function depends upon LP/AP/HP switch position
  • Selectable crossover modes: LP / AP / HP
  • Variable crossover filter: 50-250Hz
  • Frequency response: 20 - 20,000Hz
  • Total Harmonic Distortion: <1.0%
  • Dimensions: 13-5/16"L x 7-3/4"W x 2-3/8"H
  • 8 AWG to 18 AWG speaker wire output terminals
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

NVX XFLOC4

160W, 4-Channel Line Output Converter with Digital Noise Filter + Line Driver
Quantity: 1

Product Features:

  • 4-channel Premium adjustable line output converter
  • Digital Noise Filter + Line Driver
  • 3:1 Step Down With Adjustable Output
  • DC Amplifier Turn On Trigger
  • 160w Maximum Input Total (40w Per Channel)
  • Super Low Distortion
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK44

Complete 4 Gauge Amplifier Wiring Kit with 4-Channel RCA Interconnects (CCA Wiring)
Quantity: 1

General Features:

  • Complete 4 Gauge 4-Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1000 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
    • Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
  • Also available as 2-Channel Kit
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. (5.2 meters) Red 4 gauge power wire

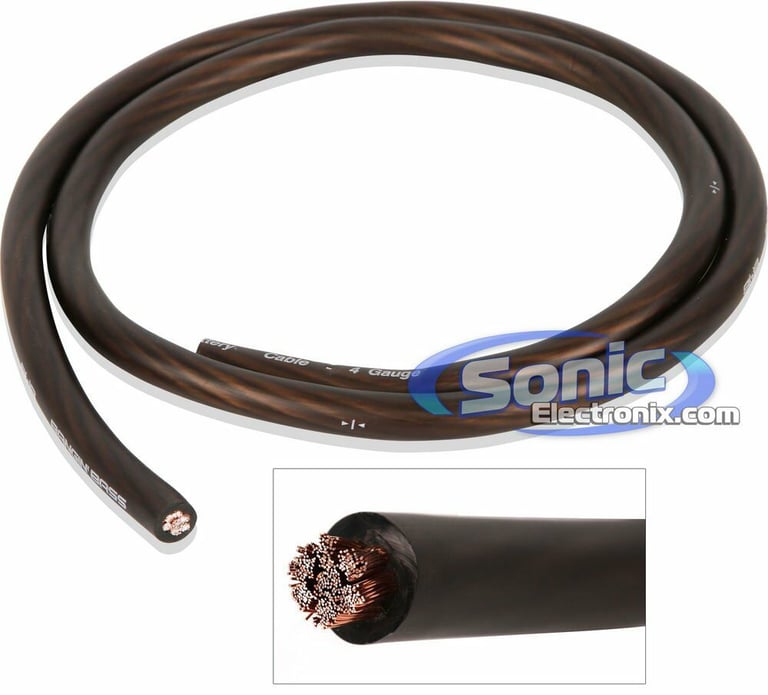

  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable

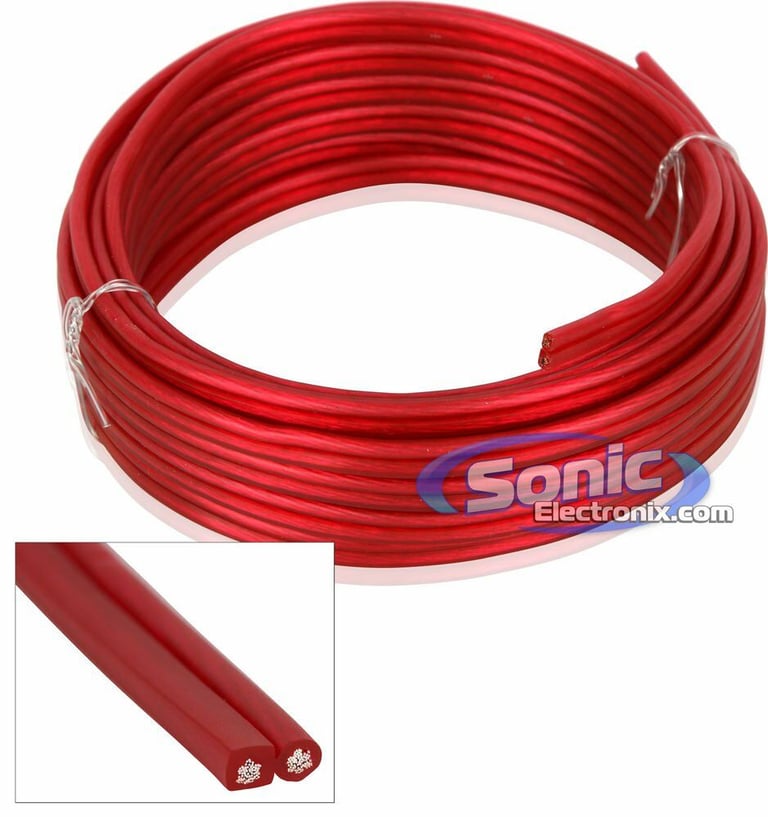

  5. 65 ft. of Speaker Wire
  6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge red chrome plated ring terminals
  9. One 4 Gauge black chrome plated ring terminal
  10. Three 18 Gauge red Spade terminal
  11. Two 18 Gauge black Spade terminal
  12. One 18 Gauge red butt connector
  13. Ten 4" Black zip ties

FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channels
RMS Power @ 2 ohms
150 watts x 4 channels
Bridged RMS Power
300 watts x 2 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
150 watts x 4 channels
Peak Power @ 2 ohms
300 watts x 4 channels
Bridged Peak/Max Power
600 watts x 2 channels
Amplifier Specifications
Amplifier Series
Punch (Rockford Fosgate)
Marine Certified
No
Amplifier Class
AB
Number of Channels
4
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
100A Fuse Recommended, Not Included
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
