Pioneer TS-D10D2

1500W Peak (500W RMS) 10" D Series Dual 2-ohm Subwoofer

Pioneer
Shop all Pioneer
Limited time!
highlight-star-icon

• Peak Power: 1500 watts
• RMS Power: 500 watts
• Impedance: Dual 2 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 5.5"
• Sensitivity: 74 dB

Learn more about the tsd10d2

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


Pioneer brand icon

Authorized dealer

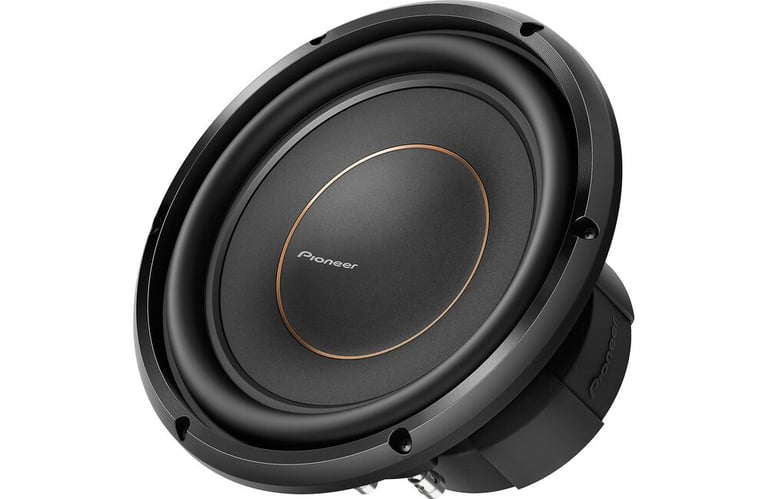

Pioneer TS-D10D2


Voice Coil & Magnet

A subwoofer motor structure consists of the voice coil and magnet assembly. Increasing the diameter and length of the voice coil provides greater control of the woofer cone and higher power handling. To take full advantage, however, the magnet must also be increased, both in magnetic power and physical size. The D subwoofer uses an oversized 4-layer voice coil and high energy double stacked magnets to increase the overall power handling and SPL output with no sacrifice in sound quality.

IMPP D Series

Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass.

Surround

Made of a specially blended, highly durable and moisture-resistant compound, butyl rubber keeps the cone moving in a linear direction, seals the cone to the basket and quickly dampens cone vibration once the signal has changed or stopped. This results in less distortion and superior frequency response.


Product Details:

  • 10" Dual 2 ohm D Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • IMPP - Aramid Fiber and Carbon Fiber Cone
  • Rolled Rubber Surround
  • 3" High Temperature Copper Voice coil
  • 9.8 mm Xmax
  • 56.4 oz. Double Stacked Ferrite magnet motor structure
  • ABS installation ring material
  • ABS center cap material
  • Stamped metal basket material
  • Aluminum voice coil bobbin
  • Experience car sound through phone via Car Sound Fit
  • Frequency Response: 20 - 6600 Hz
  • Resonance Frequency (Fs): 40 Hz
  • Sensitivity: 74 dB
  • Recommended sealed box volume: 0.7 cubic feet
  • Recommended ported box volume: 0.69 cubic feet
  • Top-mount depth: 5.5"
  • Cutout diameter: 9"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-D10D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-D10D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-D10D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-D10D2 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
D Series
Subwoofer Size
10"
Peak Power Handling
1500 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Copper
Voice Coil Diameter
3"
Frequency Response
20 - 6600 Hz
Sensitivity
74 dB
Xmax (millimeters)
9.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
IMPP - Aramid Fiber and Carbon Fiber
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Magnet weight
56.4 oz.
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.7 cubic feet
Optimum Ported Box Volume
0.69 cubic feet
Top-Mount Depth (Mounting Depth)
5.5"
Cutout Diameter
9"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
40 Hz
Equivalent Compliance (Vas)
20.9 liters
Total Speaker Q Value (Qts)
0.70
Electrical Q Value (Qes)
0.76
Mechanical Q Value (Qms)
8.74
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-D10D2

Weight:

10.40lbs

Internal SKU:

tsd10d2

Internal Product ID:

189367
