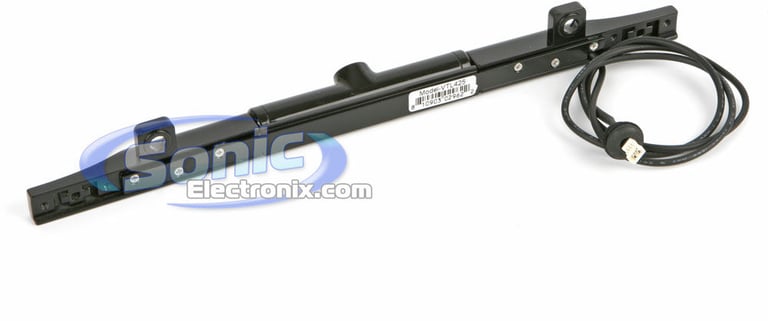

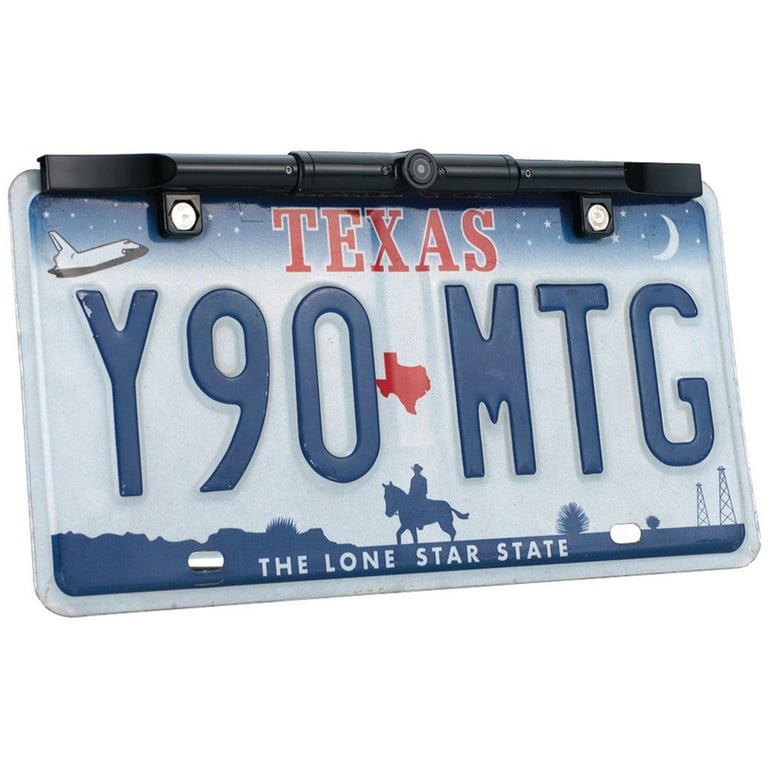

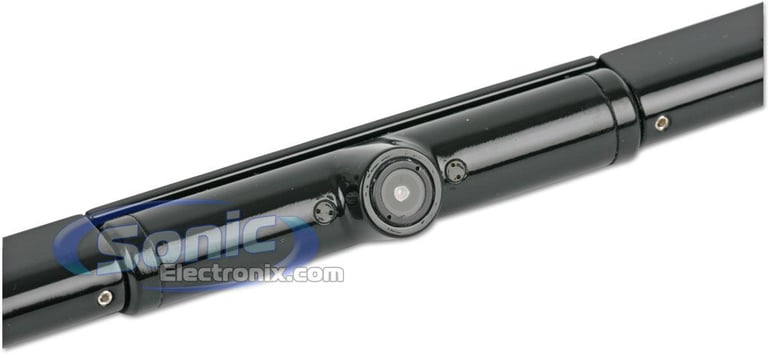

BOYO Vision VTL425 (VTL-425)

Ultra Slim Bar Type Zinc Metal Black License Plate Camera with 150° Wide Angle View

highlight-star-icon

• Zinc Metal Black Slim Bar Camera
• Remarkably True Color Reproduction
• Low Lux Performance
• 150° Wide Angle View
• Angle adjustable up/down
• Excellent Auto White Balance
• Waterproof
• 1/3" DSP Color CCD

Learn more about the vtl425

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

CVP65 main

Cerwin-Vega CVP65 (Sold Individually)

300W Peak (150W RMS) 6.5" CVPRO Series Pro Full Range 4-ohm Speaker

2
-16.67%

$44.99

List price $53.99

Description


BOYO Vision brand icon

Authorized dealer

VTL425 Features:

  • Zinc Metal Black Slim Bar Camera
  • Built-in high sensitive 1/3" DSP color CCD
  • 380 TVL horizontal resolution
  • True color reproduction
  • Low lux performance of 0.3 lux at F2.0
  • Excellent auto white balance
  • Waterproof(IP67)
  • 150° Wide angle view
  • Angle adjustable up/down
  • 1-year Manufacturer's Warranty

VTL425 Specifications:

  • Imager: 1/4" DSP color CCD(high sensitivity)
  • Horizontal resolution: 380 TV Lines
  • Total number of pixels:
    • NTSC: 270K
    • PAL: 320K
  • Minimum illumination: 0.3 Lux at F2.0
  • Internal synchronizing system
  • 2:1 Interlaced scanning system
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50, 1/60-1/100, 000 sec.
  • Smear effect: 0.005%
  • Gamma correction(r): 0.45
  • Auto white balance: 2100'K - 9100'K
  • Auto gain control: 4dB - 30dB
  • Lens mount: 2.8mm Pinhole lens
  • MTBF: 80,000 hours
  • Power source: DC12V(Tolerance: 9V-24V)
  • Operating current: 90mA with regulated power in
  • Dimensions: 3/4"D x 11"W x 1/2"H

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99


Best selling similar products

XCADJ1 small

NVX XCADJ1

• Universal Rear View Backup Camera
• High Resolution 1089 HDCCD Image Sensor
• Mounting Style: Bracket Mount
• Viewing Angle: 170 ° (wide viewing)
• Resolution: 800 x 533
• Waterproof: Yes (IP68 waterproof)
• Night vision: Low-light

(35)

$39.99

List price $119.99

BLPCAM2 small

Belva BLPCAM2

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Resolution: 720 x 480
• Waterproof: Yes
• Nightvision: Infrared LED's

(57)

$39.99

List price $99.99

RVCCH-75C small

Crux RVCCH-75C

• Rear-View Integration System with Camera
• For select 2013-2017 vehicles from Dodge, Jeep, Chrysler
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$261.90

List price $407.40

CFD-03E small

Crux CFD-03E

• Ford Emblem Camera For Select Ford Vehicles
• IP67 Waterproof Rating
• Resolution: 480 TV Lines
• Viewing Angle: 170°
• Dimensions: 10"L x 7.75"W x 3.25"H

(1)

$216.00

List price $336.00

BARCAM221 small

NVX BARCAM221

• Universal Rear View Backup Camera
• High-Resolution CMOS PC1089 Image Sensor
• Mounting Style: Top of License Plate Frame
• Viewing Angle: 170 ° (super wide viewing angle)
• Resolution: 510 x 496
• Waterproof: Yes (IP67/68 waterproof)
• Night vision: Infrared LED's

(39)

$39.99

List price $99.99

XCAMLP small

NVX XCAMLP

• Universal Rear View Backup Camera
• Mounting Style: Full License Plate Frame
• Viewing Angle: 170 °
• Resolution: 720 x 480
• Waterproof: Yes
• Night vision: LED's

(51)

$49.99

List price $59.99

RVCCH-75D small

Crux RVCCH-75D

• Rear-View Integration System with Camera
• For select 2013-2017 1500 and 2500 and 3500
• Activates Uconnect touchscreen radio
• Aftermarket backup camera included
• Forced reverse camera view features
• Includes VIM function

(1)

$303.75

List price $472.50

RVCHN-76C small

Crux RVCHN-76C

• Backup Camera Integration Kit for select 2012-2013 Honda Civic Vehicles without navigation
• Waterproof Rear-view Camera included
• Automatically switches to Rear-View when car is in Reverse mode
• 170 Degree Viewing Angle
• Dimension: 3.5" L x 2.5" W x 7" H

(2)

$121.50

List price $189.00

Specifications & Details


General Features
Color Type
Color
Night Vision
No
Sensor Type
CCD
Video Output
RCA Composite Cable
Mounting Type
Top of License Plate Frame
Adjustable Tilt
Yes
Weatherproof
Yes
Built-in Microphone
No
Primary Color
Black
Frame Material
Zinc
Camera Housing Material
Metal
Minimum Illuminance
0.3 lx
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VTL425

Weight:

2.00lbs

Internal SKU:

vtl425

Internal Product ID:

19029

Customer Ratings & Reviews


BOYO Vision VTL425 (VTL-425) thumbnail image

5 star
25%
4 star
25%
3 star
0%
2 star
25%
1 star
25%



Durability
3.5
Value
3
Features
2.5
Design
4.8
Usability
3.5

Customer Reviews

Sort by:

Loading...

VTl-425 If you buy you will be sorry

This P.O.S. looked and felt okay out of the box but the video was marginally okay from the start and went "foggy" to the point of useless in about 3 weeks. It clearly (pun intended) is not weather sealed well enough. Unless you live in a dry hot environment like a desert then say goodby to your money.

By Ron on April 23, 2012

24 found this helpful


Works As Advertised!

Installed this backup camera with the Pioneer AVIC-X920BT in my 2004 Ford Expedition. Camera was easy to wire up (although running the wires from the back to the front of the Expedition was a pain). Provides a good view behind the Exped and is a good complement to the rear parking sensors since now you can see what's setting the sensors off.

Was planning to purchase the Pioneer brand, but it was out of stock and would have required more mods to install. This one just bolts into the license plate.

By Darren on October 16, 2010

25 found this helpful


Nice camera

Nice camera but wish it had grids and night vision

By Roman on June 5, 2015

11 found this helpful


Works Well - but DO NOT LIKE the VIEW

I bought this in July 2015 and have waited all this time to write a review. My main reason for buying the BOYO was its slim design that fits on top of the license plate. I live in NH and we cannot cover wording nor did I want to cover up the word Veteran on top of my plate which frame type cameras do. It works, and I haven't had any function problems with it, but without grid lines I cannot adequately judge the distance behind me. No matter how much I use it, I cannot figure out how close I am to an object. This is a real frustration. As soon as I can find a similar low profile camera with grid lines, I intend on replacing it. I have used rental cars with distance grid lines and they are accurate and effective. This camera and the odd birds eye view is very annoying.

By Robert on January 3, 2017 Checkmark Icon Verified purchase
