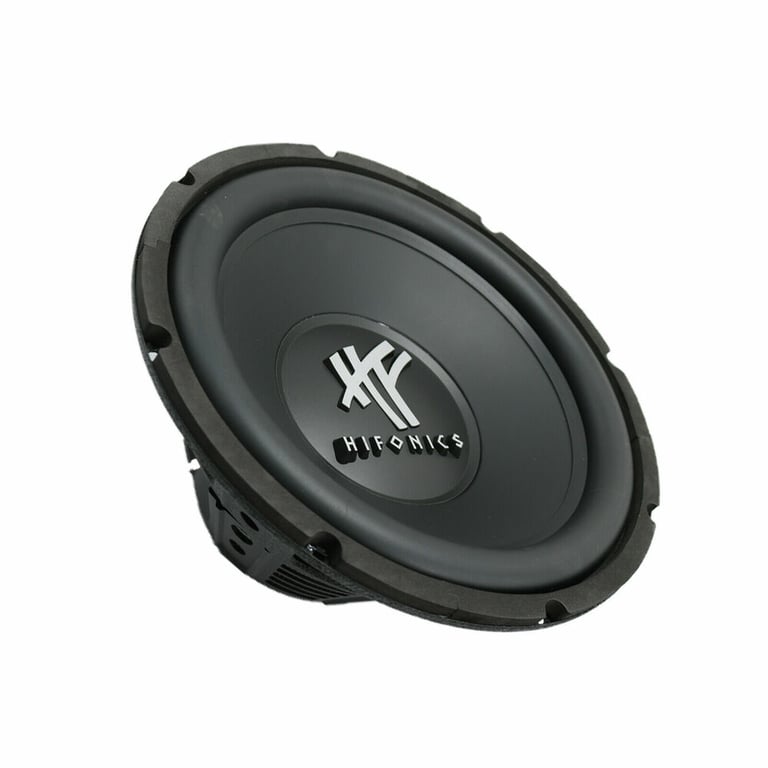

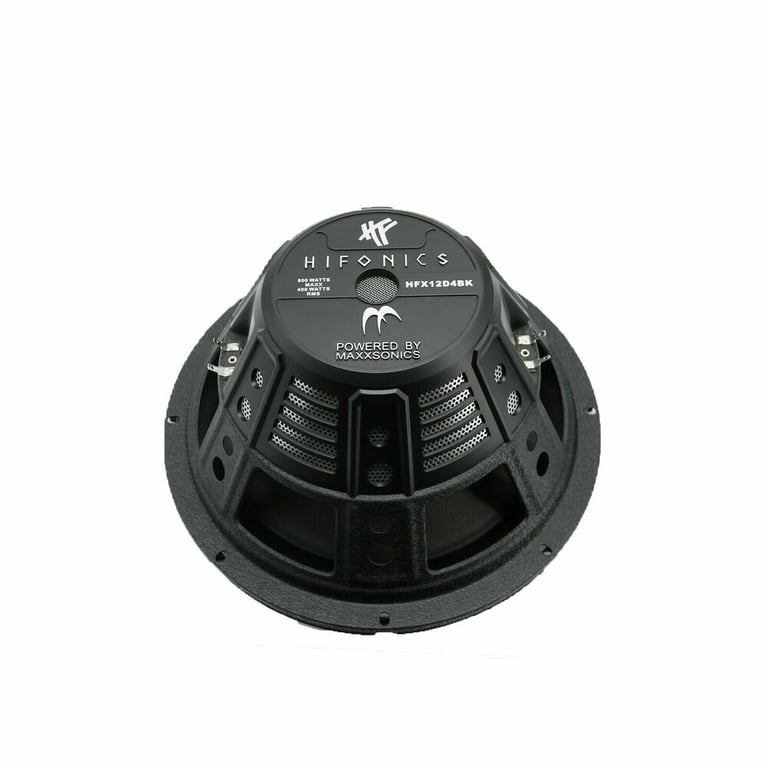

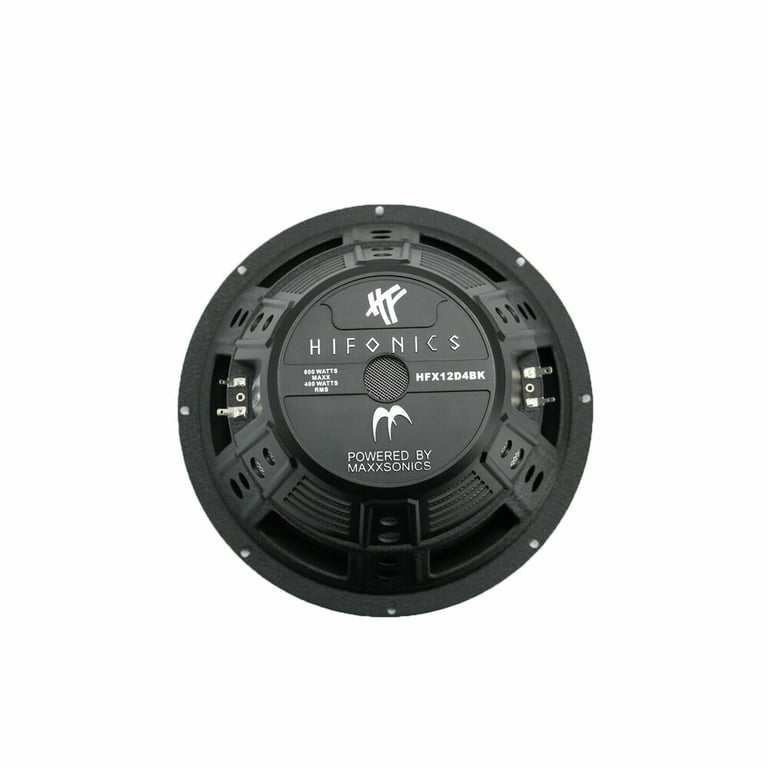

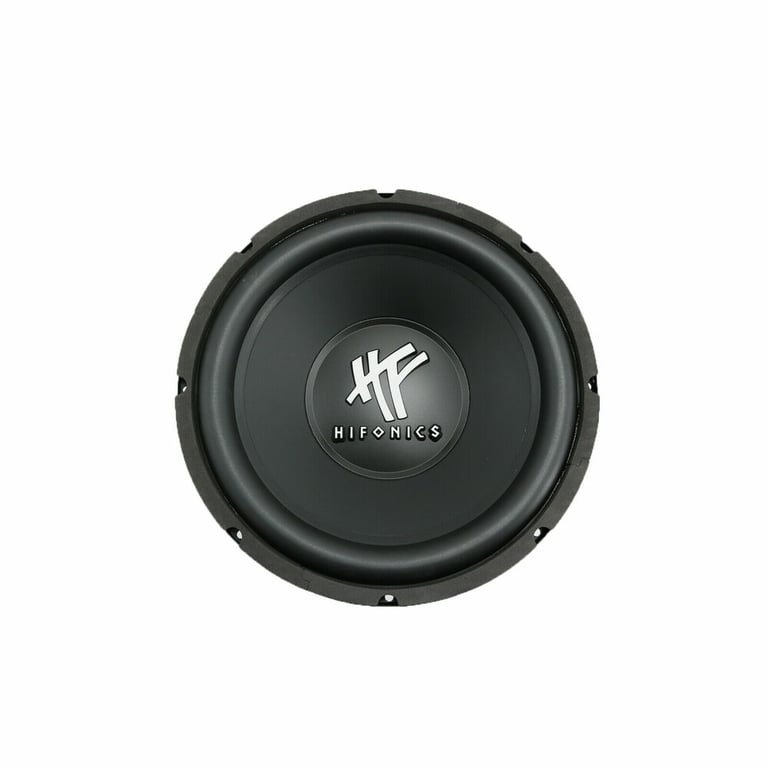

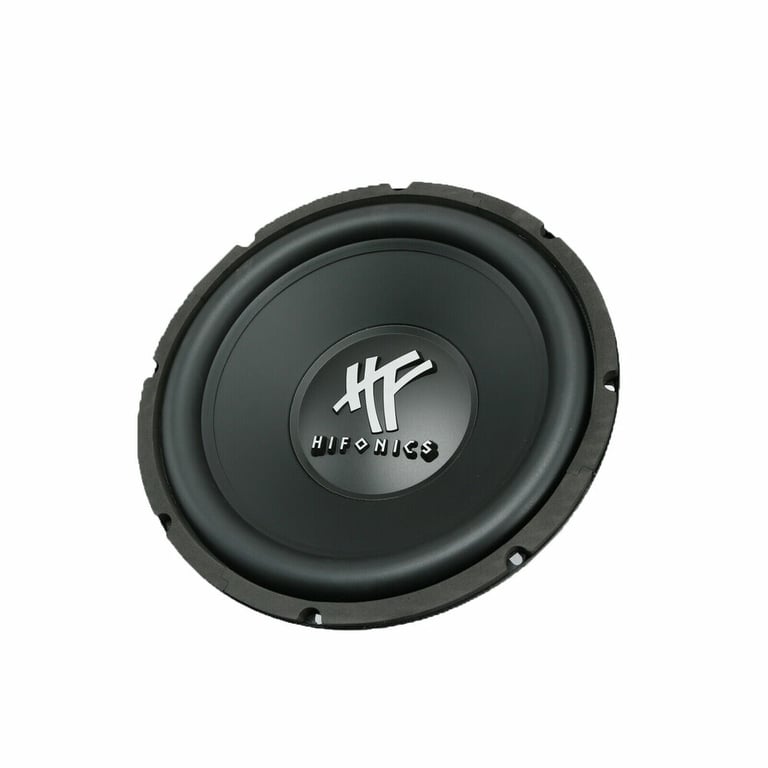

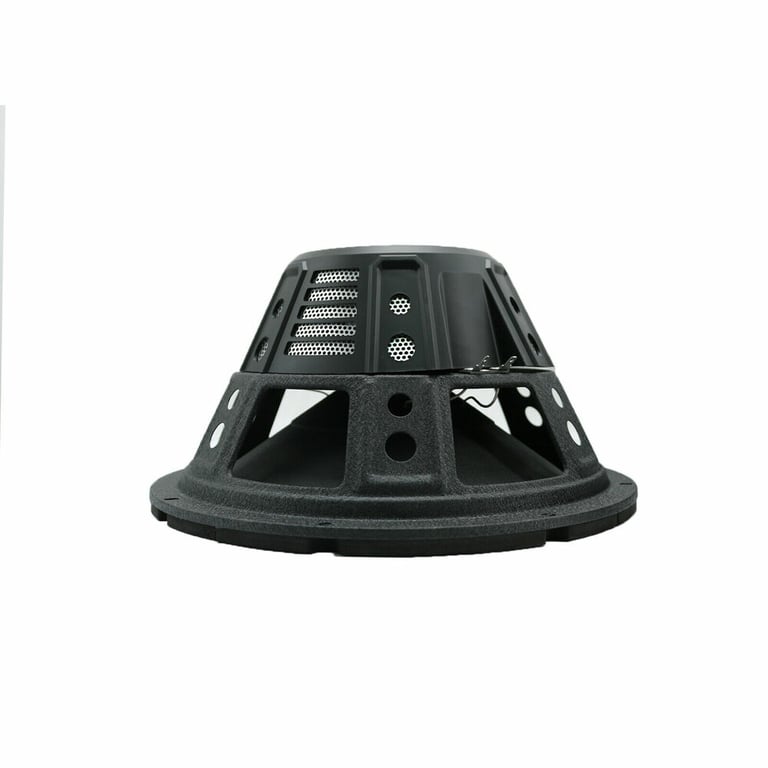

Hifonics HFX12D4BK

800W Peak (400W RMS) HFX Series 12" Dual 4-Ohm Car Subwoofer

Hifonics
Shop all Hifonics
highlight-star-icon

• 800 watts Watts Max
• 400 watts Watts RMS
• Pressure treated foam surround
• Poly-cotton spider
• Heavy duty powder coated steel frame
• Vented aluminum former holds a 2" voice coil

Learn more about the hfx12d4bk

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


Hifonics brand icon

Authorized dealer

Product Details:

  • 12" Dual 4 ohm ohm HFX Series Subwoofer
  • Power Handling:
    • Peak: 800 watts watts
    • RMS: 400 watts watts
  • Spade style terminals for easy installation
  • The pressure treated foam surround along with the poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free
  • Specialized Hifonics poly cotton spider, along with the surround, allows the woofer to handle more power with minimum distortions
  • A unique Hifonics heavy duty powder coated steel frame allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability
  • Vented aluminum former holds a 2" voice coil while allowing the heat to be exchanged
  • Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL
  • Top-mount depth: 5.61""
  • Cutout diameter: 10.94""
  • Sensitivity: 86 dBdB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Product history:

Hifonics HFX12D4BK thumbnail
(newest, current model)
Hifonics HFX12D4 thumbnail
(previous model, replaced by Hifonics HFX12D4BK)
Hifonics HFi12D4 thumbnail
(previous model, replaced by Hifonics HFX12D4)
Hifonics HF12D4 thumbnail
(previous model, replaced by Hifonics HFi12D4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Hifonics HFX12D4BK Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Hifonics HFX12D4BK Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Hifonics HFX12D4BK Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Hifonics HFX12D4BK Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
HFX
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
86 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
5.61"
Cutout Diameter
10.94"
Shallow Mount Installation
No
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HFX12D4BK

Weight:

9.50lbs

Internal SKU:

hfx12d4bk

Internal Product ID:

191535

Customer Ratings & Reviews


Hifonics HFX12D4BK thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
5
Features
5
Design
5
Usability
5

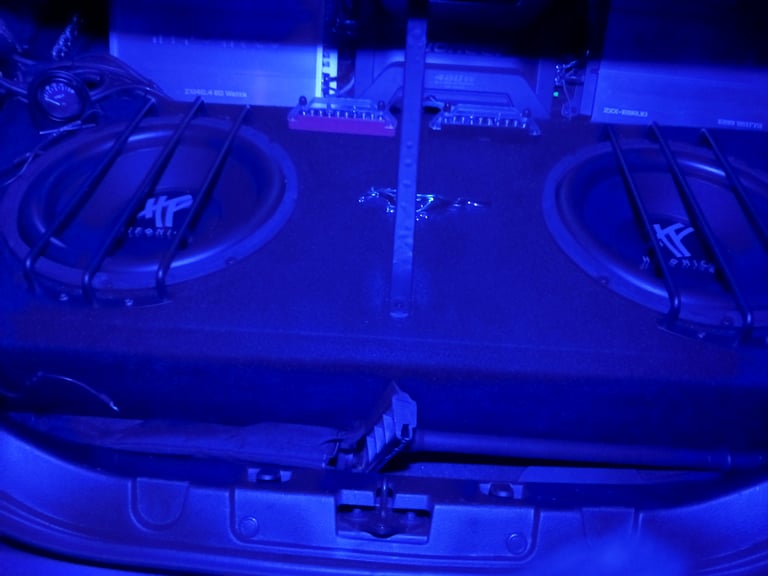

Customer Photos & Videos
