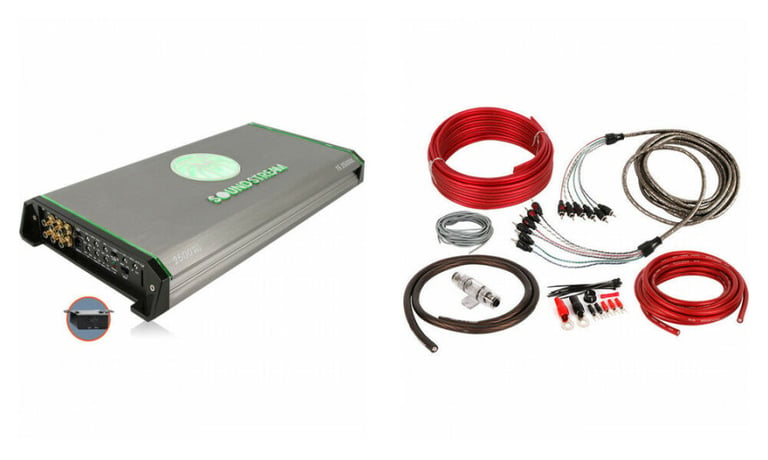

Soundstream T5.2500DL + Belva 4 Gauge Amp Wiring Kit

2,500 Watt Tarantula Electro Series 5-Channel Class A/B Amplifier

highlight-star-icon

• RMS: 75W x 4, 325W x 1 Channel @ 4 ohm, 125W x 4, 500w x 1 channel @ 2 ohm, Bridged, 4 ohm: 250W x 2 channels, 750 watts x 1 channel @ (1 ohm)
• Total Peak Power: 2500W
• 4/3/2 or Mono channel operation
• Fuse Rating: 100A x 1
• Signal to Noise Ration: >104 dB
• Total Harmonic Distortion (THD): <0.05%

Learn more about the t52500dl_bak46

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Description


Soundstream brand icon

Authorized dealer

2,500 Watt Tarantula Series 5-Channel Class A/B Amplifier


Tarantula amplifiers continue to dominate the Soundstream amplifier arsenal. For the newest 2015 generation, Soundstream maintained their stable performance, but has given them a unique appearance. Each Tarantula Electro amplifier features a 12-point RGB LED lighting system, containing its own independent RGB control. A simple press of the end panel mounted switch changes the color to one of several presets, slow-motion color change, or rapid flashing random color. For more custom installs, a single color can be selected during slow-motion color change. 2015 Tarantula Electro models include 4-channel, 1-ohm stable class D 5-channel & monoblocks, and an additional .5-ohm stable 3,000w monoblock.

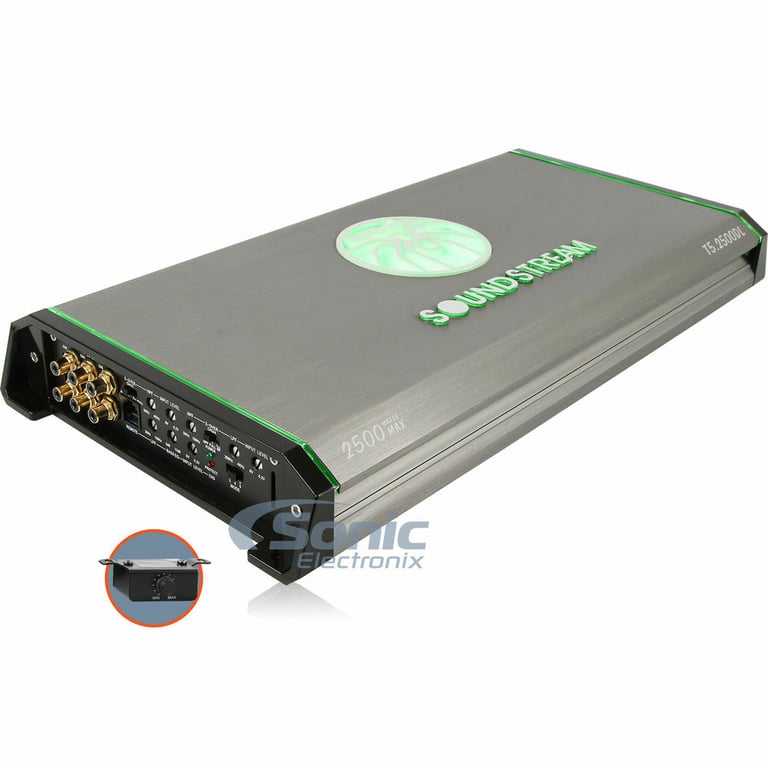

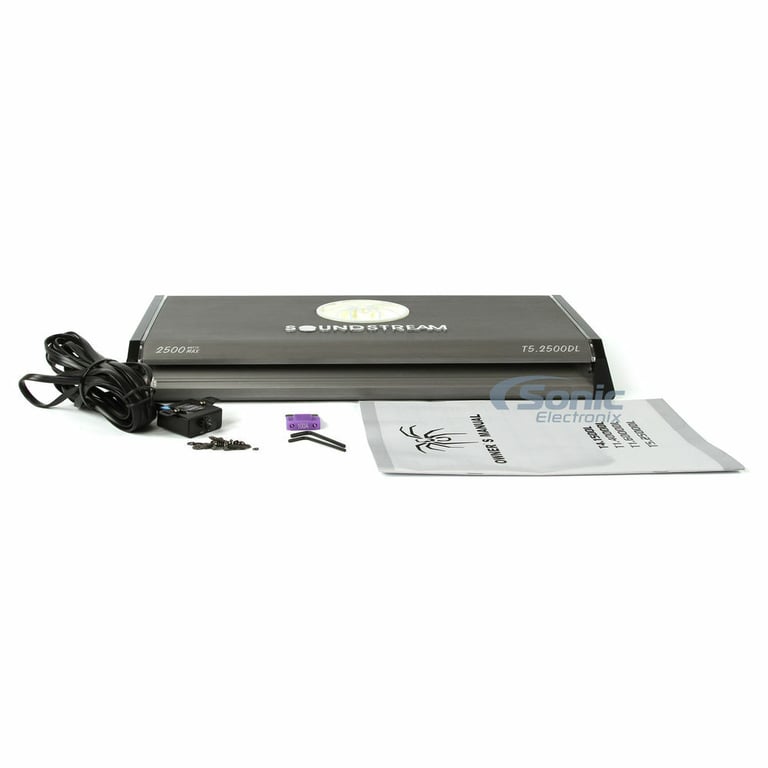

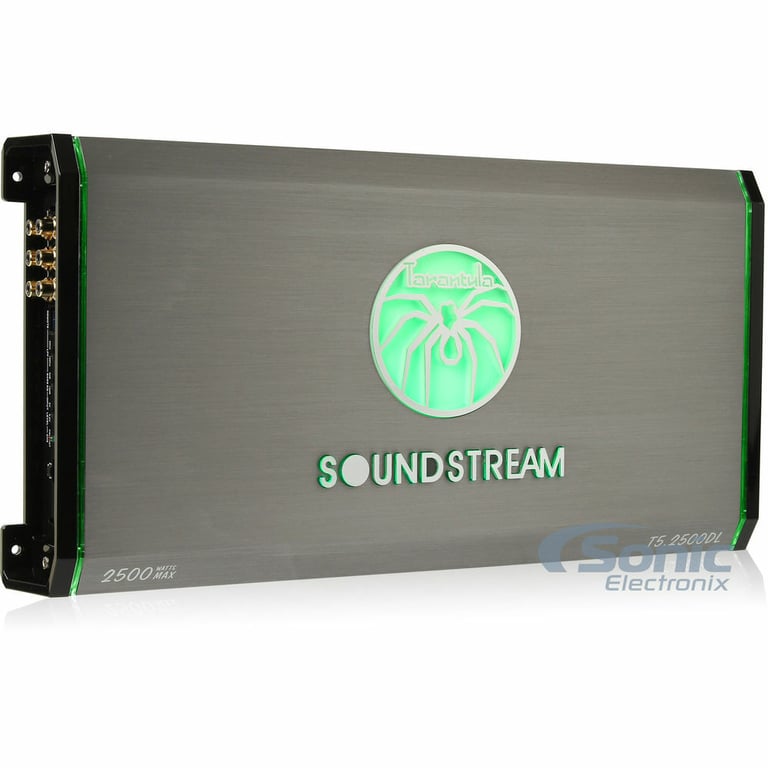

Soundstream T5.2500DL

2,500 Watt Tarantula Electro Series 5-Channel Class A/B Amplifier
Quantity: 1

General Features:

  • Tarantula Series 5-Channel Class A/B Car Amplifier

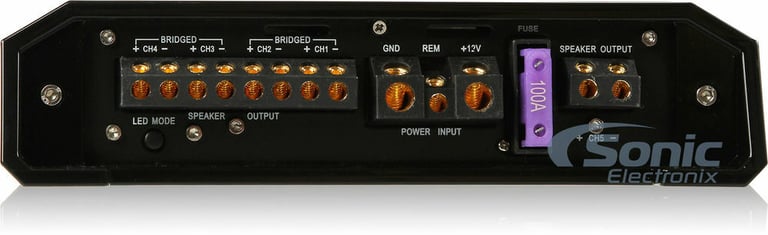

  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan. + 325 watts x 1 chan.
    • 2 ohm: 125 watts x 4 chan. + 500 watts x 1 chan.
    • 1 ohm (sub channel only): 750 watts x 1 chan.
    • Bridged (full range channels only), 4 ohm: 250 watts x 2 chan.
  • Max power output: 2500 watts
  • Pulse Width Modulated MOSFET power supply w/ Audiophile Grade IRTM Transistors

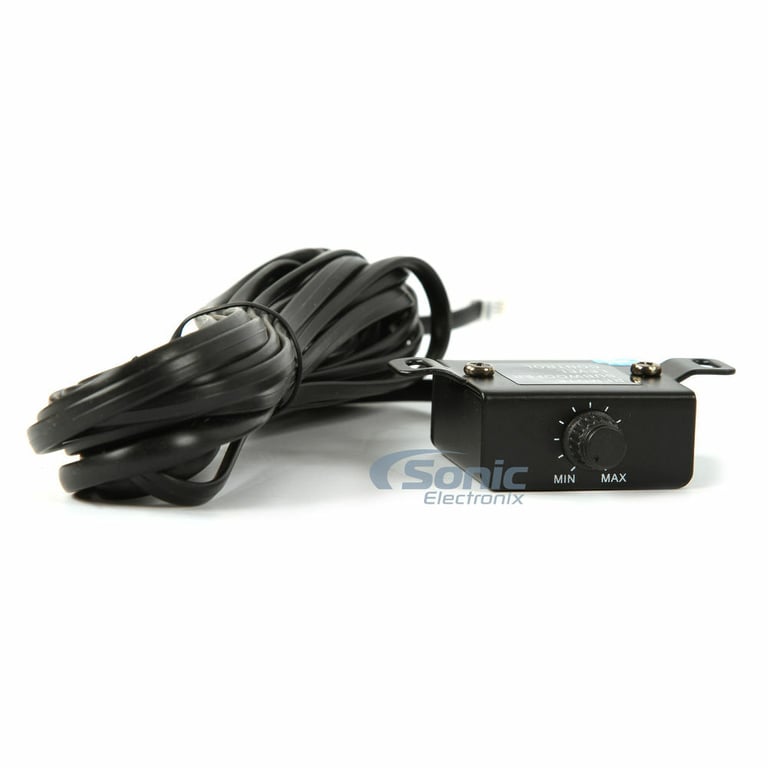

  • Wired remote bass level control included

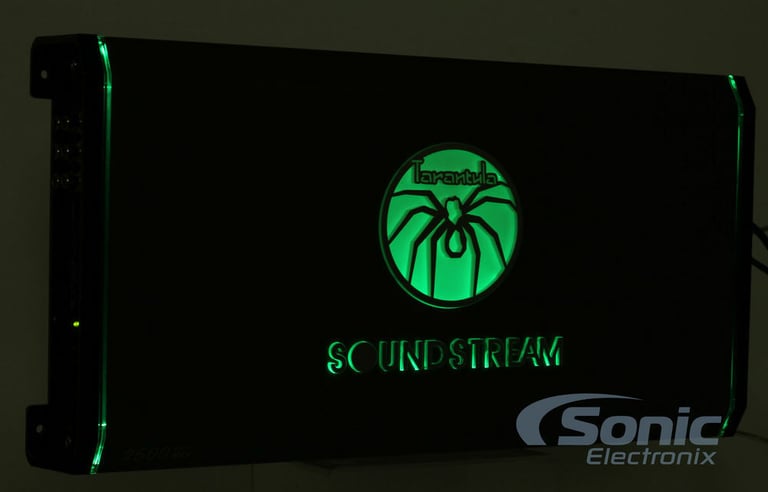

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

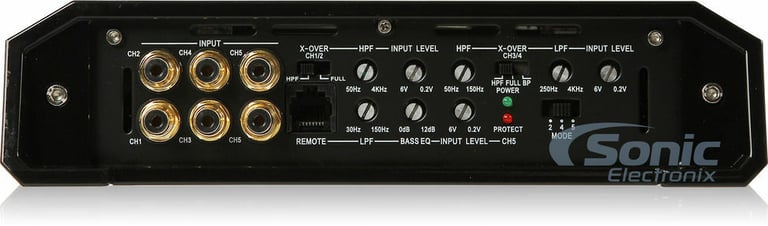

  • 200mV-6V High Level or Low Level RCA Input
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >104 dB
  • Variable 50Hz - 4kHz 12dB High Pass Crossover (Ch 1 and 2)
  • Variable 50 - 150Hz 12dB High Pass Crossover (Ch 3 and 4)
  • Variable 250Hz - 4kHz 12dB Low Pass Crossover (Ch 3 and 4)
  • Variable 30 - 150Hz 12dB Low Pass Crossover (Ch 5)
  • Variable 0 - 12dB 45Hz Bass Boost

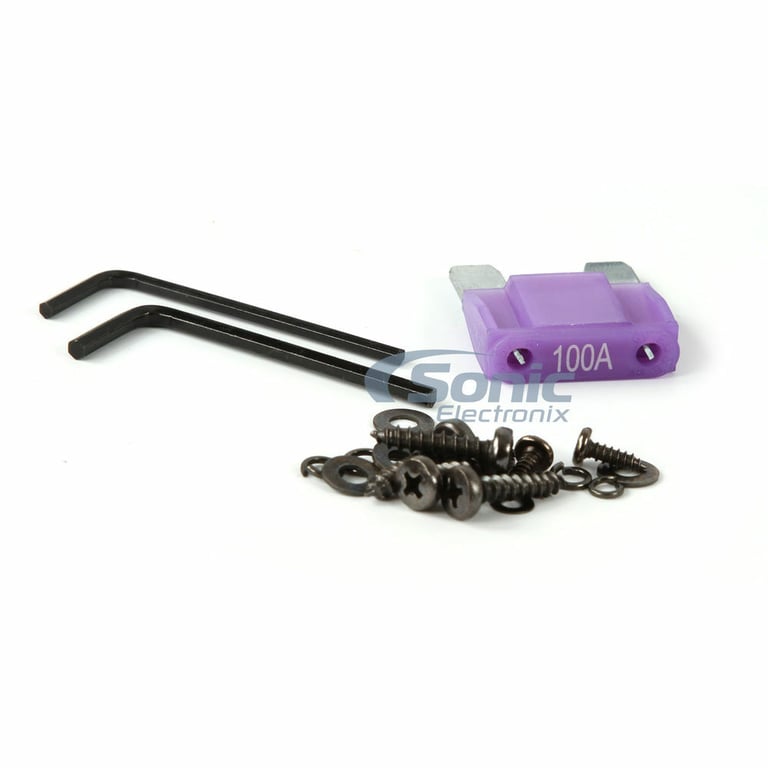

  • Fuse Rating: 100A x 1
  • 1/0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9"W x 17.25"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK46

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 5/6-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS

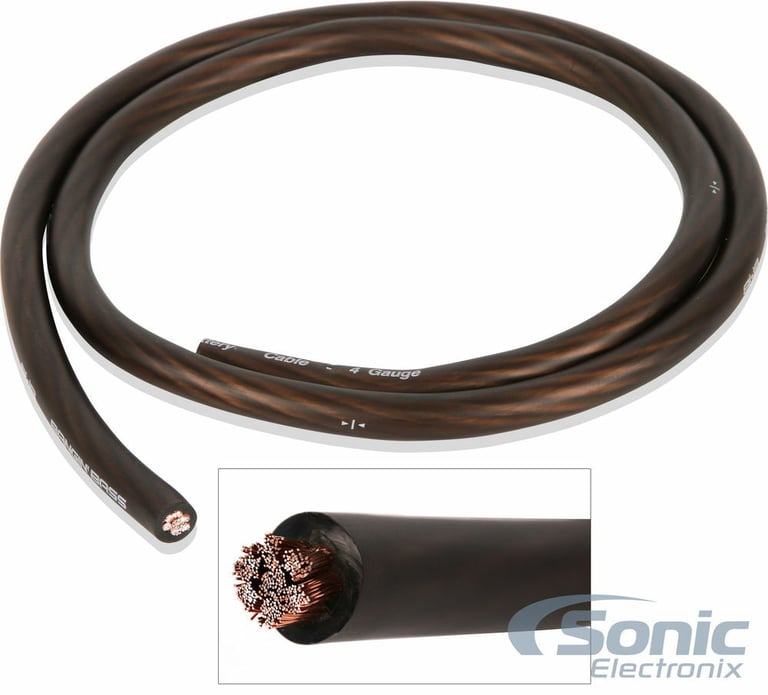

  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference

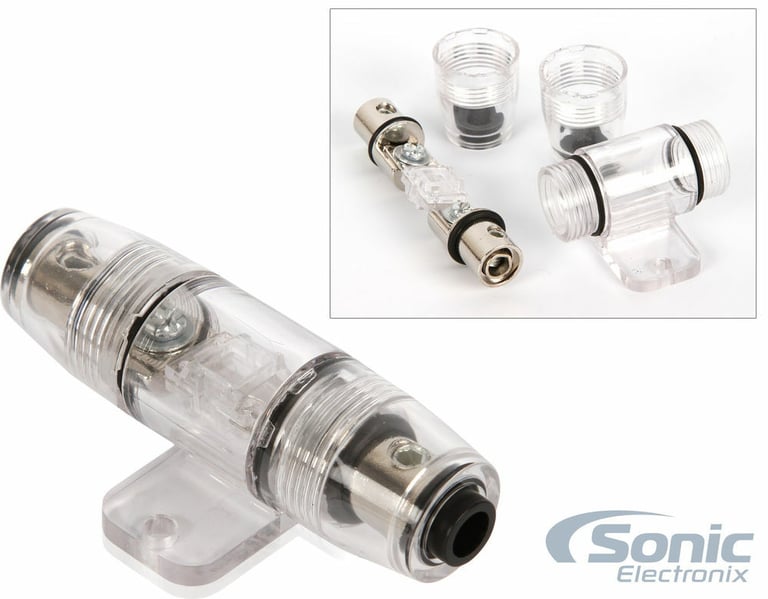

  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

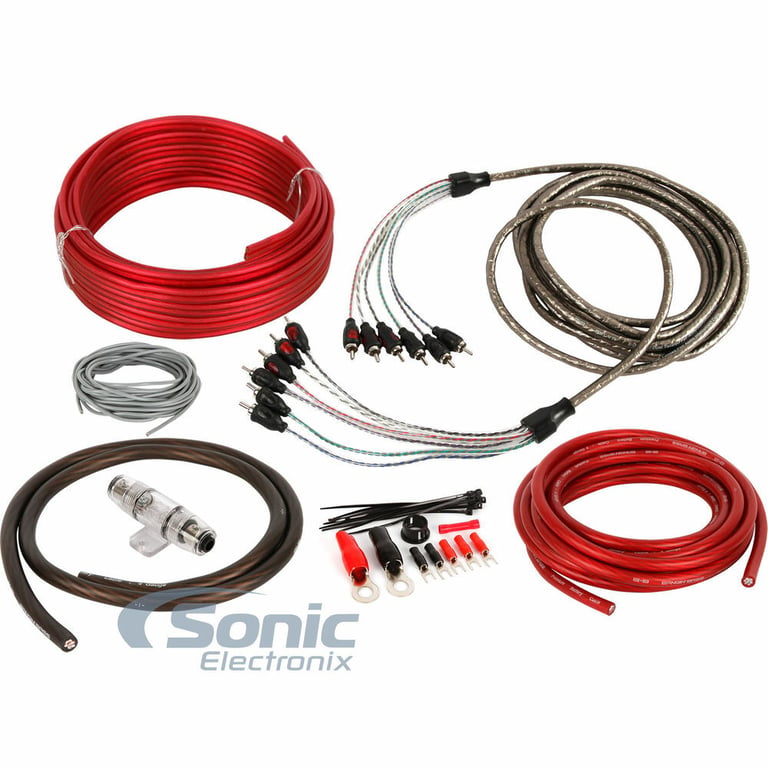

Kit includes:

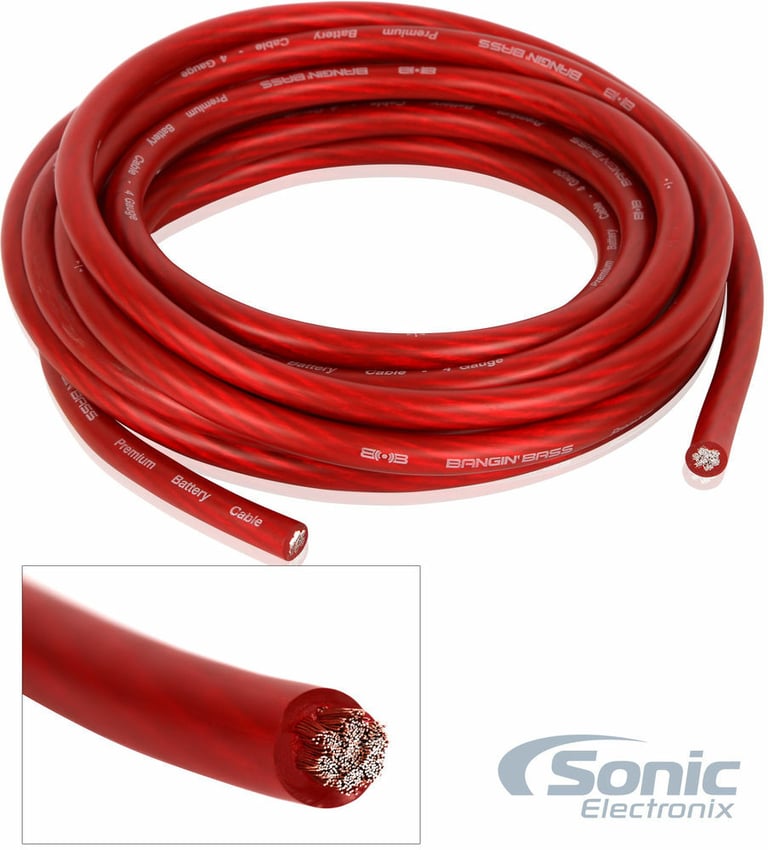

  1. 17 ft. (5.2 meters) Red 4 gauge power wire
  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

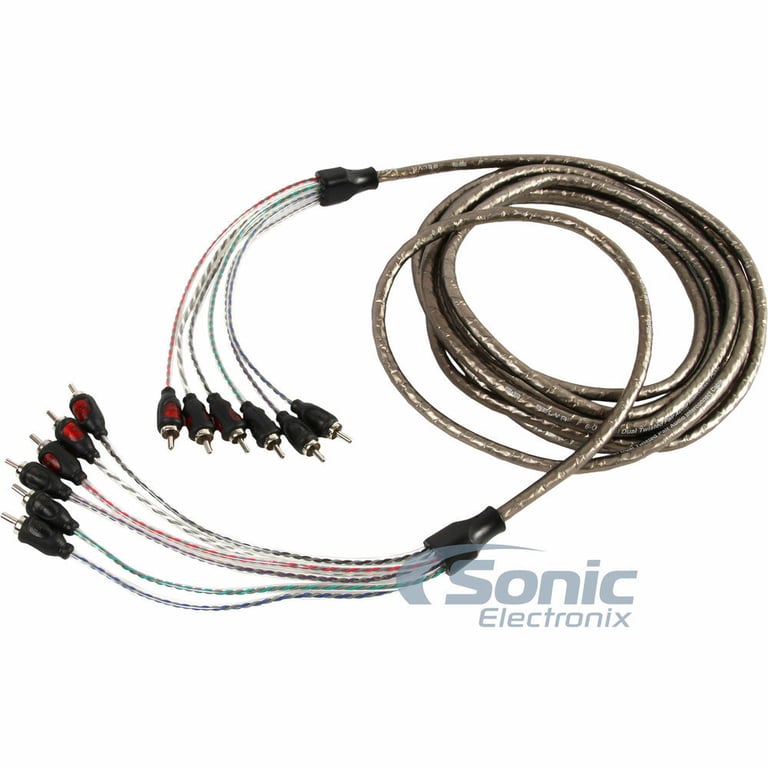

  4. 17 ft. (5.2 meters) Helical Twist 5/6-channel RCA interconnect cable

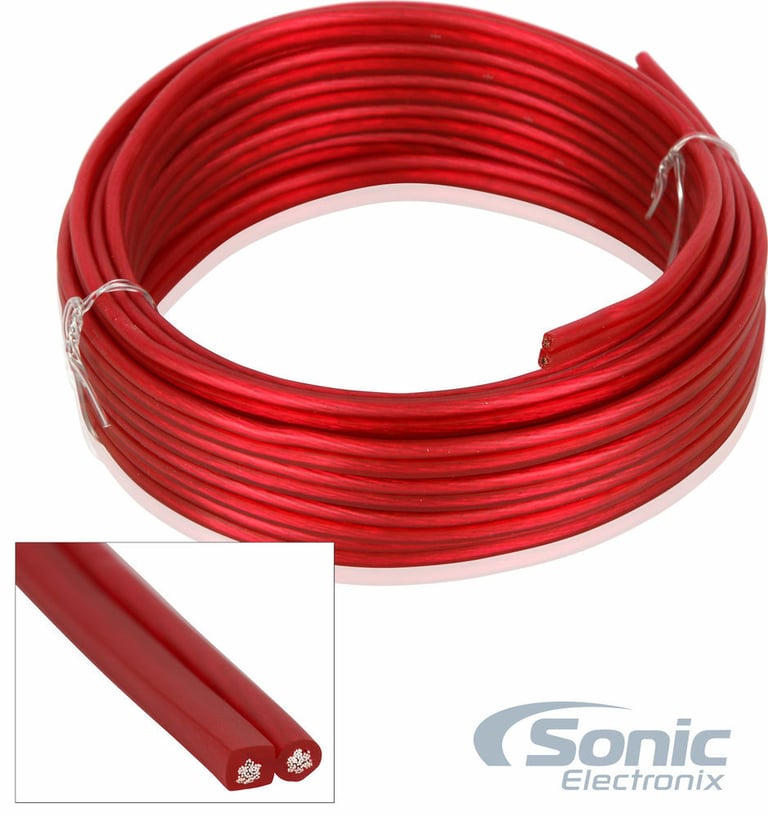

  5. 65 ft. (12.2 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(216)

$574.48

List price $609.98

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
325 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
750 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
5-Channel
Total Peak Power Output
2500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.50%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 4000 Hz
Low-Pass Crossover Frequency
30 - 4000 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
100A x 1
Total Fuse Rating
100
CEA-2031 Compliant
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

T5.2500DL, BAK46

Weight:

16.63lbs

Internal SKU:

t52500dl_bak46

Internal Product ID:

192133

Customer Ratings & Reviews


Soundstream T5.2500DL + Belva 4 Gauge Amp Wiring Kit thumbnail image

5 star
90%
4 star
8%
3 star
3%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
4.9
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great Value/perfect Amp install kit for my 5 channel

The following review is for BAK46, which is a part of the bundle you are viewing.

This Amp install kit made it easy as I had 6 in to 1 rca cables on both ends and made it easier to fish in the wires Through the front to the back...

By Abner on January 25, 2018

57 found this helpful


Excellent

The following review is for BAK46, which is a part of the bundle you are viewing.

Everything fit my amp as if they spoke with the manufacturer beforehand. the lengths are correct the RCA's I love them. The quality and feel!! I saw FEDEX coming and I felt like a little kid. Sitting at my dining room table pre-wiring and letting the cables get used to being straight again after being coiled in the package. You WILL NOT BE DISAPPOINTED!!!

By Anonymous on November 18, 2018

55 found this helpful


quality

The following review is for BAK46, which is a part of the bundle you are viewing.

The RCA cable was really convenient. I was even able to cut it in the middle to fit it through a small hole and then solder it back together. (this did take a looong time but its possible)
Wire was quality too

By Sean on October 30, 2017

54 found this helpful


Helpful kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Great kit with everything you need to get your system going and can handle adequate power

By David on February 3, 2020 Checkmark Icon Verified purchase

50 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

The kit is complete with everything you need to install an amplifier and speakers.
Power and ground wire very flexible.

By casper on February 9, 2022 Checkmark Icon Verified purchase

47 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

I bought this kit and am quite happy with it, the 4 gauge cable and RCA's seem to be of high quality along with the rest of the parts. only problem I had was the length of the power cable, in an avalanche I came up about 2ft short mounting the amp in the back of the truck so I had to go to the local shop to get a 2ft cable to make it from the fuse to the battery. would I buy this kit again yes.....

By David on April 2, 2017 Checkmark Icon Verified purchase

50 found this helpful


Just do it ..

The following review is for BAK46, which is a part of the bundle you are viewing.

I questioned whether the installation kit would really be "all that."

It was .. almost everything you need is included ... I opted for getting the quick connect/disconnect adapters for the speakers. Had those been in the kit I would have lost it.

Great quality, great layout, totally worth it.

By MICHAEL on October 5, 2015

47 found this helpful


Great Kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Bought this and am sooo happy I did. Price was great and the quality of all the components is too. Even the speaker was great quality. Highly recommend.

By Brian on October 20, 2016

47 found this helpful


Great price fast delivery

The following review is for BAK46, which is a part of the bundle you are viewing.

Great value for quality products and fast delivery will order again

By Anonymous on October 19, 2019

43 found this helpful


Great value

The following review is for BAK46, which is a part of the bundle you are viewing.

I got this kit free with an NVX amp I ordered and I have to say it's a great kit, the speaker wire worked great as well as the rca's as I had no road noise with them. Would recommend to anyone not looking to break the bank.

By Lucas on January 23, 2022 Checkmark Icon Verified purchase

41 found this helpful




PWSACCCRUISEM10 small

JBL Cruise 10MM Bolt Kit (PWSACCCRUISEM10)

10MM Bolt Kit for JBL Cruise Handlebar Speaker Pods

$19.95

List price $29.95

ELE65CG_ACC_KIT small

Alpine EL-E65C-G with Installation Accessories

360W Peak (90W RMS) 6.5" E Series 2-way 4-ohm Coaxial Car Speakers

(145)

$140.90

List price $181.71

KFC-C5782ie small

Kenwood KFC-C5782ie

5" x 7" 3-way Image Enhancer Series Custom-Fit Speakers

(3)

$39.99

List price $99.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Saturn SL

1983 Oldsmobile Toronado

1993 Ford Festiva

2006 BMW M3

1992 BMW 735i

2004 Toyota Sequoia

2004 Lexus GS430

2010 Hyundai Accent

1993 GMC R-V Crew

2017 Audi R8

Vehicle
Store
Delete

2019 Harley Davidson FLHT Electra Glide Standard

Vehicle
Store
Delete

2013 Can-Am Commander E

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
