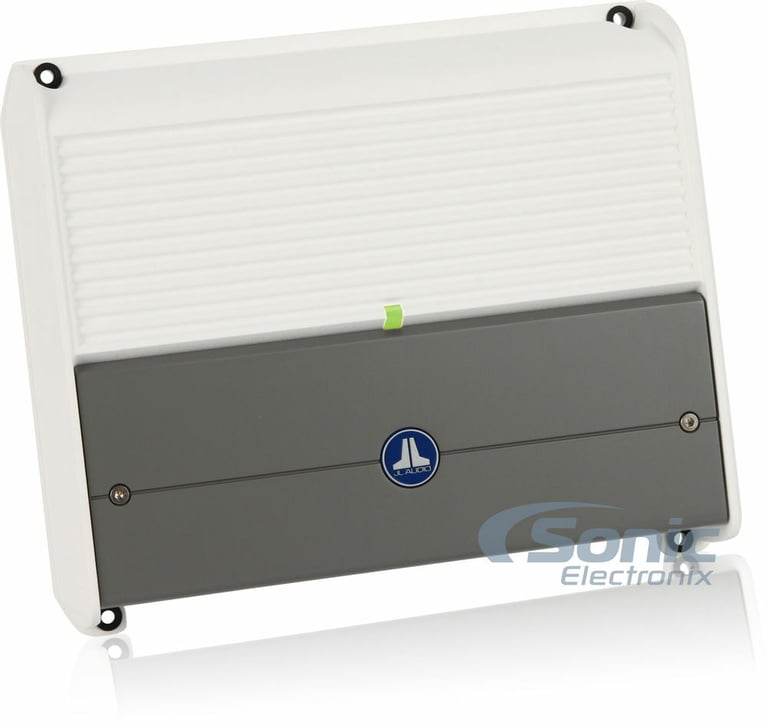

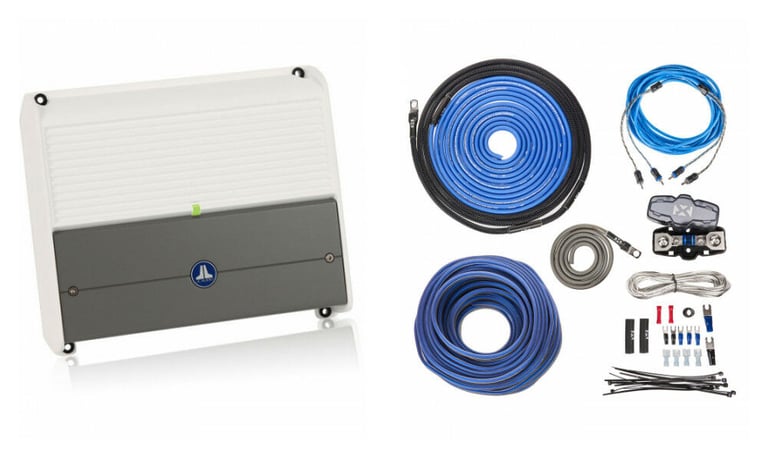

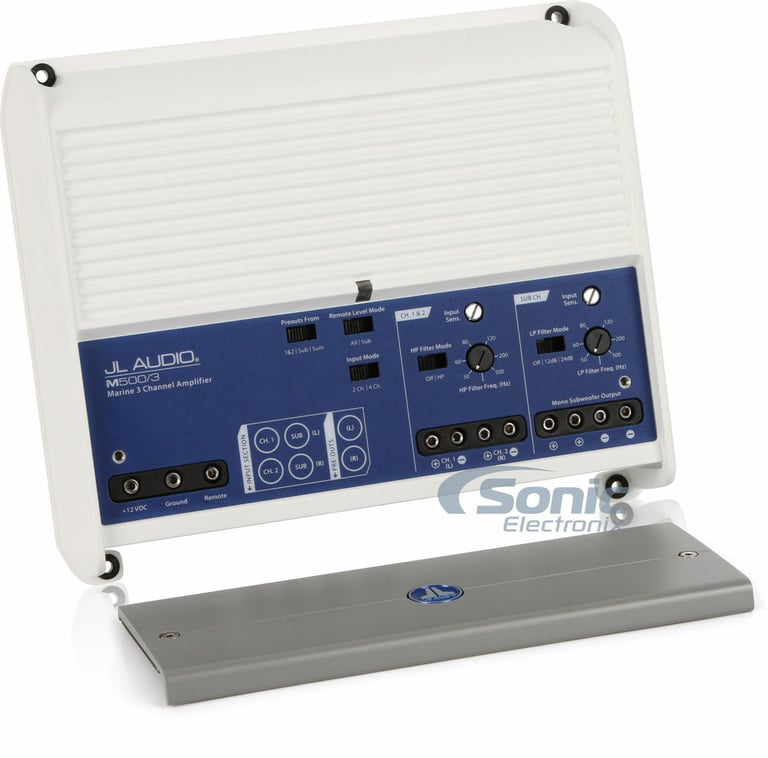

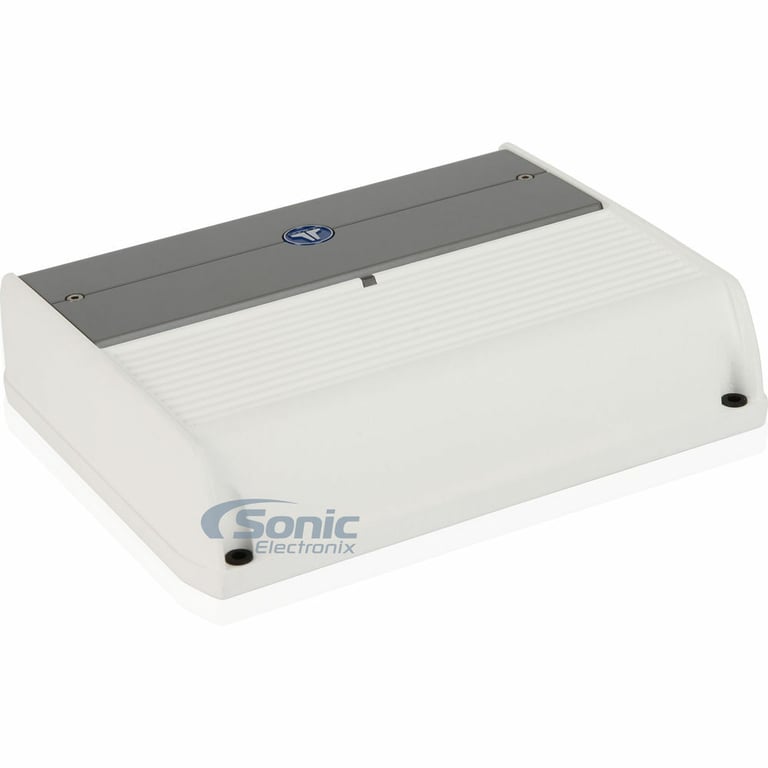

JL Audio M500/3 Amplifier + Free Premium NVX 8 Gauge Amp Wiring Kit

Product Features

• 3-Channel Class D M-Series Marine Amplifier
• RMS Power Rating @ 14.4V:
• 4 ohm: 75 watts x 2 chan. + 180 watts x 1 chan.
• 2 ohm: 100 watts x 2 chan. + 300 watts x 1 chan.
• Bridged, 8 ohm: 150 watts x 1 chan.
• Bridged, 4 ohm: 200 watts x 1 chan.
• RMS Power Rating @ 12.5V:
• 4 ohm: 60 watts x 2 chan. + 180 watts x 1 chan.
• 2 ohm: 90 watts x 2 chan. + 300 watts x 1 chan.
• Bridged, 8 ohm: 120 watts x 1 chan.
• Bridged, 4 ohm: 180 watts x 1 chan.
• Unregulated MOSFET switching type power supply
• NexD Class D Technology reduces distortion and delivers superior efficiency
• Remote bass level input (JL Audio HD-RLC required and sold separately)

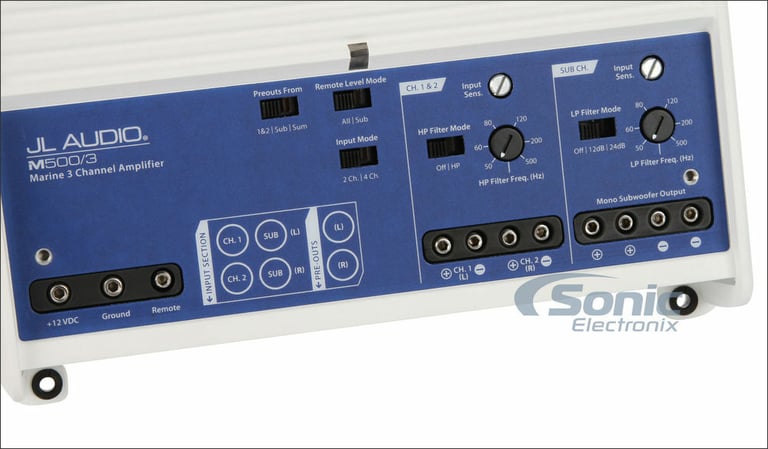

• Fully variable 12dB/octave filters with filter frequency selection controls
• Two stereo pairs (RCA-Type Jacks)
• 2-channel/Mono operation
• Pass-Through preamp RCA outputs to daisy chain multiple amps
• Advanced Rollback Protection circuitry for advanced thermal and low-impedance protection
• Differential inputs reduce unwanted noise

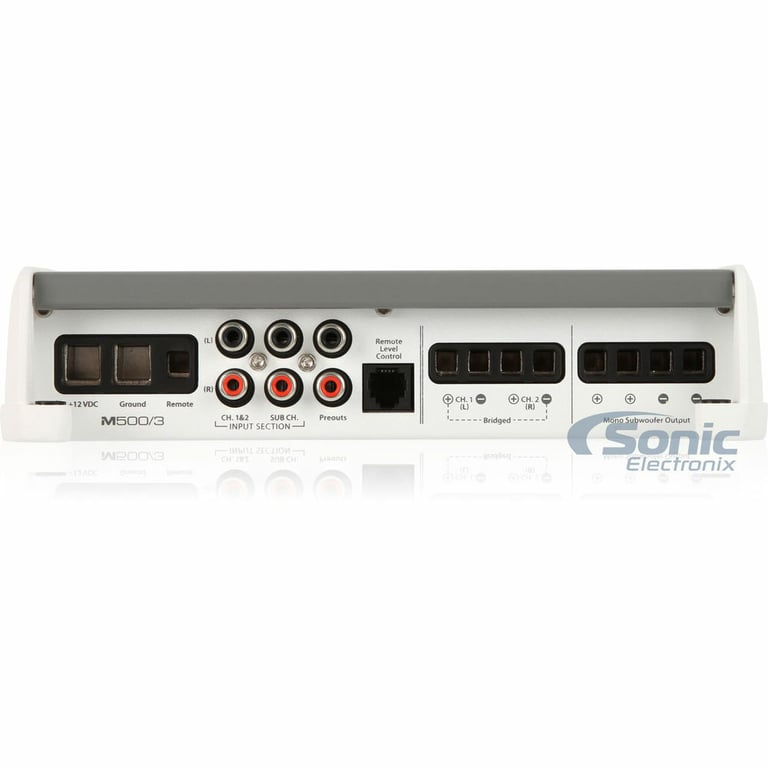

• Speaker output connections accept up to 8 AWG wire
• +12V and Ground connections accept up to 4 AWG wire
• Nickel-plated RCA level inputs
• Frequency Response (Main Channels): 12-22,000 Hz
• Frequency Response (Subwoofer Channel): 7-500 Hz
• Nickel-plated screw terminals
• Variable High-Pass Filter (50-500 Hz, 12 dB/octave)
• Variable Low-Pass Filter (50-500 Hz, 12 dB/octave)
• Signal-to-Noise Ratio (Main Channels): >104 dB
• Signal-to-Noise Ratio (Subwoofer Channel): >87 dB
• Input Range: 100mV - 4V RMS
• Damping Factor: >120 @ 4 ohm, >60 @ 2 ohm
• THD (Total Harmonic Distortion): <1%

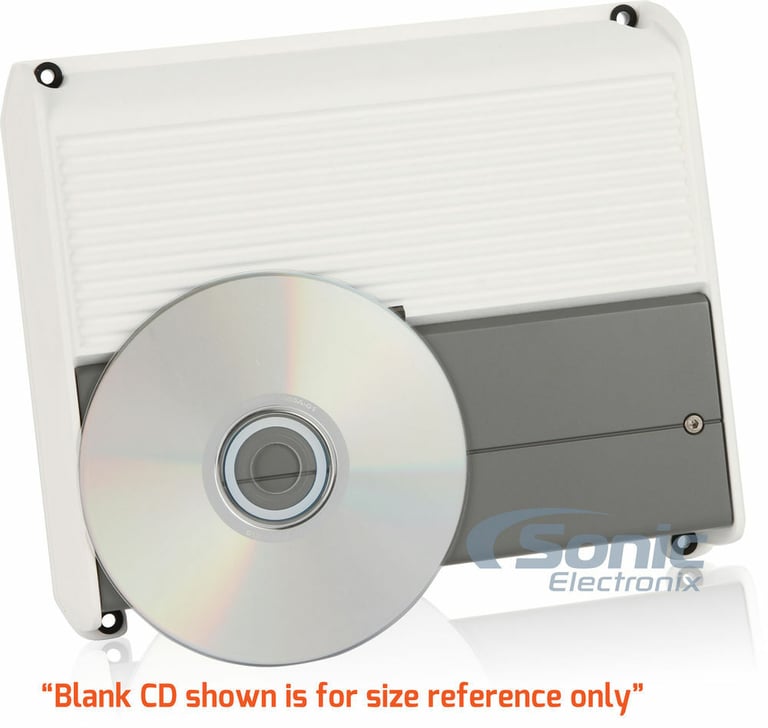

• Dimensions: 10-1/4"L x 7-1/16"W x 2-1/16"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• Complete 8 Gauge 2-Channel Amplifier Installation Kit
• Designed for car audio systems up to 600 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Also available in Red
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

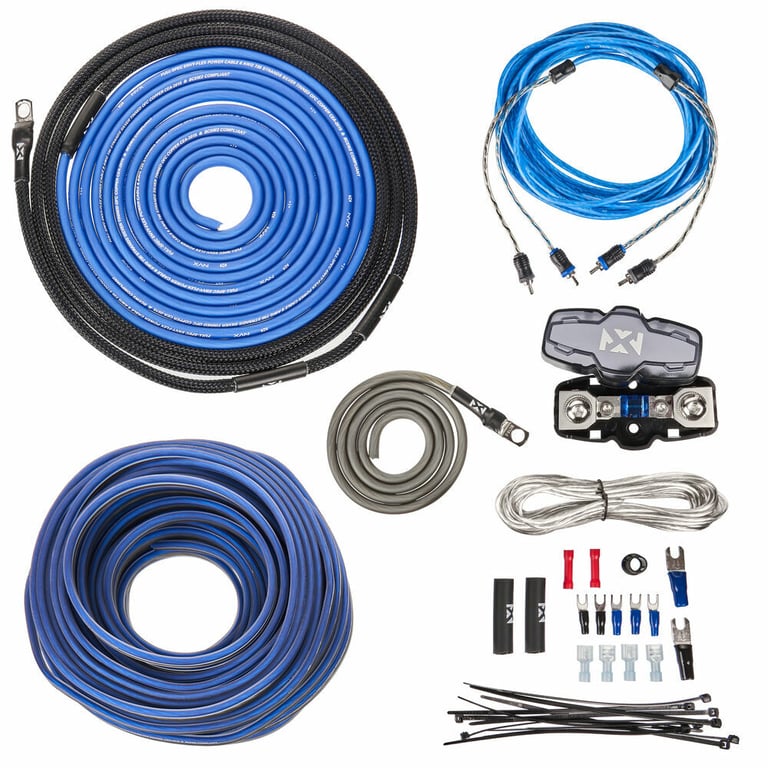

Kit includes:

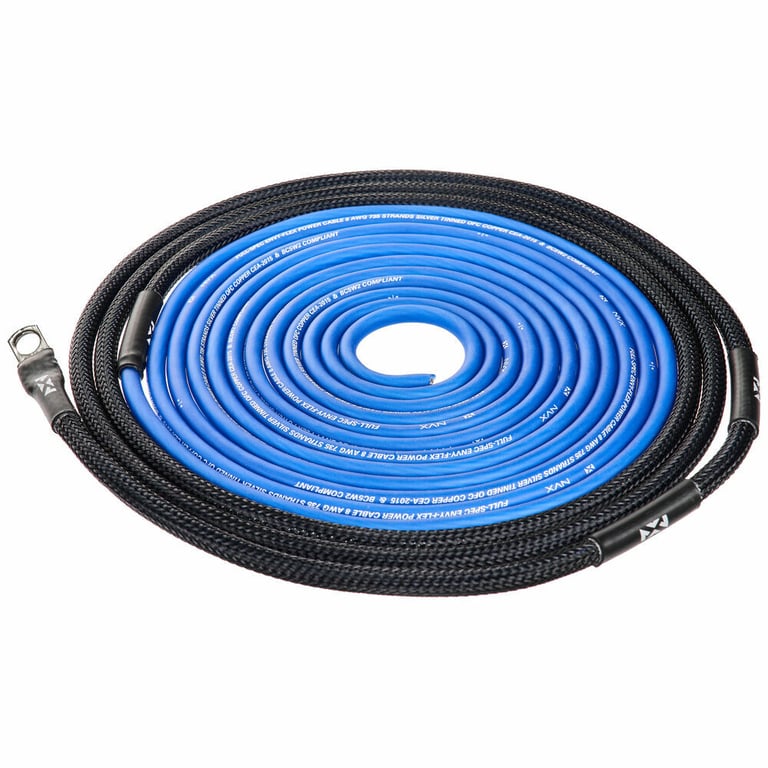

1. 17 ft. (5.2 meters) Blue 8 gauge power wire

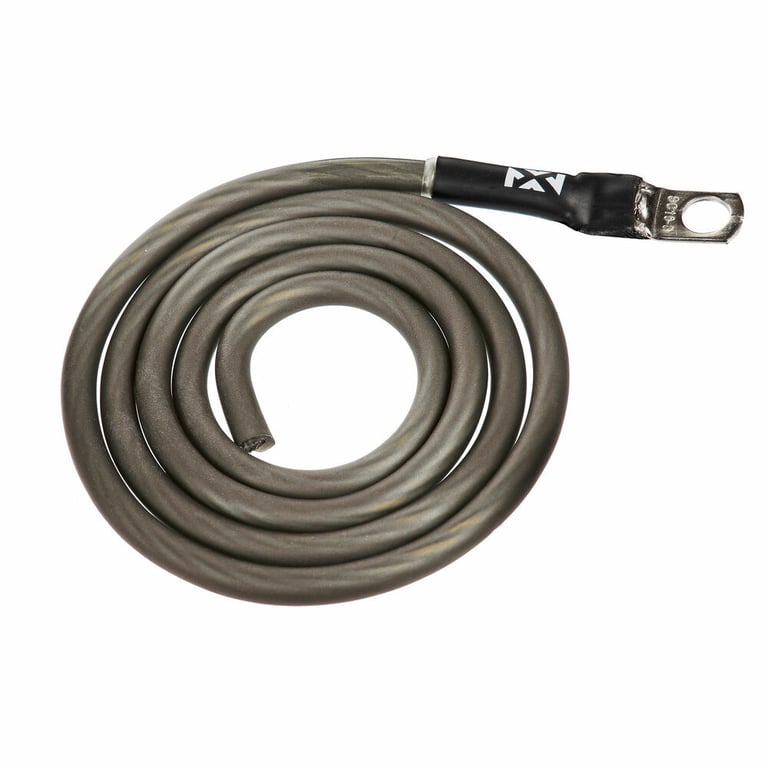

2. 3 ft. (.91 meters) Black 8 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

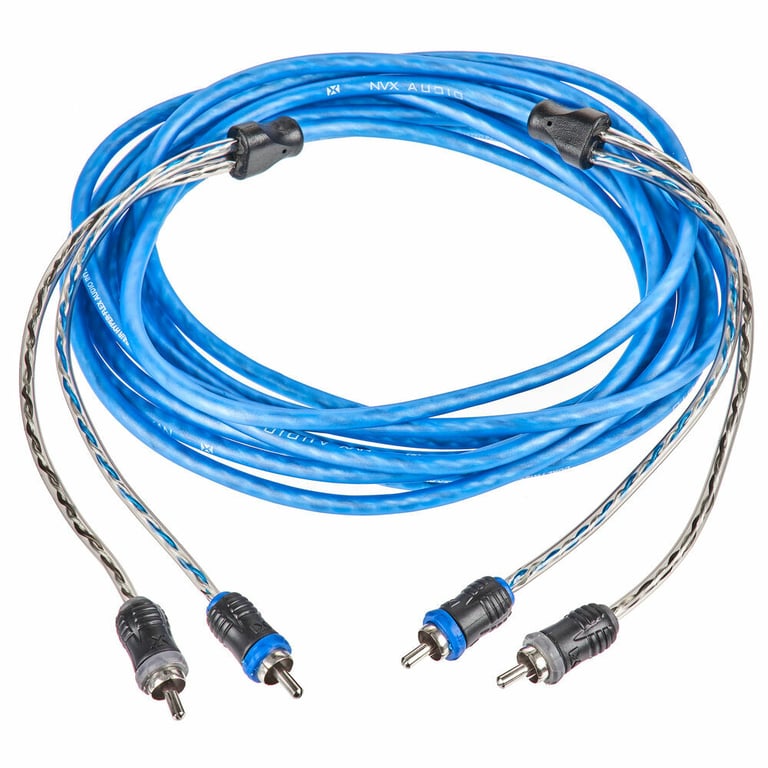

4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

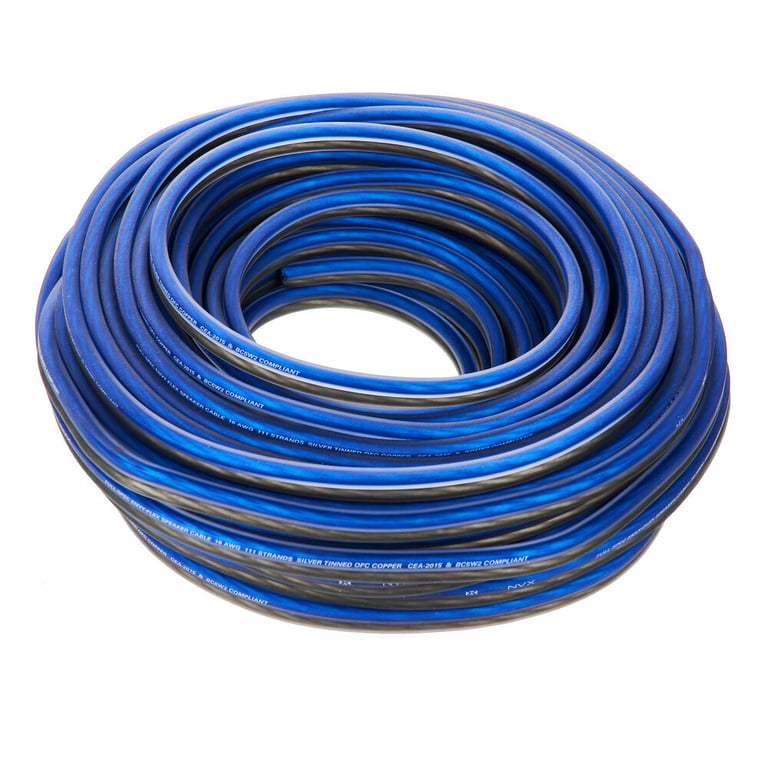

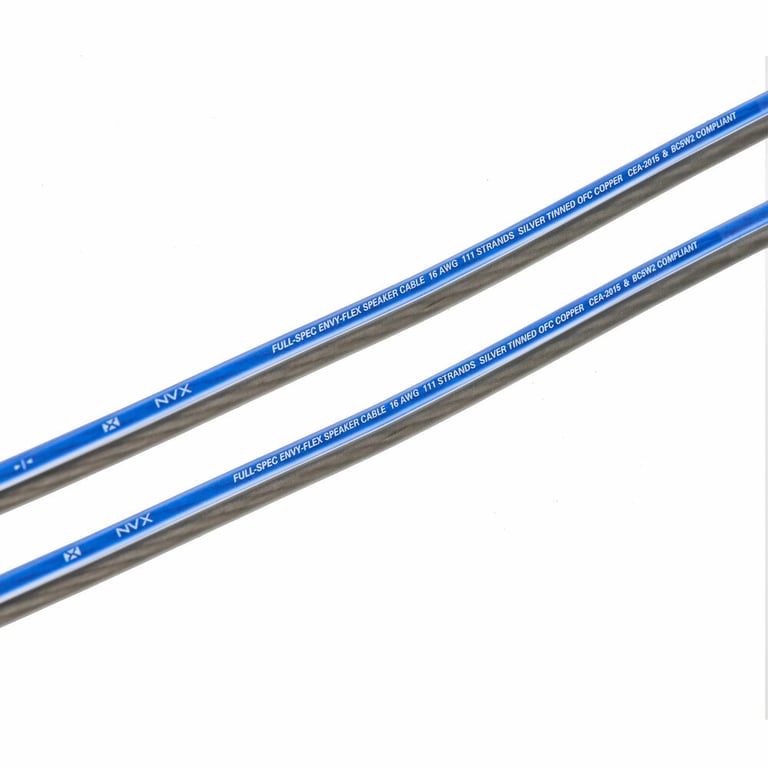

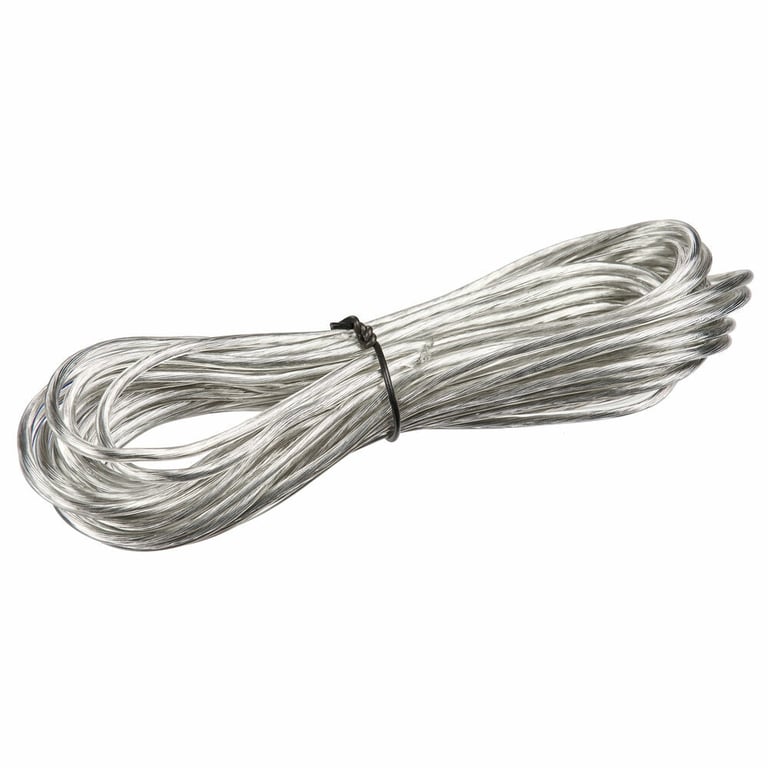

5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
6. One MINI-ANL Fuse Holder with a 60 amp fuse
7. One Black rubber firewall grommet

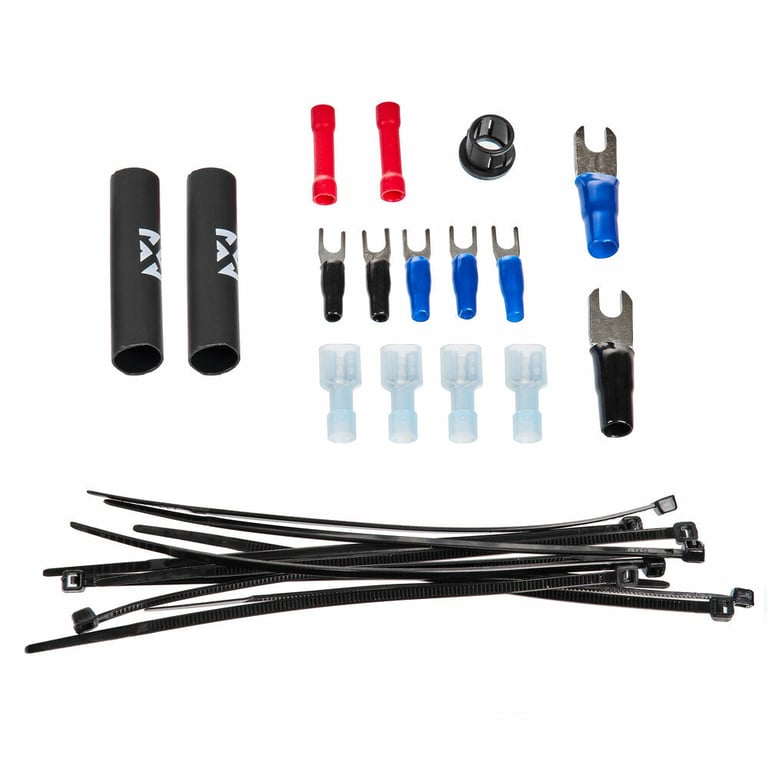

8. One 8 Gauge Blue chrome plated ring terminals
9. One 8 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
