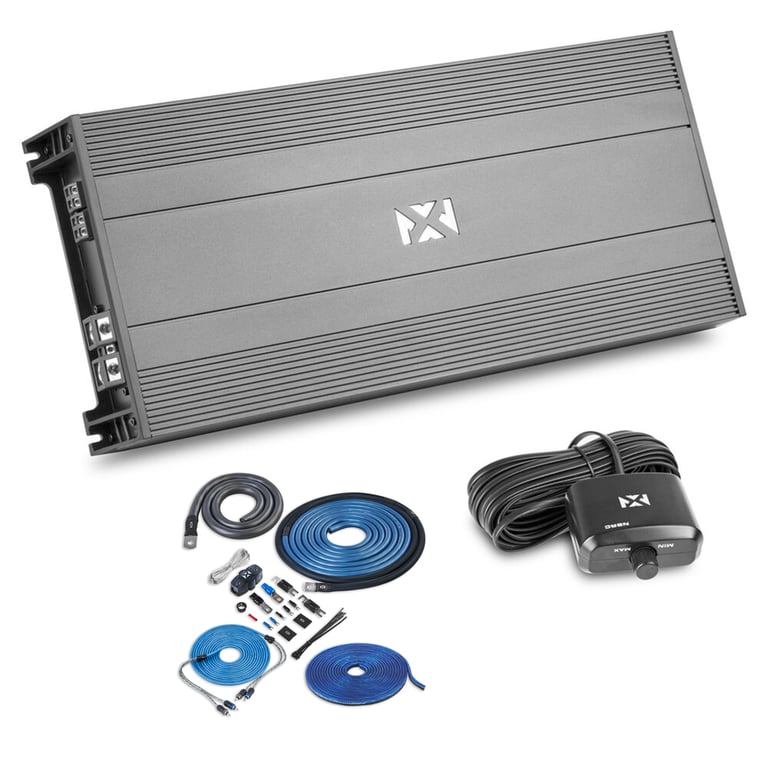

NVX NDA105 Amplifier with Amplifier Wiring Kit

2000W RMS N-Series Class-D 1-Ohm Stable Monoblock Amplifier Package (Includes Amplifier and Amp Wiring Kit)

NVX
Shop all NVX
highlight-star-icon

• 780 watts x 1 channel @ 4 ohm
• 1300 watts x 1 channel @ 2 ohm
• 2000 watts x 1 channel @ 1 ohm
• Total RMS Power: 2000 watts
• CEA-2006 Compliant
• 0 to +12 dB bass boost

Learn more about the nda105_xkit02

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

98-8999 main

Metra 98-8999 Dash Kit

Install a new Double-DIN with Single-DIN car stereo in select 1993-2012 vehicles from Subaru, Mitsubishi

13
-42.12%

$21.99

List price $37.99

82-8901 main

Metra 82-8901

6.5" to 6.75" Speaker Adapter for select 1998-2021 vehicles from Subaru, Audi

3
-55.90%

$14.99

List price $33.99

72-9300 main

Metra 72-9300

Install New Car Speakers in select 1976-2015 vehicles from Subaru, Nissan, Mazda

8
-40.03%

$8.99

List price $14.99

70-8901 main

Metra 70-8901 Wiring Harness

Install a new car stereo in select 1990-2013 vehicles from Subaru

12
-30.03%

$6.99

List price $9.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8

Description


NVX brand icon

Authorized dealer

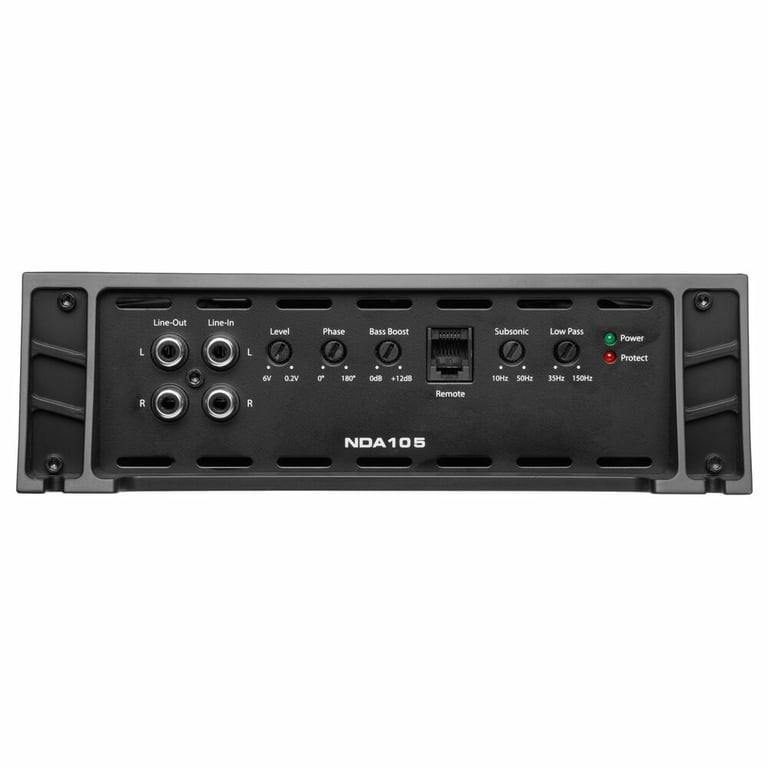

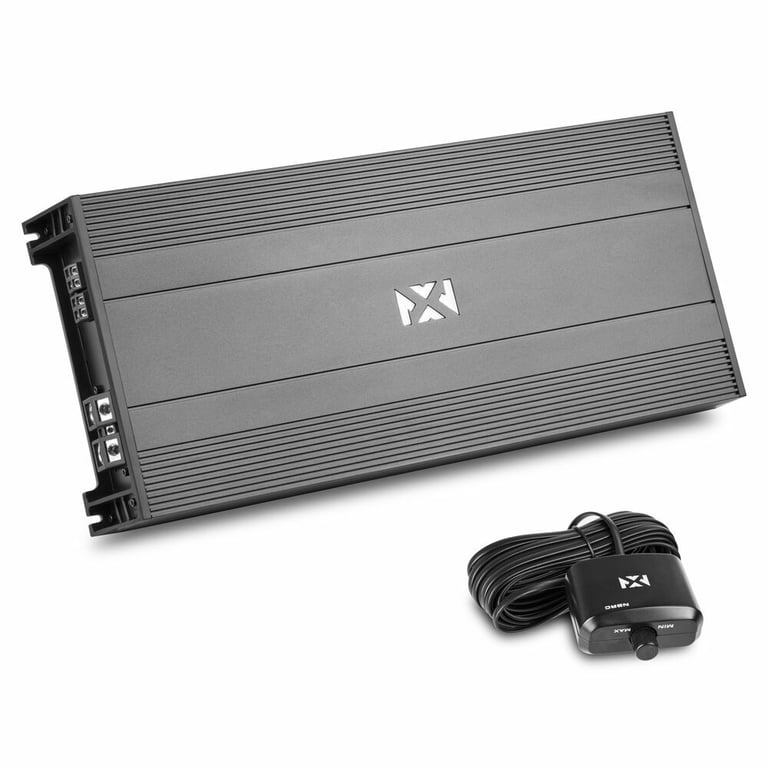

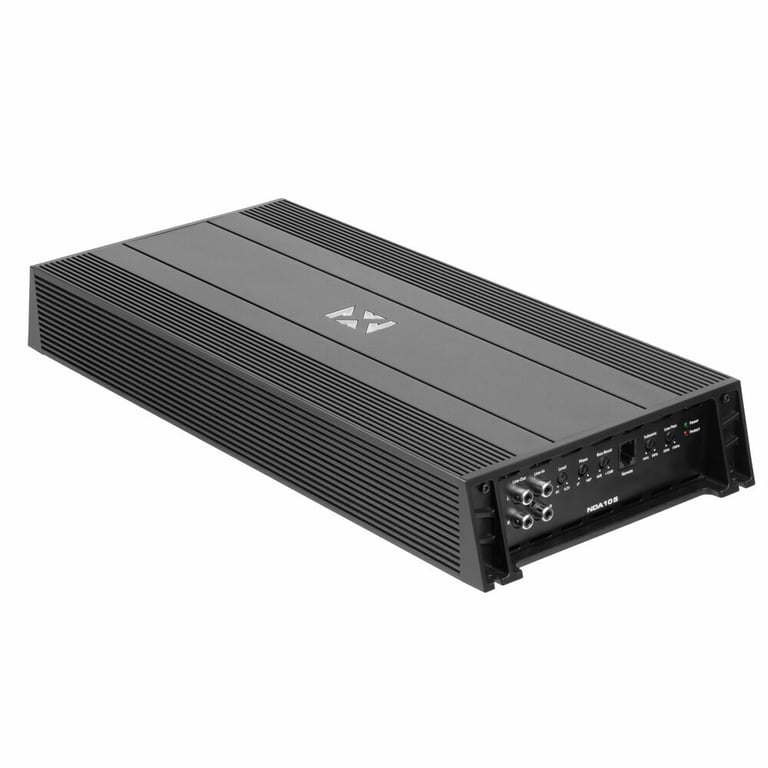

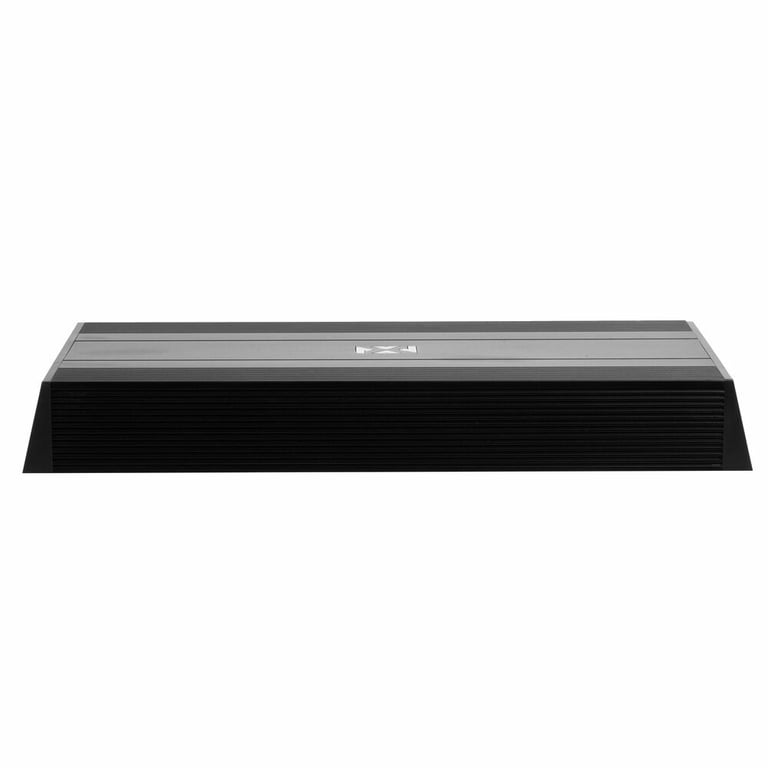

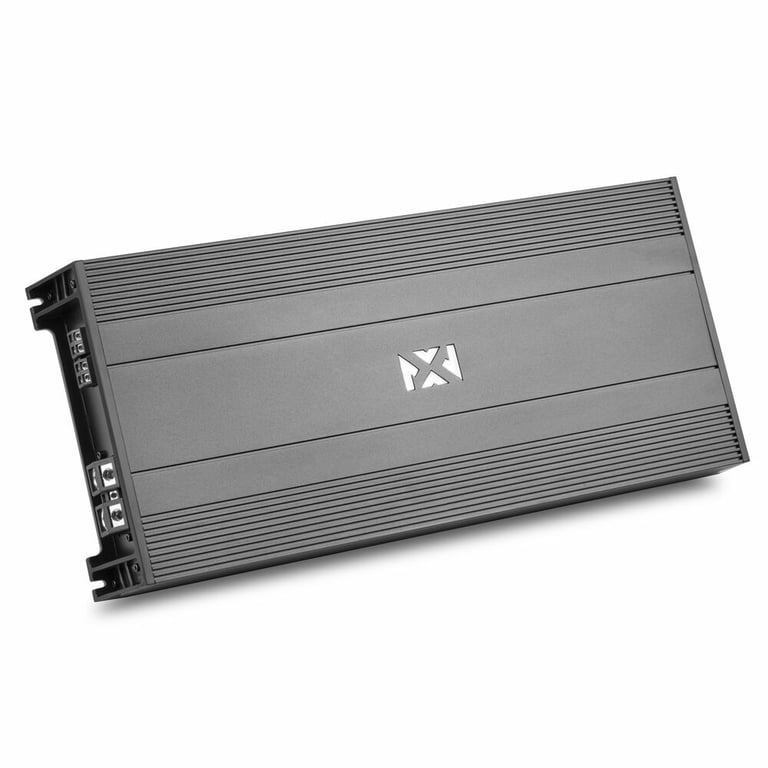

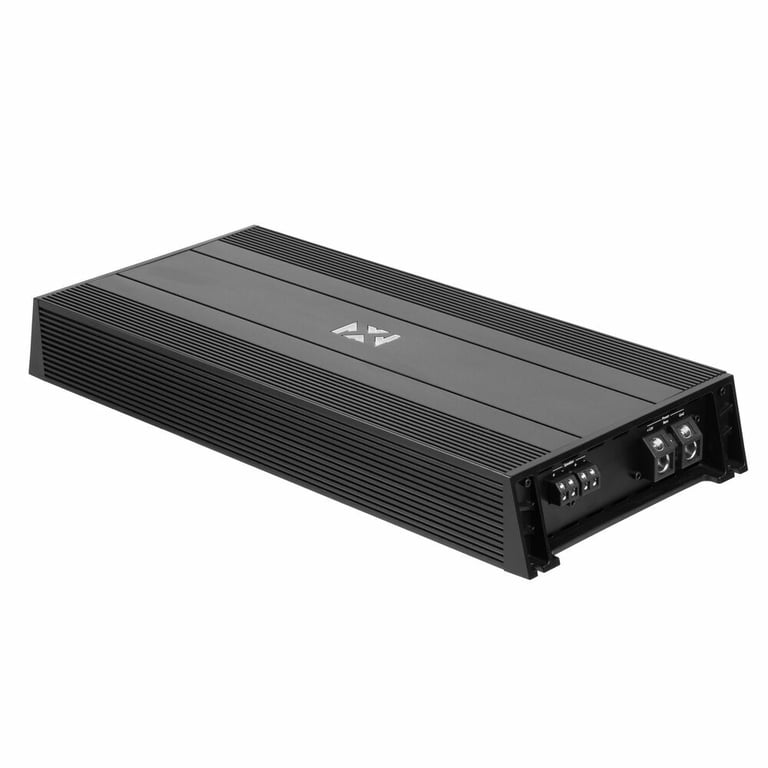

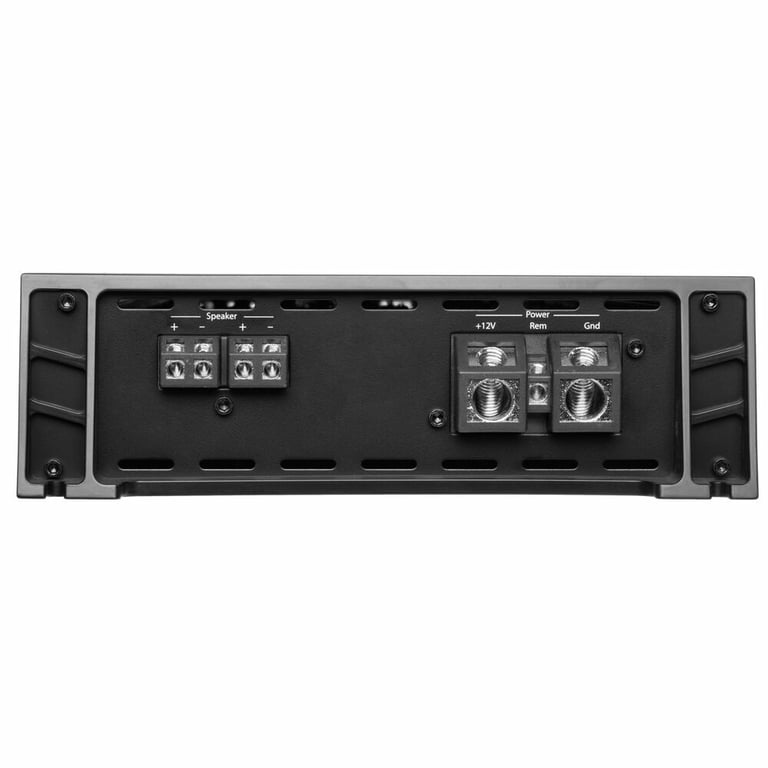

NVX NDA105

4000W Peak (2000W) RMS N-Series Class-D 1-Ohm Stable Monoblock Amplifier
Quantity: 1

Product Details:

  • NVX N-Series NDA105
  • Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 780 watts x 1 channel
    • 2 ohm: 1300 watts x 1 channel
    • 1 ohm: 2000 watts x 1 channel
  • Total power output: 2000 watts
  • CEA-2006 Compliant Amplifier

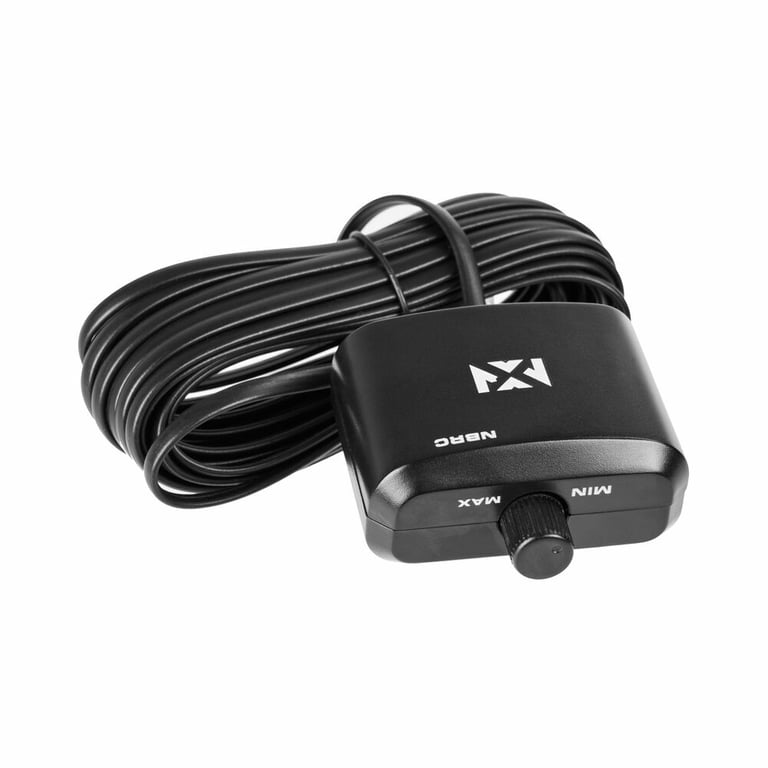

  • Wired remote bass level control included
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 0.2V-6V
  • Frequency Response: 10 - 50 kHz
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: , 24 dB/octave
  • Variable low-pass filter: 35 - 150 Hz, 24 dB/octave
  • Subsonic filter: 10 - 50 Hz , 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • Fuse Rating:
  • 1/0 AWG gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 18.9"W x 7.8"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

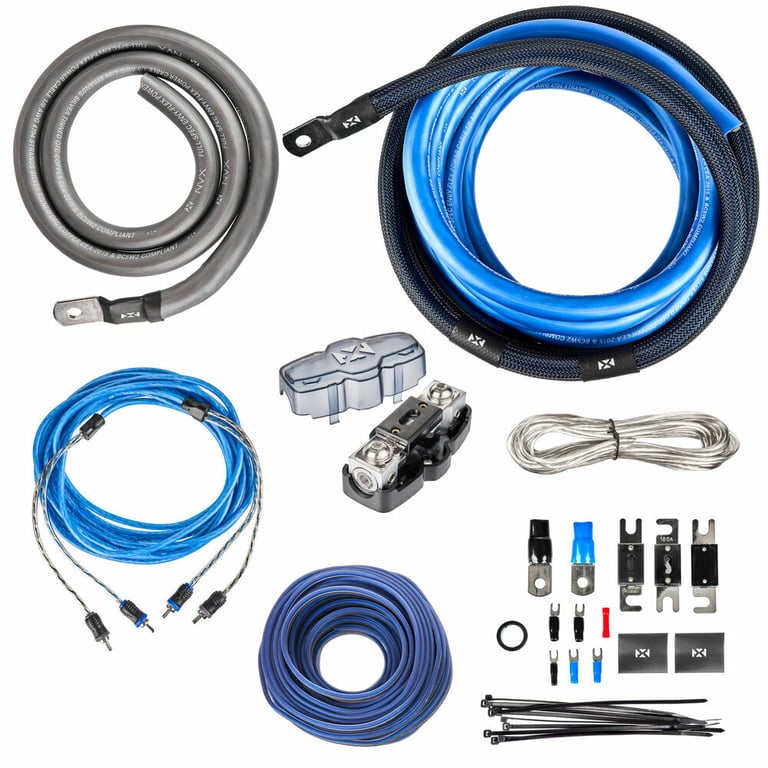

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 3000 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

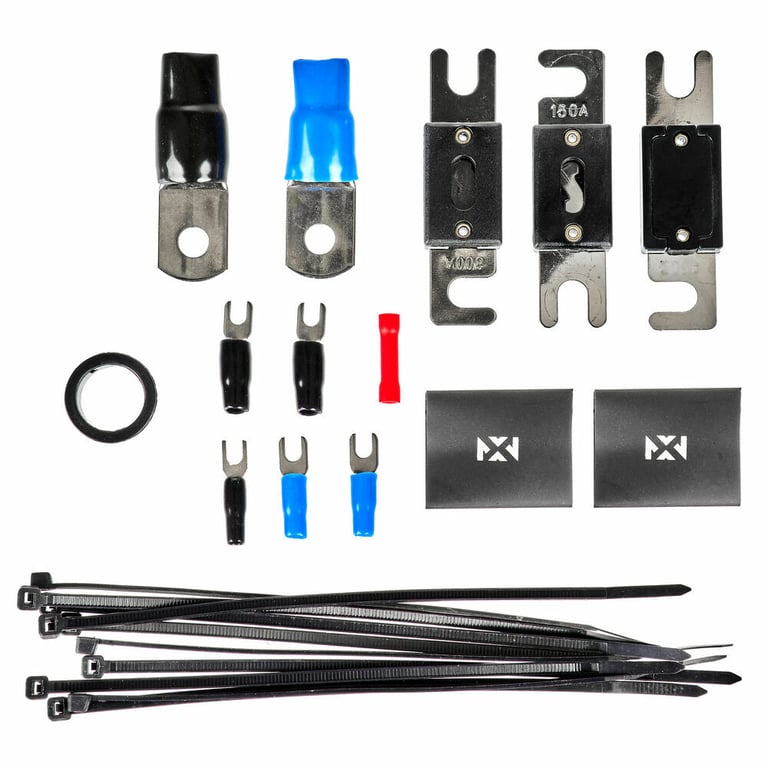

Kit includes:

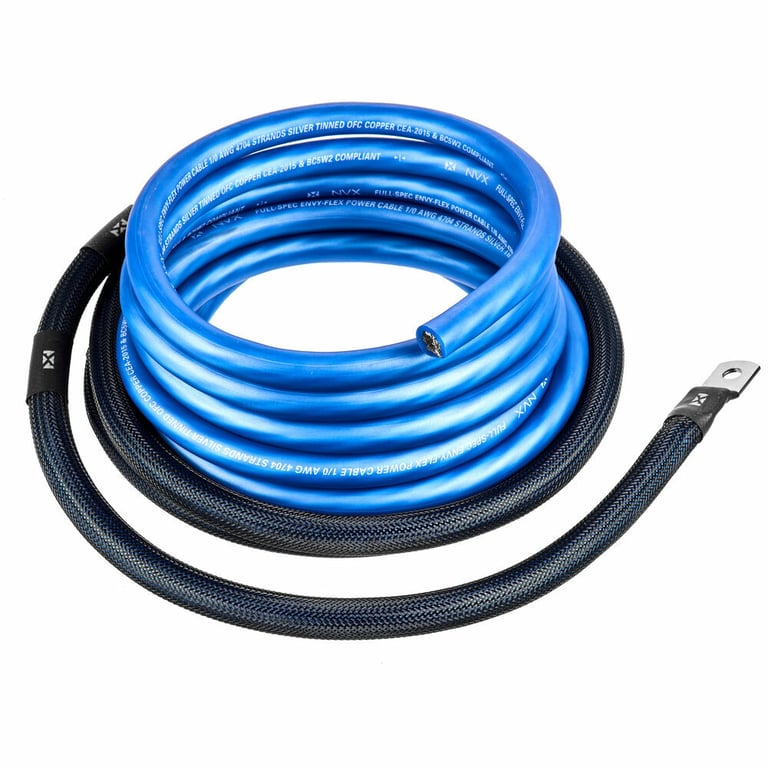

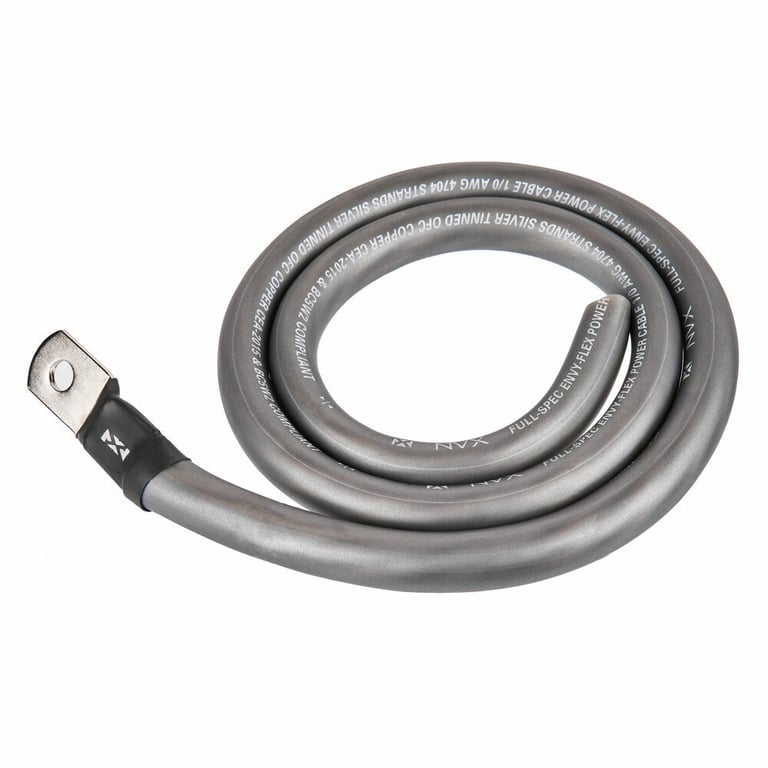

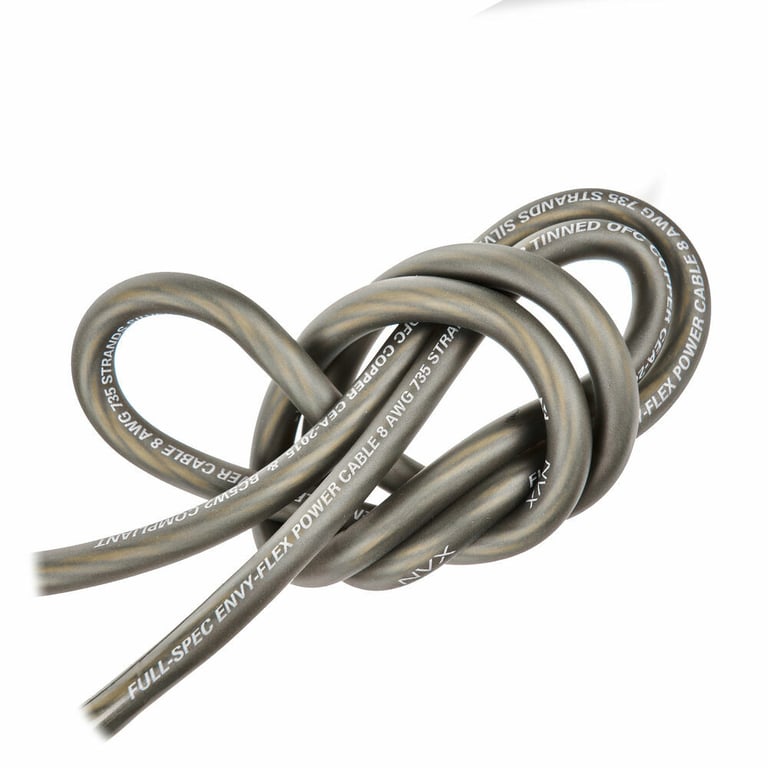

  1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal

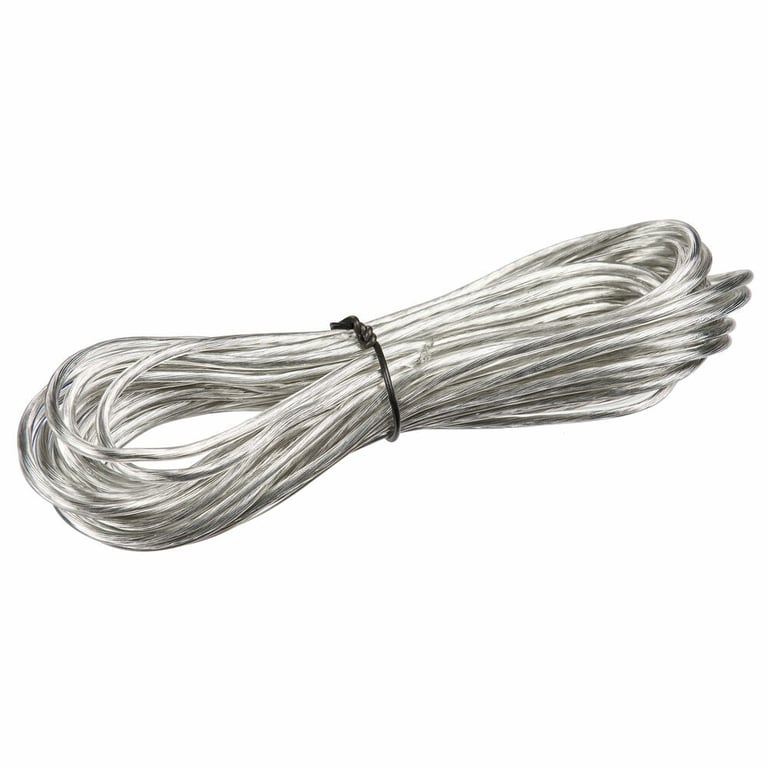

  3. 17 ft. Clear 18 gauge remote lead wire

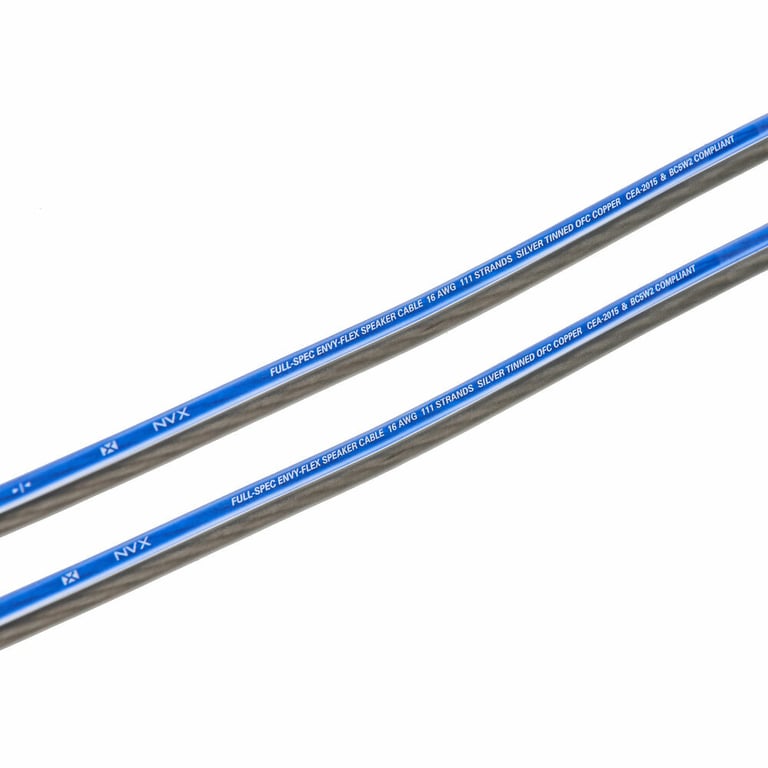

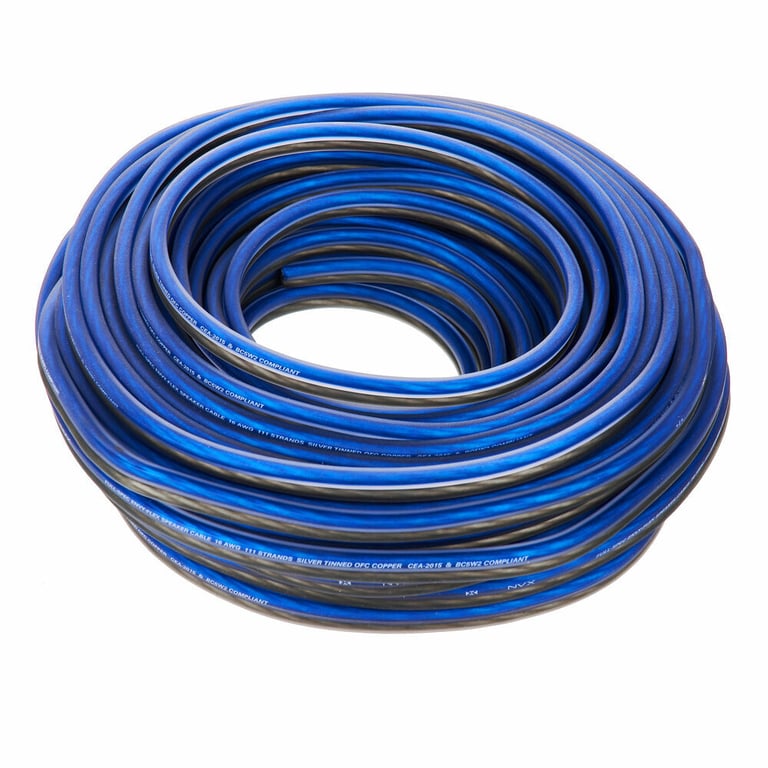

  4. 20 ft. Frosted Black/Blue 12 gauge speaker wire

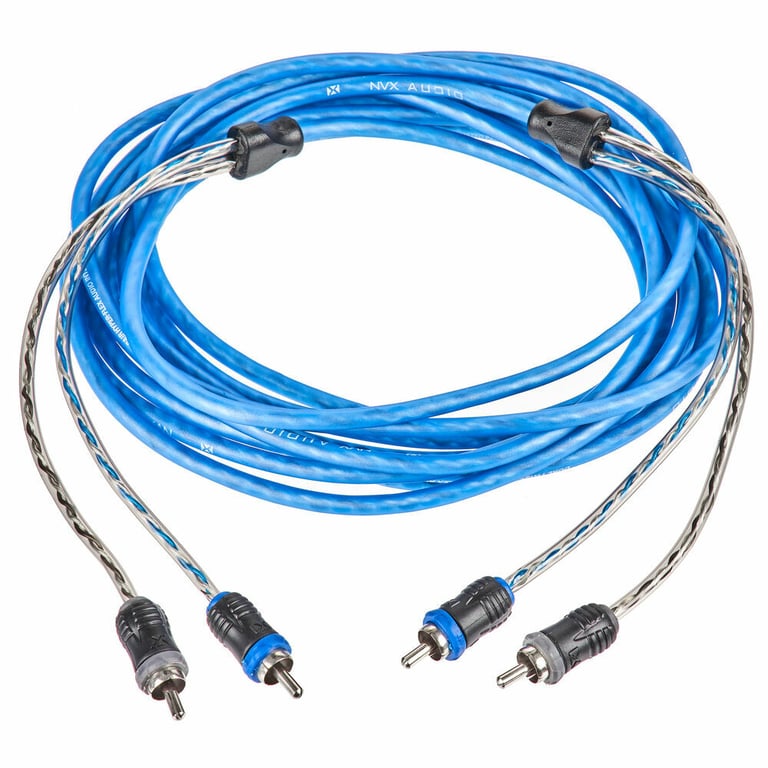

  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

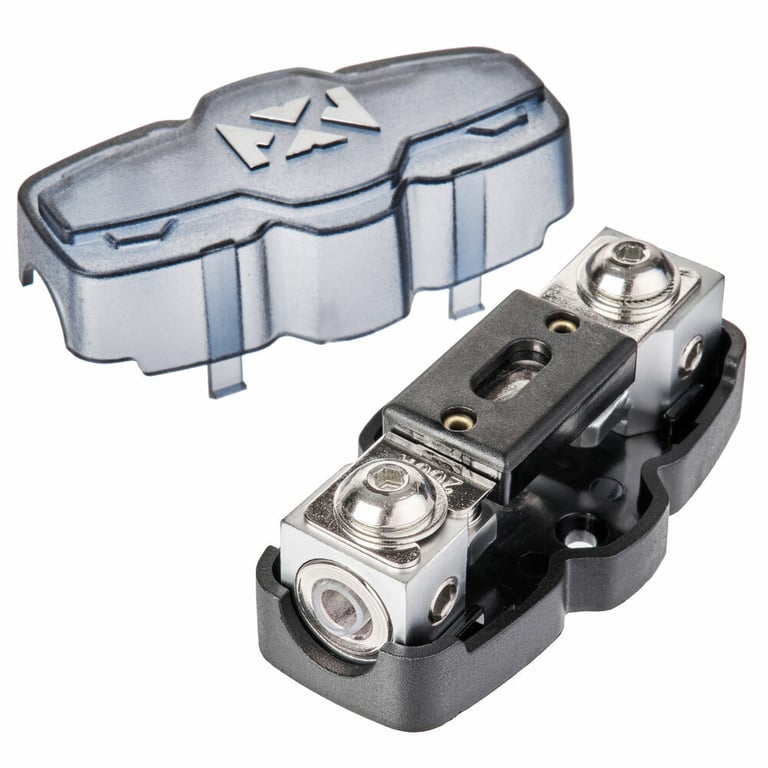

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Two Heat Shrink tubes with the NVX logo
  12. Ten 6" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(255)

$486.93

List price $677.43

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

46CS65_46CS69_VA4_XK84_SK small

Pair Kicker 6.5" and 6x9" Speakers + NVX Amp w/ Free Amp Install Kit

  • Kicker CSC65 600W Peak 6.5-inch 2-Way Coaxial 4-Ohm Speakers
  • CSC693 900W Peak 6x9-inch 3-Way Coaxial 4-Ohm Speakers with Integrated Midrange
  • NVX VADM4 v2 500W RMS Micro Full-Range Class D 4-Channel Amplifier
  • XKIT84 Full Spec 8 Gauge 100% OFC Complete 4-Channel Wiring Kit with RCA
  • Sonic Electronix Premium Polyurethane Foam Can Insulator Sleeve Koozie

(243)

$401.94

List price $637.94

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(244)

$311.43

List price $533.42

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
780 watts x 1 channel
RMS Power @ 2 ohms
1300 watts x 1 channel
RMS Power @ 1 ohm
2000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
2000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.5%
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
35 - 150 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
CEA-2031 Compliant
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

NDA105, XKIT02

Weight:

24.88lbs

Internal SKU:

nda105_xkit02

Internal Product ID:

192885

Customer Ratings & Reviews


NVX NDA105 Amplifier with Amplifier Wiring Kit thumbnail image

5 star
93%
4 star
7%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.8
Features
4.8
Design
4.9
Usability
4.9

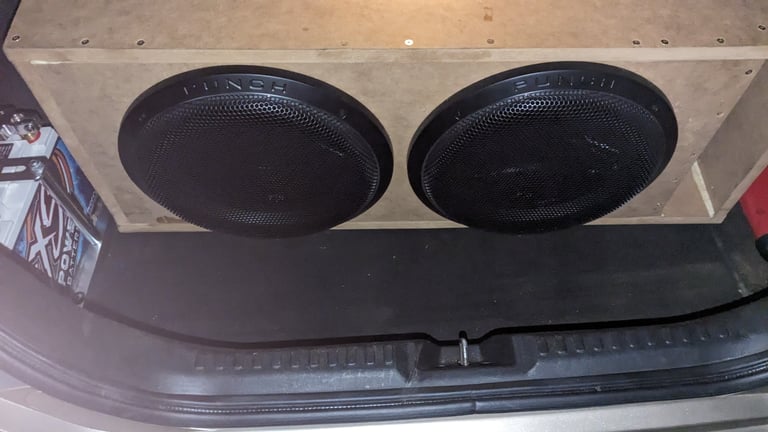

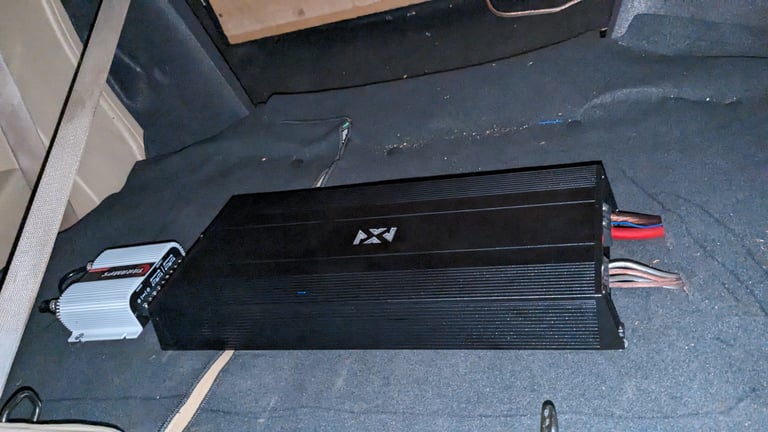

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

fuccin aye

The following review is for XKIT02, which is a part of the bundle you are viewing.

Well worth the money, go hard or go home!!! Only mess with the best

By Michael on March 31, 2014

108 found this helpful


Awesome Kit!

The following review is for XKIT02, which is a part of the bundle you are viewing.

Came With Everything described in kit. If Your looking to push that power to your system, This kit will do it! Worth Every Penny!!

By Raymond on January 12, 2015

106 found this helpful


NVX XKIT02

The following review is for XKIT02, which is a part of the bundle you are viewing.

This is a nice wiring kit no doubt about it. Very sturdy and flexible, easy to work with. It is definitely true 1/0 cable and seems to be pushing the Hifonics BRX2000 amp I have with more than enough power. Rca's are also pretty nice and seem to be working as stated (no feedback or humming). I also like the fact that the battery side of the power cable is pre-sleeved and has the ring terminal already installed for you with heat shrinks as well. Same on the ground cable. Over all its a nice kit, might be a little pricey compared to other kits, but you pay for quality. Well worth the money in my opinion.

By Shawn on January 13, 2014

108 found this helpful


Fine Wire

The following review is for XKIT02, which is a part of the bundle you are viewing.

Wires seem accurate. They transfer plenty power but I do have to upgrade battery to turn amp up more only running it at .25(1/4) and even then my lights dim front to back.

By Jermiah on October 27, 2014

103 found this helpful


Nothing but the best!

The following review is for XKIT02, which is a part of the bundle you are viewing.

A little heavy but my stereo system sounds great! Would buy this again!

By Mark on May 1, 2014

103 found this helpful


Good kit

The following review is for XKIT02, which is a part of the bundle you are viewing.

Comes with everything except rca cables, includes some terminals and boots, look for the bundle and save a lot

By Dutch on May 4, 2014

96 found this helpful


premiun

The following review is for XKIT02, which is a part of the bundle you are viewing.

Very good quality and fast shipping, i recommended buy nvx products

By jesus on May 7, 2015

90 found this helpful


Awesome

The following review is for XKIT02, which is a part of the bundle you are viewing.

I got this kit to wire a boss 2600 watt amp. The wires were huge there was no way I could run it to my amp. The quality was so great that instead of returning it I used it to upgrade my battery cables and my chassis ground. I only wish it came with more ground wire as I need a few more feet to finish my chassis ground upgrade.

By Ace on June 24, 2015 Checkmark Icon Verified purchase

79 found this helpful


great kit

The following review is for XKIT02, which is a part of the bundle you are viewing.

nice kit good quality but says in description 300a fuse but only comes with 150a fuse

----

NOTE FROM SONIC ELECTRONIX:
300A Fuse sent to customer due to typo on our behalf. We also updated the description.

By sam on December 6, 2013

83 found this helpful


Super Value

The following review is for XKIT02, which is a part of the bundle you are viewing.

I've owned wiring kits before but this NVX kit put in great work, it has oxygen free copper that is flexable and put clean power to your amp. You will not be dissapointed this is a good value product.

By Carl on December 16, 2017

68 found this helpful



AS9234_CNP2000UCA small

Prestige AS9234 & Audiovox CNP2000UCA

Add-On Security/Remote Start & SiriusXM Satellite Radio Package w/ Factory Transmitter Integration

(16)

$179.98

List price $409.98

KMR-D558BT small

Kenwood KMR-D558BT

Single-Din Bluetooth Marine Stereo w/ iPod Control, Internet Radio, and Sirius XM Ready

(6)

$139.99

List price $199.99

SX PRO 12D2_BBX112RD small

1000W RE Audio Subwoofer and Enclosure Package

Single 12" SX PRO 12D2 Subwoofer + Ported Enclosure Custom Red Baffle

(6)

$349.95

List price $729.98

TX10 small

Phoenix Gold TX10 10" TantrumX Series

$59.99

List price $169.99

ZR-10D2 small

Phoenix Gold ZR-10D2 10" Octane-ZR DVC 2 Ohms ( ZR10D2 )

$59.99

List price $199.99

RSdC102 small

Phoenix Gold RSdC102 (RSdC 102)

10" Dual 2 ohm RSdC (Radial SD Competition) Series Subwoofer

(3)

$99.99

List price $319.99

GR100 small

Kicker GR100 10" Speaker Grille-OPEN BOX

10" Speaker Grille for Kicker Comp, CompVR, CompVT , CompVX, and Solo Classic

$10.95

List price $25.95

VM9423-2 small

Jensen VM9423 + Jensen NAV102 Package

Combo with GPS Navigation + Double DIN 6.5" Touchscreen CD, DVD, MP3, WMA Multimedia Receiver w/ HD Radio Tuner and Media Link Interface

$579.99

List price $949.98

No picture

Pioneer AVIC-N3 (DEFECTIVE - NO GUARANTEES - ALL SALES FINAL)

Core Unit without Face Plate

$75.00

List price $0.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Volkswagen Beetle

1999 Subaru Forester

2004 BMW 645Ci

2021 Mazda CX-30

2011 Land Rover LR4

2025 GMC Terrain

1999 Chrysler LHS

2004 Volvo XC70

1990 Volvo 760

2017 Dodge Ram ProMaster 2500

Vehicle
Store
Delete

2000 Harley Davidson FXSTS/I Springer Softail

2012 Harley Davidson FLS Softail Slim

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
