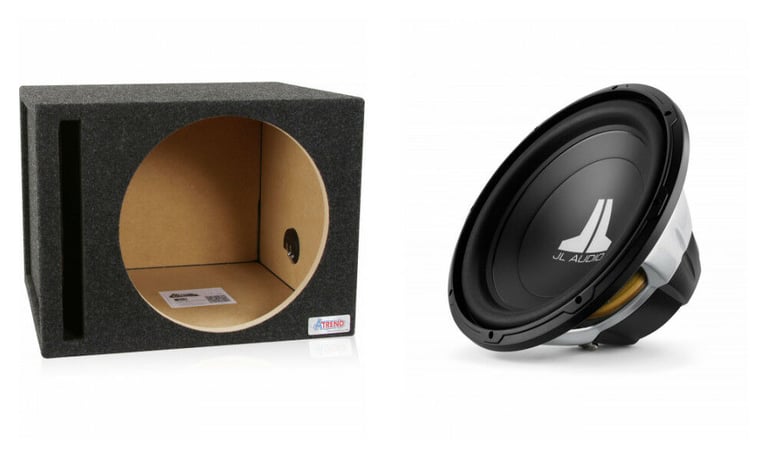

Name: JL Audio 15W0v3-4 Subwoofer + Free Atrend 15SQV 15" Vented Subwoofer Enclosure
Brand: JL Audio
SKU: 15w0v34_15sqv
Price: 391.99 USD
Availability: Discontinued
Rating: 4.7600 (25 reviews)

Shop all JL Audio

by JL Audio

About
Specs & Details
Reviews
Add-ons
Similar Products
Related Searches

Image description — JL Audio 15W0v3-4 Subwoofer + Free Atrend 15SQV 15" Vented Subwoofer Enclosure

Product highlights

• Sensitivity: 88.20 dB
• Mounting depth: 7.15 "
• Mineral-Filled Polypropylene Cone
• Large Roll Surround
• Elevated Frame Cooling
• DMA Optimized Motor System
• Metallic Silver Frame Finish

Learn more about the 15w0v34_15sqv

Description

Authorized dealer

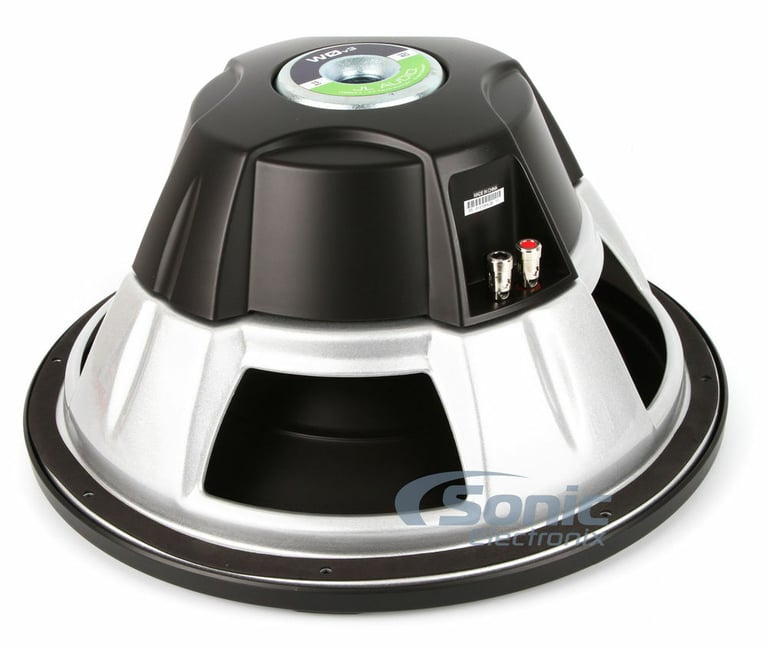

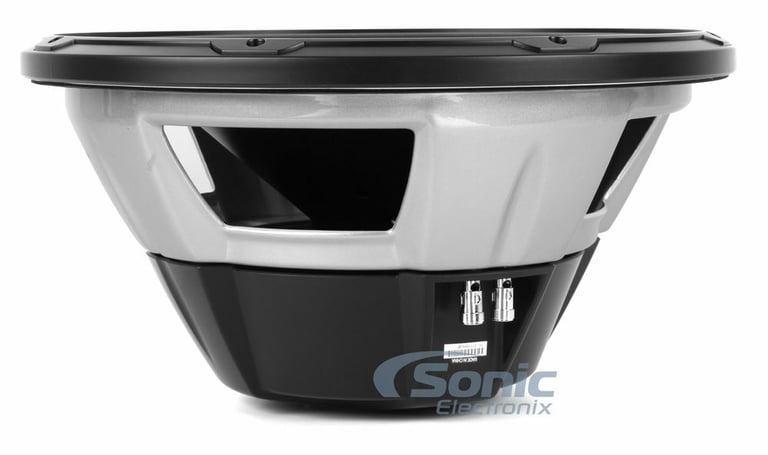

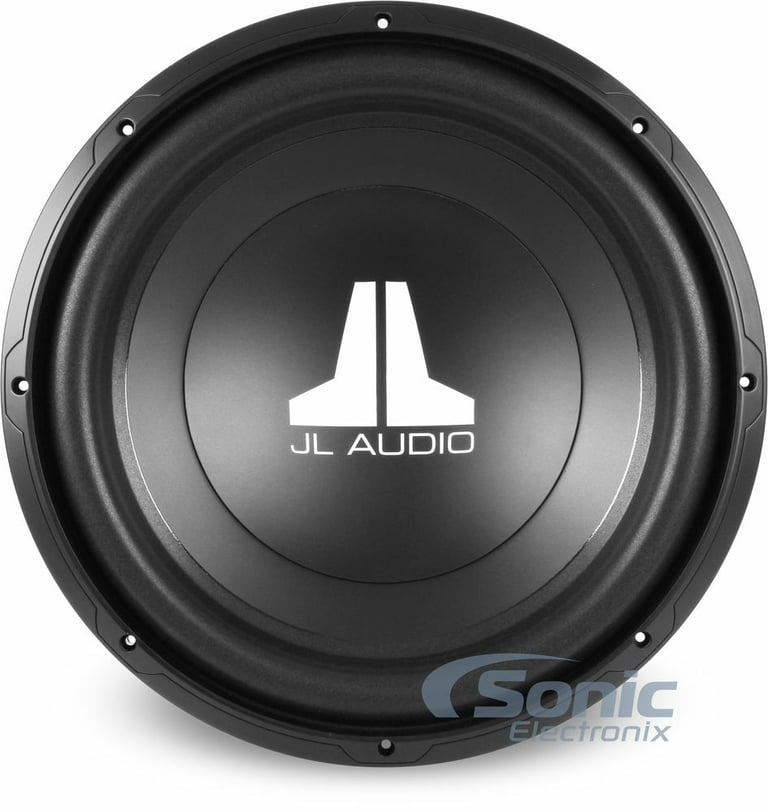

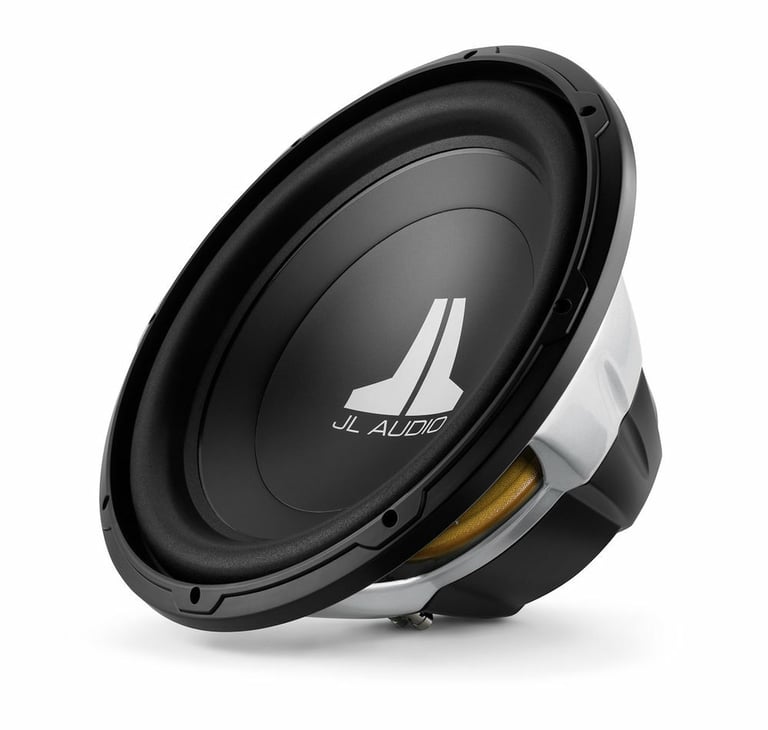

JL Audio W0v3 Series Subwoofer Driver

The W0v3 offers superb excursion capability, linearity and an overall performance output that puts it right at the top of its price class. The driver features a very beefy 2.5-inch diameter voice coil, a DMA-optimized motor system and JL Audio's patented Elevated Frame Cooling design - all purpose-engineered for enhanced power handling and reliability. What this also means, is your system will be immediately injected with the increase in output and better sound fidelity that one expects from a JL Audio product. In addition, excellent excursion capability and linearity allow it to reproduce sub-bass with striking extension and quality. When matched up with the proper power source, signal and setup the W0v3 is capable of a well rounded sound that is unparalleled by any other driver in its price range.

Flexible JL Audio Power

The 15W0v3 Subwoofer can be driven with as little as 150 Watts. However, for best audio performance it is recommended to run an amplifier capable of between 300 - 500 Watts of continuous power per driver, like the JL Audio JX1000/1D or JL Audio XD600/1v2. In addition, these subwoofers are optimized to operate in either a ported or sealed enclosure, needing only 1.875 cubic feet of air space in a sealed box and 2.75 cubic feet in a ported/vented enclosure. (Specific dimensions and figures can be found in the user manual, linked further below.)

Striking Linearity and Control

DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at delivering superior dynamic stability and low distortion. As a result of DMA optimization, W0v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to tight, clean, articulate bass that also allows for extreme linear excursion, phenomenal power handling and control, control, control.

JL Audio 15W0v3-4

500W Peak (250W RMS) 15" W0v3 Series Single 4-Ohm Subwoofer
Quantity: 1

Product Features:

Not sure which model you're looking for?

Click here to compare!

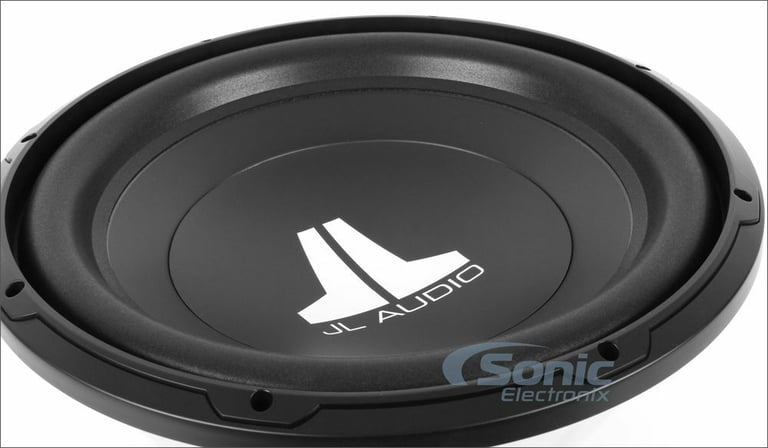

15" W0v3 Series Subwoofer Driver
Power Handling:

RMS: 500 watts

Recommended Power Range: 150 - 500 watts
Impedance: Single 4-Ohm
Mineral-filled, polypropylene cone woofer for excellent durability
Large roll surround for generous amounts of excursion
Elevated frame cooling brings air directly to the voice coil
Designed for compact sealed enclosures or medium-sized ported enclosures
Large excursion for louder bass and less distortion
DMA Optimized motor system reduces distortion and tight, clean bass
Lead wire woven into spider for added strength
Metallic silver frame finish
2.5" High temperature voice coil
Sealed enclosure: 1.875 cu. ft.
Ported enclosure: 2.75 cu. ft.
Mounting depth: 7.15 "
Cutout dimensions: 13.75 "
Free Air Resonance (Fs): 24.43 Hz
Sensitivity: 88.20 dB
Xmax: 12.7 mm
Reference Efficiency (no): 0.1800%
Frequency response: ~20 ~ 200 Hz
Black Steel-Mesh Grille Insert Available: JL Audio SGRU-15
Matching Amplifier:

Authorized Internet Dealer
1-year Manufacturer's Warranty

Check out the JL Audio 15W0v3-4 Owner's Manual

JL Model Comparison From entry level woofers to competition grade, JL has them all. Let us find which one works for you.
Model	RMS Power	Cone Material	Surround Material	Sensitivity (dB)	Frequency Response	Xmax (mm	Terminals	Made In America
W7 Series	500-1500 Watts	Polypropylene	Foam Overroll	82.7 - 86.3	15-250 Hz	19-32	Push Terminals
W6 Series	600 Watts	Polypropylene	Rubber	82.7 - 85.4	20-200 Hz	19	Push Terminals
W3 Series	150-600 Watts	Polypropylene	Rubber	80.5-87.90	20-250 Hz	8.89-15.5	Push Terminals
W1 Series	150-300 Watts	Polypropylene	Rubber	83.9-86.1	22-200	8-11	Push Terminals
W0 Series	300-500 Watts	Polypropylene	Foam	84-88.20	20-250 Hz	11.4-12.7	Push Terminals
WX Series	200 Watts	Polypropylene	Foam	86-87.17	22-250 Hz	10	Spade Terminals

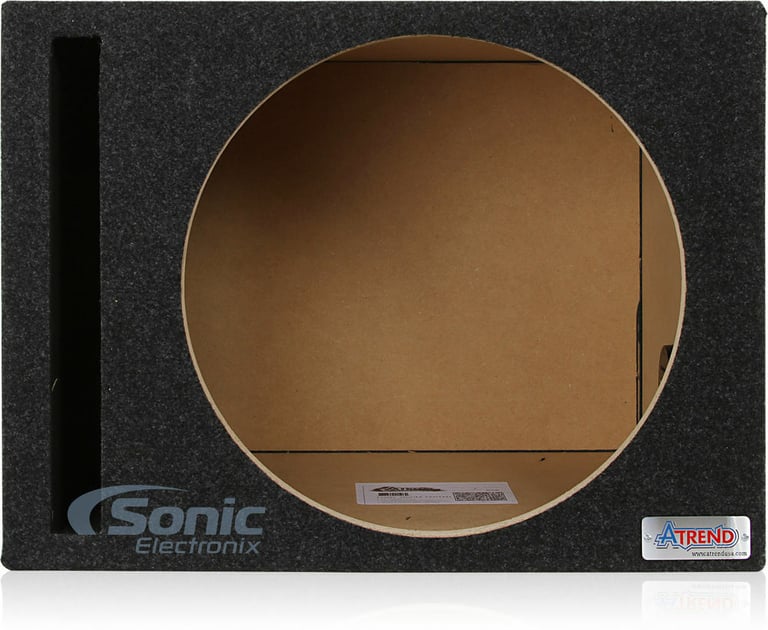

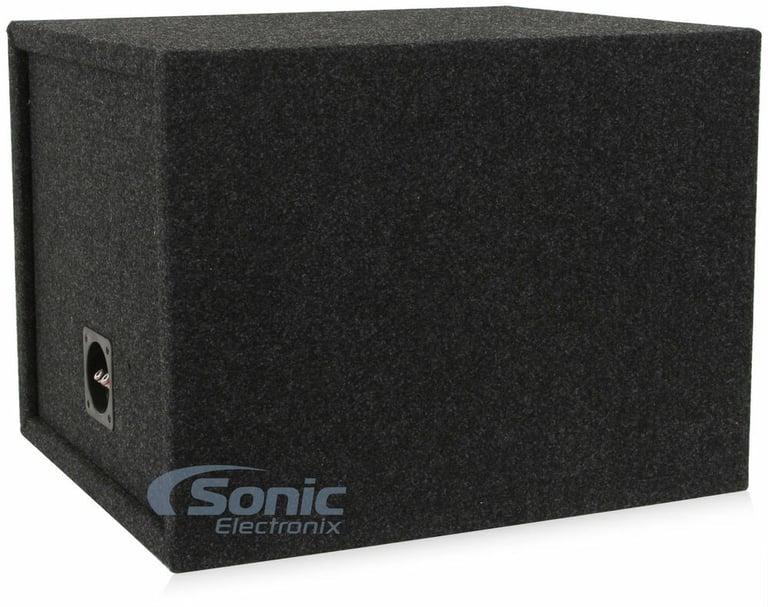

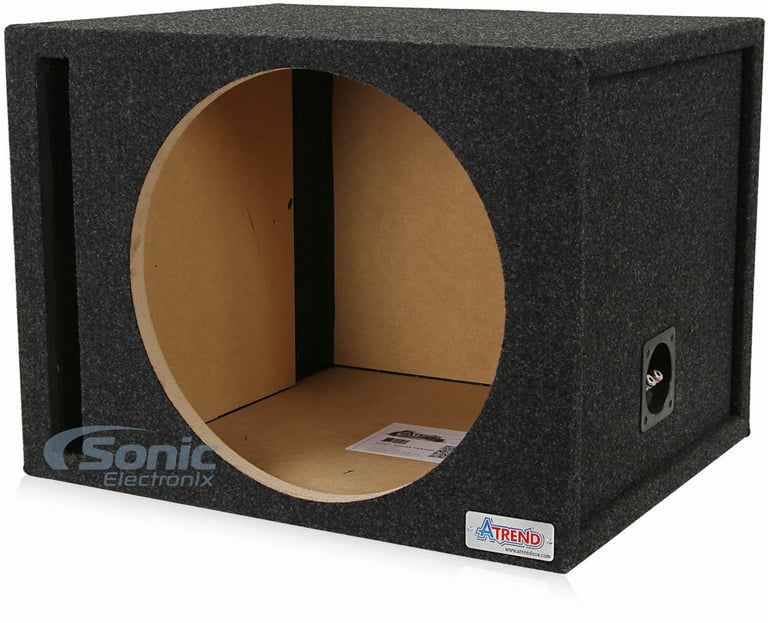

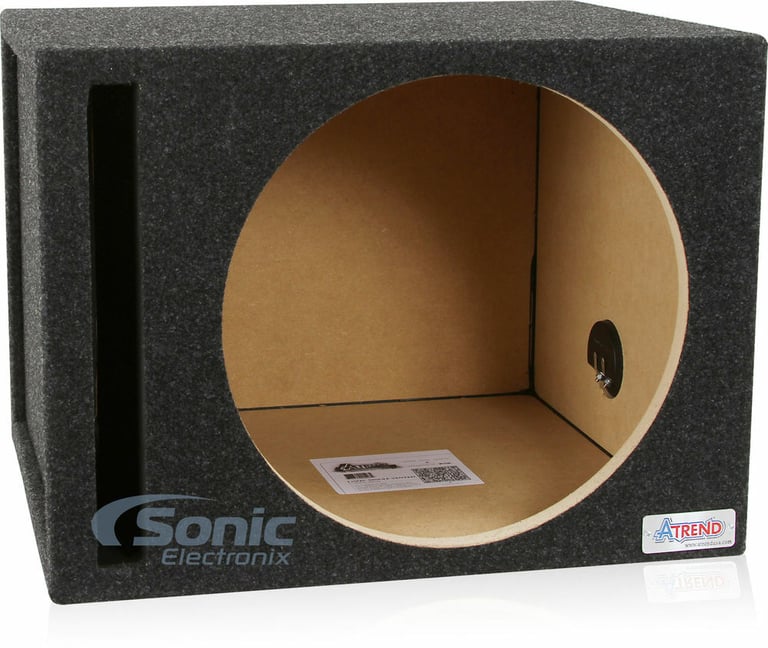

Atrend 15SQV

15" Single Pro Series Vented Subwoofer Enclosure
Quantity: 1

General Features:

15" Single Pro Series Vented Subwoofer Enclosure
Made in the USA
Completely miter and dado end panels
Premium carpeted finish

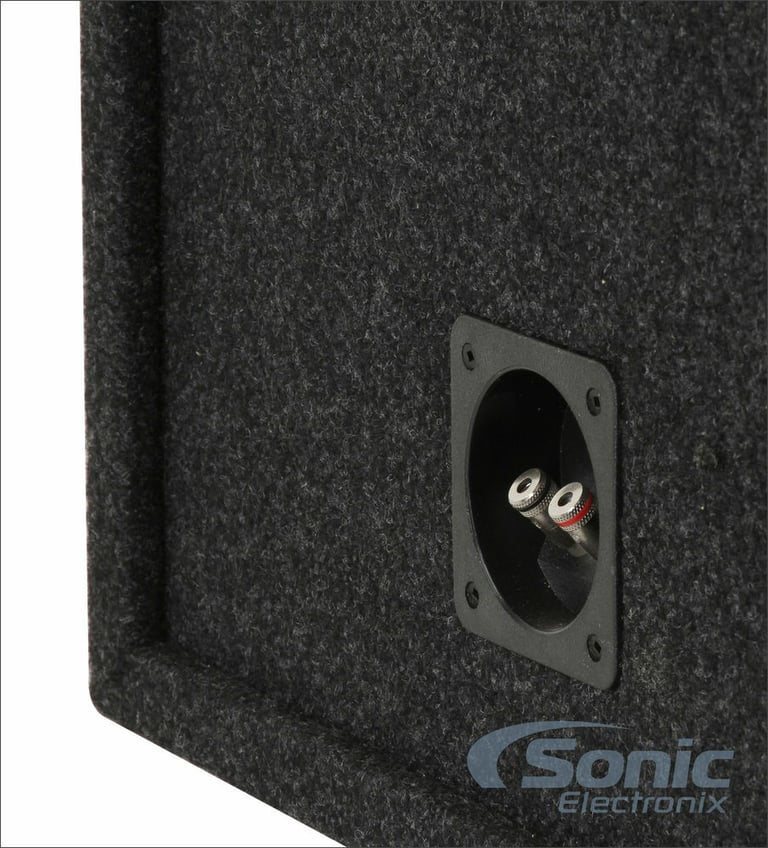

Silver spring loaded terminal cups
3/4" MDF construction
Glued and braced with fasteners
Total box volume: 2.50 cubic feet
Dimensions: 17-1/4"D x 21"W x 15-3/4"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Product history:

	JL Audio 15W0v3-4 Subwoofer + Free Atrend 15SQV 15" Vented Subwoofer Enclosure (newest, current model)
	JL Audio 15W0v2-4 (previous model, replaced by JL Audio 15W0v3-4 Subwoofer + Free Atrend 15SQV 15" Vented Subwoofer Enclosure)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details

Subwoofer Specifications

Series

W0 v3 Series

Subwoofer Size

15"

Voice Coil(s)

Single

Impedance (Per Voice Coil)

4 ohms

Final Wired Impedance

RMS Power Handling

500 watts

Total RMS Power Handling

Total Peak Power Handling

Woofer Composition

Mineral-Filled Polypropylene

Woofer Surround

Rubber

Sensitivity

88.20 dB

Frequency Response

20 - 200 Hz

Xmax (millimeters)

12.7 mm

Subwoofer Design

Round / Circle

Enclosure Specifications

Box Type

Number of Subs/Speakers

Box Style/Shape

Height

Width

Depth

Second Depth

Wood Thickness

Number of Terminals

Terminal Type

Box Exterior Color

Box Finish

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

JL Audio 15W0v3-4 Subwoofer + Free Atrend 15SQV 15

Rate or review product

Overall rating distribution

5 star		84%
4 star		12%
3 star		0%
2 star		4%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.5
Value		4.7
Features		4.7
Design		4.7
Usability		4.9

Customer Reviews

Sort by:

Great value

The following review is for 15SQV, which is a part of the bundle you are viewing.

Great price and works fine I know pre fab boxes ARENT ideal but if you do go with one this is not a bad option

By Gjc15 on February 23, 2015

found this helpful.

Helpful? Report abuse

str8 slappin

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

I have 4 of these in a 91 caprice on a true 2300 watt amp and they flex my whole car and the front glass of the shop that hooked them up but you will need to upgrade your mids highs alt and an extra battery is the best. 15s I have bought they hit harder and clearer than my nigga wit 6 12s.

By weeman on May 21, 2012

found this helpful.

Helpful? Report abuse

Stupid slap

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

I push them hard. I got em in a 29hz ported box. Hit the lows very well. 2 of these bad boys in a Tahoe and it shakes pictures, windows, and everything. Impressed.

By Jay dub on March 24, 2013

found this helpful.

Helpful? Report abuse

great sub

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

had single in small hatched sealed box, and it was really tight. was running it with 200 w rms pioneer amp and it distorted slightly. besides that it lasted for 10 years until i sold it!

By alex on July 28, 2012

found this helpful.

Helpful? Report abuse

JL AWESOME

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

I love JL Audio subs. They sound awesome. Always have and always will. I had 4 15's on 2000 watts and they sounded amazing but just don't hold up. I purchased cheaper subs with the same rating on the same amps and was really impressed. These subs sound awesome and I would def recommend them if you have money to waste or just low power setup. In my opinion these subs are way way over priced.

By MOFO on September 17, 2013

found this helpful.

Helpful? Report abuse

great bass for a great price

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

I recommend this sub if Ur looking for bass but not looking to spend alot. Hits the low notes good.

By greg on August 29, 2012

found this helpful.

Helpful? Report abuse

Jl RocksHARD 158 DBs Eazy no wall

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

I'm pushing 6000 watts on Eights Fifteens in a two door Ford Explorer and it kicks!

By Mojo1968 on February 14, 2014

found this helpful.

Helpful? Report abuse

Slams, pounds, shatters the earth

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

A great bang for your buck! Sucks for me that I blew mine. SET YOUR GAINS PEOPLE!

By Dylan on May 17, 2015 checkmarkIcon

Verified purchase

found this helpful.

Helpful? Report abuse

Unbelievable!

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

I got this sub and I hooked it up to my home receiver to see what it could do. I was very impressed to see it pound off of about 125 watts rms. it put the factory 15" to shame. It was shaking the floor in my house! Just buy it.

By Jaydub on September 25, 2012

found this helpful.

Helpful? Report abuse

great subs great qualoty

The following review is for 15W0v3-4, which is a part of the bundle you are viewing.

Have one running off a true 1000 watt amp and the sound quality is great for this sub. Definitely recommend especially for the price.

By ck on October 11, 2012

found this helpful.

Helpful? Report abuse

See all 25 reviews
