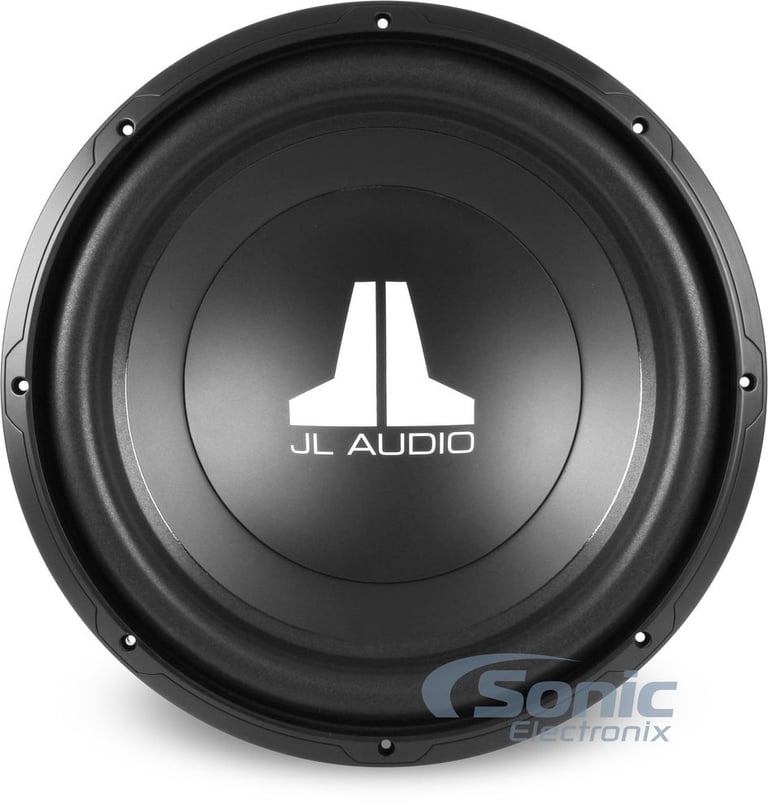

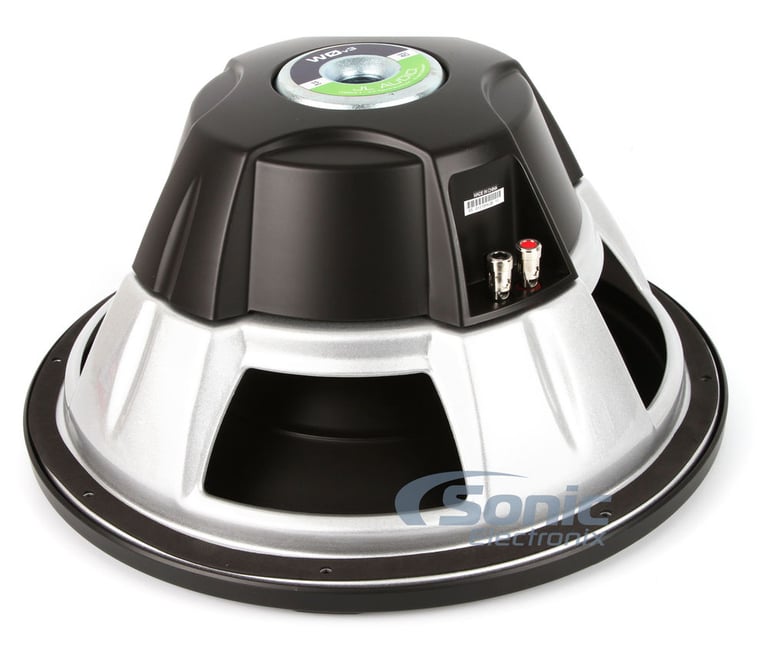

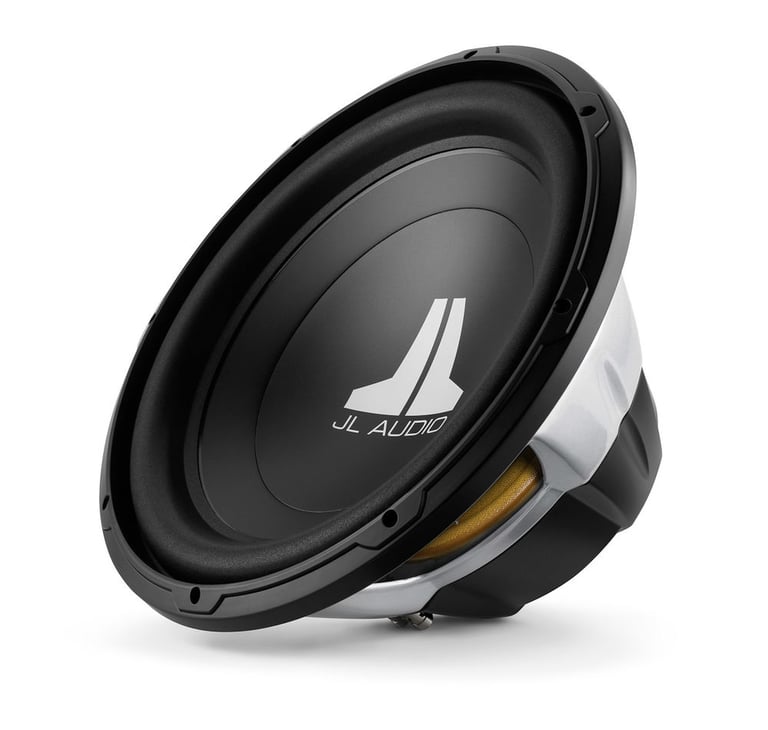

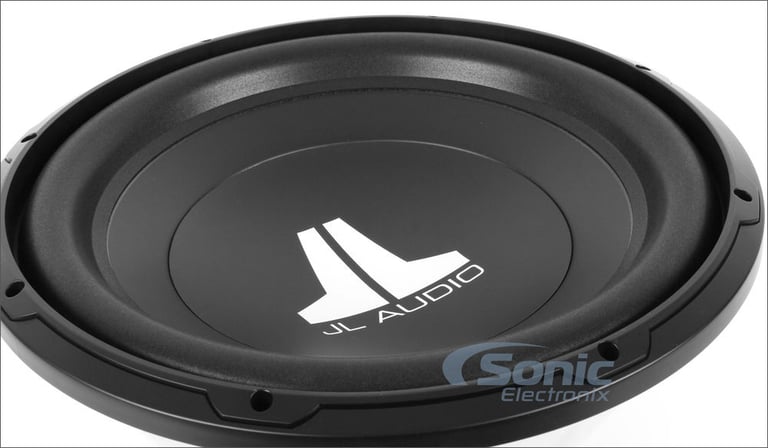

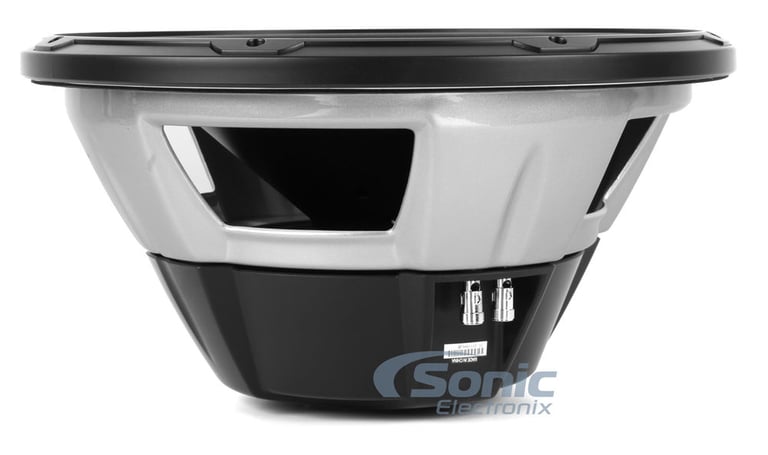

JL Audio 15W0v3-4

500W RMS 15" W0v3 Series Single 4-ohm Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• RMS Power: 500 watts
• Impedance: Single 4 ohms
• Polypropylene Cone
• Foam Surround
• Mount depth: 7.15"
• Sensitivity: 88.20 dB

Learn more about the 15w0v34
Was $399.99 Details
Thanks , You Pay:

$299.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one 15w0v34.

Set your vehicle or Return to product page
shipping truck icon Free shipping in USA. Provide zip for delivery date.
Dollar Icon
VIP Product Get $30.00 in rewards to spend later
Quantity
In Stock
Brand new

Buy it now

Open box icon Open box $254.99

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Current Promotions (1 offer)


Get a Free roll of Belva 16 Gauge Speaker Wire. Simply click the "Add Both to Cart" button and you will see your savings at checkout. This offer cannot be combined with any other coupons or offers.

JL Audio 15W0v3-4

100% off


Priced separately $312 98

Promo Savings of $12 99

Total price:

$299 99

Product Highlights


• RMS Power: 500 watts
• Impedance: Single 4 ohms
• Polypropylene Cone
• Foam Surround
• Mount depth: 7.15"
• Sensitivity: 88.20 dB

Description


JL Audio brand icon

Authorized dealer

JL Audio W0v3 Series Subwoofer Driver
JL Audio W0v3 Series Subwoofer Driver

The W0v3 offers superb excursion capability, linearity and an overall performance output that puts it right at the top of its price class. The driver features a very beefy 2.5-inch diameter voice coil, a DMA-optimized motor system and JL Audio's patented Elevated Frame Cooling design - all purpose-engineered for enhanced power handling and reliability. What this also means, is your system will be immediately injected with the increase in output and better sound fidelity that one expects from a JL Audio product. In addition, excellent excursion capability and linearity allow it to reproduce sub-bass with striking extension and quality. When matched up with the proper power source, signal and setup the W0v3 is capable of a well rounded sound that is unparalleled by any other driver in its price range.


Flexible JL Audio Power

The 15W0v3 Subwoofer can be driven with as little as 150 Watts. However, for best audio performance it is recommended to run an amplifier capable of between 300 - 500 Watts of continuous power per driver, like the JL Audio JX1000/1D or JL Audio XD600/1v2. In addition, these subwoofers are optimized to operate in either a ported or sealed enclosure, needing only 1.875 cubic feet of air space in a sealed box and 2.75 cubic feet in a ported/vented enclosure. (Specific dimensions and figures can be found in the user manual, linked further below.)




Striking Linearity and Control

DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at delivering superior dynamic stability and low distortion. As a result of DMA optimization, W0v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to tight, clean, articulate bass that also allows for extreme linear excursion, phenomenal power handling and control, control, control.




Product Details:

  • 15" Single 4 ohms W0 v3 Series Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Polypropylene Cone
  • Foam Surround
  • Elevated frame cooling to the voice coil
  • Designed for compact sealed enclosures or medium-sized ported enclosures
  • Large excursion, less distortion
  • DMA Optimized motor system reduces distortion and tight, clean bass
  • Lead wire woven into spider
  • Metallic silver frame finish
  • 12.7 mm Xmax
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 24.43 Hz
  • Sensitivity: 88.20 dB
  • Recommended sealed box volume: 1.875 cubic feet
  • Recommended ported box volume: 2.75 cubic feet
  • Top-mount depth: 7.15"
  • Cutout diameter: 13.75"
  • Authorized Internet Dealer
  • Optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

JL Audio 15W0v3-4 thumbnail
(newest, current model)
JL Audio 15W0v2-4 thumbnail
(previous model, replaced by JL Audio 15W0v3-4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 15W0v3-4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 15W0v3-4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 15W0v3-4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 15W0v3-4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
W0 v3 Series
Subwoofer Size
15"
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
Frequency Response
20 - 200 Hz
Sensitivity
88.20 dB
Xmax (millimeters)
12.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.875 cubic feet
Minimum Ported Box Volume
2.75 cubic feet
Top-Mount Depth (Mounting Depth)
7.15"
Cutout Diameter
13.75"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
24.43 Hz
Equivalent Compliance (Vas)
144.60 liters
Total Speaker Q Value (Qts)
0.482
Electrical Q Value (Qes)
0.508
Electrical Resistance of Voice Coil (Re)
3.555 ohms
Mechanical Q Value (Qms)
9.474
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

15W0v3-4

Weight:

19.95lbs

Internal SKU:

15w0v34

Internal Product ID:

39836

Product and How-to Videos
