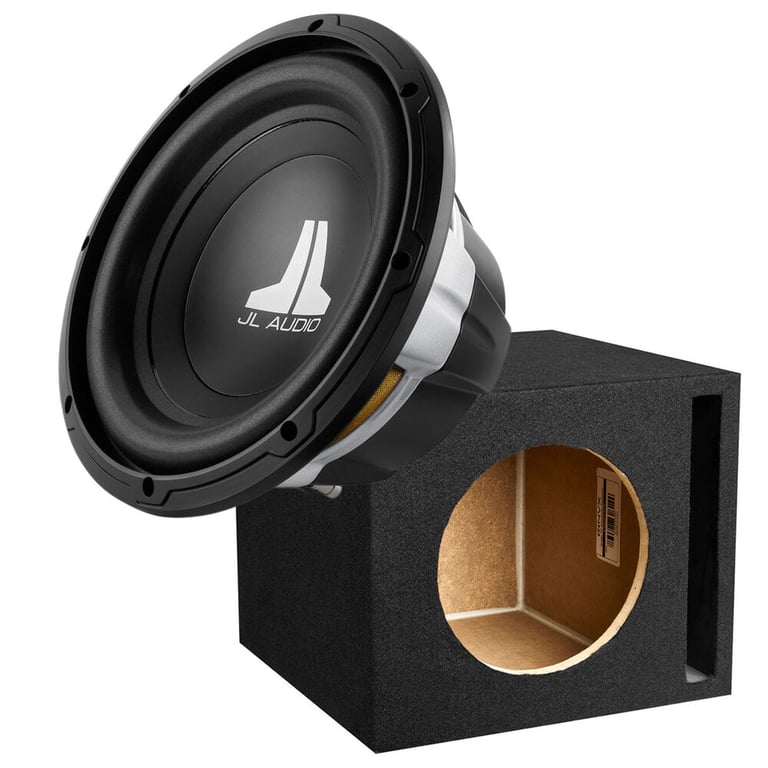

JL Audio 10W0v3-4 with Ported Enclosure

600W Peak (300W RMS) 10" W0v3 Series Single 4-Ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• 300 Watts RMS
• Mineral-Filled Polypropylene Cone
• Large Roll Surround
• Elevated Frame Cooling
• DMA Optimized Motor System
• Metallic Silver Frame Finish
• Includes Ported Enclosure

Learn more about the 10w0v34_xmdfp101

We apologize

This item has been discontinued


Loading...
70-1721 main

Metra 70-1721 Wiring Harness

Install a new car stereo in select 1998-2013 vehicles from Honda, Suzuki, Acura

27
95-7868B main

Metra 95-7868B Dash Kit

Install a new Double-DIN car stereo in select 1999-2003 TL and CL (Matte Black)

7
-40.49%

$24.99

List price $41.99

99-7868 main

Metra 99-7868 Dash Kit

Install a new Single-DIN car stereo in select 1999-2003 TL and CL

3
-38.65%

$26.99

List price $43.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

DSX-A415BT main

Sony DSX-A415BT (DSXA415BT)

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

6
-21.33%

$118.00

List price $149.99

Description


JL Audio brand icon

Authorized dealer

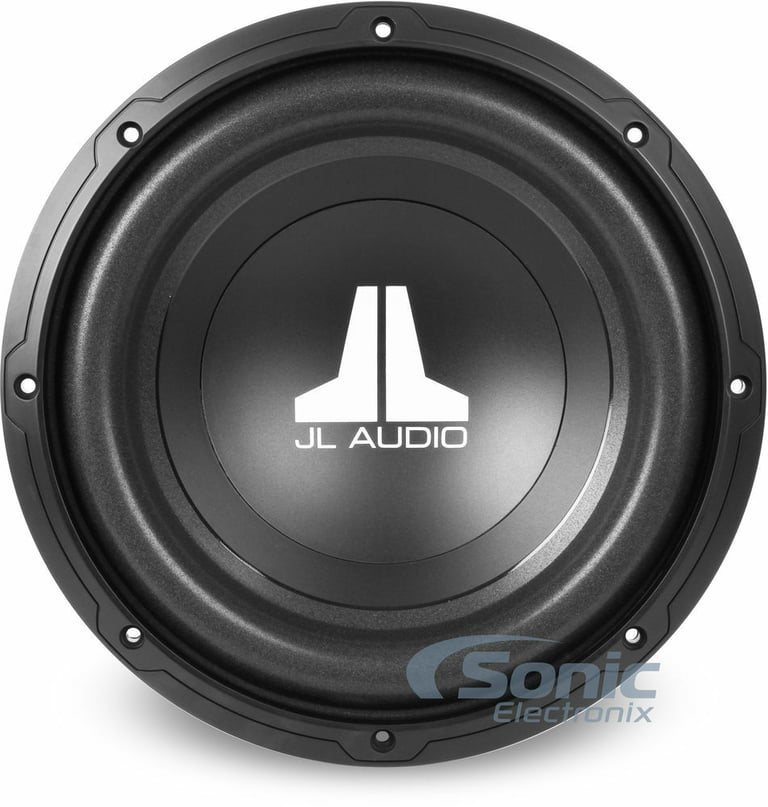

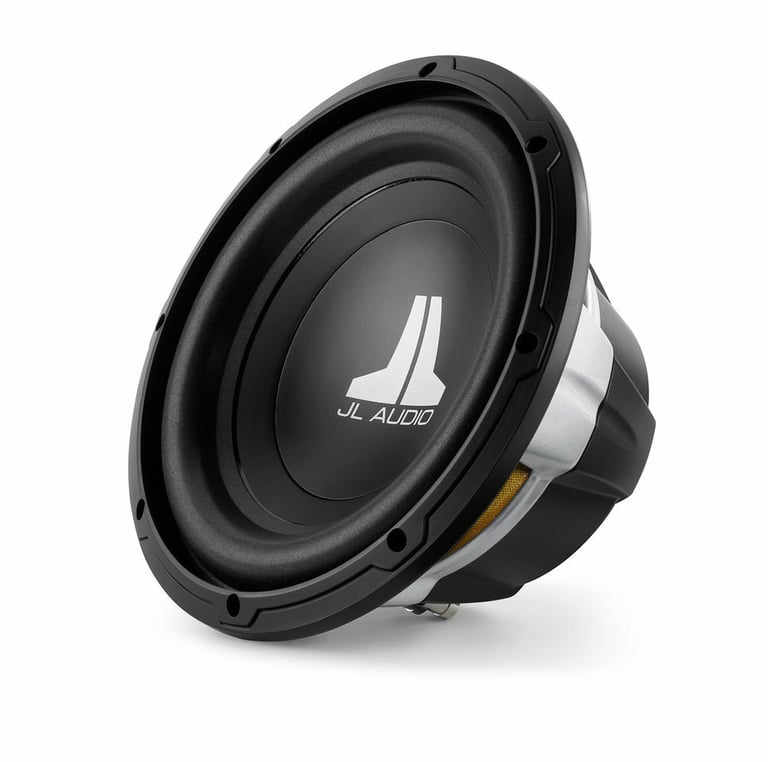

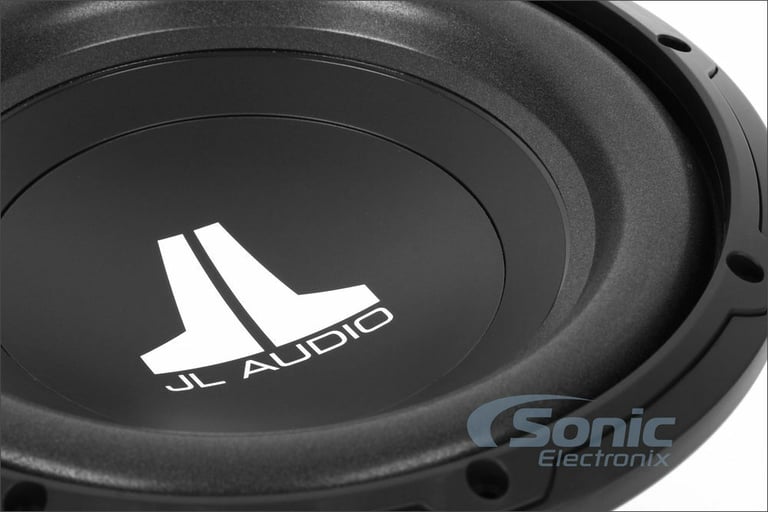

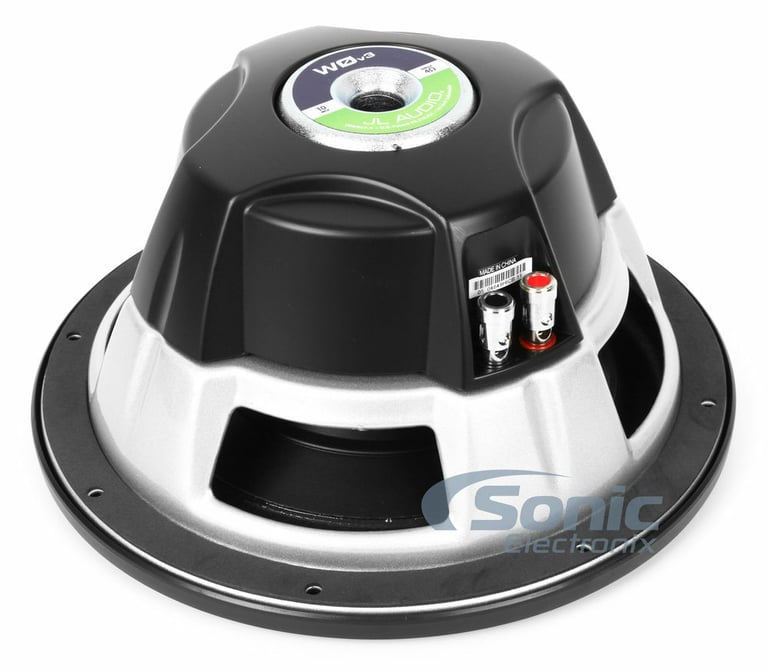

JL Audio W0v3 Series Subwoofer Driver
JL Audio W0v3 Series Subwoofer Driver

The W0v3 offers superb excursion capability, linearity and an overall performance output that puts it right at the top of its price class. The driver features a very beefy 2.0-inch diameter voice coil, a DMA-optimized motor system and JL Audio's patented Elevated Frame Cooling design - all purpose-engineered for enhanced power handling and reliability. What this also means, is your system will be immediately injected with the increase in output and better sound fidelity that one expects from a JL Audio product. In addition, excellent excursion capability and linearity allow it to reproduce sub-bass with striking extension and quality. When matched up with the proper power source, signal and setup the W0v3 is capable of a well rounded sound that is unparalleled by any other driver in its price range.


Flexible JL Audio Power

The 10W0v3 Subwoofer can be driven with as little as 75 Watts. However, for best audio performance it is recommended to run an amplifier capable of between 200 - 300 Watts of continuous power per driver, like the JL Audio XD300/1v2 or JL Audio JX500/1D. In addition, these subwoofers are optimized to operate in either a ported or sealed enclosure, needing only 0.65 cubic feet of air space in a sealed box and 1.125 cubic feet in a ported/vented enclosure. (Specific dimensions and figures can be found in the user manual, linked further below.)


Striking Linearity and Control

Striking Linearity and Control

DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at delivering superior dynamic stability and low distortion. As a result of DMA optimization, W0v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to tight, clean, articulate bass that also allows for extreme linear excursion, phenomenal power handling and control, control, control.



JL Audio 10W0v3 Recommended Power Range

JL Audio 10W0v3-4

300W RMS 10" W0v3 Series Single 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Single 4 ohm W0 v3 Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • 2" Voice coil
  • 11.4 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 32.09 Hz
  • Sensitivity: 84.07 dB
  • Recommended sealed box volume: 0.65 cubic feet
  • Recommended ported box volume: 1.125 cubic feet
  • Top-mount depth: 4.90"
  • Cutout diameter: 9.0625"
  • Authorized Internet Dealer
  • JL Audio SGRU-10 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

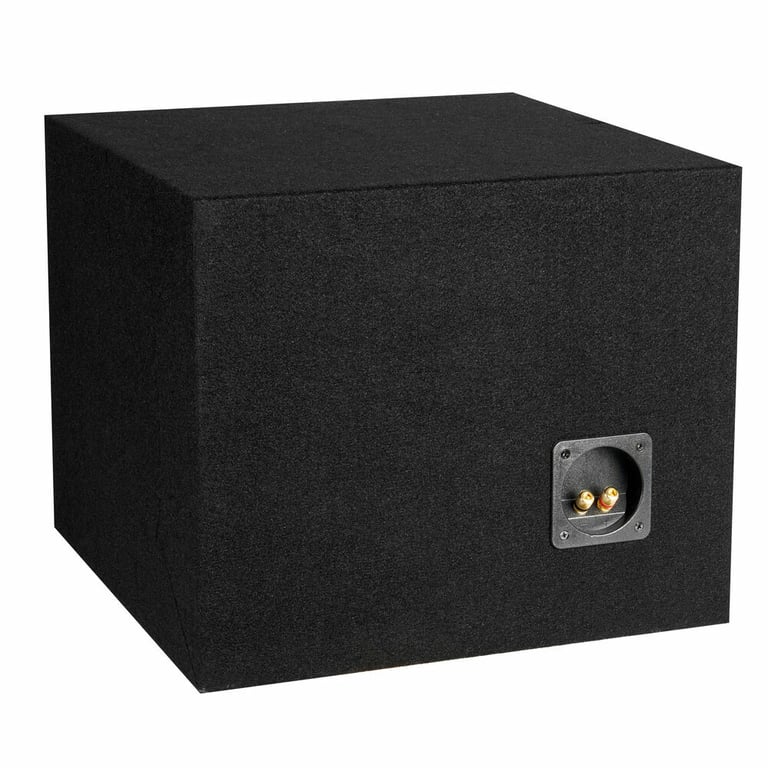

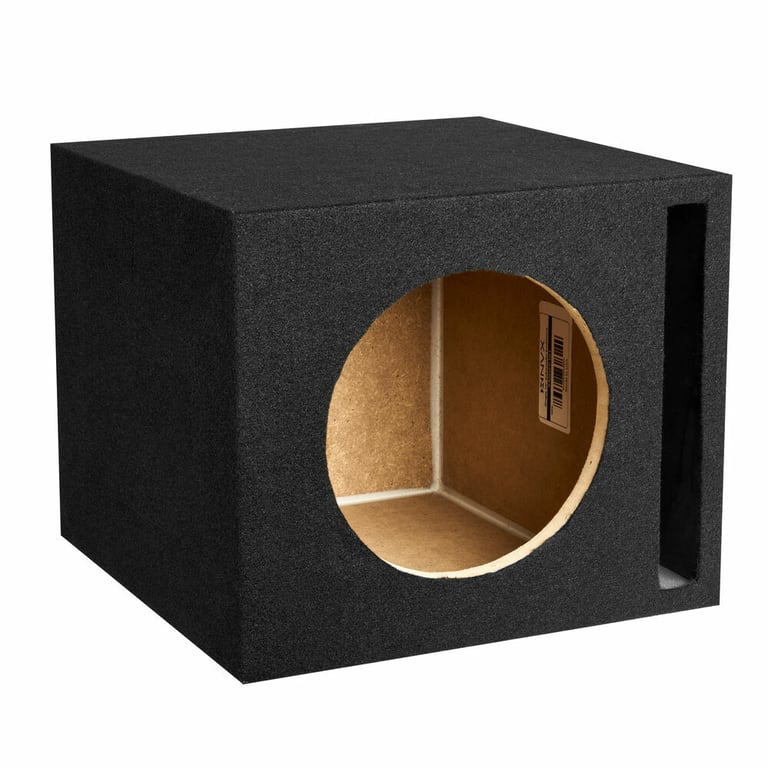

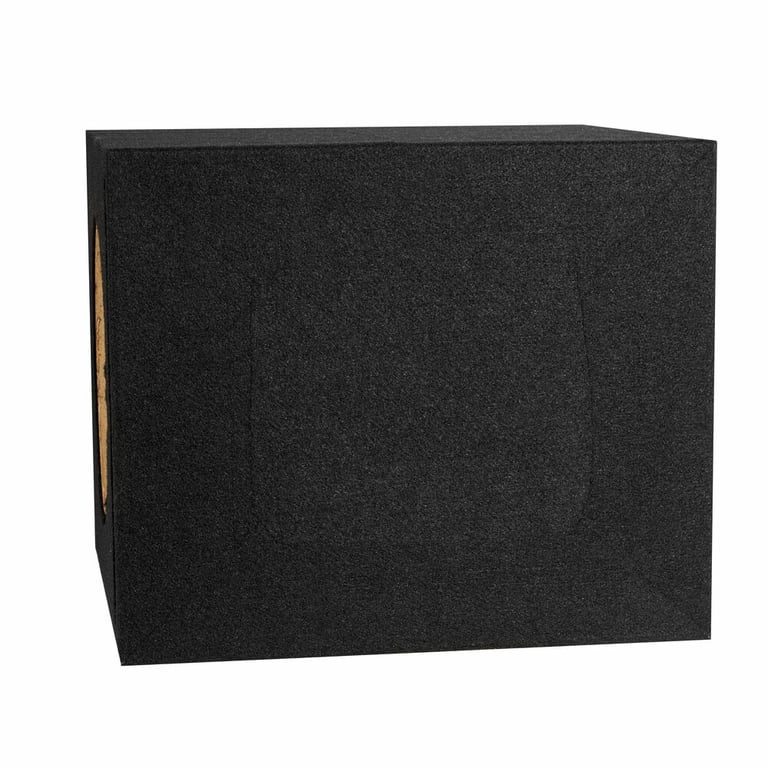

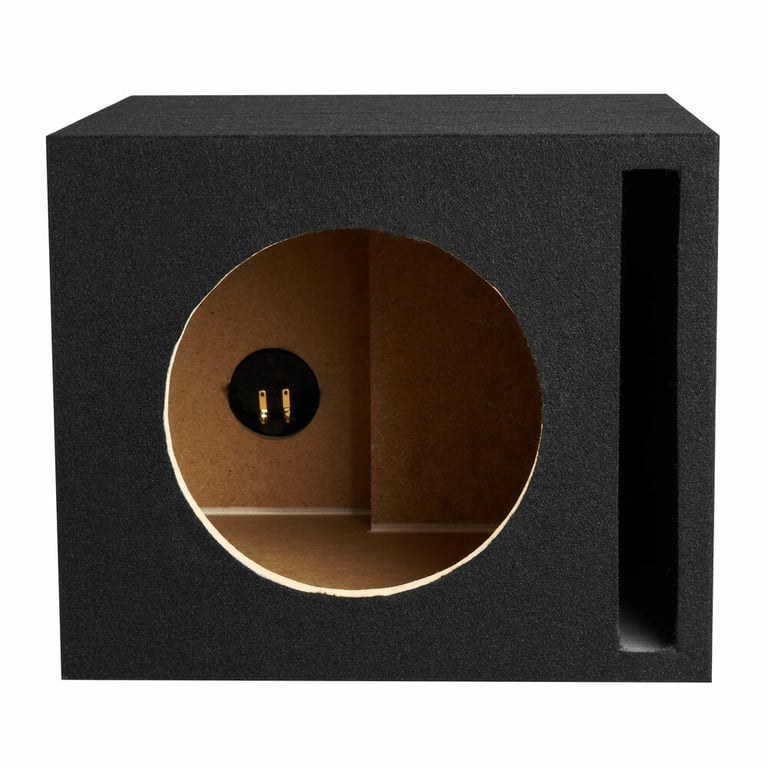

NVX XMDFP101

Single 10” Ported 3/4" (1.2 cubic ft) MDF Black Carpeted Subwoofer Enclosure (Made in the USA)
Quantity: 1

Product Details:

  • Single 10" Vented MDF Enclosure
  • Holds one 10" subwoofer

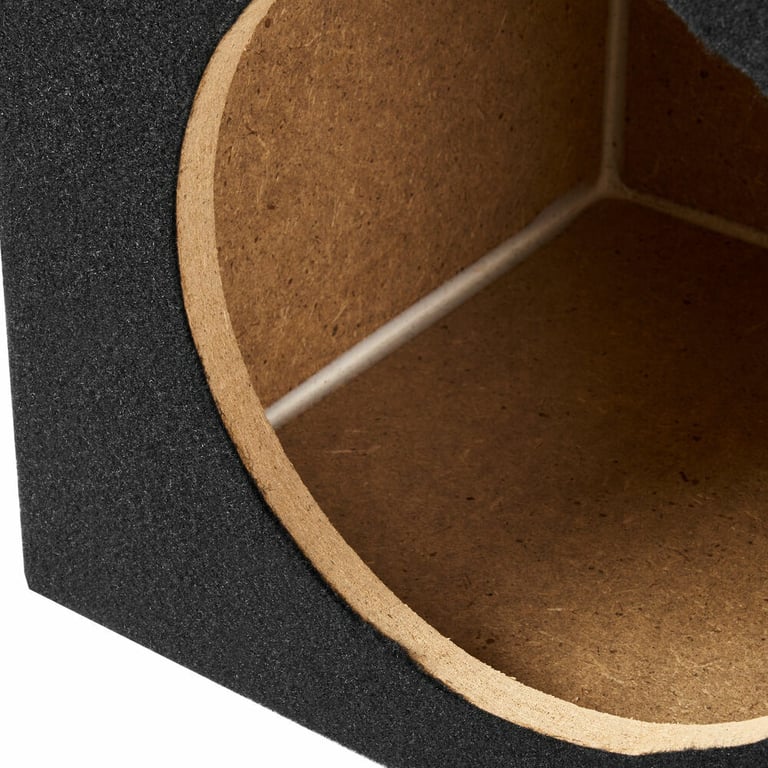

  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Made in the USA
  • Each Piece is CNC Cut Exact to Specification
  • Ported Box Design
  • Durable black carpeting

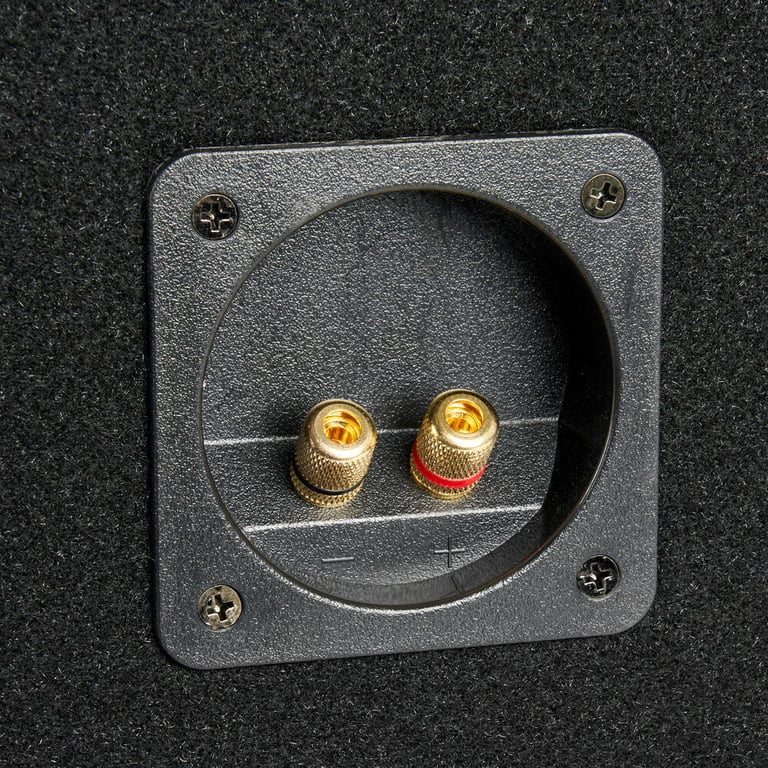

  • Gold Terminals
  • Internal Box Volume: 1.2 cubic ft.
  • Dimensions: 13.5"H x 16"D x 16"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

JL Audio 10W0v3-4, XMDFP101 thumbnail
(newest, current model)
JL Audio 10W0v2-4 thumbnail
(previous model, replaced by JL Audio 10W0v3-4 with Ported Enclosure)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

DCWR122 small

Kicker DCWR122 (48DCWR122)

• Ported enclosure with 2 12" CompR Series Subwoofer
• 1000 watts RMS (2000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 32-3/8" L x 16" H x 14" W x 17-1/4" W2

(2)

$439.96

List price $599.99

CP110-W0v3 small

JL Audio BassWedge CP110-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$229.99

List price $229.99

P1-2X12 small

Rockford Fosgate Punch P1-2X12

• Two 12" Punch Series Stage 1 Subwoofers
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

(17)

$439.99

List price $489.99

CP212-W0v3 small

JL Audio CP212-W0v3

• Dual 12" 12W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(14)

$449.99

List price $449.99

Specifications & Details


Subwoofer Specifications
Series
W0 v3 Series
Subwoofer Size
10"
RMS Power Handling
300 watts
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Rubber
Sensitivity
84.07 dB
Frequency Response
26 - 250 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10W0v3-4, XMDFP101

Weight:

31.62lbs

Internal SKU:

10w0v34_xmdfp101

Internal Product ID:

193559

Customer Ratings & Reviews


JL Audio 10W0v3-4 with Ported Enclosure thumbnail image

5 star
86%
4 star
13%
3 star
1%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great little sub

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

I had one of these in a small sealed wedge box in a grand cherokee powered by a JL 100/2 amp bridged of course and it was great. Break in was short maybe 10 hours of play time and a bit of tweaking. Some settings every one thought i had a 12.

By Noisebringer on January 8, 2012

93 found this helpful


great sub!

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

Great sub for the price!! Sounds amazing and because of the room I have under the back seat the sub is in a box that is half the size that JL calls for. I couldnt imagine how great it would sound in the right box!

By trent on April 30, 2014

84 found this helpful


amazing sq!

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

I bought it for a sq build for decent kick drum thump, and it exceeded my expectations greatly. i was downsizing my build from two PSI 15's on 2kwrms, to this on ~320wrms am i'm not dissapointed! i built a box to jl spec but tuned to 28hz for a flatter, sq response curve. this dude dominates low lows and the xmax is ridiculous and no distortion! it is a very musical sub. the only downside is that i wish it had alittle tighter bass, but it could be the box, but my 6x9's in the doors handle that decently. buy this sub!

By Will on December 9, 2013

79 found this helpful


Nice sub

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

I just bought this from a shop around me. It is in a sealed box behind my seat in a regular cab s10. The bass boost on my amp is on zero and this speaker is still loud. I will go back and buy another and hopefully port the boxes and blow my doors off. I highly recommend

By Andrew on October 18, 2012

78 found this helpful


Awsome!

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

I'm using this JL Audio 10W0v3 -4 with a FLI 450S-2 in a Single 10" Sealed MDF Enclosure (10SQTC) and it rocks pretty hard! I have this rear firing in my 1996 jeep cherokee and it definatly compliments my JL 5.25's quite nicely. I have reviews written for the other two items written as well. Check them out!

By jacob on January 10, 2012

74 found this helpful


awesome sub

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

Can take a lot of power and has extreme excursion. Rather small depth wise for the amount of quality sound it produces. 1 is more than enough in my standard cab silverado with a kenwood 5 chanel amp

By stick rick on September 4, 2013

73 found this helpful


great seller, great product

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

Fast shipping, great product, great seller! Would highly recommend this seller

By AJ on August 13, 2012

72 found this helpful


great sub

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

I had the older model subs in my single cab truck and if these are any thing like those look out they are bad and hit hard.

By freddie on January 1, 2012

70 found this helpful


JL Audio 10w3v4

The following review is for 10W0v3-4, which is a part of the bundle you are viewing.

All I have to say is badass. Enough said. Anything else is just bragging ;)

By Butch on August 6, 2013

72 found this helpful


Solid Enclosure

The following review is for XMDFP101, which is a part of the bundle you are viewing.

This is a solid box. It really is 0.75” throughout. Very well constructed. Very rare find to get just over a net cubic foot for a prefab box in this price range. I’m giving it a 4/5 because it was tuned way too high for my taste. It’s tuned to around 44/45 hz. Luckily the Port width is 1.5 “ so I was able to tune it with a 2x4. See pic. It sounds fantastic.

By Mike on March 15, 2022 Checkmark Icon Verified purchase

61 found this helpful



Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Nissan Frontier

1967 Chevrolet Corvette

2006 Maserati Spyder

1999 GMC Yukon

2003 Acura TL

1993 GMC P6500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
