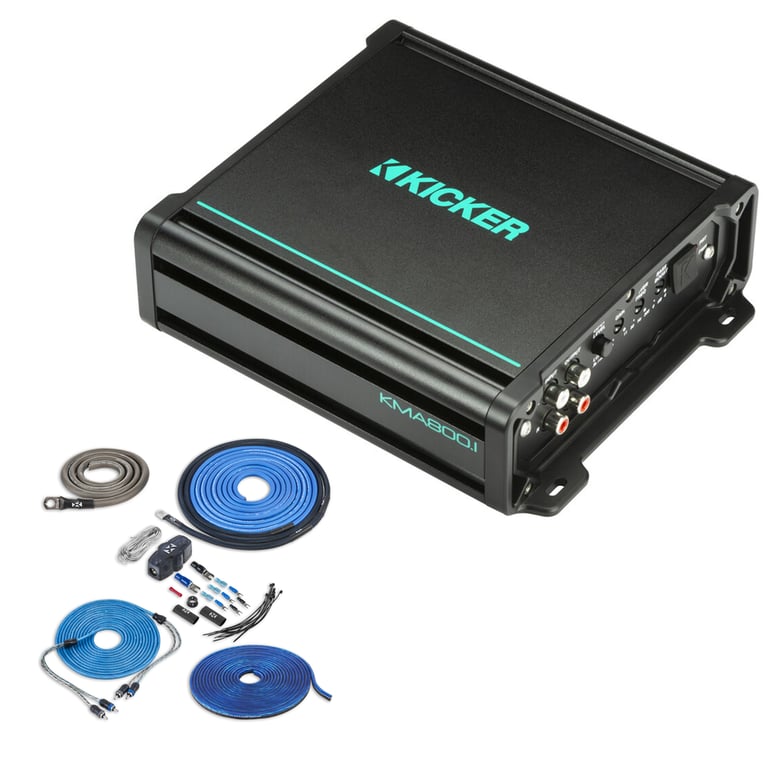

Kicker 48KMA8001 with Amplifier Wiring Kit

600W RMS KM Series 2-ohm Stable Monoblock Class-D Marine Amplifier w/ Bass Knob Included

Kicker
Shop all Kicker
Lowest price in 30 days
highlight-star-icon

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Completely Marine Ready
• Subsonic Filter Built-In
• 7-1/8" W x 8-1/16" L x 2-5/16" H • Includes Amplifier Wiring Kit

Learn more about the 48kma8001_xkit42

We apologize

This item has been discontinued


Loading...
MVH-S522BS main

Pioneer MVH-S522BS

Single DIN Digital Media Bluetooth Receiver with Bluetooth and SiriusXM Ready

4
-10.53%

$169.99

List price $190.00

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Description


Kicker brand icon

Authorized dealer

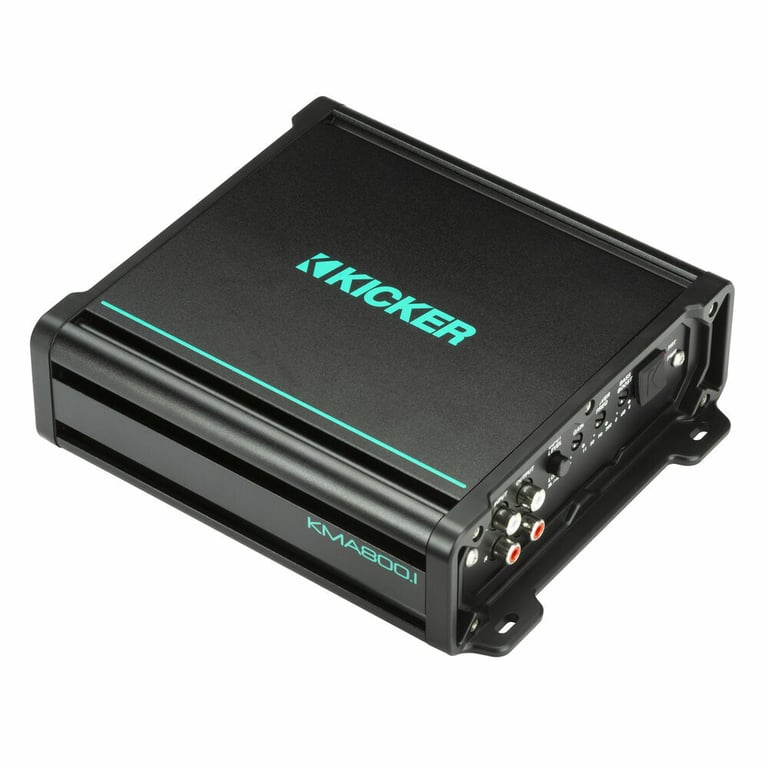

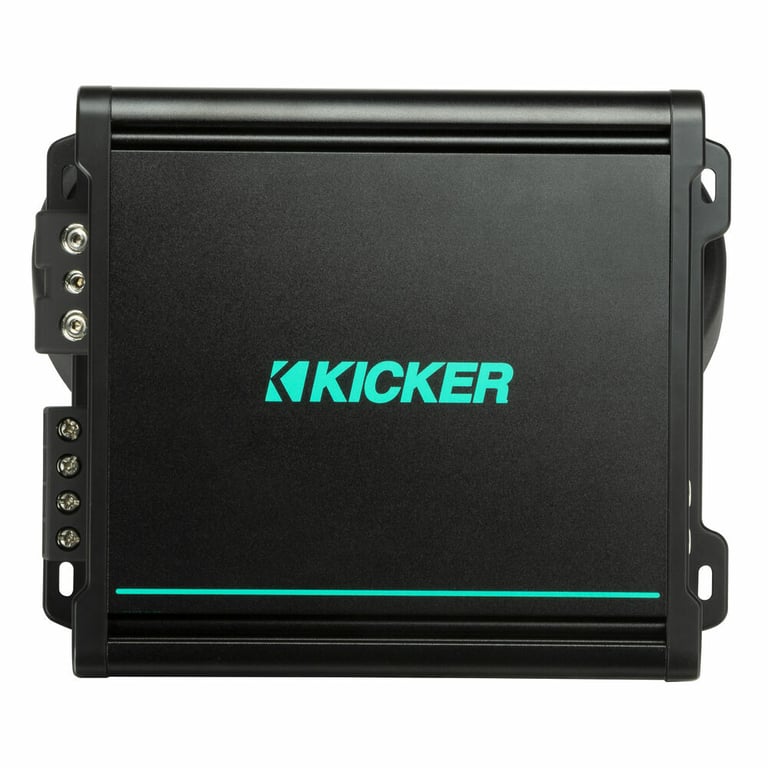

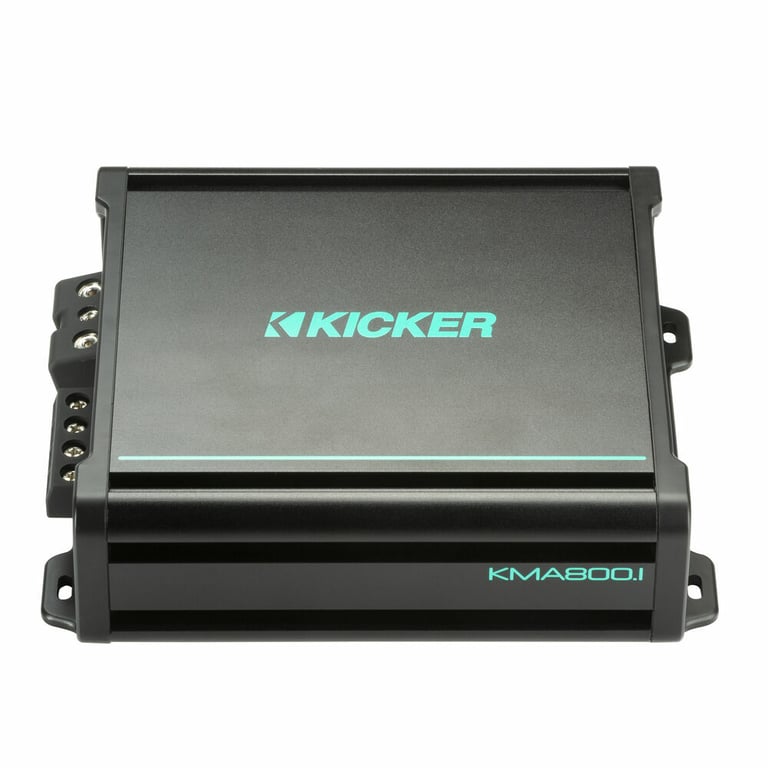

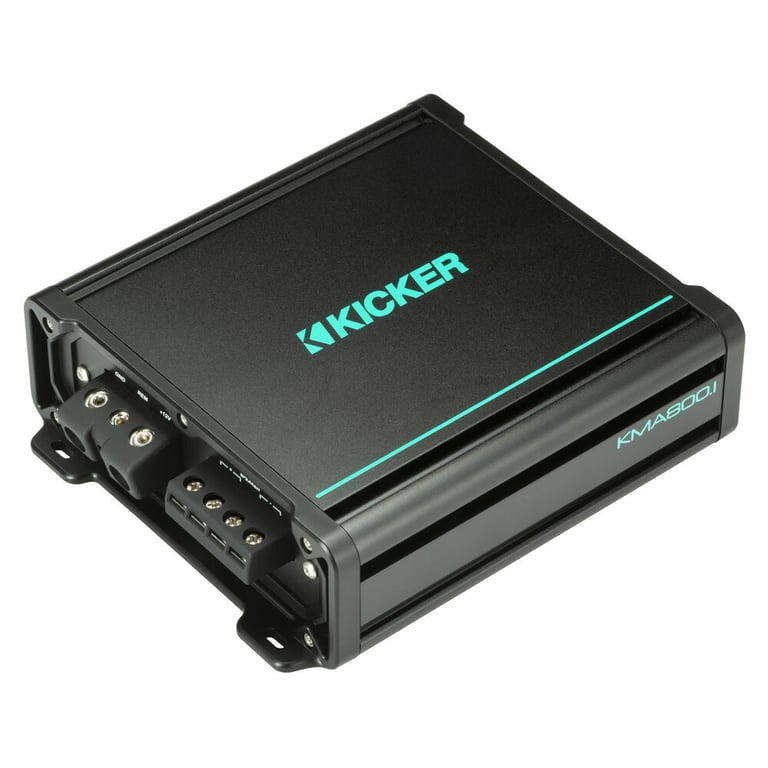

Kicker KMA800.1 (48KMA8001)

1200W Peak (800W RMS) Class D KM Series Monoblock Marine Amplifier with Bass Remote
Quantity: 1

Product Details:

  • KM Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 channel
    • 2 ohm: 600 watts x 1 channel
    • 1 ohm: 800 watts x 1 channel
  • Total power output: 800 watts
  • Top-mounted teal LED light pipe
  • Wired bass level remote control (KMBLC) included
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • Black anodized Aluminum chassis
  • KickEQ bass boost

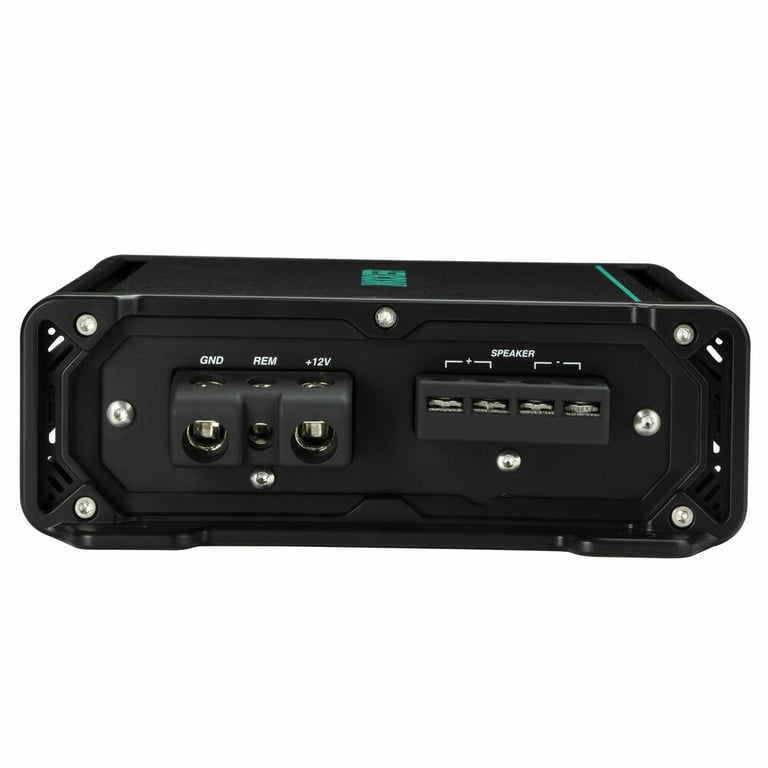

  • ABYC-NMMA-compliant power terminals
  • Conformal-coated circuit boards

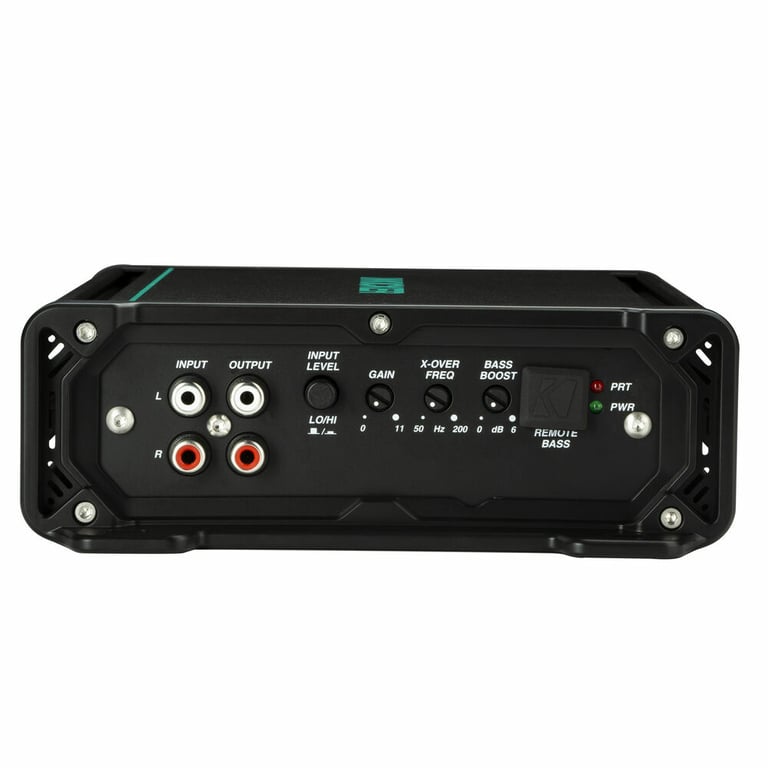

  • Easy access to settings behind a gasket-sealed cover panel
  • Black anodized Aluminum chassis
  • Stainless steel mounting hardware included
  • Input sensitivity:
    • Low level: 125 mV - 5 volts
    • High level: 250 mV - 10 volts
  • Frequency Response: 25 - 200 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 95 dB
  • Variable low-pass filter: 50 - 200 Hz
  • Subsonic filter: 0 - 25 Hz
  • Variable Bass Boost: 0 - 6 dB
  • Fuse Rating: 100A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8-1/16" L x 7-1/8" W x 2-5/16" H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
  • MFR #: KMA800.1

NVX XKIT42

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

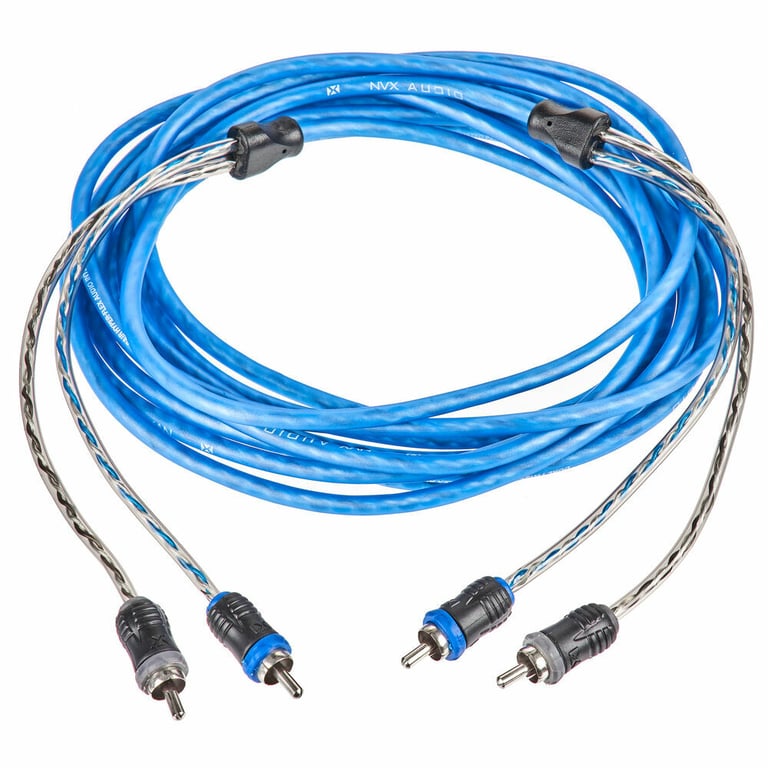

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

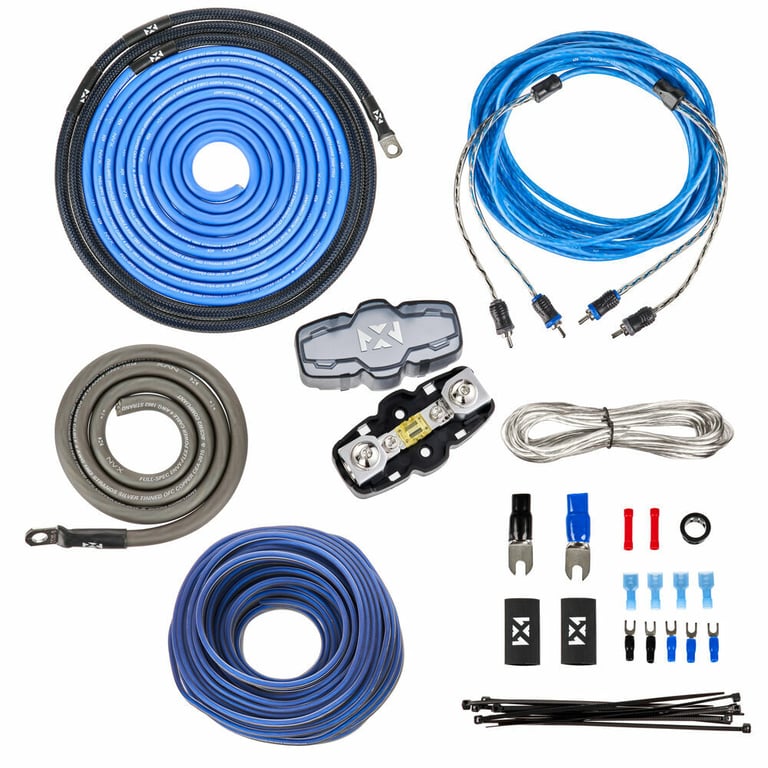

Kit includes:

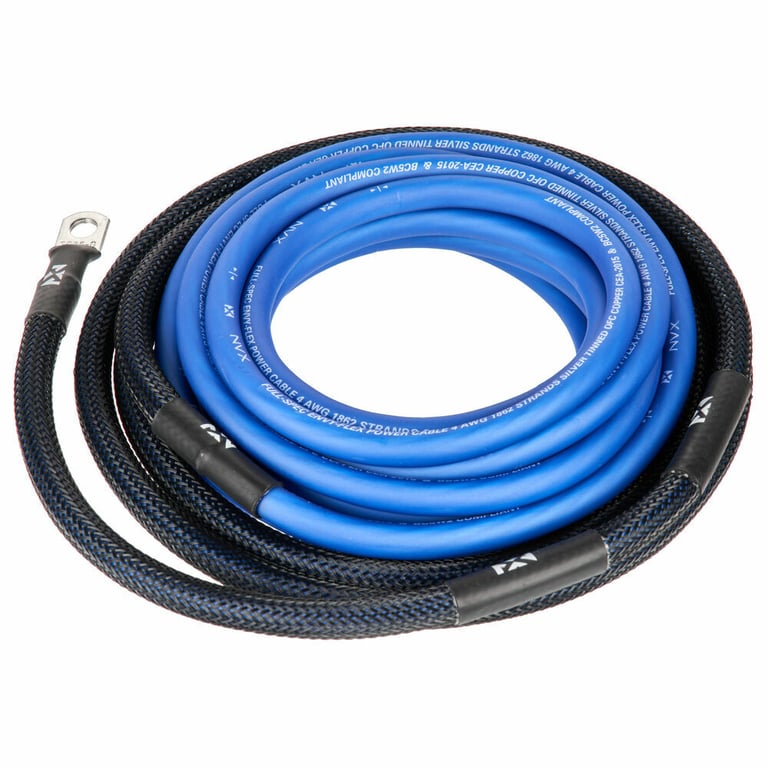

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

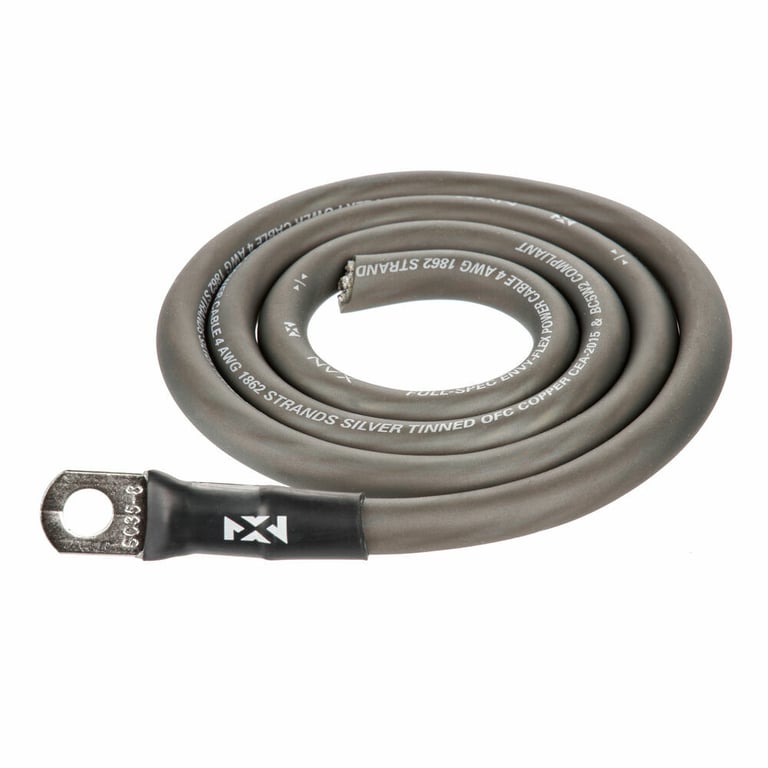

  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

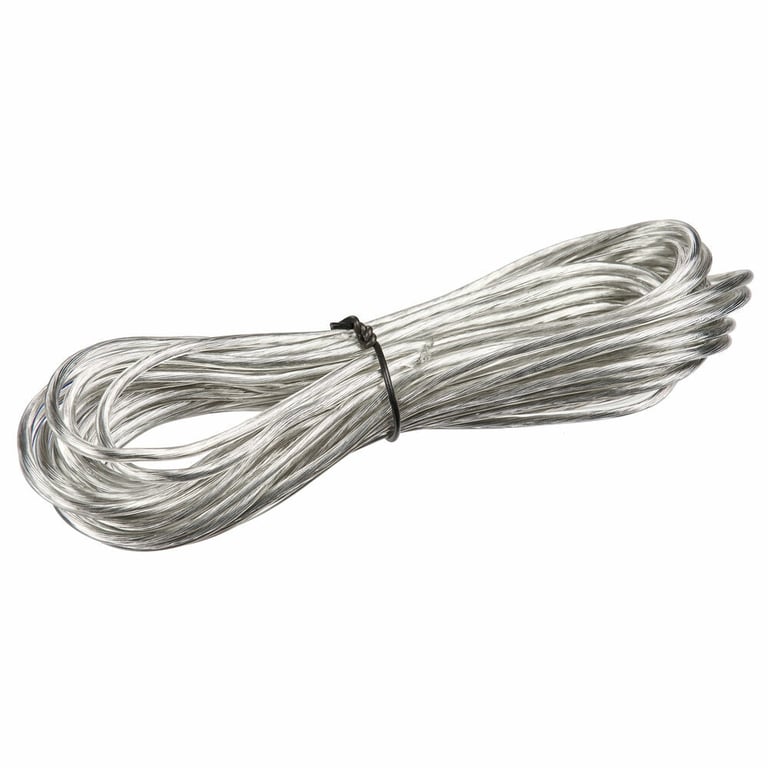

  3. 17 ft. Clear 18 gauge remote lead wire

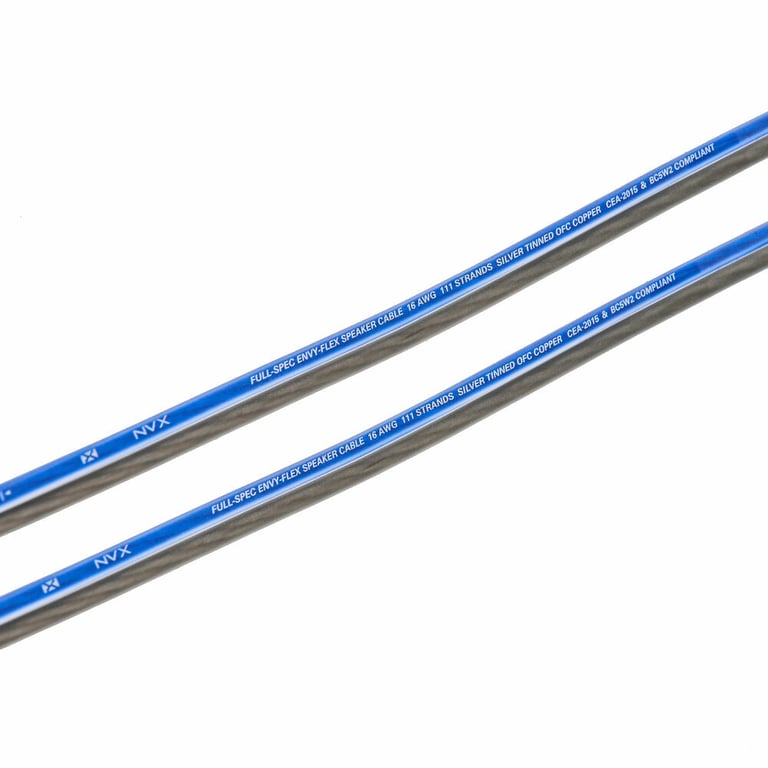

  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

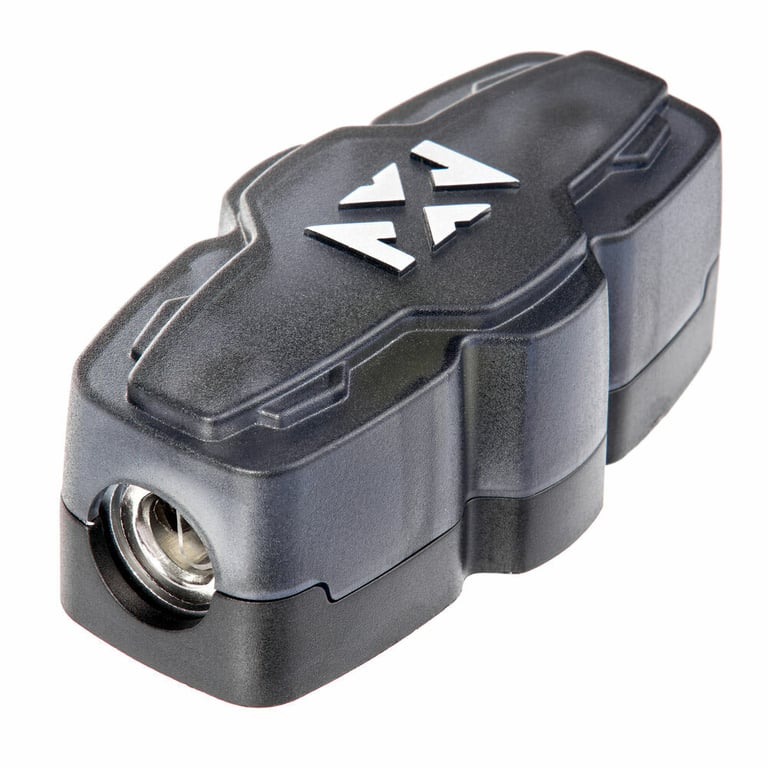

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet

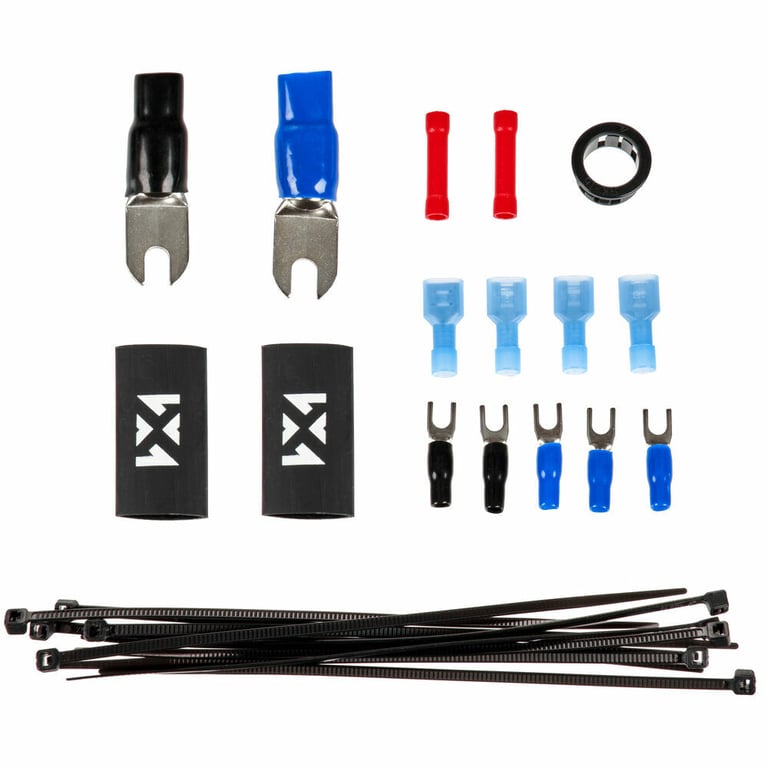

  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Product history:

Kicker KMA800.1, XKIT42 thumbnail
(newest, current model)
Kicker 45KMA6001 thumbnail
(previous model, replaced by Kicker 48KMA8001 with Amplifier Wiring Kit)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
800 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Minimum Impedance Unbridged
1 ohm
Frequency Response
25 - 200 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Total Fuse Rating
80
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KMA800.1, XKIT42

Weight:

11.80lbs

Internal SKU:

48kma8001_xkit42

Internal Product ID:

194073

Customer Ratings & Reviews


Kicker 48KMA8001 with Amplifier Wiring Kit thumbnail image

5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
5
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Durable

The following review is for XKIT42, which is a part of the bundle you are viewing.

The wire is so thick for quality sound production and yet so flexible. I didn't do my own install but the installer guy asked me about the kit and seemed to like the ease it offered

By Joseph on September 18, 2013

161 found this helpful


Quality

The following review is for XKIT42, which is a part of the bundle you are viewing.

Top quality kit. The power cable is very easy to bend, and the fuse block is well built. My only complaint is the oddball fuse

By Alex on January 13, 2014

156 found this helpful


NVX XKIT42

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is the perfect kit for anything around 1000 watts RMS. I have it hooked to a NVX JAD1200.1, and it is perfect. I literally have nothing bad to say about this kit. Every wire is true to gauge and it comes with plenty of wire, even 40ft of speaker wire! The RCA works great and the wires are strong and flexible. It'd be nice if it was a little cheaper, but it's definitely worth it. NVX makes some of the best, high quality wires and instillation equipment.

By Smuck on January 9, 2014

154 found this helpful


Real nice

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is a really nice kit has everything you need

By Clint on July 17, 2014

153 found this helpful


Great service again

The following review is for XKIT42, which is a part of the bundle you are viewing.

Another great buy! Chris took care of me again! Every one looking for car audio and your not shopping here your getting robbed!!!! If you don't believe me check for yourself. Just the customer service makes it worth buying anything from here. And any questions you have they are quick to get back to you and help you out.

By craig on August 31, 2014

148 found this helpful


great product!!!!

The following review is for XKIT42, which is a part of the bundle you are viewing.

this has to be the best connection kit I have ever used.. everything was flawlessly constructed and everything you need is in the kit, remember you get what you pay for... I am using this in a small suv that has no carpet but herculiner throughout and I need pure copper for corrosion resistance.. could be cheaper I guess..

By Dan on September 20, 2013

149 found this helpful


Best wiring overall

The following review is for XKIT42, which is a part of the bundle you are viewing.

when i received this and opened it up i was amazed when i saw how a 4ga. wire could look so much like 0ga. and bend so easily. the speaker wire is so thick that you would not believe that it is speaker wire. the wires also make your music sound so much clearer than any other wiring can. all the components are the best in quality.

By Kevin S. on June 2, 2013

146 found this helpful


Not your average amp kit.

The following review is for XKIT42, which is a part of the bundle you are viewing.

If you're picking up a bad*ss amp, why wouldn't you pick up a PROPER wiring kit ?!
I've previously used NVX Power/Ground wire for a BIG 3 Upgrade install, and was blown away by the Quality of the wire. High Strand, True To Spec, Super Flexible, Very Durable, and Conducts Very Well. Same can be said for the Speaker Wire and RCAs. I wish NVX made a kit with their higher end RCA cables, but the ones with this kit definitely get the job done. The fact that the Power/Ground come Crimped and Shrink Wrapped really save on install time, and the flex wrap on the Power Wire makes the install look Very professional. I ended up using the other goodies (ties and connectors) for various other things, but its pretty cool that it comes with the kit.

By REM on July 8, 2014

146 found this helpful


Very good wires at a cheap price

The following review is for XKIT42, which is a part of the bundle you are viewing.

Wire if true to gauge, also 100 percent copper very cheap price for the better quality of wires you get plus the hyper flex material makes it very easy to run wires ,overall great wires for price

By jason on May 26, 2014

145 found this helpful


Love this kit

The following review is for XKIT42, which is a part of the bundle you are viewing.

Great true 4 gauge wire kit. Both power/ground cables are flexible easy to work with, rca calbe is great. This kit comes with everything you need for an amp install. I will be using NVX amp kits for now on future installs.

By Ben on January 9, 2014

143 found this helpful



J2-1000.1_2-P3D412 small

2000W Complete JL Audio + Rockford Fosgate Bass Package

JL Audio J210001 Amplifier + 2 Rockford Fosgate Punch P3D412 12" Subs + 1/0 GA Amp Kit + Sub Box

(126)

$826.09

List price $1369.91

AVIC-U310BT small

Pioneer AVIC-U310BT Factory Refurbished

In-Dash Double DIN 4.3" Touchscreen Monitor w/ CD, MP3, WMA, AAC, SD, USB Reciever. Built-in Bluetooth and GPS Navigation

(1)

$279.99

List price $699.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Dodge Intrepid

1996 Lexus SC300

2015 Lincoln MKT

2012 Chevrolet Camaro

2019 Lamborghini Urus

1974 Ford Maverick

2015 Mitsubishi Lancer

2008 Acura RDX

1974 Mercury Capri

2007 Aston Martin DB9

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
