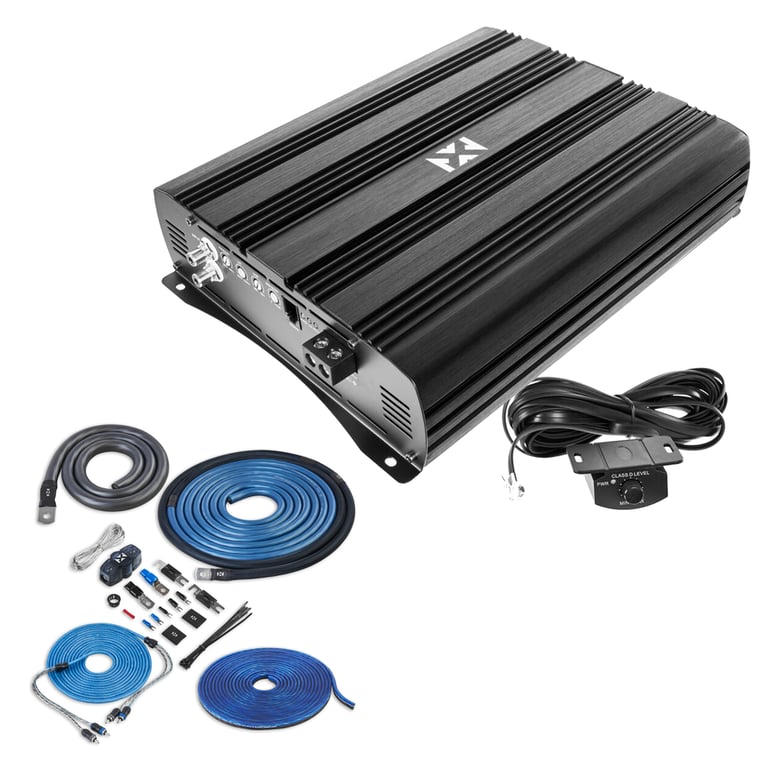

NVX XAD15 with Amplifier Wiring Kit

5000W RMS X-Series Full-Bridge Class D 1-Ohm Stable Monoblock Amplifier

NVX
Shop all NVX
Out of stock
highlight-star-icon

• 1850 watts x 1 channel @ 4 ohms
• 3300 watts x 1 channel @ 2 ohms
• 5000 watts x 1 channel @ 1 ohm
• Total RMS Power: 5000 watts
• Frequency Response: 10 - 300 Hz
• CEA-2006 Compliant Amplifier
• Includes Amplifier Wiring Kit

Learn more about the xad15_xkit02
Was $719.98 Details
Thanks , You Pay:

$469.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one xad15_xkit02.

Set your vehicle or Return to product page
Quantity
Out of stock - Order risk-free, cancel any time.
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, Available 24/7

For over 22 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


NVX

Authorized dealer

Product Highlights:

The NVX XAD15 is a fully bridged Class D amplifier. Consumers who seek high-power outputs in their amplifiers consider these fully bridged amplifiers to meet those needs. A full-bridge converter consists of two legs of the half-bridge converter and is preferred over the half-bridge in higher power ratings. With the same DC input voltage, the maximum output voltage of the full-bridge converter is twice that of the half-bridge converter. This Class D amp is able to boast a strong wattage output. Class D amplifiers operate as electronic switches rather than linear gain switches in other amplifiers. Furthermore, The Class D amplifier can be more efficient than its linear gain amplifier counterparts, with less power dissipated as heat in the active device. As a result, Class D amplifiers do not require large heat sinks, resulting in lighter-weight amplifiers.

The NVX XAD15 is equipped with a Metal-oxide-semiconductor field-effect transistor. The most common transistor in electronics offers a key advantage. It requires almost little to no input current to control the load current. In addition, MOSFET transistors can be scaled down to a much smaller size and produced at a higher yield making them the premier transistor of choice in almost all electronics, therefore, the XAD15 yields a high output in a more compact size. With such high power output, one would assume that a three-way protection circuitry (thermal, overload, and speaker short protection). Protect your amplifier and your speakers by offering a number of different protections including thermal, overload, and speaker short protection. These help ensure the longevity of the amplifier and your system as a whole.

The XAD15 is a fully bridged 1-ohm stable amplifier. This means that this amp will be capable of operating at a lower impedance or resistance. Since they encounter less resistance at 1-ohm these amps are able to output more power than a similar 2-ohm stable amplifier. The XAD15 also has the capability to be bridged down to 2-ohm’s. This allows the amplifier to take your sound to the next level by generating a 5000W RMS power output. Because XAD15’s are 1-Ohm Stable, they are a perfect piece to add to your sound system if you are looking to get the most out of your subwoofers. The XAD15’s are guaranteed to make your sound system produce the best bass possible. This means that it is possible to wire one dual voice coil 2-ohm sub to 1-ohm or two single voice coil 2-ohm subs to 1-ohm.

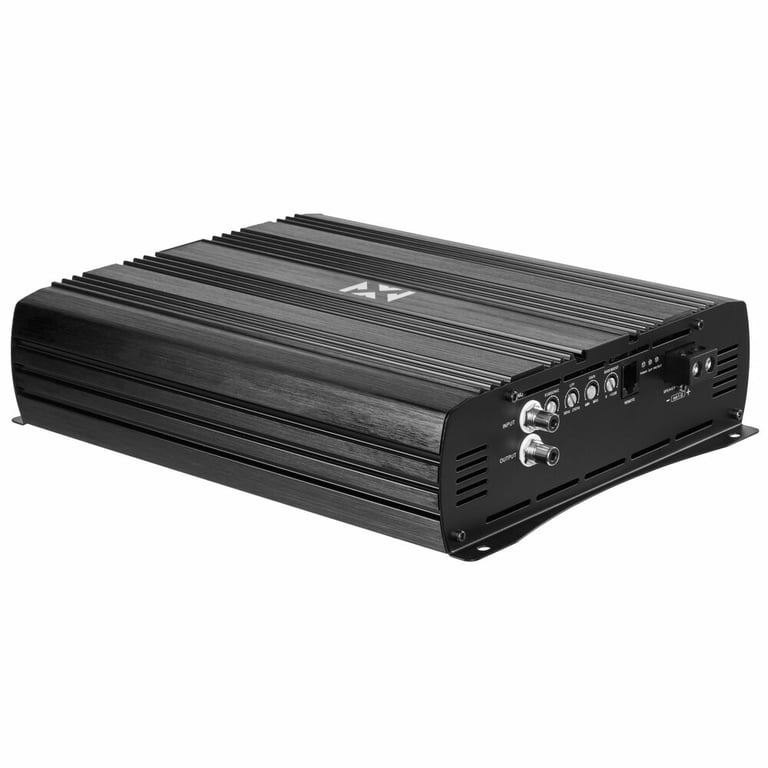

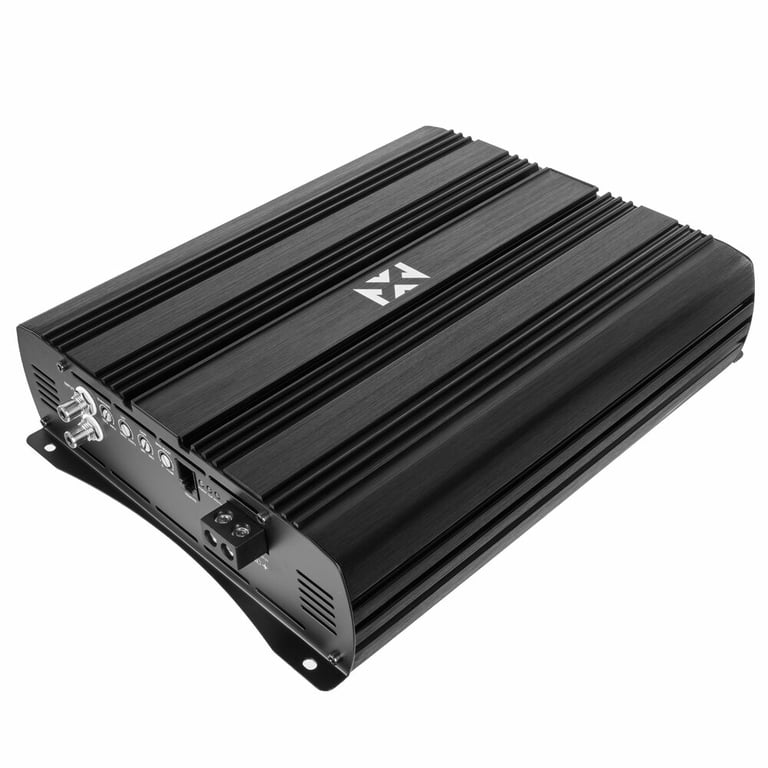

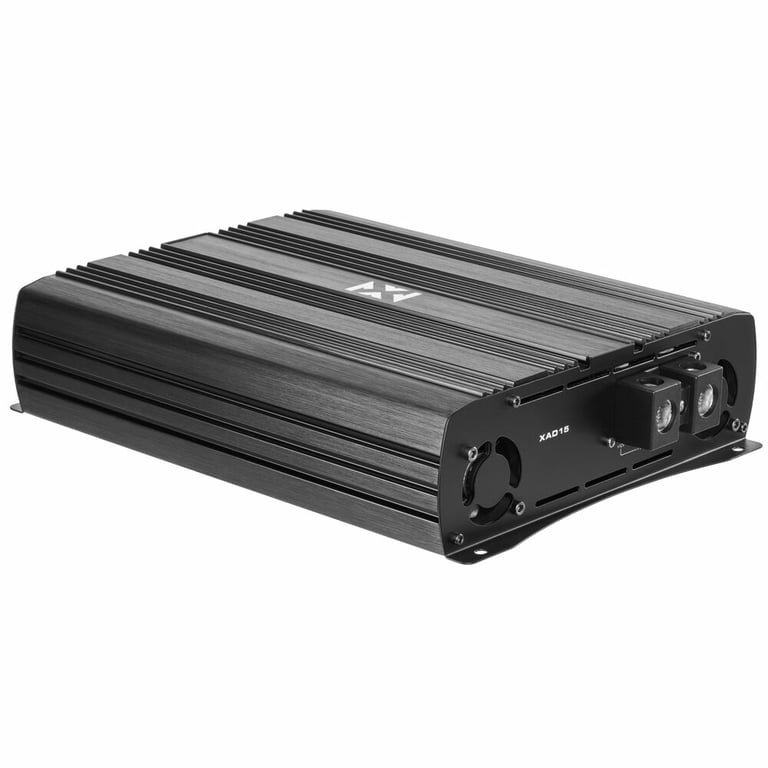

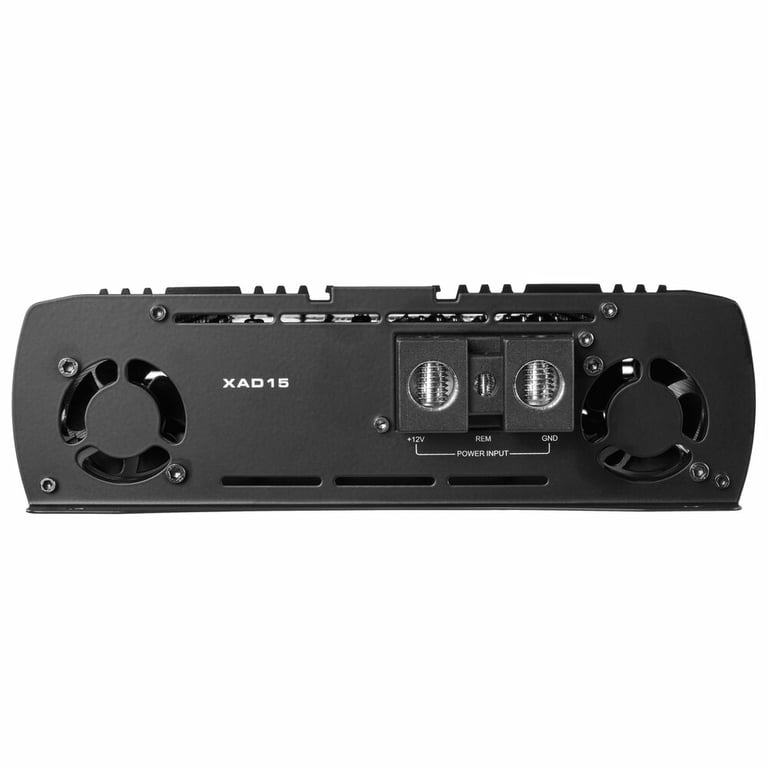

NVX XAD15

5000W RMS X-Series Full-Bridge Class D 1-Ohm Stable Monoblock Amplifier
Quantity: 1

Product Details:

  • NVX X-Series XAD15
  • Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 1850 watts x 1 channel
    • 2 ohms: 3300 watts x 1 channel
    • 1 ohm: 5000 watts x 1 channel
  • Total power output: 5000 watts watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

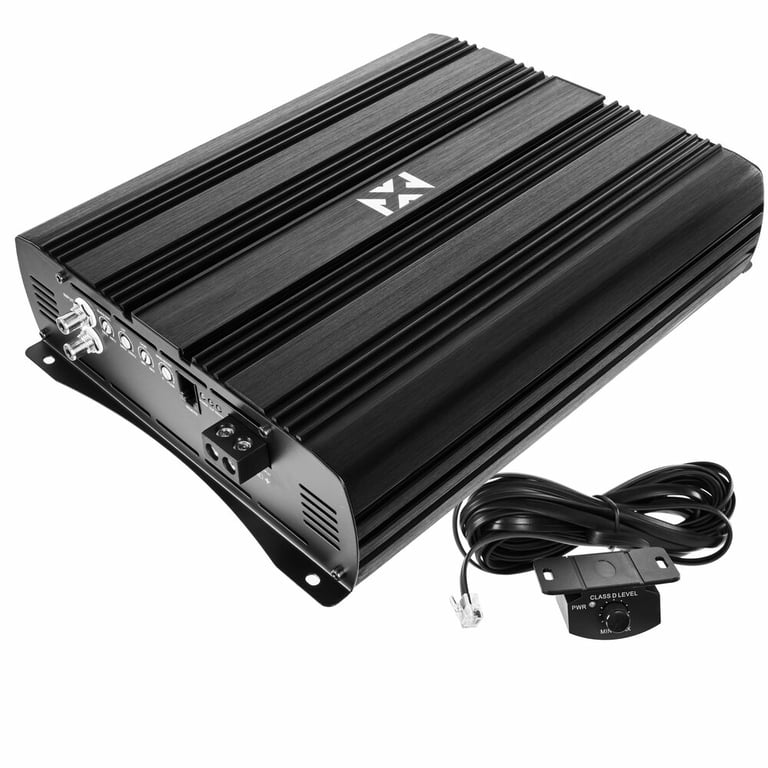

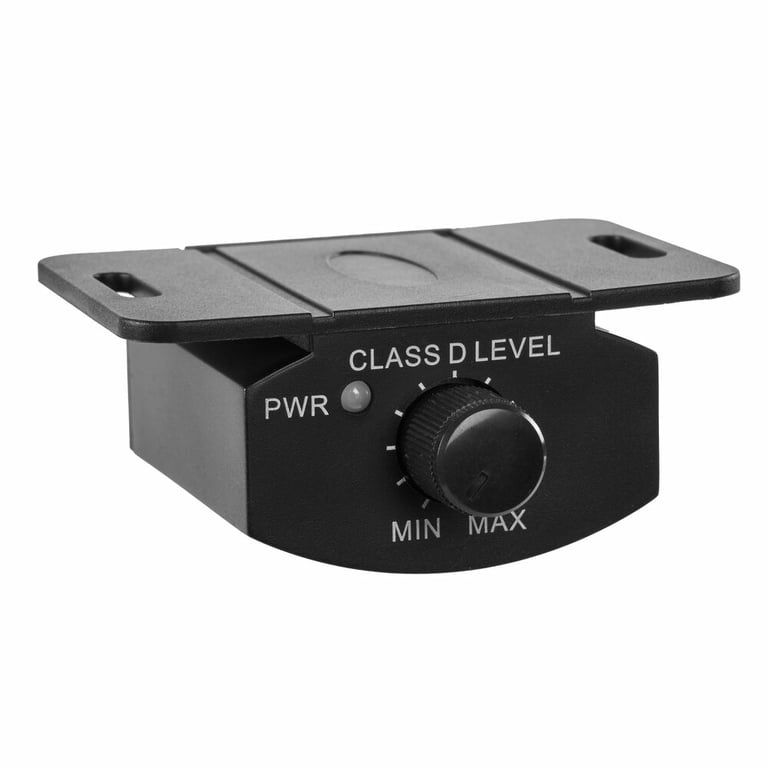

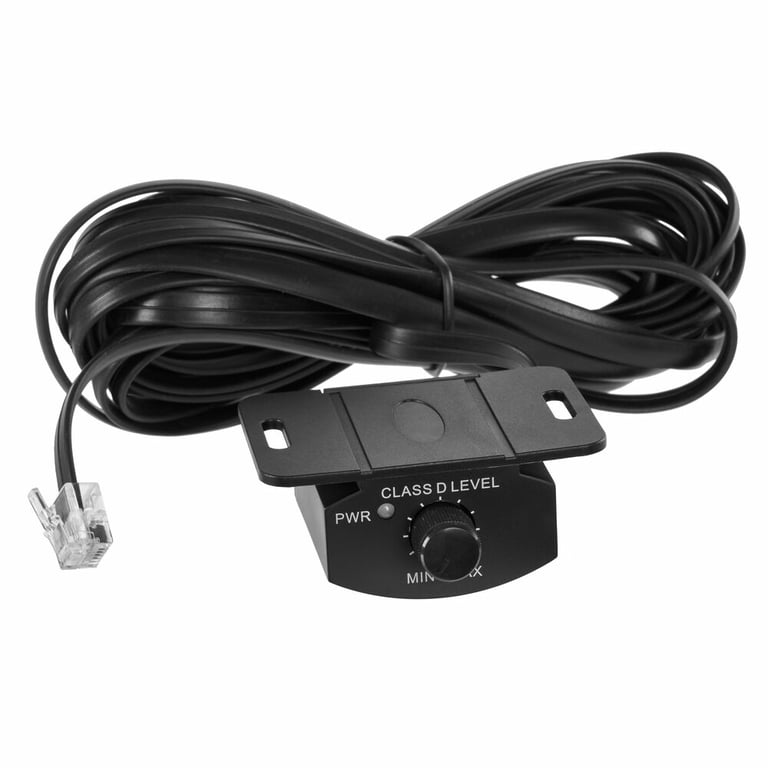

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 100 dB

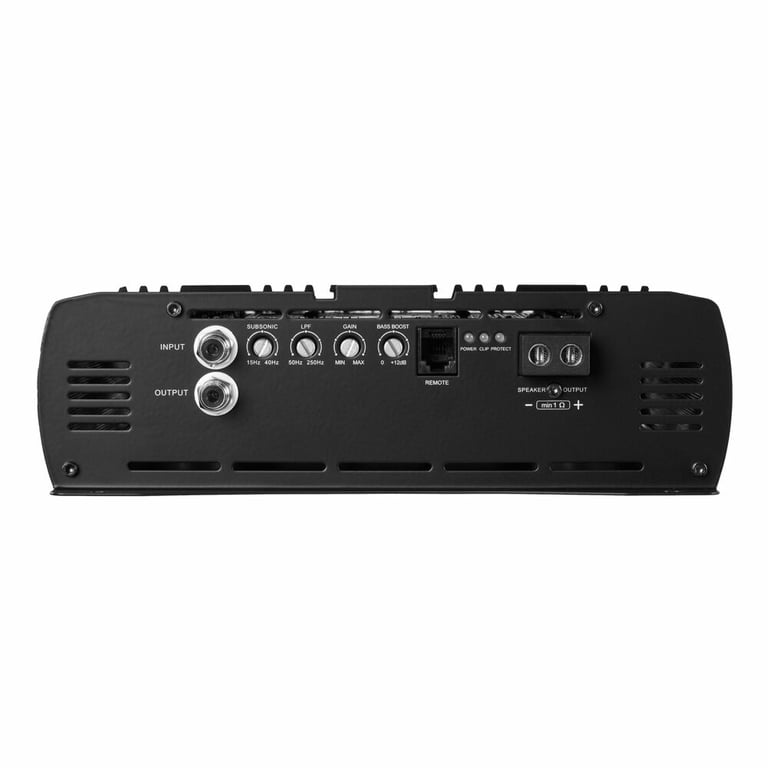

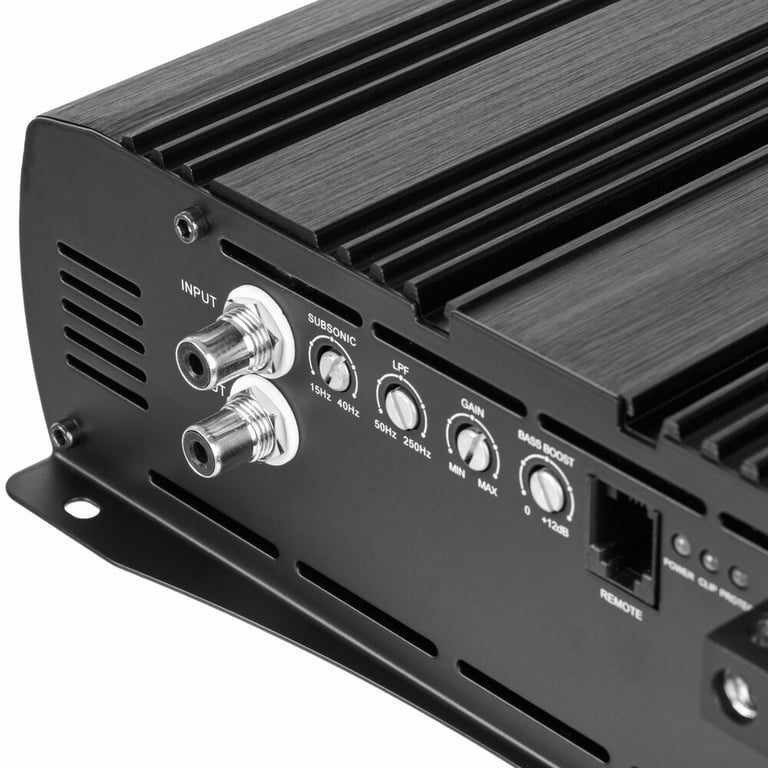

  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable subsonic filter: 15 - 40 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 1/0 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 10.5"W x 8.75"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty


Check out the X-Series Monoblock Amplifiers Owner's Manual

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 4000 watts RMS
  • Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects power wire from being damaged

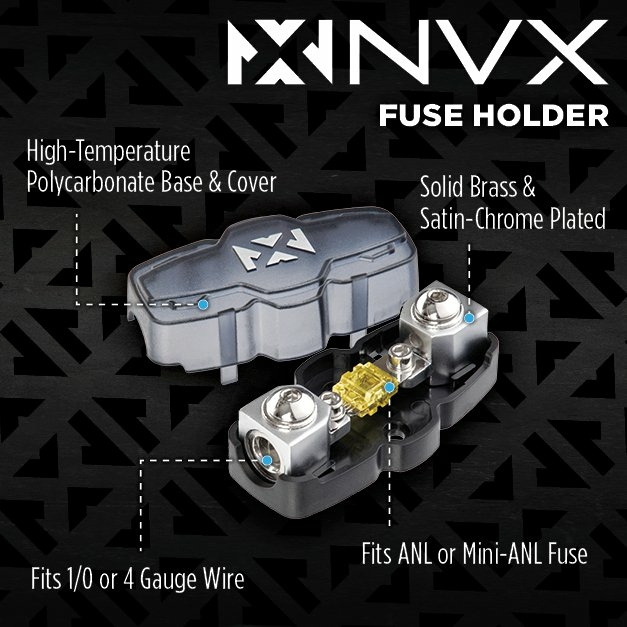

  • Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full Spec cables meet or exceed the American Wire Gauge standards

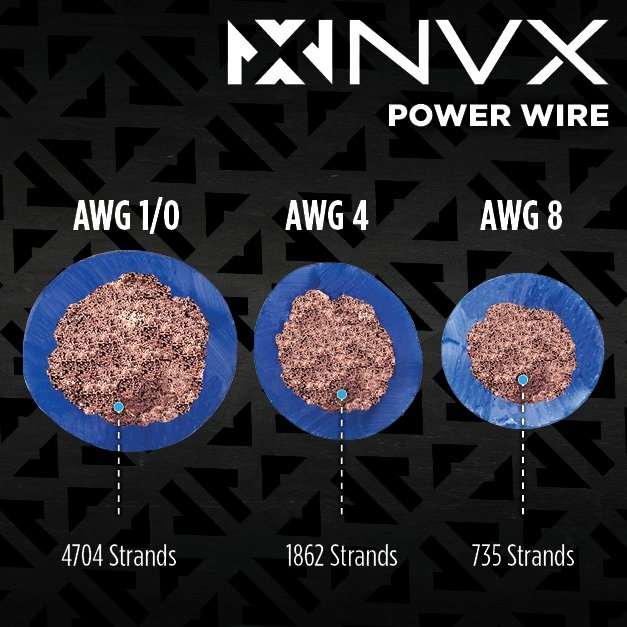

  • Strand Count: 4704
  • CEA-2015 and BC5W2 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

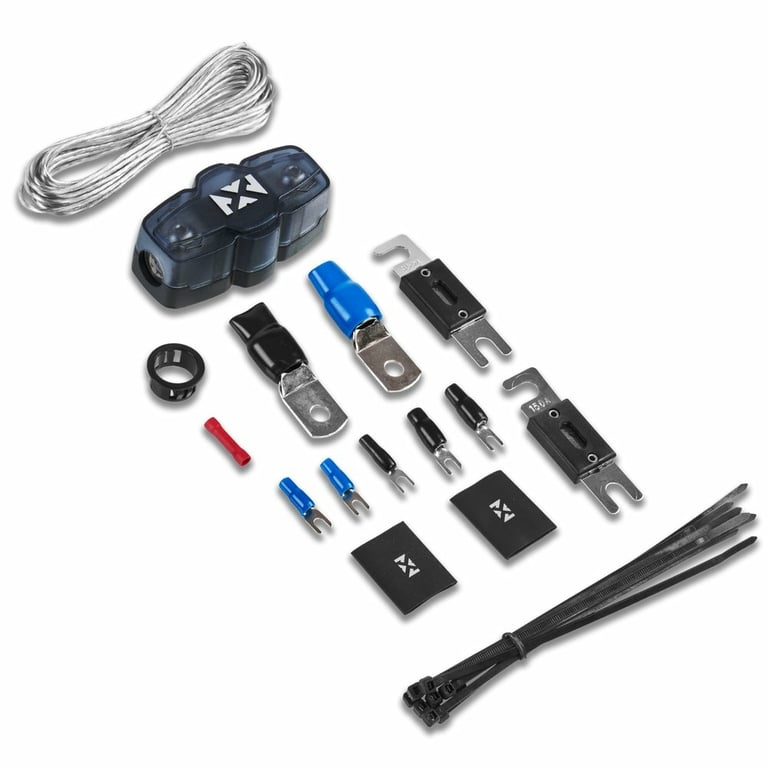

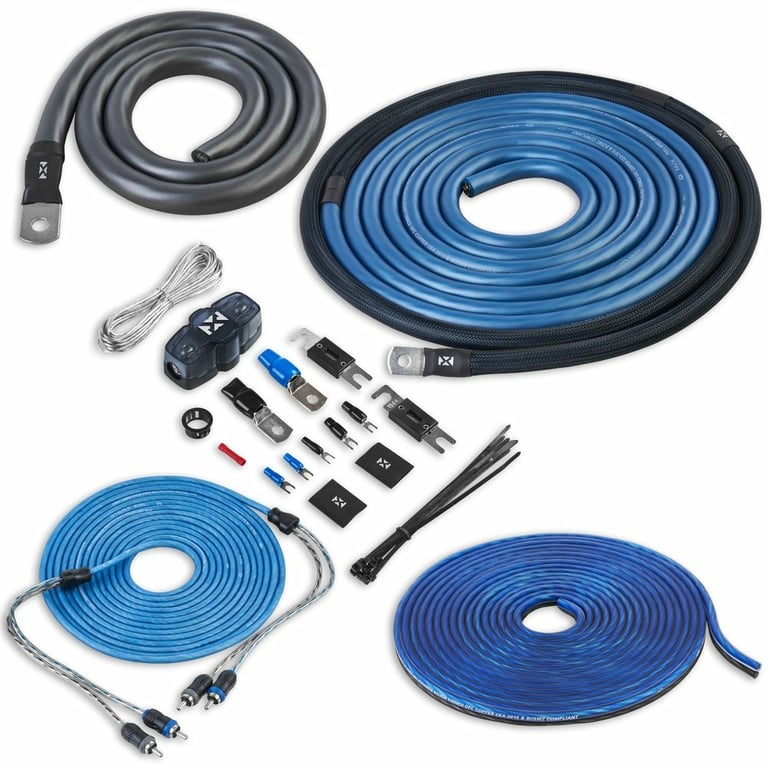

Kit includes:

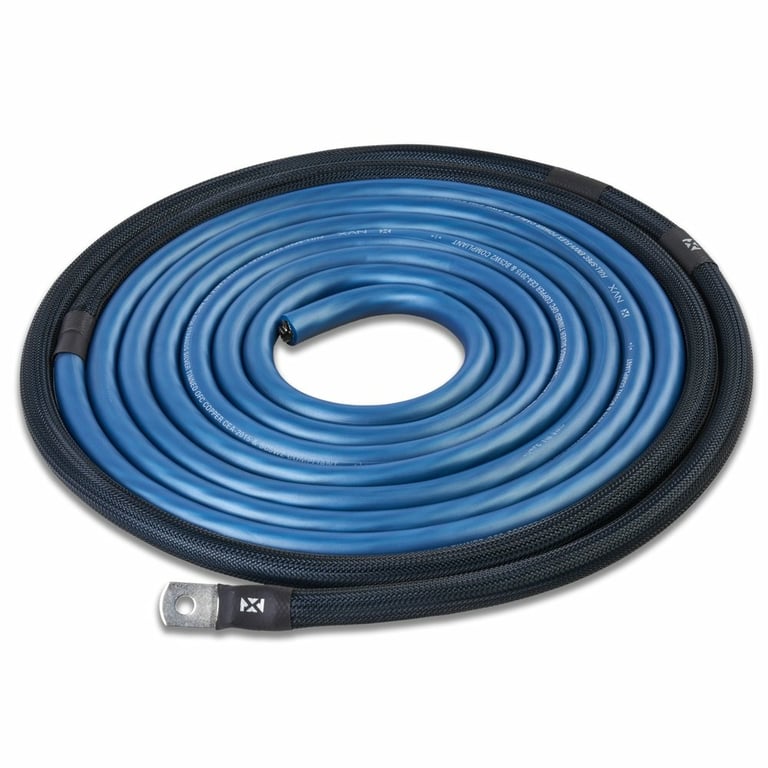

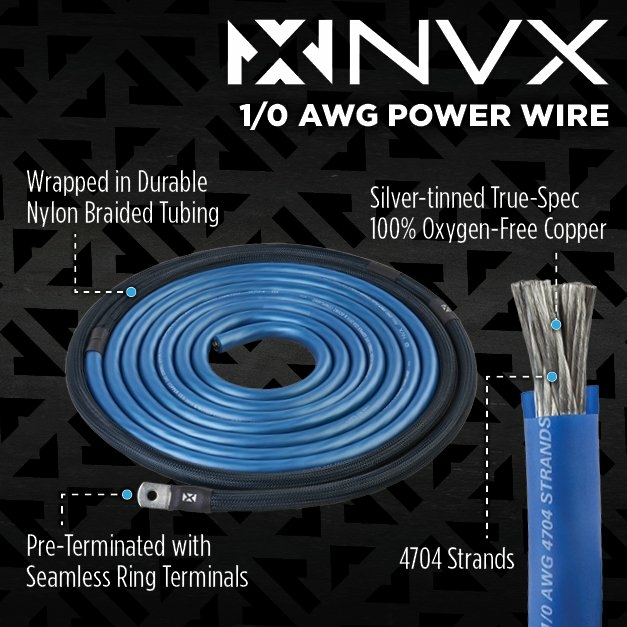

  1. 20 ft. (6.1 meters) Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

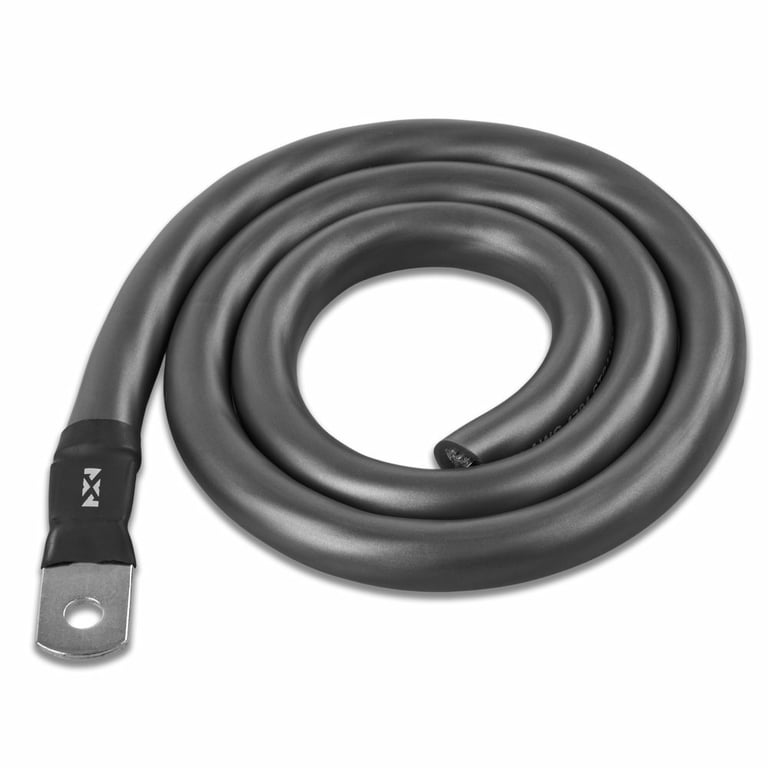

  2. 3 ft. (.91 meters) Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
  3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

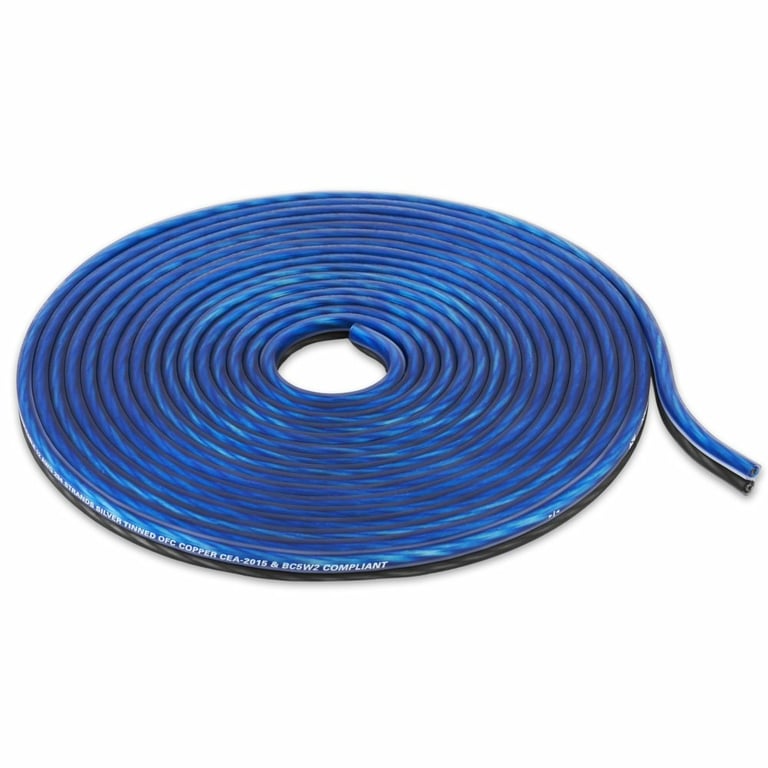

  4. 20 ft. (6.1 meters) Frosted Black/Blue 12 gauge speaker wire

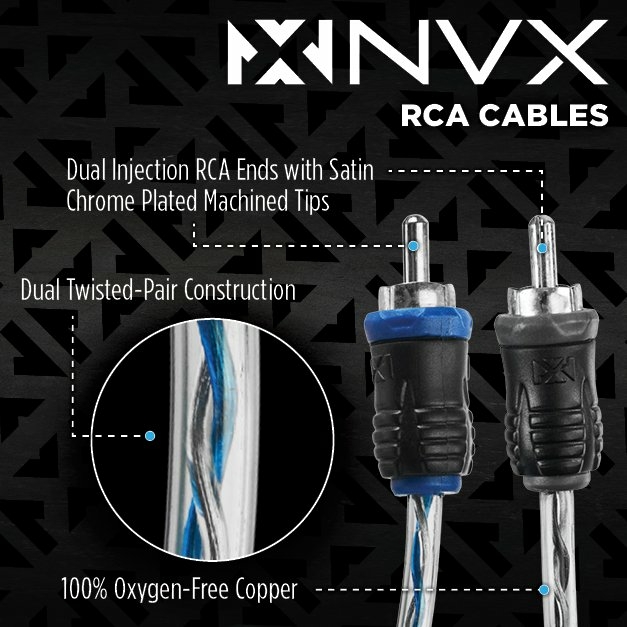

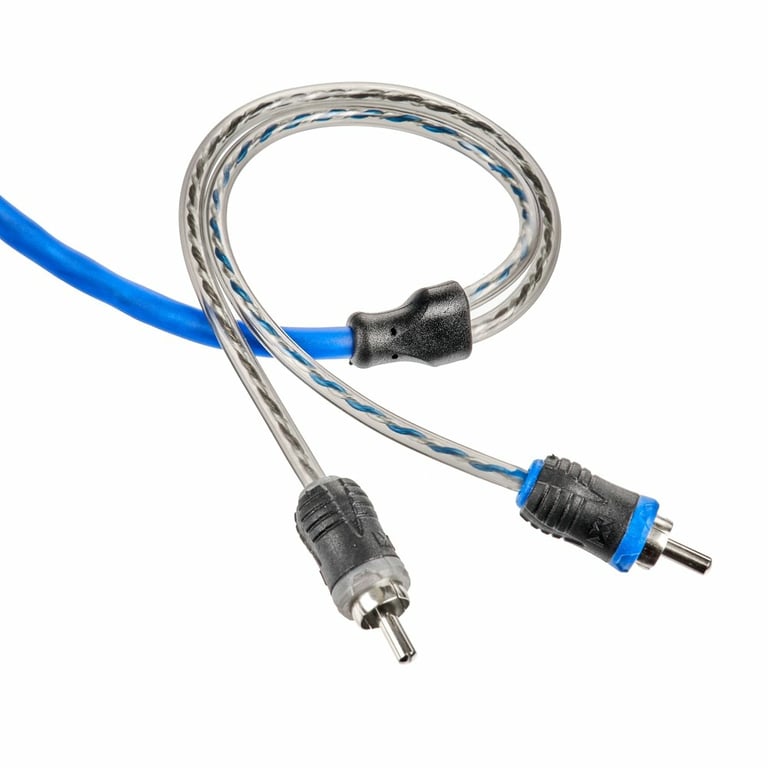

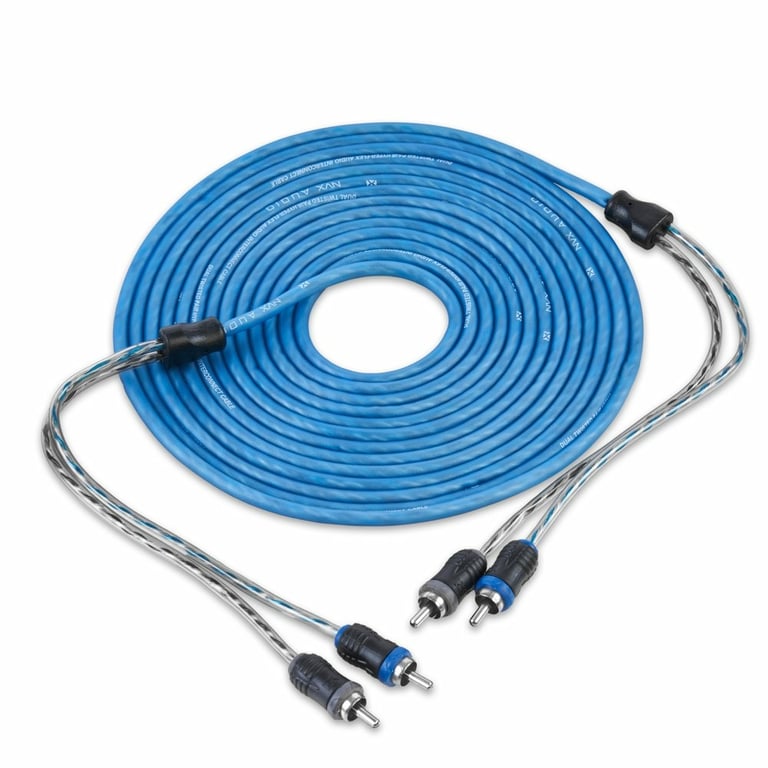

  5. One 16 ft. (5 meters) 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

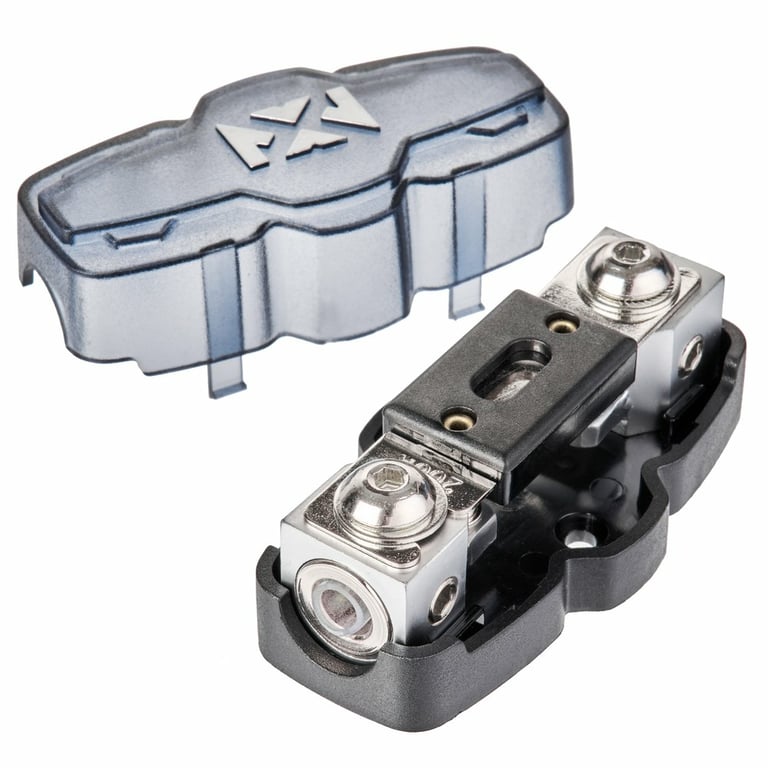

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 12 Gauge Red butt connectors
  11. Two Heat Shrink tube with NVX logo
  12. Ten 6" Black zip ties

Specifications & Details


Power Specifications - Full Range Channels
Peak Power Output
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1850 watts x 1 channel
RMS Power @ 2 ohms
3300 watts x 1 channel
RMS Power @ 1 ohm
5000 watts x 1 channel
Peak Power Output
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
10000 watts
Total RMS Power Output
5000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
THD at Rated RMS Power
0.05%
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
Yes
CEA-2031 Compliant
Yes
Amp Bluetooth Connectivity
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
Amplifier Kit Specifications
Number of Amplifiers Supported
Power/Ground Wire Size
Power Wire Length
Ground Wire Length
Speaker Wire Included
Speaker Wire Length
Remote Wire Length
Interconnect (RCA) Signal Cables Included
Fuse Holder
Fuse Size
Distribution Block Included
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD15, XKIT02

Weight:

22.88lbs

Internal SKU:

xad15_xkit02

Internal Product ID:

194455

Customer Ratings & Reviews



5 star
96%
4 star
4%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.7
Features
4.7
Design
4.8
Usability
4.9

Sort by:

Loading...

SQ meets SPL...it's Loud, Deep, and Clear

The following review is for XAD15, which is a part of the bundle you are viewing.

First review. I just got this in today. From what I was told I was the 1st person or 2nd person to own this amp. The build quality of the XAD is superior to the VAD series amps. It just feels more high-end. Not downing the VAD series at all. I absolutely love my VAD27001. I do prefer the sleek minimalistic appearance of the VAD, but that's just my personal preference. We don't buy these things for looks, amiright??

The 12v and Ground will accept 1/0 awg wire no problem. This amp has 2 fans as opposed to my VAD's single fan. Honestly, I couldn't tell a difference in the fan noise. Not to blow smoke, but I think they may have used quite fans in this model. With the VAD there is a thump sound when powering the amp followed by the noticeable fan noise until you get to a nominal volume. 6 in my case. I did not notice the thump and the fan seemed to drown out at 5.

There is only a RCA input, no outputs. So if you're planning a multi-amp configuration, you'll need to plan around that for your set up.

I have 4 VCW 12-V2s wired to 1ohm and it rumbles like a frickin jet engine. I have it feeding them right around 4,000 RMS. I am impressed at how clear it is even at high SPL.

When I was setting the Gain with my DMM, I went over the rated voltage and was pleasantly surprised by the illuminated LED signifying that the amp was clipping. That is freaking awesome and a much-appreciated feature. That should save some people from frying their beloved sound system components.

All-in-all, Great Job NVX and immaculate job Sonic Electronix!!! You guys have a customer for life. Shout out to Derricka P for the great customer service!!!
