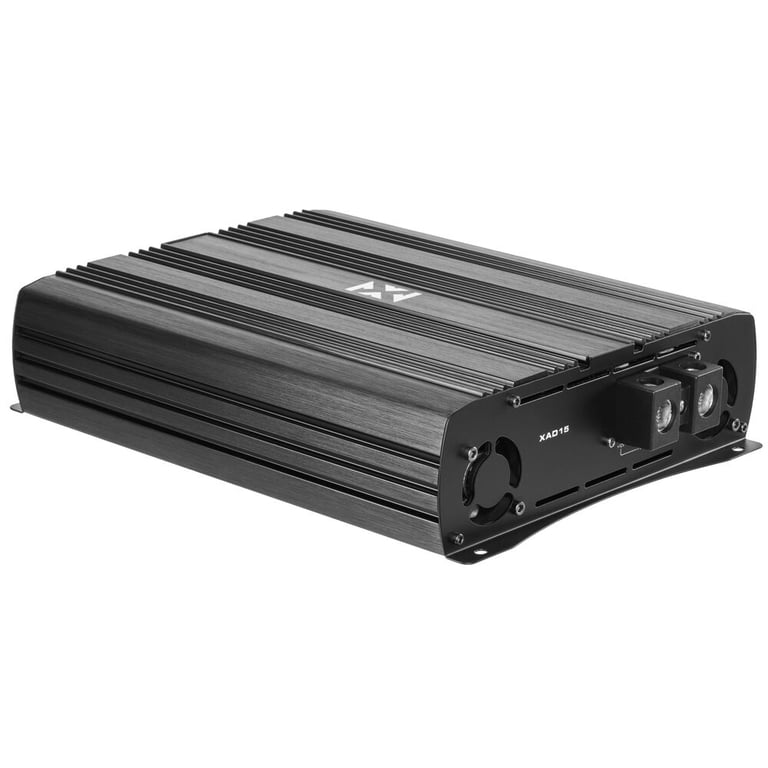

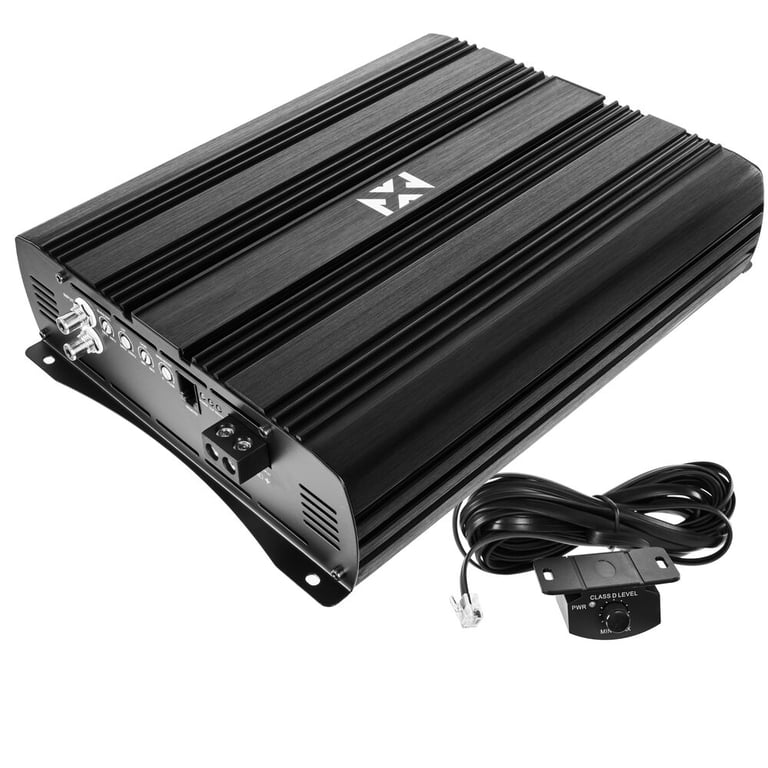

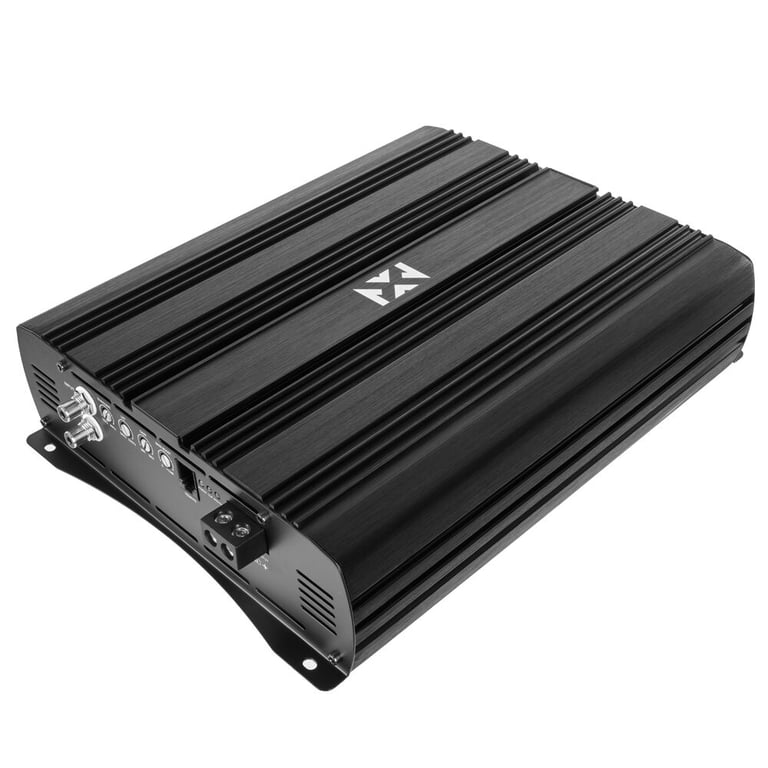

NVX XAD15

5000W RMS X-Series Full-Bridge Class D 1-Ohm Stable Monoblock Amplifier

NVX
Shop all NVX
highlight-star-icon

• 1850 watts x 1 channel @ 4 ohm
• 3300 watts x 1 channel @ 2 ohm
• 5000 watts x 1 channel @ 1 ohm
• Total RMS Power: 5000 watts
• Frequency Response: 10 - 300 Hz
• CEA-2006 Compliant Amplifier

Learn more about the xad15

We apologize

This item has been discontinued


Loading...
DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

95-2001 main

Metra 95-2001 Dash Kit

Install a new Double-DIN car stereo in select 1994-2012 vehicles from Chevrolet, GMC, Buick

13
-50.02%

$12.99

List price $25.99

AXDI-CL2 main

Axxess AXDI-CL2

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

7
-10.75%

$82.99

List price $92.99

GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Description


NVX brand icon

Authorized dealer

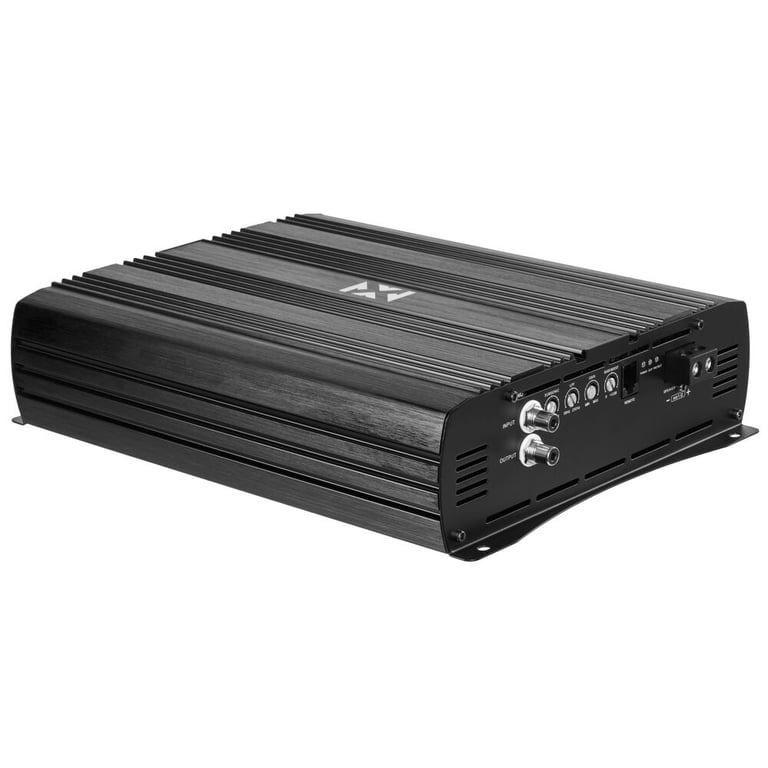

5000 W Class D Amplifier
1 Ohm Stable Bass Level Control Included Small Chassis
Mosfet Power Supply

Product Details:

  • NVX X-Series XAD15
  • Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1850 watts x 1 channel
    • 2 ohm: 3300 watts x 1 channel
    • 1 ohm: 5000 watts x 1 channel
  • Total power output: 5000 watts watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

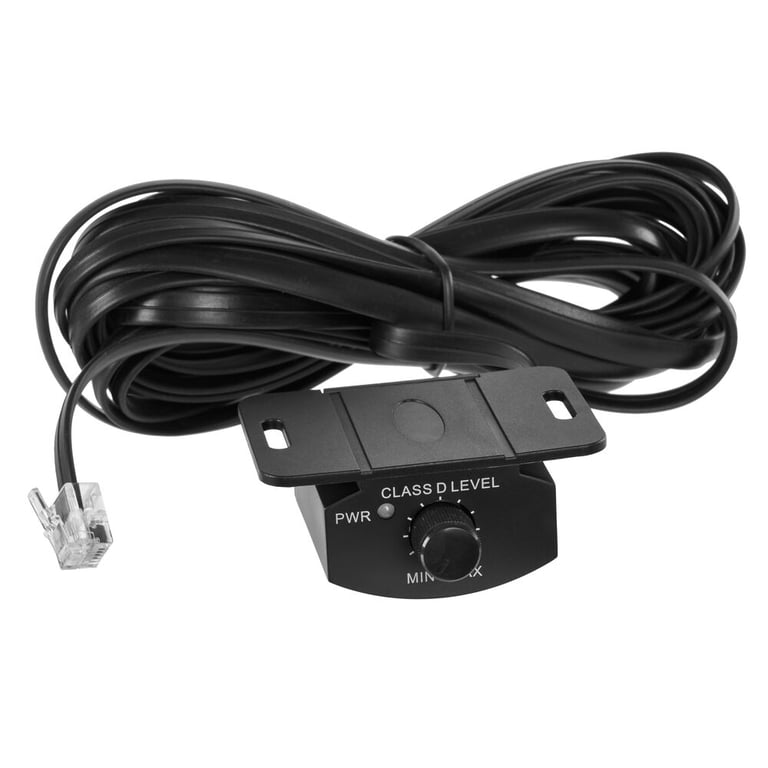

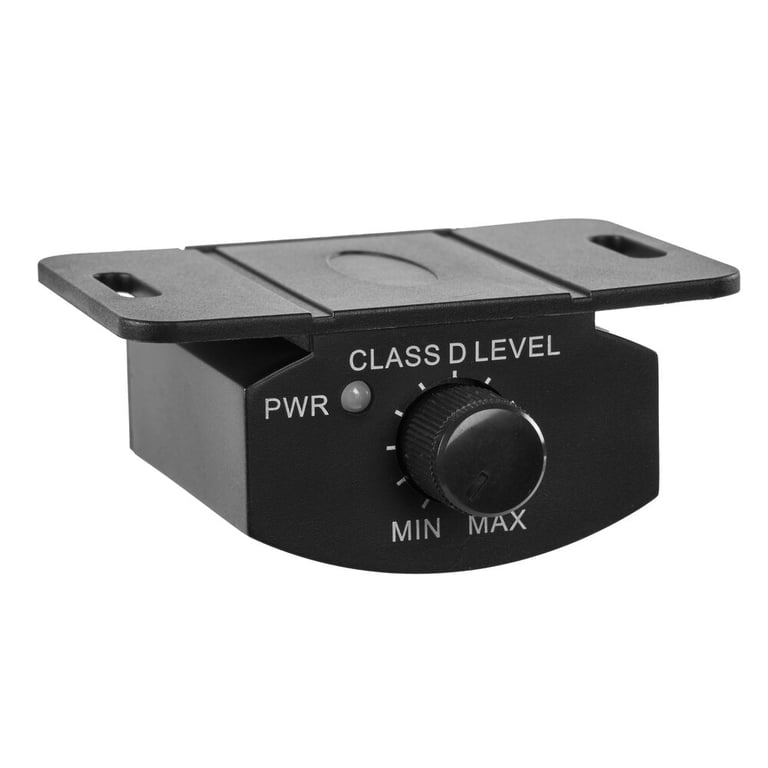

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 100 dB

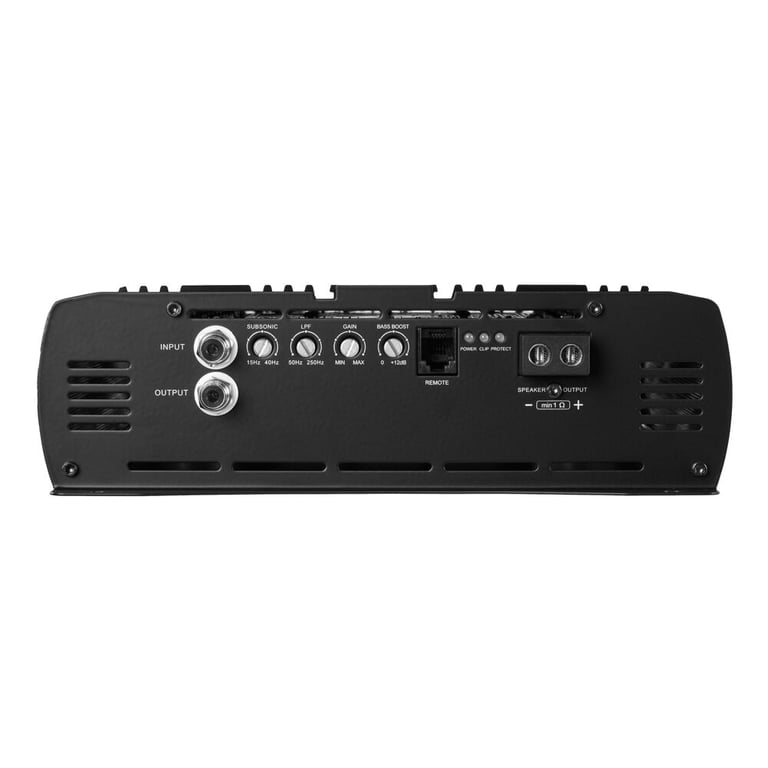

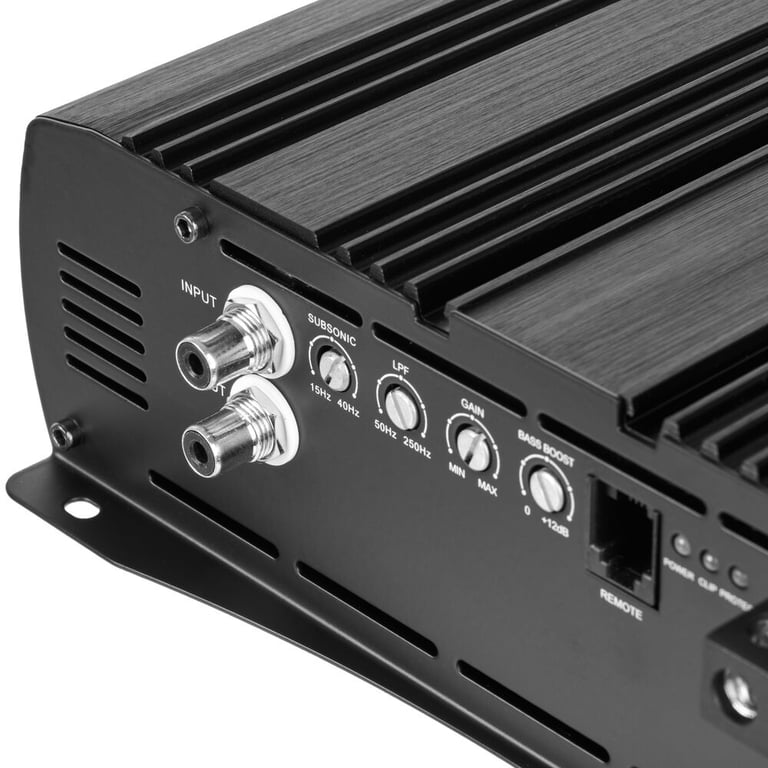

  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable subsonic filter: 15 - 40 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 1/0 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 10.5"W x 8.75"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
pdf icon Check out the X-Series Monoblock Amplifiers Owner's Manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Fan Cooled
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1850 watts x 1 channel
RMS Power @ 2 ohms
3300 watts x 1 channel
RMS Power @ 1 ohm
5000 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
3700 watts x 1 channel
Peak Power @ 2 ohms
6600 watts x 1 channel
Peak Power @ 1 ohm
10000 watts x 1 channel
Amplifier Specifications
Series
X Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
10000 watts
Total RMS Power Output
5000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
0.05%
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD15

Weight:

8.00lbs

Internal SKU:

xad15

Internal Product ID:

183709

Customer Ratings & Reviews


NVX XAD15 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
4.5
Usability
5

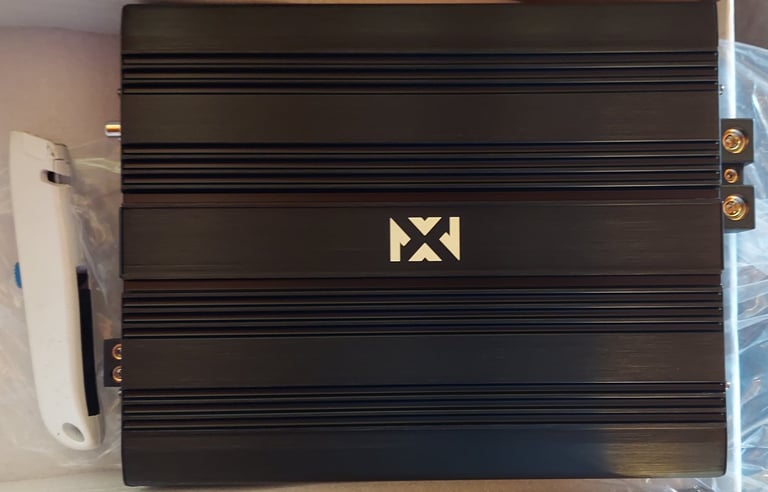

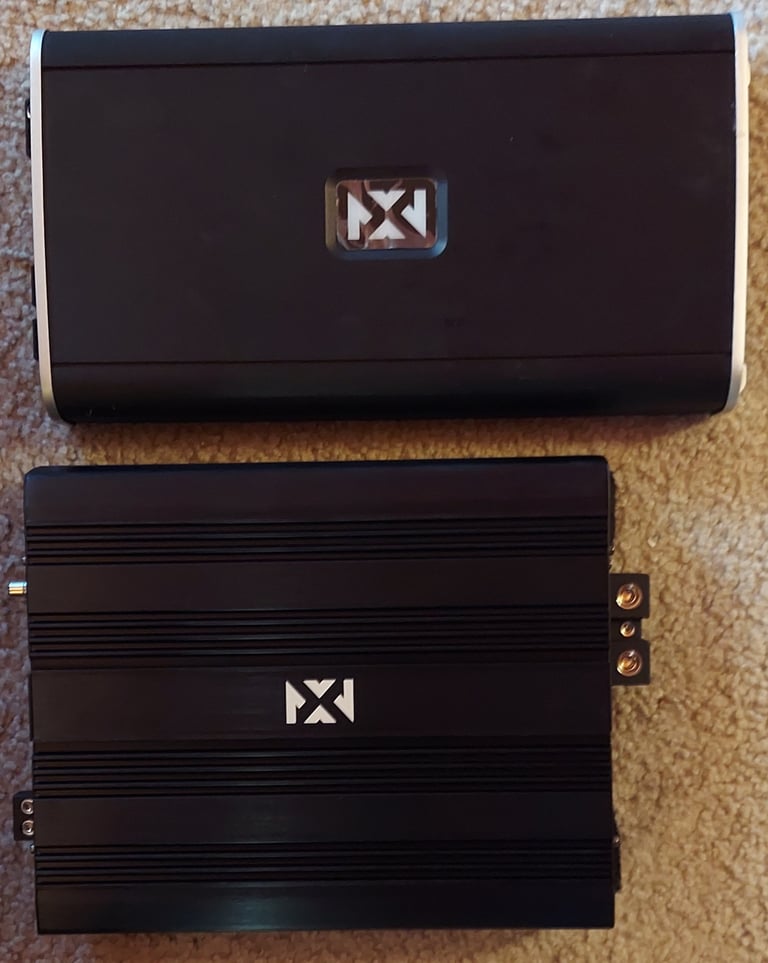

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

SQ meets SPL...it's Loud, Deep, and Clear

First review. I just got this in today. From what I was told I was the 1st person or 2nd person to own this amp. The build quality of the XAD is superior to the VAD series amps. It just feels more high-end. Not downing the VAD series at all. I absolutely love my VAD27001. I do prefer the sleek minimalistic appearance of the VAD, but that's just my personal preference. We don't buy these things for looks, amiright??

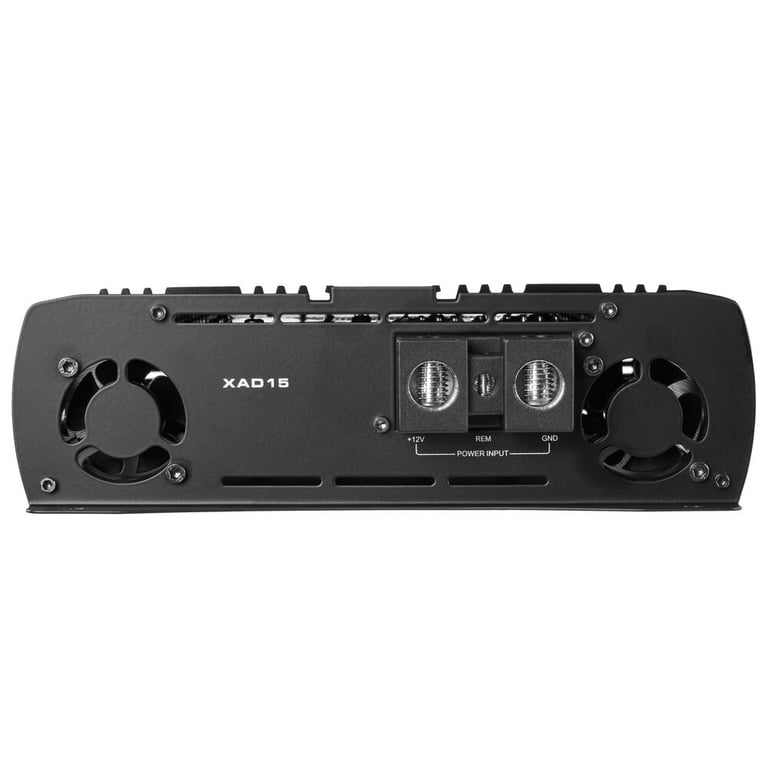

The 12v and Ground will accept 1/0 awg wire no problem. This amp has 2 fans as opposed to my VAD's single fan. Honestly, I couldn't tell a difference in the fan noise. Not to blow smoke, but I think they may have used quite fans in this model. With the VAD there is a thump sound when powering the amp followed by the noticeable fan noise until you get to a nominal volume. 6 in my case. I did not notice the thump and the fan seemed to drown out at 5.

There is only a RCA input, no outputs. So if you're planning a multi-amp configuration, you'll need to plan around that for your set up.

I have 4 VCW 12-V2s wired to 1ohm and it rumbles like a frickin jet engine. I have it feeding them right around 4,000 RMS. I am impressed at how clear it is even at high SPL.

When I was setting the Gain with my DMM, I went over the rated voltage and was pleasantly surprised by the illuminated LED signifying that the amp was clipping. That is freaking awesome and a much-appreciated feature. That should save some people from frying their beloved sound system components.

All-in-all, Great Job NVX and immaculate job Sonic Electronix!!! You guys have a customer for life. Shout out to Derricka P for the great customer service!!!

By Will on December 23, 2021 Checkmark Icon Verified purchase

195 found this helpful


By Amberlynn on October 13, 2023 Checkmark Icon Verified purchase

22 found this helpful


By Damian on October 5, 2024 Checkmark Icon Verified purchase




AWIS15J small

Audiobahn AWIS15J

15" Quad 2 ohm Immortal Series Car Subwoofer

$439.95

List price $769.99

DA1-2000.4 small

MB Quart DA1-2000.4

2000W 4-Channel Discus Series Full Range Car Amplifier

$174.99

List price $499.99

A4801T small

Audiobahn A4801T

2800W Max, Class A/B 4-Channel Amplifier

$329.99

List price $599.99

PMA4150A small

Alphasonik PMA4150A

920W RMS, Class A/B 4-Channel Amplifier

(1)

$269.99

List price $829.99

UD-SW200D small

Pioneer UD-SW200D

8" Down-Firing Shallow Sub Enclosure for TS-SW2002D2 and other shallow subs

$49.99

List price $79.99

CLS-700 small

Concept Chameleon CLS-700

7" TFT-LCD Headrest Monitor with 3 Interchangeable Color Covers and Front Panel Aux-input

(1)

$99.95

List price $239.00

NEO 8 small

Massive Audio NEO 8

300W 8" Neo Series Dual 4 Ohm Subwoofer

(2)

$54.95

List price $124.95

No picture

Alpine R2-W12D2 2nd Gen - New (Damaged Packaging, Product A+)

2250W Peak (750W RMS) 12" R-Series Dual 2-Ohm Car Subwoofer

(6)

$323.95

List price $540.00

AW1200J small

Audiobahn AW1200J

12" Dual 4 ohm High Excursion Series Car Subwoofer

(5)

$99.95

List price $209.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Chrysler Cirrus

2004 GMC Envoy

2018 Cadillac XT5

2009 Suzuki Equator

1997 Dodge B2500

2018 Dodge Journey

1997 Ford Escort

2016 Buick Envision

2013 Dodge Challenger

2012 Ford Mustang

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
