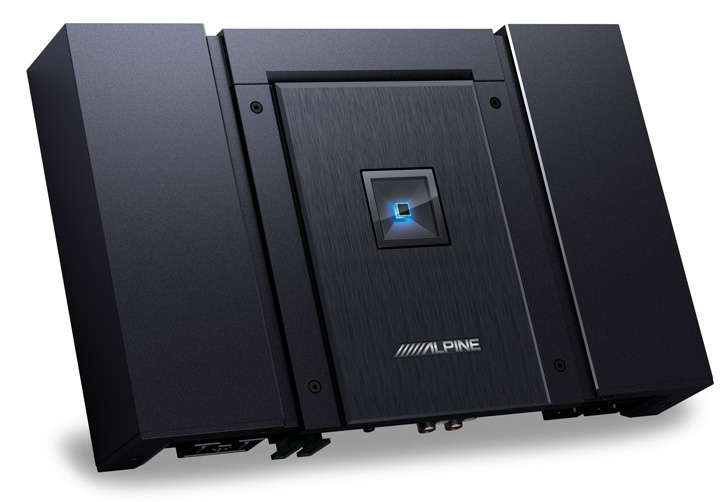

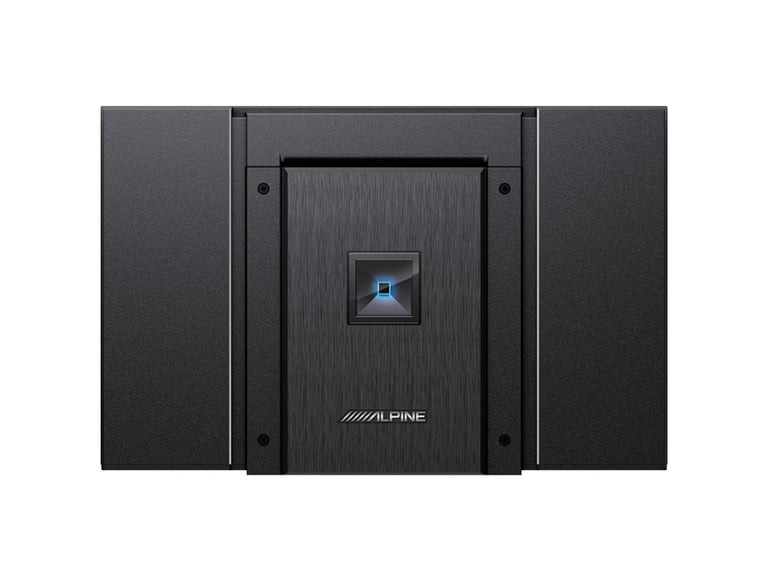

Alpine HDA-F60 (Like New (Open Box))

600W RMS Class D Status Series 4 Channel Car Amplifier

Alpine
Shop all Alpine
highlight-star-icon

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

Learn more about the ls-hdaf60-u9

We apologize

This item has been discontinued

Description


Alpine brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)


HDA-F60


Superior Sound

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.


Impressive Output

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-F60 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.


Incredible Reliability

Featuring technology unique to Alpine, the amplifier features Alpine's dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the speakers and subwoofers for ultimate reliability.


Product Details:

  • Status Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 channel
    • 2 ohm: 150 watts x 4 channel
    • Bridged: 300 watts x 2 channel @ 4 ohm
  • Total power output: 600 watts
  • Wired bass level remote control with optional Alpine RUX-KNOB.2 or Alpine RUX-H01
  • Hi-Res Audio Playback (192kHz/24Bit)
  • High-Efficiency Digital Circuit Design
  • Alpine's Dual Negative Feedback Control Circuit
  • High Bandwidth Amplifier
  • Featuring copper-plated chassis
  • Black circuit board

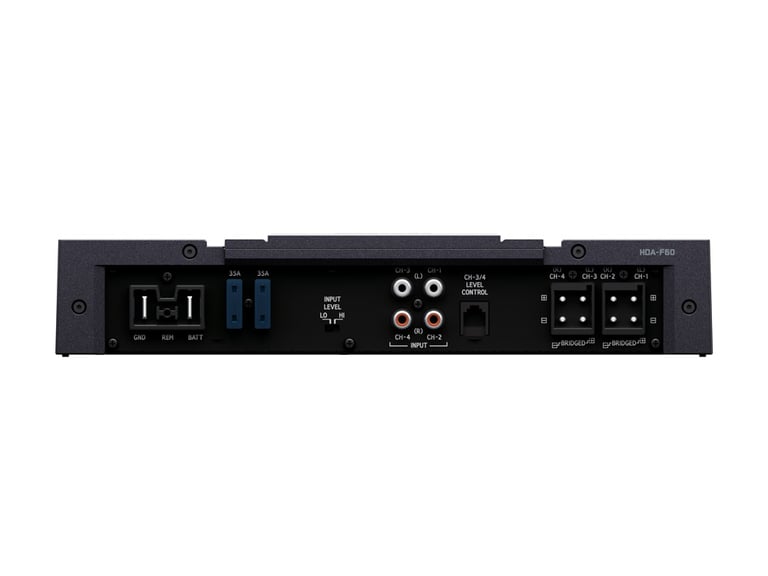

  • One-sided terminal layout
  • Top panel sound controls
  • Quick connect power and speaker terminals
  • Input sensitivity:
    • Low level: 0.2 - 4 volts
    • High level: 0.5 - 10 volts
  • Frequency Response: 10 - 60000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 106 dB
  • Variable high-pass filter: 50 - 400 Hz
  • Variable low-pass filter: 50 - 400 Hz
  • Fuse Rating: 70A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 11-1/2" L x 7-1/2" W x 2-1/8" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: HDA-F60

Product history:

Alpine HDA-F60-2 thumbnail
(newest, current model)
Alpine X-A70F thumbnail
(previous model, replaced by Alpine HDA-F60 (Like New (Open Box)))
Alpine PDX-F4 thumbnail
(previous model, replaced by Alpine X-A70F)
Alpine MRX-F65 thumbnail
(previous model, replaced by Alpine PDX-F4)
Alpine MRP-F600 thumbnail
(previous model, replaced by Alpine MRX-F65)
Alpine MRP-F550 thumbnail
(previous model, replaced by Alpine MRP-F600)

Specifications & Details


Key Features
Amplifier Key Features
Compact Design
Hi-Res Audio Certified
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Series
Status Series
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 60000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
106 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
35A x 2
Total Fuse Rating
70
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
Yes
Low-Level Input Sensitivity
0.2 - 4 volts
High-Level Input Sensitivity
0.5 - 10 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
Quick start guide
WITB: Amplifiers
Amplifier
Mounting screws (6)
Two spare fuses
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HDA-F60-2

Weight:

8.37lbs

Internal SKU:

ls-hdaf60-u9

Internal Product ID:

223562
