Name: Rockford Fosgate Punch P500-1BD
Brand: Rockford Fosgate
SKU: 09-p500-1bd
Price: 229.99 USD
Availability: Discontinued
Rating: 4.9000 (10 reviews)

Shop all Rockford Fosgate

by Rockford Fosgate

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

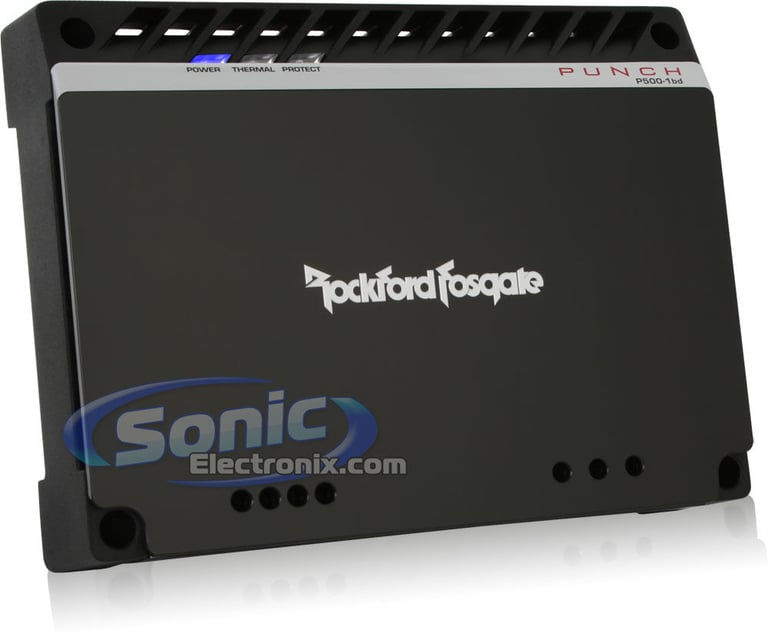

Rockford Fosgate Punch P500-1BD Image 1 — Rockford Fosgate Punch P500-1BD

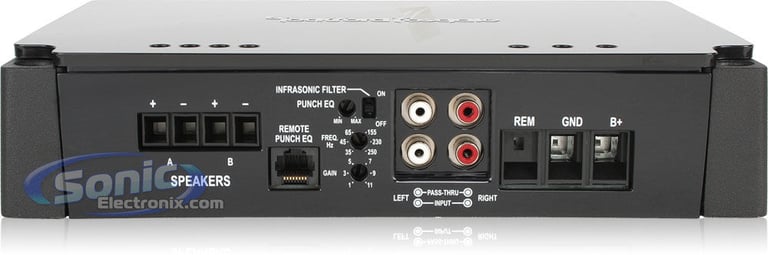

Rockford Fosgate Punch P500-1BD Image 2 — Rockford Fosgate Punch P500-1BD

Rockford Fosgate Punch P500-1BD Image 3 — Rockford Fosgate Punch P500-1BD

Rockford Fosgate Punch P500-1BD Image 4 — Rockford Fosgate Punch P500-1BD

Rockford Fosgate Punch P500-1BD Image 5 — Rockford Fosgate Punch P500-1BD

Rockford Fosgate Punch P500-1BD Image 6 — Rockford Fosgate Punch P500-1BD

Product videos

Product highlights

• Punch Series Monoblock Class BD Car Amplifier
• 200W x 1 Chan. @ 4 Ohm
• 400 x 1 Chan. @ 2 Ohm
• 500 Watts x 1 Chan.
• MOSFET Power Supply
• RCA Pass-Thru Outputs
• Custom Designed TO-247 MOSFETs
• Built-In NOMAD Computer

Learn more about the 09-p500-1bd

Product Highlights

Description

Authorized dealer

Punch Series Monoblock Class BD Car Amplifier
RMS Power Rating:

4 ohm: 200 watts x 1 chan.
2 ohm: 400 watts x 1 chan.
1 ohm: 500 watts x 1 chan.

MOSFET power supply
Remote bass level input (remote level control sold separately)
LED power, thermal, and protect indicators
Tuned Bass EQ (0-18 dB bass boost at 45 Hz or 0-12 dB bass boost at 12 kHz depending on crossover selection)
On-board differential inputs eliminates noise picked up by the signal cable
Mono channel operation
RCA Pass-thru outputs
Featured custom designed TO-247 MOSFETs have 60% more metal tab area providing more power handling capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in most competitor's amps.
Built-in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedance.
MEHSA3 reduces MOSFET temperatures, lowers distortion, and increases durability
Cast aluminum heatsink evenly distributes excess heat across entire amplifier heatsink
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Variable low-pass filter (35-250 Hz, 12 dB/octave)
Selectable infrasonic filter (28 Hz, 12dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-250 Hz
Dimensions: 10-1/4"L x 7-5/8"W x 2-1/4"H
4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
1-year SonicElectronix.com warranty

Product history:

	Rockford Fosgate Punch P500X1BD (newest, current model)
	Rockford Fosgate Punch P500-1BD (previous model, replaced by Rockford Fosgate Punch P500X1BD)

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

200 watts x 1 channel

RMS Power @ 2 ohms

400 watts x 1 channel

RMS Power @ 1 ohm

500 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

35 - 250 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Rockford Fosgate PEQ

Fuse Rating

100A x 1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Rockford Fosgate Punch P500-1BD thumbnail image

Rate or review product

Overall rating distribution

5 star		90%
4 star		10%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		4.9
Features		4.6
Design		4.5
Usability		4.9

Customer Reviews

Sort by:

Good Powerful Sub

I have this powering 2 Boston Acoustic G210 subs wired in parallel (2 ohms) Spec sheet says at least 450W.
Amp is built solid and has LPF and bass boost adjustments. Runs cool and sounds great without letting up.
Wired it up with a 4-gauge let.
Not quite as nice as the Power Series but very good.

By RockFos on January 19, 2011

31 found this helpful Helpful?

Report abuse

Wow

All I can say is wow Rockford has changed these Punch series up. They are so much smaller and produce tons of power 454 watts rms at 2ohms and 700 watts rms at 1ohm on my birthsheet. Defiantly worth the money.

By Brandon on June 26, 2012

30 found this helpful Helpful?

Report abuse

Rockford Fosgate Amp P500-1BD

I have had this amp running 2 PS3 10" Subs flawlessly for 6 months now. Extremely pleased with it's performance and the distortion is minimal if even audible. I would recommend this product to anyone!

By josh on August 13, 2010

31 found this helpful Helpful?

Report abuse

Nothing but the best

I bought this amp because of the price. It was half of what any retailer wanted for the same product. The customer service was even better. I even bought subwoofers too as a result of the first experience. Nothing but excellent service and quality in both transactions. I highly reccomend Sonic Electronix.com to anyone looking for electronic equipment.

By Scott on November 3, 2010

29 found this helpful Helpful?

Report abuse

Very Satisfied

i have had this item for about six months now and have never had a problem with it. i am running it with 2 Rockford 12s in the Rockford box that was made for them. i also run it with a cap on the side which i was erie about. but i will say the set up was very straight forward and easy to tune! the amp is a very strong and clear power maker and i believe it is one of the best on the market!

By Nathan on September 10, 2013

28 found this helpful Helpful?

Report abuse

Doesn't get any better

This amp is rated 500rms @ 1 ohm. my birth sheet said it was actually 697 @ 1 ohm and 2032 watts peak. No other 500 watt amp can even come close to that with the great price from Sonic Electronix

By john on August 12, 2013

29 found this helpful Helpful?

Report abuse

punch 500-1bd

i have this amp on 2 12l7s and every one thinks i have 2 15s or 3 12s at first it was runing at 2 ohms on 2 jl wov2 15s but it puts out alot more pwer at 1 ohm i run it with the gain all the way up for a year and it never kicks off but it gets warm but not hot i think its under rated by a few hundred watts

By dacas on August 31, 2011

28 found this helpful Helpful?

Report abuse

Good clean amp

RF has very solid amp designs. No issues what so ever. I think RF was one of the last car audio companies to send manufacturing overseas which I thought was kind of sad because they were one of the few native made amps. I've owned high end Orion, and a bunch of copy cats Power Acoustik, Clarion, Kenwood, etc and you do get what you pay for.

By Vlover on September 21, 2010

27 found this helpful Helpful?

Report abuse

Two P500-1bd and two 12W7

I have two of these amps pushing two Rockford Fosgate T1D212 in a large ported box, wired down to 1 ohm; one sub per amp..IT'S STUPID LOUD! 142.2 db legal on a TL...

By Thumper on February 5, 2011

26 found this helpful Helpful?

Report abuse

Awesome amp, delivers more than 500 watts rms!

Helped a friend install this in his car paired with 2 12" P2's and damn does his car slam now! Birth sheet was well over 500 rms at 576 rms at 2-ohms which was very impressive! Rockford all the way!

By Michael on February 17, 2012

25 found this helpful Helpful?

Report abuse
