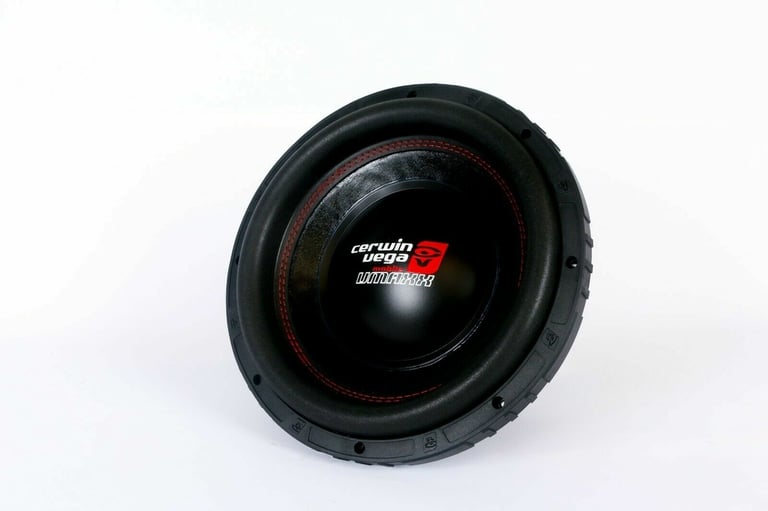

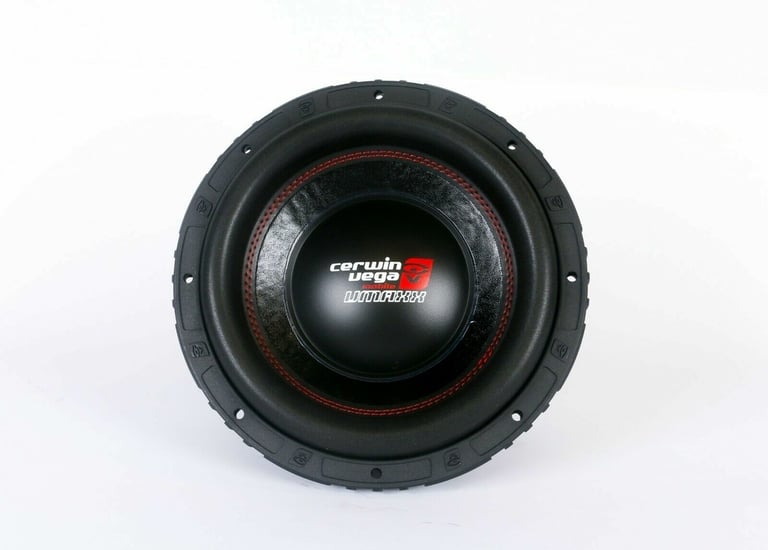

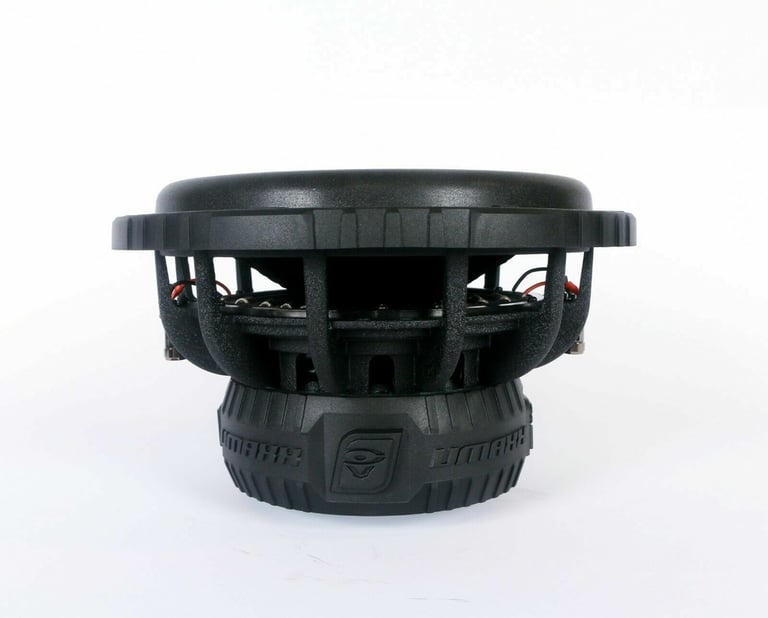

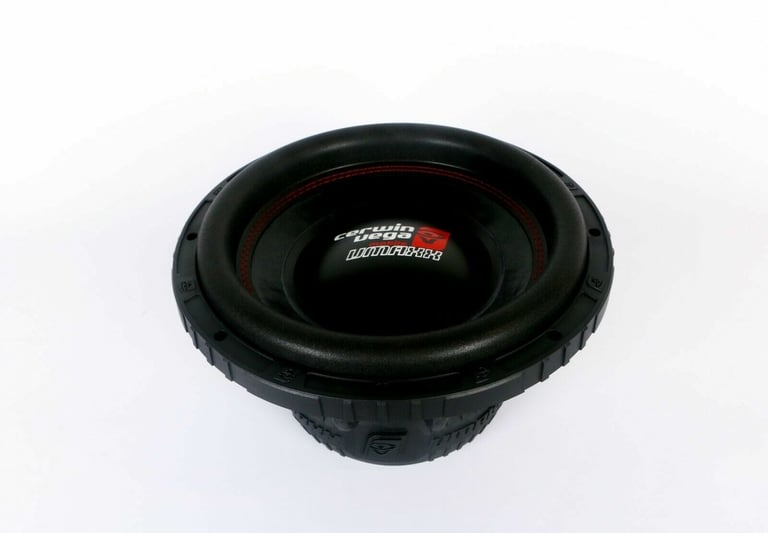

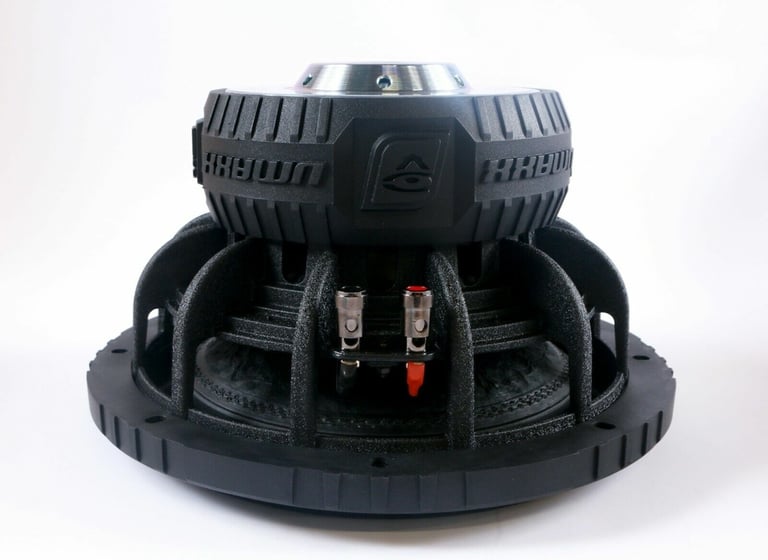

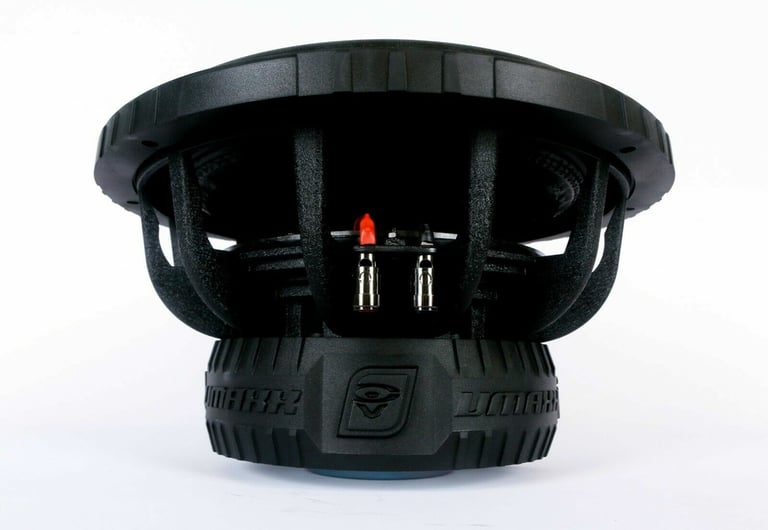

Cerwin-Vega VMAX10D4

1600W MAX (800W RMS) 10” VMAX Series Dual 4 Ohm High-Performance Subwoofer

Cerwin-Vega
Shop all Cerwin-Vega
highlight-star-icon

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Treated Semi-Pressed Pulped Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 5.39"
• Sensitivity: 84.4 dB

Learn more about the donotusevmax10d4

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Cerwin-Vega brand icon

Authorized dealer

Product Details:

  • 10" Dual 4 ohm VMAX Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 800 watts
  • Treated Semi-Pressed Pulped Cone
  • Rubber Surround
  • Heavy Industrial Strength Aluminum Cast Frame
  • Treated Semi-Pressed Pulped Cone
  • Elevated Motor Structure For Increased Cooling
  • Oversized Spider
  • Black Coated 3 inch Voice Coil for Higher Thermal Capability
  • Oversized Polished Black Chrome Terminals
  • Shorting Ring for lower Distortion
  • Polished Bumped Backplate
  • Klippel Optimized Motor/Suspension Symmetry
  • 2.5" High Temperature Aluminum Voice coil
  • 15 mm Xmax
  • Resonance Frequency (Fs): 36.9 Hz
  • Sensitivity: 84.4 dB
  • Sealed box volume: 1.0cu.ft
  • Ported box volume: 1.25cu.ft
  • Top-mount depth: 5.39"
  • Cutout diameter: 9.47"
  • Authorized Internet Dealer
  • Protective subwoofer grille: No
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Cerwin-Vega VMAX10D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Cerwin-Vega VMAX10D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Cerwin-Vega VMAX10D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Cerwin-Vega VMAX10D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
VMAX Series
Subwoofer Size
10"
Peak Power Handling
1600 watts
RMS Power Handling
800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2.5"
Sensitivity
84.4 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Treated Semi-Pressed Pulped
Woofer Surround
Rubber
Magnet Structure
Double Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5.39"
Cutout Diameter
9.47"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36.9 Hz
Equivalent Compliance (Vas)
21.5 liters
Total Speaker Q Value (Qts)
0.54
Electrical Q Value (Qes)
0.6
Electrical Resistance of Voice Coil (Re)
2?/8? ohm
Mechanical Q Value (Qms)
5.23
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PLEASEDONOTUSETHISMODEL

Weight:

18.74lbs

Internal SKU:

donotusevmax10d4

Internal Product ID:

195777
