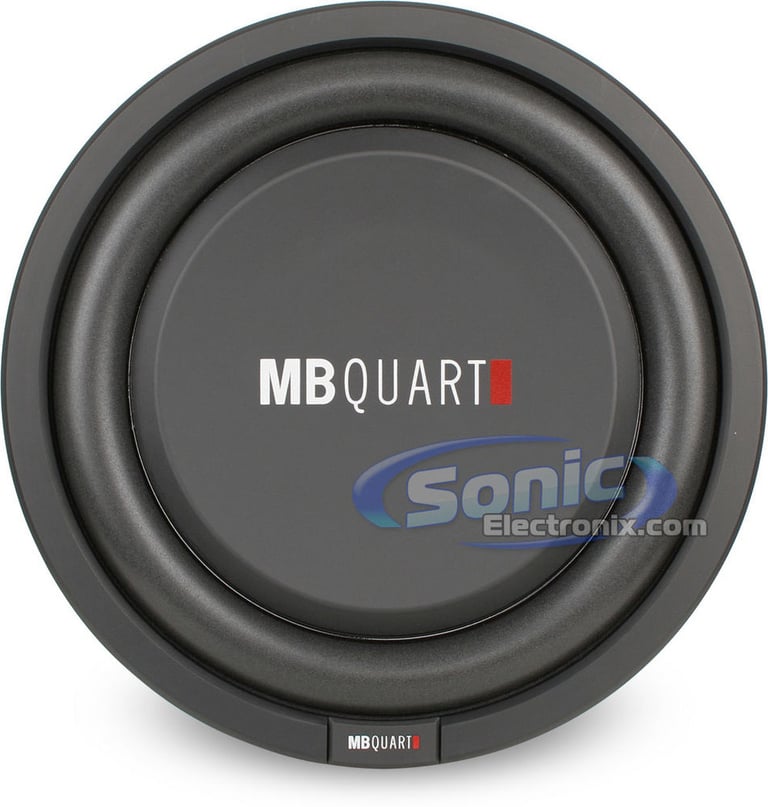

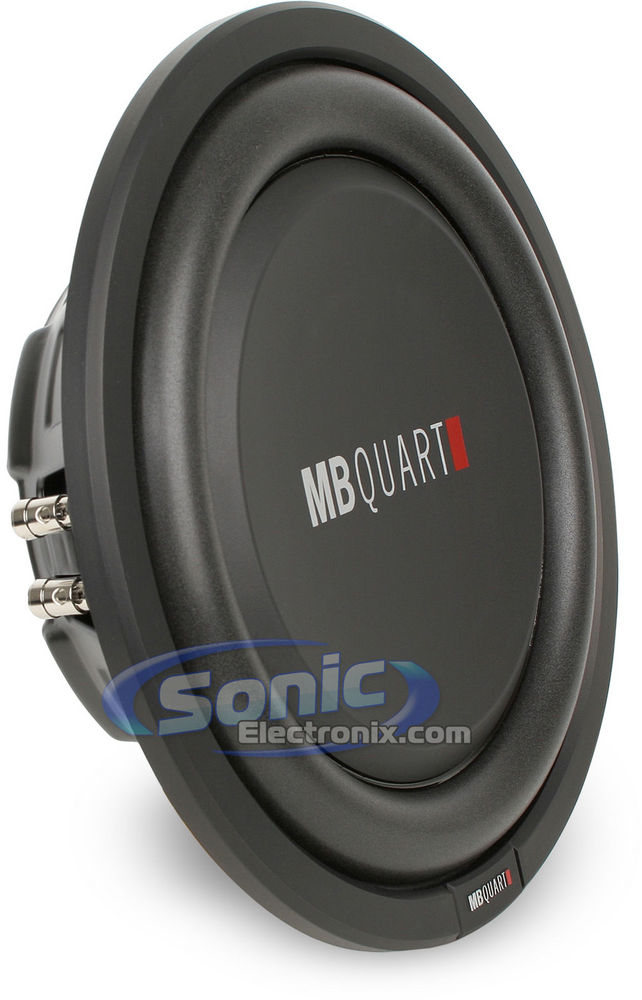

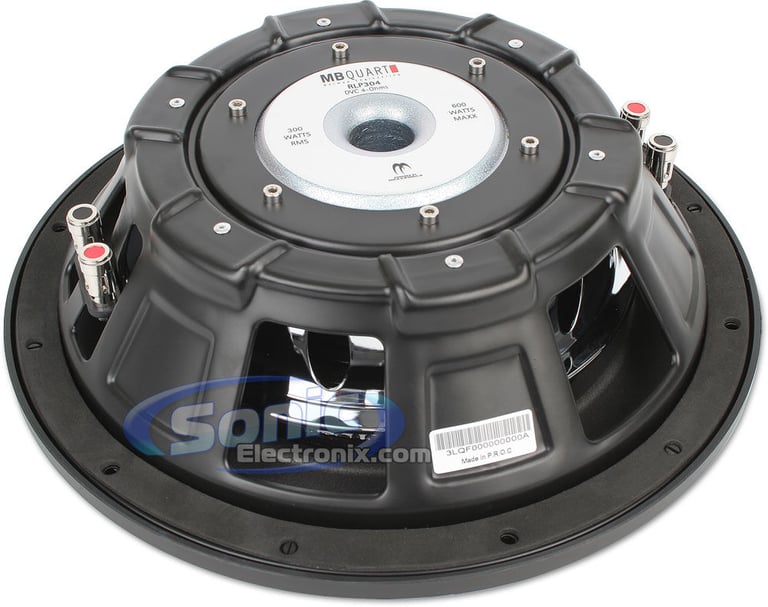

MB Quart RLP-304

300W 12" Reference Series Dual 4 ohm Low-Profile Subwoofer

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 600W Peak
• 300W RMS
• Injection Molded Polypropylene Cone
• Foam Surround
• Recommended for Sealed Enclosures

Learn more about the rlp304

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

FD1426B main

Scosche FD1426B

Double DIN Stereo Dash Kit for select 2004-2009 vehicles from Ford, Mercury, Lincoln (Black)

118
-6.69%

$13.95

List price $14.95

40-CR10 main

Metra 40-CR10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2002-2025 vehicles from Ford, Chevrolet, GMC

57
-16.69%

$7.49

List price $8.99

95-5812 main

Metra 95-5812 Dash Kit

Install a new Double-DIN car stereo in select 2004-2016 vehicles from Ford, Lincoln, Mercury Multi-Kit

41
-30.45%

$15.99

List price $22.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FD23B main

Scosche FD23B Wiring Harness

Install a new car stereo in select 2003-2014 vehicles from Ford, Lincoln, Hyundai

134
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Product Highlights


• 600W Peak
• 300W RMS
• Injection Molded Polypropylene Cone
• Foam Surround
• Recommended for Sealed Enclosures

Description


MB Quart brand icon

Authorized dealer

  • 12" Dual 4 Ohm Reference Series Shallow Mount Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: Dual 4 Ohm
  • Injection molded polypropylene cone woofer
  • Foam surround
  • Shallow mount for small and compact installations
  • Recommended use in sealed enclosures
  • Dual voice coils
  • Frequency response: 25-160 Hz
  • Sensitivity: 86 dB
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MB Quart RLP-304 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MB Quart RLP-304 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MB Quart RLP-304 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MB Quart RLP-304 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
F150C04BK12A-TN main

MTX Audio Thunderform F150C04BK12A-TN (Black, Amplified)

Amplified 12" 4 ohm Loaded Car Specific Thunderform Sub Enclosure select 2004-2008 F-150

F150C04C12A-TN main

MTX Audio Thunderform F150C04C12A-TN (Charcoal, Amplified)

Amplified 12" 4 ohm Loaded Car Specific Thunderform Sub Enclosure for select 2004-2008 F-150

F150C04BK12-TN main

MTX Audio Thunderform F150C04BK12-TN (Black, Loaded)

12" Loaded Sub Enclosure Custom-Fit for select 2004-2008 F-150 (STX, XL, XLT, Base, FX4, Lariat)

F150C04C12-TN main

MTX Audio Thunderform F150C04C12-TN (Charcoal, Loaded)

12" 4 ohm Loaded Vehicle Specific Thunderform Subwoofer Enclosure for select 2004-2008 F-150

REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

A37210CP_SMW10D4 main

Atrend A372-10CP with (2) SMW10D4 for 04-08 Ford F150 Extended/Super Crew Cab

350W RMS Shallow-Mount 10" Dual 4-Ohm Subwoofers + Dual 10" Subwoofer Enclosure

13
-12.98%

$334.98

List price $384.93

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
Low Profile Reference Series
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 160 Hz
Sensitivity
86 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Top-Mount Depth (Mounting Depth)
3"
Cutout Diameter
10-1/2"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RLP-304

Weight:

11.40lbs

Internal SKU:

rlp304

Internal Product ID:

19606

Product and How-to Videos


  • Shallow Mount MB Quart Reference Subwoofers are your answer to BIG BASS in a tight space!
  • MB Quart Low-Profile Reference Series Subwoofers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


MB Quart RLP-304 thumbnail image

5 star
73%
4 star
13%
3 star
13%
2 star
0%
1 star
0%



Durability
4.4
Value
4.8
Features
4.4
Design
4.3
Usability
4.7

Customer Reviews

Sort by:

Loading...

Solid Product and Great Base

I wanted a slimline sub with some kick to fit behind the seat of my Boxster. This was one of the few that would fit. It has been thumping hard ever since i installed it.

By rdttfc on January 25, 2011

52 found this helpful


Shallow Mount, not shallow sound

Great driver. DVC is wired at 2 ohms, and pushing 300W to it. Made a custom box @ 0.45 cu ft. (interior volume) stuffed with polyfill per MB Quart's recommendation. For a 12 inch shallow that mounts under my passenger seat, it does a fine job on its own. Solid lows, no fatigue in sound and punchy kick drums. Bass guitars sound like bass guitars, not boomy nonsense.

Does it shake my neighbor's house? Only if I'm parked next to it, but that doesn't change the insanity inside my car's cabin that it can create without distortion/clipping. Great addition to my system.

By Boomstick on September 17, 2013

48 found this helpful


MB Quart RLP 304

Great sound, excellent speakers.

By Scott on January 16, 2012

43 found this helpful


MB Quart wins

This is a really great sub that fit my purpose exactly. Its an awesome unit that delivers punchy bass, has a great look yet slim enough to be easily hidden.

By Brett on April 4, 2011

43 found this helpful


Great space saver and gets the job done!

This subwoofer is the best if you don't have a lot space. Rich deep bass and can handle a good amount of power!

By Big Wash on July 19, 2012

41 found this helpful


I love these subs!

I have an extended cab F-250. As some are probably aware, there isn't a ton of room in these trucks.

I built a box to MB Quart's spec..... and these subs do not disappoint in small sealed boxes.

By Jeff G on September 29, 2011

41 found this helpful


small box - big sound

This sub is designed to work in a small closed box and comes through with flying colors! I needed a small box for my boat and did not want to go smaller than 12" . I had a 3/4cuft box made for the sub. Stuffed the box with fiber and had the outside bedlinered.
Sub sounds great!

By silvrtongdvl on July 31, 2013

40 found this helpful


Great Shallow mount!!

This product is GREAT. I have a SINGLE cab '87 Ford Ranger, custom built box and it fits. The box has bout .7cu ft and i have it wired at 2 ohms, pushing 550 watts to it. This subwoofer SLAMS. People are amazed by how loud it is, especially for ONE 12in SHALLOW mount. I hit the lows very easily and the highs will impress you. A very good unit to purchase!!

By J.T. on May 5, 2012

40 found this helpful


These subs bump!!

I ordered 4 of these 12in mb quarts which will be going in my 2008 dodge ram pick up. These subs bump, have them wired at 2ohms at 400watts. Surprisingly the hit lows pretty good and the high notes sound awesome. Definitely worth the money and sound better then the alpine type r's I had in my truck. FOR THE LOW PRICE YOU MIGHT AS WELL TRY THEM!

By Cody on September 24, 2013

38 found this helpful


Good value but not the best of speakers

Having the volume air space to fit subs in my truck is a big problem. I custom built the largest sealed enclosure that I could possibly stuff under the back seat and got 0.68 cu. ft. This subwoofer's specs lined up exactly with what I needed and the price is right. I purchased the DVC 2ohm version.

Qualtiy of Construction:
I am not impressed with the materials and quality of the subwoofer but it is not terrible. There was nothing wrong with it but it just feels cheap. I suppose that is why it is so inexpensive.

Sound:
The subwoofer's cone really has to be moving for much sound to be generated. The speaker must be driven hard and it really never gets as loud as it should. Perhaps that is a product of its design for small enclosures at the fact it is a shallow mount type. So, it is better than nothing, but it does not compare to a real, deep mounted 12" subwoofer in low frequency tones.

Buy again?
Maybe but probably not. There really is not another choice with the same features that I could find. I was looking for a shallow mount, DVC, 2 ohm, 12" sub that worked with a tiny box and this is pretty much the only one that I could find for a reasonable cost.

By Spike on December 31, 2009

39 found this helpful




ICBM-7342 small

Performance Teknique ICBM-7342

In-Dash CD/MP3 Car Stereo Receiver with Flip-Down Detachable Face

$44.99

List price $129.99

09DWM9120 small

Kicker DWM9120 (09DWM9120)

120 ft. of 22 AWG 9-Conductor D-Series Speaker Wire

$79.95

List price $299.95

No picture

Xscorpion SW14.300BK-1

Xscorpion SW14.300BK Black 14 Gauge Expert Link Speaker Wire 100% OFC True Gauge

$1.69

List price $2.29

12MJSG small

Molded JMC Subwoofer Enclosure (12MJSG)

Single 12" Custom Designed Ported Enclosure

(5)

$49.99

List price $149.99

CS112-WXv2 small

JL Audio BassWedge CS112-WXv2

200W RMS 12" WXv2 BassWedge Series Enclosed Subwoofer System

(1)

$189.99

List price $229.95

No picture

Tsunami V10SW12BK-125-1

Tsunami V10SW12BK-125 Black 12 AWG OFC Speaker Wire

$99.99

List price $99.99

IT3KGW small

Scosche IT3KGW (Gray/White)

kickBACK Hybrid Case with Kickstand for iPod Touch (2nd Gen.)

$17.49

List price $29.99

No picture

Ample Audio ACWD1000 ACWD Series 10"

$74.99

List price $109.99

TS-A1683R small

Pioneer TS-A1683R

6-1/2" 4-way Speakers (also 6-3/4" Mountable)

(33)

$58.99

List price $99.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Ford F-150

2003 Dodge Viper

2008 Lotus Elise

2008 BMW 528i

1981 Ford Thunderbird

2012 Audi Q7

2012 BMW M3

2005 Acura RL

2009 Nissan Pathfinder

2016 Volkswagen CC

Vehicle
Store
Delete

1988 BMW K1

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
