DS18 CANDY-X5B with Belva 4 Gauge Amp Kit

2000W Peak (800W RMS) Candy-X Series Full Range Class D 5-Channel Amplifier with Bass Remote

DS18
Shop all DS18
highlight-star-icon

• 80 watts x 4 channel + 200 watts x 1 channel @ 4 ohm
• 120 watts x 4 channel + 320 watts x 1 channel @ 2 ohm
• Bridged: 240 watts x 2 channel @ 4 ohm + 320 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 1 ohm Stable 5-Channel Amplifier

Learn more about the candyx5b_bak46

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Description


DS18 brand icon

Authorized dealer

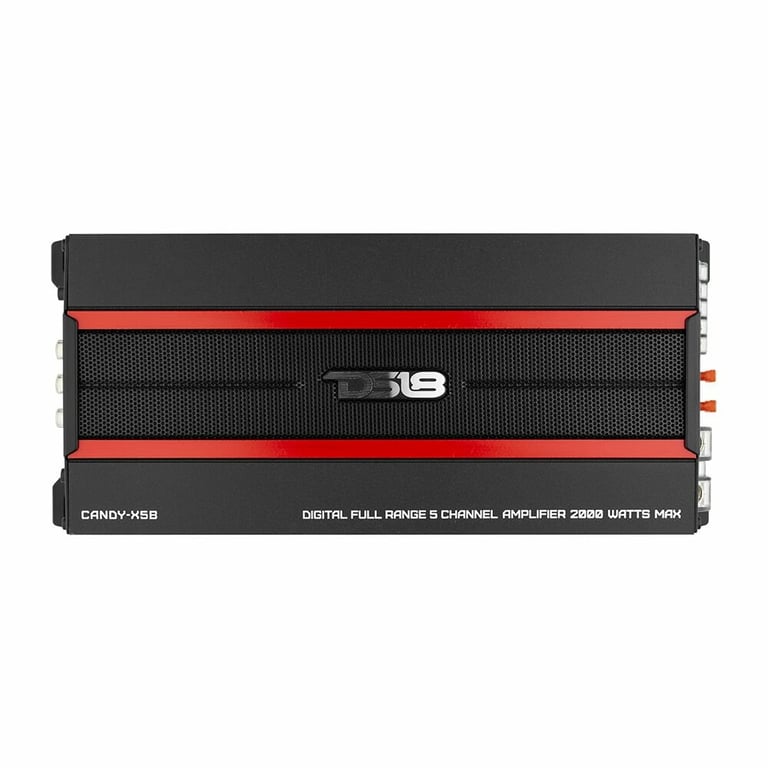

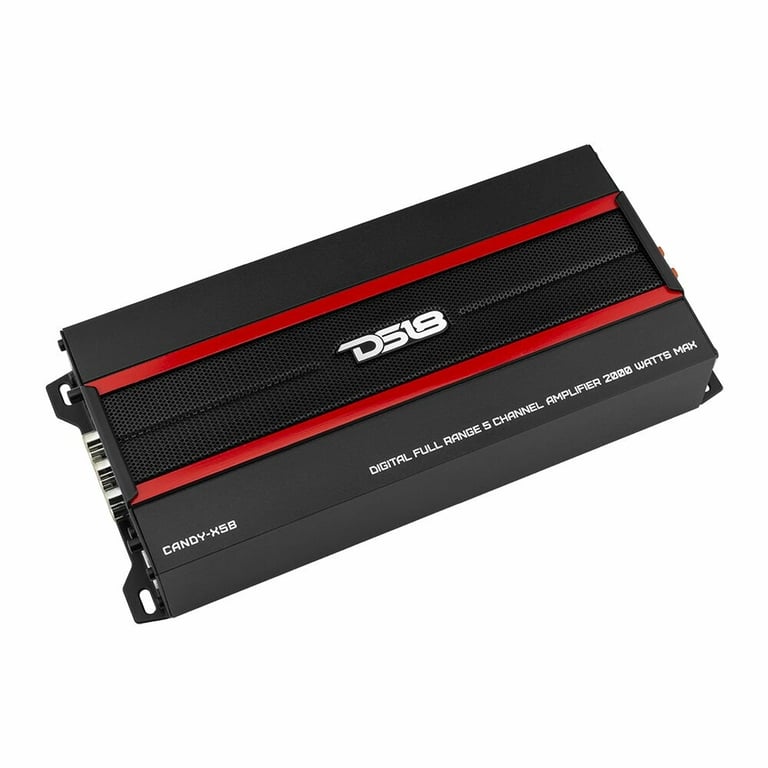

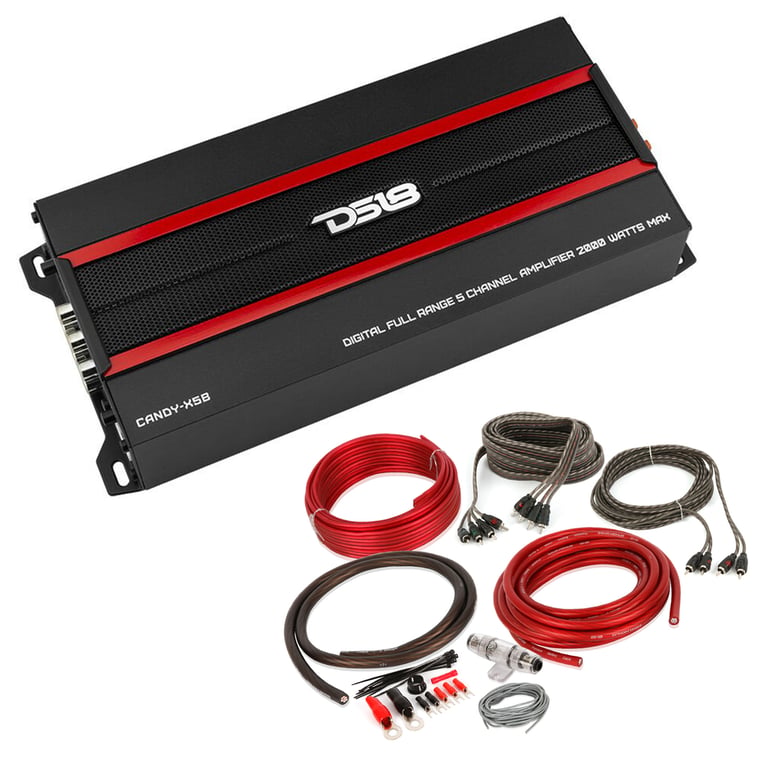

DS18 CANDY-X5B

2000W Peak (800W RMS) Candy-X Series Full Range Class D 5-Channel Amplifier with Bass Remote
Quantity: 1

Product Details:

  • CANDY-X Series Class D 1 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 channel + 200 watts x 1 channel
    • 2 ohm: 120 watts x 4 channel + 320 watts x 1 channel
    • Bridged: 240 watts x 2 channel @ 4 ohm + 320 watts x 1 channel @ 2 ohm
  • Total power output: 800 watts
  • Wired remote bass level control included
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: .2 - 6 volts
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): .01%
  • Signal to Noise Ratio: 100 dB
  • Variable high-pass filter: 40 - 250 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 150 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • Fuse Rating: 70
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 5" W x 11" L x 187" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK46

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 5/6-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

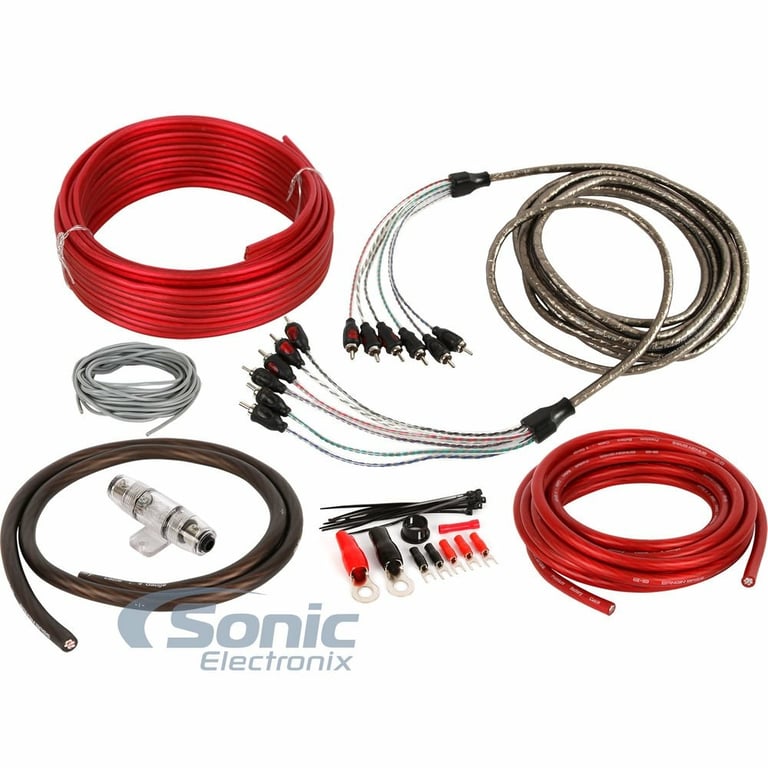

Kit includes:

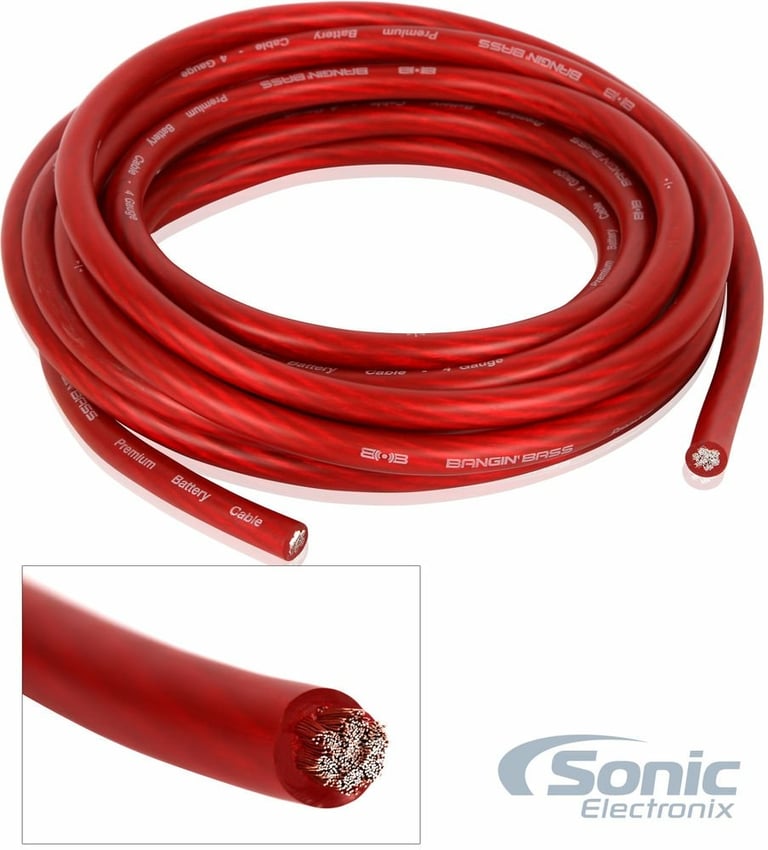

  1. 17 ft. (5.2 meters) Red 4 gauge power wire

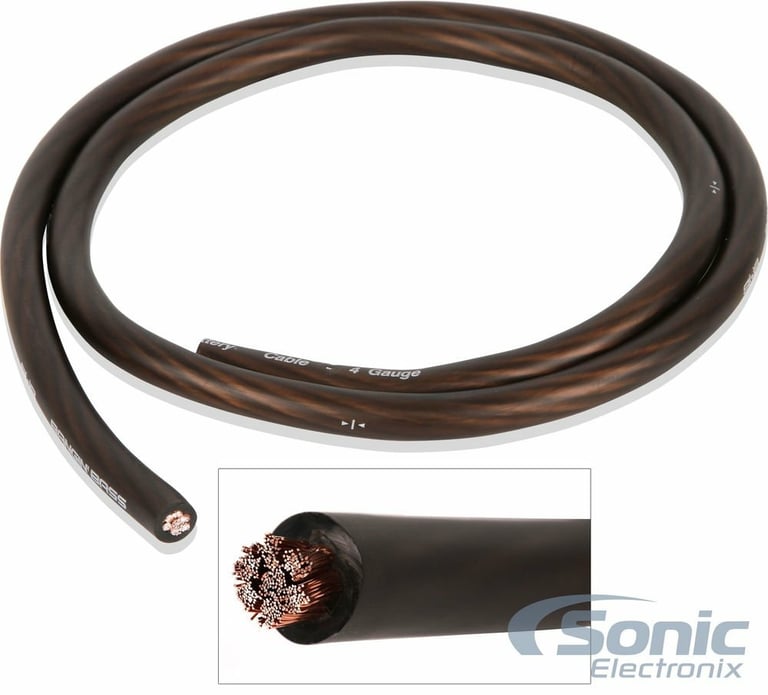

  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

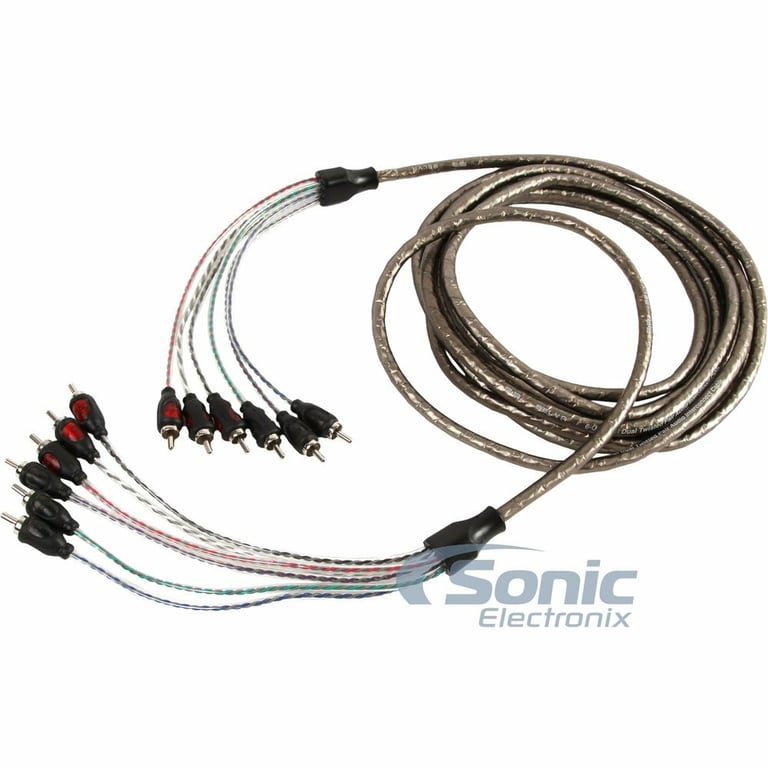

  4. 17 ft. (5.2 meters) Helical Twist 5/6-channel RCA interconnect cable

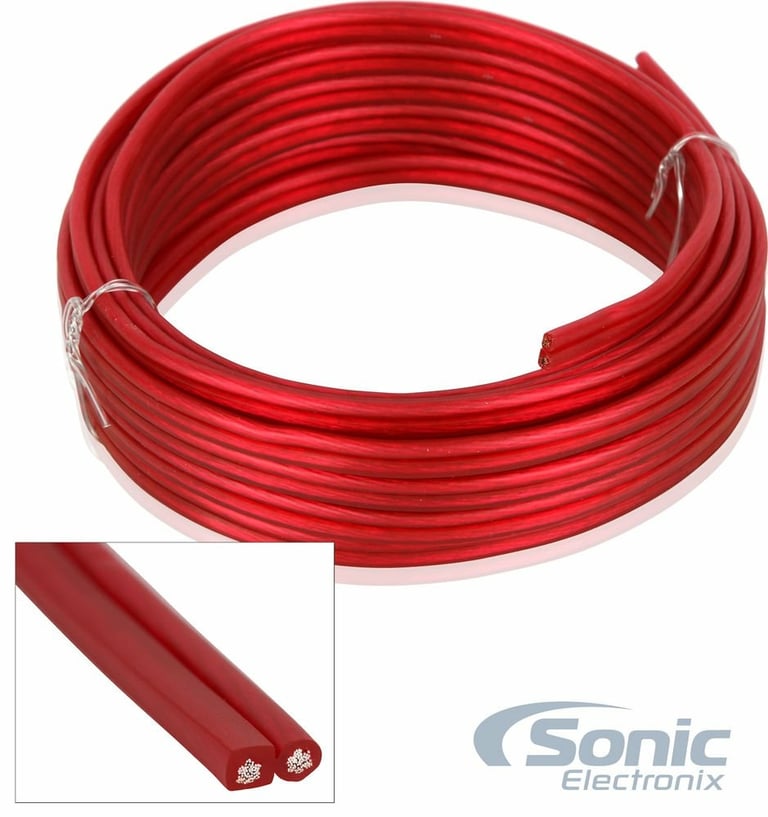

  5. 65 ft. (12.2 meters) 16 Gauge Speaker cable

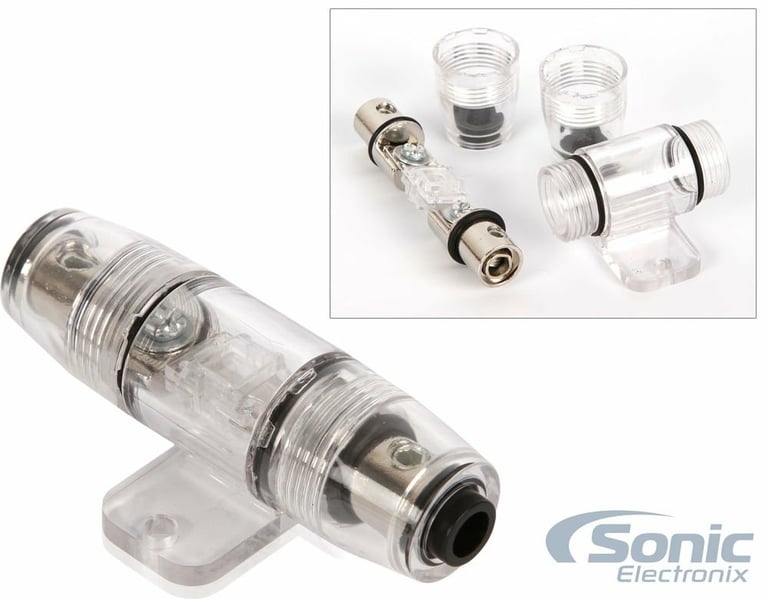

  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(260)

$491.43

List price $682.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$309.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
120 watts x 4 channel
RMS Power @ 1 ohm
420 watts x 1 channel
Bridged RMS Power
240 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
320 watts x 1 channel
RMS Power @ 1 ohm
420 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20,000 Hz
THD at Rated RMS Power
.01%
Speaker Level Inputs
No
Preamp Outputs
No

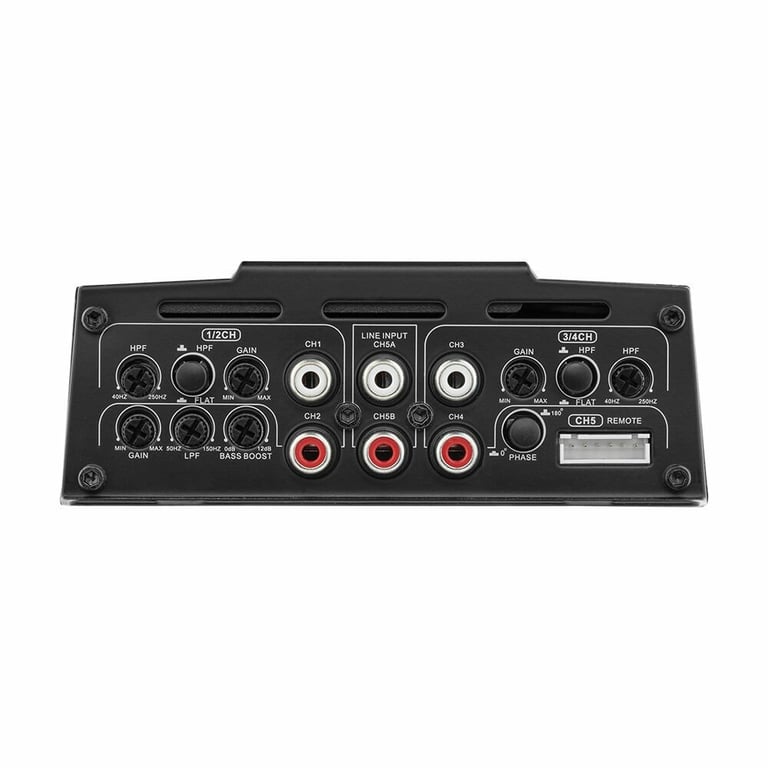

Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
50 - 150 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 2
Total Fuse Rating
70
CEA-2031 Compliant
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
.2 - 6 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
1.17 feet
Ground Wire Length
2.3 feet
Speaker Wire Included
Yes
Speaker Wire Length
65 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
6 Channel / 5 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CANDY-X5B, BAK46

Weight:

9.93lbs

Internal SKU:

candyx5b_bak46

Internal Product ID:

196139

Customer Ratings & Reviews


DS18 CANDY-X5B with Belva 4 Gauge Amp Kit thumbnail image

5 star
84%
4 star
12%
3 star
4%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.8
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Value/perfect Amp install kit for my 5 channel

The following review is for BAK46, which is a part of the bundle you are viewing.

This Amp install kit made it easy as I had 6 in to 1 rca cables on both ends and made it easier to fish in the wires Through the front to the back...

By Abner on January 25, 2018

57 found this helpful


Excellent

The following review is for BAK46, which is a part of the bundle you are viewing.

Everything fit my amp as if they spoke with the manufacturer beforehand. the lengths are correct the RCA's I love them. The quality and feel!! I saw FEDEX coming and I felt like a little kid. Sitting at my dining room table pre-wiring and letting the cables get used to being straight again after being coiled in the package. You WILL NOT BE DISAPPOINTED!!!

By Anonymous on November 18, 2018

55 found this helpful


quality

The following review is for BAK46, which is a part of the bundle you are viewing.

The RCA cable was really convenient. I was even able to cut it in the middle to fit it through a small hole and then solder it back together. (this did take a looong time but its possible)
Wire was quality too

By Sean on October 30, 2017

54 found this helpful


Helpful kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Great kit with everything you need to get your system going and can handle adequate power

By David on February 3, 2020 Checkmark Icon Verified purchase

50 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

The kit is complete with everything you need to install an amplifier and speakers.
Power and ground wire very flexible.

By casper on February 9, 2022 Checkmark Icon Verified purchase

47 found this helpful


Nice kit

The following review is for BAK46, which is a part of the bundle you are viewing.

I bought this kit and am quite happy with it, the 4 gauge cable and RCA's seem to be of high quality along with the rest of the parts. only problem I had was the length of the power cable, in an avalanche I came up about 2ft short mounting the amp in the back of the truck so I had to go to the local shop to get a 2ft cable to make it from the fuse to the battery. would I buy this kit again yes.....

By David on April 2, 2017 Checkmark Icon Verified purchase

50 found this helpful


Just do it ..

The following review is for BAK46, which is a part of the bundle you are viewing.

I questioned whether the installation kit would really be "all that."

It was .. almost everything you need is included ... I opted for getting the quick connect/disconnect adapters for the speakers. Had those been in the kit I would have lost it.

Great quality, great layout, totally worth it.

By MICHAEL on October 5, 2015

47 found this helpful


Great Kit

The following review is for BAK46, which is a part of the bundle you are viewing.

Bought this and am sooo happy I did. Price was great and the quality of all the components is too. Even the speaker was great quality. Highly recommend.

By Brian on October 20, 2016

47 found this helpful


Great price fast delivery

The following review is for BAK46, which is a part of the bundle you are viewing.

Great value for quality products and fast delivery will order again

By Anonymous on October 19, 2019

43 found this helpful


Great value

The following review is for BAK46, which is a part of the bundle you are viewing.

I got this kit free with an NVX amp I ordered and I have to say it's a great kit, the speaker wire worked great as well as the rca's as I had no road noise with them. Would recommend to anyone not looking to break the bank.

By Lucas on January 23, 2022 Checkmark Icon Verified purchase

41 found this helpful



PAIR-HDVD93BK small

Pair Package: 2 Power Acoustik HDVD-93BK (Black)

2 Universal Headrests w/ Built-in 9" TFT-LCD Monitors and DVD Players, USB, SD, and AUX Inputs and Remotes

(1)

$207.75

List price $599.98

CS-GD1210,CS-GD1210 small

(2) JVC CS-GD1210 12" 2800w Dual 4 Ohm Voice Coil Car Subwoofers Subs (800w RMS)

(2) JVC CS-GD1210 12" 2800w Dual 4 Ohm Voice Coil Car Subwoofers Subs (800w RMS)

$279.90

List price $319.90

No picture

JL Audio XD-AICDO-3 - New (Damaged Packaging, Product A+)

3-Foot Digital Optical Audio Cable with Toslink Connectors

(2)

$29.74

List price $34.99

VEGD12 small

Absolute VEGD12

Dual 12" Slot Ported Subwoofer Enclosure, 3/4" MDF

(10)

$49.99

List price $129.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2009 Audi A6

2025 Cadillac XT5

2009 Dodge Charger

2011 Chrysler 300

2007 Subaru Legacy

1995 Pontiac Sunfire

2024 Honda Prologue

2003 Lexus SC430

2000 Mazda MPV

2005 Subaru Forester

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
