Description


Memphis brand icon

Authorized dealer

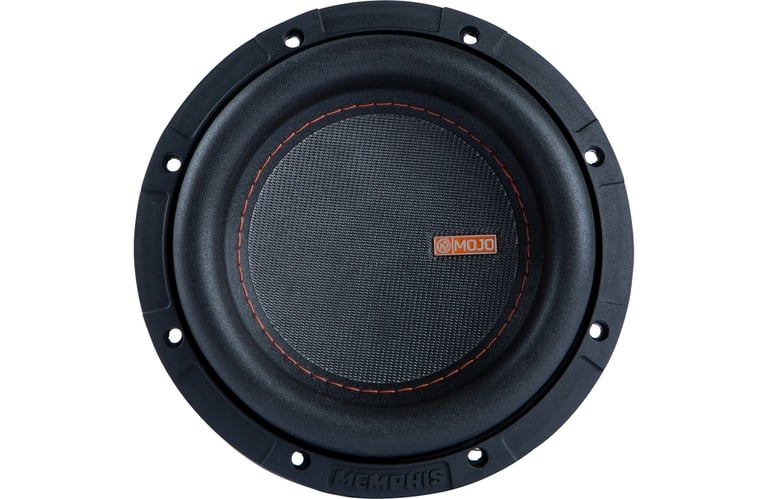

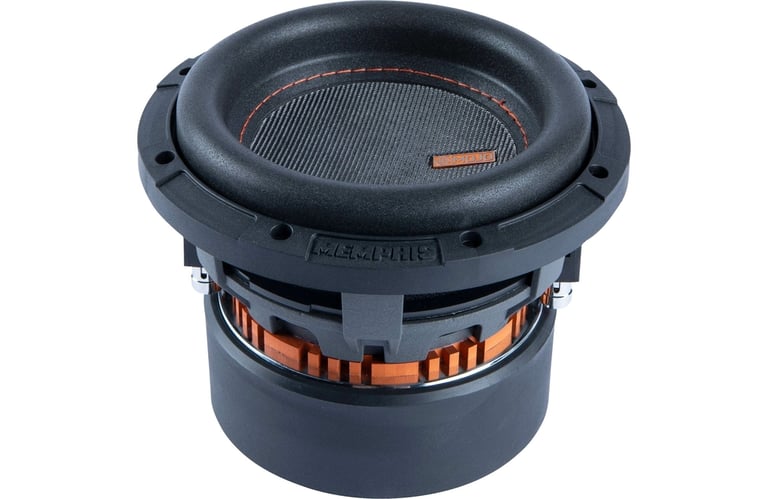

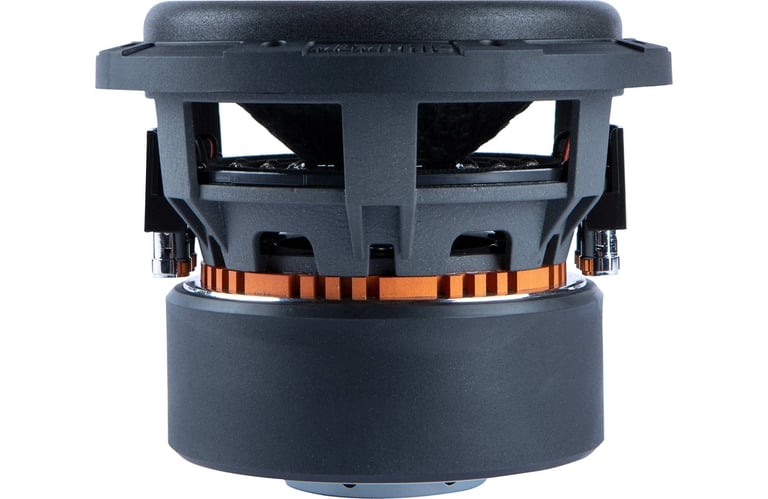

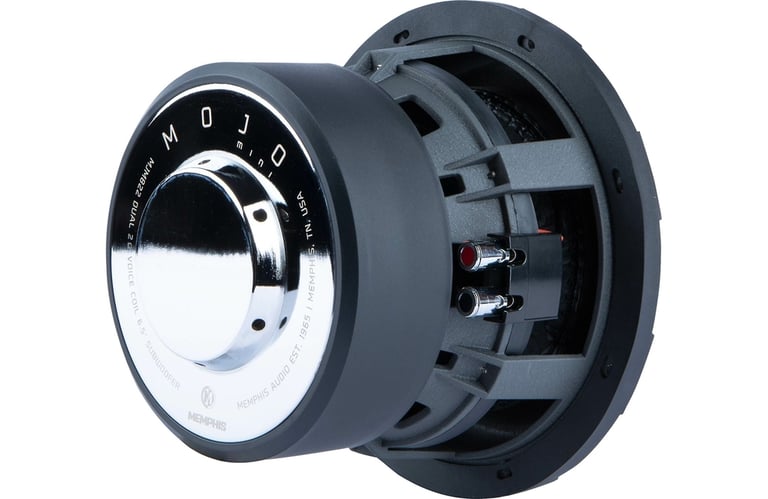

Memphis MJM622

MOJO Mini subwoofers took the mobile audio industry by storm with their unrelenting output. Now MOJO Mini subwoofers are better than ever with the addition of Memphis FLEX technology allowing them to switch between 1 ohm and 2 ohm. MOJO Mini subwoofers also received and major upgrade with the addition of a V-Groove surround which maximizes the surface area of the cone increases the excursion of the woofer for an even more output in a compact package. These small but powerful subwoofers feature DVVC (Direct Vent Voice Coil) cooling technology rapidly dissipating heat allowing MOJO Mini subwoofers to play louder and longer.


Product Details:

  • 6.5" Dual 2 ohm MOJO Mini Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 700 watts
  • Fiberglass reinforced subwoofer cone
  • Foam subwoofer surround
  • DVVC Direct Vent voice coil cooling
  • Heat dissipating aluminum heat sink
  • Vented cast aluminum basket
  • 1.5" High temperature 4-layer aluminum voice coil
  • 7.87 mm Xmax
  • 80 oz. Single Stacked magnet motor structure
  • Frequency Response: 48 - 150 Hz
  • Resonance Frequency (Fs): 48.7 Hz
  • Sensitivity: 80.63 dB
  • Sealed box volume: 0.5 cubic feet
  • Ported box volume: 0.85 cubic feet
  • Top-mount depth: 5"
  • Cutout diameter: 5.95"
  • Subwoofer mesh grille: Memphis MJMG6 (sold separately)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Memphis MJM622 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Memphis MJM622 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Memphis MJM622 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Memphis MJM622 Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
MOJO Mini Series
Subwoofer Size
6.5"
Peak Power Handling
1400 watts
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
1.5"
Frequency Response
48 - 150 Hz
Sensitivity
80.63 dB
Xmax (millimeters)
7.87 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Fiberglass
Woofer Surround
Foam
Magnet Structure
Single Stacked
Magnet weight
80 oz.
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
1 cubic feet
Minimum Ported Box Volume
0.85 cubic feet
Maximum Ported Box Volume
1.6 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
5.95"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
48.7 Hz
Equivalent Compliance (Vas)
0.13 liters
Total Speaker Q Value (Qts)
0.534
Electrical Q Value (Qes)
0.585
Mechanical Q Value (Qms)
6.06
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MJM622

Weight:

11.28lbs

Internal SKU:

mjm622

Internal Product ID:

196395
