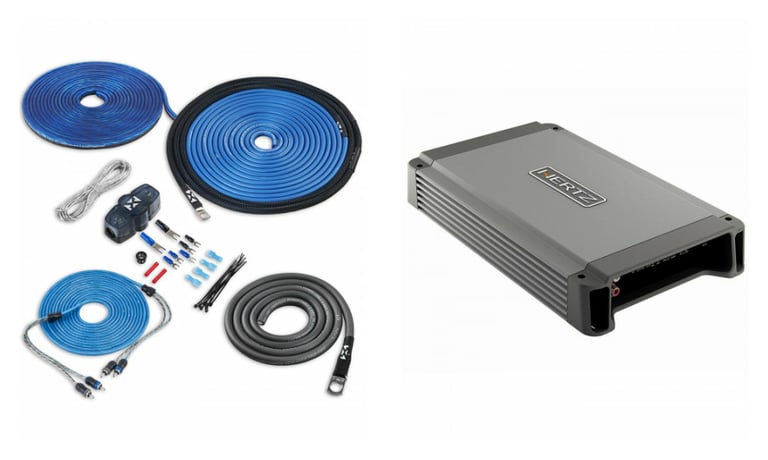

Hertz HCP 2MX + NVX XKIT82 Premium 8 Gauge Amp Wiring Kit

Class AB 2 Ohms 2 Channel Marine Stereo Amplifier

Hertz
Shop all Hertz
highlight-star-icon

• 120 Watts RMS x 2 @ 4 ohm
• 200 Watts RMS x 2 @ 2 ohm
• 400 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant/Preamp Outputs/LPF
• Corrosion Protection
• Water jet tested
• Dimensions: 12.40" x 7.48" x 1.97"

Learn more about the hcp2mx_xkit82

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

Description


Hertz brand icon

Authorized dealer

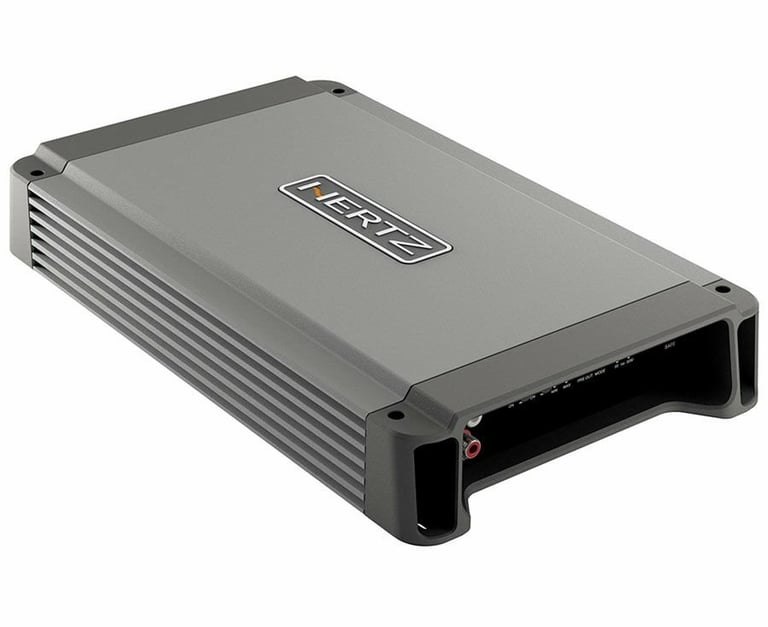

Hertz HCP 2MX

800W Peak (400W RMS) Class D HCP Series 2-Channel Marine Amplifier
Quantity: 1

Product Details:

  • HCP Series Class A/B 2 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 120 watts x 2 channel
    • 2 ohm: 200 watts x 2 channel
    • Bridged: 400 watts x 1 channel @ 4 ohm
  • Total peak power output: 800 watts
  • Total RMS power output: 400 watts
  • LED power and protect light
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • Compact design built from extruded aluminum heatsink with topside for heat transfer
  • Power supply featuring multiple winding transformers
  • Low-ESR 105°C / 221°F capacitors
  • Special balanced input circuitry to reject electro-magnetic disturbances
  • Thermal and short-circuit protection with auto-resetting
  • Engineered and tested for UV, salt-fog, temperature, thermal shock and dust
  • IPX2 marine-grade rating

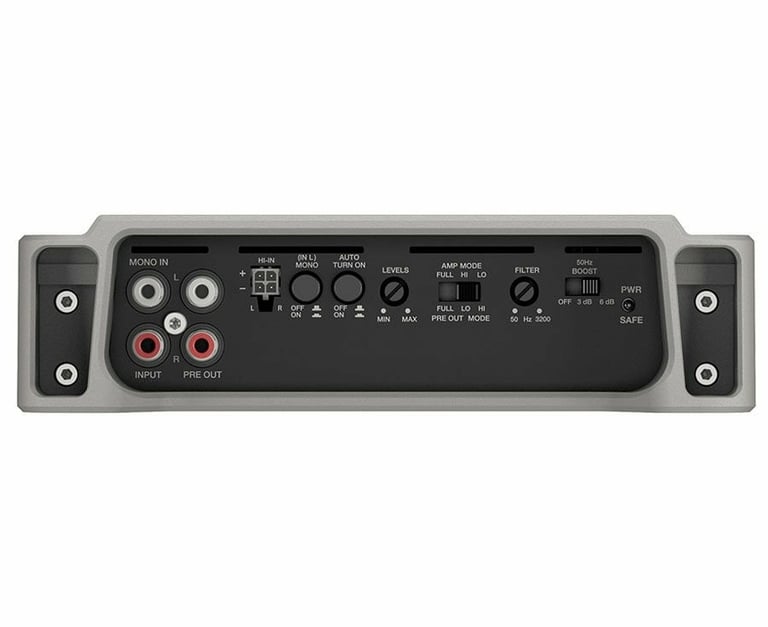

  • Input sensitivity:
    • Low level: 0.2 - 5 volts
    • High level: 0.8 - 20 volts
  • Frequency Response: 10 - 65000 Hz
  • Total Harmonic Distortion (THD): 0.03%
  • Signal to Noise Ratio: 105 dB
  • Variable high-pass filter: 50 - 3200 Hz
  • Variable low-pass filter: 50 - 3200 Hz
  • Variable Bass Boost: 0 - 6 dB

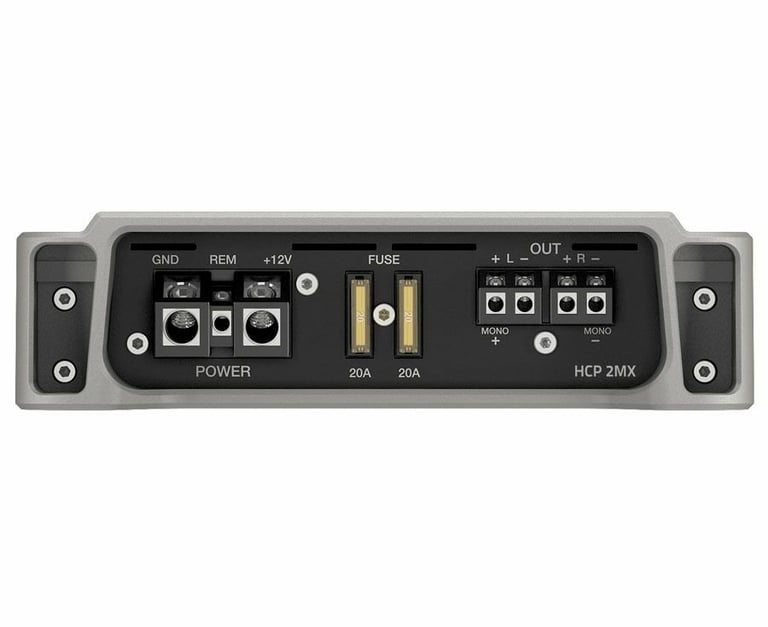

  • Fuse Rating: 40A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 12.4" L x 7.48" W x 1.97" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: HCP 2MX

NVX XKIT82

Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 800 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
120 watts x 2 channel
RMS Power @ 2 ohms
200 watts x 2 channel
RMS Power @ 1 ohm
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
400 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
0.03%
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 3200 Hz
Low-Pass Crossover Frequency
50 - 3200 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
Yes
Fuse Rating
20A x 2
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HCP 2MX, XKIT82

Weight:

10.48lbs

Internal SKU:

hcp2mx_xkit82

Internal Product ID:

196701

Customer Ratings & Reviews


Hertz HCP 2MX + NVX XKIT82 Premium 8 Gauge Amp Wiring Kit thumbnail image

5 star
92%
4 star
8%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Best bang for the buck

The following review is for XKIT82, which is a part of the bundle you are viewing.

DO NOT buy Non-Name brand kits that are under 50$, Get this one, NVX is a brand name and they don't cut corners on their products. This kit is everything I needed to install my 12" Rockford Fosgate sub, The gauge is true to spec, everything is fine, the RCA cables are top notch, highly recommend

By anton on March 9, 2014

154 found this helpful


Great Deal!!

The following review is for XKIT82, which is a part of the bundle you are viewing.

I dont think I can find another kit that is as good as this one. Sure is very high quality as well as the materials of the sure insulator. It just feels right. Realy heavybduty too. Just buy it. Good stuff.

By Bugatti on January 30, 2014

144 found this helpful


The Real Deal

The following review is for XKIT82, which is a part of the bundle you are viewing.

I originally purchased this kit because it was a good price and I liked the idea of having true-gauge wire. I was leery of the stuff at my local store as it looked a little cheap. Lots of plastic and not much wire. Not the case here. This is a high-quality wiring kit that gets you everything you need for a basic amp install. Convenient markings on the wire to help you lace the fuse holder and measure your speaker wire. High quality covering and wire, very flexible and plenty of length to help you do a quality job. The connectors supplied could be a little better, but they did do the job. It is nice they are stiff metal, but hand-crimping effectively was a little rough. That is a minor complaint.

I have since purchased a second kit for another amp and from now on NVX is a go-to brand for me.

By Mark on January 17, 2015

141 found this helpful


amp kit

The following review is for XKIT82, which is a part of the bundle you are viewing.

This is the first time going with NVX. Now..... NVX will be what I always go with.

By Shannon on October 1, 2014

139 found this helpful


Great ofc kit

The following review is for XKIT82, which is a part of the bundle you are viewing.

This is a great kit all of the wires including the RCA is super flexible, I would buy it again in a heartbeat

By Corey on April 26, 2014

137 found this helpful


NVX XKIT82

The following review is for XKIT82, which is a part of the bundle you are viewing.

I purchased this sub woofer set kit and it had everything needed to install the sub and all for a great price.I would recommend this kit for anyone needing the complete wire kit.

By Galen on March 3, 2014

136 found this helpful


Just what I needed, again!

The following review is for XKIT82, which is a part of the bundle you are viewing.

This amp kit is perfect for installing the 3channel JBL amp I purchased. Amazing quality for the best price out there. Do yourself a favor and look at everything NVX.

I had an extra RCA laying around so I only needed one.

By Ryan on January 19, 2014

135 found this helpful


quick turnaround

The following review is for XKIT82, which is a part of the bundle you are viewing.

When I ordered the product it was out of stock. Estimated delivery was weeks away, but it arrived just a few days later. True 8AWG OFC power and ground cable, high quality remote lead and high quality rca's and speaker leads. 10/10 would purchase again

By AK on May 17, 2015

105 found this helpful


I love it

The following review is for XKIT82, which is a part of the bundle you are viewing.

I'm glad I bought this kit it has everything I needed and the quality is excellent.

By Peter on April 26, 2015 Checkmark Icon Verified purchase

104 found this helpful


professional look

The following review is for XKIT82, which is a part of the bundle you are viewing.

I got this for free when i purchased my amp that it was recommended for. I was a little skeptical at first. But after a quick reference to my apm's manual and a little reassurance from the knowledgeable techs at sonic, i was ready. The whole kit come with everything you need and more. The quality is great and looks awesome. I also got a nvx bass knob as well. Thanks sonic.

By Keon on August 10, 2015

91 found this helpful




MagNeatO,DMX9706S small

Kenwood DMX9706S Car Stereo + Free NVX Wireless Charger

6.95" Kenwood Media Receiver, Wireless Car Play Ready, Wireless Android Auto Ready, Dash-Cam

(7)

$599.95

List price $859.99

10-15-CHEVYCAMARO-DDJBL-00 small

2010-2015 Chevrolet Camaro JBL Double DIN Wireless Car Stereo Upgrade

Includes In-Dash Car Stereo, Dash Kit; with Standard Audio System

(19)

$713.94

List price $1018.94

RS-EE-BLUE small

Race Sport Accessories RS-EE-BLUE

LED Motorcycle Eagle Eye Daytime Running Light - Blue

$14.99

List price $24.99

B3.69.3 small

Lightning Audio Bolt B3.69.3

225W Max, 3-way 6" x 9" Speakers

(1)

$29.99

List price $89.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 BMW 760Li

2012 BMW 535i

1997 Saturn SC2

2005 Honda Odyssey

1996 Toyota Previa

2024 Tesla Model X

2022 Audi A6

1995 Subaru Impreza

2012 BMW 550i

2009 BMW M5

Vehicle
Store
Delete

2021 Can-Am Defender PRO HD10

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
