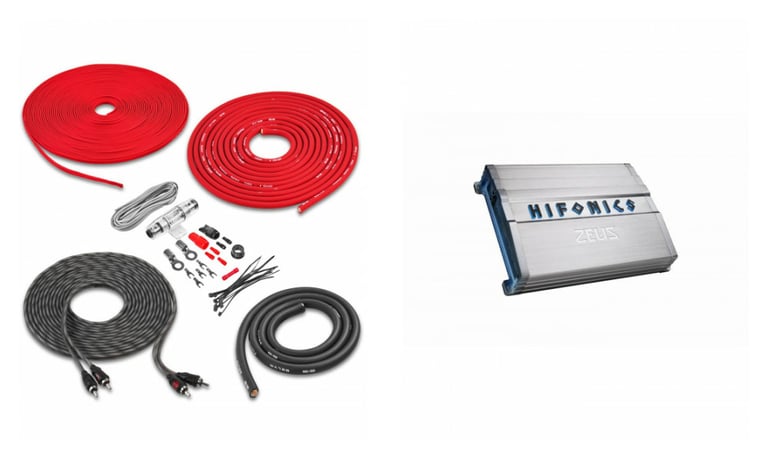

Hifonics ZG-1200.1D + Belva BAK42

1200 Watts ZEUS Gamma Mono Subwoofer Car Audio Amplifier + Belva BAK42 4 Gauge Amp Wiring Kit

Hifonics
Shop all Hifonics
highlight-star-icon

• 1200 Watt Class D Amplifier
• Bass Remote Included
• Angled Terminals for Easy Installation
•RCA and Speaker Level Inputs

Learn more about the zg12001d_bak42

We apologize

This item has been discontinued

Description


Hifonics brand icon

Authorized dealer

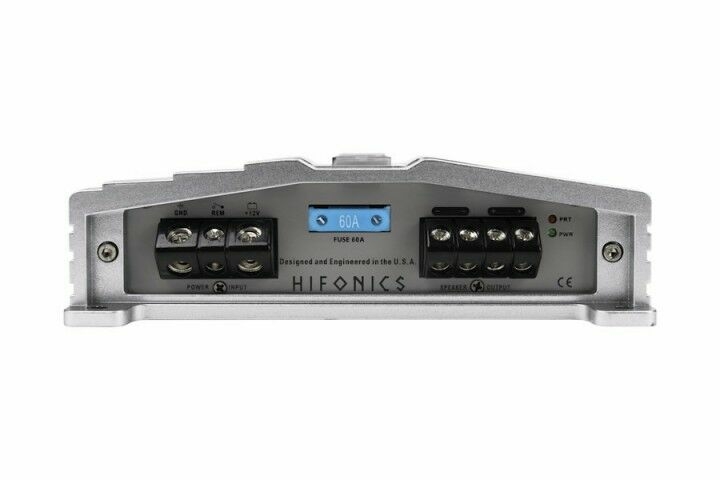

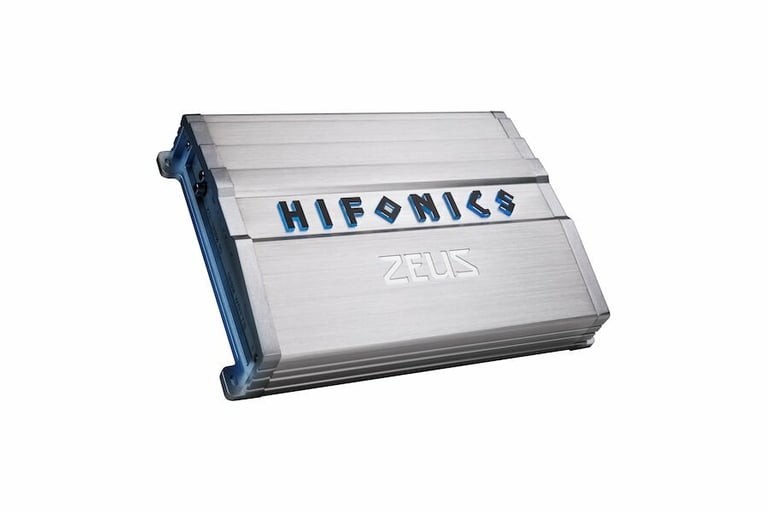

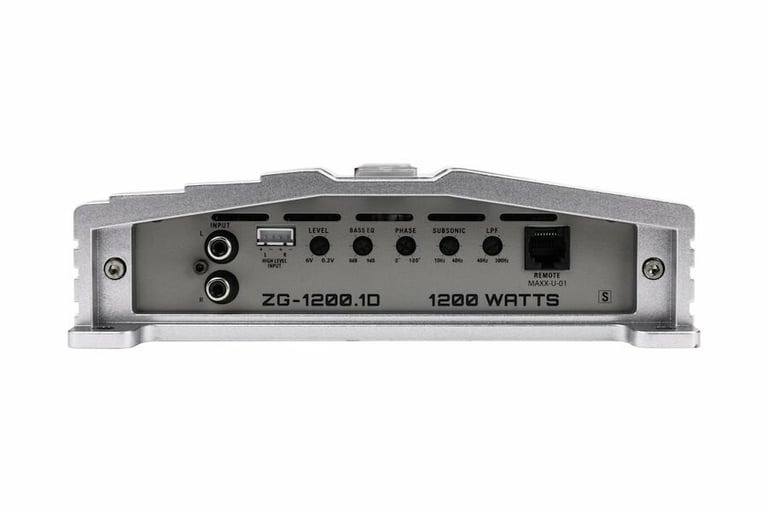

Hifonics ZG-1200.1D

1200 Watts ZEUS Gamma Mono Subwoofer Car Audio Amplifier
Quantity: 1

General Features:

  • Hifonics ZG-1200.1D Class D Amplifier
  • Power Rating:
    • 4 Ohm: 300 Watts x 1
    • 2 Ohm: 600 Watts x 1
    • 1 Ohm: 1200 Watts x 1
  • Variable Electronic 12dB Per Octave
  • Variable Low Pass Crossover 12dB per Octave: 40 - 300Hz
  • Tone Control/Parametric EQ: Built-in bass control
  • Bass Bosst: 0 - 9dB
  • Subsonic Filter: 10 - 40Hz
  • Phase Shift: 0-180 Degrees
  • Variable Voltage: .2 to 6V
  • Frequency Response: 10Hz-500Hz
  • Total Harmonic Distortion: <0.10%
  • Speaker Level Audio Inputs
  • Bass Remote Included
  • Angled Terminals for Ease of Access
  • Aluminum Heat Sink
  • PWM MOSFET Power Supply
  • Electronic Equalizer
  • Onboard Electronic Crossover
  • High Level Input
  • Nickel Plated RCA Inputs
  • Dimensions: 10.125"L x 8.25"W x 2.375"H
  • 4 AWG Power Terminals
  • 12 AWG Speaker Terminals
  • Fuse Rating: 60A
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

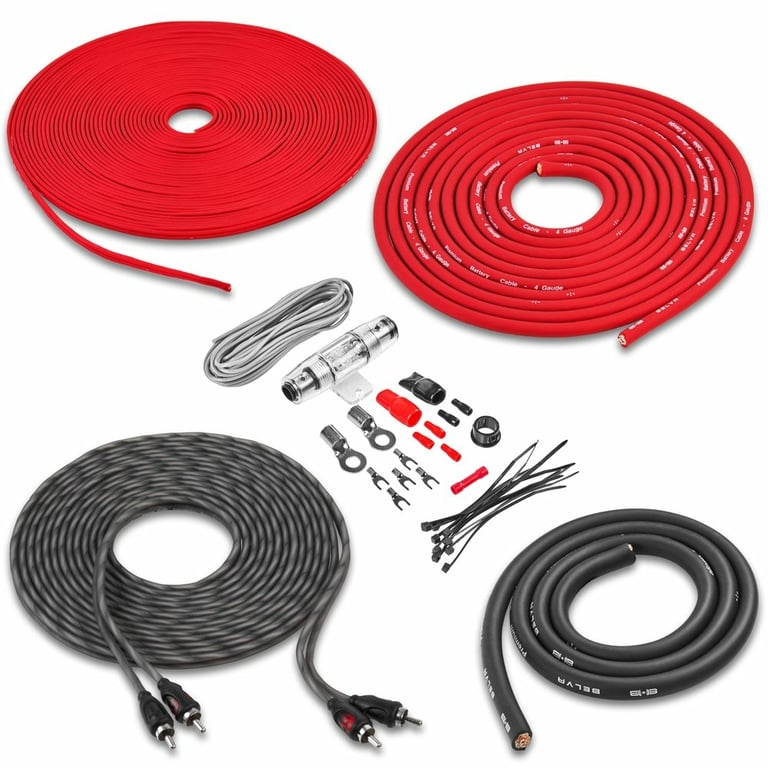

Belva BAK42

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Red 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
>.1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 500 Hz
Low-Pass Crossover Frequency
10 - 500 Hz
Subsonic Filter
10 - 40 Hz
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
60A x 1
Total Fuse Rating
60
CEA-2031 Compliant
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZG-1200.1D, BAK42
