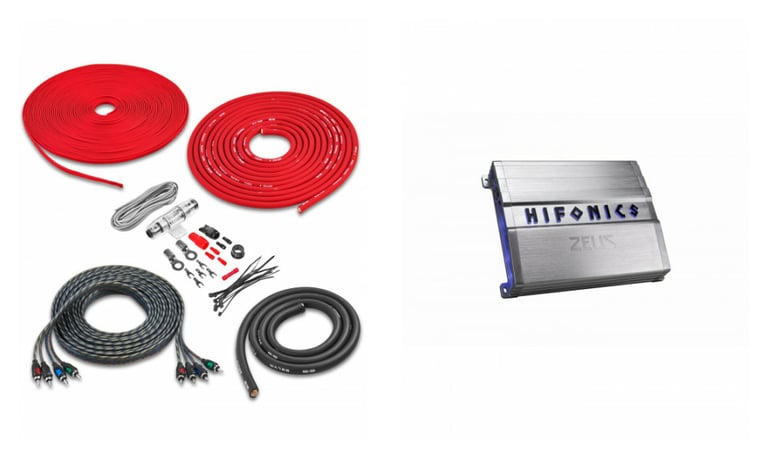

Hifonics ZG-600.4 + Belva BAK44

600W Zeus Gamma Series 4-Channel Car Audio Subwoofer Amplifier + Belva BAK44 4 Gauge Amp Wiring Kit

Hifonics
Shop all Hifonics
highlight-star-icon

• 600 Watt Class A/B Amplifier
• Bass Remote Included
• Angled Terminals for Easy Installation
• Speaker and RCA Level Inputs

Learn more about the zg6004_bak44

We apologize

This item has been discontinued

Description


Hifonics

Authorized dealer

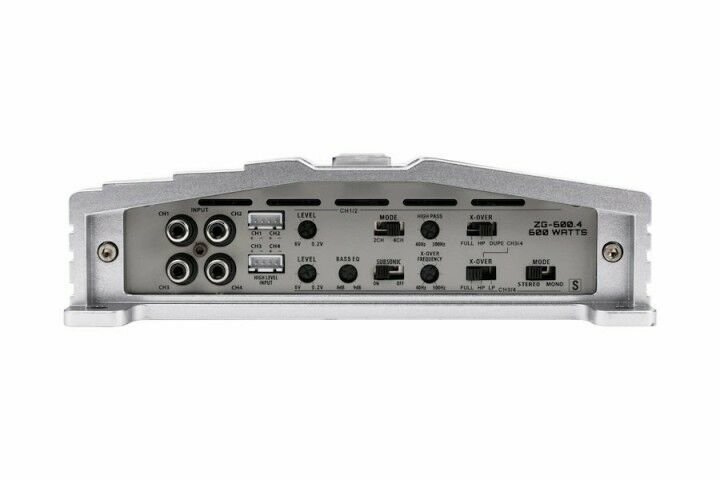

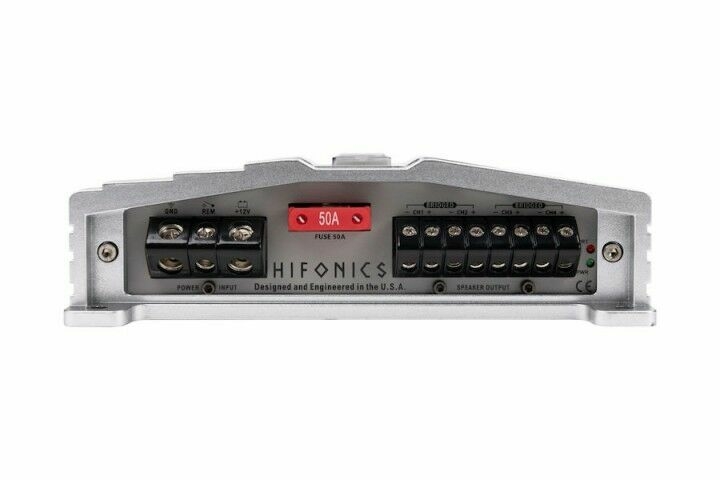

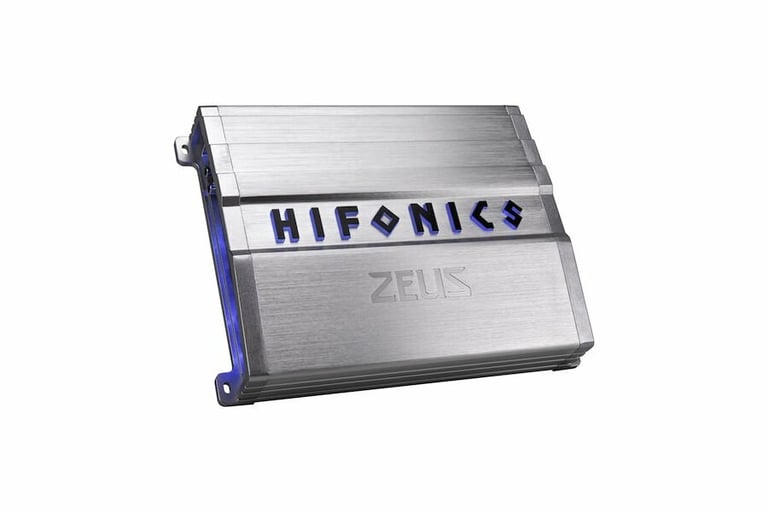

Hifonics ZG-600.4

600W 4-Channel Zeus Gamma Series Subwoofer Amplifier
Quantity: 1

General Features:

  • Hifonics ZG-600.4 Class A/B Amplifier
  • 4-Channel, Full Range, and Bridgeable
  • Power Rating:
    • 4 Ohms: 75 Watts x 4
    • 2 Ohms: 150 Watts x 4
    • Bridged @ 4 Ohms: 300 x 2
  • Variable Electronic 12dB Per Octave
  • Variable Low Pass Crossover 12dB per Octave: 40 - 300Hz
  • Tone Control/Parametric EQ: Built-in bass control
  • Bass Bosst: 0 - 9dB
  • Variable Voltage: .2 to 6V
  • Frequency Response: 10Hz-22,000Hz
  • Total Harmonic Distortion: <0.50%
  • Speaker Level Audio Inputs
  • Angled Terminals for Ease of Access
  • Aluminum Heat Sink
  • PWM MOSFET Power Supply
  • Electronic Equalizer
  • Onboard Electronic Crossover
  • High Level Input
  • Nickel Plated RCA Inputs
  • Dimensions: 10.25"L x 8.25"W x 2.375"H
  • 4 AWG Power Terminals
  • 12 AWG Speaker Terminals
  • Fuse Rating: 40A
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK44

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 4-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer

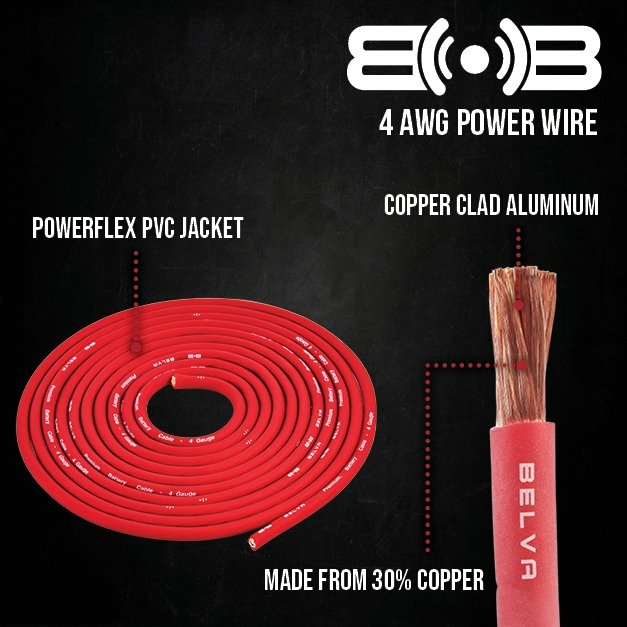

  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

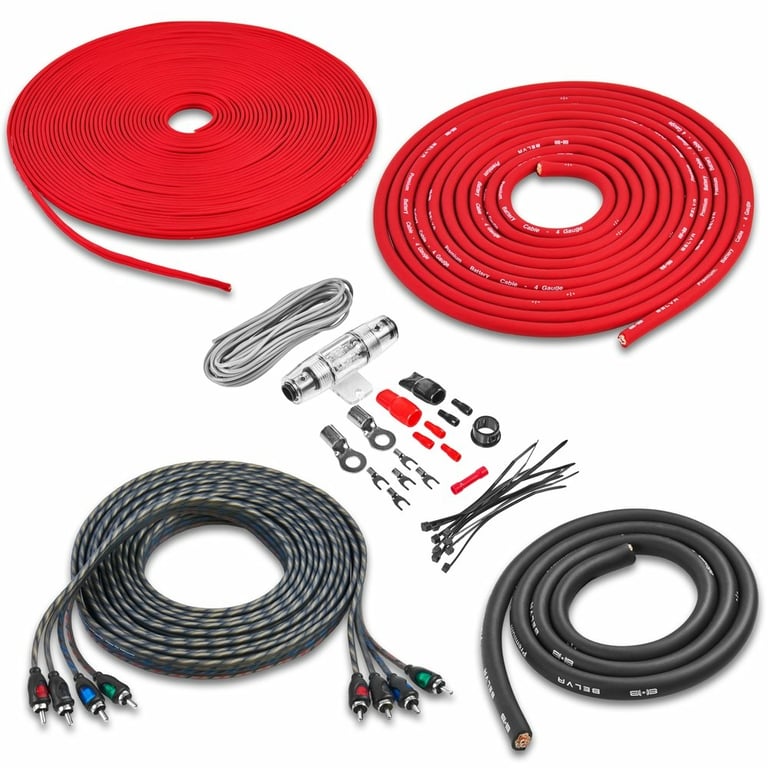

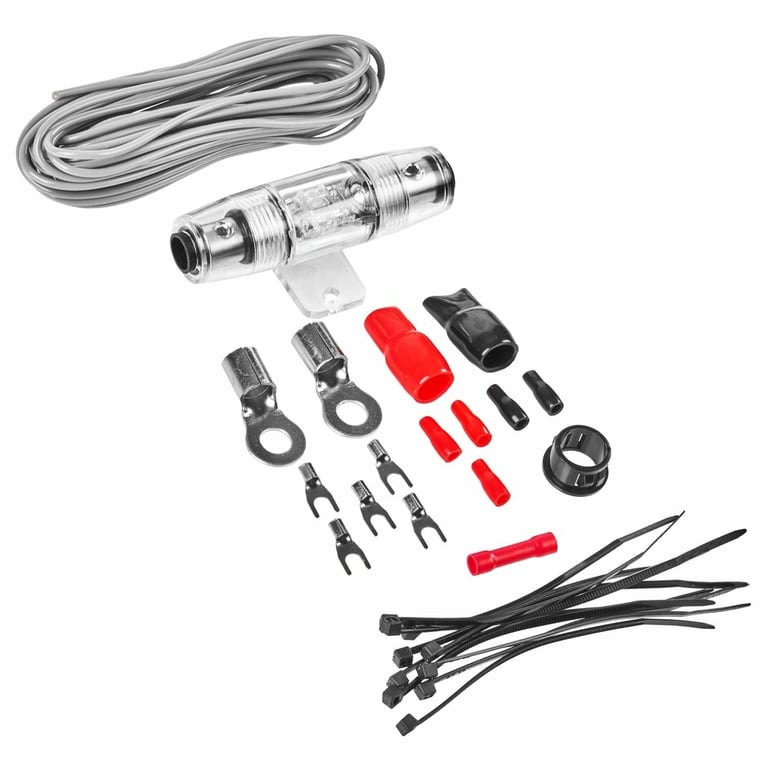

Kit includes:

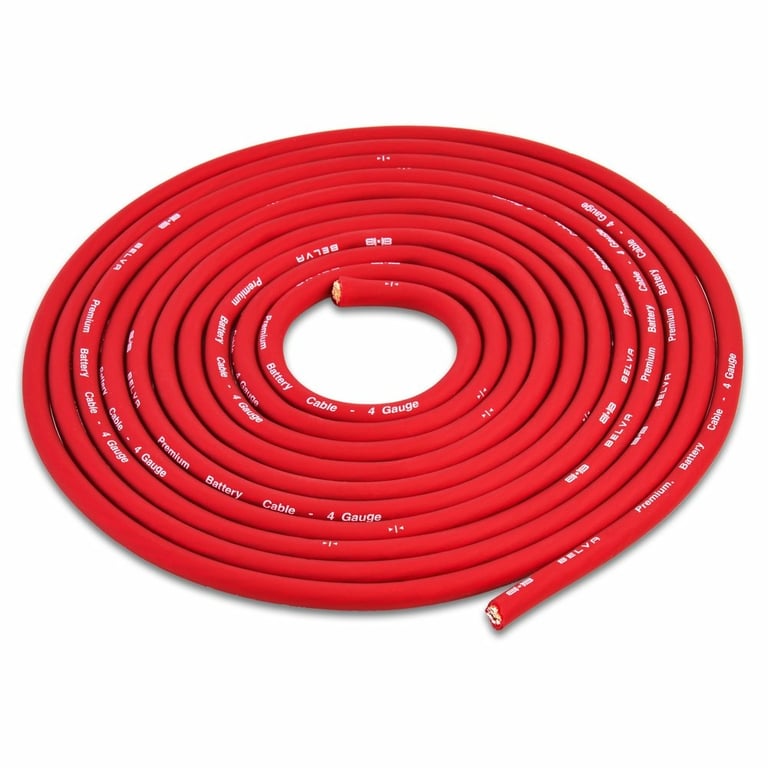

  1. 17 ft. (5.2 meters) Red 4 gauge power wire

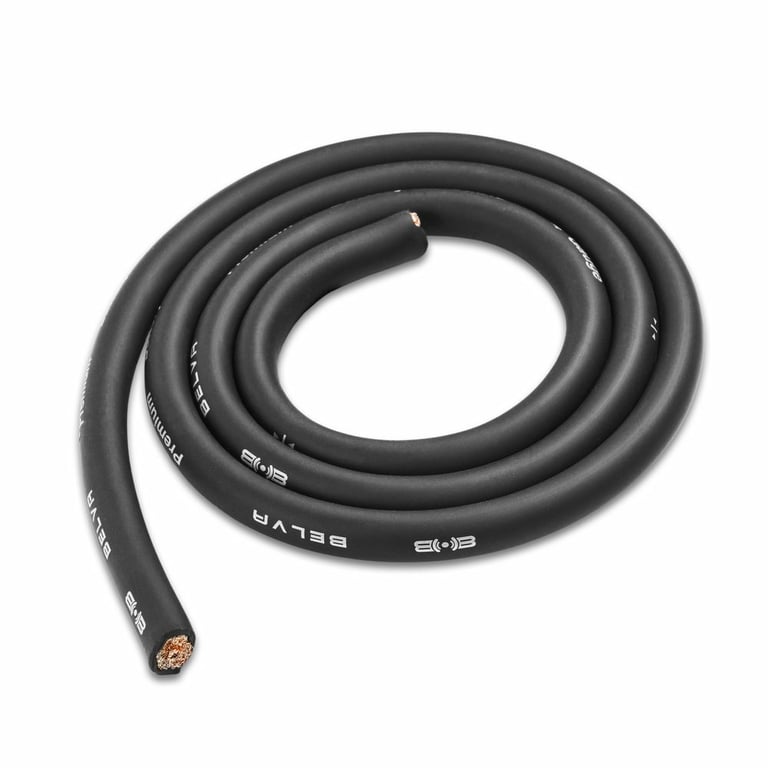

  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

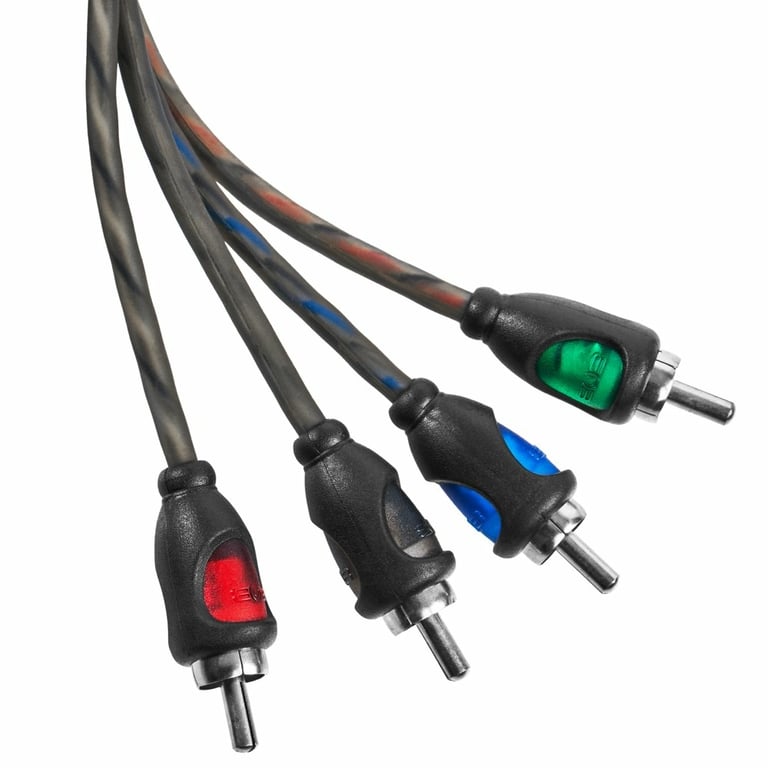

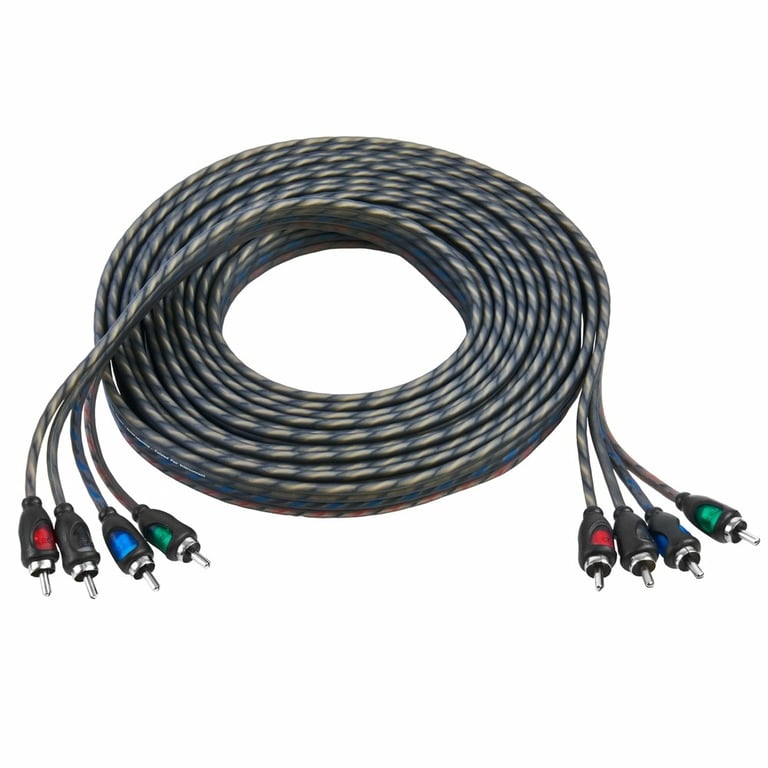

  4. 17 ft. (5.2 meters) Helical Twist 4-channel RCA interconnect cable
  5. 65 ft. (12.2 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Specifications & Details


Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
>0.5%
Speaker Level Inputs
Yes
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Low-Pass Crossover Frequency
40 - 300 Hz
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
40A x 1
Total Fuse Rating
40
CEA-2031 Compliant
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZG-600.4, BAK44

Weight:

12.03lbs

Internal SKU:

zg6004_bak44

Internal Product ID:

196708

Customer Ratings & Reviews



5 star
79%
4 star
13%
3 star
4%
2 star
2%
1 star
2%



Durability
4.7
Value
4.8
Features
4.7
Design
4.9
Usability
4.8

Customer Reviews

Sort by:

Loading...

Awesome product for the price

The following review is for BAK44, which is a part of the bundle you are viewing.

I was overall satisfied with everything in the kit. The wire was great quality and easy to run. I liked that it came with a plastic grommet for my firewall. I think the fuse was really nice and looks great under the hood. Just make sure you have a 4 gauge crimping tool which I did not have. I ended up crimping with some pliers and a hammer to tighten up the terminals.

By JT on January 17, 2014

97

found this helpful.

Good kit for the $

The following review is for BAK44, which is a part of the bundle you are viewing.

Used this kit to install a 4 channel amp and had plenty of wire to do the job.

By Tomas on January 13, 2015

88

found this helpful.

excellent value

The following review is for BAK44, which is a part of the bundle you are viewing.

this had everything you need in it to do an amp install. I was impressed with the speaker wire as it was a heavy gauge wire. 14awg I think. it was listed to have 20ft of speaker wire in product description but had 65ft in package, (nice). all the wire was nice and flexible (easy to work with) unlike some cheaper wire I've seen or used that's real stiff. couldn't ask for anything more.....

By werthy1 on November 27, 2013

90

found this helpful.

Everything I needed

The following review is for BAK44, which is a part of the bundle you are viewing.

Great value, great quality, everything that was necessary to install the full system. Kudos.

By DEREK on January 29, 2015

85

found this helpful.

great amp kit

The following review is for BAK44, which is a part of the bundle you are viewing.

Made amp installation easy. Good quality gauge wire and inline fuse with this kit.

By Ozzie on January 6, 2015

85

found this helpful.

good amp kit

The following review is for BAK44, which is a part of the bundle you are viewing.

The amp kit works well. The installation was very easy. I had plenty of wire. For the power and ground wires I soldered on my own copper lugs. The only real drawback is that this kit is cca instead of ofc, but that is why it is so cheap.

By Philip on January 26, 2014

87

found this helpful.

Amp wiring kit

The following review is for BAK44, which is a part of the bundle you are viewing.

This is an above average installation kit with all the wiring you need except a RCA for 5th channel.

Half price with bundle with Amp

By Joel on December 30, 2014

81

found this helpful.

Worked Perfect

The following review is for BAK44, which is a part of the bundle you are viewing.

Great price and fast shipping. It was all I needed to hook up my amp and composite speakers. Plenty of length on all can cables.

By Shon on February 27, 2014

81

found this helpful.

Really Good Quality!!

The following review is for BAK44, which is a part of the bundle you are viewing.

Got this wiring kit at a discount after purchasing together with amp, so ended up at around $37. Ive bought 4 gauge wiring kits before at local radio shop for the same price, but not the same quality at all! The power and ground wire are super flexible, great for passing through firewall and bending around tight corners. Great quality anl fuse, and was surprised to find 20 ft of equally good, thick, speaker wire, just enough to rewire my whole car! And loved the 4 twisted rca cables that make install a breeze, and helps keep everything looking neat and clean. Perfect for a 4 channel Amp Install.

By Frank on January 1, 2014

81

found this helpful.

works great

The following review is for BAK44, which is a part of the bundle you are viewing.

everything I needed to install, good price and value. Will order another shortly.

By Donnie on September 2, 2014

77

found this helpful.
