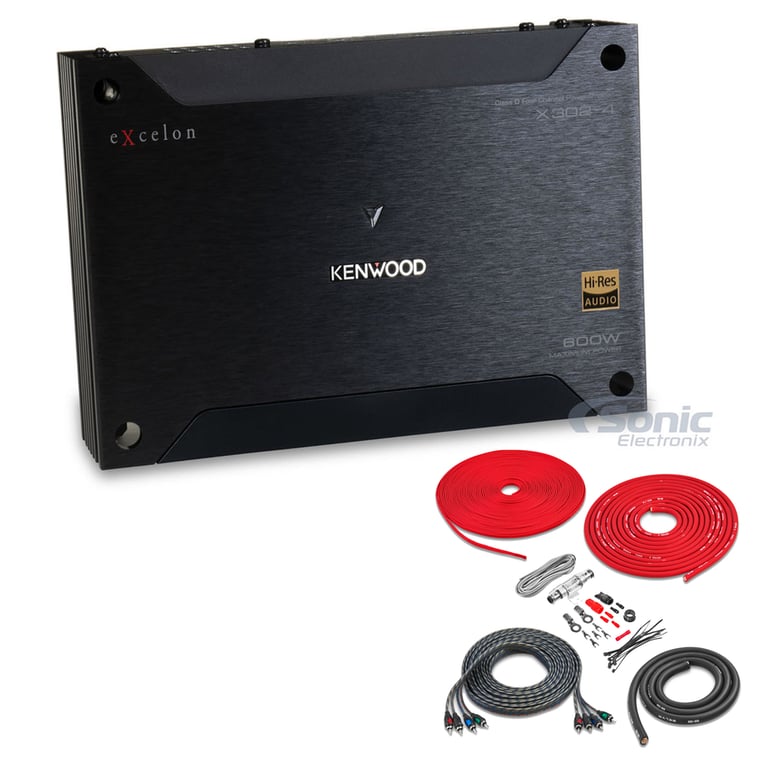

Kenwood eXcelon X302-4 + Belva BAK44

600W X Series Class D 4-Channel Car Audio Amplifier + Belva 4 Gauge Amp Wiring Kit

Kenwood
Shop all Kenwood
highlight-star-icon

• 50 Watts RMS x 4 @ 4 ohm
• 75 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 600 Watts
• CEA-2006 Compliant
• Variable low-pass and high-pass filter: 50 - 200Hz, 24 dB/octave
• Variable Bass Boost: 0 to +18 dB bass boost at 40Hz
• Speaker-level (high-level) inputs

Learn more about the x3024_bak44

We apologize

This item has been discontinued


Loading...
82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

AXDI-FD2 main

Axxess AXDI-FD2 Wiring Interface

Install a New Car Stereo and Retain Factory Features in select 2011-2023 vehicles from Ford

-10.00%

$116.99

List price $129.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

61
C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

31
XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Limited time!

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

7
-42.02%

$57.95

List price $99.95

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

Description


Kenwood brand icon

Authorized dealer

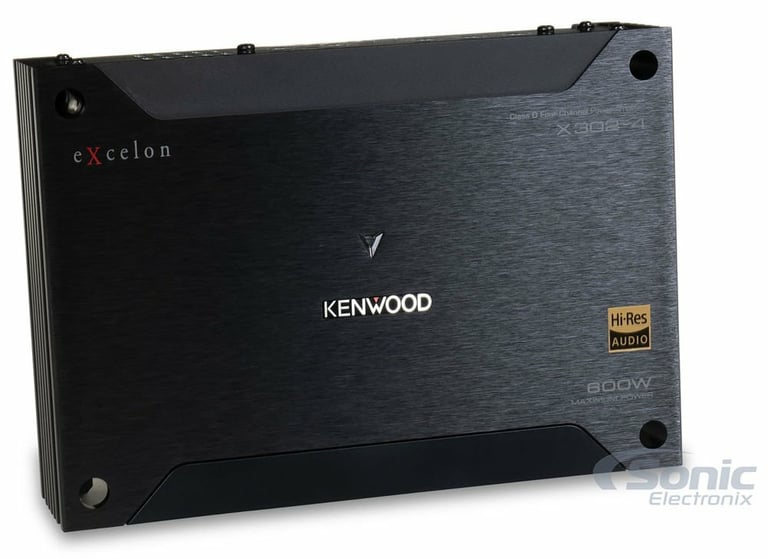

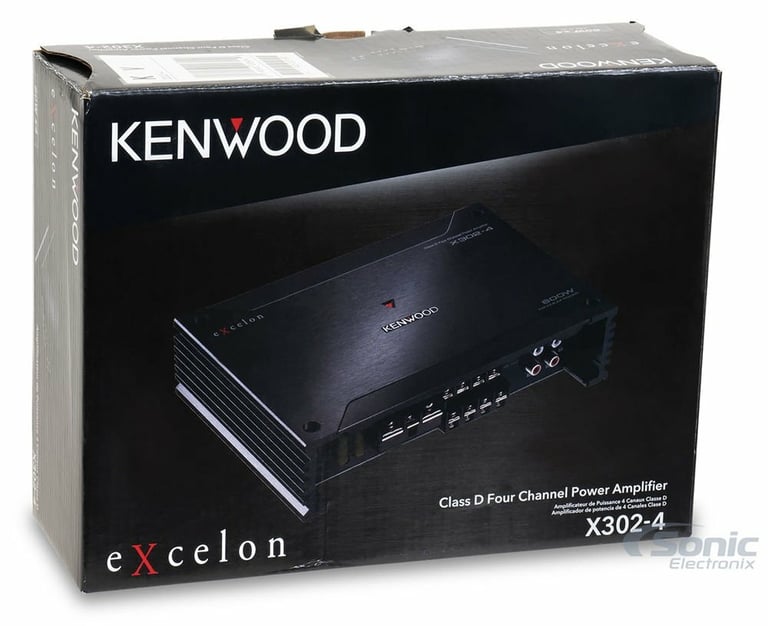

Kenwood eXcelon X302-4

600W Peak (300W RMS) Class D Excelon Series 4-Channel Full Range Car Amplifier (Hi-Res Audio Certified)
Quantity: 1

Product Details:

  • X Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 channel
    • 2 ohm: 75 watts x 4 channel
    • Bridged: 150 watts x 2 channel @ 4 ohm
  • Total RMS power output: 300 watts
  • Wired bass level remote control with optional Kenwood KCA-RC01A

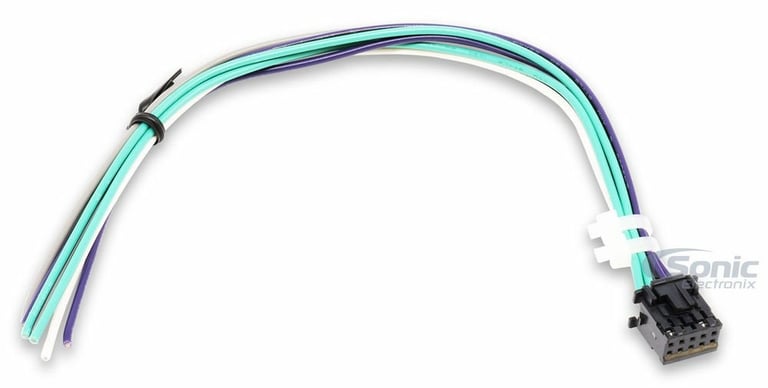

  • Speaker-level (high-level) inputs

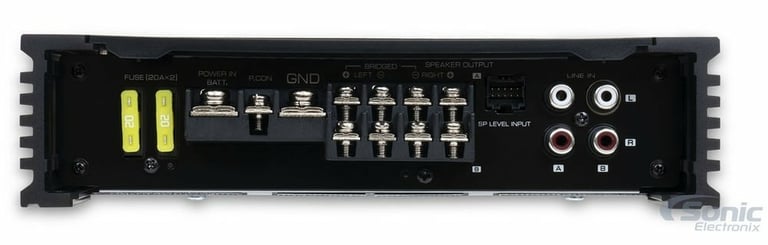

  • Sliding terminal
  • 2 pairs of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Output coil with magnetic shield
  • High quality Polymer multi-layer capacitors
  • Infrasonic Filter cuts off low frequencies below 25 Hz
  • CEA-2006 Compliant
  • Hi-Res Audio Certified

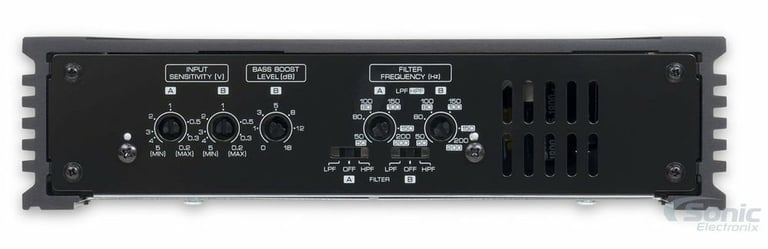

  • Input sensitivity:
    • Low level: 0.2 - 5 volts
    • High level: 0.2 - 5 volts
  • Frequency Response: 20 - 50000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 100 dB
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 40A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8-3/8" L x 5-7/8" W x 2-1/16" H
  • Authorized Internet Dealer
  • 2 Year Sonic Electronix Warranty
  • MFR #: X302-4

Belva BAK44

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

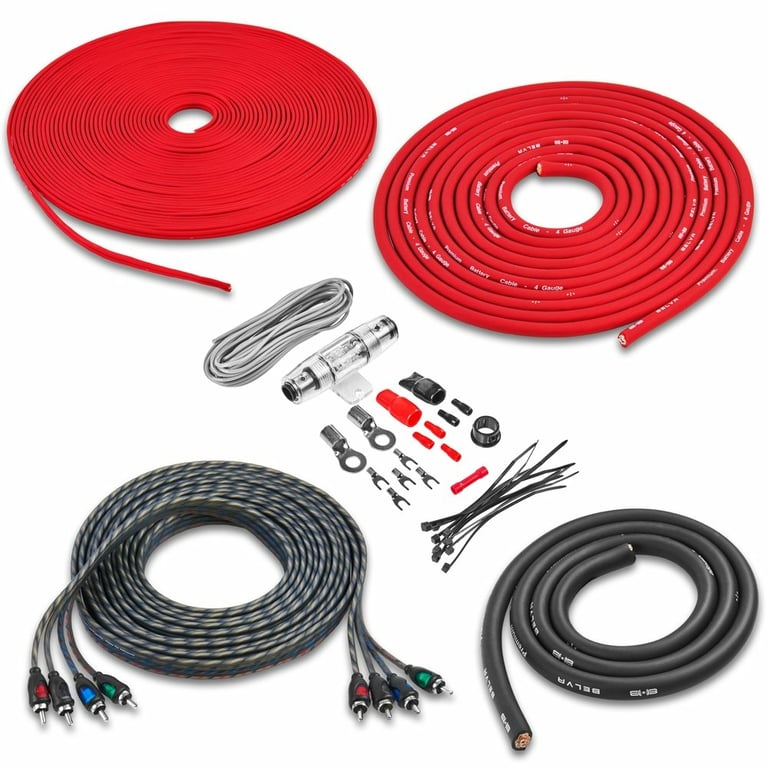

  • 4 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

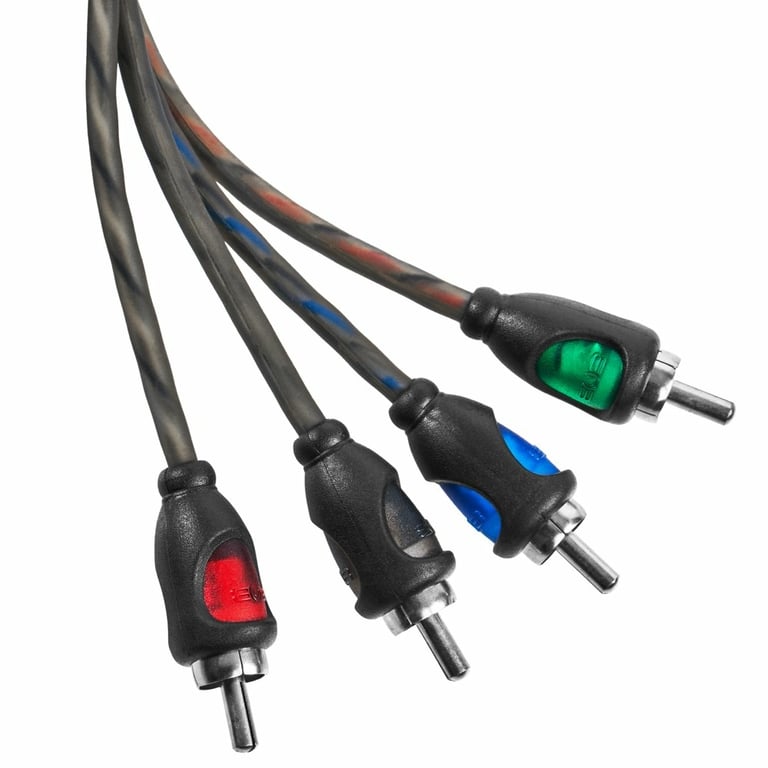

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

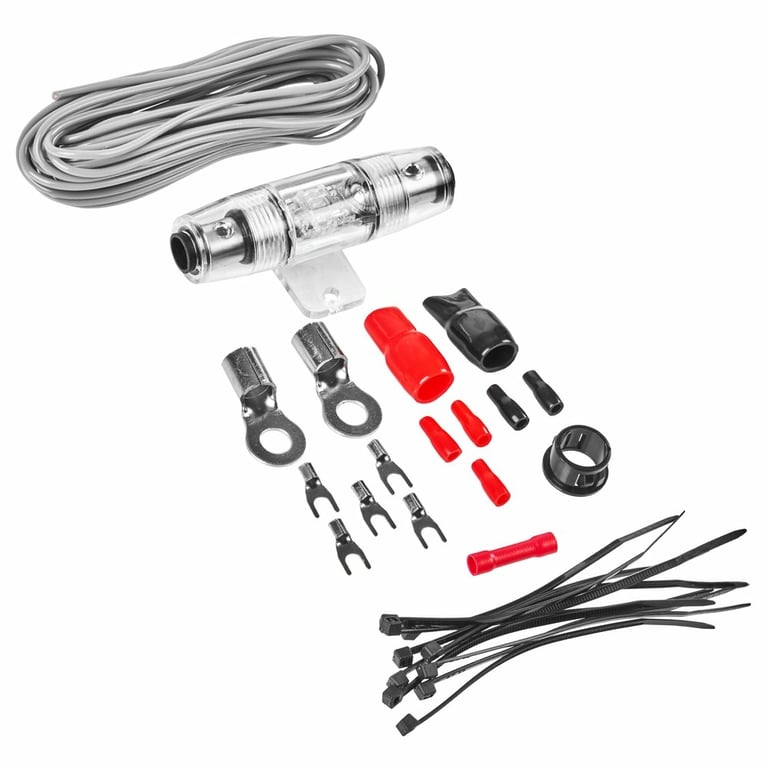

Kit includes:

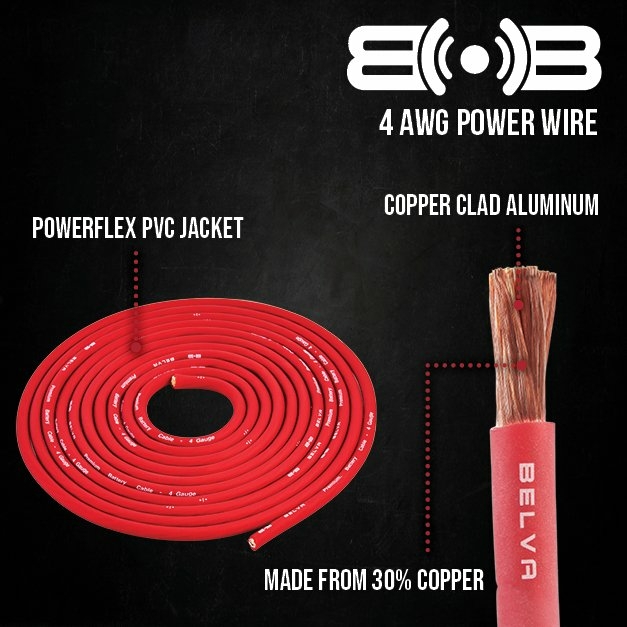

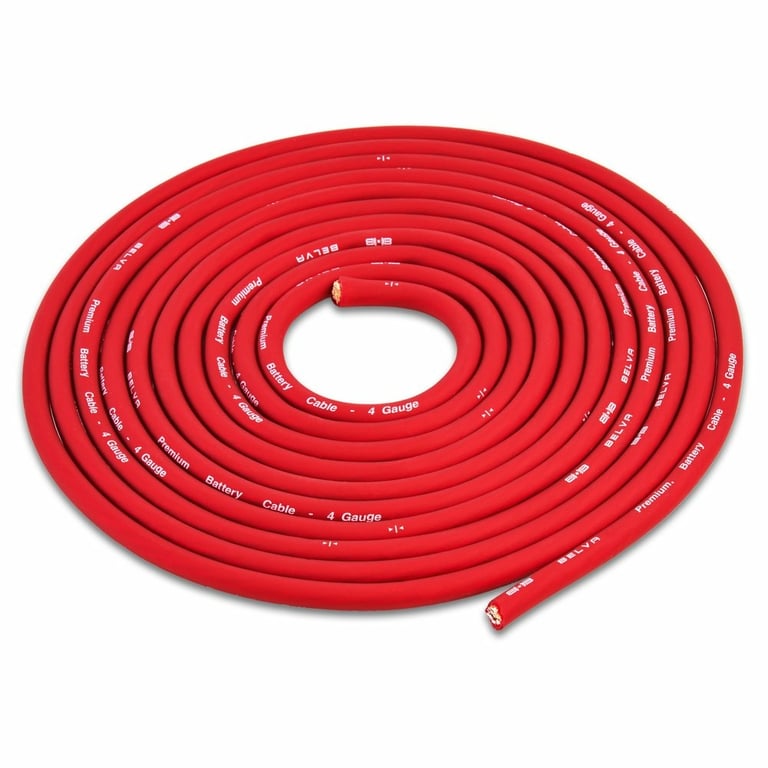

  1. 17 ft. Red 4 gauge power wire

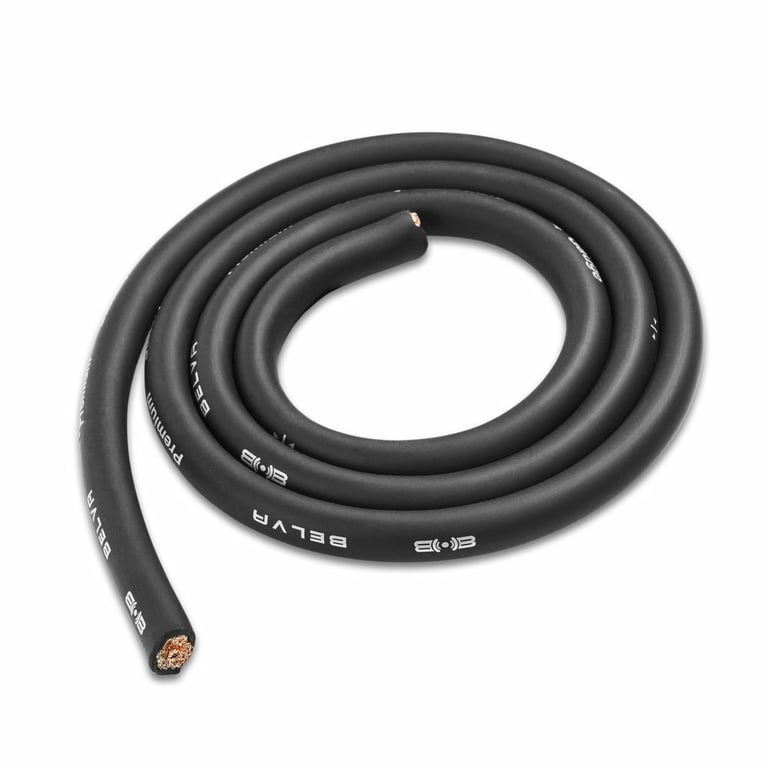

  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 40 ft. 16 gauge speaker wire

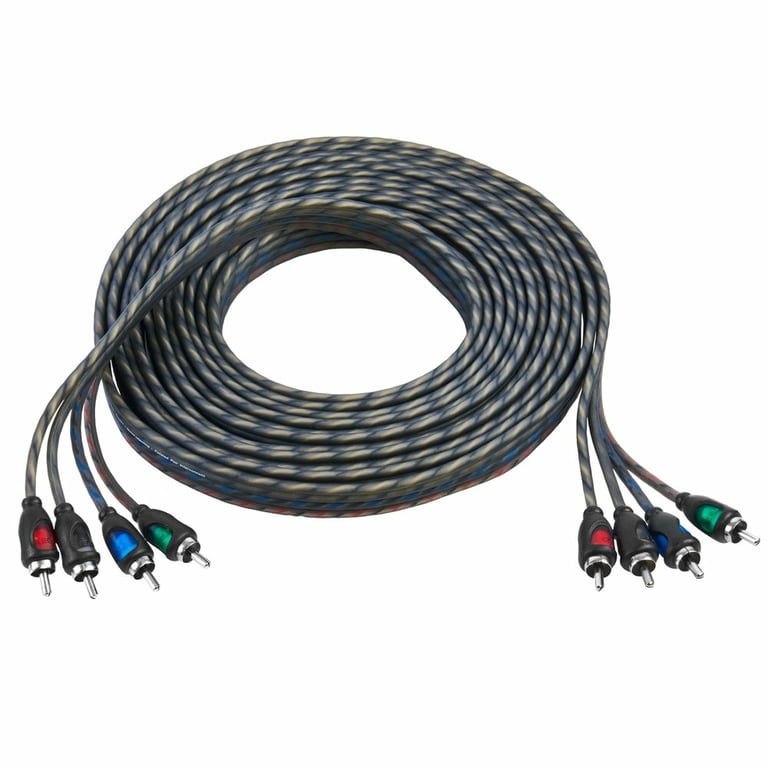

  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
20A x 2
Total Fuse Rating
40
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

X302-4, BAK44

Weight:

14.08lbs

Internal SKU:

x3024_bak44

Internal Product ID:

196715

Customer Ratings & Reviews


Kenwood eXcelon X302-4 + Belva BAK44 thumbnail image

5 star
80%
4 star
12%
3 star
6%
2 star
2%
1 star
0%



Durability
4.8
Value
4.9
Features
4.8
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Awesome product for the price

The following review is for BAK44, which is a part of the bundle you are viewing.

I was overall satisfied with everything in the kit. The wire was great quality and easy to run. I liked that it came with a plastic grommet for my firewall. I think the fuse was really nice and looks great under the hood. Just make sure you have a 4 gauge crimping tool which I did not have. I ended up crimping with some pliers and a hammer to tighten up the terminals.

By JT on January 17, 2014

141 found this helpful


Good kit for the $

The following review is for BAK44, which is a part of the bundle you are viewing.

Used this kit to install a 4 channel amp and had plenty of wire to do the job.

By Tomas on January 13, 2015

136 found this helpful


Everything I needed

The following review is for BAK44, which is a part of the bundle you are viewing.

Great value, great quality, everything that was necessary to install the full system. Kudos.

By DEREK on January 29, 2015

129 found this helpful


good amp kit

The following review is for BAK44, which is a part of the bundle you are viewing.

The amp kit works well. The installation was very easy. I had plenty of wire. For the power and ground wires I soldered on my own copper lugs. The only real drawback is that this kit is cca instead of ofc, but that is why it is so cheap.

By Philip on January 26, 2014

133 found this helpful


excellent value

The following review is for BAK44, which is a part of the bundle you are viewing.

this had everything you need in it to do an amp install. I was impressed with the speaker wire as it was a heavy gauge wire. 14awg I think. it was listed to have 20ft of speaker wire in product description but had 65ft in package, (nice). all the wire was nice and flexible (easy to work with) unlike some cheaper wire I've seen or used that's real stiff. couldn't ask for anything more.....

By werthy1 on November 27, 2013

131 found this helpful


great amp kit

The following review is for BAK44, which is a part of the bundle you are viewing.

Made amp installation easy. Good quality gauge wire and inline fuse with this kit.

By Ozzie on January 6, 2015

127 found this helpful


Amp wiring kit

The following review is for BAK44, which is a part of the bundle you are viewing.

This is an above average installation kit with all the wiring you need except a RCA for 5th channel.

Half price with bundle with Amp

By Joel on December 30, 2014

127 found this helpful


Worked Perfect

The following review is for BAK44, which is a part of the bundle you are viewing.

Great price and fast shipping. It was all I needed to hook up my amp and composite speakers. Plenty of length on all can cables.

By Shon on February 27, 2014

128 found this helpful


Really Good Quality!!

The following review is for BAK44, which is a part of the bundle you are viewing.

Got this wiring kit at a discount after purchasing together with amp, so ended up at around $37. Ive bought 4 gauge wiring kits before at local radio shop for the same price, but not the same quality at all! The power and ground wire are super flexible, great for passing through firewall and bending around tight corners. Great quality anl fuse, and was surprised to find 20 ft of equally good, thick, speaker wire, just enough to rewire my whole car! And loved the 4 twisted rca cables that make install a breeze, and helps keep everything looking neat and clean. Perfect for a 4 channel Amp Install.

By Frank on January 1, 2014

127 found this helpful


works great

The following review is for BAK44, which is a part of the bundle you are viewing.

everything I needed to install, good price and value. Will order another shortly.

By Donnie on September 2, 2014

118 found this helpful



No picture

Polk Audio MOMO MM6 (Silver) Open Box

(Open Box) 6-3/4" (Oversized 6-1/2") MOMO Series 2-way Component Speaker System

$119.99

List price $349.99

TS-D1720C small

Pioneer TS-D1720C OPEN BOX COMPLETE

6.75" (Oversized 6.5") 2-Way D-Series Component Car Audio Speaker System

$99.99

List price $244.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1996 BMW 750iL

2014 Ford Fiesta

2004 Dodge Intrepid

2002 Volvo S40

1983 Nissan Maxima

2004 BMW Z4

2007 GMC Canyon

2012 Hyundai Genesis

2022 Ford EcoSport

Vehicle
Store
Delete

2012 Harley Davidson FLHTC Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
