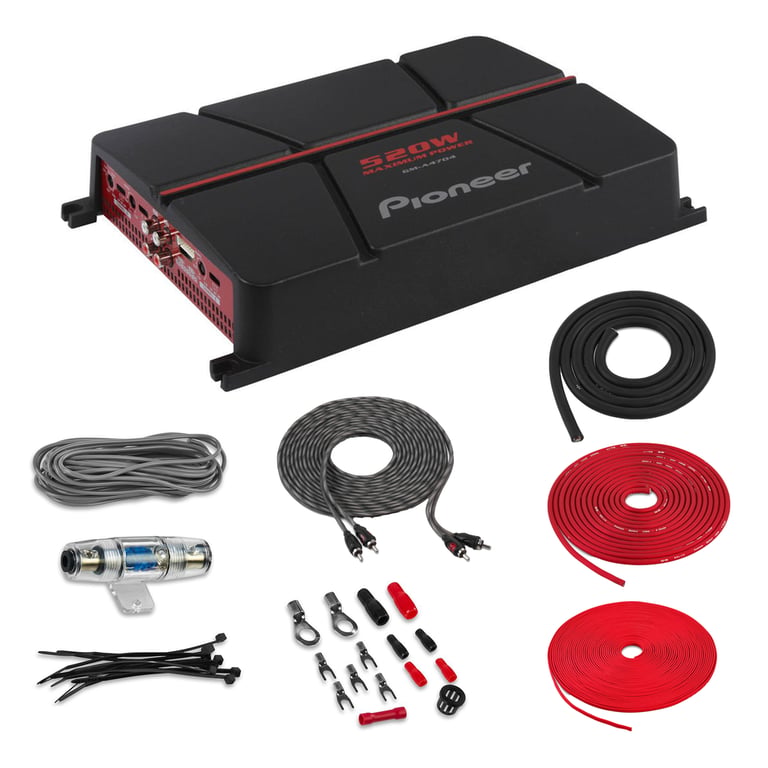

Pioneer GM-A4704 with Amplifier Wiring Kit

520W Peak (260W RMS) 4-Channel A Series Bridgeable Class AB 2-Ohm Stable Car Amplifier

Pioneer
Shop all Pioneer
highlight-star-icon

• RMS: 40W x 4 @ 4 ohm, 65W x 4 @ 2 ohm, 130W x 2 @ 4 ohm
• Total Peak Power: 520W
• CEA-2006 Compliant
• Includes Amplifier Wiring Kit
• Dimensions: 12-1/2"W x 8-1/2"L x 2-3/8"H

Learn more about the gma4704_bak84

We apologize

This item has been discontinued


Loading...
HON2MVL2 main

GROM Audio HON2MVL2

Factory Radio Android Auto, Apple CarPlay and Navigation Integration Upgrade for select 2010-2015 vehicles from Acura, Honda

Limited time!
KW-M180BT main

JVC KW-M180BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

2
-24.40%

$189.00

List price $250.00

Limited time!
Stage3 527 main

JBL Stage3 527 (STAGE3527AM)

400W Peak (80W RMS) 5.25” Stage3 Series 2 Way Coaxial 3-ohm Speakers

2
-36.38%

$69.95

List price $109.95

Description


Pioneer brand icon

Authorized dealer

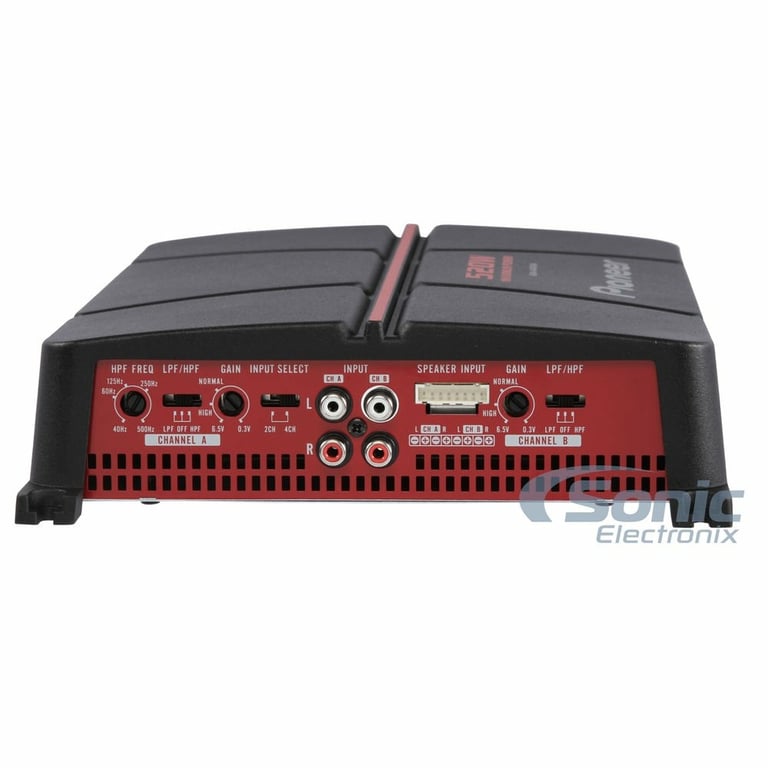

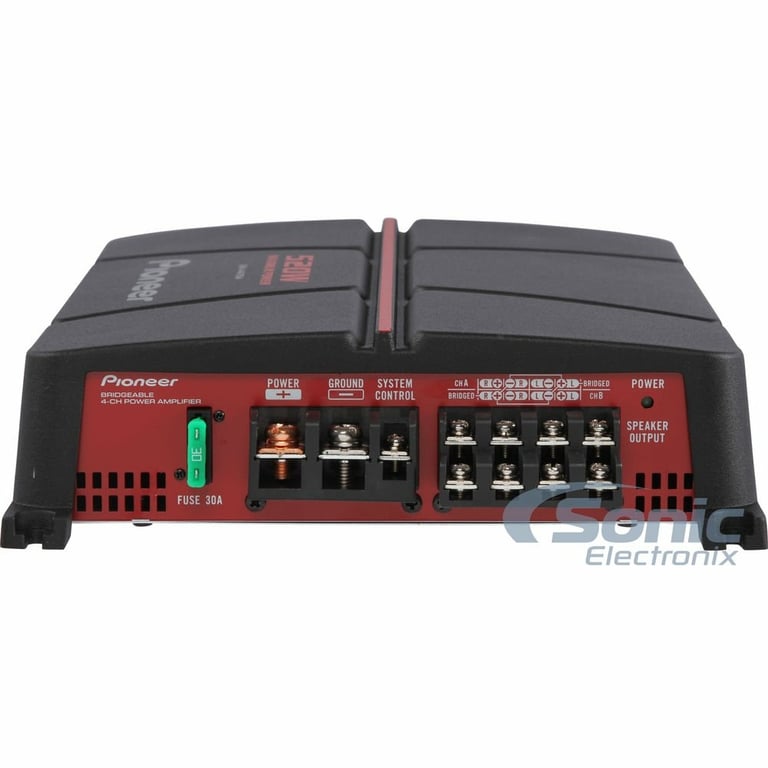

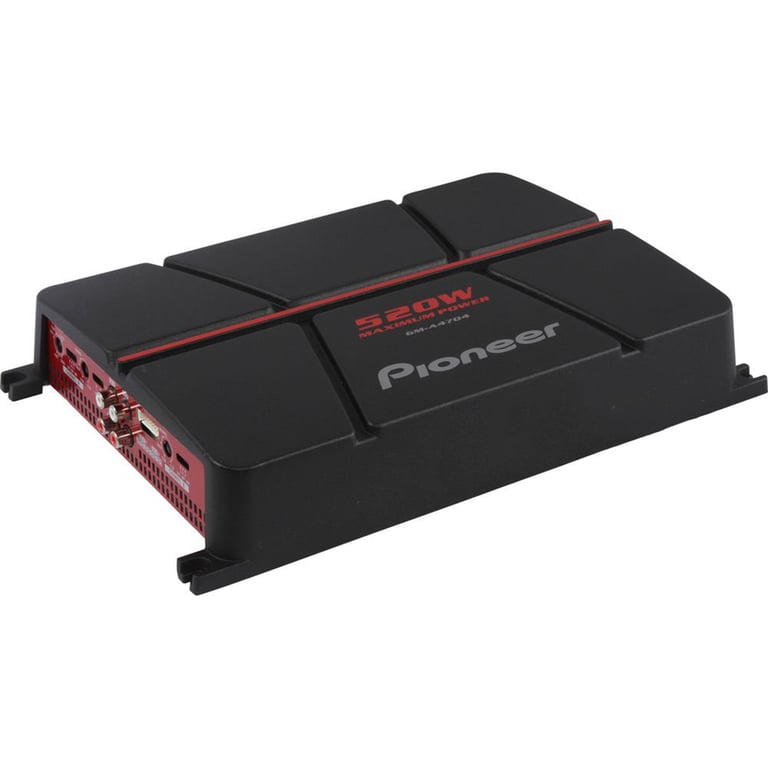

Pioneer GM-A4704

520W Peak (260W RMS) GM Series 4-Channel Class-AB Amplifier
Quantity: 1

Product Details:

  • GM Series Class A/B 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 4 channel
    • 2 ohm: 65 watts x 4 channel
    • Bridged: 130 watts x 2 channel @ 4 ohm
  • Total power output: 260 watts
  • LED Power/Protect Light

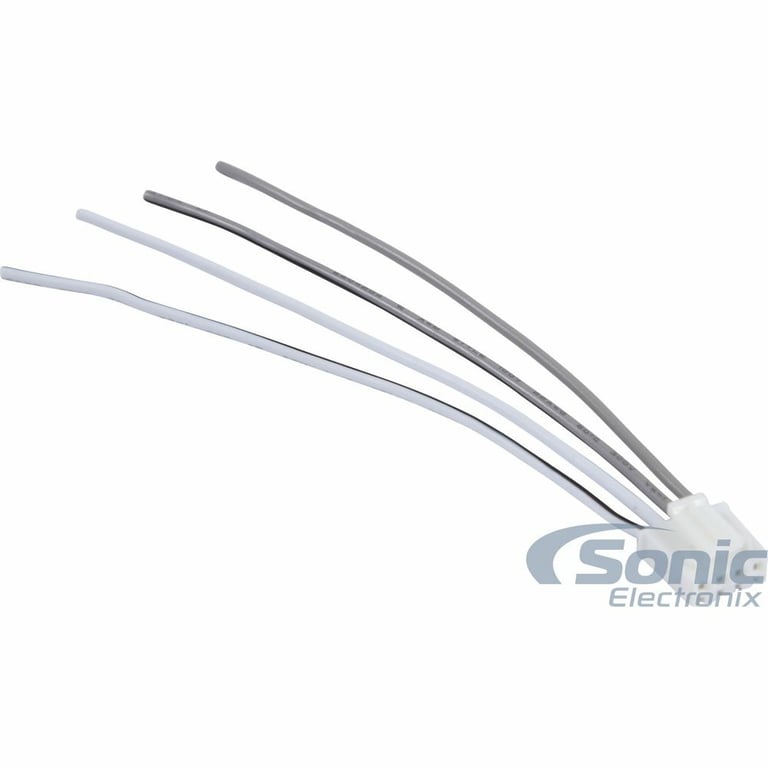

  • Speaker-level (high-level) inputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • CTA-2006 compliant
  • Input sensitivity:
    • Low level: 300mV - 6.5 volts
    • High level: 300mV - 26 volts
  • Frequency Response: 10 - 70000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 78 dB
  • Variable high-pass filter: 40 - 500 Hz selectable 80 Hz, 12 dB/octave on B channels
  • Selectable low-pass filter: 80 Hz, 12 dB/octave
  • Fuse Rating: 30A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 12-1/16" L x 8-1/2" W x 2-3/8" H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • MFR #: GM-A4704

Belva BAK84

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

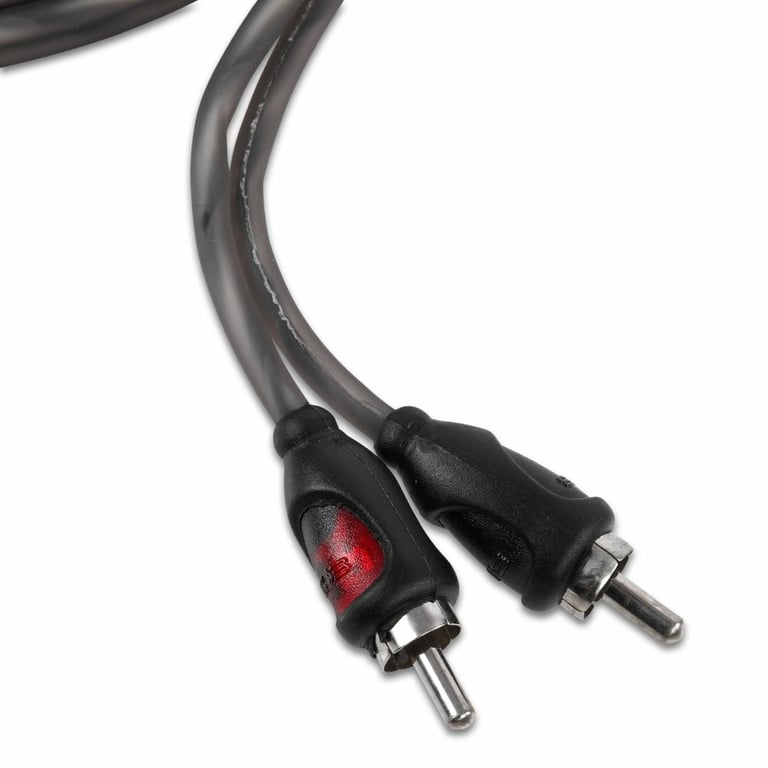

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition

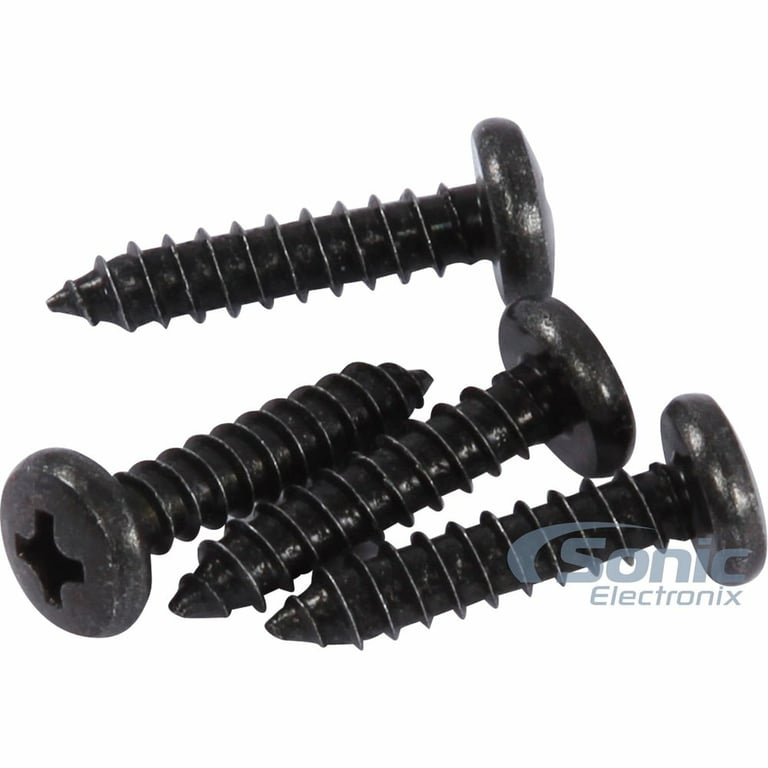

  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

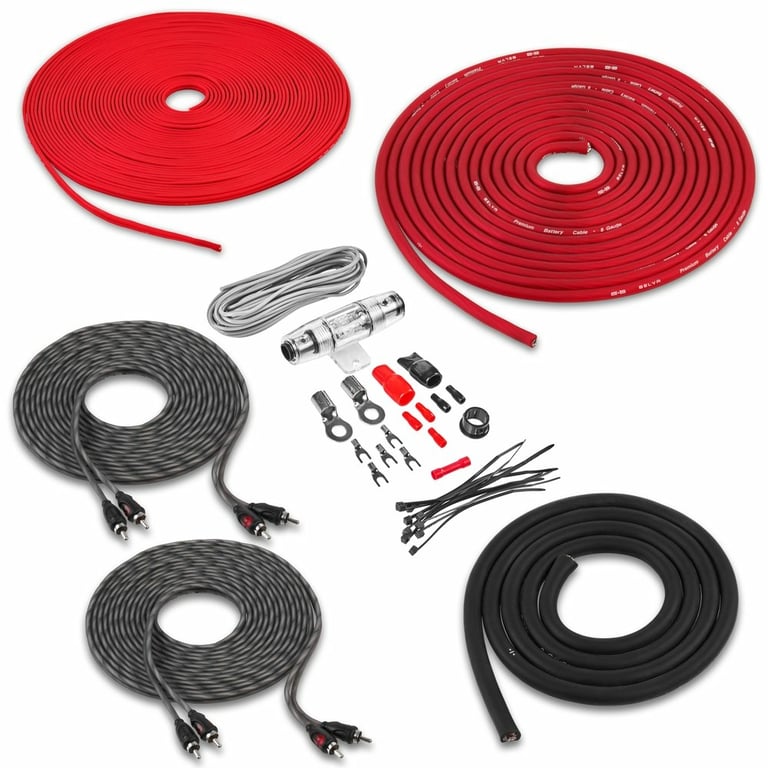

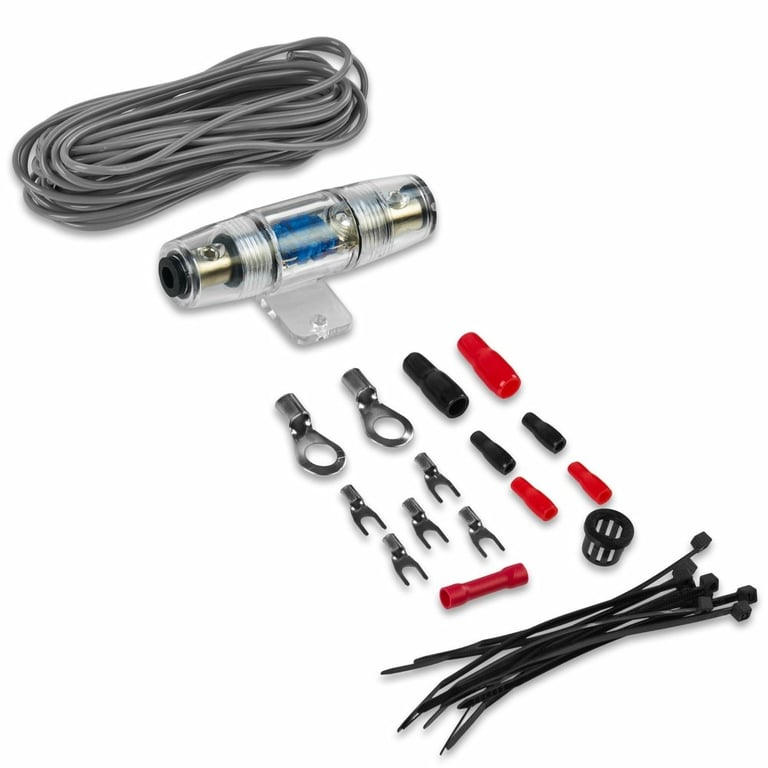

Kit includes:

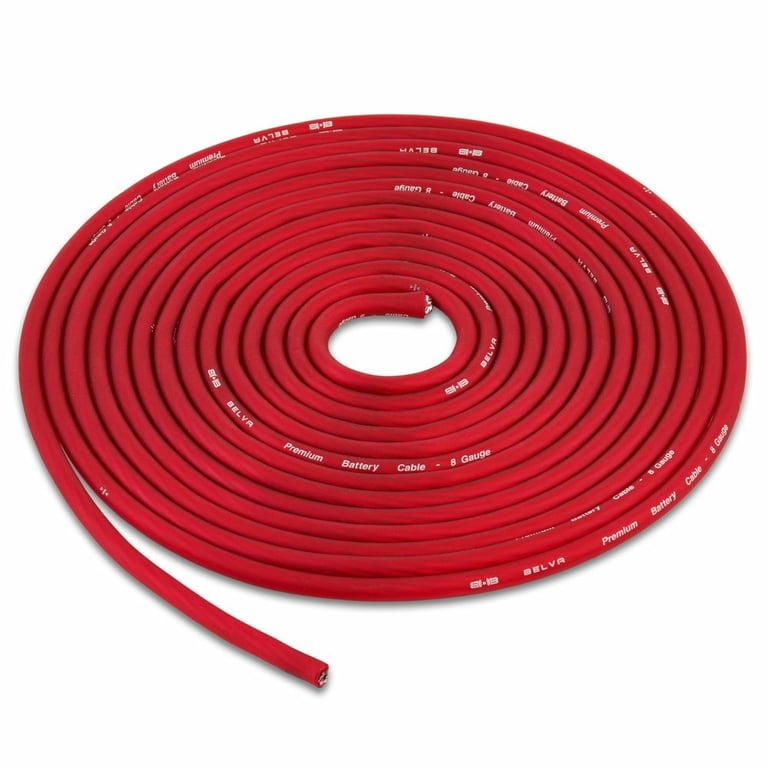

  1. 17 ft. Red 8 gauge power wire

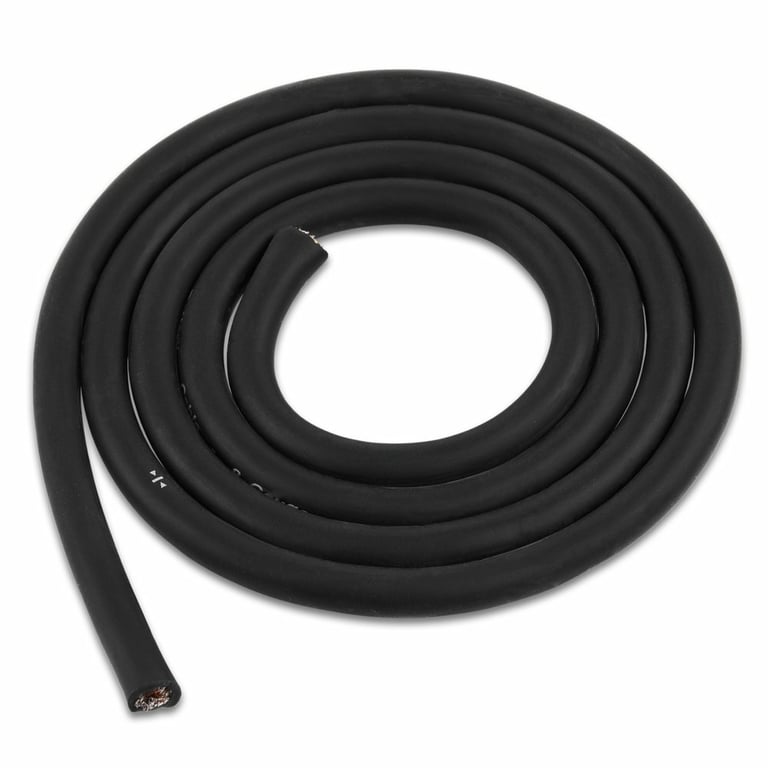

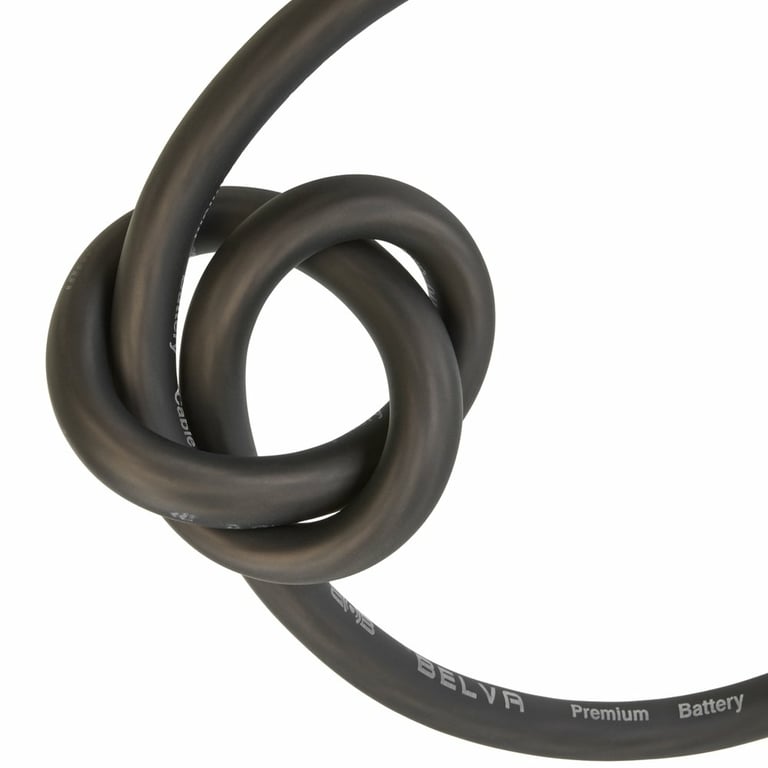

  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire

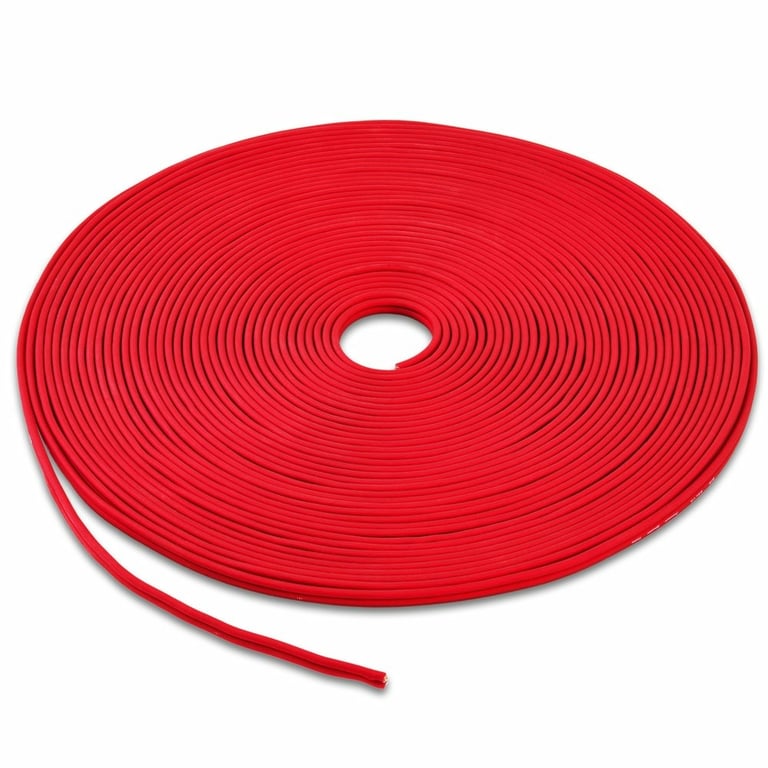

  4. 40 ft. 16 gauge speaker wire

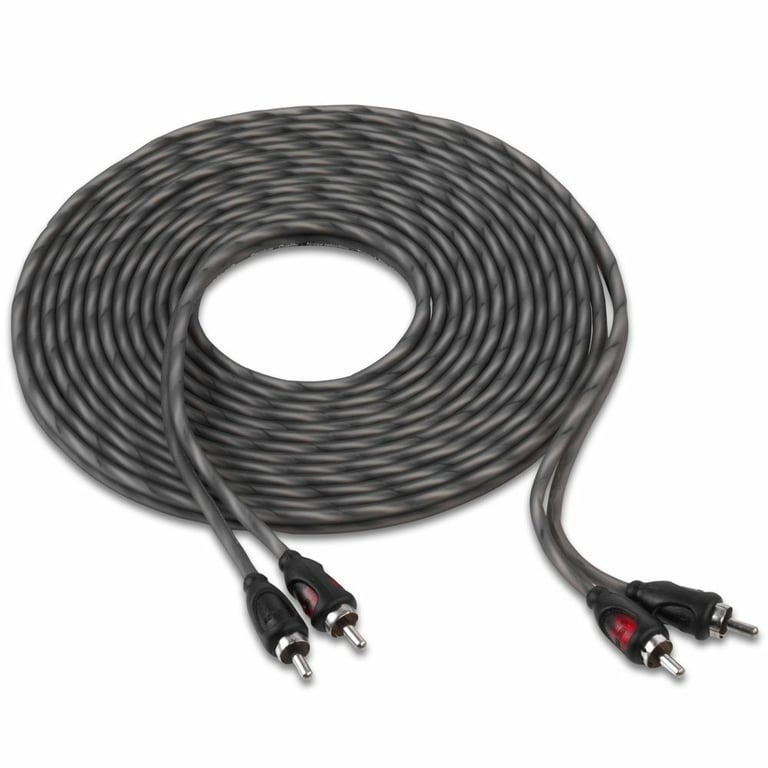

  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Product history:

Pioneer GM-A4704, BAK84 thumbnail
(newest, current model)
Pioneer GM-A4604 thumbnail
(previous model, replaced by Pioneer GM-A4704 with Amplifier Wiring Kit)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 4 channel
RMS Power @ 2 ohms
65 watts x 4 channel
Bridged RMS Power
130 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
520 watts
Total RMS Power Output
260 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
>94 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-A4704, BAK84

Weight:

6.05lbs

Internal SKU:

gma4704_bak84

Internal Product ID:

197103
