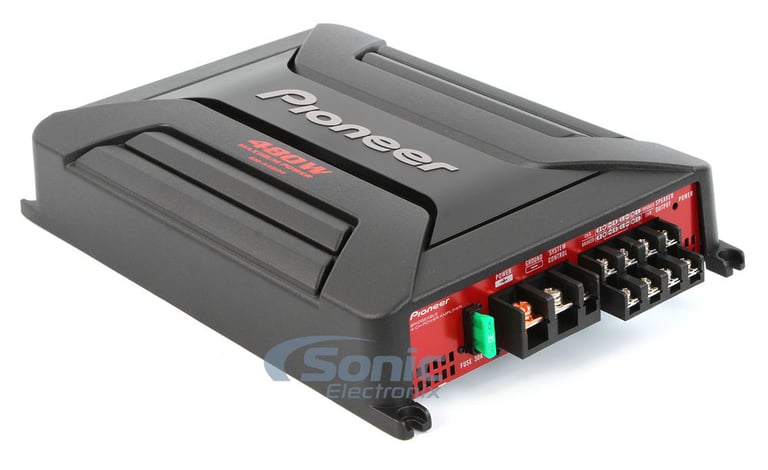

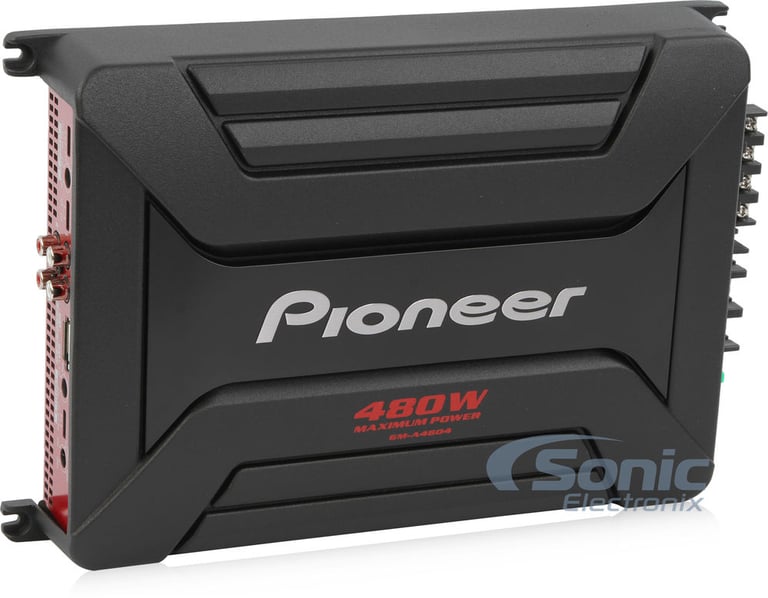

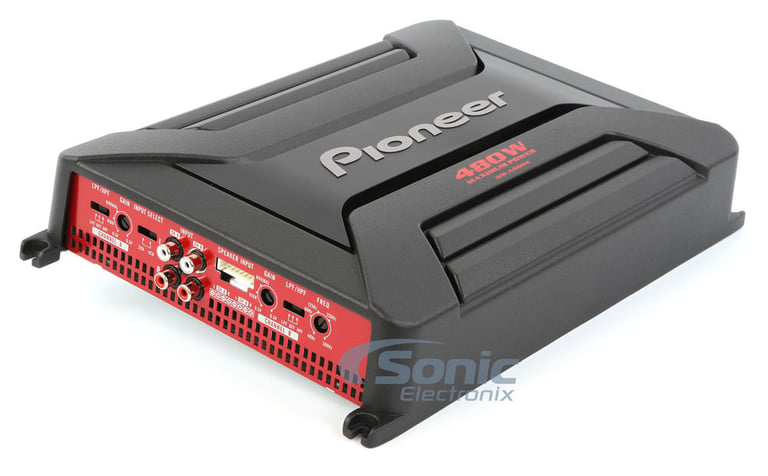

Pioneer GM-A4604

480W Peak (240W RMS) 4-Channel A Series Bridgeable Class AB 2-Ohm Stable Car Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• RMS: 40W x 4 @ 4 ohm, 60W x 4 @ 2 ohm, 120W x 2 @ 4 ohm
• Total Peak Power: 480W
• CEA-2006 Compliant
• Dimensions: 12-1/2"W x 8-1/2"L x 2-3/8"H

Learn more about the gma4604

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gma4704 thumbnail

Pioneer GM-A4704

OUR PRICE: $99.99

View item

Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

95-2009 main

Metra 95-2009 Dash Kit

Install a new Double-DIN car stereo in select 1990-2012 vehicles from Chevrolet, GMC, Buick (Black)

26
-42.32%

$14.99

List price $25.99

70-2003 main

Metra 70-2003 Wiring Harness

Install a new car stereo in select 1998-2008 vehicles from Chevrolet, GMC, Kia

33
GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-31.25%

$54.99

List price $79.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

Product Highlights


• RMS: 40W x 4 @ 4 ohm, 60W x 4 @ 2 ohm, 120W x 2 @ 4 ohm
• Total Peak Power: 480W
• CEA-2006 Compliant
• Dimensions: 12-1/2"W x 8-1/2"L x 2-3/8"H

Description


Pioneer brand icon

Authorized dealer



General Features:

  • Pioneer A-Series GM-A4604
  • Class-AB FullRange 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 4 chan.
    • 2 ohm: 60 watts x 4 chan.
    • Bridged, 4 ohm: 120 watts x 2 chan.
  • Max power output: 480 watts.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Balanced Isolator Input Circuit
  • LED power (on) and protect (off) indicators
  • Soft start turn-on
  • 4, 3 or 2 channel operation
  • Speaker-level (high-level) inputs with Signal Sensing Turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

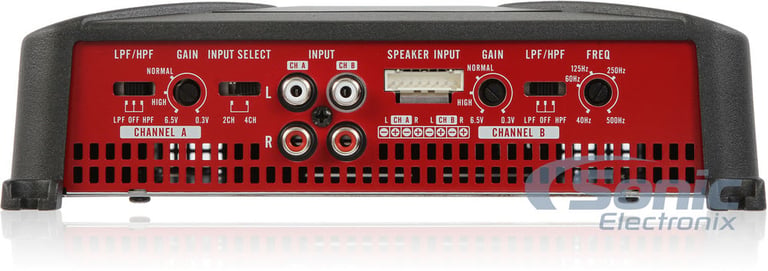

  • Input sensitivity:
    • Low level: 300mV - 6.5V
    • High level: 3V - 26V
  • Frequency Response: 10 - 70,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >94 dB
  • Selectable crossover modes (Ch A&B): LPF / OFF / HPF
  • Crossover frequency Ch A: 80hz, 12 dB/octave
  • Variable crossover frequency (Ch B): 40 - 500 Hz, 12 dB/octave

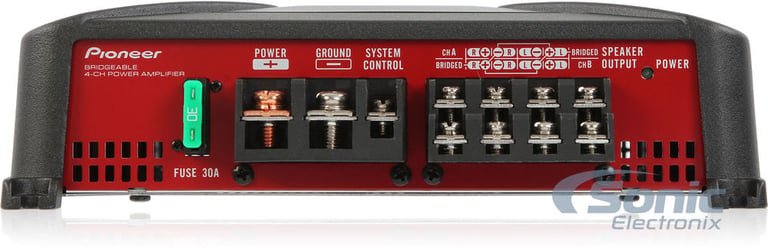

  • Fuse Rating: 30A x 1
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 12-1/2"W x 8-1/2"L x 2-3/8"H
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer GM-A4704 thumbnail
(newest, current model)
Pioneer GM-A4604 thumbnail
(previous model, replaced by Pioneer GM-A4704)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 4 channel
RMS Power @ 2 ohms
60 watts x 4 channel
Bridged RMS Power
120 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
80 watts x 4 channel
Peak Power @ 2 ohms
120 watts x 4 channel
Bridged Peak/Max Power
240 watts x 2 channel
Amplifier Specifications
Series
GM Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
480 watts
Total RMS Power Output
240 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
>94 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-A4604

Weight:

4.25lbs

Internal SKU:

gma4604

Internal Product ID:

74607

Product and How-to Videos


  • Pioneer GM Series Car Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Pioneer GM-A4604 thumbnail image

5 star
57%
4 star
43%
3 star
0%
2 star
0%
1 star
0%



Durability
4.3
Value
4.9
Features
4.2
Design
4.5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great value

Bought the amp to go with my new Pioneer 7500 series head unit and new JBL speakers. Fabulous sound! This unit had much better signal to noise ratio compared to similar priced amps, including the JBL.

Hookup was quick and easy, connections well marked. No complaints.

By Les on January 28, 2014

24 found this helpful


Perfect

Great amp. I'm running it off of my factory head unit using the high level inputs. It's powering 2 JBL GTO638 6.5's and 2 JBL GTO428 4 inch speakers. Those speakers sounded good just using the head unit but when I added this amp oh man did it make them come alive. Pioneer makes great products.

By Craig on March 3, 2015

22 found this helpful


great value

Product works perfect! The price was the lowest on the internet! super fast shipping! will buy from again!

By James on September 18, 2014

22 found this helpful


Simple and works

Not a bad amp for the price it works good and I've had no problems so far, using it to power nvx speakers and would recommend this amp

By Nicholas on April 23, 2015

18 found this helpful


Pioneer amp

I have it running my inside mids tweets great amp I have another pioneer amp with my pioneer did gps head. Love pioneer

By Justin on May 3, 2015

18 found this helpful


Just what I needed

Bought this amp after reading tons of reviews. Want wanting to spend a lot but wanted quality. I have it powering 4 alpine type r 6x8s. It's in my 06 f150. Provides enough power, never even gets warm. Great amp fir the money.

By Brant on October 23, 2016

6 found this helpful


Pioneer fm-a4604

good bang for your buck! Bought this to run a set of components, and they sound great! Crisp sound. Easy on the pocket, so I'd call that a win win! I'd recommend this to anyone who wants good sound, but isn't caring about huge wattage.

By Brent on September 29, 2016

5 found this helpful




DRQC20AC-TN small

MTX Audio Thunderform DRQC20AC-TN (Charcoal, Amplified)

select 2002-2018 vehicles from Ram, Dodge Amplified 2 10" 4 ohm Vehicle Specific Thunderform Subwoofer Enclosure

(2)

$899.95

List price $802.95

FMK559 small

American International FMK559

Single DIN or Double DIN Stereo Dash Kit for select 2010-2015 vehicles from Ford

$13.99

List price $44.00

09XW12150 small

Kicker XW12150 (09XW12150)

150 ft. Spool of 12 Gauge AWG X-Series Speaker Wire Cable

$129.99

List price $299.99

70-6503 small

Metra 70-6503 Wiring Harness

Install a new car stereo and retain factory amplifier in select 2002-2007 vehicles from Jeep, Dodge, Chrysler

(1)

$20.99

List price $23.99

ZS46CX_SDSK2 small

Hifonics ZS46CX with Sound Damping

400W Peak (80W RMS) Zeus Series 4x6" Zeus Series 2-Way Coaxial Car Speakers + NVX SDSK2 Sound Damping

(69)

$35.99

List price $43.73

KV-CM1KD small

JVC KV-CM1 (KV-CM1KD)

Ultra-compact CMOS Sensor Rear-view Camera

$139.99

List price $199.99

PH654_2 small

Cerwin-Vega PH654 (2-Pairs, 4-Total)

1200W Peak (600W RMS) 6.5" PRO Series Full-Range Coaxial Car Speakers (2-Pairs)

(2)

$379.98

List price $455.98

D9-B6S-64GB small

Dynavin D9-B6S-64GB

10" Custom-Fit Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto for select 2006-2011 Passat and CC (SiriusXM Ready)

$799.99

List price $799.99

GF-8-MR small

American Bass GF-8-MR (Sold Individually)

800W Peak (400W RMS) 8" Godfather Series Midrange 4-ohm Car Speaker

$73.26

List price $102.78

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Toyota Matrix

2000 BMW 323i

2009 Dodge Avenger

2012 Audi R8

2022 Nissan Maxima

1991 Dodge Stealth

2018 Audi RS5

2019 Chevrolet Express 2500

2003 Dodge Ram 2500

1989 Mazda B2600

Vehicle
Store
Delete

2007 Harley Davidson FLHTC Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
