2004-2009 Mazda Mazda3 Complete 10" Subwoofer Package | Belva

500 Watt System with 10" Sub in Ported Box, Monoblock Amplifier and Amp Kit (BPKG110 v2)

Belva
Shop all Belva
EXCLUSIVE
highlight-star-icon

• Includes Everything You Need: Subs, Box, Amp & Wires
• 10" Belva Subwoofer
• Monoblock Amp
• Ported Enclosure
• Complete Amp Kit w/ RCAs

Learn more about the 04-09-mazda-mazda3-110v2
Was $284.98 Details
Thanks , You Pay:

$159.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one 04-09-mazda-mazda3-110v2.

Set your vehicle or Return to product page
shipping truck icon
FREE 2-day shipping to VA. Get it Sat, Sept. 23
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


Belva

Authorized dealer

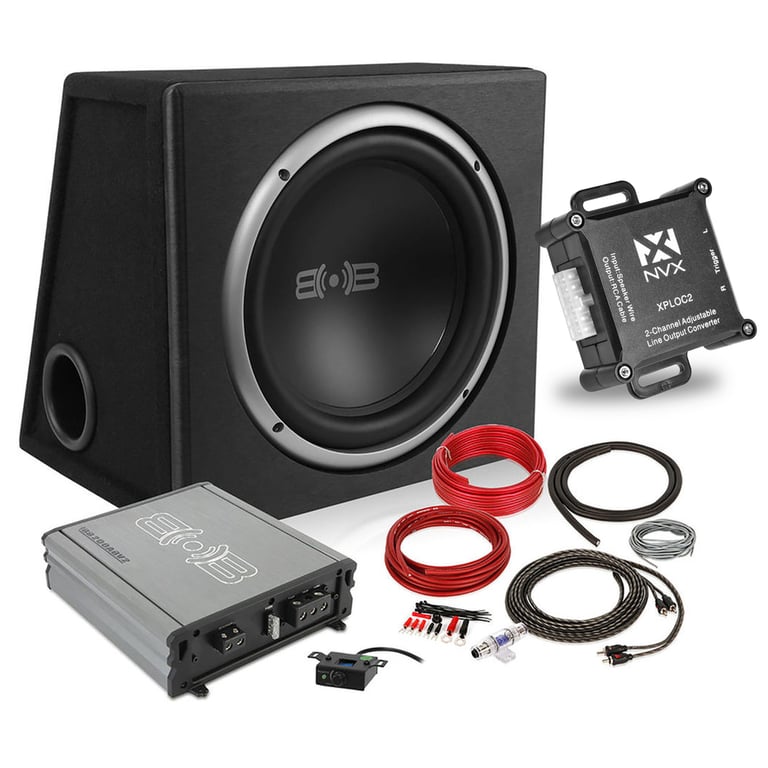

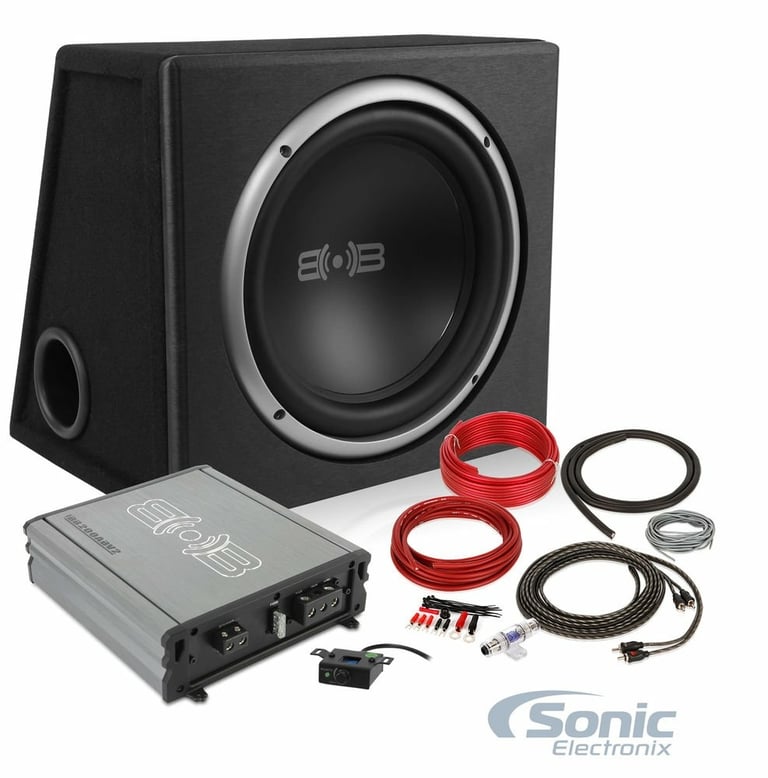

Belva BPKG110v2 Complete Amplified Bass Package

Includes: 500W Single 10" Subwoofer, Ported Box, Monoblock Amplifier with Bass Knob and Amp Wiring Kit
Quantity: 1

Package Details:

  • Single 10" Loaded Ported Subwoofer Enclosure
  • Preloaded with a single 10" subwoofer
  • Class A/B Amplifier with Bass Knob
  • Complete 8 Gauge Wiring Kit
  • Works with both Factory and Aftermarket Audio Systems

Subwoofer Details:

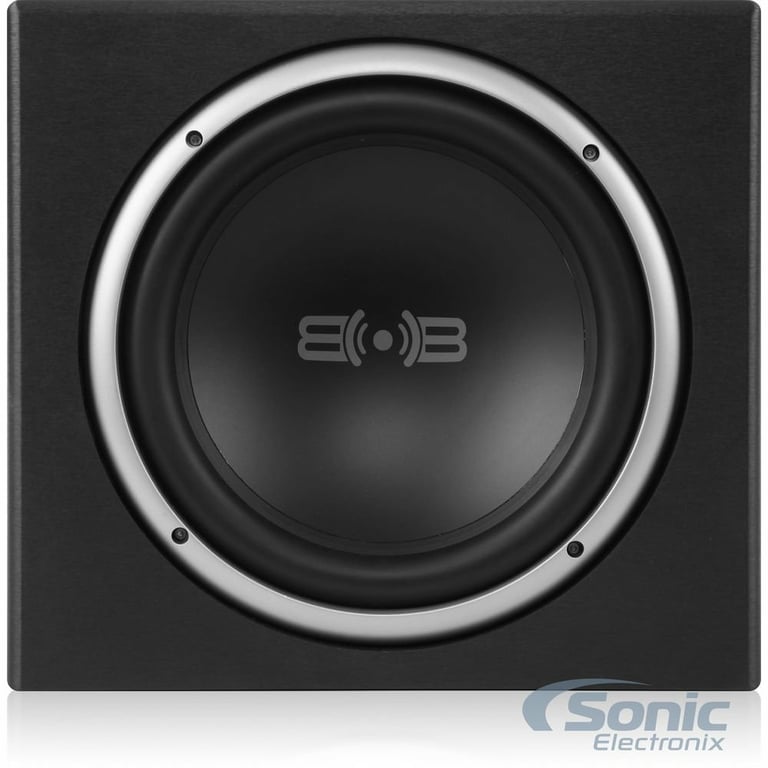

  • 10" Belva Subwoofer
  • Power Handling:
    • Peak: 500 watts
  • Impedance: 2-Ohm SVC
  • Polypropylene cone
  • Durable rubber surround
  • 1.5" black aluminum voice coil
  • 37 oz. ferrite magnet motor structure

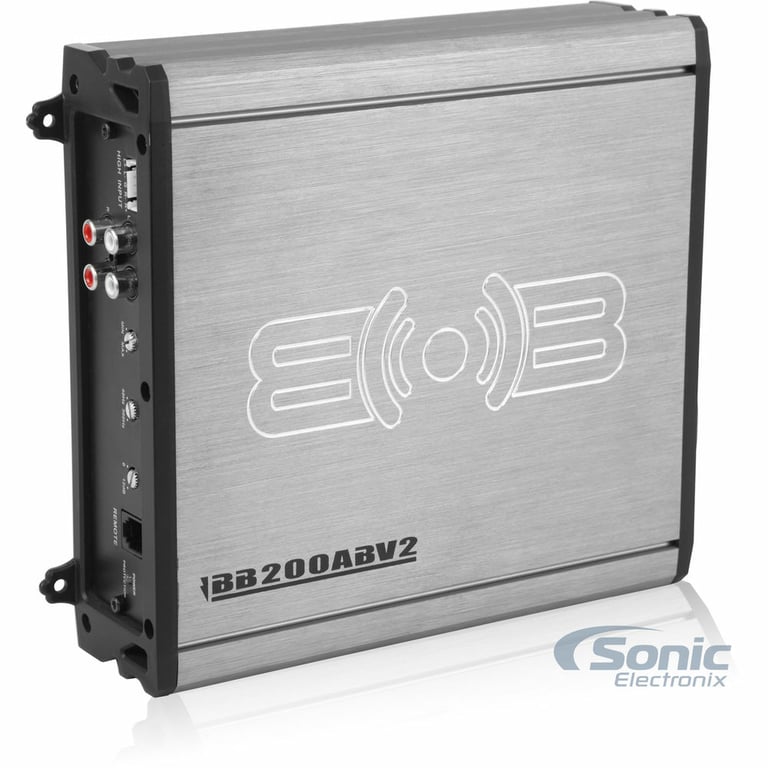

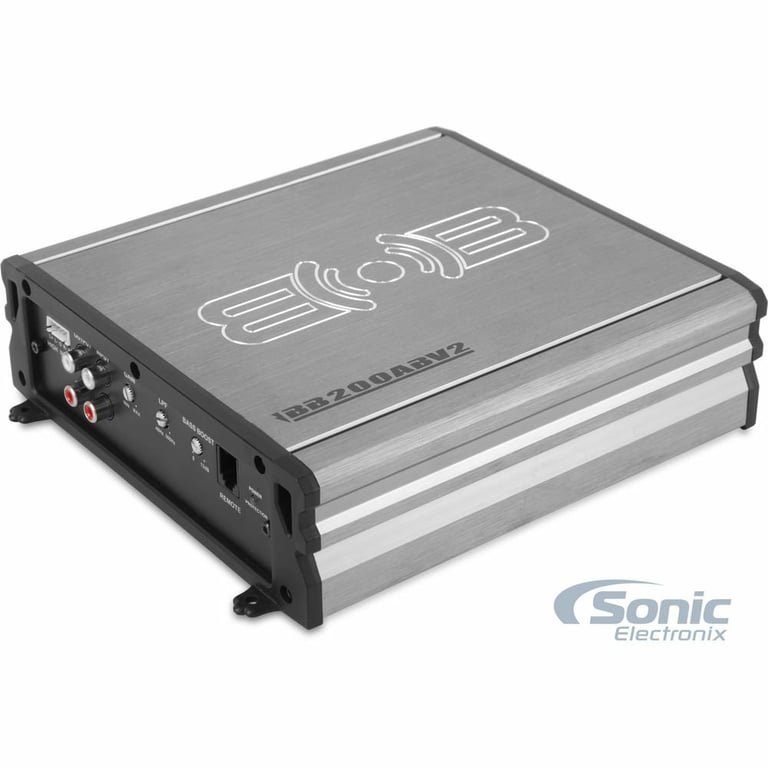

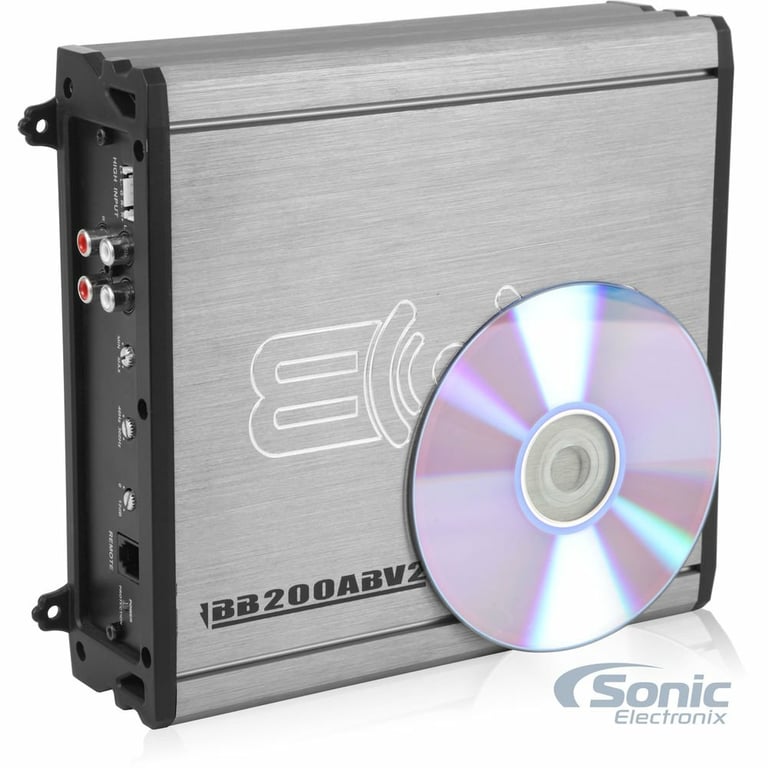

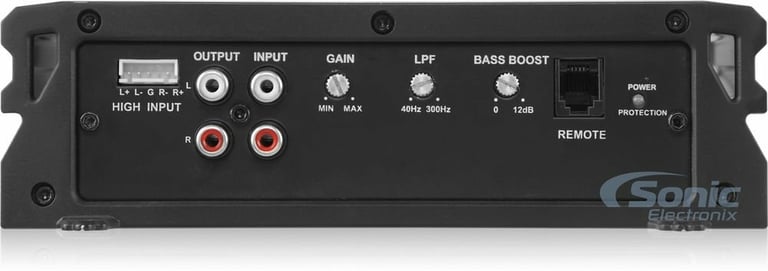

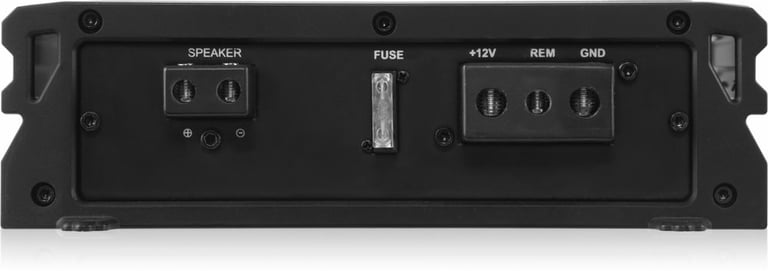

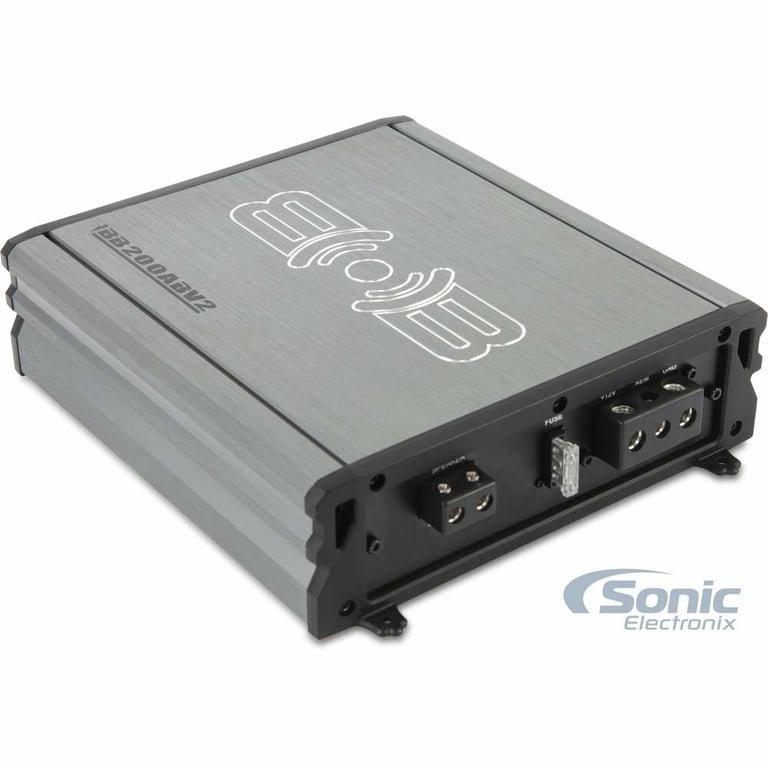

Amplifier Details:

  • Belva BB200ABv2
  • Class-A/B 2-Ohm Stable Monoblock Amplifier
  • Max Power Rating:
    • 4 ohms: 200 watts x 1 chan.
    • 2 ohms: 500 watts x 1 chan.
  • Adjustable gain
  • LPF: 40-300Hz
  • Bass Boost: +0-12DB
  • One pair of preamp outputs
  • High level/speaker level inputs

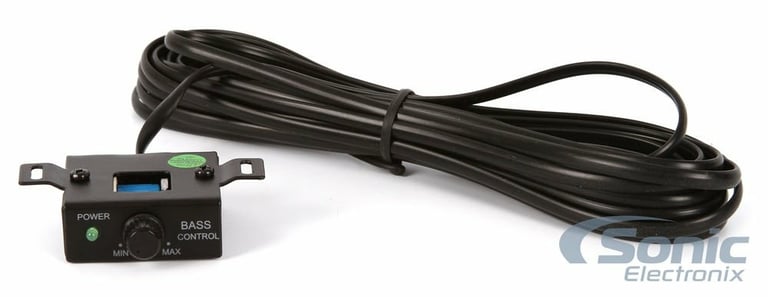

  • Remote bass knob included
  • 25A fuse

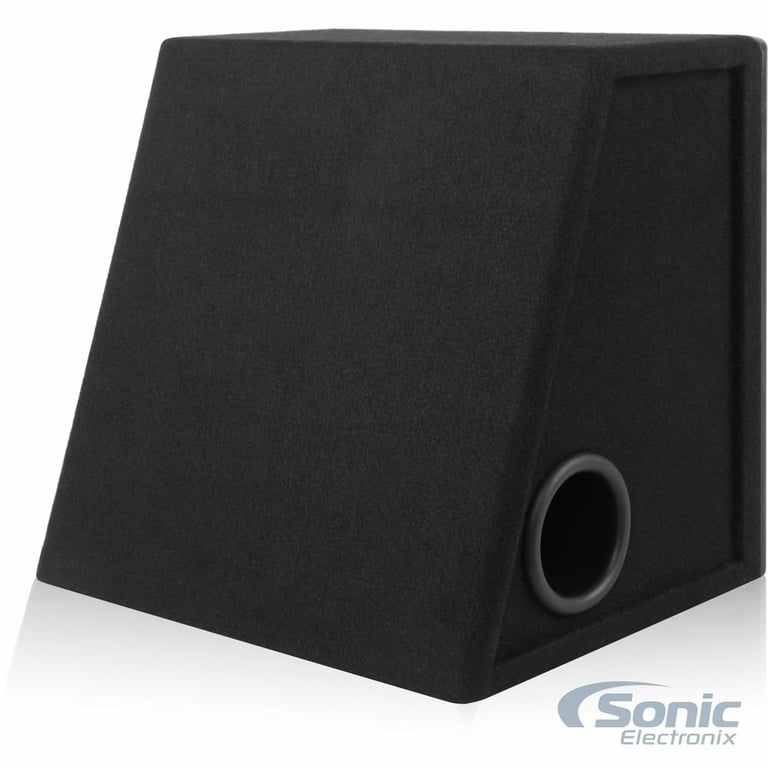

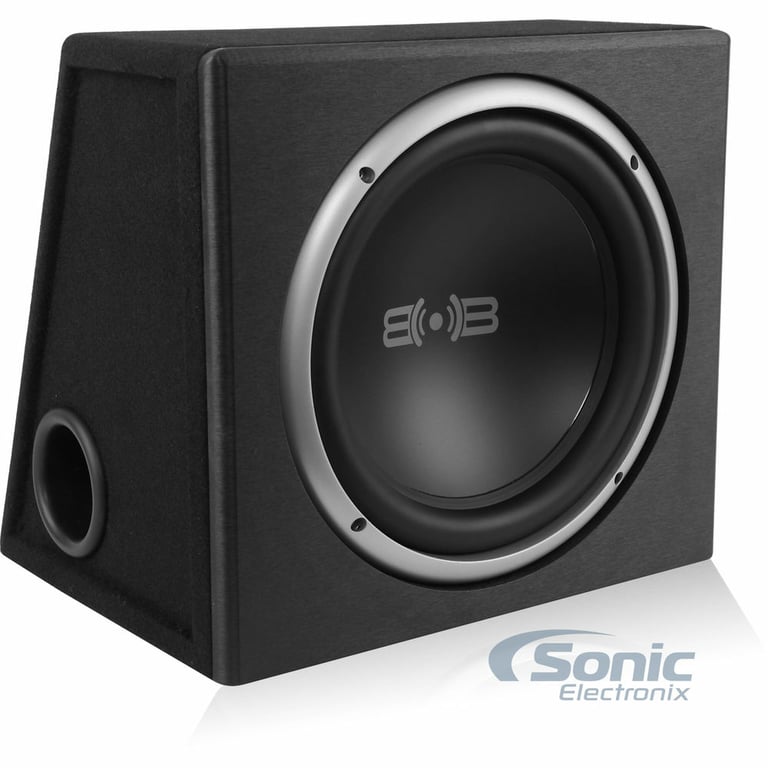

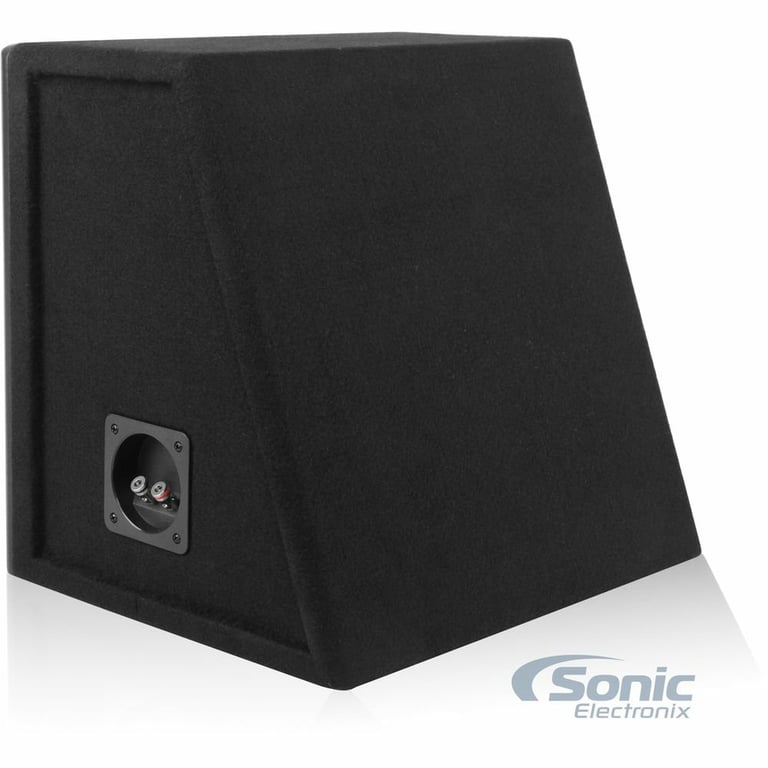

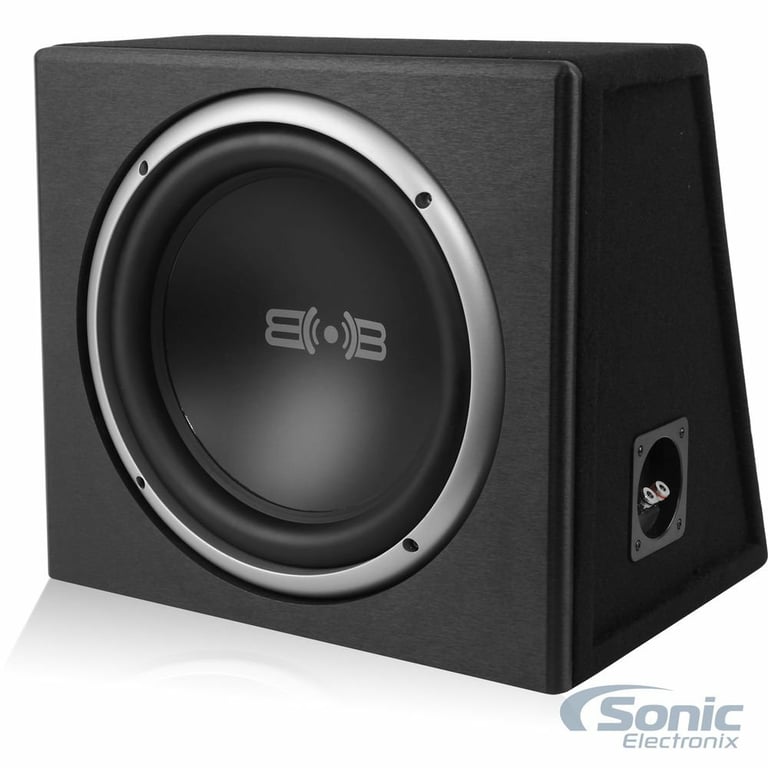

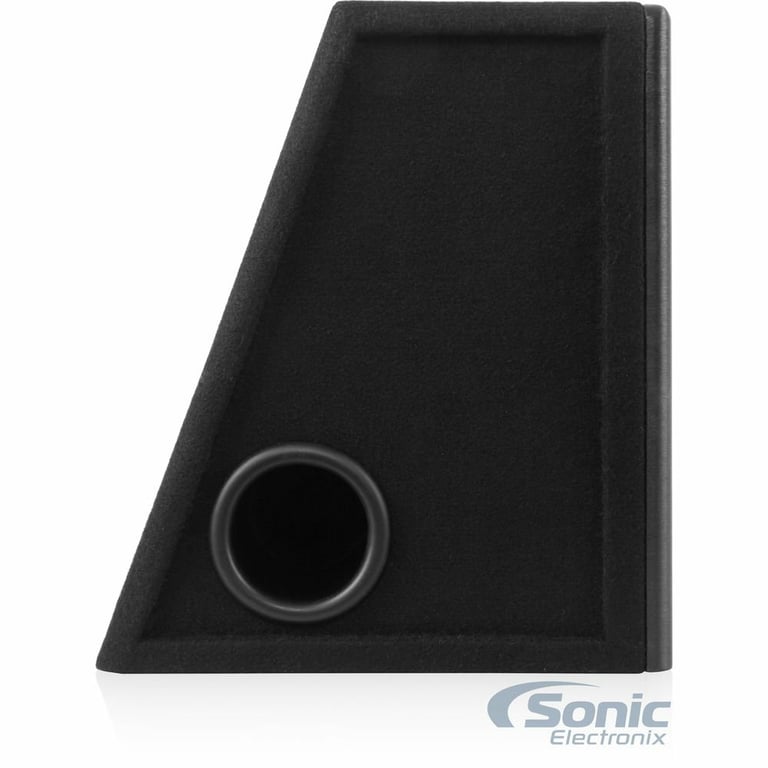

Enclosure Details:

  • Single 10" Ported Subwoofer Enclosure
  • Preloaded with Belva subwoofer
  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Each Piece is CNC Cut Exact to Specification

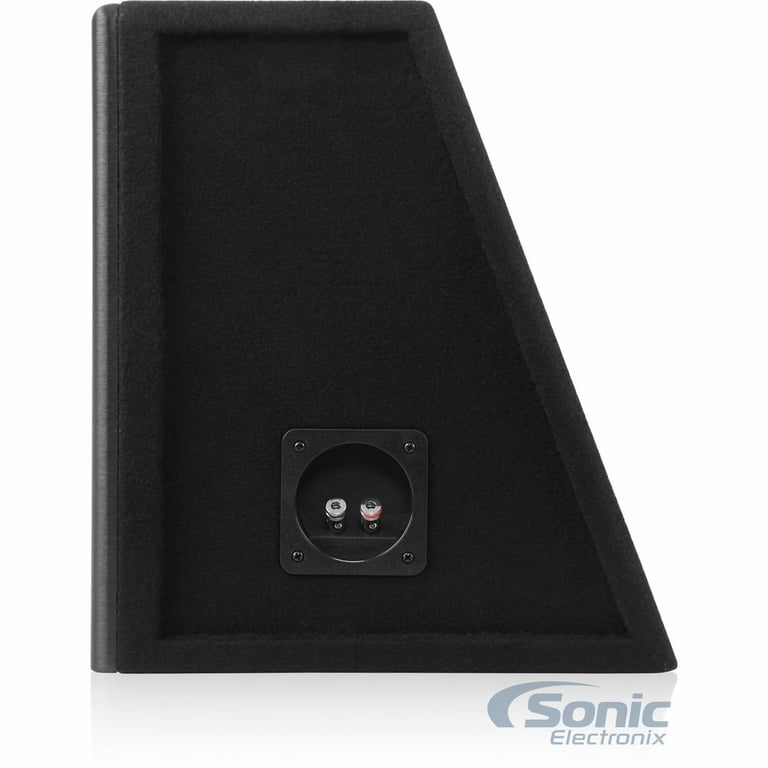

  • Spring Loaded push terminals
  • Dimensions: 14.6" W x 11.81" H x 5.12" Top Depth x 9.45"Base Depth

Amp Kit Details:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Kit includes:

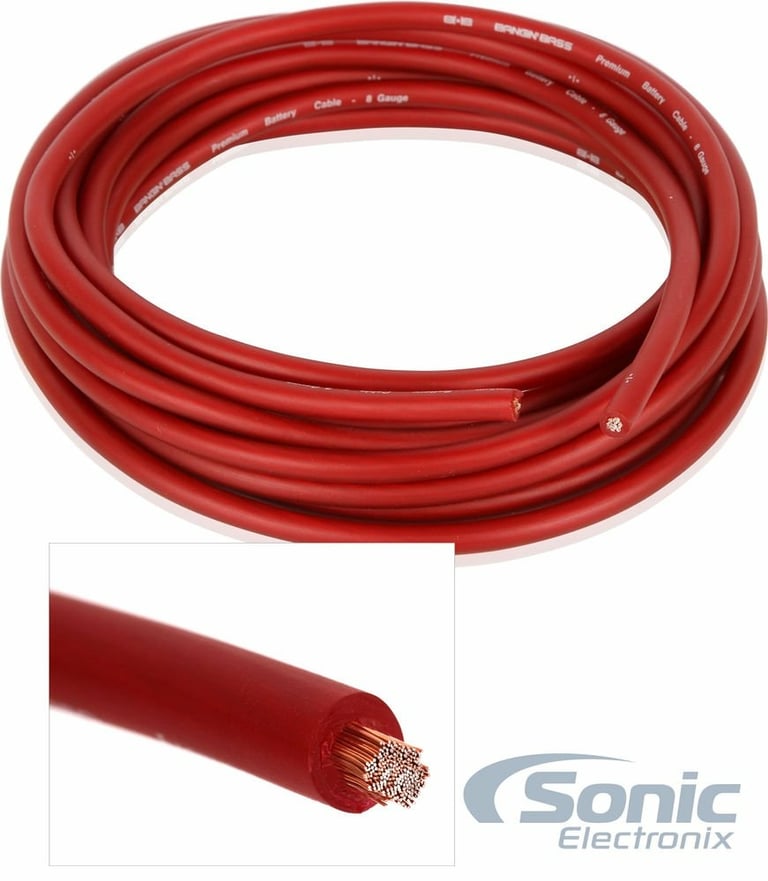

    1. 17 ft. (5.2 meters) Red 8 gauge power wire

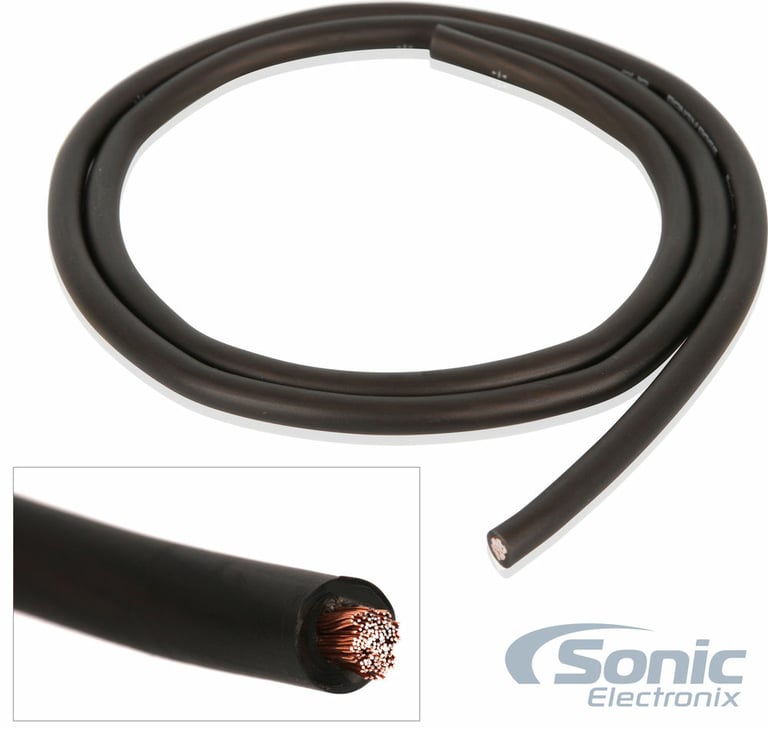

    2. 3 ft. (.91 meters) Black 8 gauge ground wire
    3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

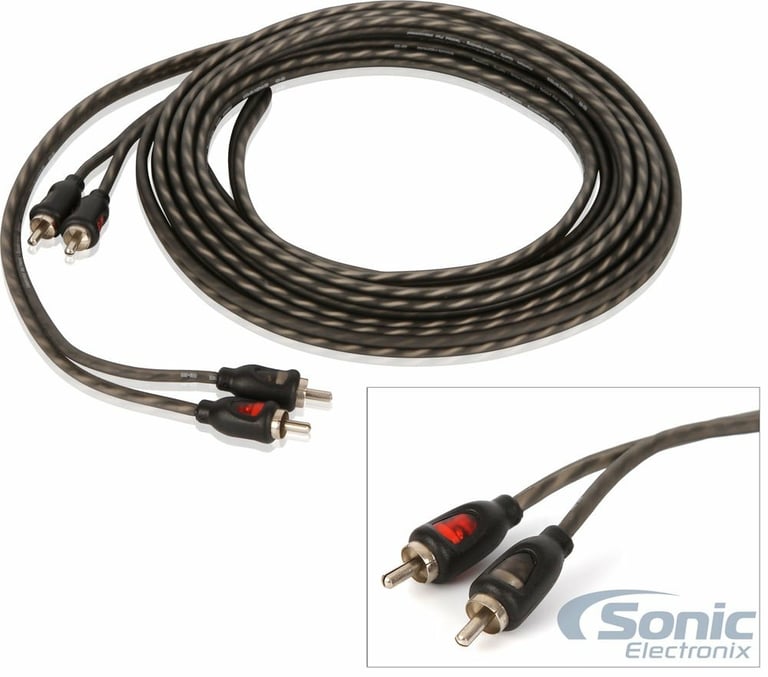

    4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

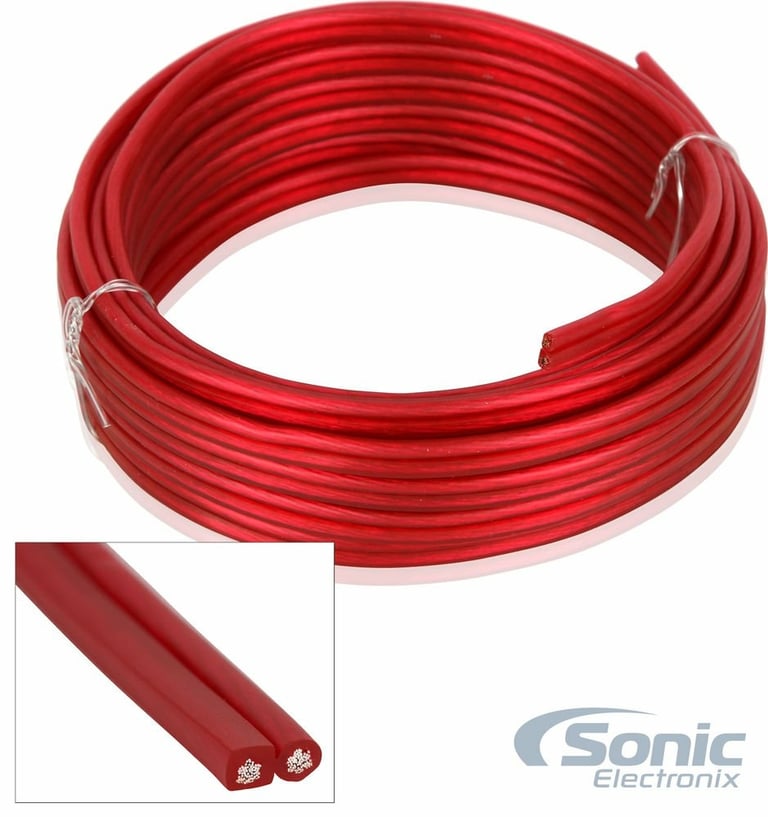

    5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

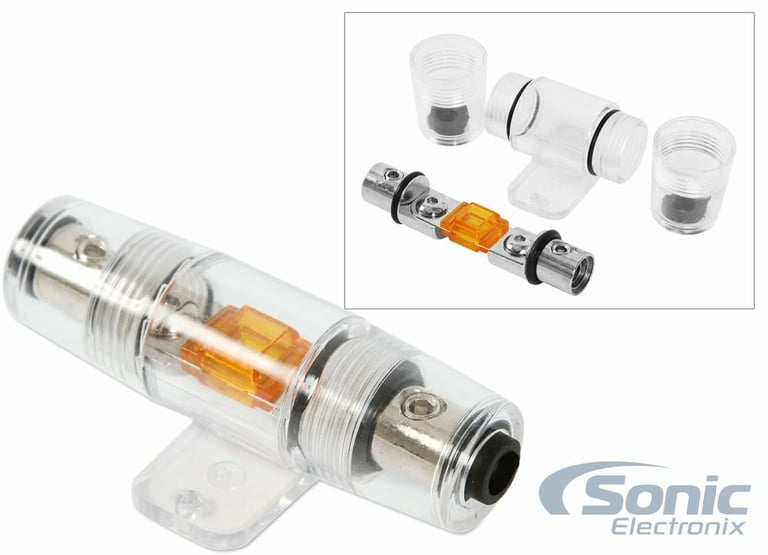

    6. One MINI-ANL Fuse Holder with a 60 amp fuse
    7. One Black rubber firewall grommet
    8. One 8 Gauge Red chrome plated ring terminals
    9. One 8 Gauge Black chrome plated ring terminal
    10. Three 18 Gauge Red Spade terminal
    11. Two 18 Gauge Black Spade terminal
    12. One 18 Gauge Red butt connector
    13. Ten 4" Black zip ties

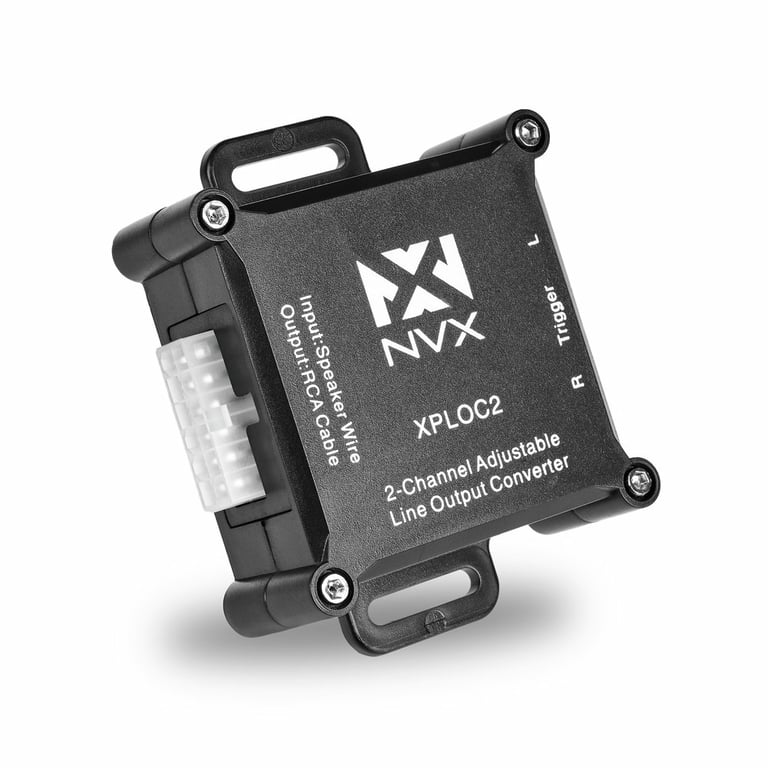

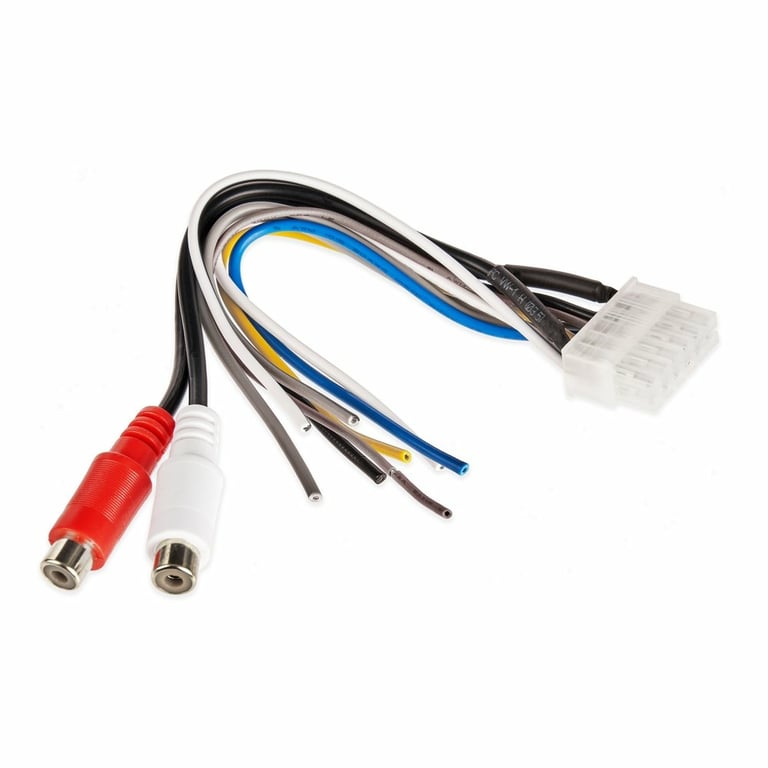

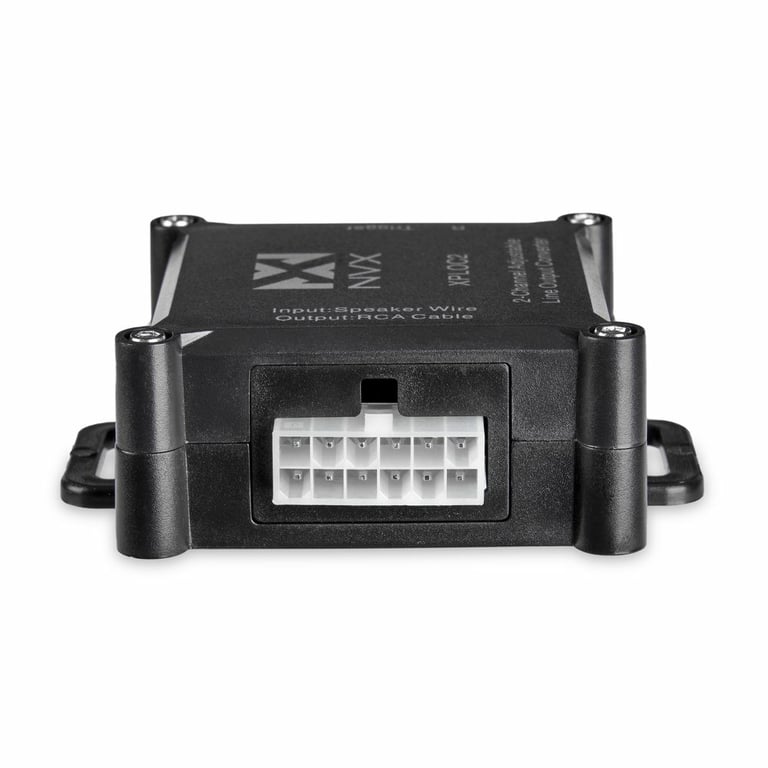

NVX XPLOC2

2-Channel 300W (150W Per Channel) Premium, Super Low Distortion Adjustable LOC
Quantity: 1

Product Features:

  • 2-channel High-powered, 300w Total Maximum Input (150w per channel)
  • Premium adjustable line output converter with digital noise filter and line driver
  • 3:1 Step Down With Adjustable Output
  • DC Amplifier Turn On Trigger
  • Super Low Distortion
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Belva BPKG110v2, XPLOC2 thumbnail
(newest, current model)
Belva BPKG110 thumbnail
(previous model, replaced by 2004-2009 Mazda Mazda3 Complete 10" Subwoofer Package | Belva)

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 1
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
250 watts
Total RMS Power Handling
250 watts
Peak Power Handling
500 watts
Total Peak Power Handling
500 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohms
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
11.81"
Width
14.6"
Depth
5.12"
Enclosure Second Depth
9.45"
Number of Terminals
1
Terminal Type
Spring posts
Box Exterior Color
Black
Box Finish
Injection molded plastic (ABS)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BPKG110v2, XPLOC2

Weight:

26.80lbs

Internal SKU:

04-09-mazda-mazda3-110v2

Internal Product ID:

197400

Customer Ratings & Reviews



5 star
77%
4 star
20%
3 star
3%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.8
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

great for the price

The following review is for XPLOC2, which is a part of the bundle you are viewing.

I bought this item about a month ago and i really like the product. I have had no distortion from my subs. Getting the grounds right and setting up the wires was a small task, but well worth it. I never even adjusted the output frequency on the channels and they sound great.

By steven on January 15, 2014

47

found this helpful.

It works

The following review is for XPLOC2, which is a part of the bundle you are viewing.

Not sure what else to say other than it works. I wanted to ad a subwoofer to my factory system and this did the trick.

By Doug on April 18, 2014

44

found this helpful.

Does the job

The following review is for XPLOC2, which is a part of the bundle you are viewing.

Works as intended. Very responsive.

By rstan on December 8, 2013

42

found this helpful.

unknown

The following review is for XPLOC2, which is a part of the bundle you are viewing.

havent got product installed yet... need a lil more time for quality review

By Luke in OKC on October 31, 2014

47

found this helpful.

Everything NVX is quality.

The following review is for XPLOC2, which is a part of the bundle you are viewing.

I'm a big fan of NVX products now. I owned this so I didn't have to change the stock hi in my scion tc. I eventually uprgades but this allowed me to have a subwoofer while my headunit had no RCAs. Clean and worked well.

By Ryan on January 19, 2014

43

found this helpful.

Stop looking around - this one is perfect!

The following review is for XPLOC2, which is a part of the bundle you are viewing.

I used this converter to add an amplifier to a factory M-Benz audio system. It's running of oem subwoofer speaker wires and feeding a Rockford Fosgate amp with two 8" subs. The system sounds great and this converter has been working flawlessly.

I shopped around before buying - this one has my vote because of its compact size, high input power, amplifier turn on trigger, and adjustable gain output - all nice features to have for a clean install and ability to tune your system.

The only negative I can think of is the very bright red LED power on indicator, which can be a positive if you get creative with placing this item.

By Guba on July 26, 2013

42

found this helpful.

Good product

The following review is for XPLOC2, which is a part of the bundle you are viewing.

I wanted to add a sub in my car without changing the factory radio this product was the solution,very easy to intall.

By fernando on January 27, 2015

42

found this helpful.

nvx

The following review is for XPLOC2, which is a part of the bundle you are viewing.

its a great product works awsome loudest bass ive ever had

By omar on December 6, 2013

40

found this helpful.

Simple, cheap, effective

The following review is for XPLOC2, which is a part of the bundle you are viewing.

I bought a new 2013 Sonata SE in October and was not happy at all with the factory system, mainly because at 70mph on the freeway I couldn't hear the stereo very good even at max volume. Wanted to keep the stock look and features, so I opted to add a 4 channel amp.

I chose the NVX 2 channel line out converter after a Sonic rep recommended it for my situation. I used it to tap into the front speaker wiring behind the head unit, then connected the NVX LOC2 to a HiFonics 4 band EQ that I mounted in my center console storage under the armrest. I ran 4 channels out from that to an MTX Thunder amp that I've had for almost 10 years now and installed new Alpine components in the front doors and Infinity coaxials in the rear doors.

System sounds incredible and I'm glad because I had never used a line out converter before and was concerned about the sound quality potentially suffering. Can't say for sure that a new head unit wouldn't sound even better, but I can say that I am completely satisfied with the sound I'm getting with everything running through the NVX XPLOC2. It also gives you a remote line out to make adding an EQ or amp a breeze. Would definitely recommend.

By Erick on December 18, 2012

39

found this helpful.

Only LOC I will use

The following review is for XPLOC2, which is a part of the bundle you are viewing.

Best value and easy to use. The gain adjustment and amp remote are features you need.

By Jason on April 18, 2014

38

found this helpful.
