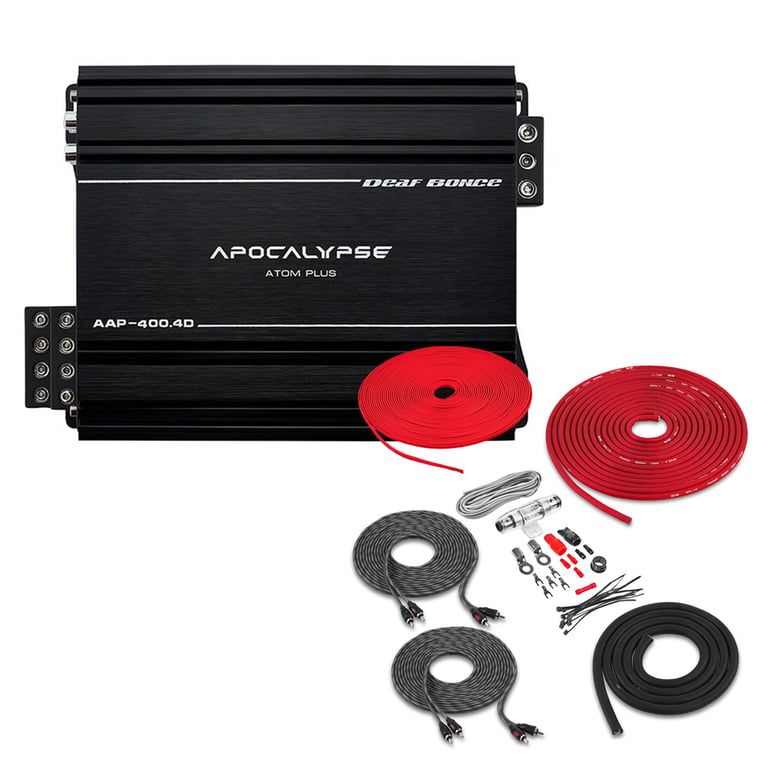

Deaf Bonce AAP-400.4D + Belva BAK84

1666W RMS Atom Plus Series Full Range Class-D 4-Channel Amplifier + Belva 8 Gauge Amp Wiring Kit

highlight-star-icon

• 140 watts x 4 channel @ 4 ohm
• 265 watts x 4 channel @ 2 ohm
• 430 watts x 4 channel @ 1 ohm
• Bridged: 516 watts x 2 channel @ 4 ohm
• Bridged: 833 watts x 2 channel @ 2 ohm
• Total RMS Power: 1666 watts
• Class D 1 Ohm Stable 4-Channel Amplifier

Learn more about the aap4004d_bak84

We apologize

This item has been discontinued


Loading...
72-9303 main

Metra 72-9303

Install New Speakers in select 1998-2022 vehicles from Volvo

-32.44%

$24.99

List price $36.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

Description


Deaf Bonce brand icon

Authorized dealer

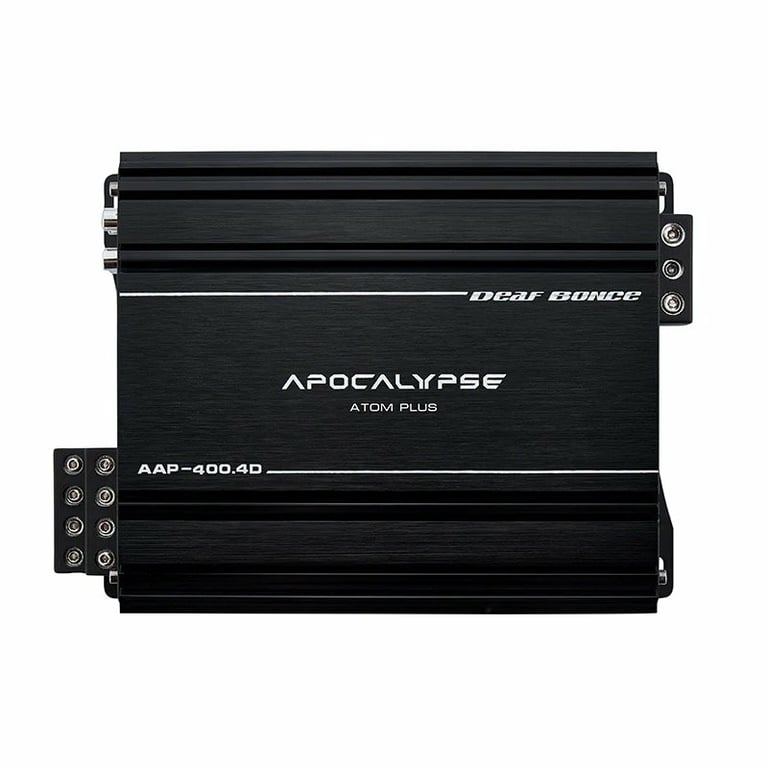

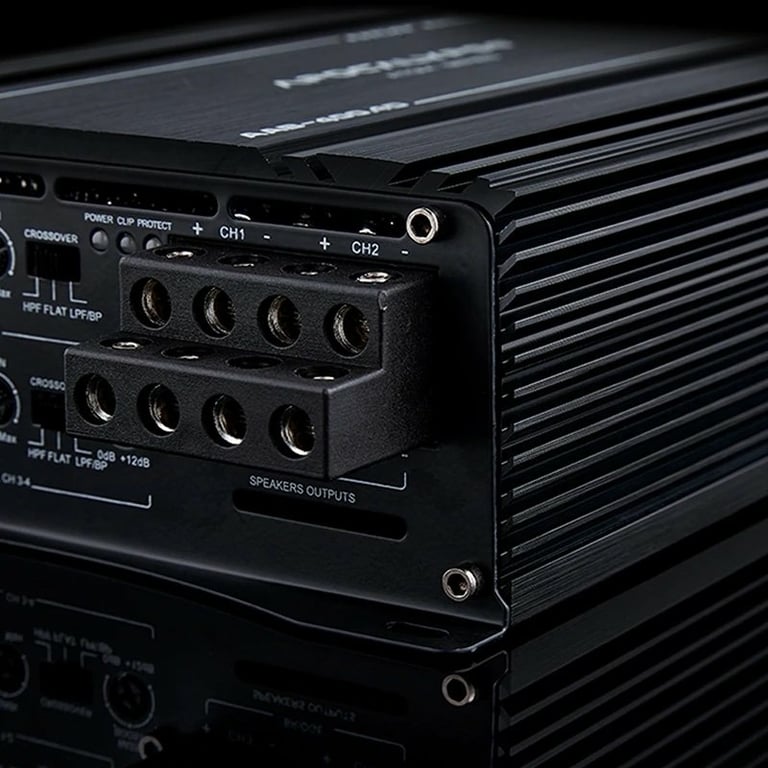

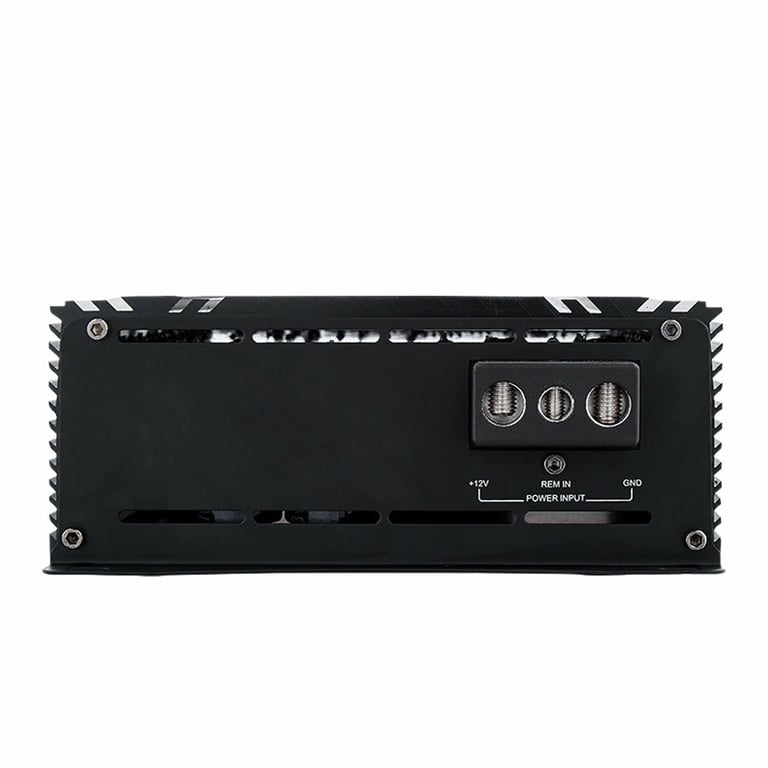

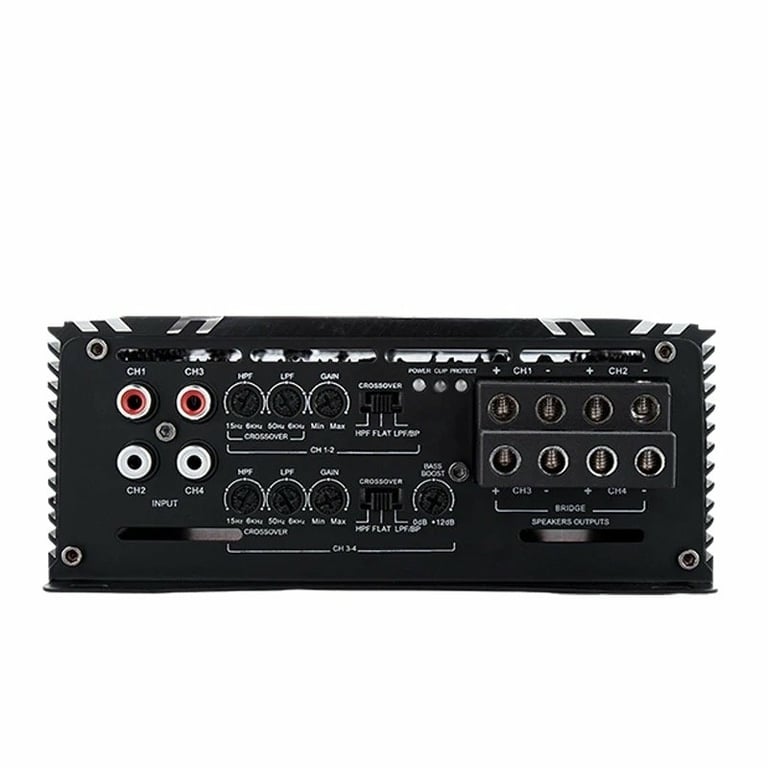

Deaf Bonce AAP-400.4D

1666W RMS Atom Plus Series Full Range Class-D 4-Channel Amplifier
Quantity: 1

Product Details:

  • Apocalypse Series Class D 1 Ohm Stable 4-Channel-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 140 watts x 4 channel
    • 2 ohm: 265 watts x 4 channel
    • 1 ohm: 430 watts x 4 channel
    • Bridged, 4 ohm: 516 watts x 2 channel
    • Bridged, 2 ohm: 833 watts x 2 channel
  • Total power output:
  • Pulse Width Modulated MOSFET power supply
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response: 10 - 20,000 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: 100 dB
  • Variable high-pass filter: 15 - 6,000 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 6,000 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 6.30" W x 8.98" L x 2.50" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK84

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition

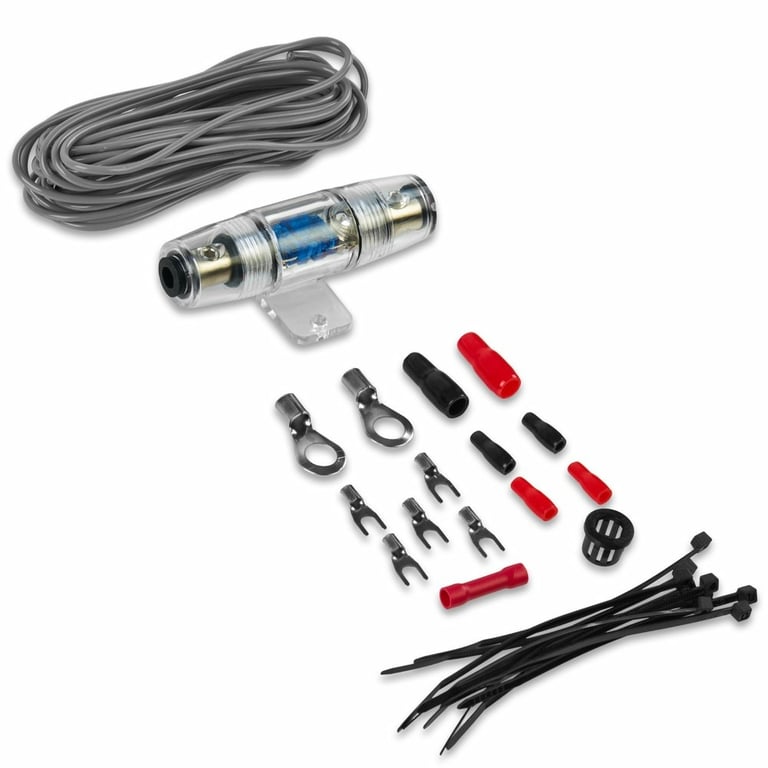

  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

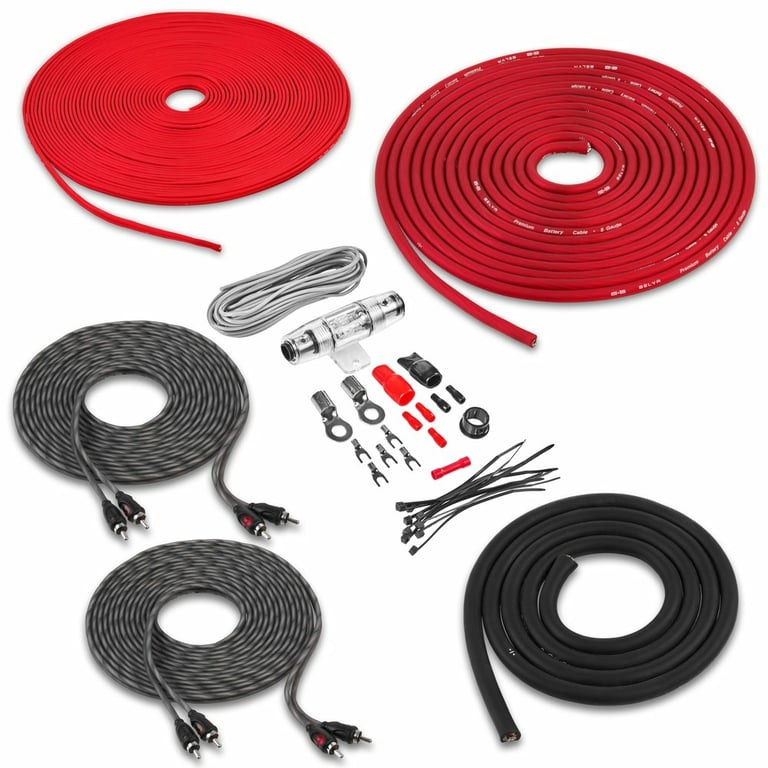

Kit includes:

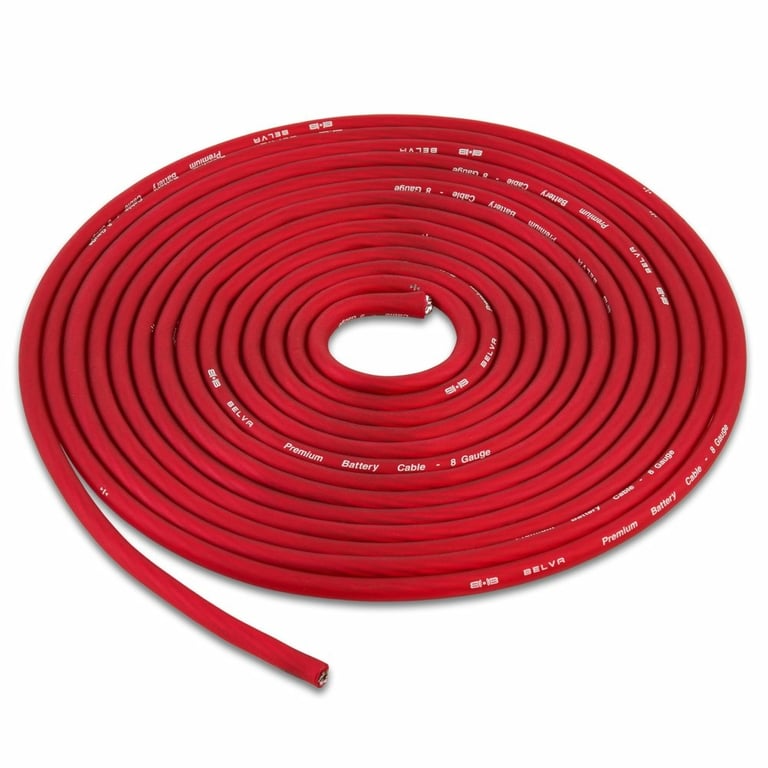

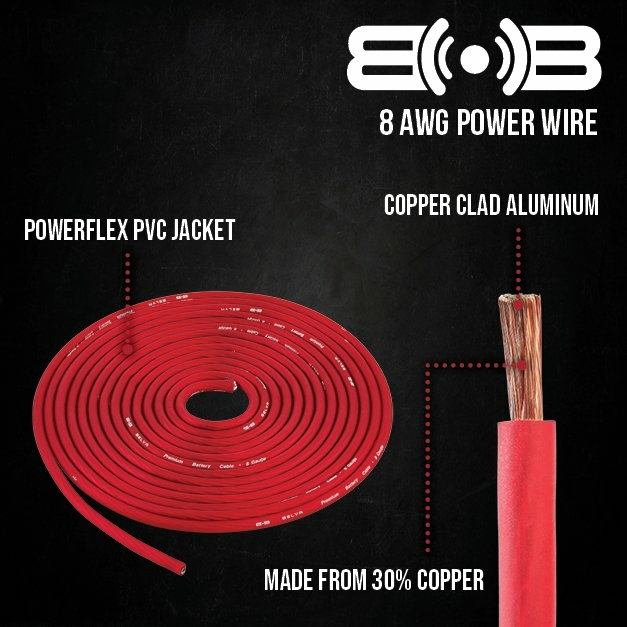

  1. 17 ft. Red 8 gauge power wire

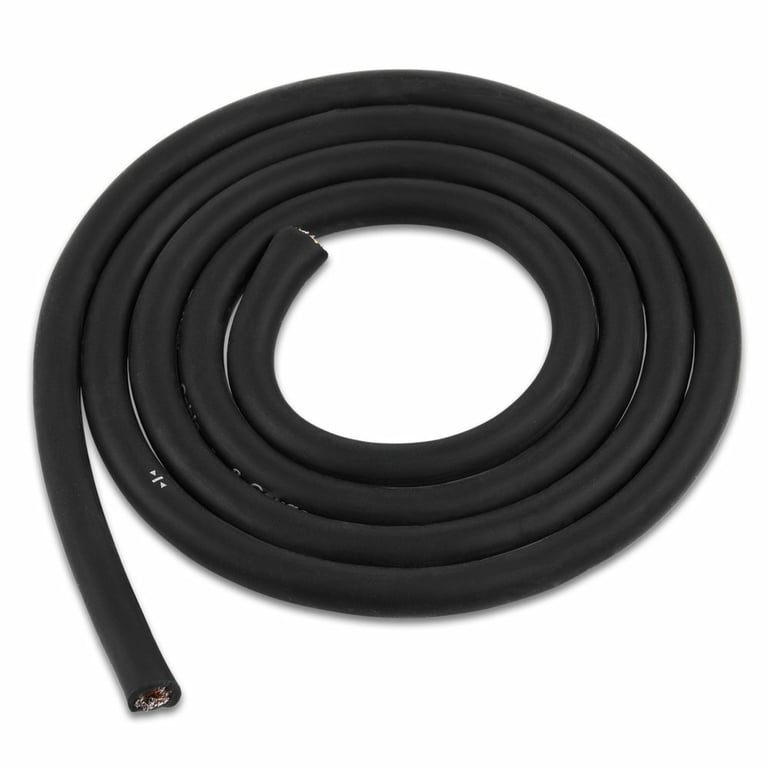

  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 40 ft. 16 gauge speaker wire
  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
140 watts x 4 channel
RMS Power @ 2 ohms
265 watts x 4 channel
RMS Power @ 1 ohm
430 watts x 4 channel
Bridged RMS Power
516 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total RMS Power Output
1666 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
1 Ohm
Minimum Impedance Bridged
2 ohms
Frequency Response
10 - 20,000 Hz
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
15 - 6,000 Hz
Low-Pass Crossover Frequency
50 - 6,000 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AAP-400.4D, BAK84

Weight:

6.80lbs

Internal SKU:

aap4004d_bak84

Internal Product ID:

197618
