Product Highlights


Bass Package: Hifonics BXi2010D Monoblock Amplifier + 2 Pioneer TSW3002D4 12" Subwoofers + Tsunami 1/0 Gauge Amp Kit + Absolute Dual 12" Sub Box • Includes Everything You Need To Add Bass To Your Car

Description


Hifonics brand icon

Authorized dealer

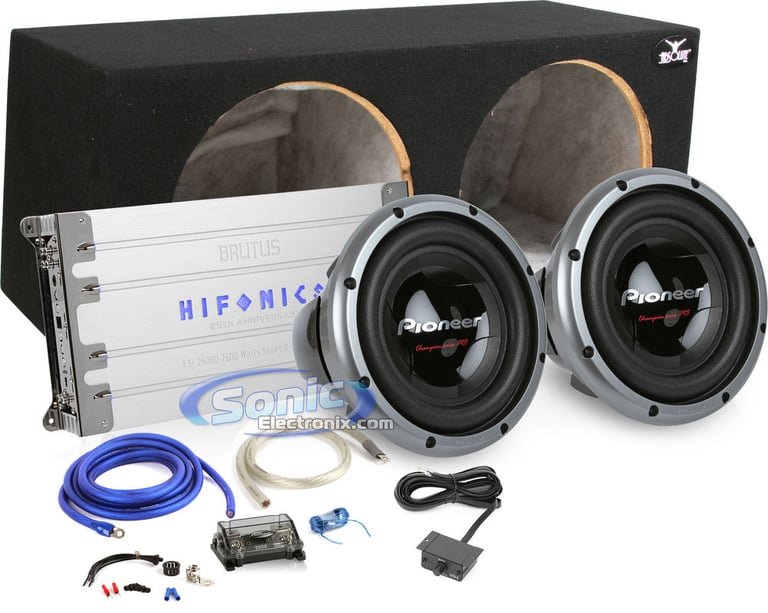

Sonic Electronix Exclusive Bass Package

This combo package includes two Pioneer Champion PRO Series 12" Subwoofers and a Hifonics Class D Brutus BXi Series Amplifier. This monoblock amplifier is a great match for the 12" subwoofers when wired at 1 ohm. The Pioneer subwoofers feature a carbon fiber reinforced IMPP cone with 3-layer fiber woven aramid radial with honeycomb cloth surrounds. The amplifier is equipped with DC, speaker short, thermal, overload protection circuitry and includes a wired remote bass level control. This exclusive package also includes an Absolute sealed 12" sub enclosure and a Tsunami 1/0 gauge amplifier kit to make all the necessary power connections. Sonic Electronix is the only place you will find this perfectly matched combo.

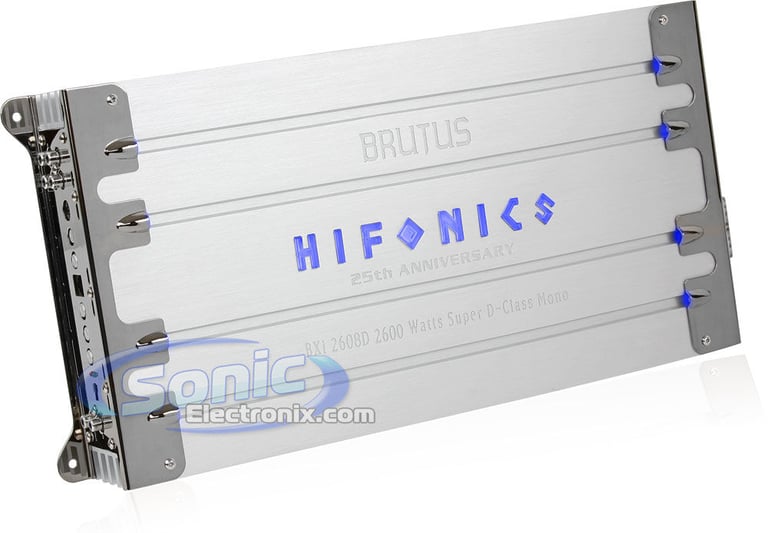

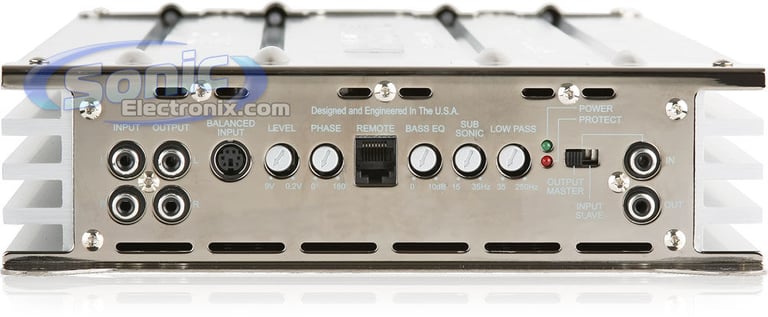

Hifonics Amplifier Features
  • Brutus BXI Single-Channel Monoblock Super-D Class Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 650 watts x 1 chan.
    • 2 ohm: 1300 watts x 1 chan.
    • 1 ohm: 2000 watts x 1 chan.
  • MOSFET Power supply
  • Super D-Class amplifier relies on a super-speed enhanced chip-set to produce higher current capacities and more precise digital to analog conversions

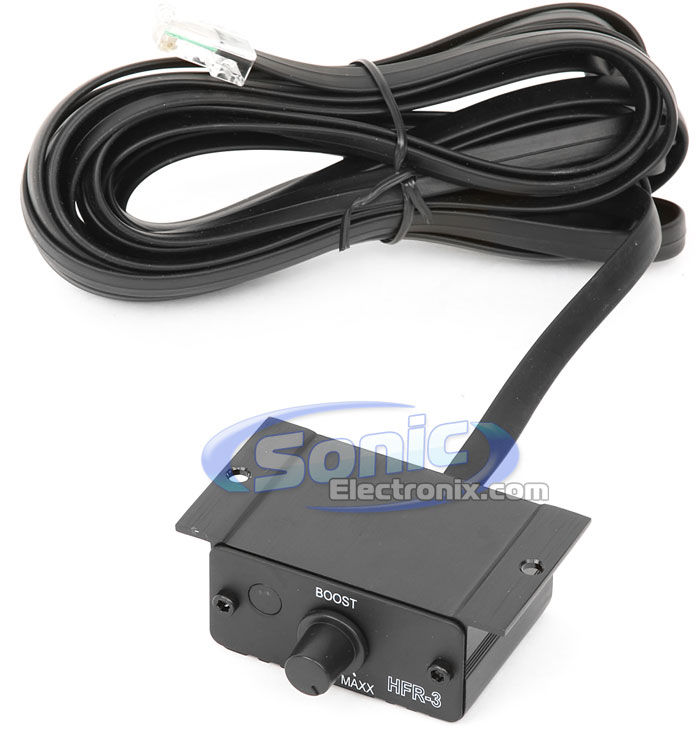

  • Wired remote bass level control included
  • Power and Protection LED indicators
  • Built-in system diagnostics offer protection of DC, Speaker short, terminal, and overload
  • Tuned Bass EQ (0-10 dB bass boost at 45 Hz)
  • Dampening factor: >250
  • Single-channel monoblock channel operation
  • 1-Ohm stable
  • Phase shift: 0-180 degrees
  • Preamp RCA outputs
  • Input level control: 0.04V - 18V
  • Balanced line input for MX accessories and line drivers
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • RCA level inputs

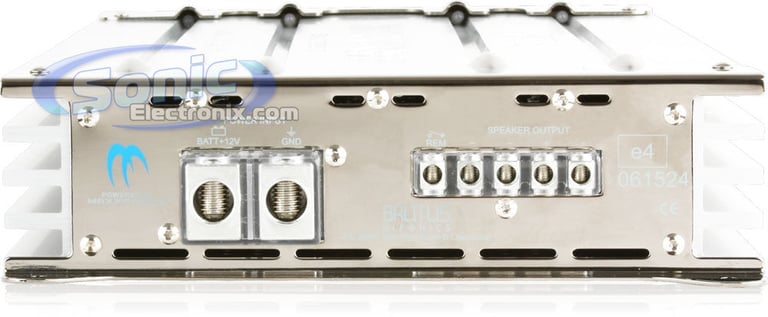

  • Screw terminals
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic Filter (15-35 Hz at 24 dB)
  • Frequency response: 35-250 Hz
  • Dimensions: 15"L x 9-1/2"W x 2-1/2"H
  • Authorized Internet Dealer
  • 90-Day Manufacturer's warranty
  • Item Condition: Factory Refurbished

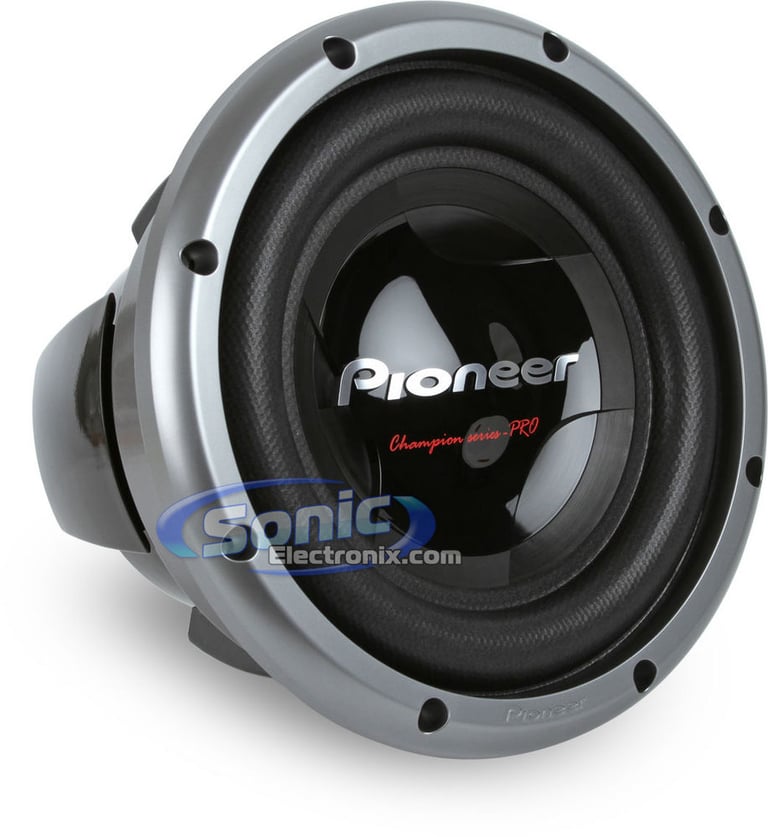

Pioneer Subwoofer Features

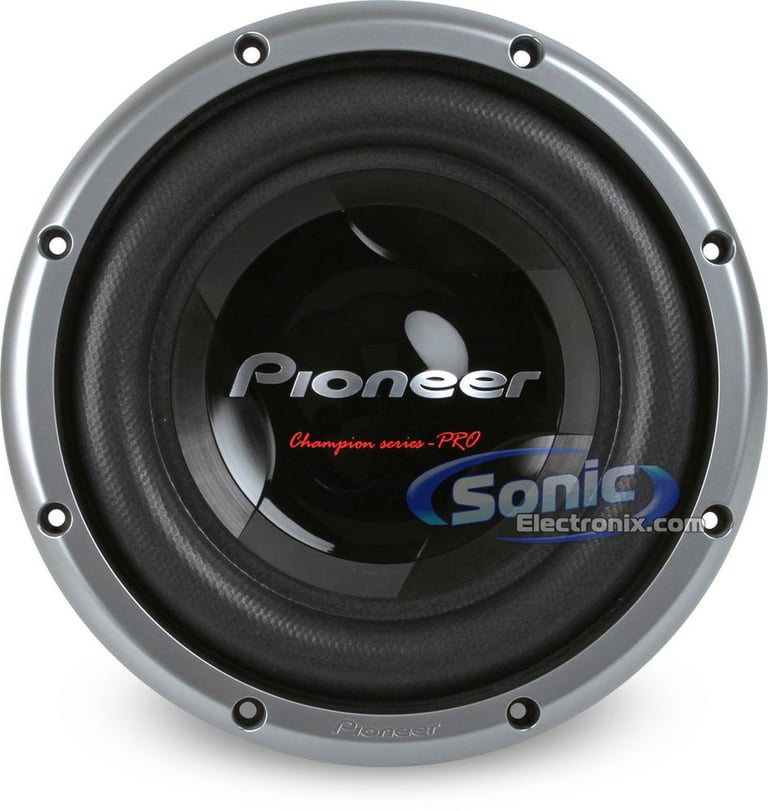

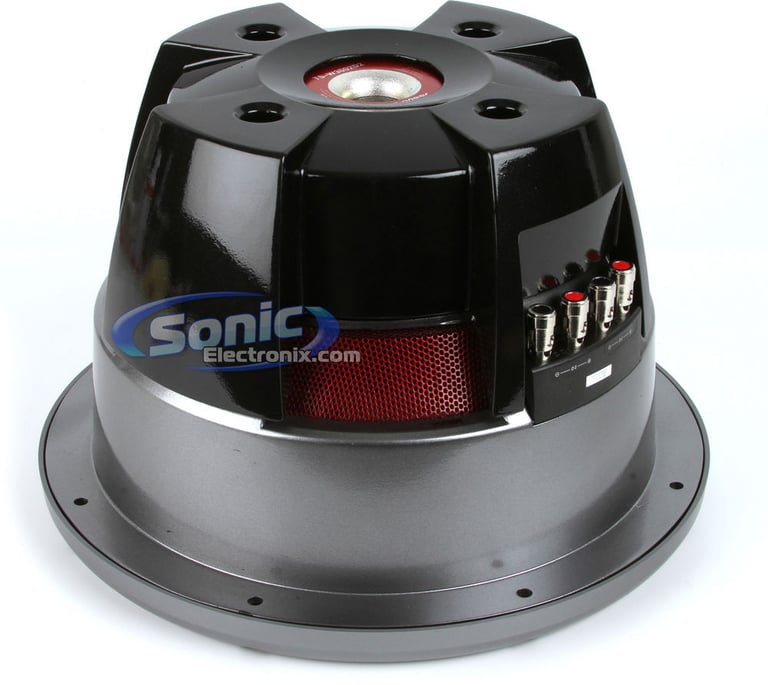

  • Two 12" Dual 4 ohm Champion PRO Series Subwoofers
  • Power Handling:
    • Peak: 7000 watts total / 3500 watts each
    • RMS: 2000 watts total / 1000 watts each
  • Impedance: Dual 4 ohm
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Wide-roll, 3-layer fiber woven aramid radial with honeycomb cloth surround
  • Phenol resin coated glass cloth bobbin
  • Copper voice coil wire
  • Dual 4-layer, long voice coil
  • Double stacked (110oz) magnet
  • Frequency response: 20-150 Hz
  • Sensitivity: 90 dB
  • Aluminum die-cast rigid chassis basket design
  • 1-Piece rubber gasket
  • Integrated single-sided silver compression wire terminals
  • 2-year SonicElectronix.com warranty

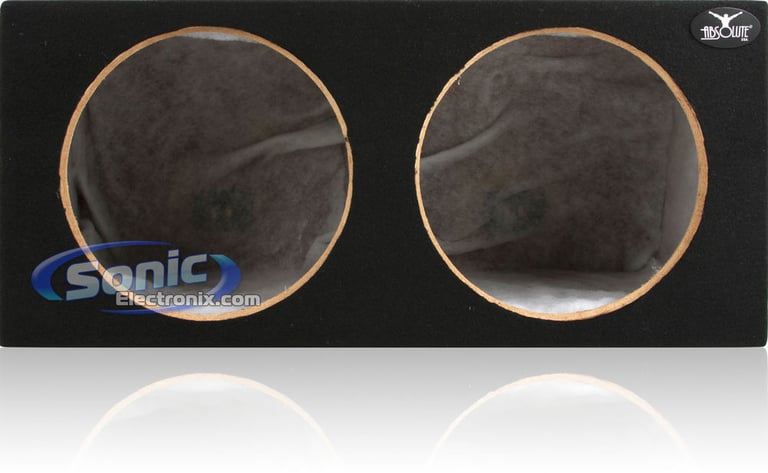

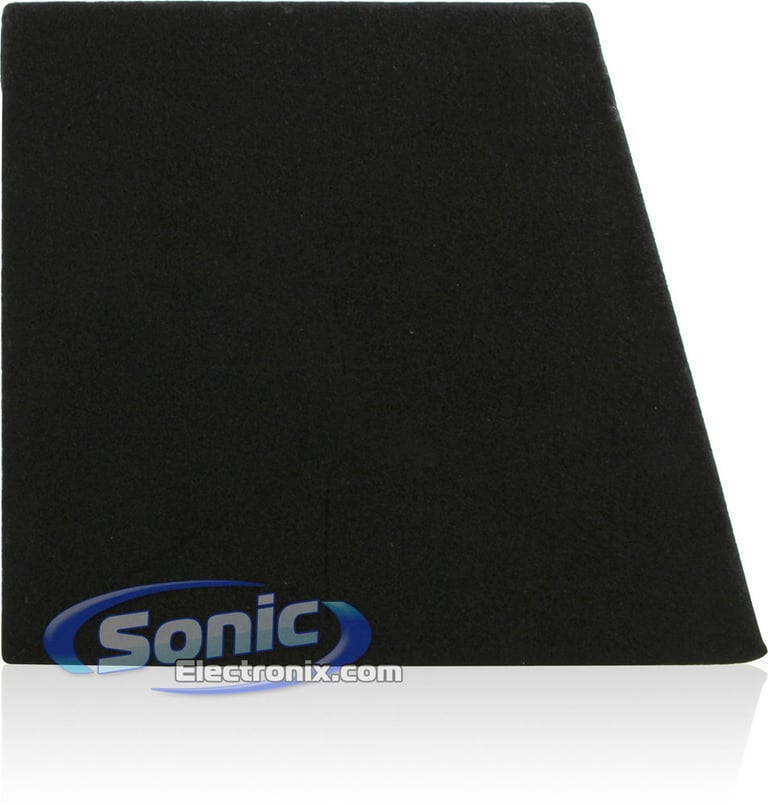

Enclosure Specifications

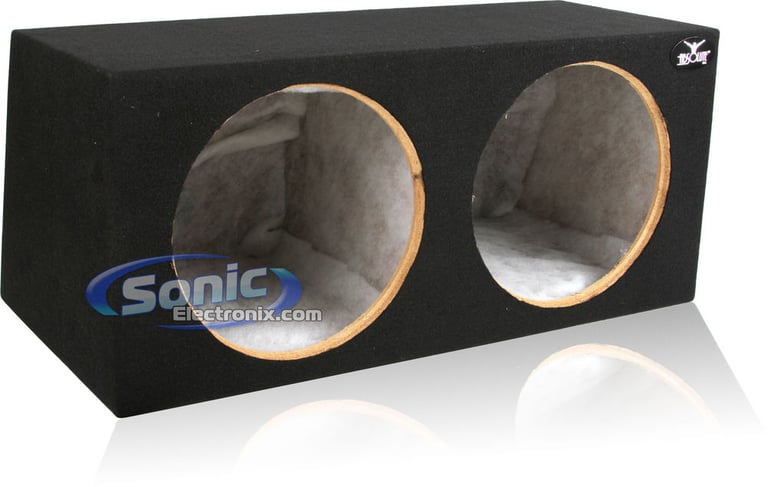

  • 12" Dual Universal Sealed Enclosure
  • Covered in black carpet for durability

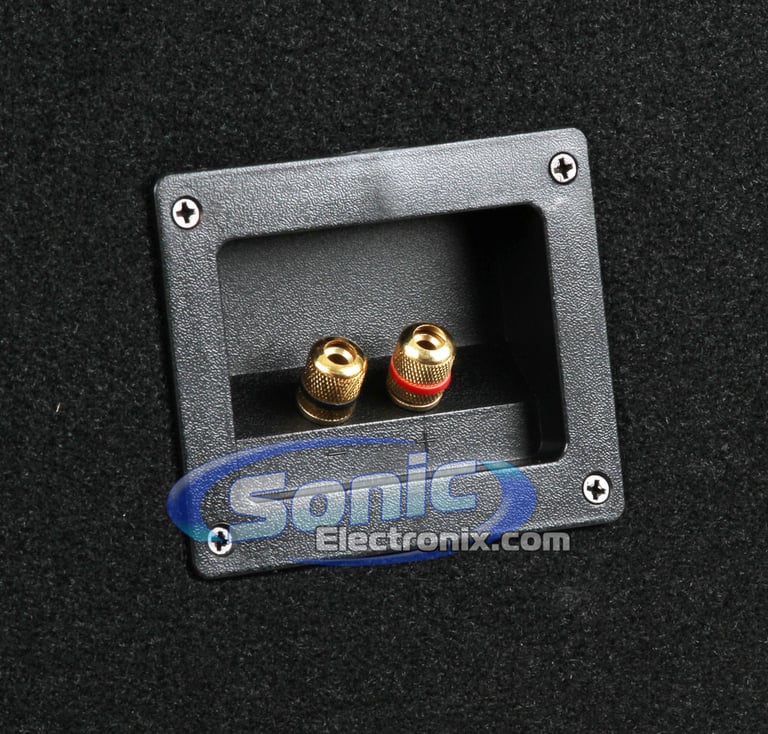

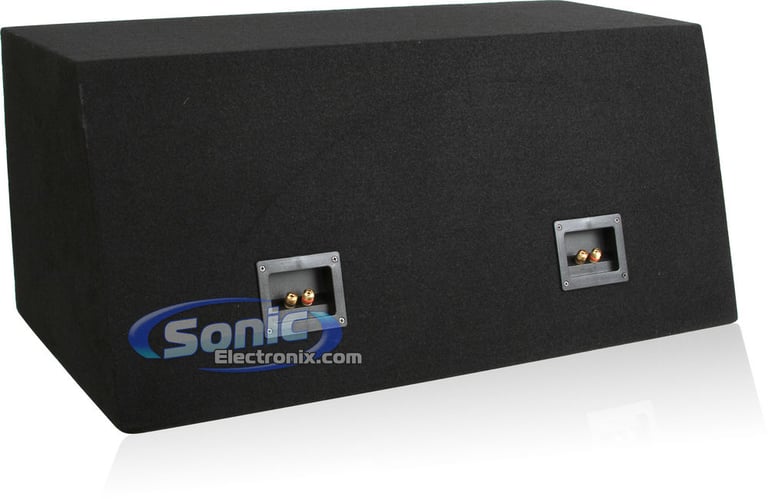

  • Two sets of binding posts
  • Banana clip ready for easy wiring
  • Two sealed chambers gives each subwoofer its own air space
  • Poly-fil lining for enhanced bass
  • 3/4" MDF(Medium Density Fiberboard) construction
  • Subwoofer mounting depth: 12-1/4"
  • Subwoofer cutout diameter: 11-1/4"
  • Box volume: 1.15 cubic feet (per chamber)
  • Total box volume: 2.29 cubic feet
  • Dimensions: 12"TD x 15-3/4"BD x 30"W x 13-1/2"H
  • Authorized Internet Dealer

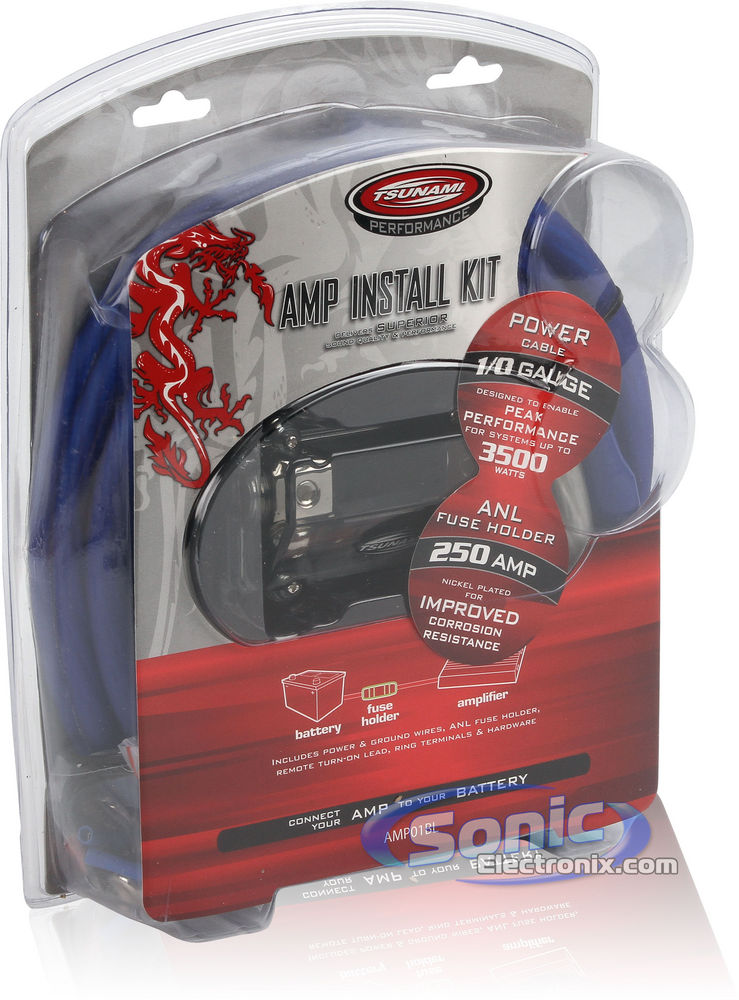

Tsunami Amplifier Kit Features
  • 1/0 Gauge Performance Amplifier Installation Kit
  • Rated for systems up to 3500 watts
  • Designed for the connection of a single amplifier
  • Kit includes all cables and parts needed for installing a high power amplifier
  • Primary power cable has semi-translucent insulation
  • Fuseholder is clear plastic and wears its fuse to the side of the product
  • Authorized Internet Dealer
Amp Kit Includes

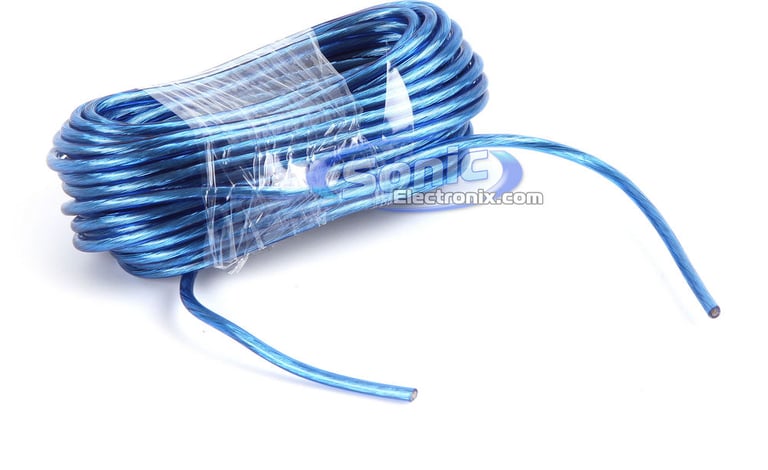

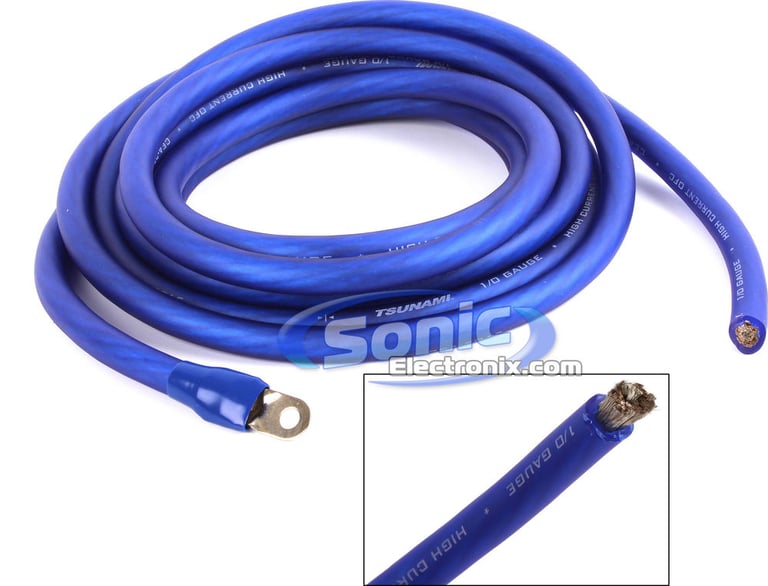

  1. 17' 1/0 Gauge Blue Power Cable

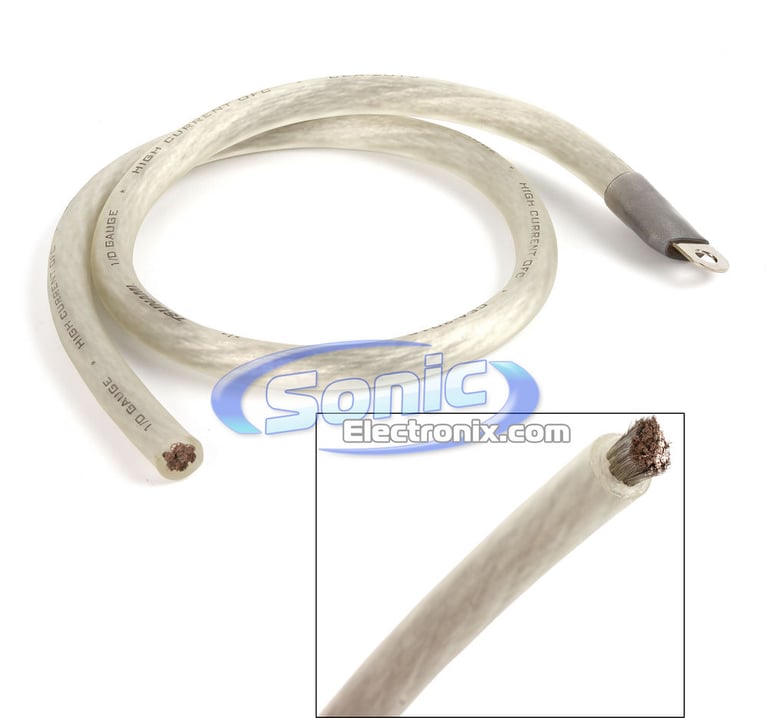

  2. 3' 1/0 Gauge Silver Ground Cable
  3. 17' 18 Gauge Blue Remote Turn-on Wire

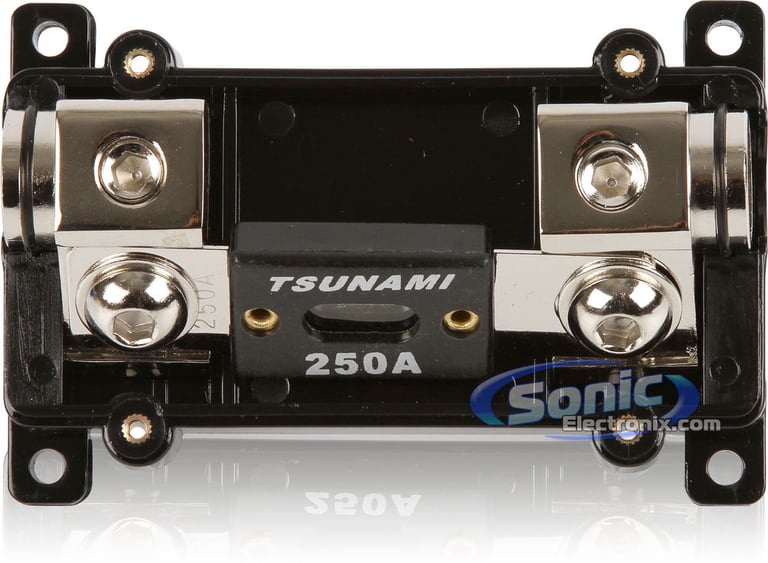

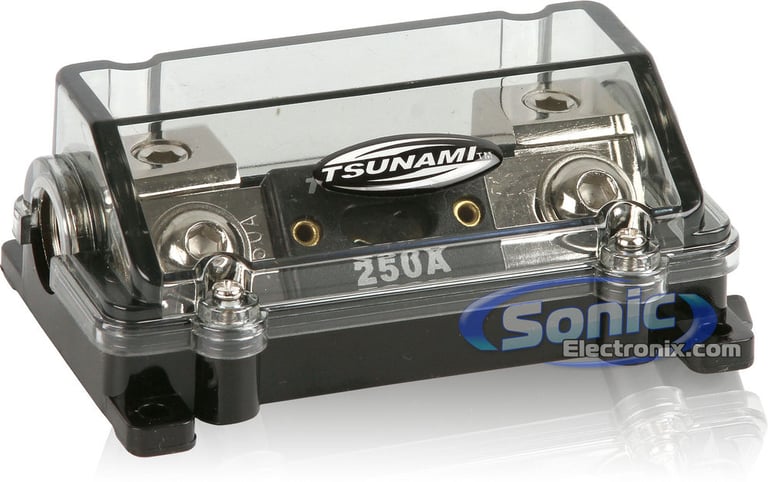

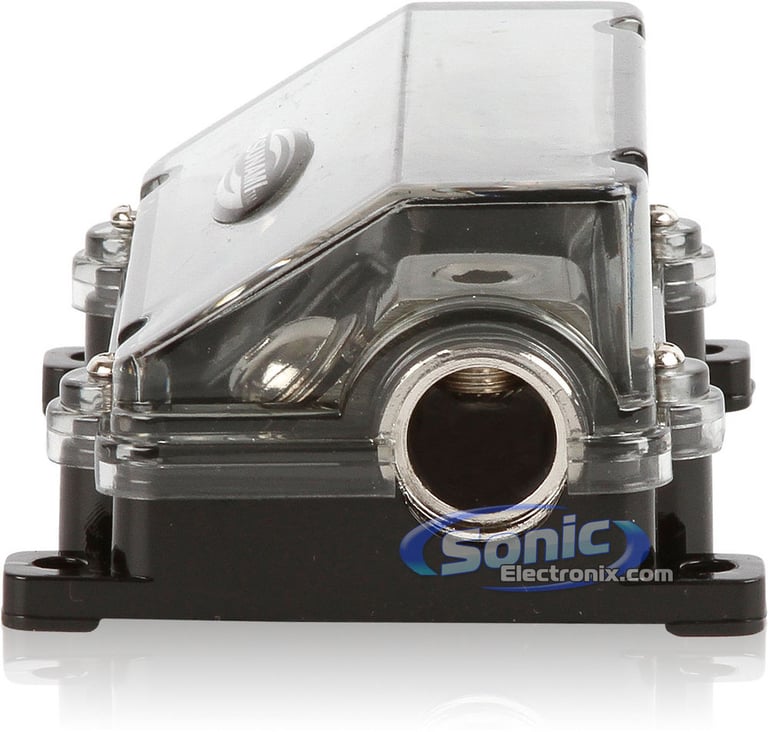

  4. 1/0 Gauge 1 Position ANL Fuseholder
  5. 250 Amp ANL Fuse
  6. Two 1/0 Gauge to 5/16” Nickel-Plated Ring Terminals
  7. Blue and Silver Insulators
  8. Heavy Duty 1/0 Ga to 5/16” Nickel-Plated Ring Terminal
  9. Clear Insulator
  10. Heavy Duty Nickel-plated Ground Terminal

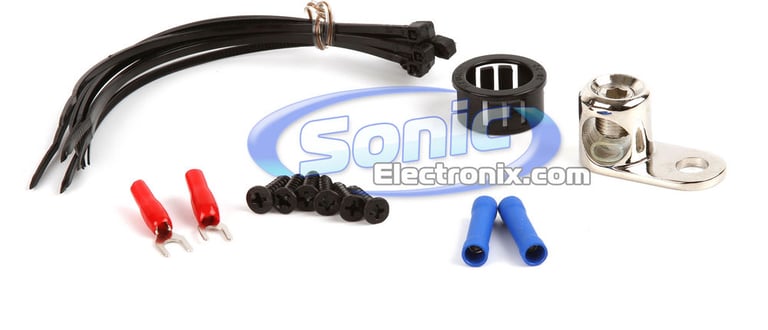

  11. Ten 6” Cable Ties

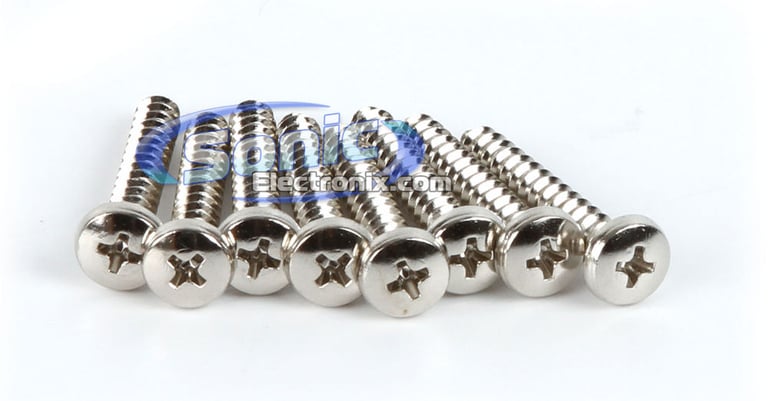

  12. Six #8 x 3/4” Phillips Nickel-Plated Panhead Screws
  13. Two Red Vinyl #10 Nickel-Plated Spade Terminals
  14. 2 Blue Vinyl Butt Connectors
  15. 1/0 Gauge Snap Grommet

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
650 watts x 1 channel
RMS Power @ 2 ohms
1300 watts x 1 channel
RMS Power @ 1 ohm
2000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
1/0 AWG
THD at Rated RMS Power
0.08%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
1000 watts
Total RMS Power Handling
2000 watts
Peak Power Handling
3500 watts
Total Peak Power Handling
7000 watts
Woofer Surround
Wide-Roll 3-Layer Fiber Radial
Woofer Composition
Carbon Fiber
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
90 dB
Frequency Response
20 - 150 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Hatchback Style, Angled Back
Height
13-1/2"
Width
30"
Depth
12"
Second Width
15-3/4"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BXi2010D-RB_TS-W3002D4

Weight:

116.20lbs

Internal SKU:

LS-bxi2010d-RB_2-tsw3002d4

Internal Product ID:

29605

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


7000W Complete Hifonics + Pioneer Bass Package thumbnail image

5 star
78%
4 star
16%
3 star
3%
2 star
1%
1 star
2%



Durability
4.6
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

wow

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

Got these pounding best subz for the value of them

By Omar on December 16, 2013

64 found this helpful


BeASTLY subs!!!

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

I have 2 of these bad boiz in my 85 caprice in a ported box and let me tell you they bang!. they shake my car like crazy. i have them on a 5500 watt power acoustik ovn wired at 4 ohm so its only pushing like 1700 rms to them and it is ridiculous!. i plan on getting two more and making a custom ported box for all 4. i would definitely recommend these subs for anyone who wants some killer subs for a crazy price! thank you sonic electronix you rule!

By the kid on February 25, 2011

45 found this helpful


great buy

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

I've got one powered by a Crunch Pzi 1000.1 and its hitting hard...if u do get this be sure to have at least 1000 watts to push it other wise its not gonna have enough power and be sure to get a nice ported box...i bought a cheap sealed bow and blew it apart...besides that its definitely one of the clearest and smooth 12 I've heard.

By logan on March 19, 2009

41 found this helpful


Pioneer Premier TS-W3002D4

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

I love Pioneer subs, i have owned many many Pioneer and Premier subs, iv also owned other brands as well.....Orion, Diamond audio, Kicker, MTX and RF. I keep coming back to Pioneer because i love their sound and design. I have a single Pioneer Premier TS-W3002D4 in a 1cuft sealed enclosure, being pushed by a Pioneer PRS-D1200M. the sub is rated at 1000 rms, i am only giving it 600 rms and it sounds amazing. I plan on buying another Pioneer PRS-D1200M and strap it to the one i have, cant wait to see what this thing can do on 1200 watts!

Anyhow, the sub hits very low, very clean and very hard, it keeps up with everything i play and can get loud too. I Listen to about 80% hard rock/metal, and the other 20% is comprised of hip hop, electronic/industrial and pop rock. This sub makes all my music collection sounds great. It is a very musical sub, with good SQ if you are a rock fan, The Deftones never sounded so good, lol. And for a sealed enclosure it can really hit hard for hip hop fans, but i hear that in a ported enclosure these things can make hip hop sound amazing. I would venture to say that this a SQL sub.

i Have a friend that has 2 Diamond Audio D6 15's, and needless to say they sounds AMAZING and get INSANELY loud. He is the guy you hate because he has the cash to buy an incredible and expensive system. But when ever he rides with me, he always says how impressed he is with how well my one sub sounds off 600 watts.

Looks, in my opinion the Pioneer TS-W3002D4 is a sexy looking sub in and out of an enclosure, but still manages to look mean. The sub is built like a tank, and is heavy as hell. The pictures do not do it justice. i love the contrast of the black mat finish of the cone against the shiny black high gloss of the dust cap. Just plain sexy!

I dont care if people can hear me from two blocks away or if i set off alarms. i just want a sub that hits hard, clean, accurate and gets loud. The Pioneer TS-W3002D4 does that and does it well. Its not the best subwoofer in the world, and its not the most efficient, it requires a lot of power to really preform. But if you put it in the right enclosure, and give it the right amount of power, you will be surprised at what this $140 sub can do. I dont thing you will find a better preforming sub in this price range, and it can hang with the big boys like JL, Alpine, and Diamond. Well worth the money!

By michael on September 5, 2009

40 found this helpful


Greatt Speakers

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

I never really liked Pioneer speakers but when i got these i was very impressed. These speakers are the truth if you hook them up right. Got 2 of these and a 3000 watt amp and they aint no joke.

By Tyrone on March 7, 2012

38 found this helpful


MUST!

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

I got one of these in my pontiac grand am and man let me tell you that with this price for this sub you can't go wrong. looking to get another one in the near future and also continuing my business with sonic!!

By eric on June 9, 2009

38 found this helpful


Pioneer does it right!

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

Very powerful, heavy, and beautiful subwoofer as soon as I unboxed it. I used to have this in a premade ~ .75 cubic ft sealed box and I felt that it could do more. I made a custom box ~ 1.35 cu ft and it destroys my trunk even with 2 layers of peel n seal. Probably gonna need second skin or dynamat now. Pushed by an SPL GRLA5500/1D amplifier, 0 gauge all around.

By Robbie on March 14, 2012

36 found this helpful


Amazing

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

This sub hits so hard. Have it connected to a 1400watt rms amp. Thing pounds.

By Justin on February 26, 2012

36 found this helpful


pioneer

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

I would recomend these as start up.

By cadillac on February 17, 2012

36 found this helpful


More bang for your buck!!!

The following review is for TS-W3002D4, which is a part of the bundle you are viewing.

I bought a pair of these just to see if the revivews and vids on YouTube were true. YUP ALL TRUE! Have mine in 2 individual sealed boxes @ 1.2 cf each. With 1000 watts feeding each sub in my 1986 SS Monte Carlo and it sounds AWESOME!! Clean, pounding and responsive bass!!!

By BJ on April 15, 2012

35 found this helpful




No picture

Sundown Audio SFB-1000D (Open Box, Great)

1000W RMS Class D SFB Series Monoblock Car Amplifier

(1)

$239.99

List price $287.99

RTX108 2 Pack small

(2) MTX Thunder (RTX108) 10” Mid-bass/Midrange Pro Audio Speakers

500W Max (250W RMS) Mid-Bass Driver Package

(3)

$219.90

List price $199.90

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Mitsubishi Eclipse

1978 BMW 320i

2004 Dodge Dakota

2000 Chevrolet Astro

2013 Subaru BRZ

2009 Subaru Forester

2010 Lexus SC430

2016 Mazda 6

2014 Honda Pilot

2016 BMW M2

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
