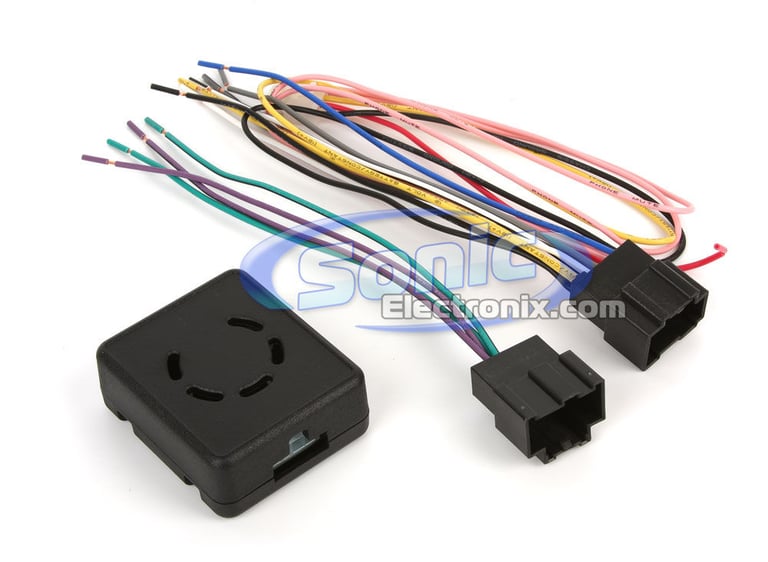

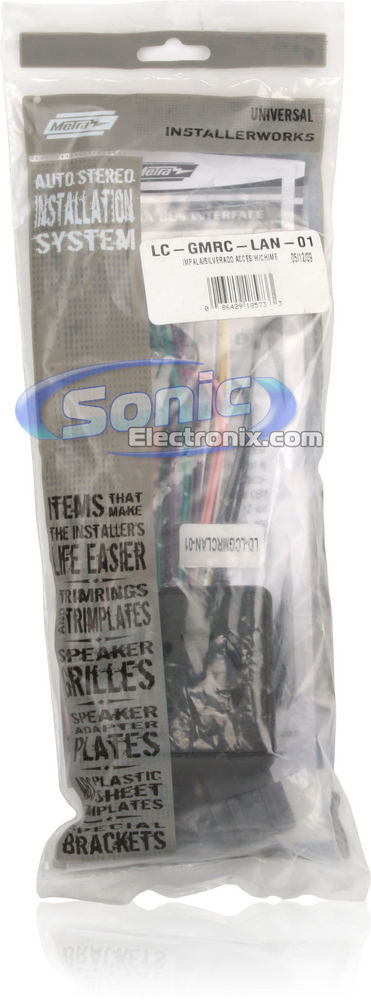

Axxess LC-GMRC-LAN-01 Wiring Interface

Install a new car stereo and retain the safety warning chimes in select 2006-2019 vehicles from GMC, Chevrolet, Cadillac

Axxess
Shop all Axxess
highlight-star-icon

• Provides 12-Volt accessory power (RAP)
• Compatible with non-amplified audio systems
• Micro-B USB Updatable

See compatible vehicles Learn more about the lcgmrclan01

We apologize

This item has been discontinued


Loading...
70-7001 main

Metra 70-7001 Wiring Harness

Install a new car stereo in select 1992-2012 vehicles from Mitsubishi, Eagle, Dodge

7
Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

43DSC404 main

Kicker DSC40 (43DSC404)

240W Peak (60W RMS) 4" DS Series 2-way 4-ohm Coaxial Car Speakers

2
-13.34%

$64.99

List price $74.99

Limited time!
46CSS654 main

Kicker CSS65 (46CSS654)

600W Peak (200W RMS) 6.5" CS Series 2 Way Component 4-ohm Speaker System

9
-28.02%

$143.96

List price $199.99

SXE-1751S main

Alpine SXE-1751S

440W Peak (80W RMS) 6.5" SXE-Series 2-way 4-ohm Component Speakers with Mylar-Titanium Tweeters

4
-16.67%

$64.99

List price $77.99

XED42 main

Cerwin-Vega XED42

300W Peak (40W RMS) 4" XED Series 2-Way Coaxial 4-ohm Speakers

4
-16.67%

$39.99

List price $47.99

STAGE2524 main

JBL STAGE2524 (STAGE2 524)

420W Peak (70W RMS) 5.25" Stage2 Series 2 Way Coaxial 4-ohm Speakers

3
-44.49%

$49.95

List price $89.99

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

Description


Axxess brand icon

Authorized dealer

Product Features:

  • Compatible with select 2006-2019 vehicles from GMC, Chevrolet, Cadillac
  • Designed to install a new aftermarket car stereo and retain waring chimes
  • Provides accessory power (12-volt 3-amp)
  • Retains R.A.P. (retained accessory power)
  • Provides NAV outputs (parking brake, reverse, and V.S.S)
  • Retains all safety and warning chimes
  • For non-amplified models, or when bypassing a factory amplifier
  • Retains balance and fade
  • Micro-B USB updatable
  • Authorized Internet Dealer
  • 1 Year Manufacturer's Warranty

Connections:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

The vehicle you have selected 1997 Mitsubishi Eclipse is not compatible. Change vehicle or See list of compatible similar products


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

70-7001 small

Metra 70-7001 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(7)

$7.99

List price $6.99

MI03B small

Scosche MI03B Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(3)

$14.99

List price $20.95

70-7003 small

Metra 70-7003 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(4)

$18.99

List price $46.99

70-7004 small

Metra 70-7004 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

$23.99

List price $26.99

DWH62A small

PAC DWH62A

• OEM amplifier retention harness for aftermarket stereos
• Compatible with select 1991-2007 vehicles from Mitsubishi, Dodge
• Connects to the vehicle's factory harness

$16.00

List price $24.00

DKGM-49 small

Crux DKGM-49 Stereo Replacement Interface

• Stereo Replacement Interface with Dash Kit
• Fits select 2006-2020 vehicles from GMC, Chevrolet, Buick Vehicles
• Accommodates ISO Double DIN Mount
• Retain steering wheel controls and chime functions

(41)

$129.60

List price $201.60

70-1771 small

Metra 70-1771

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(51)

$12.99

List price $6.99

70-1761 small

Metra 70-1761 Wiring Harness

• Direct connection to the factory radio harness
• Color coded wires for easy installation
• No cutting or splicing required

(97)

$5.99

List price $6.99

70-5520 small

Metra 70-5520 Wiring Harness

• Direct Connection to the factory harness
• Color coded wires for easy installation
• No cutting or splicing required

(56)

$9.95

List price $6.99

C2R-CHY4 small

PAC C2R-CHY4 Wiring Interface

• Provides 12-Volt accessory power (RAP)
• Designed for non-amplified and amplified models
• Retains balance and fade
• Pre-wired for steering wheel audio controls

(25)

$99.99

List price $299.00

Specifications & Details


Harness Features
Vehicle Sound System
Premium Sound
Main Harness Function
Connect/Install an Aftermarket Car Stereo
Additional Harness Features
Chime Retention
Retained Accessory Power (RAP) Retention
Premium Harness Features
Factory System Amplification
Non-Amplified
On-Star Compatible
No
CAN-BUS Compatible
No
GM-LAN Compatible
Yes
Compatible with Aftermarket Navigation Systems
No
Chime Retention
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LC-GMRC-LAN-01

Weight:

0.29lbs

Internal SKU:

lcgmrclan01

Internal Product ID:

19876

Customer Ratings & Reviews


Axxess LC-GMRC-LAN-01 Wiring Interface thumbnail image

5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great Product!

The Access LC-GMRC-LAN-01 was easy to install and works perfectly in a 2013 Chevy Silverado without On-Star. It retains the warning chimes and turn signals and the R.A.P. Very good price since other online stores wanted 3 times as much for the same type product.

By Brian on April 16, 2014

40 found this helpful


pmoreno818

i have an 07' Avalanche. If you don't care about keeping the on star, this will hook you up. i think... this item was pretty cost effective btw.

By pmoreno on September 17, 2013

32 found this helpful


Really Works

Replaced the oem radio in my 2006 chevy impala with a JVC used this product to keep all the warning bells and car sounds works great no problems simple install so far so good .

By Tj on September 22, 2013

31 found this helpful


low cost alternative

Install was easy, no turn signal sound, other chimes OK.

By daniel on July 18, 2011

30 found this helpful


Easy

Bought for an '08 upgrade Vue. It worked great. All that matters.

By Kyle on August 20, 2012

30 found this helpful


Be aware no Onstar

Great product factory plugs, so install is a snap,it retains chimes, but if you want Onstar, get the more expensive one.
If you don't want or need onstar as I don't its the ticket
2008 Silverado

By GT on November 9, 2011

27 found this helpful


Must Have

I bought this for my 2007 Suzuki XL7 It made installing an aftermarket head unit a snap its plug n play and you keep all the waring chimes.
Thanks Sonic.

By Paul on April 27, 2010

28 found this helpful


Works Great

I would use again. This is a much better value to keep factory chimes working if you don't have onstar than buying a $200 onstar interface that has this feature built in it. That is what the local shops wanted to sell me.

By Andrew on December 17, 2012

25 found this helpful


Audio Install

I used the harness to interface with the stock wiring in a 2012 Silverado. Straight forward and easy to install.

By JimmyD on March 24, 2018 Checkmark Icon Verified purchase

10 found this helpful


Excellent product

Excellent product great fast shipping easy use and wire up 10+ best price

By Drew jones on April 15, 2018

9 found this helpful



LC-GMRC-LAN-03 small

Axxess LC-GMRC-LAN-03 Wiring Interface

Install a new car stereo and retain the safety warning chimes in

(7)

$49.99

List price $99.99

A12001DT small

Audiobahn A12001DT

2400W Max, Class D Monoblock Amplifier

(3)

$329.99

List price $824.99

No picture

Dual 12" PORTED MDF Subwoofer Enclosure (middle / center ports)

(12)

$59.99

List price $149.99

DUB12BP small

DUB Mag Audio DUB12BP by Audiobahn

Dual 12" Loaded Enclosure, Amplifier and Amp Kit

(3)

$129.99

List price $399.99

PBB122 small

Alphasonik PBB122 Dual 12" Loaded Sealed Enclosure

(1)

$129.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1984 Dodge Ram 50

1997 Mitsubishi Eclipse

2005 Land Rover LR3

1996 Toyota Tercel

2007 Toyota Avalon

2019 Chevrolet Corvette

1987 Mazda B Series

2020 Audi SQ7

1995 Volvo 850

2005 Mitsubishi Eclipse

Vehicle
Store
Delete

2022 Harley Davidson FLRT Freewheeler

1950 Harley Davidson EL

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
