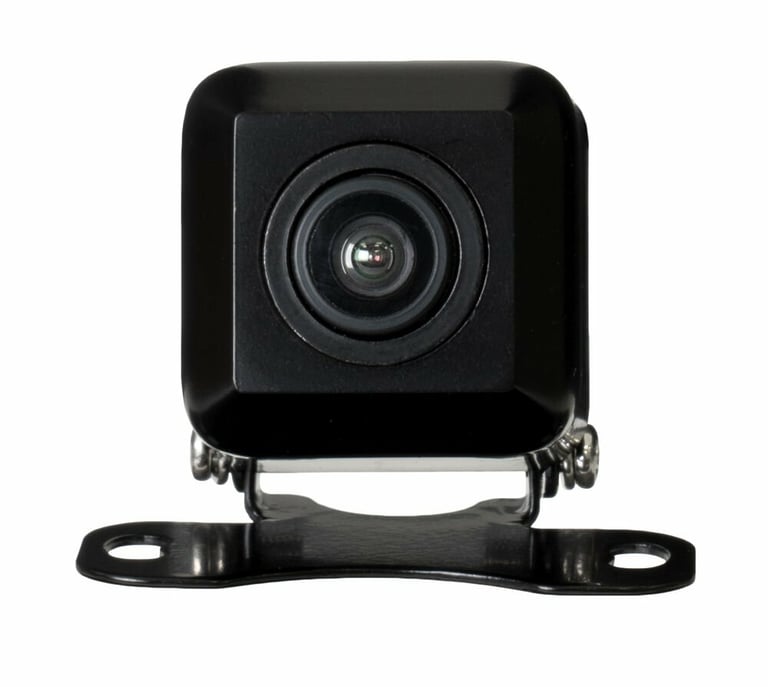

Kenwood DMX7709S with 4-in-1 Backup Camera Image 13 — Kenwood DMX7709S with 4-in-1 Backup Camera

Kenwood DMX7709S with 4-in-1 Backup Camera Image 14 — Kenwood DMX7709S with 4-in-1 Backup Camera

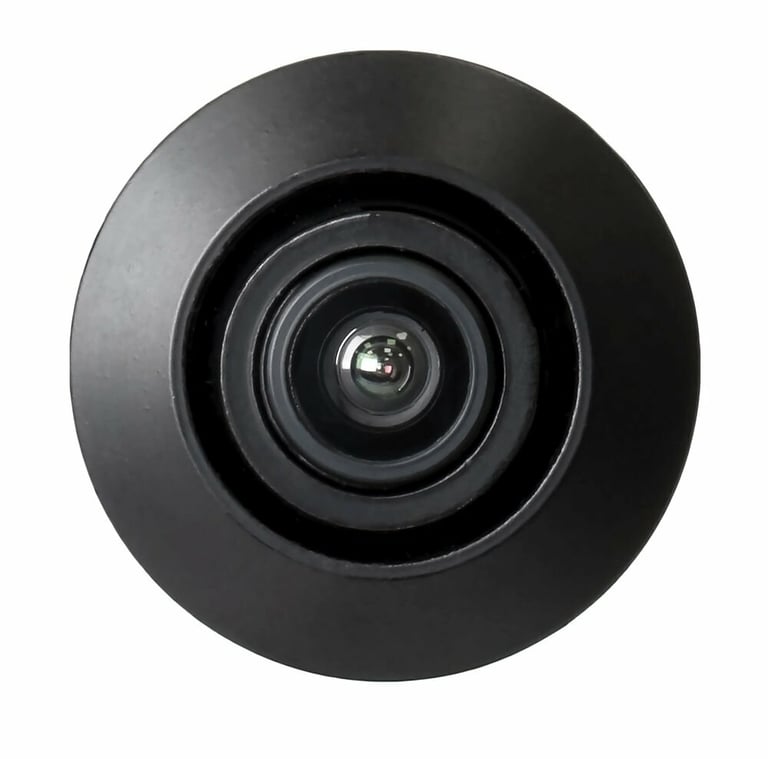

Kenwood DMX7709S with 4-in-1 Backup Camera Image 15 — Kenwood DMX7709S with 4-in-1 Backup Camera

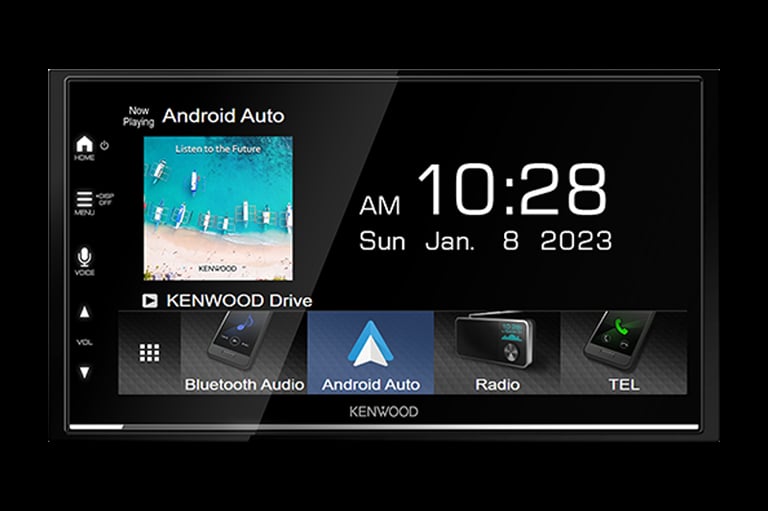

Kenwood DMX7709S with 4-in-1 Backup Camera Image 16 — Kenwood DMX7709S with 4-in-1 Backup Camera

Product highlights

• Double DIN In-Dash Bluetooth Car Stereo Receiver
• 6.8" WVGA Display Display
• 50 watts x 4 channel MAX / 22 watts x 4 channel RMS
• 3 sets of 4V preamp outputs
• 13 Band EQ with DTA
• Apple CarPlay® & Android Auto™ Ready
• Android USB Mirroring

Learn more about the dmx7709s_xc4n1

We need more vehicle details

To confirm this fits your 2005 Taurus, we need additional vehicle details.

Add more details or Update vehicle

List price $739.99

-39%

$448.99

with warranty

Starting at $41/mo

or 4 payments of $113

Free shipping in USA. Provide zip for delivery date.

Quantity Qty

In Stock

Brand new

Alternative financing

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Add an Extended Warranty Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires. Read more

This plan covers:

Hassle-free immediate replacement within minutes!
Easy online claims 24/7
Covers product breakdowns and failures

Extend by 2-years $29.99

Extend by 3-years $39.99

Our X-Factor Guarantees

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award-Winning Service

FREE Shipping Orders $49+

60-Day Easy Returns

Guaranteed Lowest Price

In-House Experts

Other Ford Taurus owners bought

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107

-33.36%

$9.99

List price $14.99

Add to cart

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

-16.69%

$149.95

List price $180.00

Add to cart

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

-12.50%

$69.99

List price $79.99

Add to cart

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

-16.67%

$89.99

List price $107.99

Add to cart

Limited time!

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

-33.36%

$79.96

List price $119.99

Add to cart

Alpine S2-S68

460W Peak (150W RMS) 6x8" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

-16.69%

$149.95

List price $180.00

Add to cart

Limited time!

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

-23.09%

$49.99

List price $65.00

Add to cart

Boss Elite 560BRGB

Single DIN CD Receiver with Bluetooth (Black)

$109.99

Add to cart

Jensen CDX3119

Single DIN CD Multimedia Receiver with Bluetooth

$99.99

Add to cart

NVX XBAF68

Universal 6x8" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

-26.68%

$21.99

List price $29.99

Add to cart

Current Promotions (1 offer)

Get the Best Module in Vehicle Functionality!

This offer cannot be combined with any other coupons or offers.

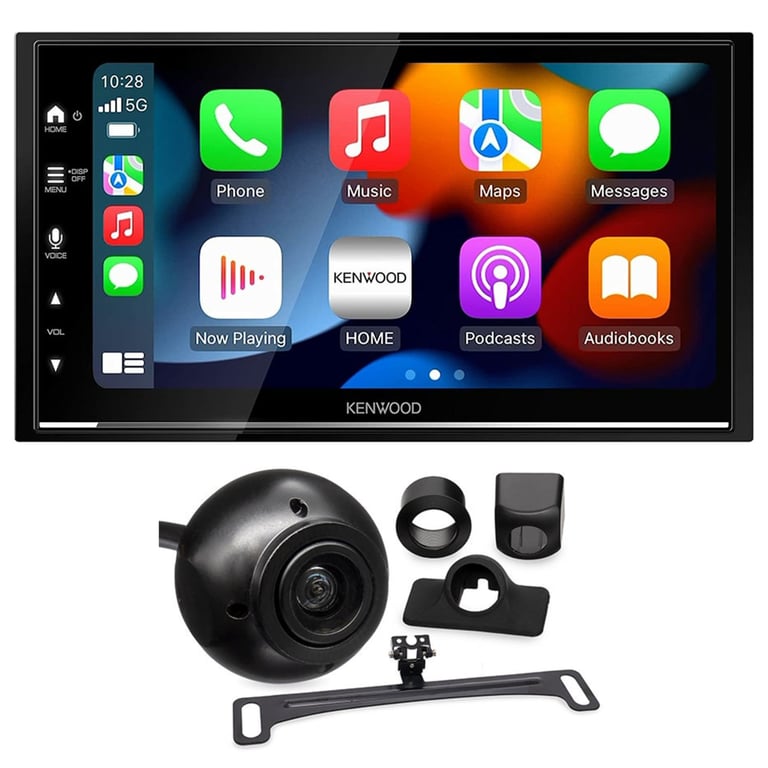

Kenwood DMX7709S with 4-in-1 Backup Camera

https://images.sonicelectronix.com/images/5368553/main/adsmrr2.jpg

10% off

Kenwood DMX7709S with 4-in-1 Backup Camera

$448 ⁹⁹

iDataLink Maestro RR2 Interface Module

$259 ⁹⁹

Priced separately $708 ⁹⁸

Promo Savings of $26 ⁰⁰

Total price:

$682 ⁹⁸

Description

Authorized dealer

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)
Quantity: 1

Product Details

Double DIN In-Dash Bluetooth Digital Multimedia Receiver
6.8" WVGA Display
Power Output:

Peak: 50 watts x 4 channel
RMS: 22 watts x 4 channel

Short chassis for flexible installation
Variable color illumination to match stereo unit with any color dash lighting
13-Band Graphic Equalizer with Digital Time Alignment
Drive EQ boosts specific frequencies in the audio signal to overcome negative impact of road noise
Kenwood KCA-RCDV340 remote control sold separately
Built-in HD Radio Tuner
Authorized Internet Dealer
1-year Manufacturer's Warranty
MFR #: DMX709S

Smartphone Features

Apple CarPlay and Android Auto compatible
Display and control music, navigation, and other apps with iPhone and Android
Dual phone connection via Bluetooth
Kenwood Music Mix allows connection and switching of up to 5 Bluetooth devices
Voice assistant button for Siri or Google Assistant
Wired phone-mirroring for select Android devices via USB

Playback and Audio Features

MP3 | WMA | WAV | AAC | FLAC Audio Playback
MPEG1 | MPEG2 | MPEG4 | H.264 | MWV | MKV Video Playback
JPEG | PNG | 24-bit BMP Picture Files
AM/FM tuner with 15FM / 5 AM presets
MP3 ID3 Tag Display (Title/Artist/Album)
13-Band Graphic Equalizer with Digital Time Alignment

Expandability Options

Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
iDataLink ADS-MRR module (Sold separately). In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.

Audio/Video Inputs and Outputs

3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
Allows for a 3-way connection (tweeter, midrange and woofer)
Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
Backup Camera Input: Used for universal rear view cameras with an RCA composite input
Front-view Camera Input: Used for universal cameras with an RCA composite input
Rear HDMI input

Navigation Features

Parking guidelines using optional rear view camera (sold separately)
Includes External GPS antenna

Bluetooth Features

Built-in Bluetooth technology for hands-free talking, audio streaming, and phonebook access profile
Includes an external wired microphone for clear, convenient, distortion-free talking

NVX XC4N1

World's First 4-in-1 Universal Rearview Backup Camera with License Plate Bracket and Adjustable Housing
Quantity: 1

Product Details:

NVX XC4N1
Universal Rear View Backup Camera
NATSC/PAL TV System
Resolution: 720 x 480
Mounting Style: Bracket Mount \ Surface Mount
Adjustable 170° Viewing Angle

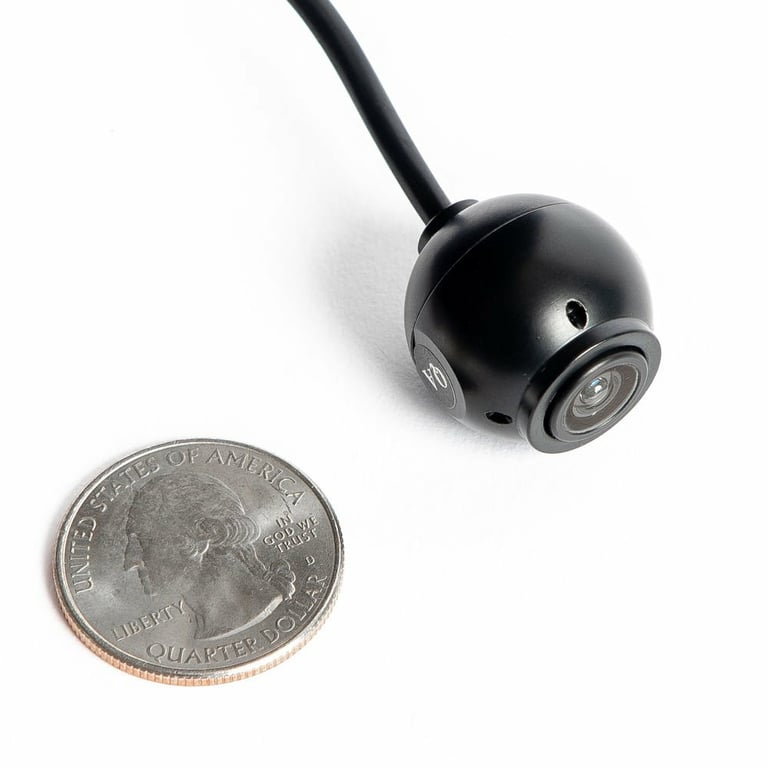

Compact Small Design
IP68 Waterproof Rating
RCA Connections
12 Volt Power Usage
Ultra low LUX for Low Light Conditions
0.08 Lux Minimum Illumination
Video Output: CVBS 0.5M Pixels
Operating Temperature: -31°F (-35°C) to 167°F (75°C)
ON/OFF Parking Line Function
Selectable Image Allows For Front and Rear Mounting
Video Cable and Camera Harness Included

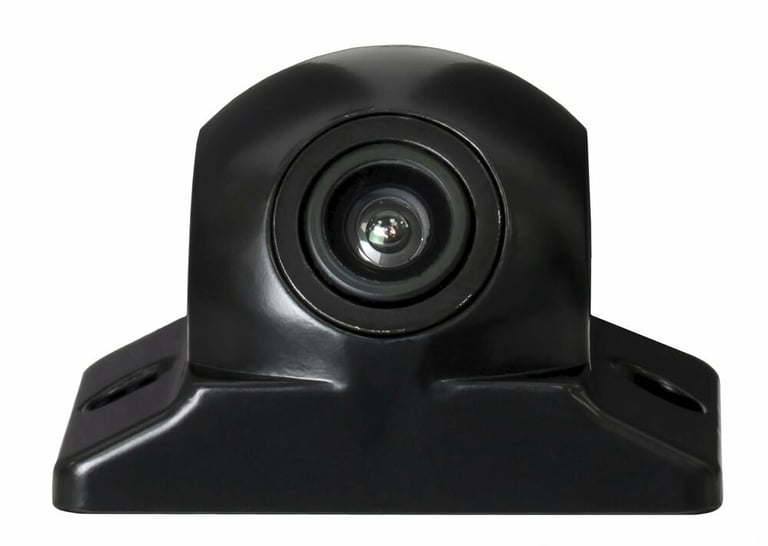

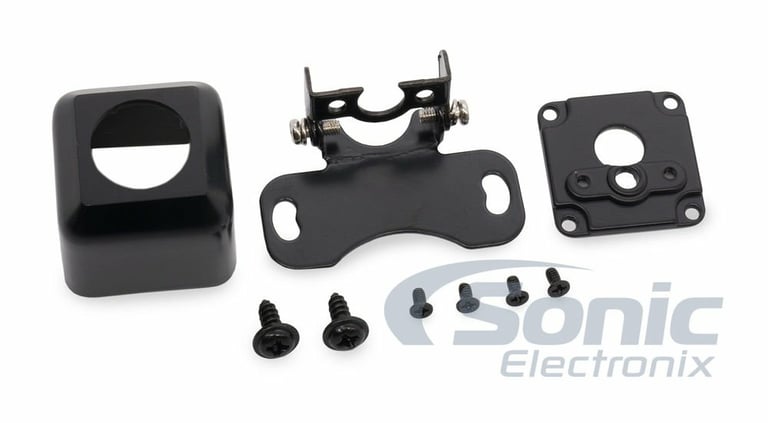

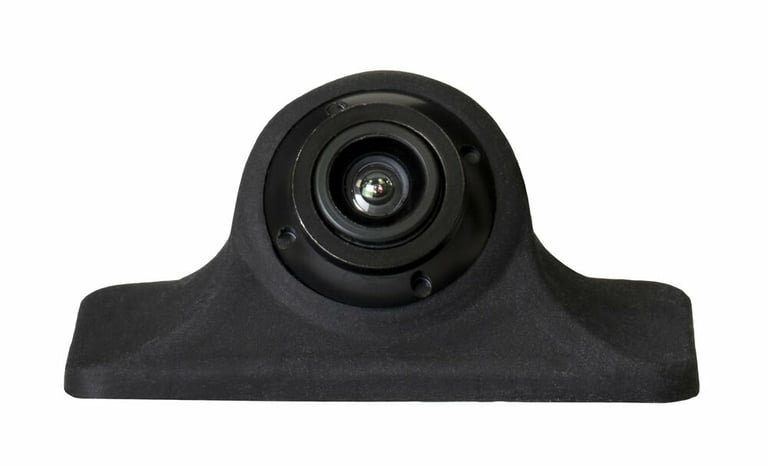

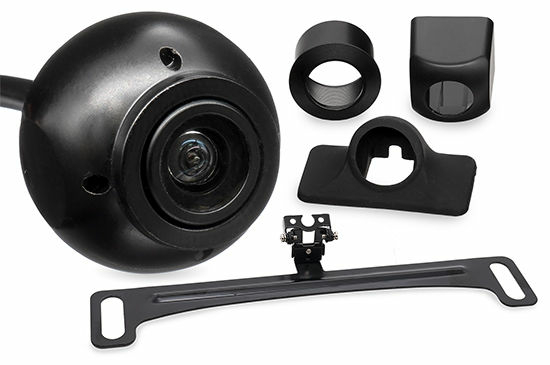

Four Different Mounts Included:

Square Mount
Flush Mount
Angle Mount
Rubber Mount

Authorized Internet Dealer
1-year Manufacturer's Warranty

What's in the box?

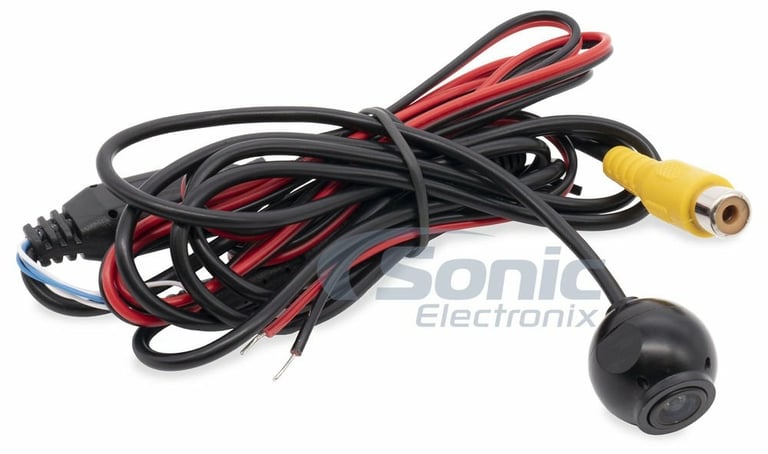

Camera main wiring harness with 6-pin connector guideline + reverse view loops
License plate mounting bar

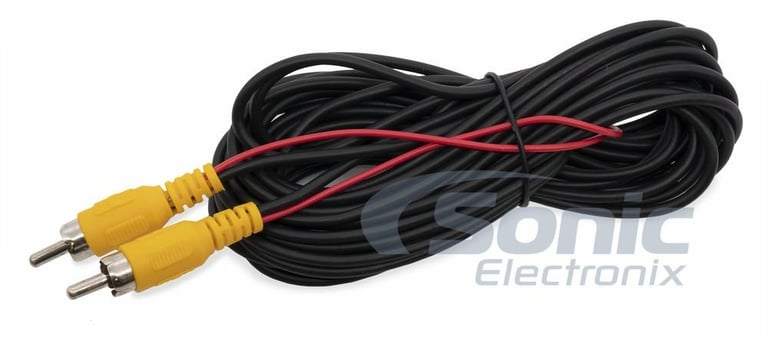

19ft extended connection cable
Full metal mounting shell / camera housing

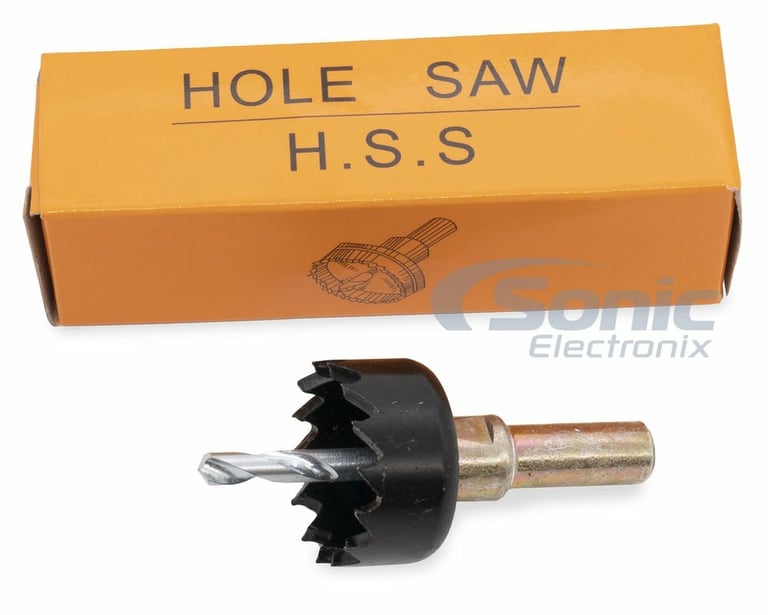

Hole saw drillbit

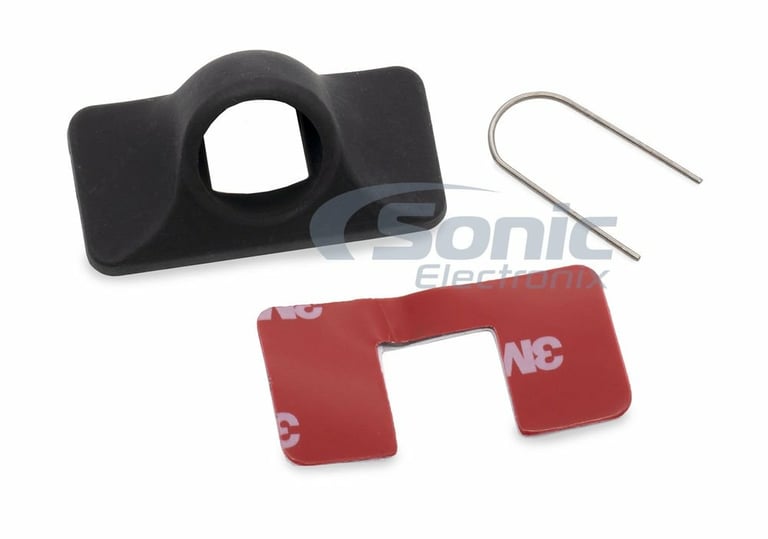

3M adhesive strip

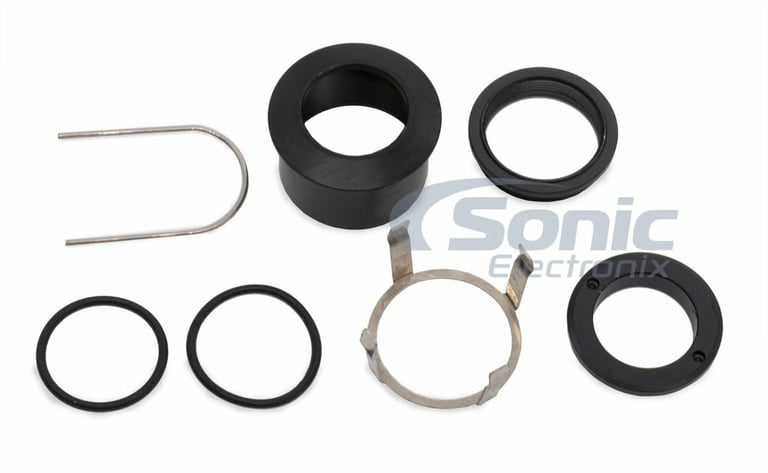

Screws and mounting bits
Misc installation hardware

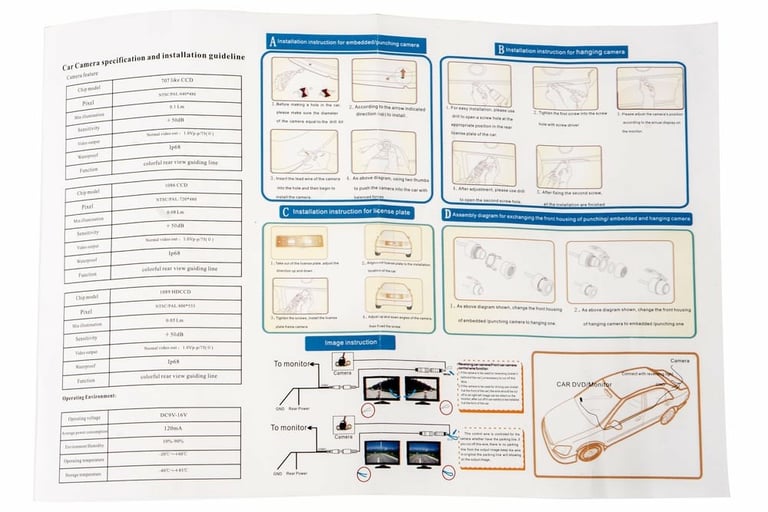

Installation guide

Other products for your Ford Taurus

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

-12.14%

$477.88

List price $543.88

Add to cart

Limited time!

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122

-33.36%

$79.96

List price $119.99

Add to cart

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

-16.67%

$349.99

List price $420.00

Add to cart

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124

-5.72%

$329.95

List price $349.95

Add to cart

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

-20.00%

$599.99

List price $750.00

Add to cart

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

-10.53%

$84.99

List price $94.99

Add to cart

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

-9.16%

$109.00

List price $119.99

Add to cart

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

-66.67%

$89.99

List price $269.99

Add to cart

Limited time!

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

-28.58%

$99.95

List price $139.95

Add to cart

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

$69.99

Add to cart

Specifications & Details

Key Features

SiriusXM Ready
HD Radio
Idatalink Maestro capable
USB input
HDMI input
Touchscreen

In-Dash Receiver Specifications

Receiver Size

Double DIN

Anti-Theft Security

None

Wireless Remote

Yes

Peak Power Output

50 watts x 4 channel

RMS Power Output

22 watts x 4 channel

Preamp RCA Outputs

3 Sets (6-channel)

Dedicated Subwoofer Preamp RCA Output

Yes

Preamp Voltage

4 volts

Built-In Equalizer

13-band EQ with DTA

Display Type

WVGA Display

Touchscreen

Yes

Screen Size

6.8"

Display Adjustment

Brightness
Dimmer
Sharpness
Temperature

Smartphone Integration

Compatible Smartphones

iPhone (iOS)
Android

iPhone Control

CarPlay
Navigation App Compatible
Pandora Control
Mirroring Control

Android Control

Android Auto
Navigation App Compatible
Pandora Control
Mirroring Control

Expandability Features

Inputs

Audio/Video (Rear)
Backup Camera
HDMI
USB (Rear)

Outputs

Audio/Video (RCA)
HDMI

Steering Wheel Control Compatible

DO NOT USE - Yes

Tuner

AM/FM Tuner

Yes

FM Presets

AM Presets

Radio Data System (RDS)

Yes

Playback

Music File Playback Type

MP3

Navigation Features

Map Database

Determined By Phone Connected

What is in the box?

Paperwork

User manual
Warranty/Registration card
Quick start guide

Product and accessories

In-dash receiver
Detachable face (attached)
Wiring harness with all connections
Mounting sleeve (attached)
Trim ring (attached)
Microphone with attached cable
Remote control

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Kenwood DMX7709S with 4-in-1 Backup Camera thumbnail image

Overall rating distribution

5 star		91%
4 star		9%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		5
Value		5
Features		4.8
Design		4.8
Usability		4.9

Customer Photos & Videos

Customer Reviews

Sort by:

Camera

The following review is for XC4N1, which is a part of the bundle you are viewing.

Great price directions could use a little work but other than that great for what it is

By Anonymous on August 7, 2019

60 found this helpful

Report abuse

good camera with all the mouting options

The following review is for XC4N1, which is a part of the bundle you are viewing.

good quality on the camera, lots of mounting options, even comes with a hole saw. have not tested at night yet

By Wayne on April 25, 2020 Checkmark Icon

Verified purchase

52 found this helpful

Report abuse

instructions

The following review is for XC4N1, which is a part of the bundle you are viewing.

this a great camera, the only beef i have is the size and lack of instructions, the pictures and words are so small I can't see it that great so i had to guess putting the camera together, and finding information on this camera is lacking by websites

By Gary on August 22, 2021 Checkmark Icon

Verified purchase

49 found this helpful

Report abuse

Best bang for the buck

The following review is for XC4N1, which is a part of the bundle you are viewing.

All I can say is I've never had a camera this clear with so many mounting options. There is no way you can go wrong with this camera. I'll definitely be putting one on all my cars.

By Anonymous on March 14, 2019

50 found this helpful

Report abuse

Great value

The following review is for XC4N1, which is a part of the bundle you are viewing.

The camera has a super clear picture. I had to use the license plate bracket and it was kind of cheesy. So far so good though.

By Darryl on July 17, 2022 Checkmark Icon

Verified purchase

48 found this helpful

Report abuse

NVX XC4N1

The following review is for XC4N1, which is a part of the bundle you are viewing.

Excellent picture! The camera might be even better than my 2018 titan.

By Mark on May 17, 2020 Checkmark Icon

Verified purchase

49 found this helpful

Report abuse

Exceptional

The following review is for DMX709S, which is a part of the bundle you are viewing.

I love all the functions of the radio and the design I really bought it for the sound quality of the radio and the pre amp output I bought any older model excelon before for a system I was building and never looked back but again. All the functions and design is a plus

By Joshua on January 1, 2023 Checkmark Icon

Verified purchase

44 found this helpful

Report abuse

The following review is for DMX709S, which is a part of the bundle you are viewing.

By Chad on November 24, 2022 Checkmark Icon

Verified purchase

2003 Toyota Tacoma

37 found this helpful

Report abuse

Great unit!

The following review is for DMX709S, which is a part of the bundle you are viewing.

Pros
5v preouts, Great eq, overall feel and speed of unit is great.

Cons
The display off (blackout) feature could be better. It does shut off but backlight stays on so not 100% off. As someone who drives a lot at night this could be better.
No other cons in my opinion

By michael on October 21, 2022 Checkmark Icon

Verified purchase

2010 Chevrolet Silverado 1500

36 found this helpful

Report abuse

The following review is for DMX709S, which is a part of the bundle you are viewing.

By Demarkis on August 28, 2023 Checkmark Icon

Verified purchase

2018 Chevrolet Impala

31 found this helpful

Report abuse

See all 33 reviews
