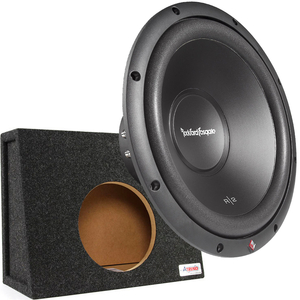

Rockford Fosgate R2SD2-10 | 200W RMS 10" Shallow Subwoofer with Enclosure

Description

Authorized dealer

Eliminate Entry Level and Go Straight to Prime

Sonic Electronix is now carrying the brand new line of Rockford Fosgate Prime Series Car Audio Subwoofers. The R2SD2-10 10" subwoofer has a peak power rating of 400 watts and a continuous RMS power rating of 200 watts giving you a comfortable amount of bass when installing one or some real deep bass when installing more than one. This shallow mount subwoofer is ideal for those with limited space but that still want a system that kicks. Equipped with anodized aluminum voice coil formers for extreme heat dissipation, will allow this sub to perform at optimum level during long hard hitting sessions. Perfect for sealed or ported enclosures the R2SD2-10 is the way to go when looking for Prime performance with an affordable price tag.

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

Rockford Fosgate Prime R2 R2SD2-10

400W Peak (200W RMS) 10" Prime Series Dual 2-ohm Shallow Car Subwoofer
Quantity: 1

Product Details:

10" Dual 2 ohm Prime Series Subwoofer
Power Handling:

Peak: 400 watts
RMS: 200 watts

Mica Injected Polypropylene - MIPP Cone
Foam Surround
12 AWG compression terminals
Linear spider with embedded 16 AWG tinsel leads
Optimized for sealed enclosures
Shallow Motor Assembly
Integrated PVC trim ring
Anodized aluminum voice coil former
StampCast basket with integrated spider venting
2" High Temperature Aluminum Voice coil
8 mm Xmax
45 oz. Double Stacked magnet motor structure
Frequency Response: 45 - 250 Hz
Resonance Frequency (Fs): 38.1 Hz
Sensitivity: 82 dB
Recommended sealed box volume: 0.7 cubic feet
Recommended ported box volume: 1.4 cubic feet
Top-mount depth: 3.417"
Cutout diameter: 9.125"
CTA-2031 Compliant
Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Individually

Rockford Fosgate R2SD210 owner’s manual

Atrend 10TK

Empty Single 10" Truck Sealed Subwoofer Enclosure
Quantity: 1

Product Details:

10" Single Truck Sealed Subwoofer Enclosure
Durable 3/4" Medium Density Fiberboard (MDF) construction
Universal truck (wedge) enclosure design
Mitered edge construction provides cleaner finish
Miter joints feature over 41% more surface area
More surface area translates into a stronger bond
Dado joints offer an 80% increase in surface area
Built using trick glue for up to 3600 PSI holding ability
Glued and braced with fasteners for added strength
Premium carpeted finish for sleek modern look
Silver spring-loaded terminal push cups
Maximum subwoofer mounting depth: 4.15"
Subwoofer cutout diameter: 9.13"
Total box volume: 0.62 cubic feet
Dimensions: 20" L x 15-3/4" H x 5-1/4" W x 8-1/2" W2
Authorized Internet Dealer
1-year Manufacturer's Warranty
