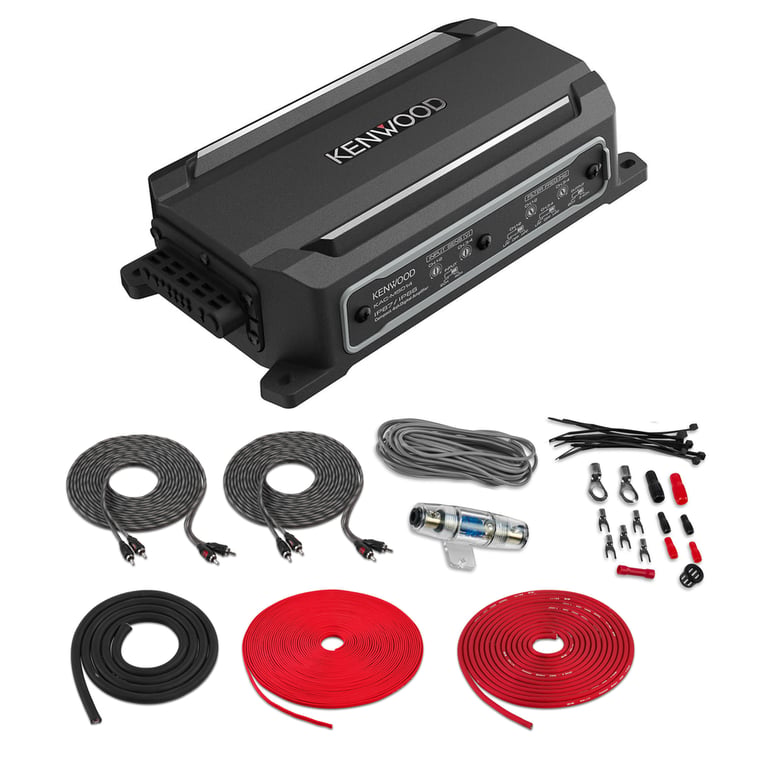

Kenwood KAC-M5014 with Amplifier Wiring Kit

300W RMS Compact 4-Channel Digital Amplifier

Kenwood
Shop all Kenwood
highlight-star-icon

• 50 watts x 4 channel @ 4 ohm
• 75 watts x 4 channel @ 2 ohm
• Bridged: 150 watts x 2 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class D 2 ohm Stable 4-Channel-Channel Amplifier
• ASTM B117 Salt Spray Proof
• Includes Amplifier Wiring Kit

Learn more about the kacm5014_bak84

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


Kenwood brand icon

Authorized dealer

Kenwood's compact KAC-M5014 four-channel marine and powersports amplifier delivers a solid 50 watts RMS per channel, over-powering noise from wind, water, or the trail, and adding clarity and impact to your music. The amp features conformal-coated circuit boards and protective covers for its connections, so the music won't stop just because the amp got a little wet or dirty.

The KAC-M5014 will accept an input signal from just about any source, whether it's RCA cables from an aftermarket receiver or the high-level speaker wiring from a factory radio. The high-level inputs can sense the signal and turn the amplifier on, so you won't need to run a separate remote turn-on lead from the receiver or factory fuse box. The amp's high- and low-pass filters let you tune the sound to match your speakers and their locations.

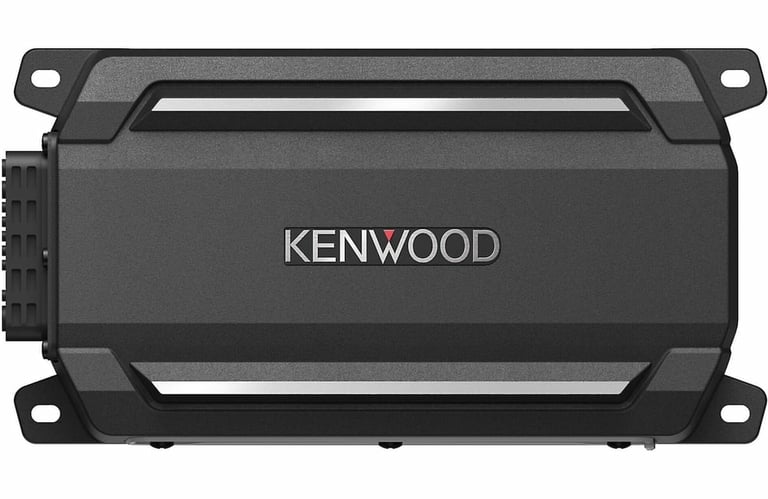

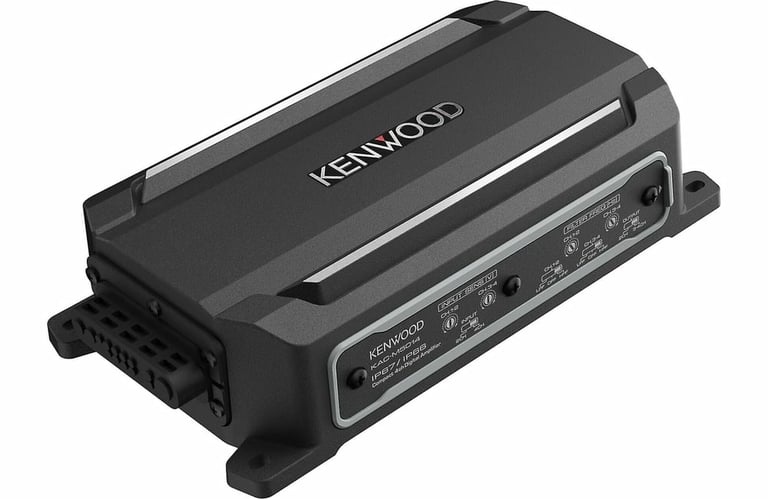

Kenwood KAC-M5014

600W Peak (300W RMS) Class D M Series 4-Channel Marine and Powersports Amplifier
Quantity: 1

Product Details:

  • M Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 4 channel
    • 2 ohm: 75 watts x 4 channel
    • Bridged: 150 watts x 2 channel @ 4 ohm
  • Total RMS power output: 300 watts
  • LED Power/Protect Light status indicator

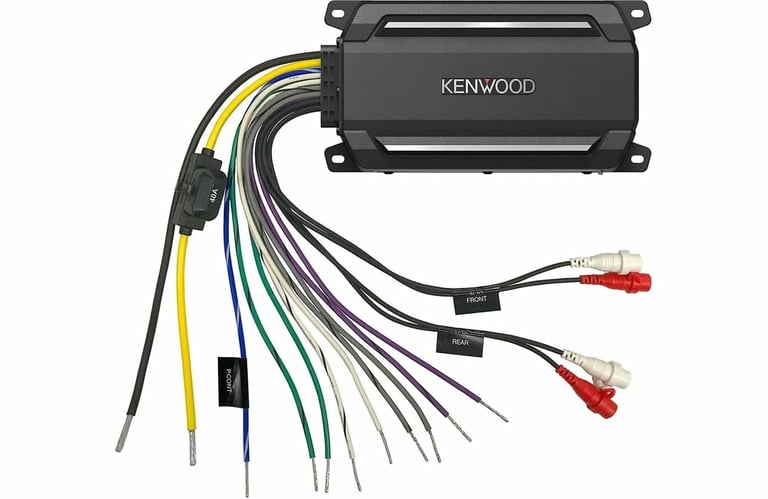

  • Speaker-level (high-level) inputs
  • Signal sensing remote turn-on
  • Thermal, overload, and speaker short protection
  • IP67/IP66 certified waterproof and dustproof
  • ASTM B117 salt spray (or salt fog) corrosion tested
  • Thick 1/4" die-cast frame suppresses vibration
  • Raised drain tunnel prevents moisture buildup
  • Metal studs enable high current flow between amplifier and battery
  • PMLCAP's (Polymer Multi-Layer Capacitors) in the LC filter
  • Magnetic shielding in the output coils

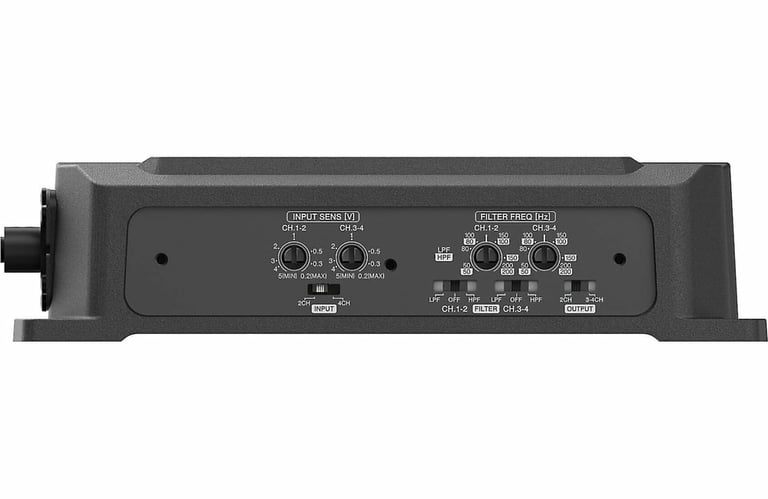

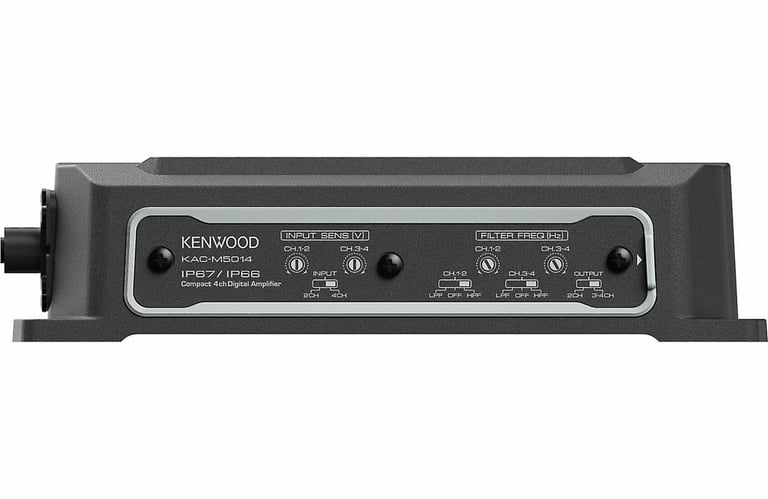

  • Input sensitivity: 0.2 - 5 volts
  • Frequency Response: 10 - 35000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 77 dB
  • Variable low-pass filter: 50 - 200 Hz
  • Fuse Rating: 40A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 4-1/8" L x 7-13/16" W x 1-15/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: KAC-M5014

Belva BAK84

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

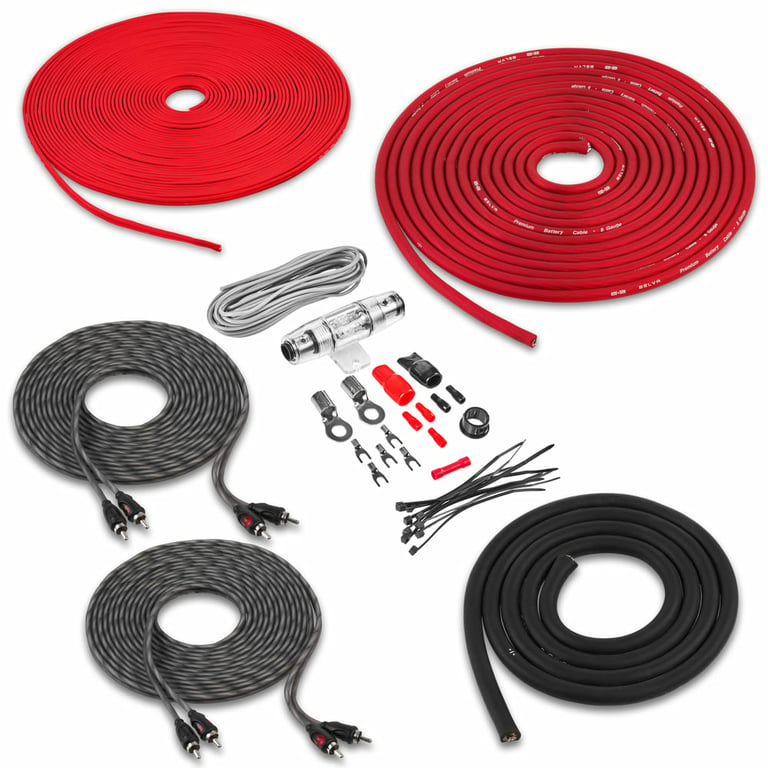

Kit includes:

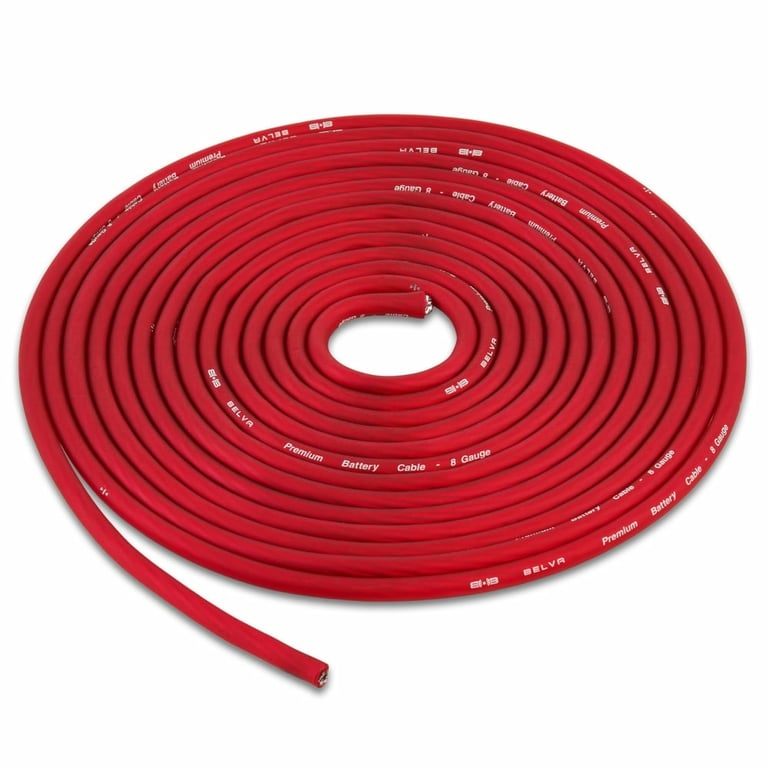

  1. 17 ft. Red 8 gauge power wire
  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 40 ft. 16 gauge speaker wire
  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
10 - 35,000 Hz
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
77 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
Total Fuse Rating
40
CEA-2031 Compliant
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
0.2 - 5 volts
High-Level Input Sensitivity
0.2 - 5 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
Mini ANL
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KAC-M5014, BAK84

Weight:

5.62lbs

Internal SKU:

kacm5014_bak84

Internal Product ID:

199716

Customer Ratings & Reviews


Kenwood KAC-M5014 with Amplifier Wiring Kit thumbnail image

5 star
86%
4 star
8%
3 star
3%
2 star
3%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Great value

The following review is for BAK84, which is a part of the bundle you are viewing.

Fast shipping works great with no problems. I would order other if i ever needed it

By Anonymous on August 5, 2018

86 found this helpful


Ok starter Kit

The following review is for BAK84, which is a part of the bundle you are viewing.

It's a ok kit to buy but check the RCA jacks my kit came defective one pair of RCA jacks failed. When I finished completely installing it in my truck and turned on the head unit only to fine out 3 of my 4 channel amp was working had to take out the multimeter tested the Amp then uninstall all the head unit tested RCA jacks and one pair was defective I would assume that they would work they are New. So save time and test the RCA jacks for continuity.

By JESUS C on December 28, 2020 Checkmark Icon Verified purchase

83 found this helpful


Great value!

The following review is for BAK84, which is a part of the bundle you are viewing.

Fast shipping and I recommend it for anyone. Everything u see in the picture is what u get.

By Anonymous on August 14, 2018

86 found this helpful


Good Value Kit!

The following review is for BAK84, which is a part of the bundle you are viewing.

Everything I needed and good quality wire, not like some other cheap thin gauge wire you get in similarly priced kits elsewhere.

By Adam on February 1, 2018 Checkmark Icon Verified purchase

83 found this helpful


Works as said

The following review is for BAK84, which is a part of the bundle you are viewing.

Everything needed for a 4 ch amp install. Better quality than other cca kits I have used before. Nice thick strands.

By brian on October 19, 2015

82 found this helpful


Great deals

The following review is for BAK84, which is a part of the bundle you are viewing.

I recommend this to anyone. The shipping is fast and you always get a good deal.

By Anonymous on September 22, 2018

80 found this helpful


Great value

The following review is for BAK84, which is a part of the bundle you are viewing.

Included in a bundle package for the price well worth it

By Chad on September 15, 2017 Checkmark Icon Verified purchase

77 found this helpful


Awesome Buy

The following review is for BAK84, which is a part of the bundle you are viewing.

It was everything I needed one package for a great price

By Frankie on April 24, 2017

76 found this helpful


Works as said

The following review is for BAK84, which is a part of the bundle you are viewing.

Works good and is high quality cca wiring, better than many others I have used. Fine for about a 400 watt rms 4 ch amp set up. Larger go with 4ga to be safe.

By brian on November 15, 2015 Checkmark Icon Verified purchase

75 found this helpful


Good value

The following review is for BAK84, which is a part of the bundle you are viewing.

Good value. All the stuff you need for a couple of speakers and a sub to an amp. Easier than buying it individually.

By Jason on April 11, 2020 Checkmark Icon Verified purchase

70 found this helpful



NX404 small

Clarion NX404 OPEN BOX

Double-Din In-Dash DVD Receiver w/ GPS, Bluetooth & 6.2" Touchscreen

(1)

$389.99

List price $899.99

AVIC-D3+CD-I200 small

Combo: Pioneer AVIC-D3 + CD-i200

Double DIN 6.1" TFT-LCD Touchscreen DVD/CD/MP3 Receiver with GPS Navigation System AND iPod Adapter Cable Included

$659.99

List price $1299.99

No picture

Polk Audio MOMO MM6 (Silver) Open Box

(Open Box) 6-3/4" (Oversized 6-1/2") MOMO Series 2-way Component Speaker System

$119.99

List price $349.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1996 BMW 750iL

2014 Ford Fiesta

2004 Dodge Intrepid

1983 Nissan Maxima

2019 Land Rover Range Rover Evoque

2002 Volvo S40

2004 BMW Z4

2007 GMC Canyon

2012 Hyundai Genesis

2022 Ford EcoSport

Vehicle
Store
Delete

2012 Harley Davidson FLHTC Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
