See all parts that fit your 1994 Samurai

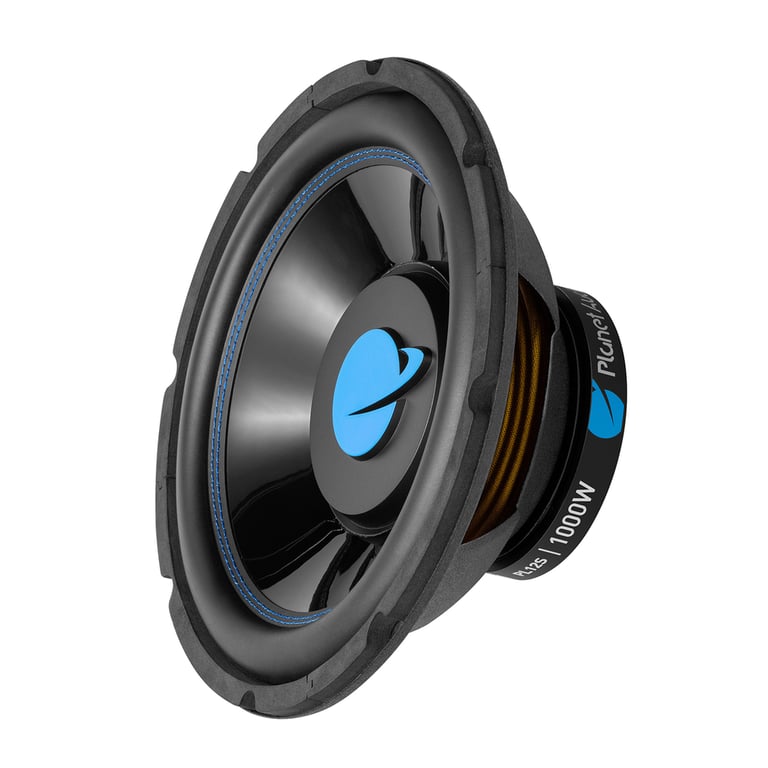

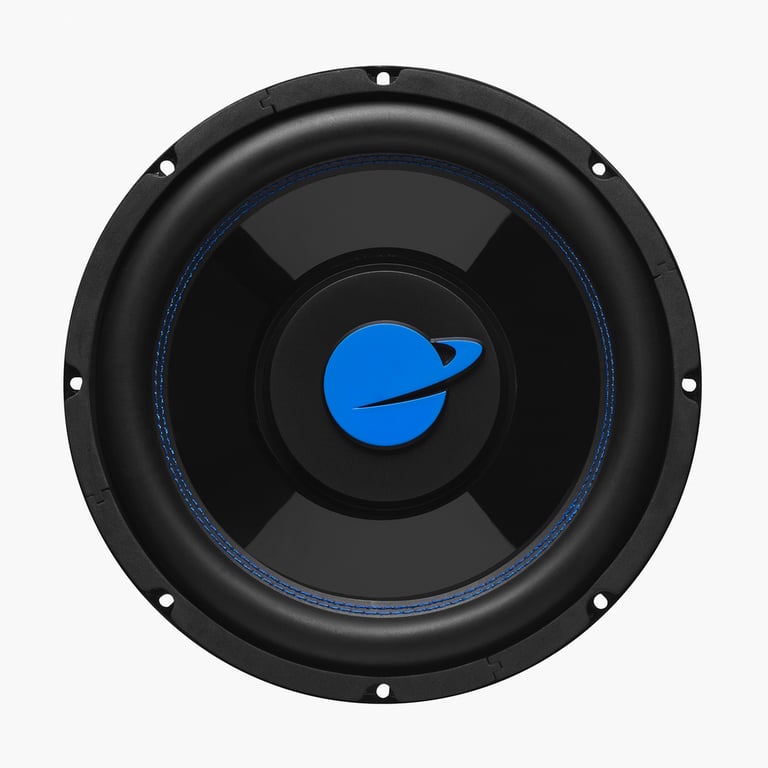

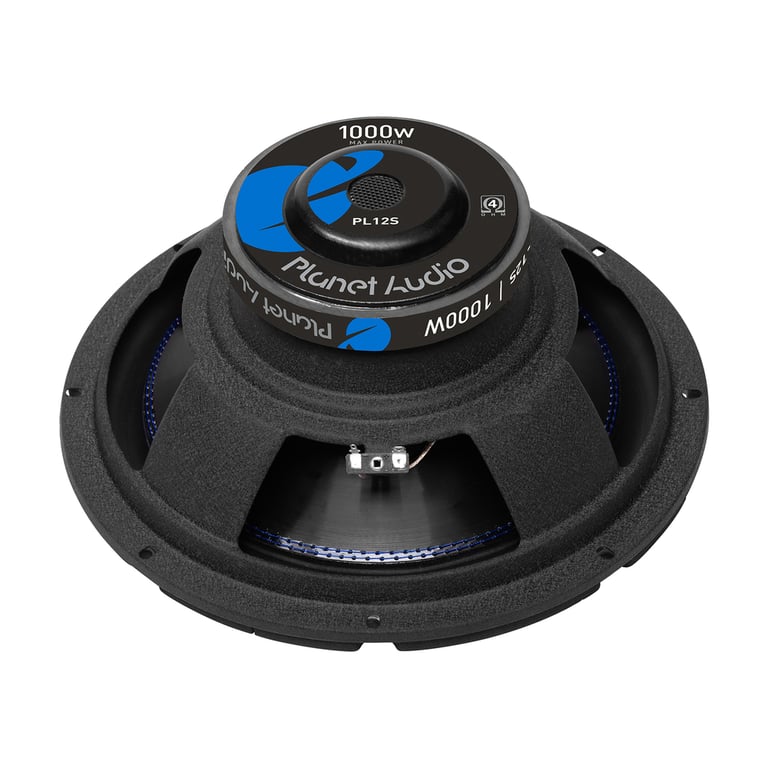

Planet Audio PL12S

100W Peak (500W RMS) Pulse Series 12” 4-Ohm Subwoofer

Planet Audio
Shop all Planet Audio
highlight-star-icon

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 5"
• Sensitivity: 86 dB

Learn more about the pl12s

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

Description


Planet Audio brand icon

Authorized dealer

Product Details:

  • 12" Single 4 ohm Pulse Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Polypropylene Cone
  • Rubber Surround
  • High Temperature Voice coil
  • 9 mm Xmax
  • Single Stacked Ferrite magnet motor structure
  • Resonance Frequency (Fs): 33 Hz
  • Sensitivity: 86 dB
  • Sealed box volume: 1.3 cubic feet
  • Ported box volume: 1.5 cubic feet
  • Top-mount depth: 5"
  • Cutout diameter: 11.1"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually


Planet Audio PL12S Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Planet Audio PL12S Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Planet Audio PL12S Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Planet Audio PL12S Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Planet Audio PL12S Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Pulse Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Sensitivity
86 dB
Xmax (millimeters)
9 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Structure
Single Stacked
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.3 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
11.1"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
2.91 liters
Total Speaker Q Value (Qts)
.865
Electrical Q Value (Qes)
.995
Mechanical Q Value (Qms)
6.693
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PL12S

Weight:

8.50lbs

Internal SKU:

pl12s

Internal Product ID:

199806
