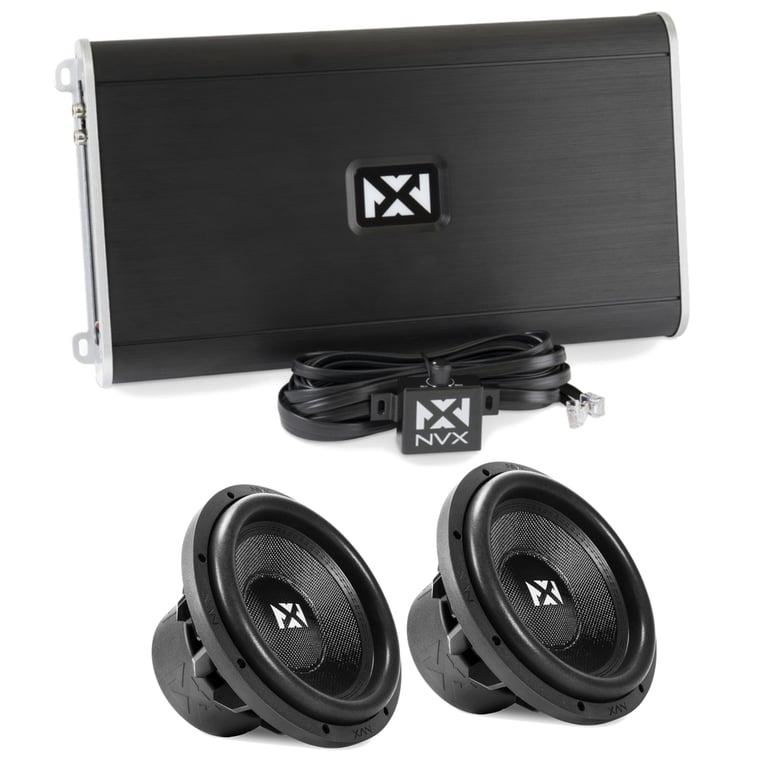

NVX VAD27001 with (2) VCW124

2700W Class-D Monoblock Amplifier with (2) 12" Dual 4-ohm Subwoofers

NVX
Shop all NVX
Only 1 Left!
highlight-star-icon

• RMS: 1250 x 1 @ 4 ohms, 1950W x 1 @ 2 ohms, 2700W x 1 @ 1 ohm
• Total RMS Power: 2700W
• CEA-2006 Compliant

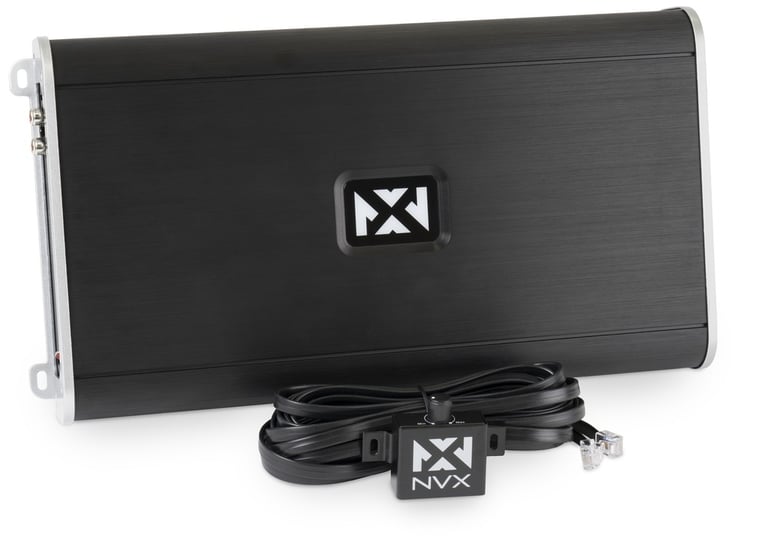

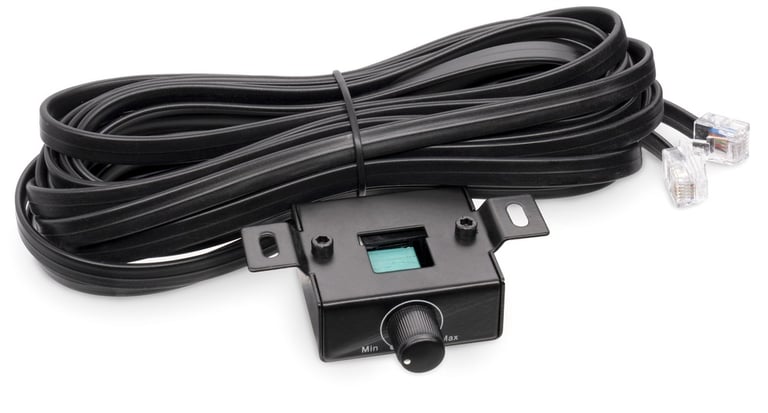

• Wired Bass Remote Included
• Efficient Class D Design
• Dimensions: 13.7"W x 5.4"D x 2.0H • RMS Power: 1200 Watts Each
• 3” 4-Layer High-Temperature Black Aluminum Voice coil
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll foam surround with black nylon stitching
• 202 oz. Triple-stacked High Energy ferrite magnet
• Die Cast aluminum vented basket

Learn more about the vad27001_vcw124_2
Was $1139.97 Details
Thanks , You Pay:

$622.15

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one vad27001_vcw124_2.

Set your vehicle or Return to product page
shipping truck icon Free shipping in USA. Provide zip for delivery date.
Quantity
In Stock. Only 1 Left!
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


NVX brand icon

Authorized dealer

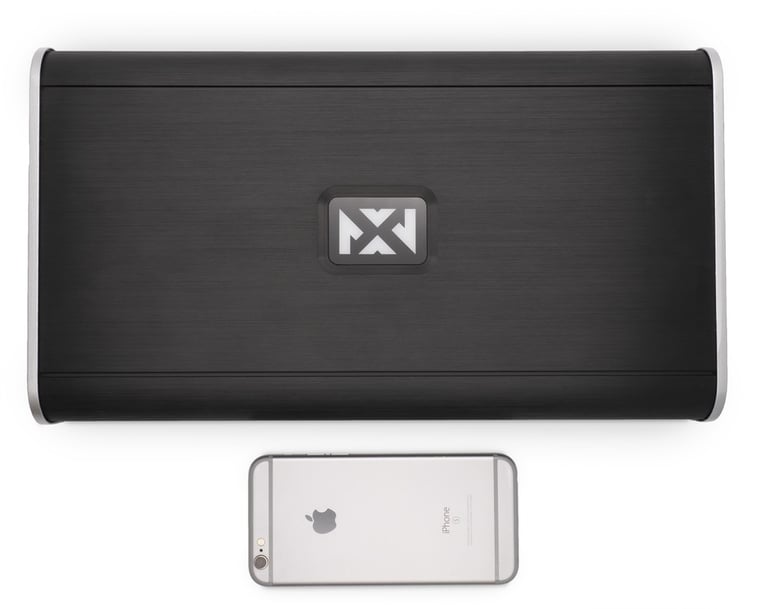

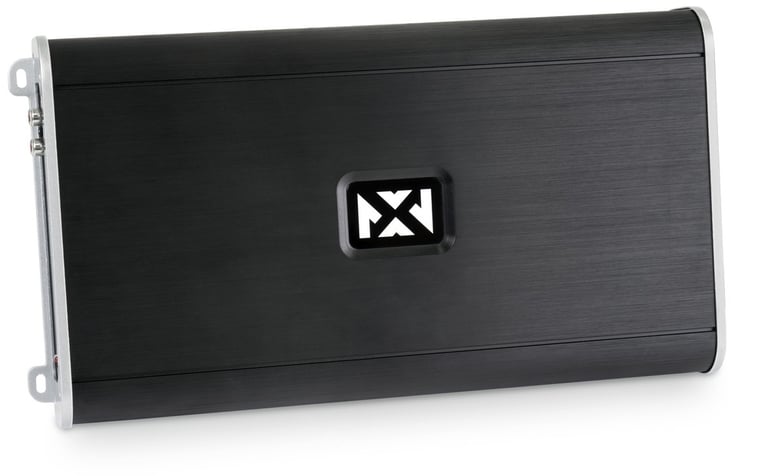

NVX VAD27001

2700W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote (Marine Certified)
Quantity: 1

Product Details:

  • Marine Certified Class D Monoblock Amplifier with Bass Remote
  • CEA-2006 Compliant
  • Peak Power Rating: 5400 Watts
  • RMS Power Rating:
    • 4 ohms: 1250 watts x 1 chan.
    • 2 ohms: 1950 watts x 1 chan.
    • 1 ohm: 2700 watts x 1 chan.

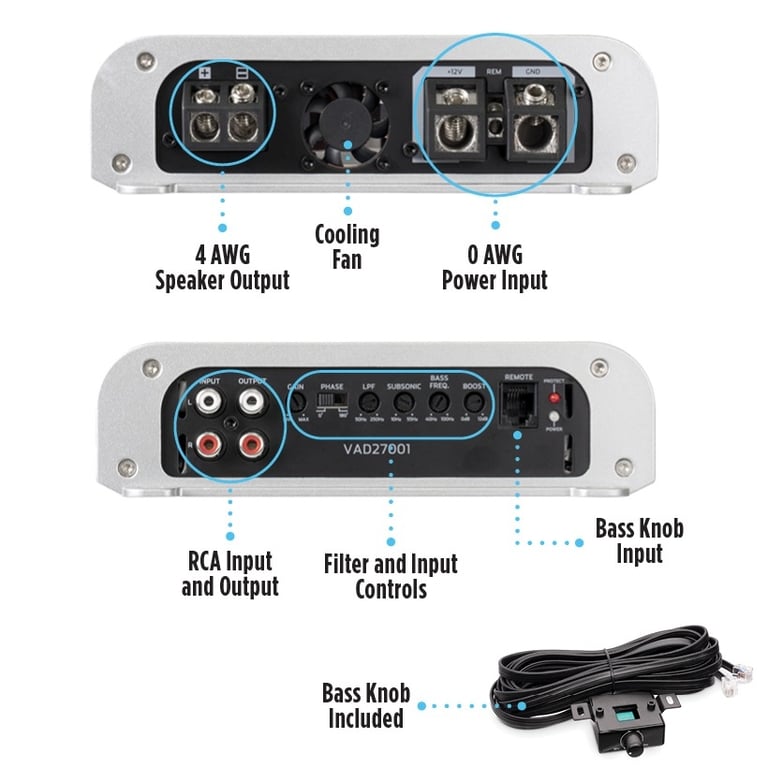

  • LED power (blue) and protect (red) indicators

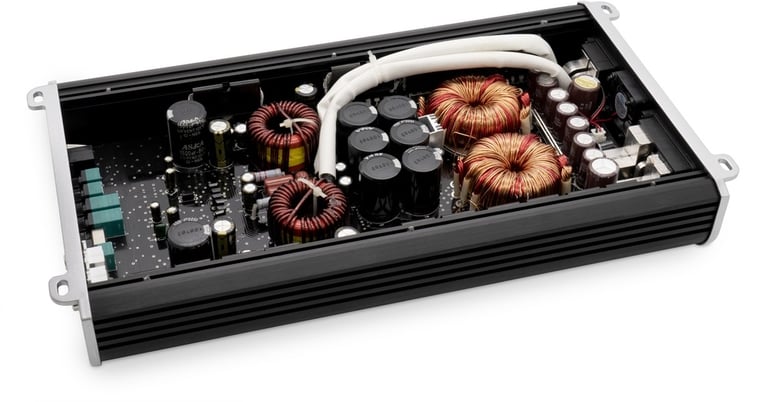

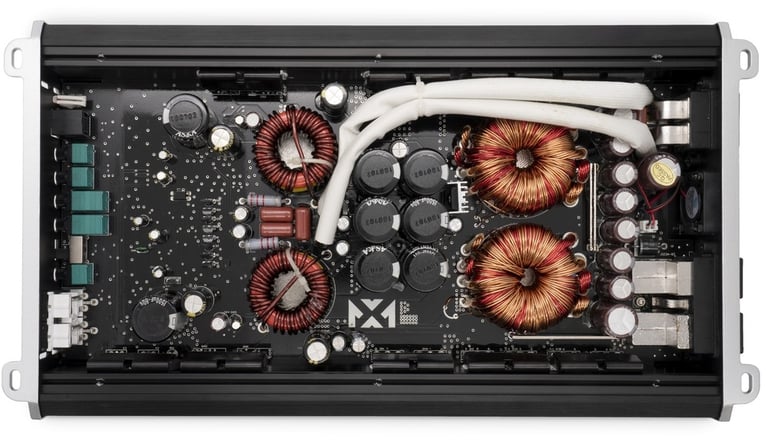

  • Conformal Coated Marine grade circuit board
  • Heavy duty aluminum alloy heat-sink
  • Platinum-plated RCA level inputs
  • Platinum-plated screw terminals
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Variable subsonic filter: 10 - 55 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Bass Boost: 0 - +12dB boost @ 45Hz
  • Input Sensitivity: 200mV-6V
  • Phase: 0-180 Degree Switch
  • Total Harmonic Distortion: <0.3%
  • Recommended In-line Fuse: 200 - 250A

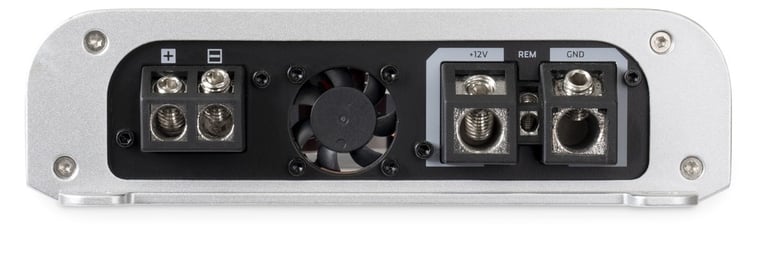

  • Power Wire Gauge: 0 AWG
  • Speaker Wire Gauge: 4 AWG
  • Dimensions: 12.8"L x 7.2"W x 2.0"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

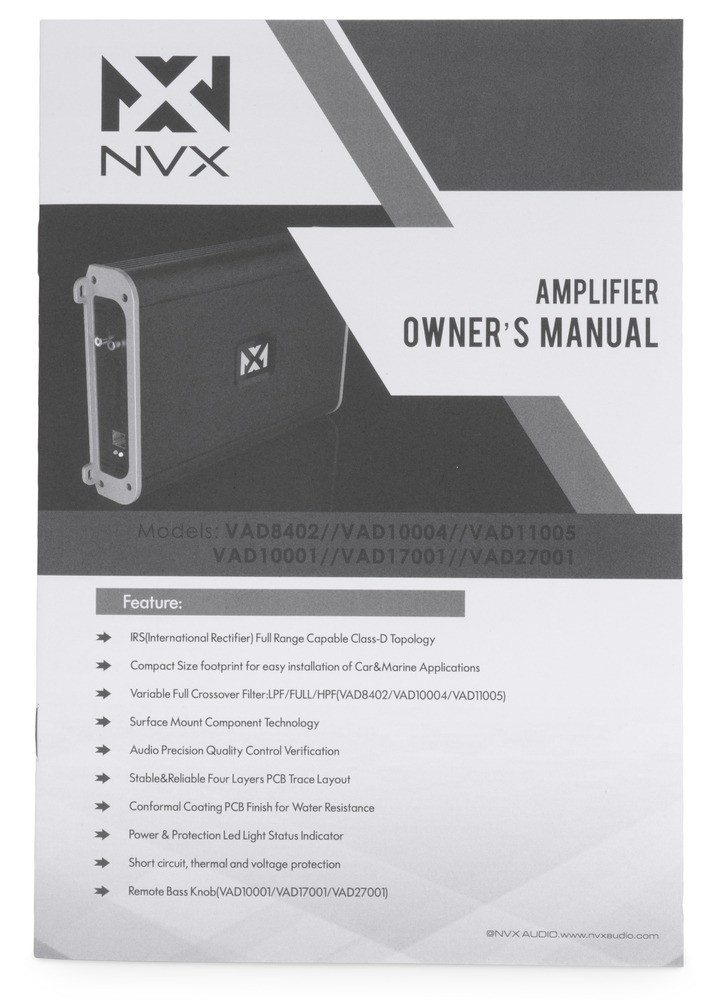

NVX VAD27001 owner’s manual


WARNING: UPGRADE VEHICLE CHARGING SYSTEM

Your warranty is void if you do not have a minimum amp charging system of 200A. Such a charging system can only be achieved with the installation of a High Output Alternator. Failure to upgrade your vehicle's charging system will damage your amplifier due to distortion, short-circuit, or other failure. This may also cause damages to your charging system and/or subwoofer(s).

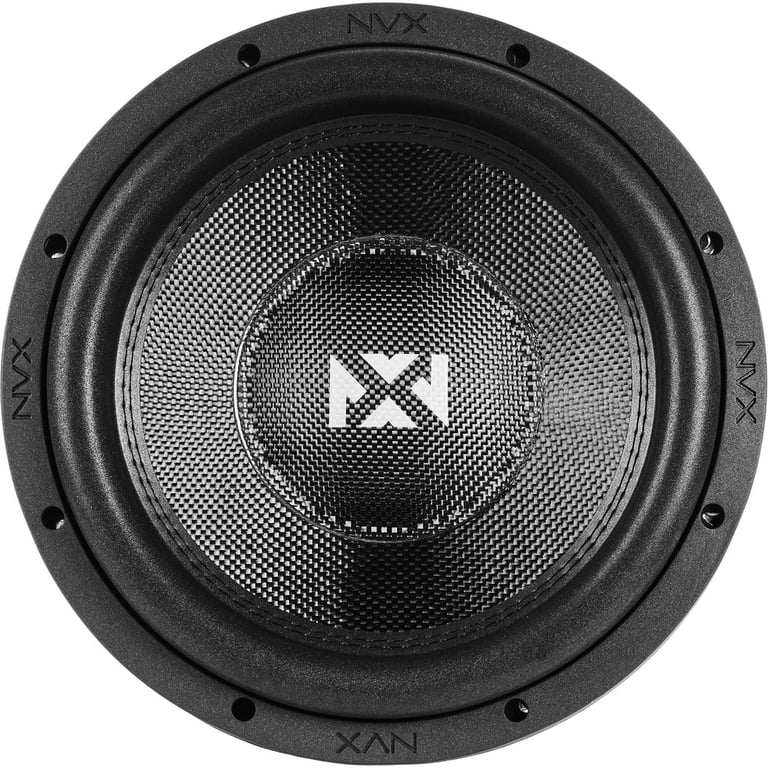

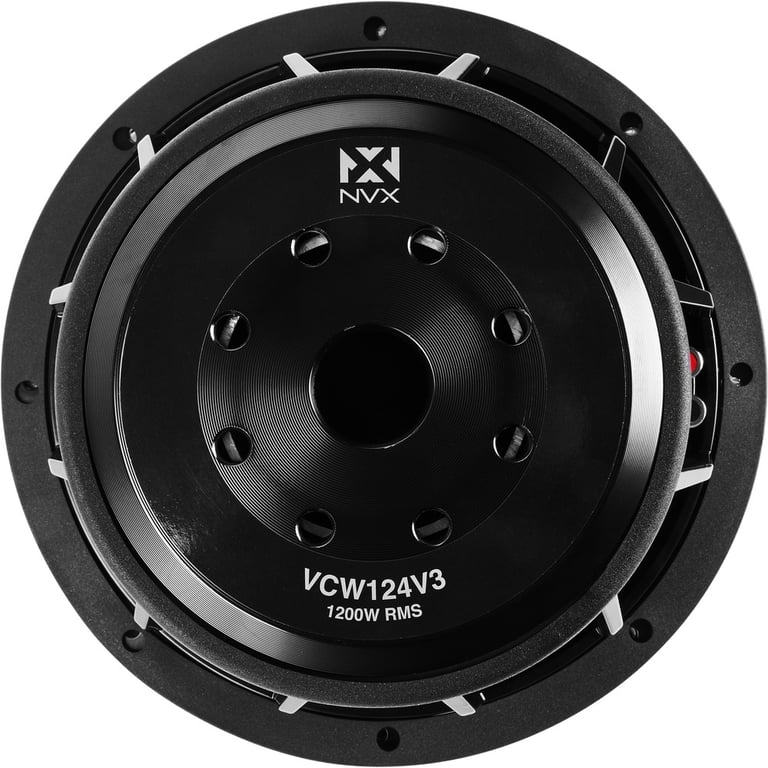

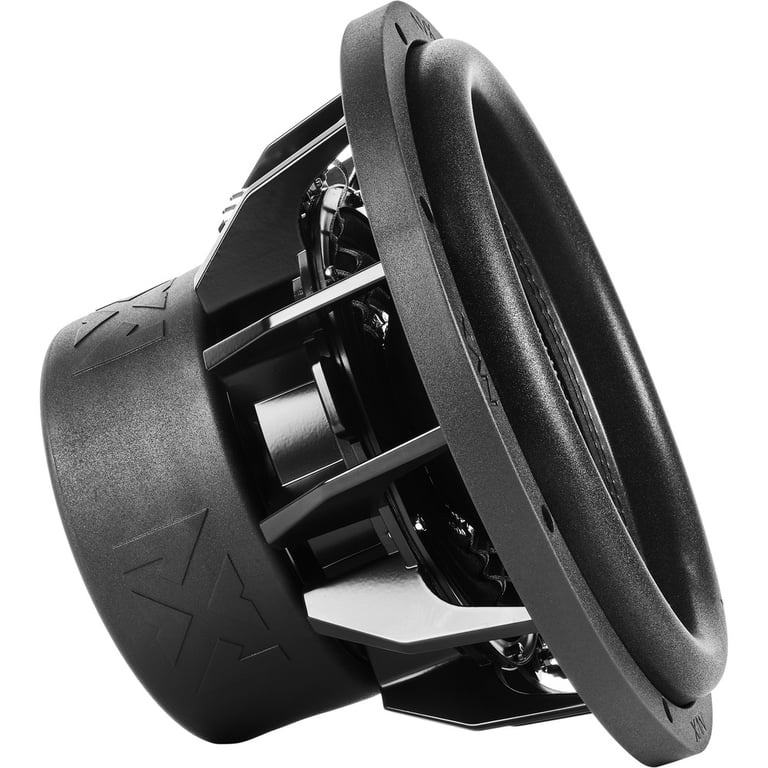

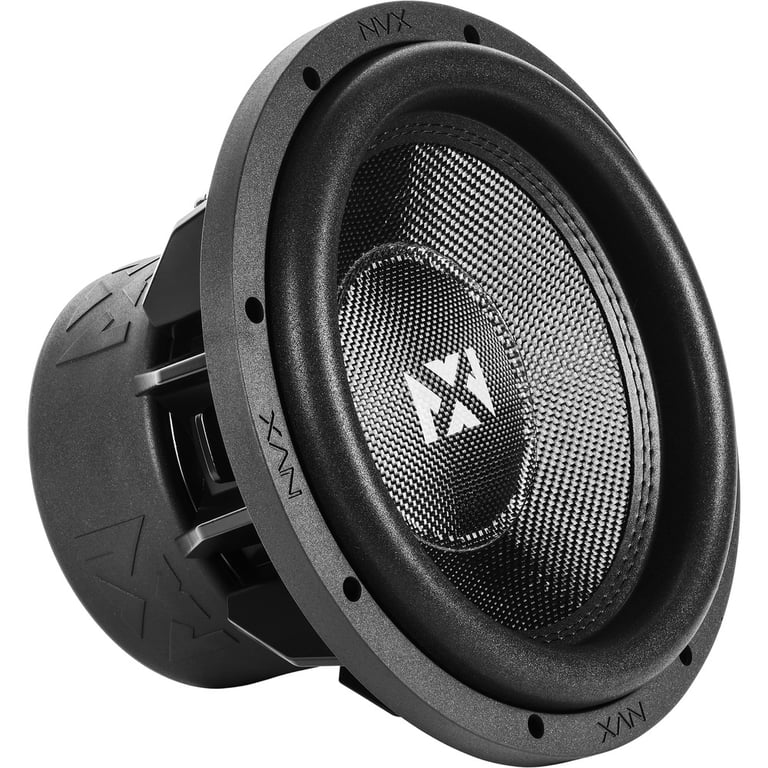

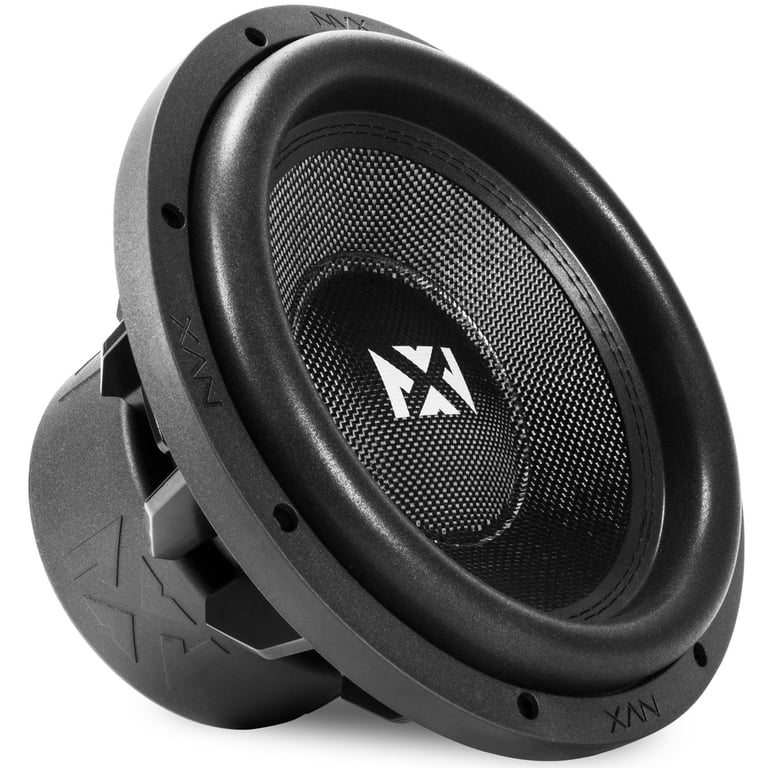

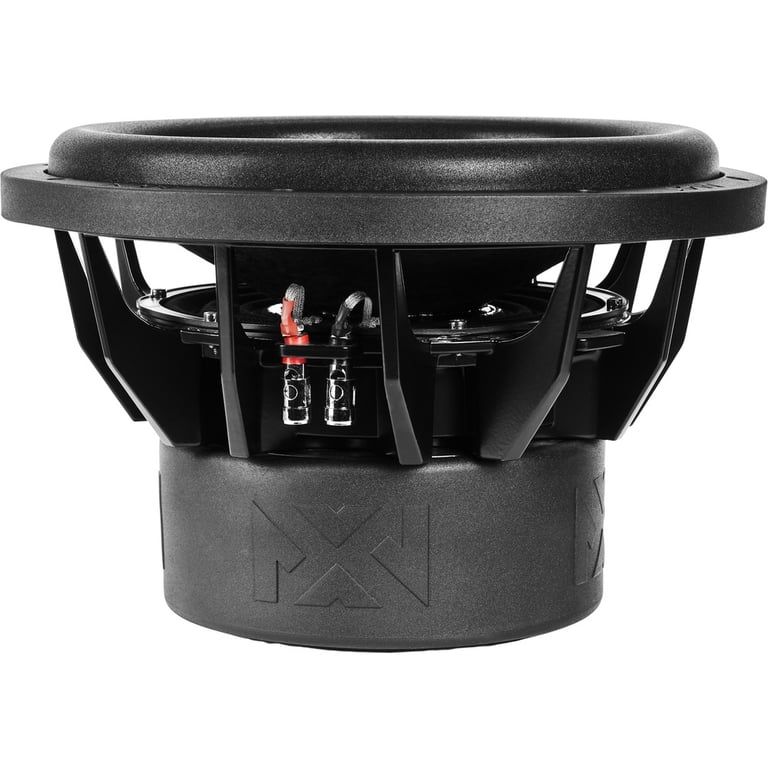

NVX VCW124 Version 3 (VCW124v3)

2400 Watt Peak (1200W RMS) 12" VC-Series v3 Dual 4-Ohm Car Subwoofer
Quantity: 2

Product Features:

  • 12" Dual 4-Ohm VC-Series v3 Car Subwoofer
  • Power Handling:
    • Peak Power: 2400 watts
    • RMS Power: 1200 watts
  • Impedance: Dual 4 ohms
  • Xmax: 23mm (One-way)
  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll foam surround with black nylon stitching
  • Die Cast aluminum vented basket
  • Dual Progressive Roll Bolt-on Spiders with Integrated Flat Braided Tinsel Leads
  • 3” 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One piece T-Yoke with vented magnet gap
  • 202 oz. Triple stacked High Energy Y35 grade ferrite magnet with protective rubber boot
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 25 Hz
  • Optimal sealed box volume: 0.85 cubic feet
  • Optimal ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Sensitivity: 85dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1250 watts x 1 channel
RMS Power @ 2 ohms
1950 watts x 1 channel
RMS Power @ 1 ohm
2700 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5400 watts
Total RMS Power Output
2700 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.3%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 55 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
Yes
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
VC Series
Number of Subwoofers
2
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
1200 watts
Peak Power Handling
2400 watts
Woofer Surround
High Roll Foam
Woofer Composition
Woven Fiber Pressed Paper
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Sensitivity
85 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
23 mm
Top-Mount Depth (Mounting Depth)
7.02"
Cutout Diameter
11.26"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VAD27001, (2) VCW124

Weight:

78.00lbs

Internal SKU:

vad27001_vcw124_2

Internal Product ID:

200196

Customer Ratings & Reviews



5 star
92%
4 star
7%
3 star
0%
2 star
0%
1 star
1%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Extremely Accurate

The following review is for VCW124v3, which is a part of the bundle you are viewing.

For a $200 subwoofer driver, this piece is one of the most accurate in it's price bracket.

What does it do for you? It creates a listening pleasure like no other, whether you listen to classical, rock, pipe organ, or any other genre of music, this speaker delivers.

It's quick response is well appreciated. I would or could go on and on about the different setups and what yielded the most listening pleasure, but that would be highly selective to my ears.

Bottom line is I would recommend this speaker on any given day of the week.

By samuel on May 19, 2014

136

found this helpful.

well structured subs

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Great subs, sounds awesome. Just can't get the subwoofers displacement anywhere and I'm having difficulty contacting technical support

By fredy on December 21, 2013

142

found this helpful.

POUND POUND POUND!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

That's all these do is POUND! They sound amazing. I have them ran 1 ohm to my Hifonics X2200.1, giving them 1000 watts RMS easily, and they are begging for more. Can't wait to get them in a custom box (going to do 1.9 cubic ft per chamber tuned to 30-34 hz), and have them really perform. NVX is great quality, and sound amazing. Heads turn when you have these in your trunk!!!!

By Matt on August 20, 2014

130

found this helpful.

Best subs yet!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

I bought the NVX VCW124s (2) to use in my vehicle with a Hifonics Brutus 2200 RMS Monoblock amp. The subs Voice coils are hooked in parallel giving me roughly a 2 Ohm load per speaker. So these babies are capable of getting 1100 amps RMS each but I don't push them that hard because I really don't need too and I want them to last. They hit harder than any sub I have ever bought and I am a solid NVX believer now. I also just bought the entry level NSW122s at a great deal, 2 for $99! If you are thinking about these, DO IT! You will not be disappointed one bit, and then you will likely not even consider anything else but NVX when it comes to serious performance and value.

By Ja_surplus on June 3, 2014

130

found this helpful.

great bass

The following review is for VCW124v3, which is a part of the bundle you are viewing.

The weight of the NVX Sub is nice and the bass is dumping.

By fresh on October 13, 2014

115

found this helpful.

awsom powding bass beastly subwoofer

The following review is for VCW124v3, which is a part of the bundle you are viewing.

i recommend this subwoofer to any one who is looking to get big bass for the right money i have three of these in a q power three hole m.d.f box and running them off of a 3000 watt s.p.l amp and all i have to say is holey chees and bees knees i can hear the bass six block's away and feel the bass running on to my chest from three and people have told me when i am washing my car and i have every thing playing start's to knock their china and glass cups out from their place. i plan to un pug one until i get another battery as well as a battery isolator do to my head light's diming and having to jump start my car every now and then i already got a strike Capacitor that is 10 farad so as soon as that all comes in BOOM im back is business ... other than that al i got left to say is that give it a try and i know you will love it... i was a kicker hater i always hated those subwoofer's and when i heard them in my friend's car on a boss amp i was wowd so when i was told that n.v.x was just as good as m.t.x i said to my self i will try one for my self and i loved them so much i bought three as well as a q power 3 hole box

By shaun on August 25, 2014

116

found this helpful.

NVX for the win NVX>ALPINE FOR SURE!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Took long to get home but worth the wait out of the box it was just an impressive subwoofer triple stack good looking and made Super tuff loaded them to a ported box and theyre louder than my broken in alpine type R subs i just love them definitely hi def sound thumbs up to nvx thanks sonicelectronix

By ARTILLERY CAR CLUB on January 16, 2014

114

found this helpful.

Buy it NOW before it's doubled in price!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

These subs are the BEST I have ever owned or heard anywhere and the price is way bellow what their competitors are asking for similar subs at NVX specs. I own 3 of these babies and am planning on buyin nothing but these subs for my subwoofer needs. Buy these subs NOW at these prices while you still can because the are definitely going to get more expensive and soon too. My next purchase will be for the VCW15 for another home subwoofer custome build. I only wish they made an 18" subwoofer for my current 18" subwoofer satellite custome built box that is good but could be so much better with an NVX subwoofer at its core. Amazing sound, quality, and value!

By Jlircs on September 30, 2014

112

found this helpful.

NVX is a great company

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Ok first off let me say my last system was 2 american bass xfl 12 (old style baskets) on a crescendo 2000d at .5ohm..could burp a mid 147db at 35hz.. had that setup for over a year..
anyhow i sold everything and went almost a entire year with NO bass at all..not even a cd player..
so i decided to get back into audio again..I 1st heard of nvx from mazda2284 on youtube.. and after talking to him i decided to order some nvx products..
i have 2 of these vcw 12s on a BELVA 5000d.. wired to 1ohm and gains set and O SCOPED for a CLEAN 2000w.. i have a 180a alternator and 150amp hr of battery bank and 0g wires..
i have these subs in a 3.8 cubic foot NET (meaning each sub really sees 1.9 cubes each) using 14" of port per cubic foot and tuned to 30hz..
i 1st tried the recommended 1.2 cube ported box but the ouput was absolutely HORRIBLE.. the 1.9 cubes REALLY made them come to life
they are JUST as loud as my xfls were and play a good bit lower also (xfls struggled below 25hz these nvx's play 20hz EASILY)
and they take the power all day long.. with my voltage dropping to around 13.2s full tilt i can play for a constant 1hr and the subs are still COOL and so is the amp

By jake on May 9, 2013

109

found this helpful.

amazing spl,sq, sub buy it !!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

i just got this sub have it in a 1.8 cube box at 30 hz when i say 1.8 thats what the sub is getting with all displacements. this sub hits lows better than any sub i have heard in my life amazing then it still bangs every other note as well its just all around amazing powering a kicker 1200.1 and eating up the power has 20xmax wich is amazing as well just well built and flawless design buy this subwoofer

By zfenton on April 23, 2014

106

found this helpful.

Add-ons


Similar Products

Best selling similar products

NVX QBSTA

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(2)

$249.99

NVX QBUS10P

• Low Profile Ported Subwoofer System
• 200 Watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(21)

$149.99

MTX Audio TNP212D2 Terminator Dual Subwoofer Package + Amplifier

• 800W Peak (2 Subs)
• 400W RMS (2 Subs)
• 48oz. Magnet
• Terminator Series Class D Monoblock Car Amplifier
• Heavy 5/8" MDF Construction
• Black Carpeting

(153)

$279.95

Rockford Fosgate Punch P300-12

• 12" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(36)

$349.99

Cerwin-Vega BKX212S

• XED Series Bass Package
• Two 12" Subwoofers with 2" Voice Coill
• 400W RMS Monoblock Amplifier
• Carpeted and Embroidered Enclosure

(3)

$289.00

Related Searches


VAD27001, (2) VCW124 small

Item added to your cart.

Price: $622.15

Essential add-ons
40 Square Feet of Sound Dampening Material

Thicker than the competition, complete sound damping kit for entire vehicle! Use for trunk, doors, roof and floor.

$279.99

$89.99

Add to cart
Dynamat Sound Dampening Bulk Kit

Did you know sound dampening will reduce those annoying rattles and even increase your SPL?

$383.95

$288.00

Add to cart
Stinger Sound Dampening Bulk Kit

Stinger's Roadkill sound dampening series is sure to kill unwanted road noise and rattles! Enough sound dampening for the whole car!

$219.00

$140.99

Add to cart
Belva BBG3KT CCA 1/0 Gauge Big Three Kit

Features everything needed to upgrade factory power and ground wire.

$79.99

$59.99

Add to cart
NVX XBG3PK 1/0 Gauge OFC Big 3 Upgrade Kit

Comes with everything you need to upgrade your power and ground wire.

$114.99

$99.99

Add to cart
2" Universal, Professional Heavy Duty Roller for Sound Damping/Dampening

Universal rubber roller to make it easy to install sound dampening.

$9.99

$8.99

Add to cart
Five Piece Installer Panel Removal Tool Kit

Installer's Panel Removal Installation Tool Kit for Car Stereo, Speakers and Car Audio Installs

$18.99

$11.99

Add to cart
SMD DD-1 Distortion Detector

Set the gain of an audio amplifier quickly and accurately

$207.99

$199.99

Add to cart
Impedance Meter / Signal Generator

Easy to locate tuning frequencies of passive radiators and ported enclosures

$461.99

$451.99

Add to cart
Save up to 10 different vehicles in your garage

Add vehicle
Loading...
Identify your vehicle and submodel details
  • Owner’s manual
  • Vehicle’s insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver’s side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon
