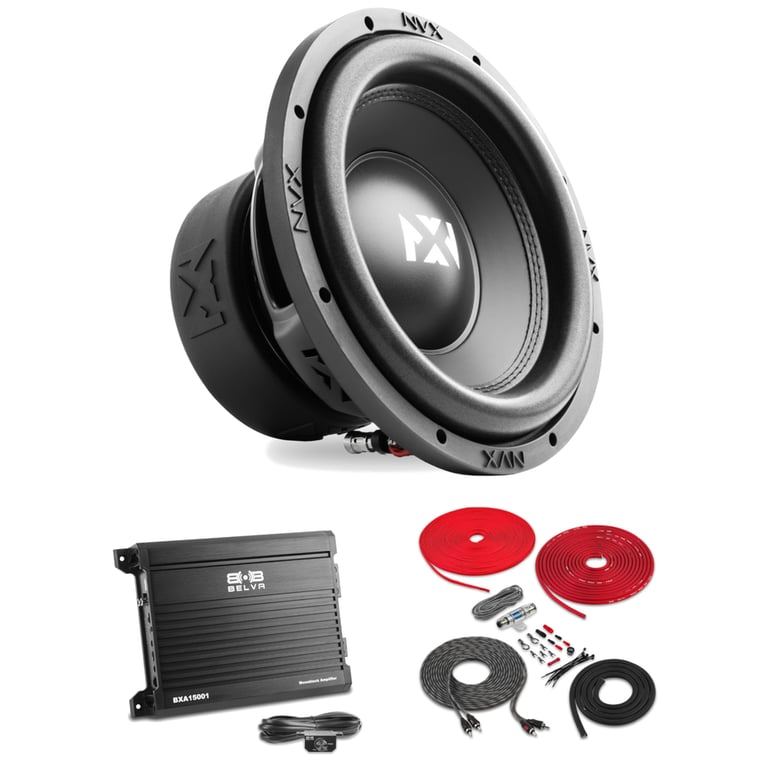

NVX VSW104v3 with Belva BXA15001 and Amp Kit

1000W Peak (500 RMS) 10" VS-Series Dual 4-Ohm Car Subwoofer Package

NVX
Shop all NVX
Only 3 Left!
highlight-star-icon

• 10" VS-Series Subwoofer
• Dual 4-ohm Voice Coil
• RMS Range: 500 Watts
• Non-Pressed Paper With Woven Carbon Fiber Top
• High Excursion Foam Surround
• Stamped Steel Basket
• Single Nomex Spider

Learn more about the vsw104v2_bxa15001_bak82
Universal fit Icon

Universal – fits most vehicles.

Similar items | Update vehicle | Vehicle store
List price $343.93
Thanks , You Pay:
-37%

$214.97

 with warranty
Starting at $20/mo or 4 payments of $54 Buy now, pay later and installment payment plans are offered by Afterpay and Affirm. Learn more

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

shipping truck icon Free shipping in USA. Provide zip for delivery date.
Quantity
In Stock. Only 3 Left!
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Hassle-free immediate replacement within minutes!
  • Easy online claims 24/7
  • Covers product breakdowns and failures
Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Description


NVX brand icon

Authorized dealer

NVX VS Series 10 Inch Subwoofer
High Roll Surround Progressive Roll Spider 2.5 Inch Voice Coil
Vented Magnet Gap

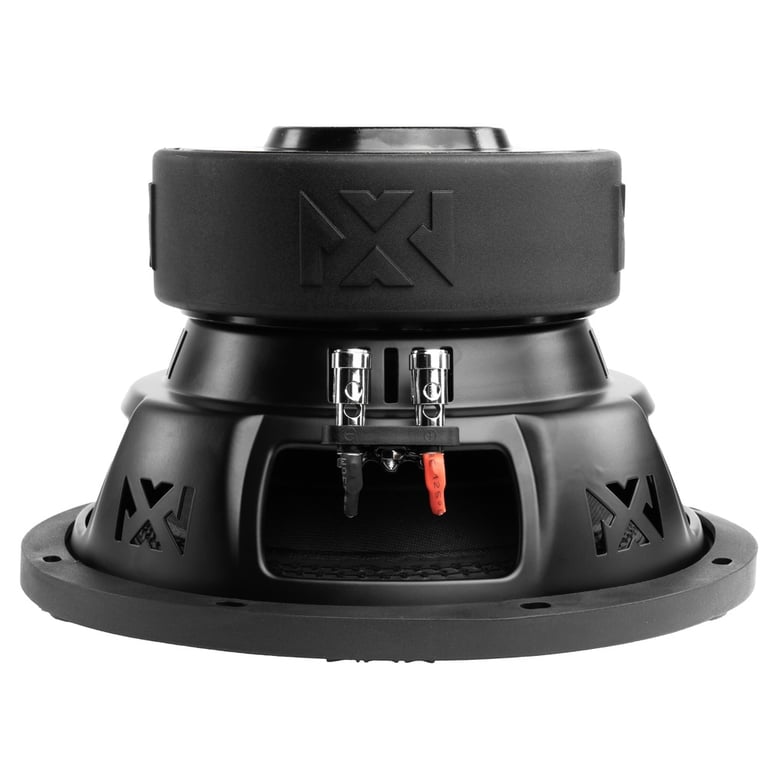

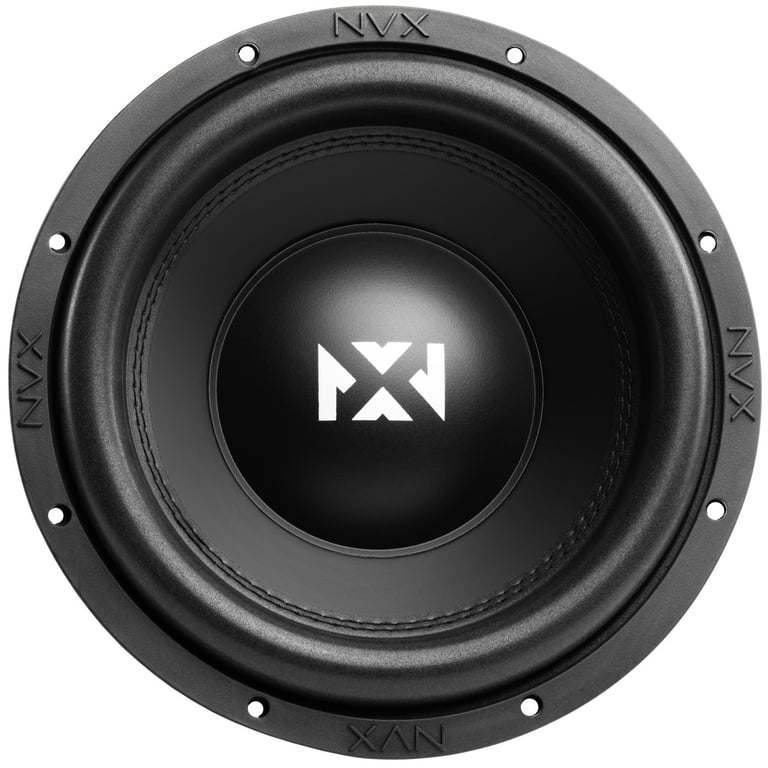

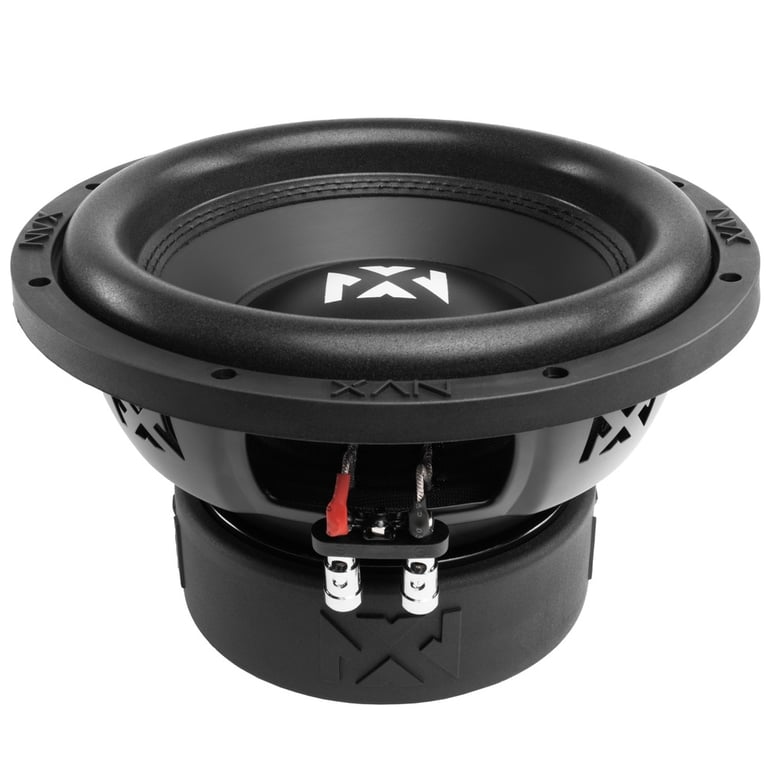

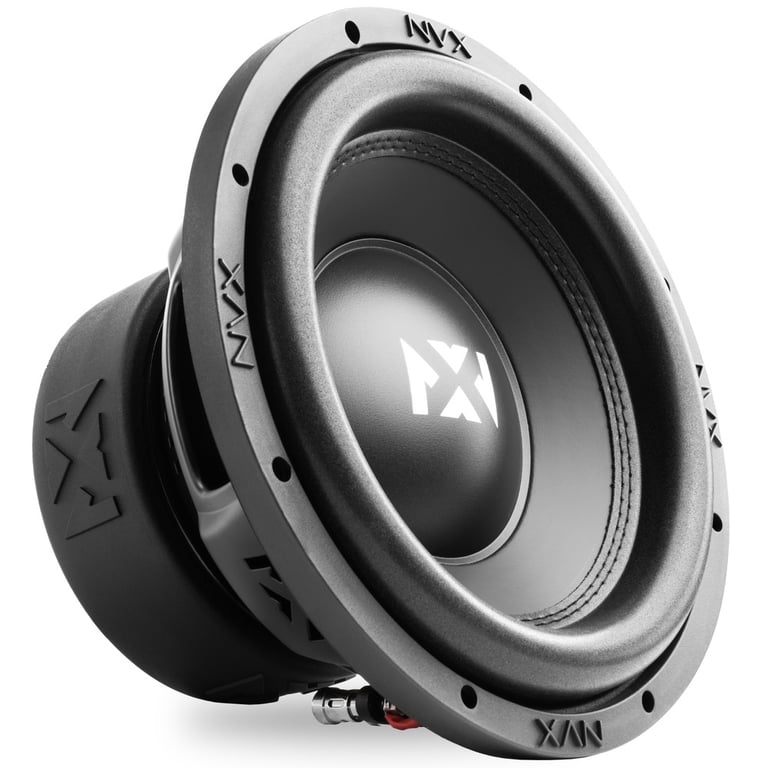

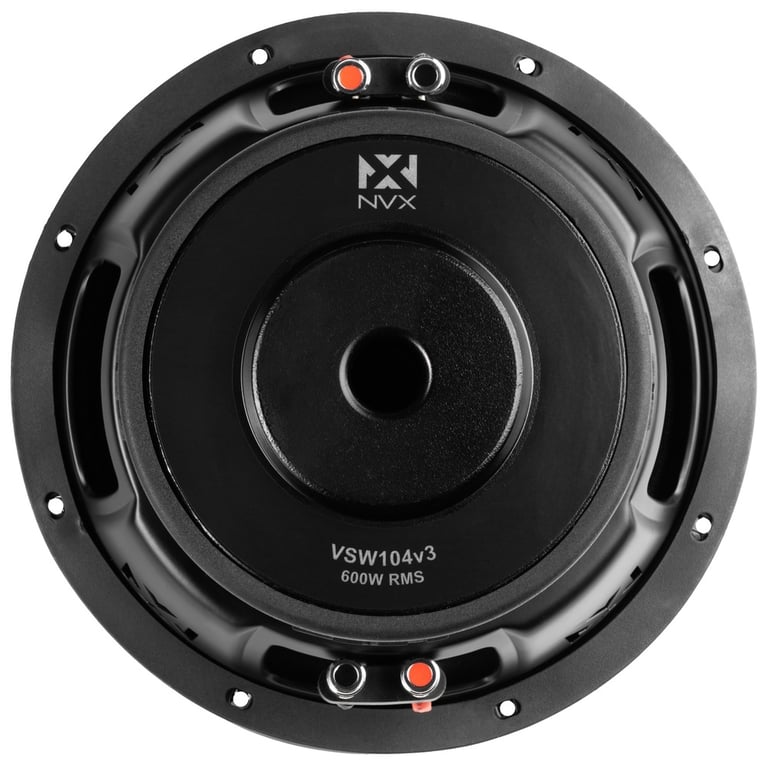

NVX VSW104 Version 3 (VSW104v3)

1200W Peak (600 RMS) 10" VS-Series Dual 4-Ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohm VS Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • 13.5 mm Xmax
  • Enhanced Pressed Paper Cone
  • High-Roll Foam Surround with Black Nylon Stitching
  • Stamped Steel Vented Basket with NVX Punched Logo
  • 2.5" High Temperature Copper Voice coil with Aluminum Former
  • Progressive Roll Single-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 107 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 32.61 Hz
  • Sensitivity: 85 dB
  • Recommended sealed box volume: 0.5 cubic feet
  • Recommended ported box volume: 1.25 cubic feet
  • Top-mount depth: 5.80"
  • Cutout diameter: 9.01"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconNVX VSW104V3 owner’s manual

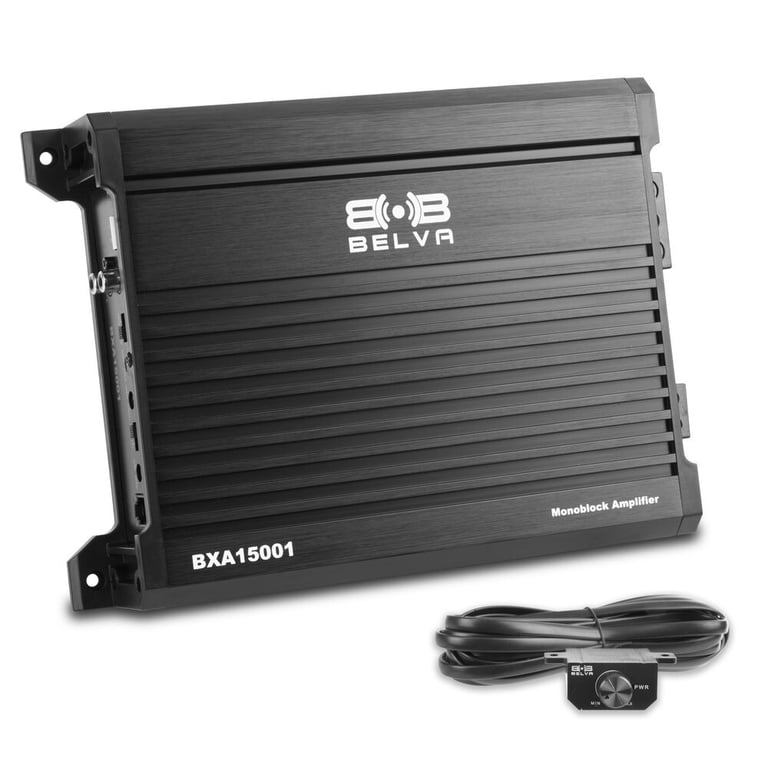

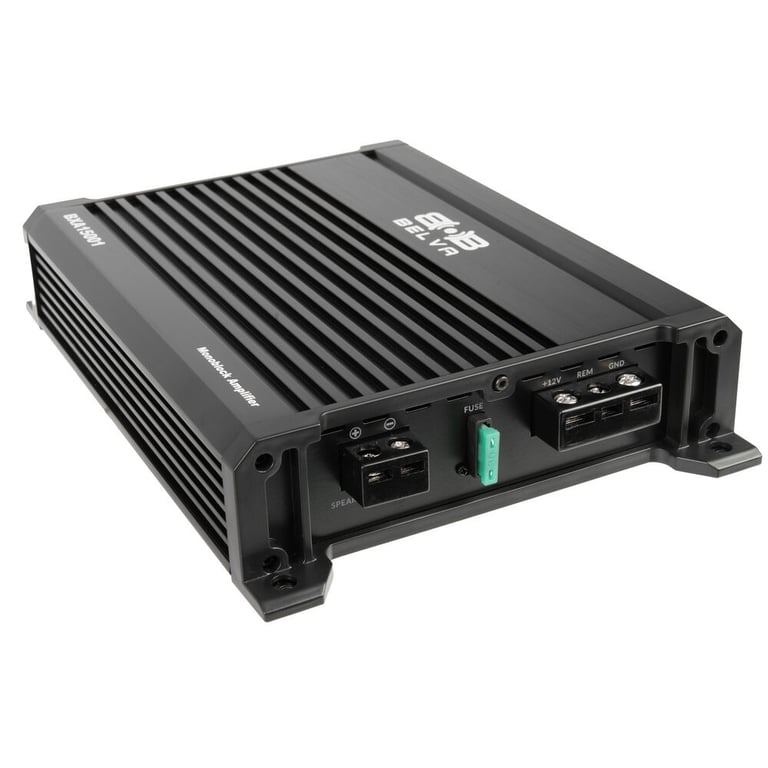

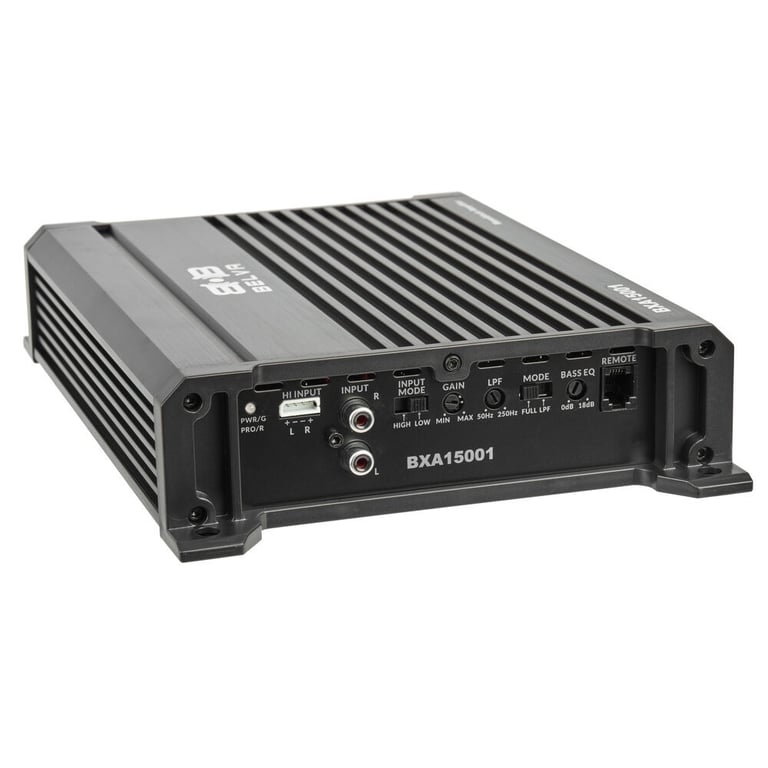

Belva BXA15001

1500W Peak BX-Series Class-AB Monoblock Car Amplifier with Bass Remote
Quantity: 1

Product Details:

  • BX Series Class A/B 2 ohm Stable Monoblock Amplifier
  • Power Rating:
    • 4 ohm: 750 watts x 1 channel
    • 2 ohm: 1500 watts x 1 channel
  • Total Peak power output: 1500 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light

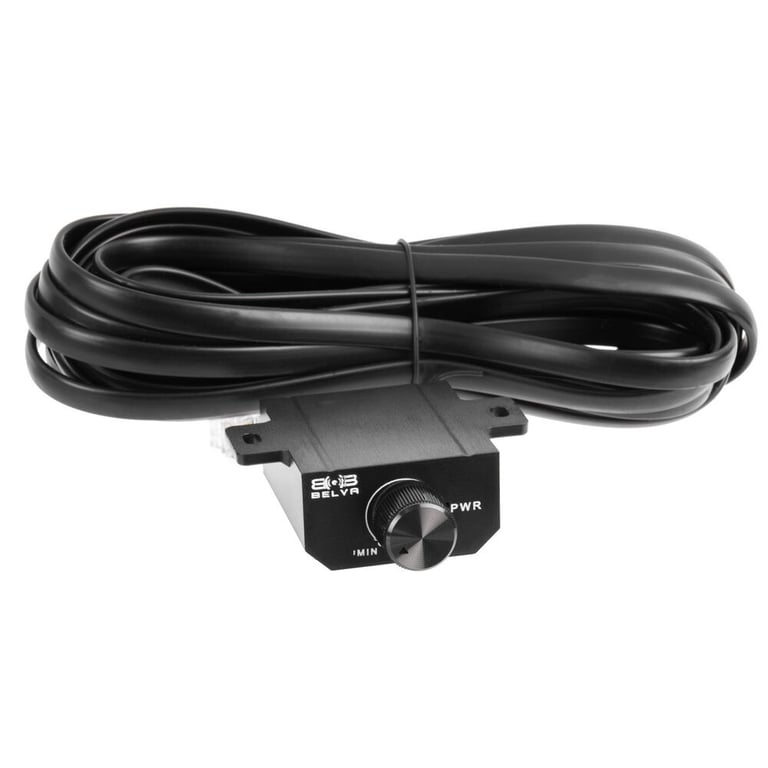

  • Wired remote bass level control included
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 200mV - 8 volts
  • Frequency Response: 10 - 30,000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 96 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 30A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.47" W x 7.87" L x 2.00" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

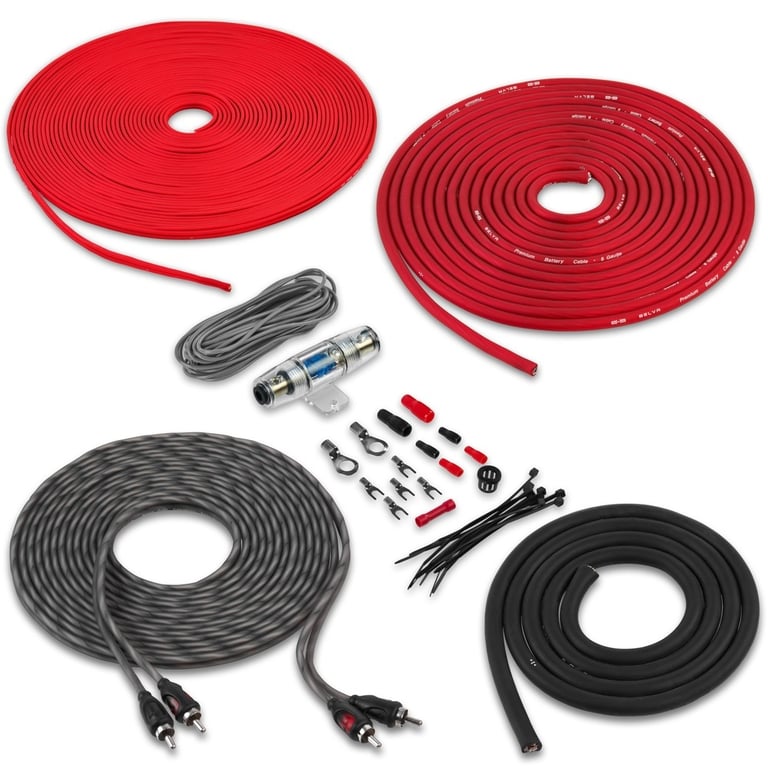

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

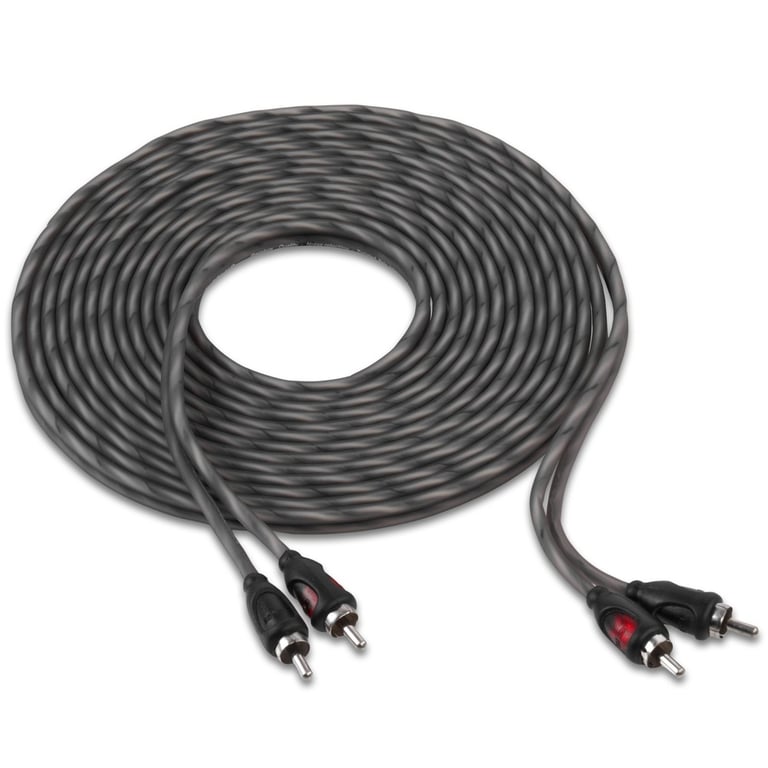

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

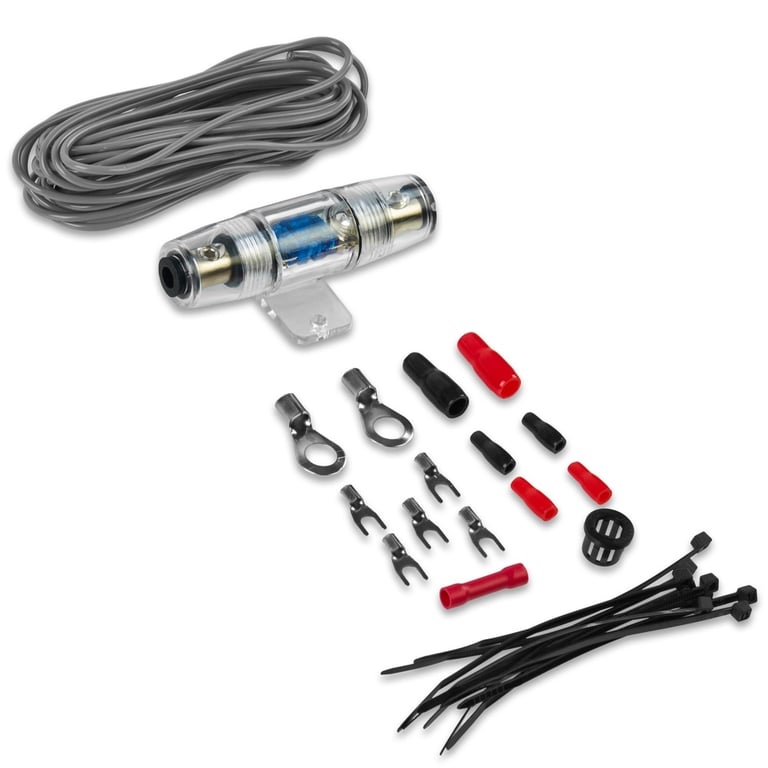

Kit includes:

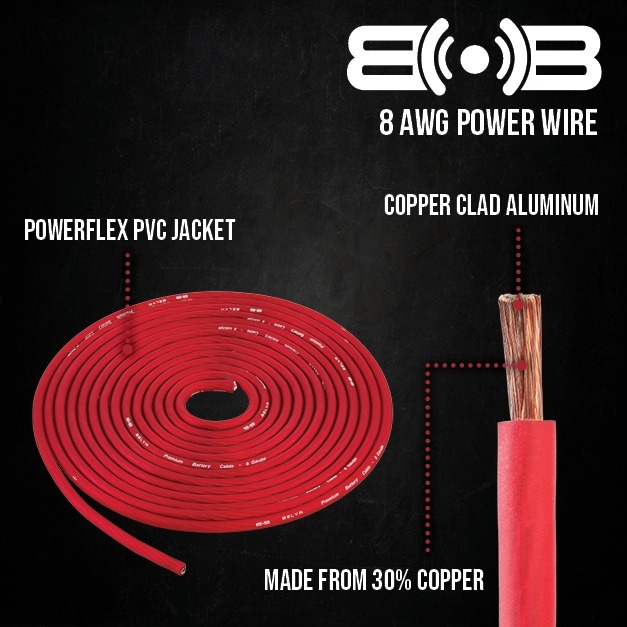

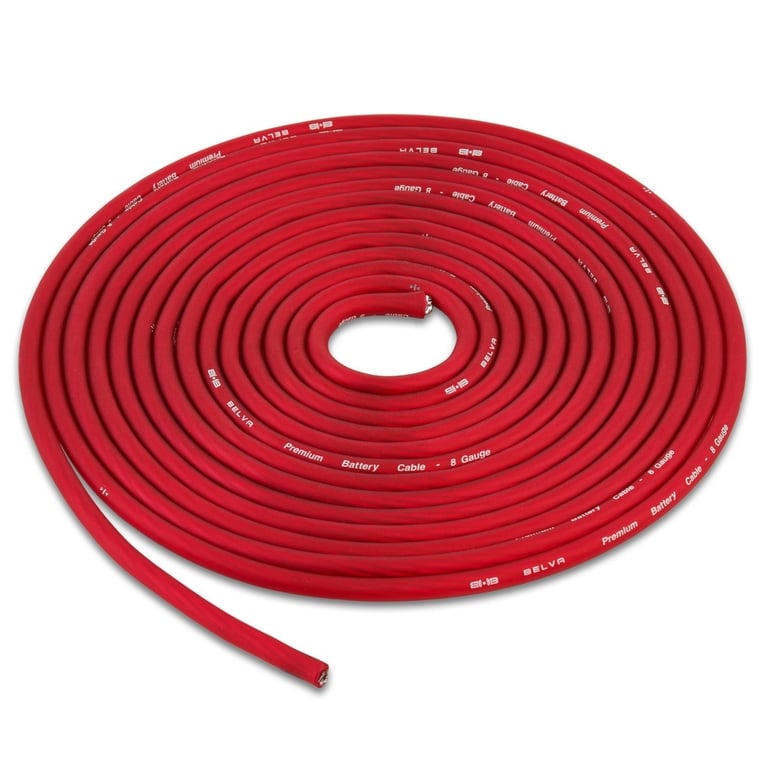

  1. 17 ft. Red 8 gauge power wire
  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Product history:

NVX VSW104V2_BXA15001_BAK82 thumbnail
(newest, current model)
NVX VSW104 thumbnail
(previous model, replaced by NVX VSW104v3 with Belva BXA15001 and Amp Kit)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
96 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
30A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Series
BX Series
Number of Subwoofers
1
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
500 watts
Peak Power Handling
1000 watts
Woofer Surround
Foam
Woofer Composition
Non-Pressed Paper
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
0.75 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Sensitivity
87 dB
Frequency Response
10 - 30,000 Hz
Xmax (millimeters)
11 mm
Top-Mount Depth (Mounting Depth)
5.00"
Cutout Diameter
9.15"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VSW104V2_BXA15001_BAK82

Weight:

23.05lbs

Internal SKU:

vsw104v2_bxa15001_bak82

Internal Product ID:

200199

Customer Ratings & Reviews


NVX VSW104v3 with Belva BXA15001 and Amp Kit thumbnail image

5 star
77%
4 star
17%
3 star
5%
2 star
0%
1 star
1%



Durability
4.7
Value
4.8
Features
4.6
Design
4.7
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

203 found this helpful


Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

185 found this helpful


Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

185 found this helpful


Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

180 found this helpful


Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

175 found this helpful


Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

167 found this helpful


Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

174 found this helpful


Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

166 found this helpful


Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

162 found this helpful


Belva BAK82

The following review is for BAK82, which is a part of the bundle you are viewing.

Worked very well for the money, great value for my system! Only thing that kept me from giving this 5 stars across the board is the design of the fuse holder and how you have to change/connect the fuse, minimal complaint.

By Dwight on April 9, 2014

151 found this helpful




69SQ-BLACK small

Sonic Speaker Box: 69SQ (Black Carpet)

Square 6" x 9" Slot Sealed Enclosure (Individually Priced)

(3)

$9.99

List price $39.99

HRN-SR-GM3 small

iDataLink Maestro HRN-SR-GM3 Wiring Harness

Install a New Car Stereo in select 2014-2020 vehicles from GMC, Chevrolet (Maestro SR Required)

$64.99

List price $99.99

GDI-EXSEB2601 small

Sound Extreme by ECOXGEAR SEB26 (GDI-EXSEB2601)

500W Peak 28” Elite Series 8-Speaker Amplified Bluetooth Soundbar with Battery Charger

(2)

$499.99

List price $499.99

SE26 small

Sound Extreme by ECOXGEAR SE26 (GDI-EXSNDXTR01)

500W Peak 26” Elite Series 8-Speaker Amplified Bluetooth Soundbar with Integrated LED Controller

$399.99

List price $399.99

DR13254D_BAK44 small

Crunch DR-1325.4D with Belva 4 Gauge Amp Kit

1325W Peak Class D V-Drive Series 4-Channel Full Range Car Amplifier

(61)

$163.49

List price $216.98

SB2TR small

JayBird SB2 Sportsband - Toffee Apple Red (SB2TR)

Flexible Over-The-Head Semi-Open Stereo Sportsband Headphones with Wireless Apt-X Technology

(11)

$74.95

List price $99.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Saab 9-3

2001 Chrysler Sebring

2014 Lexus RX350

2015 Ford Explorer

2004 Saab 9-3

2017 Ford Taurus

2015 MINI Cooper

2017 Mazda CX-5

2010 Ford Flex

2014 Ford Flex

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
