NVX VSW104

500W 10" VS-Series Dual 4 ohm Car Subwoofer

NVX
Shop all NVX

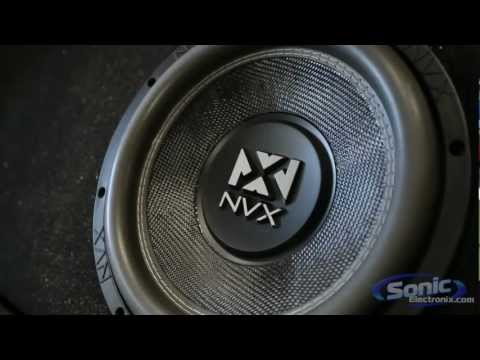

Product videos
highlight-star-icon

• RMS Power: 350-500W
• Dual 4-ohm Voice Coil
• Hybrid Carbon And Fiberglass Woven Cone With A Pressed Paper Backing
• High Excursion Foam Surround
• Textured Stamped Steel Basket
• Dual Nomex Spiders

Learn more about the vsw104

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

vsw104v3 thumbnail

NVX VSW104 Version 3 (VSW104v3)

OUR PRICE: $119.99

View item

Loading...
Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

T1650-S main

Rockford Fosgate Power T1 T1650-S

320W Peak (160W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

1
CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

3
-30.04%

$55.96

List price $79.99

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Limited time!

JVC KW-M595BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

3
-30.30%

$299.00

List price $429.00

Product Highlights


• RMS Power: 350-500W
• Dual 4-ohm Voice Coil
• Hybrid Carbon And Fiberglass Woven Cone With A Pressed Paper Backing
• High Excursion Foam Surround
• Textured Stamped Steel Basket
• Dual Nomex Spiders

Description


NVX brand icon

Authorized dealer

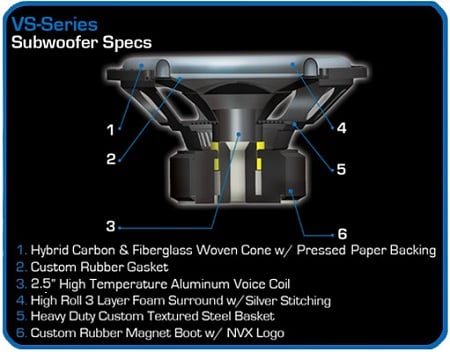

Cutaway diagram of NVX V-Series component

Top Quality Bass at an Amazing Price

The NVX VSW104 is the perfect subwoofer solution. The series utilizes excellent engineering found in the higher end NVX subwoofers. It features a hybrid carbon and fiberglass woven cone with a pressed paper backing that is strong and lightweight for accurate response and extreme SPL. Keeping the cone under control is a high-roll 3-layer foam surround with silver stitching that is specially treated to give you maximum excursion. The VSW104 also uses a 2.5" high-temperature aluminum voice coil that provides maximum current distribution and has a power handling range of 350-500 watts RMS. All of these elements combined produce tight, deep and accurate bass that is sought after by bass-heads and audiophiles. If you are looking for an extremely well engineered subwoofer at an amazing price, then the NVX VSW104 is the perfect choice for you.


General Features:

  • 10" Dual 4-ohm VS-Series Car Subwoofer
  • Power Range:
    • RMS: 350-500 watts
  • Impedance: Dual 4 ohm
  • Non-pressed paper cone with woven carbon fiber top
  • High excursion 3-layer foam surround
  • Heavy duty custom textured steel basket for maximum rigidity
  • Dual Nomex Spiders
  • 2.5" High temperature aluminum voice coil
  • Double stacked Ferite magnet motor structure with protective rubber boot
  • Frequency response: 30-500 Hz
  • Resonance Frequency (Fs): 32.4
  • Top-mount depth: 5-5/16"
  • Sensitivity: 84.5dB
  • *CEA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Additional Information:

CEA-2031 Certified NVX Logo

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.




Product history:

NVX VSW104v3 thumbnail
(newest, current model)
NVX VSW104 thumbnail
(previous model, replaced by NVX VSW104 Version 3 (VSW104v3))

Frequently Asked Questions (FAQ)


NVX's VSW series subwoofers are built with premium quality for regular use. Designed with a stamped steel basket, enhanced pressed paper cone and aluminum shorting ring, these subwoofers are hard to beat in performance and style.
NVX utilized an enhanced non-pressed paper cone for VSW104. It’s treated to be moisture-resistant and much stiffer than standard paper. You get the warm, natural sound of paper with the durability of a high-tech composite.
Absolutely. VSW104 uses a high-roll foam surround with black nylon stitching. This creates a rock-solid, vibration-proof connection between the cone and frame. It ensures the only thing vibrating is the air, not the sub itself.
We don't recommend it. In fact, it can be dangerous. Not because of the low watts, but because you’ll likely crank the gain to compensate. This causes clipping which generates massive heat on the coils. Pair this with an aftermarket amp with similar RMS.
It’s the distortion killer. The ring prevents the magnetic field from shifting during heavy movement. This means your bass stays "lifelike" and clean even when you’re pushing the sub to its highest excursion limit.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 NVX VSW104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 NVX VSW104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 NVX VSW104 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 NVX VSW104 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
VS Series
Subwoofer Size
10"
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
30 - 500 Hz
Sensitivity
84.5 dB
Xmax (millimeters)
11 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Dark Gray
Woofer Composition
Non-Pressed Paper With Woven Carbon Fiber Top
Woofer Surround
High Roll Foam
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
.75 cubic feet
Optimum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/16"
Cutout Diameter
9-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
32.4 Hz
Equivalent Compliance (Vas)
21.55 liters
Total Speaker Q Value (Qts)
0.483
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VSW104

Weight:

20.00lbs

Internal SKU:

vsw104

Internal Product ID:

46319

Product and How-to Videos


  • NVX VS Series Car Subwoofers
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


NVX VSW104 thumbnail image

5 star
73%
4 star
27%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.8
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

awesome

Love these subs hit hard and sound nice and clear

By Thomas on August 18, 2014

60 found this helpful


Amazing Bass Quality!

These are some meaty 10s. High quality bass and powerful. I have them in a 2008 F250 with a custom enclosure behind the rear seat. (The rear seat has been moved forward 2"). They are being pushed by a NVX JAD 1200.1 amplifier. TONS of power and loud, clear bass. Very happy with my purchase. High quality, affordable subwoofers.

By Marc on October 14, 2014

59 found this helpful


NVx very good

Just buy this sub . I have it in a ported box 1qf in a 2002 jeep liberty . And it rattles the back so bad .

By andrew on February 21, 2014

58 found this helpful


Great quality subwoofer. The best I've owned yet.

Wow the magnet is huge on this 10". Most people think I have a couple 12"s back in the trunk but it's just this bad boy slamming away. My favorite part is the SQ of this sub. It's definitely the best sounding subwoofer I've owned. Worth at least double! Beats out most subs in the 200$ range and it's half that. I love NVX now. Huge sound, huge quality, huge savings. You can't go wrong; very hard to beat. Perfect for my scion tc. Hooked up to a 3 channel JBL amp 500rms at 2omhs in a ported box and I love it. I'm satisfied.... for now..... but when I need more I will definitely be looking at NVX first.

By Ryan on January 19, 2014

60 found this helpful


This baby BANGS!!!

I have been asked what pair of 12's I have, what 15 I have, is there a 15 hidden somewhere and "Seriously, all that from that little thing?" I have this in a .77 cu. ft. sealed enclosure (for now) from Sonic Electronix powered by my NVX JAD900.5! This sub is AMAZING!!! Tight and accurate, but still deep and boomy! NVX is GREAT! There is no competition! Every product NVX makes is AWESOME! Sonic Electronix is the only choice for your car audio needs! Thanks guys!

By Eliseo on October 17, 2012

58 found this helpful


Great buy

i absolutely love this sub. I installed it right after christmas and straight out of the box the surround was already softer than any sub ive had before after it broke in. i have this sub in a custom made ported box at 1.2 cubes and tuned to 32hz. right now its running at 400rms @ 2ohms with about 6db bass boost and this sub moves alot of air and hits lows very well. id recommened this sub to anyone who is on a budget looking for alot of bass. i only wish NVX made it in a 2ohm so i could wire it down to 1 ohm.

By breezee on January 4, 2014

58 found this helpful


boom per price

i just recently bought this from sonic and installed it myself. i have it on a power acustik razor 2500 amp which is suppose to put out 600rms @ 2ohms, which i do not believe since the amp is tiny. It will shake your car your trunk a little and vibrate your mirrors for a ten. For under $100, i believe that this is well worth the money.

By del on June 26, 2014

53 found this helpful


great sq and SPL for the price

Recently installed in my sisters car. Sound quality is superb, price is great, and speaker appears to be well constructed. So far the speaker could be comparable to high end sub's. Time will tell.

By DC on December 29, 2013

53 found this helpful


Truly fantastic sub for the money

When I decided to upgrade my audio build for the third time I was debating which high SQ sub to go with. My salesperson suggested that I couldn't do better than the new NVX subs. I was prepared to spend 3 times what I did for a JL or Focal sub. I was extremely skeptical until I heard a W6 and this VSW side by side. The sound quality was as good or better on the VSW and I purchased it for a fraction of the price. For the first time in my car audio experience the hype lived up to the results. You simply cannot go wrong NVX products.

By DonnieE on December 5, 2012

51 found this helpful


update

i have installed one in my car and has now been broken in and i can say that it is bumping pretty hard for a 10. it is also tight strong bass, but i am going to change out the amp soon, because the amp i have will get a little distorted in high volumes.

By RUDEL on July 14, 2014

50 found this helpful




No picture

DS18 PRO-ZT6 (Sold Individually) (Open Box, Great)

450W Peak (225W RMS) 6.5” PRO-ZT Series 4-ohm Water-Resistant Midrange Loudspeaker

$67.17

List price $95.95

0180009-1 small

Cobra RAD 480i

Radar and Laser Detector with Bluetooth and App Control

(1)

$149.95

List price $149.95

XCAMLP small

NVX XCAMLP

High Resolution License Plate Frame Backup Camera

(51)

$49.99

List price $59.99

BARCAM221 small

NVX BARCAM221

Universal Waterproof License Plate Mount Backup Camera with Full Metal Body

(39)

$39.99

List price $99.99

HCE-C1100 small

Alpine HCE-C1100

Universal High Dynamic Range (HDR) Rear View Backup Camera

$199.95

List price $240.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Ford Expedition

2008 Saturn Vue

2012 Toyota Yaris

1998 Mercury Sable

2016 Audi S3

2015 BMW M4

2020 Lexus NX300h

2012 Ram C/V

2016 Ford Expedition EL

2016 Nissan Leaf

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
