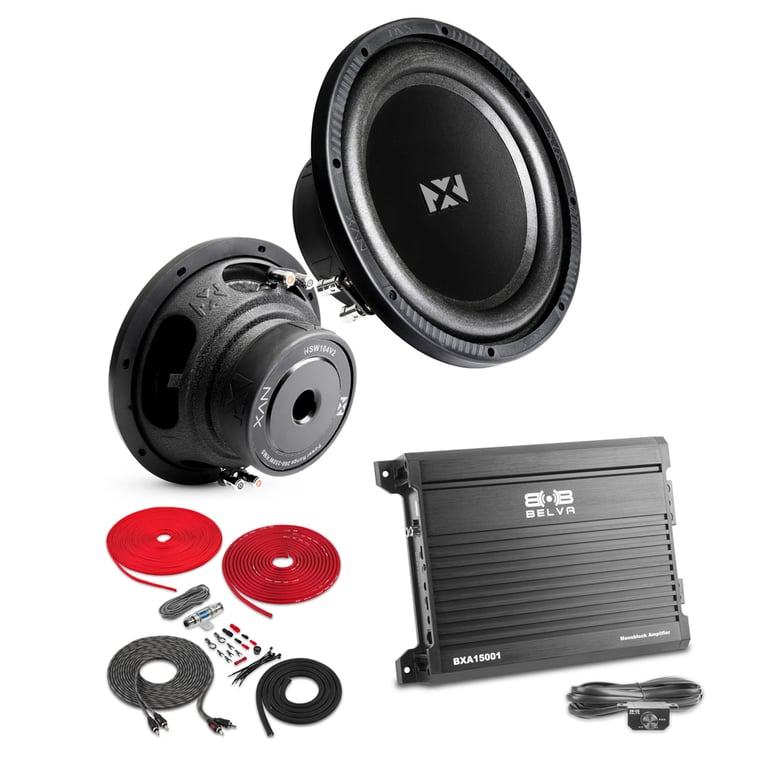

NVX NSW104v2with Belva BXA15001 and Amp Kit

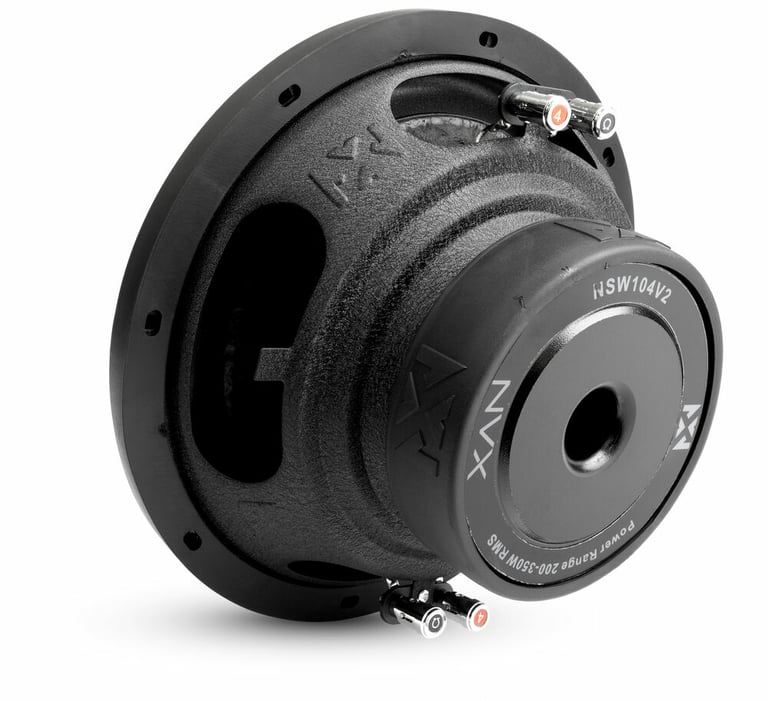

700W Peak 350W RMS N-Series V2 10" Dual 4-Ohm Car Subwoofer Package

NVX
Shop all NVX
highlight-star-icon

• 350 Watts RMS / 700 Watts Max
• Impedance: Dual 4-Ohm
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround
• 2” High-Temperature Aluminum Voice Coil
• 750W x 1-Channel @ 4 ohms
• 1500W x 1-Channel @ 2 ohms
• Total Peak Power: 1500 watts
• Class A/B 2 ohms Stable Monoblock

Learn more about the nsw104v2_bxa15001_bak82

We apologize

This item has been discontinued

Description


NVX brand icon

Authorized dealer



Wallet Friendly N-Series Power

The NVX N-Series subwoofers offer top-notch sound quality at an entry-level price. The NSW104V2 is a great multi-purpose sub that has been engineered to meet the highest audio standards. The stiff, ultra-light non pressed paper cone allows the N-Series subs to give you accurate and responsive low-end even when you have your system blasting. The custom-blended high roll foam surround allows for greatly improved excursion for further improved sound quality. The 2" dual 4-ohm high-temperature aluminum voice coil gives you a wide array of Ohm load wiring options for different applications. With an RMS Power Range of 200-350 watts, the NSW104V2 requires less power to operate efficiently without losing bass quality.

Continuing with the excellent engineering is a stamped steel basket that provides exceptional rigidity while minimizing any unwanted distortion. The N-Series subwoofers also include spring-loaded, chrome-plated push terminals that provide an easy and secure speaker wire connection. NVX's mission was to create an exceptional subwoofer at an entry-level price without sacrificing the quality and sound that the consumer deserves. They have succeeded!


1. Rubber Subwoofer Trim Ring Gasket

We’re all about the details here at NVX. That's why we include a rubber trim ring gasket with our N-Series subwoofers. The trim ring provides a tight seal against the sub and the box it is being mounted to, in order to prevent air pressure from passing between the two.

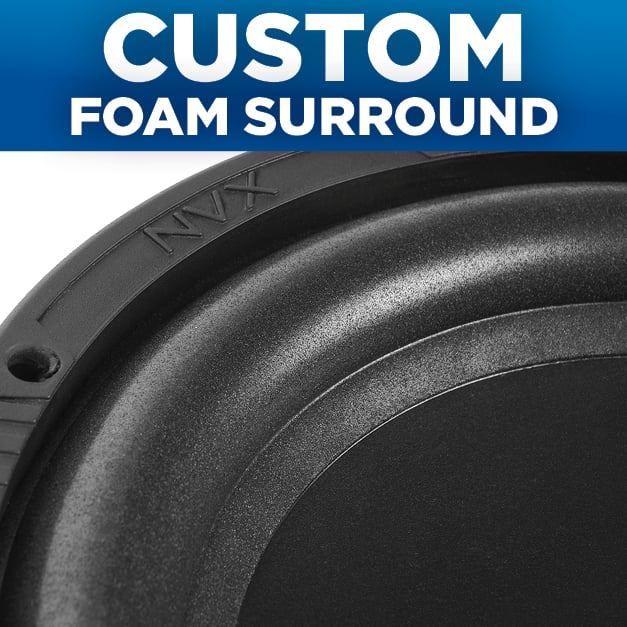

2. Surround & Suspension Technology

We’re all about getting the most bang for our buck, a key reason why we chose to include high-roll foam surround technology in the N-Series woofers. The surround itself is constructed with high excursion foam, which keeps the inward movement of the surround perfectly symmetrical with the outward movement.

3. Custom Stamped Steel Basket

Our custom basket offers several distinct advantages over traditional designs. We purposefully chose an especially open basket to improve airflow to reduce compression of the motor structure for both improved cone control as well as reduced back-wave interference.

4. 2” High-Temperature Aluminum Voice Coil

The stout 2" high-temperature voice coil is constructed from a copper wire wrapped around an aluminum former. This industry-standard design is powerful enough to readily drive the cone with strict linear control, yet at the same time remains efficient enough for the compact, space-saving magnet structure.

5. High-Energy Ferrite Magnet Motor Structure

We chose a highly magnetized single stacked Ferrite magnet for the motor structure in the new N-Series. This magnet allows for greater power handling and voice-coil control during high excursion limits.

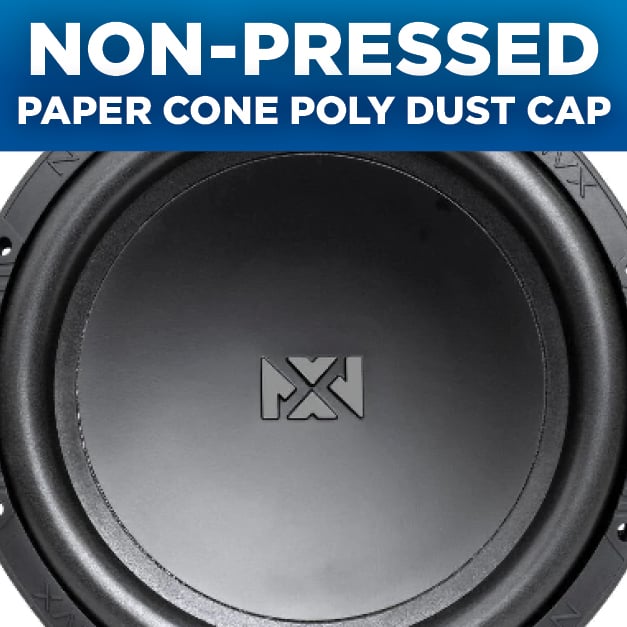

6. Ultra-Light Non-Pressed Paper Cone

After testing scores of different cone materials, we decided on a custom blend of fine Ultra-Light Non-Pressed Paper fibers. This stiff yet lightweight material produces spectacularly accurate bass with a rich, natural tonal quality prized by audiophiles. The smooth matte finish of the cone offers a sleek, modern accent to the interior of any car.

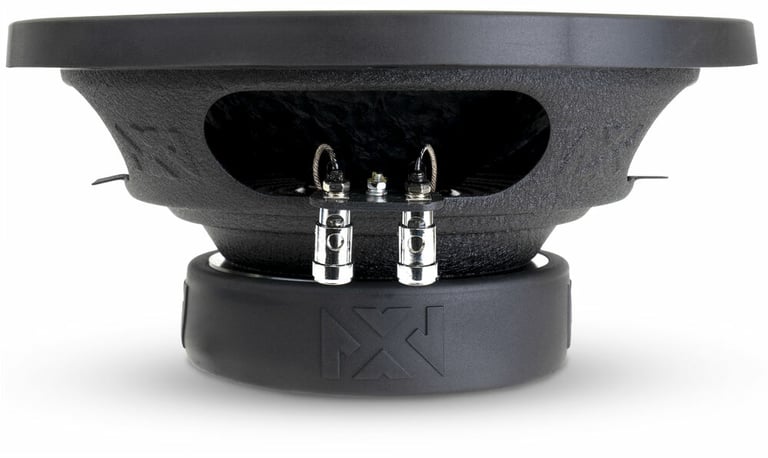

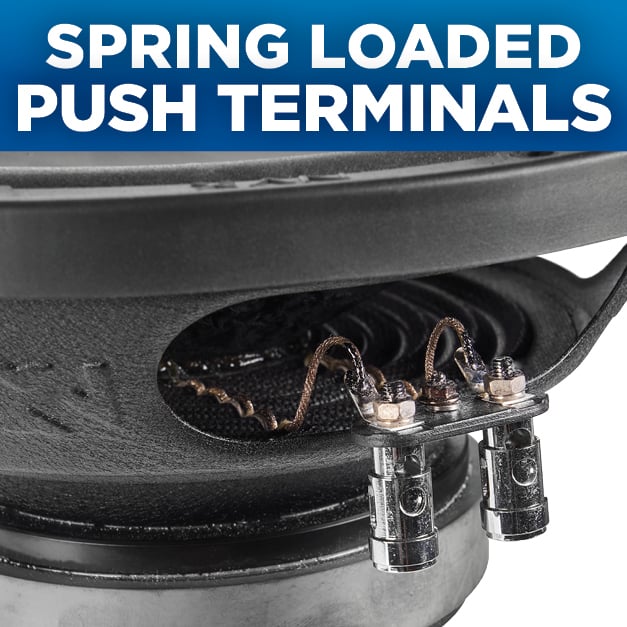

7. High-Excursion Strain-Relieved Tinsel Leads

At NVX we understand that the components of a subwoofer must work in harmony to achieve sonic excellence and that a subwoofer is only as reliable as its weakest link. There is perhaps a no better example of our relentless attention to detail than the unique attachment method of our tinsel leads. Whereas the leads of most subwoofers are simply glued atop the spider, ours are glued at the basin of each fold in the spider with enough slack on top for an unrestricted excursion.

8. NVX Embossed Rubber Magnet Boot

We didn't even skimp on the magnet boot for our N-Series subwoofer. Besides looking better than a bare magnet the rubber boot protects the magnet from chipping and possible corrosion that can affect magnets exposed to the elements.


NVX NSW104 Version 3 (NSW104v3)

1000W Peak (500W RMS) N-Series v3 10" Dual 4-Ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohms N-Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • 12.5 mm Xmax
  • Enhanced Pressed Paper Cone
  • High-Roll Foam Surround
  • Stamped Steel Vented Basket with NVX Punched Logo
  • 2" High Temperature Copper Voice coil with Aluminum Former
  • Progressive Roll Single-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 36.91 Hz
  • Sensitivity: 85 dB
  • Recommended sealed box volume: 0.60 cubic feet
  • Recommended ported box volume: 1.5 cubic feet
  • Top-mount depth: 5.36"
  • Cutout diameter: 8.97"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconNVX NSW104V3 owner’s manual

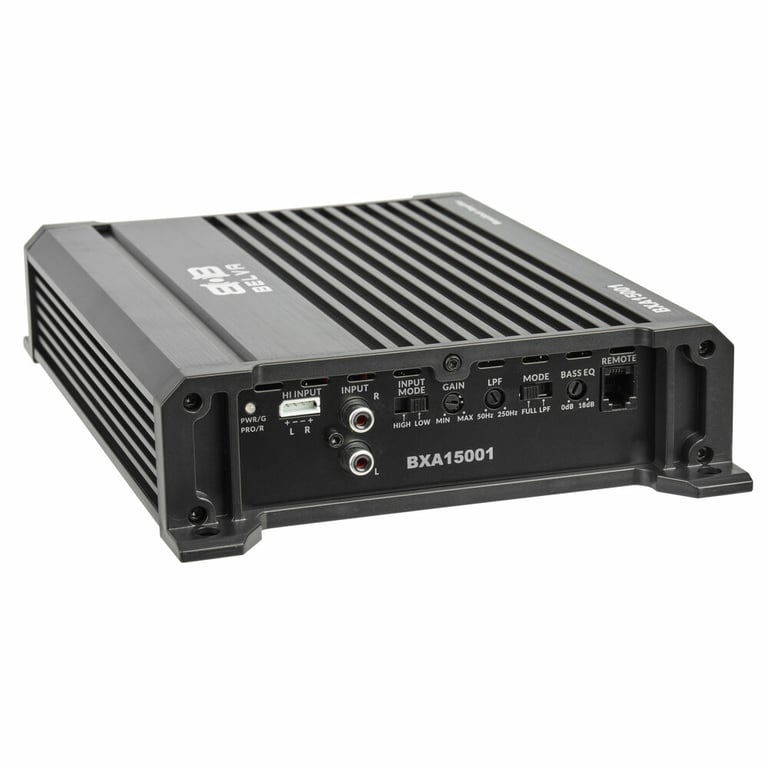

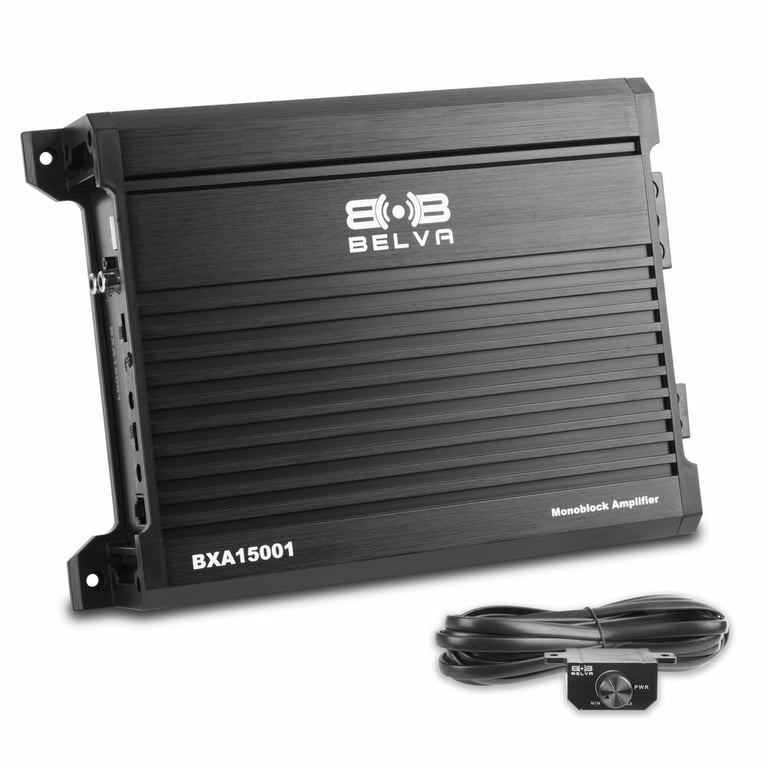

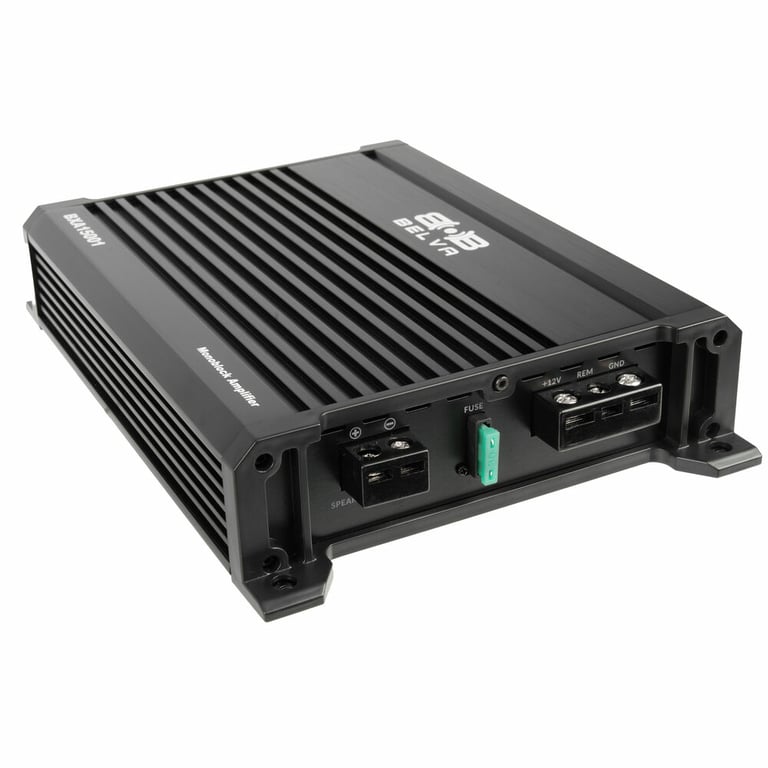

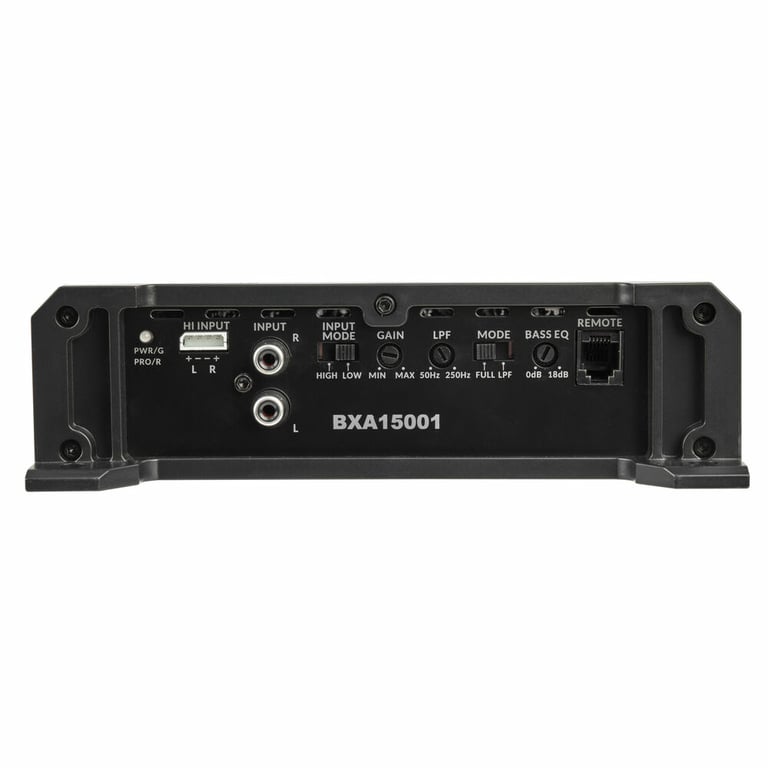

Belva BXA15001

1500W Peak BX-Series Class-AB Monoblock Car Amplifier with Bass Remote
Quantity: 1

Product Details:

  • BX Series Class A/B 2 ohms Stable Monoblock Amplifier
  • Power Rating:
    • 4 ohms: 750 watts x 1 channel
    • 2 ohms: 1500 watts x 1 channel
  • Total Peak power output: 1500 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light

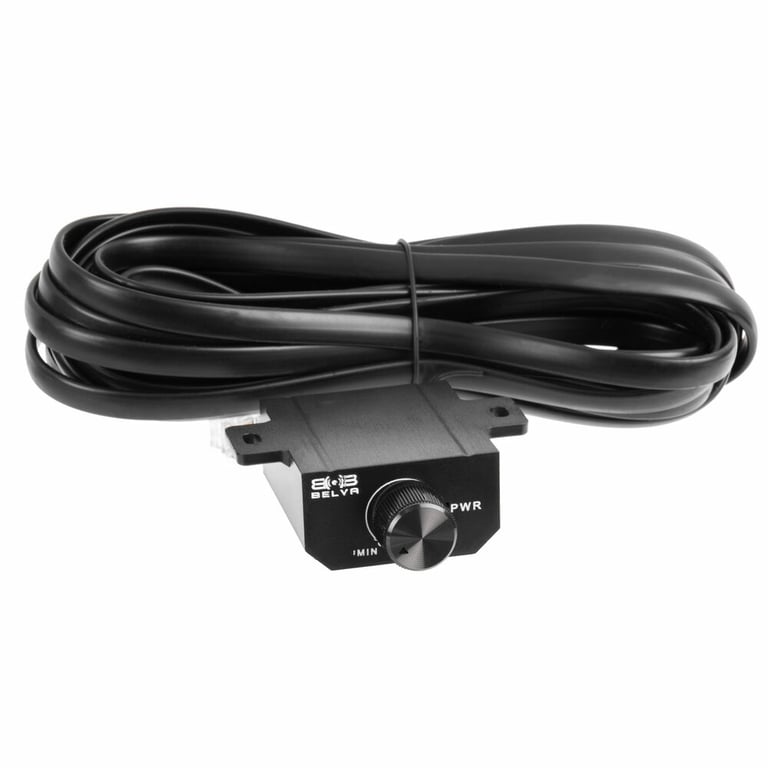

  • Wired remote bass level control included
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 200mV - 8 volts
  • Frequency Response: 10 - 30,000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 96 dB
  • Variable low-pass filter: 50 - 250 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 30A
  • 8 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.47" W x 7.87" L x 2.00" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

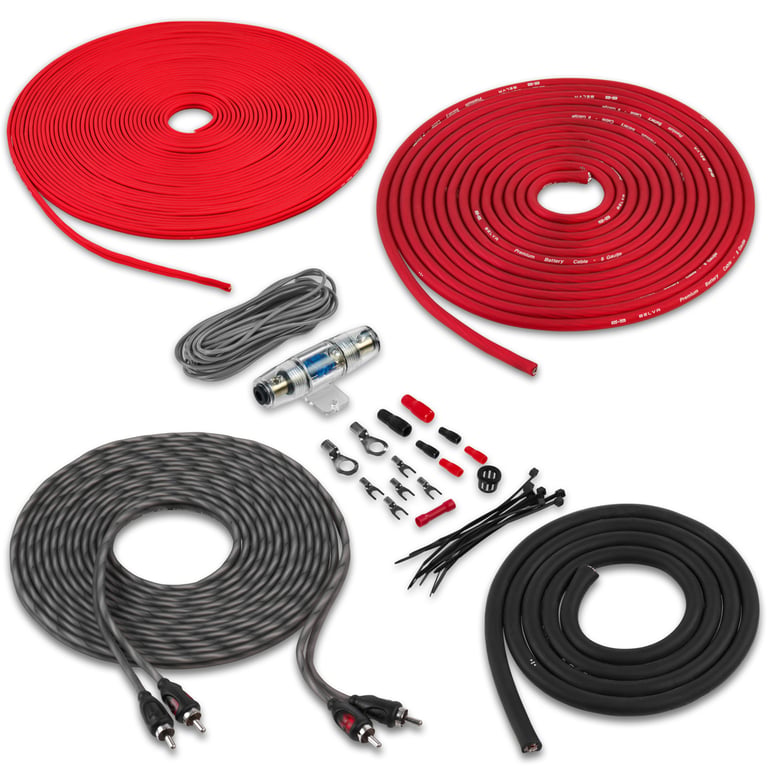

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • Complete 8 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS

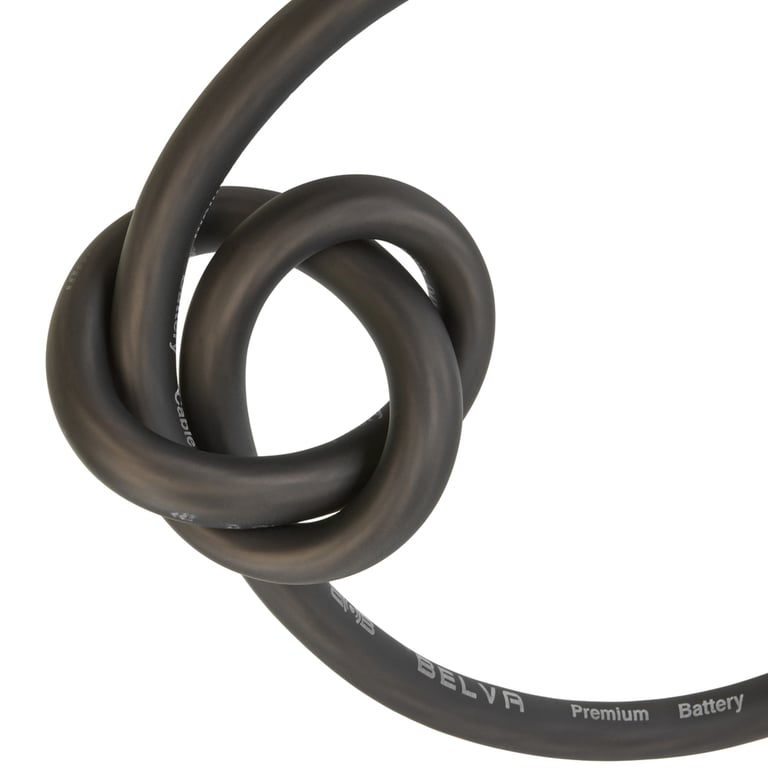

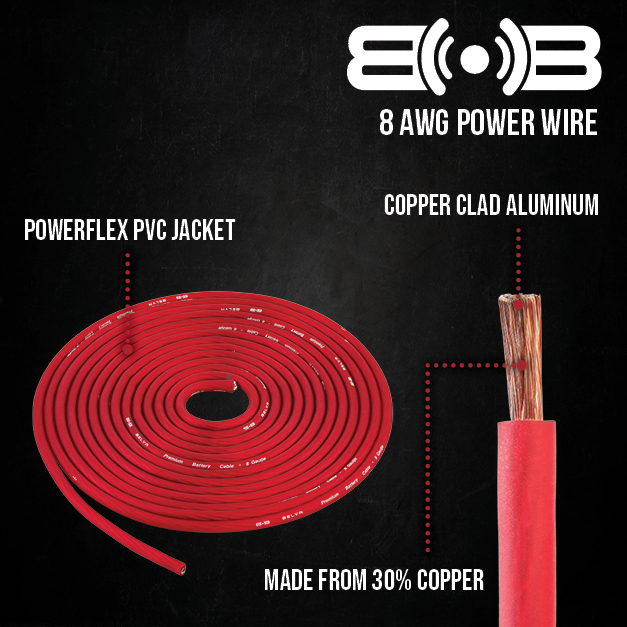

  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%

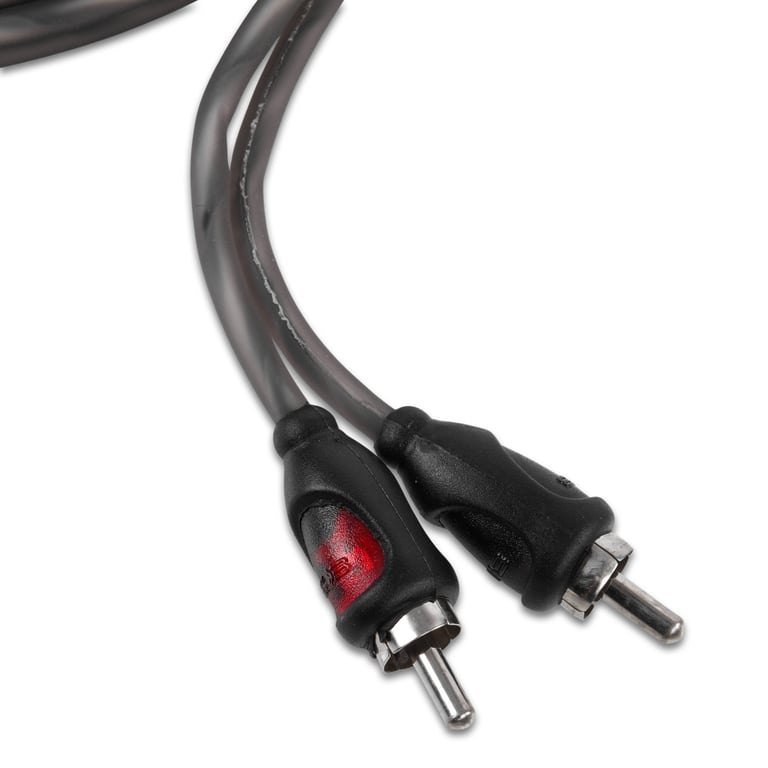

  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. (5.2 meters) Red 8 gauge power wire

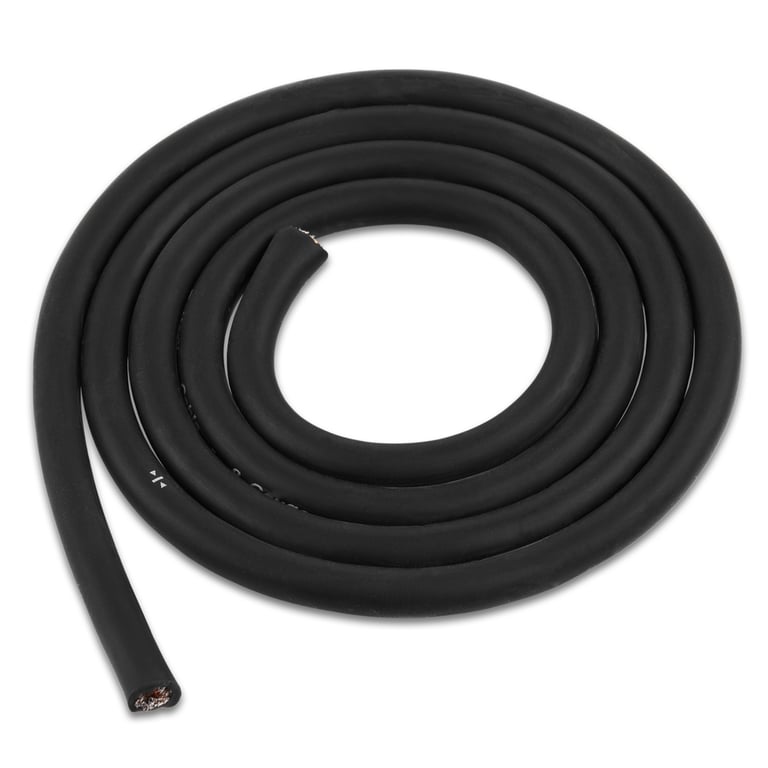

  2. 3 ft. (.91 meters) Black 8 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

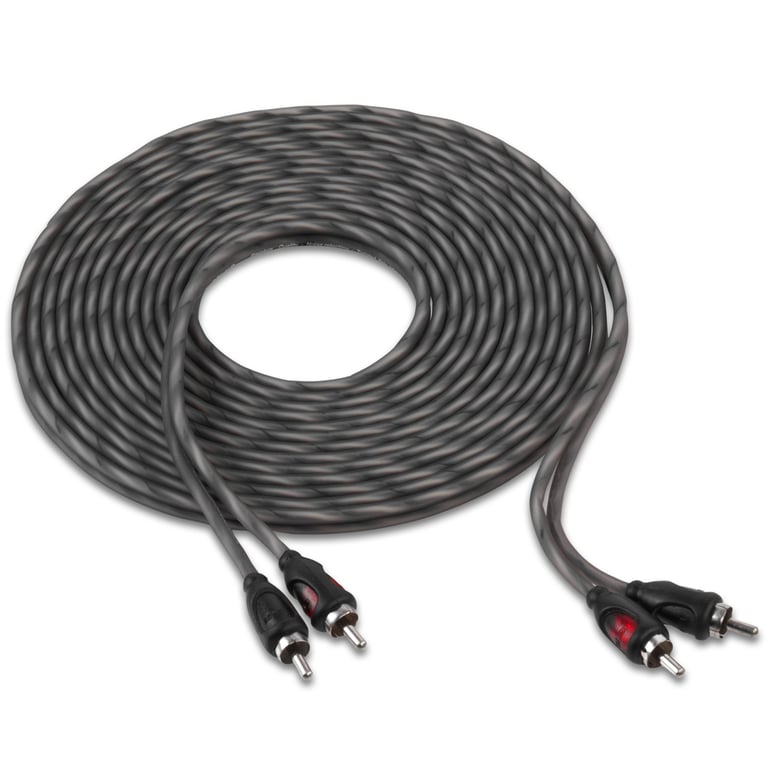

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable
  6. One MINI-ANL Fuse Holder with a 60 amp fuse
  7. One Black rubber firewall grommet
  8. One 8 Gauge Red chrome plated ring terminals
  9. One 8 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Product history:

NVX NSW104V2, BXA15001, BAK82 thumbnail
(newest, current model)
NVX NSW104 thumbnail
(previous model, replaced by NVX NSW104v2with Belva BXA15001 and Amp Kit)

Specifications & Details


Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Full (AP)
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
96 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
30A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Series
BX Series
Number of Subwoofers
1
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
RMS Power Handling
350 watts
Peak Power Handling
700 watts
Woofer Surround
Foam
Woofer Composition
Non-Pressed Paper
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Sensitivity
84.8 dB
Frequency Response
10 - 30,000 Hz
Xmax (millimeters)
8.1 mm
Top-Mount Depth (Mounting Depth)
4.20"
Cutout Diameter
9.06"
Recommended Enclosure Type
Ported / Vented
Sealed
Amplifier Wiring Kit
Is Amplifier Wiring Kit included?
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

NSW104V2, BXA15001, BAK82

Weight:

20.92lbs

Internal SKU:

nsw104v2_bxa15001_bak82

Internal Product ID:

200211
