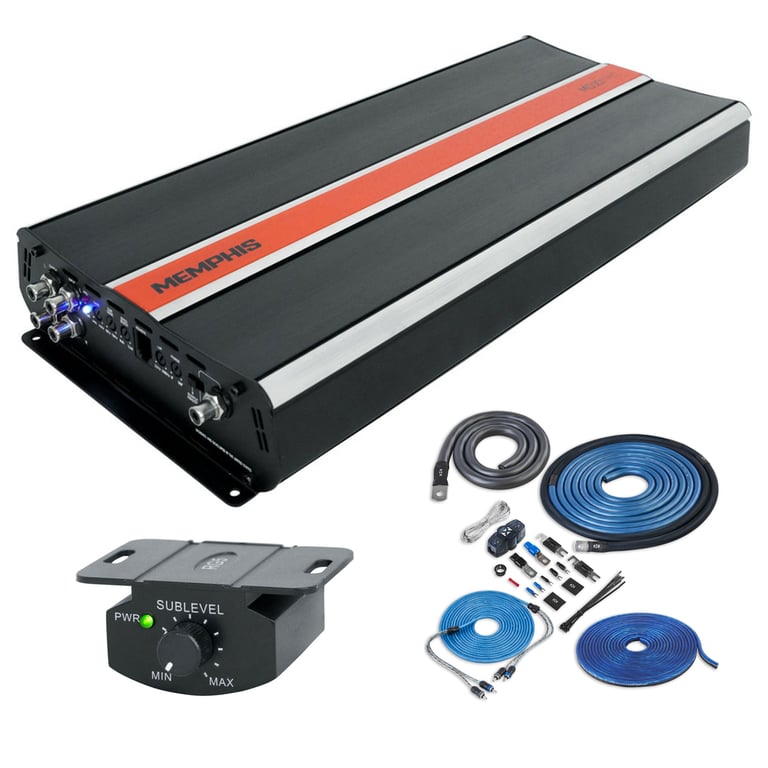

Memphis MJP3000.1 with Amplifier Wiring Kit

3000W RMS MOJO Pro Series Class-D Monoblock Car Amplifier

Memphis
Shop all Memphis
highlight-star-icon

• 1275 watts x 1 channel @ 4 ohm
• 2100 watts x 1 channel @ 2 ohm
• 3000 watts x 1 channel @ 1 ohm
• Total RMS Power: 3000 watts
• Class D 1 ohm Stable Monoblock Amplifier
• Includes Amplifier Wiring Kit

Learn more about the mjp30001_xkit02

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

Description


Memphis brand icon

Authorized dealer

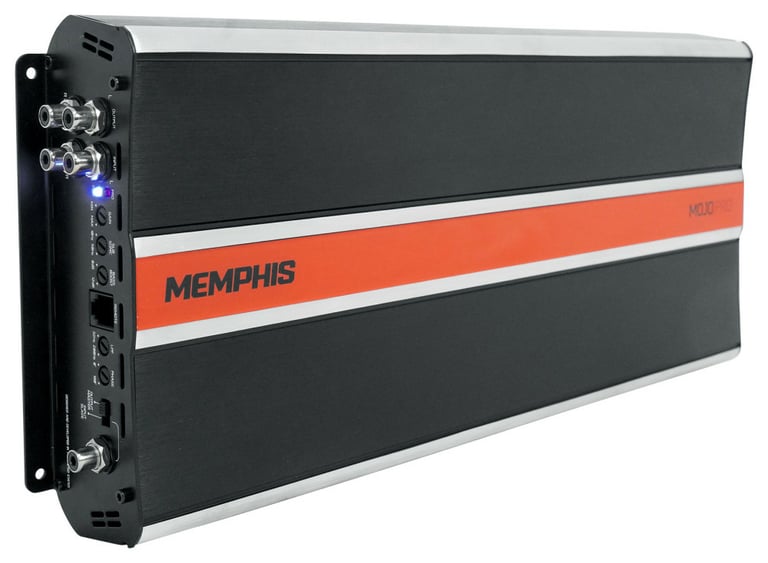

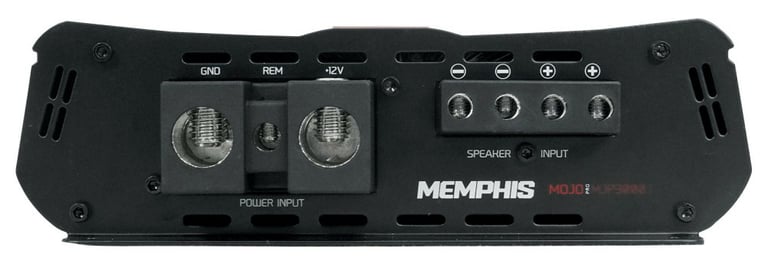

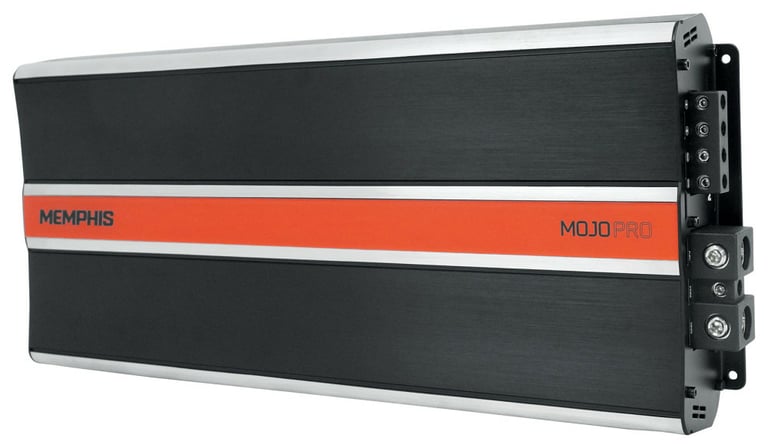

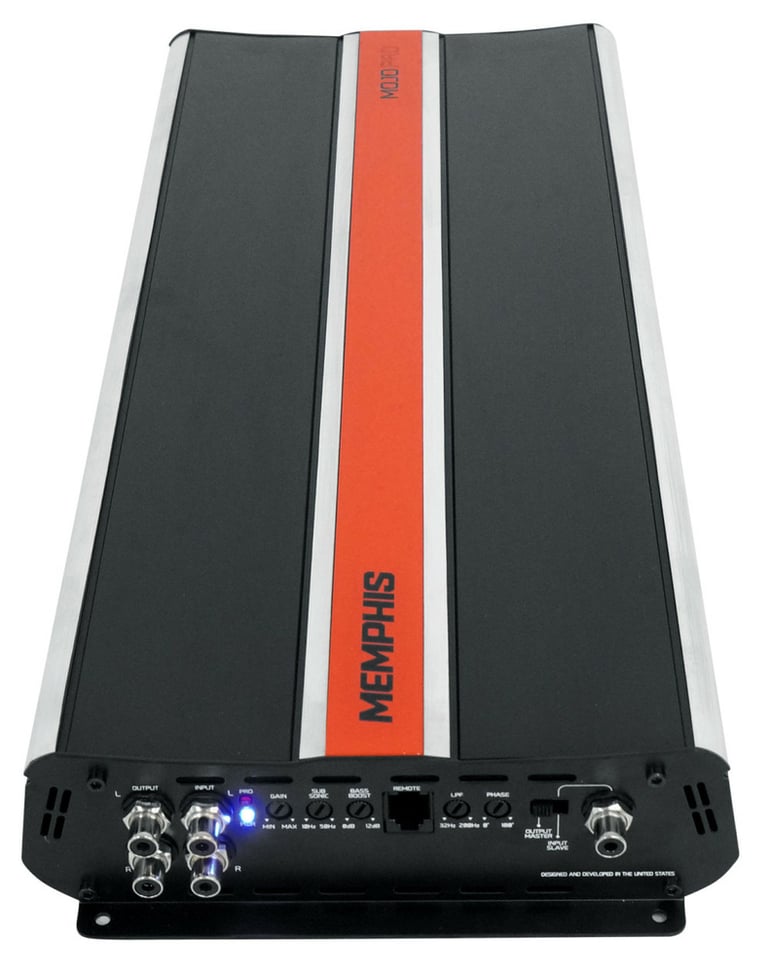

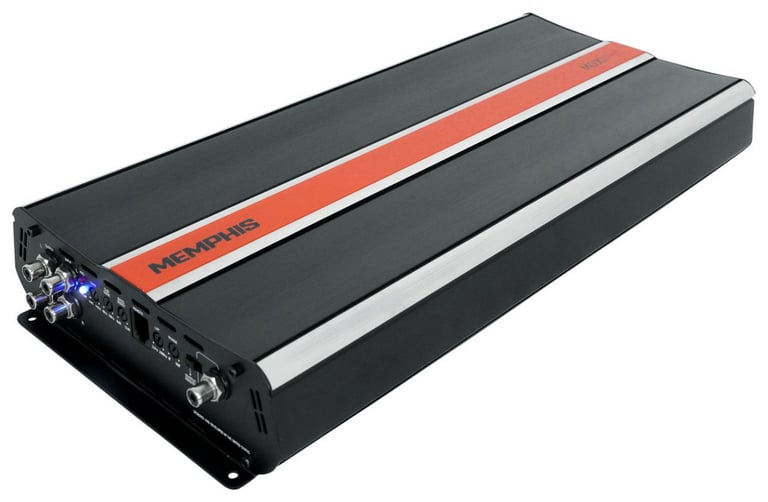

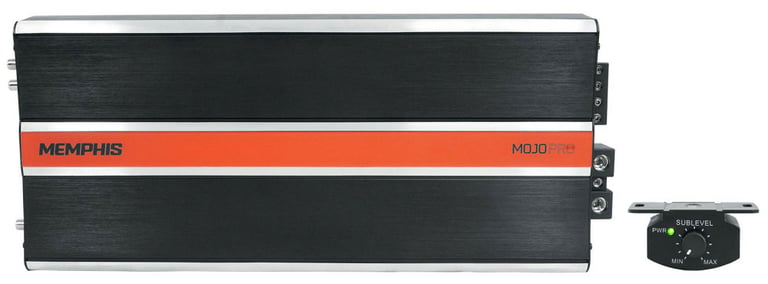

Memphis MJP3000.1

3000W RMS Class D MOJO Pro Series Monoblock Car Amplifier with Bass Remote
Quantity: 1

Product Details:

  • MOJO Pro Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1275 watts x 1 channel
    • 2 ohm: 2100 watts x 1 channel
    • 1 ohm: 3000 watts x 1 channel
  • Total RMS power output: 3000 watts

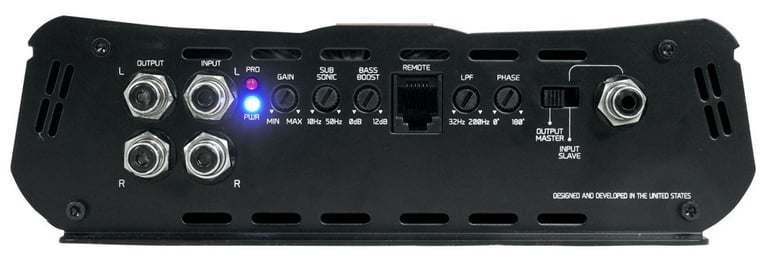

  • LED Power/Protect Light

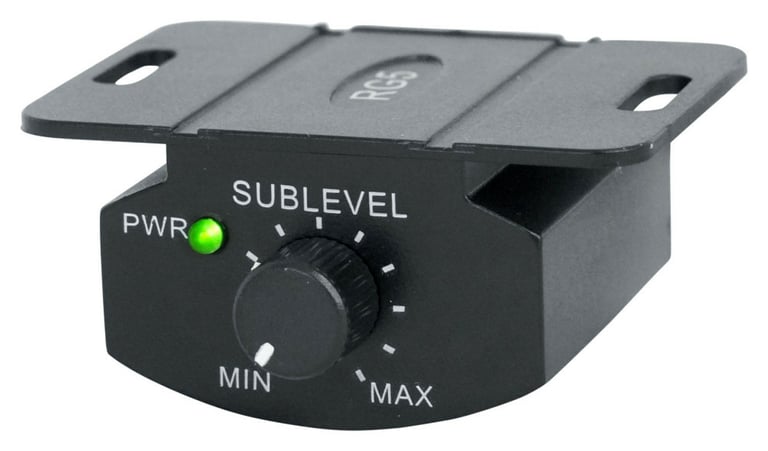

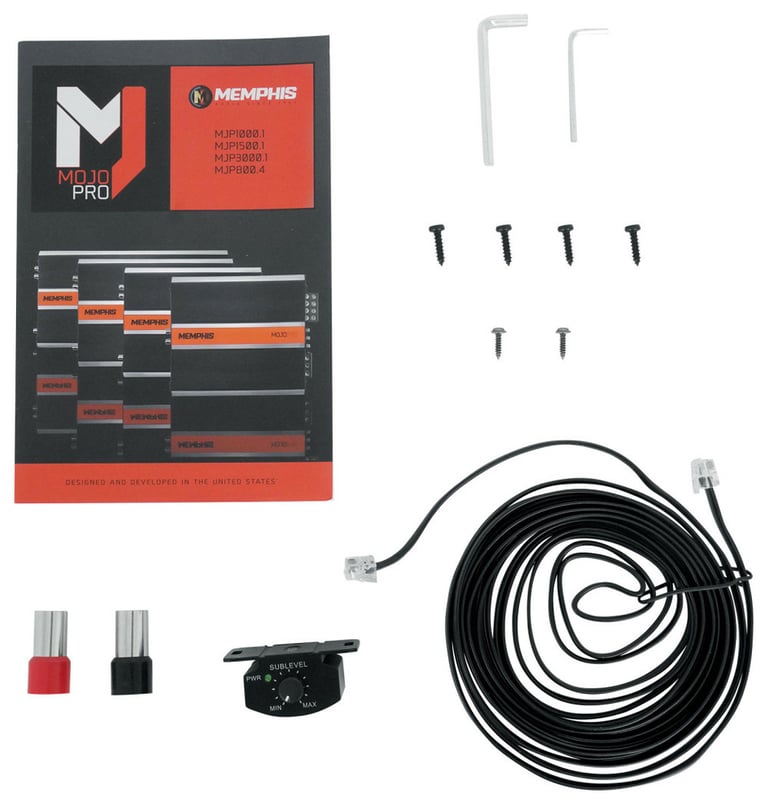

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • Variable EQ bass boost (mono block amps)
  • Strap-able (mono block amps)
  • Input sensitivity: 200mV - 6 volts
  • Frequency Response: 11 - 200 Hz
  • Total Harmonic Distortion (THD): 1%
  • Variable low-pass filter: 32 - 220 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7.5" L x 16.8" W x 2" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MJP3000.1

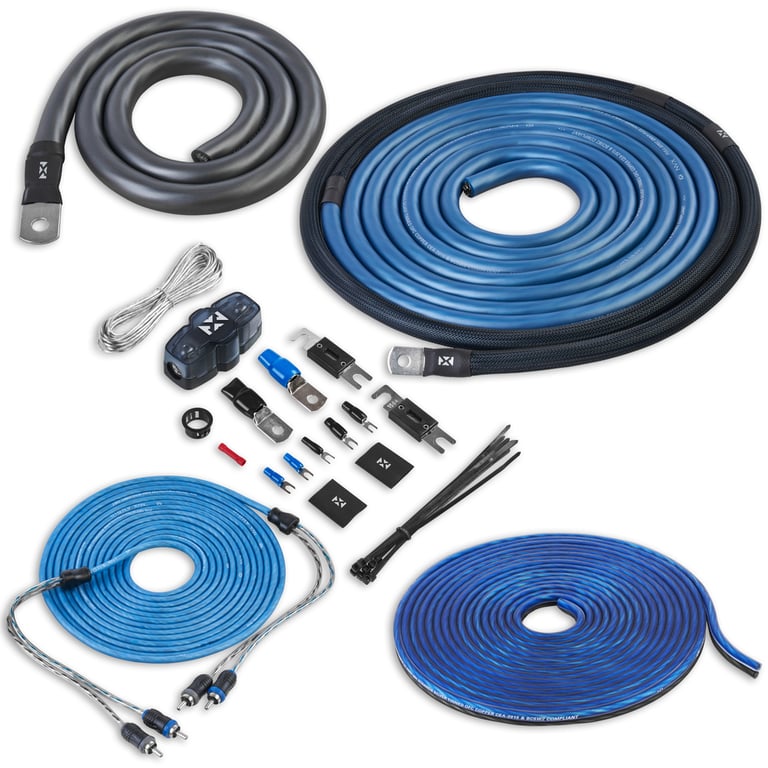

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 3000 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

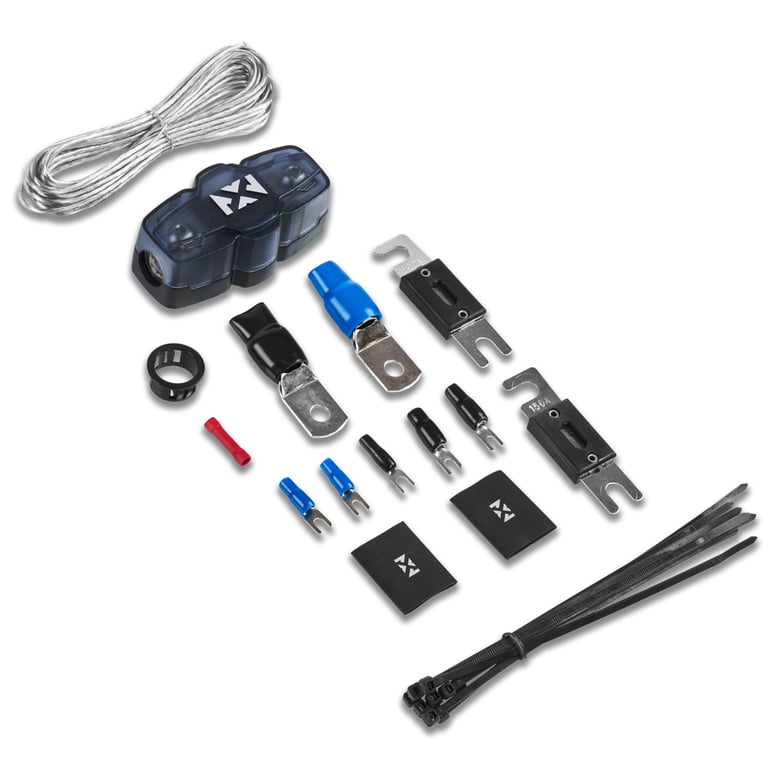

Kit includes:

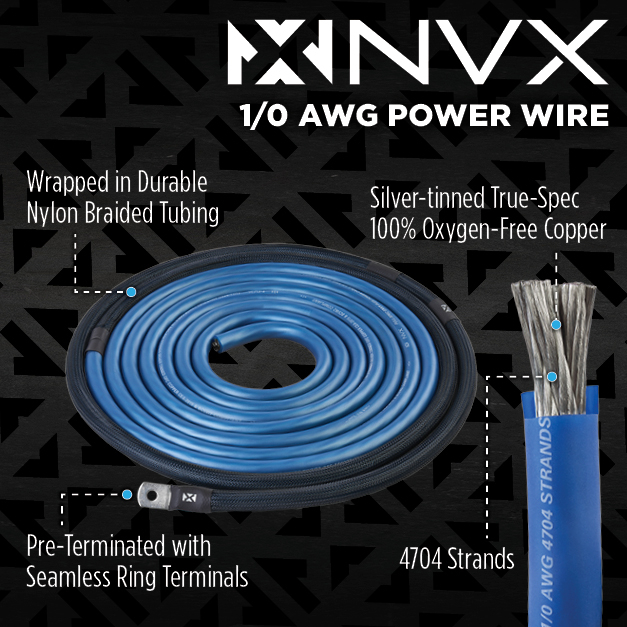

  1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Two Heat Shrink tubes with the NVX logo
  12. Ten 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1275 watts x 1 channel
RMS Power @ 2 ohms
2100 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Frequency Response
11 - 200 Hz
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
32 - 220 Hz
Subsonic Filter
10 - 50 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
.2 - 6 volts
High-Level Input Sensitivity
3 - 20 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
1/0 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
300A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MJP3000.1, XKIT02

Weight:

27.21lbs

Internal SKU:

mjp30001_xkit02

Internal Product ID:

200299

Customer Ratings & Reviews


Memphis MJP3000.1 with Amplifier Wiring Kit thumbnail image

5 star
95%
4 star
5%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.8
Features
4.8
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

fuccin aye

The following review is for XKIT02, which is a part of the bundle you are viewing.

Well worth the money, go hard or go home!!! Only mess with the best

By Michael on March 31, 2014

108 found this helpful


Awesome Kit!

The following review is for XKIT02, which is a part of the bundle you are viewing.

Came With Everything described in kit. If Your looking to push that power to your system, This kit will do it! Worth Every Penny!!

By Raymond on January 12, 2015

106 found this helpful


NVX XKIT02

The following review is for XKIT02, which is a part of the bundle you are viewing.

This is a nice wiring kit no doubt about it. Very sturdy and flexible, easy to work with. It is definitely true 1/0 cable and seems to be pushing the Hifonics BRX2000 amp I have with more than enough power. Rca's are also pretty nice and seem to be working as stated (no feedback or humming). I also like the fact that the battery side of the power cable is pre-sleeved and has the ring terminal already installed for you with heat shrinks as well. Same on the ground cable. Over all its a nice kit, might be a little pricey compared to other kits, but you pay for quality. Well worth the money in my opinion.

By Shawn on January 13, 2014

108 found this helpful


Fine Wire

The following review is for XKIT02, which is a part of the bundle you are viewing.

Wires seem accurate. They transfer plenty power but I do have to upgrade battery to turn amp up more only running it at .25(1/4) and even then my lights dim front to back.

By Jermiah on October 27, 2014

103 found this helpful


Nothing but the best!

The following review is for XKIT02, which is a part of the bundle you are viewing.

A little heavy but my stereo system sounds great! Would buy this again!

By Mark on May 1, 2014

103 found this helpful


Good kit

The following review is for XKIT02, which is a part of the bundle you are viewing.

Comes with everything except rca cables, includes some terminals and boots, look for the bundle and save a lot

By Dutch on May 4, 2014

96 found this helpful


premiun

The following review is for XKIT02, which is a part of the bundle you are viewing.

Very good quality and fast shipping, i recommended buy nvx products

By jesus on May 7, 2015

90 found this helpful


Awesome

The following review is for XKIT02, which is a part of the bundle you are viewing.

I got this kit to wire a boss 2600 watt amp. The wires were huge there was no way I could run it to my amp. The quality was so great that instead of returning it I used it to upgrade my battery cables and my chassis ground. I only wish it came with more ground wire as I need a few more feet to finish my chassis ground upgrade.

By Ace on June 24, 2015 Checkmark Icon Verified purchase

79 found this helpful


great kit

The following review is for XKIT02, which is a part of the bundle you are viewing.

nice kit good quality but says in description 300a fuse but only comes with 150a fuse

----

NOTE FROM SONIC ELECTRONIX:
300A Fuse sent to customer due to typo on our behalf. We also updated the description.

By sam on December 6, 2013

83 found this helpful


Super Value

The following review is for XKIT02, which is a part of the bundle you are viewing.

I've owned wiring kits before but this NVX kit put in great work, it has oxygen free copper that is flexable and put clean power to your amp. You will not be dissapointed this is a good value product.

By Carl on December 16, 2017

68 found this helpful



MV1000/5i, XKIT46 small

JL Audio MV1000/5i with Amplifier Wiring Kit

1000W RMS MVi Series Class-D 5-Channel Marine Amplifier with Digital Signal Processing (DSP)

(45)

$1549.99

List price $1729.98

MH1C White small

Sony MH1C - White

Inner-Ear Headset/Earbuds 9mm Dynamic Drivers with Neodymium Magnets and Tangle-Free Flat Cord

$49.99

List price $89.99

ZD-1950.1D, BAK42 small

Hifonics ZD-1950.1D with Amplifier Wiring Kit

1950W RMS Zeus Delta Series Class-D Monoblock Car Amplifier

(173)

$193.48

List price $259.98

PM300X1 small

Rockford Fosgate Punch PM300X1

300W Full-Range Monoblock Punch Series Class AB Marine Amplifier

$249.99

List price $499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2022 BMW X5 M

1975 GMC C3500 Pickup

2015 Cadillac Escalade ESV

2015 Lincoln MKT

2005 Toyota Avalon

2015 Mitsubishi Lancer

2004 Land Rover Range Rover

2002 Lexus GS430

2012 Chevrolet Camaro

1972 Cadillac Calais

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
