Rockford Fosgate Punch PM300X1

300W Full-Range Monoblock Punch Series Class AB Marine Amplifier

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• RMS: 200W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• CEA-2006 Compliant
• Features C.L.E.A.N. Set-up
• Protected against Dust, UV, & Corrosion
• Marine grade two part epoxy coating on circuit boards

Learn more about the pm300x1

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

TOYOB3 main

GROM Audio TOYOB3 (GROM-BT3-TOY1)

Add Bluetooth Hands Free Calling and Music Streaming to Select 1998-2009 Lexus and Toyota Factory Radios

99-8104 main

Metra 99-8104 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1984-2004 vehicles from Toyota

4
-10.42%

$42.99

List price $47.99

82-8155 main

Metra 82-8155 Speaker Adapter Plates

Install 5.25” aftermarket speakers in select 1996-2002 4Runner

1
-42.87%

$19.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154

Product Highlights


• RMS: 200W x 1 @ 4 ohm, 300W x 1 @ 2 ohm
• CEA-2006 Compliant
• Features C.L.E.A.N. Set-up
• Protected against Dust, UV, & Corrosion
• Marine grade two part epoxy coating on circuit boards

Description


Rockford Fosgate brand icon

Authorized dealer

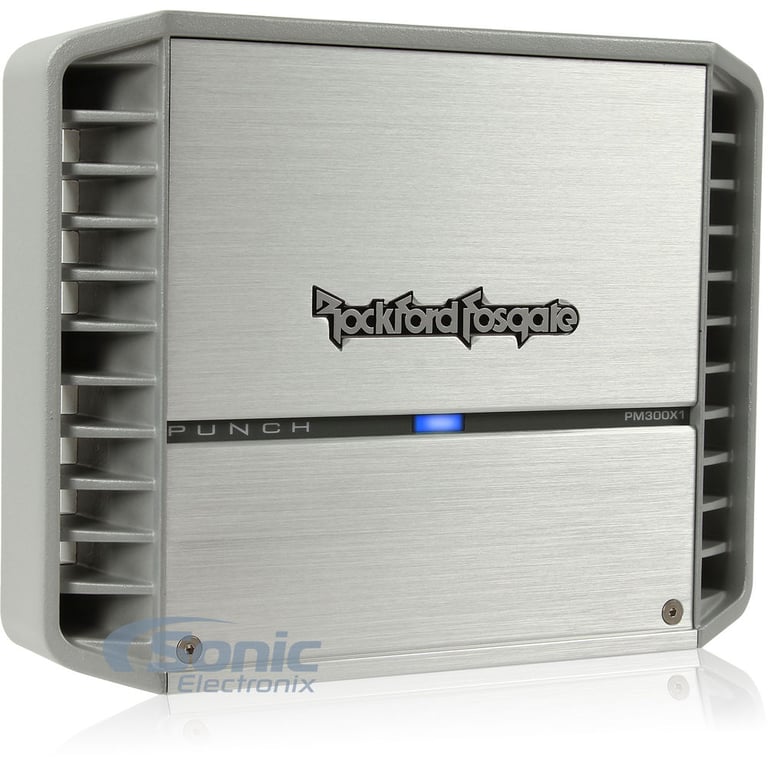

Rockford Fosgate PM300X1

Rockford Fosgate PM300X1 - 300 Watt Full-Range Mono Amplifier

The PM300X1 is a 300 Watt mono amplifier with high dynamic power using Class-A/B technology and a conformal coated pc board designed for motorsport and marine applications. Don't let the small footprint fool you (2.38" x 7.76" x 9.86"), the PM300X1 is packed with industry leading technology. Rockford Fosgate does not simply paint an amplifier white and call it "Marine Grade"; with corrosion resistant stainless steel hardware and two-part epoxy coated circuit boards, these units are designed with the most extreme elements in mind. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want wherever you take it!

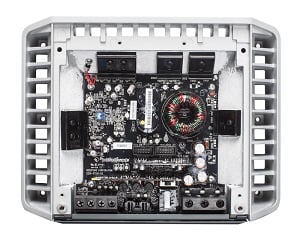

UV Inhibitor Materials

Beat the Elements

Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4326 testing and certification procedures. Rockford Fosgate moto-marine amplifiers not only have the capabilities you expect a Rockford amp to have, but they have been designed to stand up to the environmental conditions you are likely to subject them to.


CLEAN (Calibrated Level Eliminates Audible Noise)

C.L.E.A.N. Set-Up

Take the headache out of tuning your amplifier. Rockford Fosgate's integrated level setting technology called CLEAN (Calibrated Level Eliminates Audible Noise), utilize simple LED indicators to identify both signal clipping from the audio source and the output level clipping to the speakers. This precise level set-up eliminates speaker damaging distortion.





General Features:









  • Full-Range Monoblock Punch Series Class AB Marine Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
  • Dynamic Power:
    • 4 ohm 0° Res : 260 watts x 1 chan.
    • 2 ohm 0° Res : 444 watts x 1 chan.
  • Includes a Rockford Fosgate Performance Verification Certificate
    w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet")
  • CEA-2006 compliant amplifier
  • CE Compliant
  • LED power (blue) and protect (red) indicators
  • Features C.L.E.A.N. Set-up with 10-step set-up procedure
  • Muted turn on

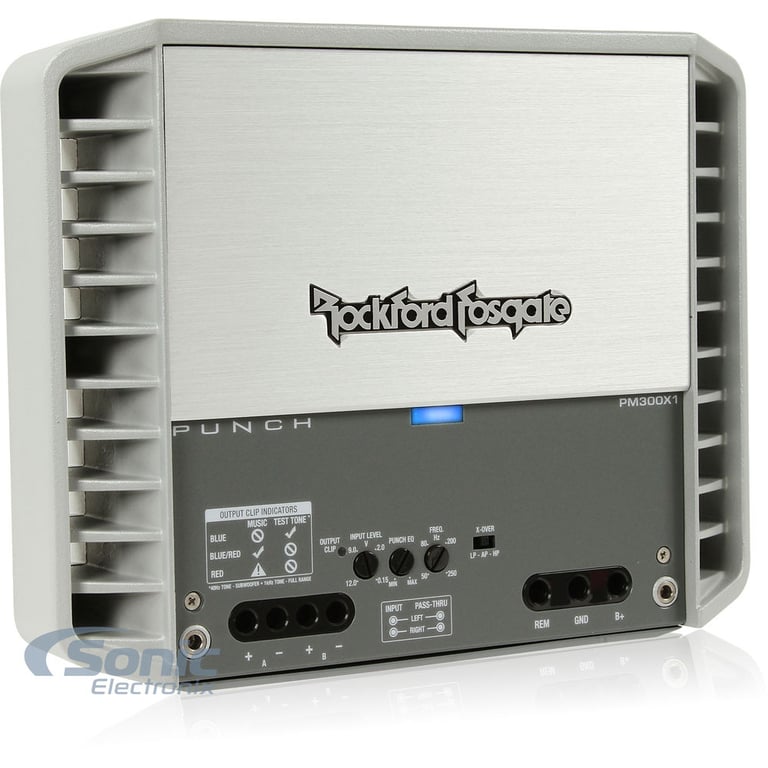

  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware

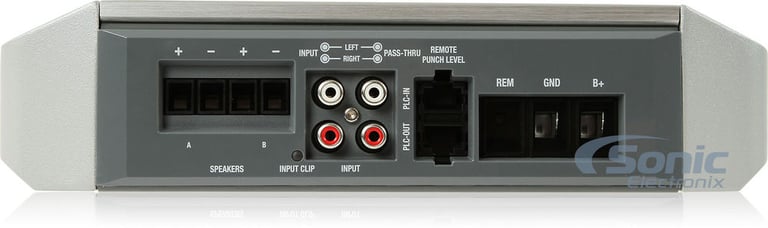

  • Preamp RCA outputs to daisy chain multiple amps
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables
  • Protected against Dust, UV, & Corrosion
  • Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
  • Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen3)
  • High level input capable with Auto Turn-On circuit:
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • Input sensitivity: 150 mV - 12 V
  • Frequency Response: 20 - 20,000 Hz
  • Efficiency (average): 74% @ 4-Ohm
  • Total Harmonic Distortion (THD): <1.0%
  • Punch EQ Bass: 0 - +18dB boost @ 45Hz.
  • Punch EQ2 Treble: 0 - +12.5dB @ 12kHz
  • 12dB/octave Butterworth crossover (selectable)
  • Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Recommended Fuse Rating: 50A x 1 inline (not included)
  • Operating Voltage: 9 - 16 VDC
  • Max Current Draw: 45 A
  • Average Current Draw: 23 A
  • Power Wire Gauge: 4 AWG - 8 AWG
  • Speaker Wire Gauge: 8 AWG - 18 AWG
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 7.76"W x 9.86"L x 2.38"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
400 watts x 1 channel
Peak Power @ 2 ohms
600 watts x 1 channel
Amplifier Specifications
Series
Punch Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PM300X1

Weight:

9.50lbs

Internal SKU:

pm300x1

Internal Product ID:

94303

Product and How-to Videos


Customer Ratings & Reviews


Rockford Fosgate Punch PM300X1 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


QBUS8v2 small

NVX QBUS8v2 (Ships as New Model QBUS8P)

8" Quick Bass Universal System Powered/Amplified Subwoofer BOOST System - Universal B.O.O.S.T. System

(57)

$129.99

List price $199.95

SX2600.1 small

Phoenix Gold SX2 600.1 (SX26001)

600W Class D Monoblock Amplifier

$419.00

List price $499.00

ToyK994 small

American International ToyK994

Single DIN or Double DIN Stereo Dash Kit for select 2006-2012 RAV4

(4)

$12.99

List price $44.00

94-01-DODGERAMTRCK-SPKG-JBL small

JBL GX Series Factory Speaker Upgrade Package

Fits select 1994-2001 Ram 1500 / 3500 / 2500

(19)

$155.88

List price $215.92

EXL-SQ6.5, FRING65, SDRLR1, SDSK2, BTK106 small

DS18 EXL-SQ6.5 with Speaker Installation Kit

Includes: 6.5” Coaxial Speakers w/ PIE Dome Tweeters, 2 Piece Foam Speaker Ring Kit, Sound Damping Kit, Installer Panel Removal Tool Kit, Rubber Roller

(187)

$400.70

List price $432.61

SW-SAV210D4 small

Sundown Audio SA-10 v.2 D4 10" (SA10V2D4)

2500W Peak (1250W RMS) 10" SA Series Dual 4-ohm Car Subwoofer (SW-SAV210D4)

$389.99

List price $467.99

EXL-SQ6.9, FRING69, SDRLR1, SDSK2, BTK106 small

DS18 EXL-SQ6.9 with Speaker Installation Kit

Includes: 6x9” Coaxial Speakers, 2 Piece Foam Speaker Ring Kit, Sound Damping Kit, Installer Panel Removal Tool Kit, Rubber Roller

(153)

$279.35

List price $312.66

XD-1522 small

American Bass XD 15" (XD-1522)

2000W Peak (1000W RMS) 15" XD Series Dual 2-ohm Car Subwoofer

(2)

$192.35

List price $272.03

(2) MM1242 DVC,SDBDK12,SDRLR1,BBSW167,BBX212BL small

(2) Polk Audio MM1242DVC 12” Subwoofers+Vented Enclosure Box+Sound Deadening Kit

1260W Peak (420W RMS) 12" MM1 Series Dual 4-Ohm Car Subwoofer (MM 1242DVC) Package

(64)

$529.46

List price $803.94

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Toyota 4Runner

2017 Ford Flex

2004 Volvo V70

2004 Isuzu Rodeo

1995 Dodge Ram 2500

1981 Ford Mustang

2016 GMC Canyon

2007 Lexus SC430

1997 Dodge Neon

2004 Toyota Corolla

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
