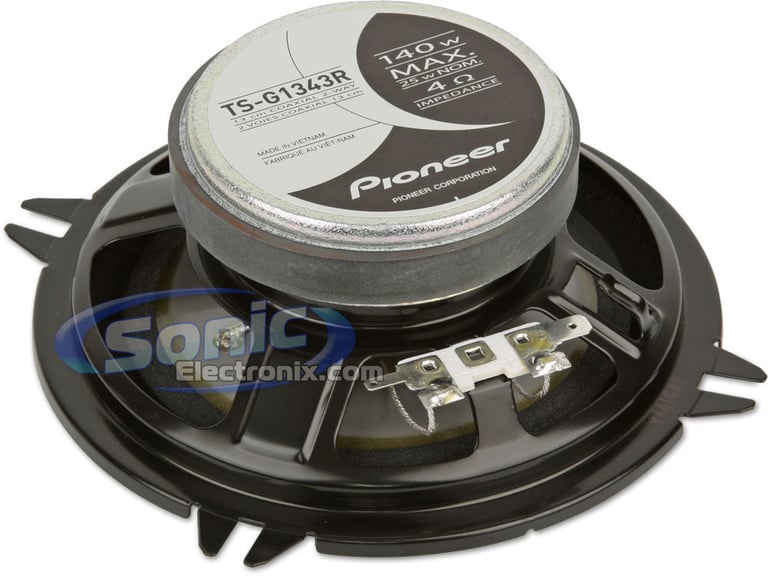

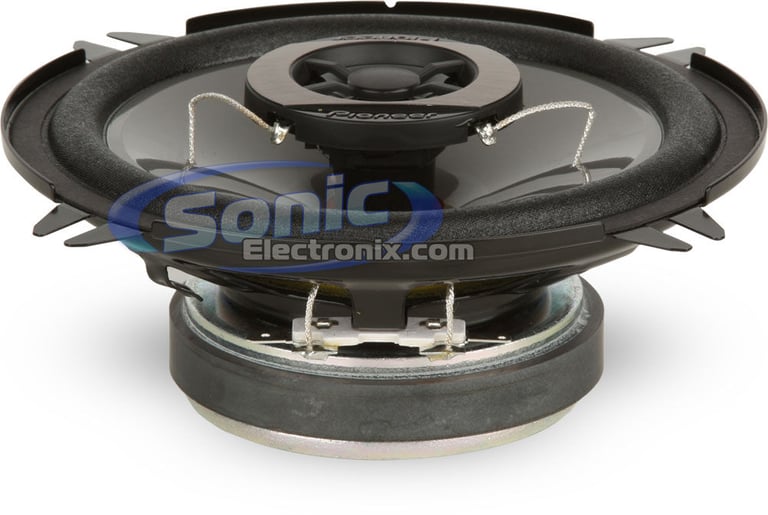

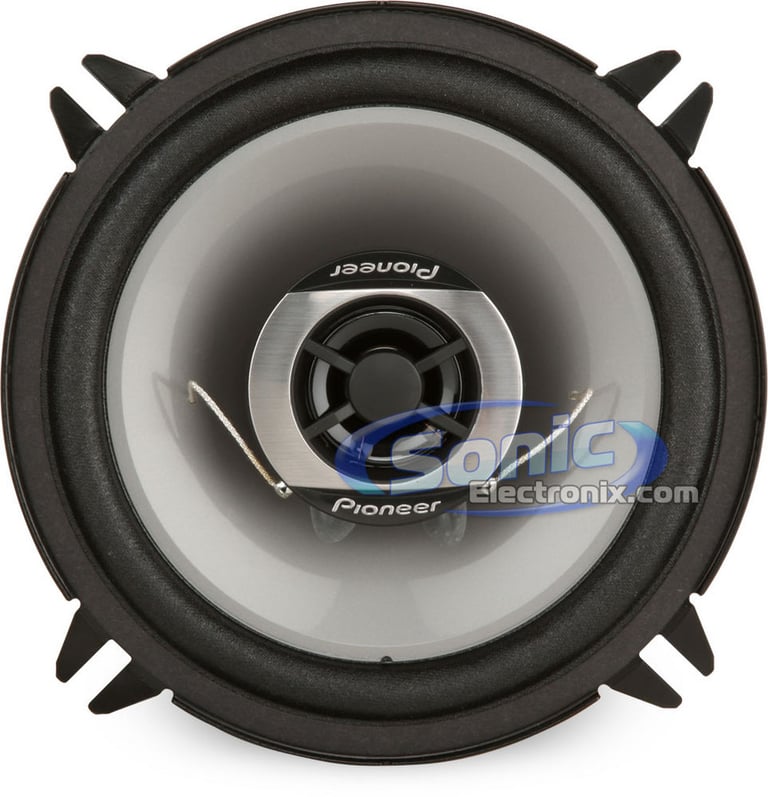

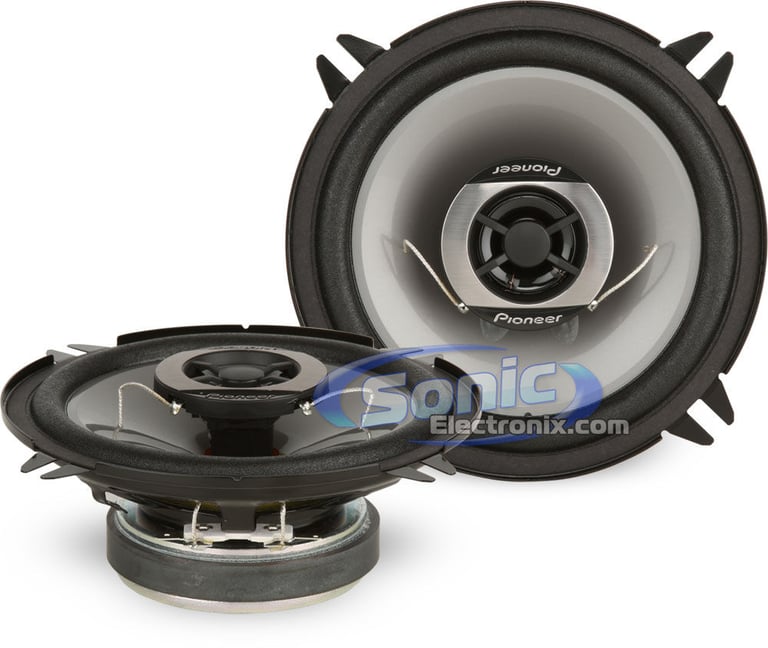

Name: Pioneer TS-G1343R
Brand: Pioneer
SKU: tsg1343r
Price: 29.99 USD
Availability: Discontinued
Rating: 4.5000 (6 reviews)

Shop all Pioneer

by Pioneer

About
Specs & Details
Reviews
Add-ons
Similar Products
Related Searches

Product highlights

5.25" 2-Way G-Series Car Speakers • 140W Max • 25W RMS • Composite IMPP Cone woofer • Cloth surround • 1-3/16" Balanced dome tweeter • Poly-imide voice coil • Top-mount depth: 1-3/16"

Learn more about the tsg1343r

Description

Authorized dealer

Pioneer G-Series Car Speakers

Pioneer G-Series 5-1/4" speakers will leave you astound at the quality of music it is able to produce. The shallow mounting design improves versatility which allows mounting in more locations than your average speaker. Built with a well designed Conex damper, these speakers are very durable in addition to having a good quality presence with natural note roll-off. At 25 watts RMS each, these make for great factory replacements to be ran off a head-unit or an amplifier. Once you hear them you will be impressed. Quality now comes at a great price.

Speaker Features:

5-1/4" 2-Way G-Series Car Speakers
Power Handling:

Peak: 280 watts per pair / 140 watts each
RMS: 50 watts per pair / 25 watts each

Composite IMPP Cone woofer
Cloth surround
Conex damper for improved bass response
1-3/16" PEI Balanced dome tweeter with neodymium magnet
Poly-imide voice coil bobbin
Sensitivity: 89 dB
Frequency response: 40-26,000 Hz
Top-mount depth: 1-13/16"
1-year Sonic Electronix warranty

Priced Per Pair

Product history:

	Pioneer TS-G1320S (newest, current model)
	Pioneer TS-G1345R (previous model, replaced by Pioneer TS-G1320S)
	Pioneer TS-G1344R (previous model, replaced by Pioneer TS-G1345R)
	Pioneer TS-G1343R (previous model, replaced by Pioneer TS-G1344R)
	Pioneer TS-G1342R (previous model, replaced by Pioneer TS-G1343R)
	Pioneer TS-G1341R (previous model, replaced by Pioneer TS-G1342R)

Specifications & Details

Speaker Specifications

Speaker Size

5-1/4"

Design

2-way Coaxial

Tweeter Design

Balanced Dome

Tweeter Composition

PEI (Polyetherimide)

Woofer Composition

Injection Molded Polypropylene - IMPP

Woofer Surround

Cloth

Peak Power Handling

140 watts

RMS Power Handling

25 watts

Sensitivity

89 dB

Frequency Response

40 - 26,000 Hz

Impedance (Per Voice Coil)

4 ohms

Shallow Mount Installation

Yes

Top-Mount Depth (Mounting Depth)

1-13/16"

Bottom-Mount Depth

Cutout Dimensions

4-3/4" x 4-3/4"

General specifications

Speaker Grilles

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix

Customer Ratings & Reviews

Rate or review product

Overall rating distribution

5 star		67%
4 star		17%
3 star		17%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.5
Value		4.5
Features		4.2
Design		4.2
Usability		4.5

Customer Reviews

Sort by:

Decent value

Clear upper-mids and highs as long as you install bass blockers. However, I would recommend getting 6.5" speakers instead if you can fit them. These 5.25" are really just 4.25" with extended mounting tabs. A set of TS-A1673R will replace these for me soon.

By Paraboxx on October 10, 2011

found this helpful.

Helpful? Report abuse

Great speakers for the price

I bought a set of these for my 94 jeep cherokee, they sound great for the price, nice and crisp, you cant go wrong with pioneer speakers. I have pioneers in both my cars.

By B on June 5, 2011

found this helpful.

Helpful? Report abuse

Stereo review.

Some of the control features really take some time to get used to. Some I discovered by accident.

By Paul on August 23, 2010

found this helpful.

Helpful? Report abuse

Good Product

I love the sound of the speakers, I replaced all of them in my truck. Love the sound of the tweeter very clear, I will recommend the Pioneer brand and also love the price as well.

By Tony on January 15, 2012

found this helpful.

Helpful? Report abuse

Pioneer

Bought this for my girl car. They get the job done pretty much. Nothing that will make you say OMG this is the greatest. But it is respectable especially for the price.

By Chester on March 4, 2011

found this helpful.

Helpful? Report abuse

Highly Recommended

Great sound! I put them in 87 Mustang. Sonic Electronix is the only place i will buy stereo equipment in the future. They are very easy to deal with. You can't go wrong with these speakers at this price.

By guy on the couch on August 20, 2011

found this helpful.

Helpful? Report abuse
