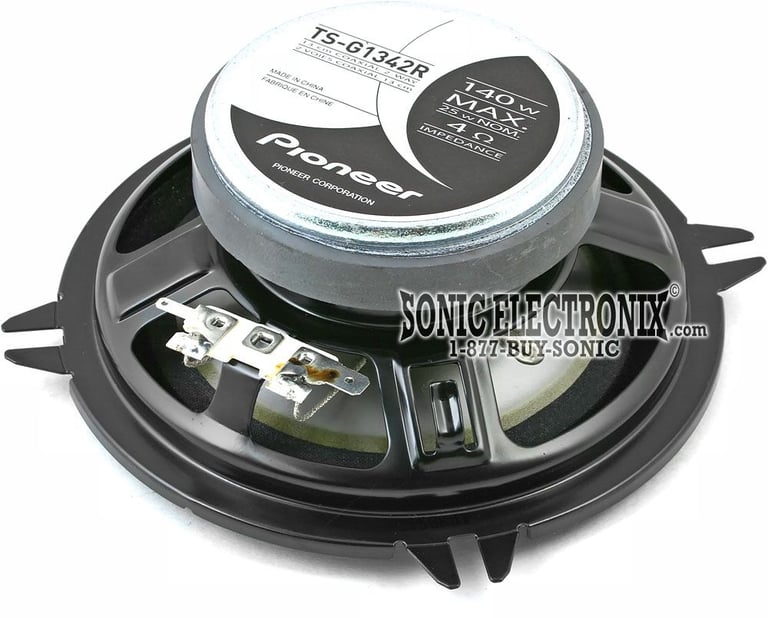

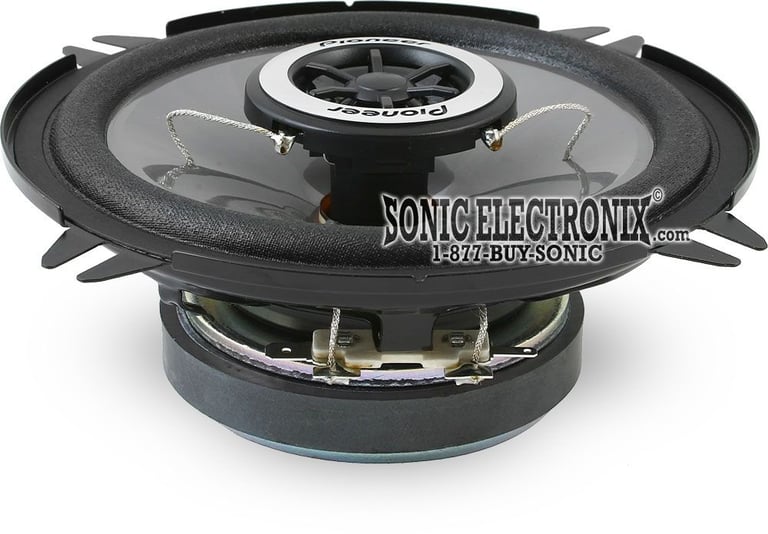

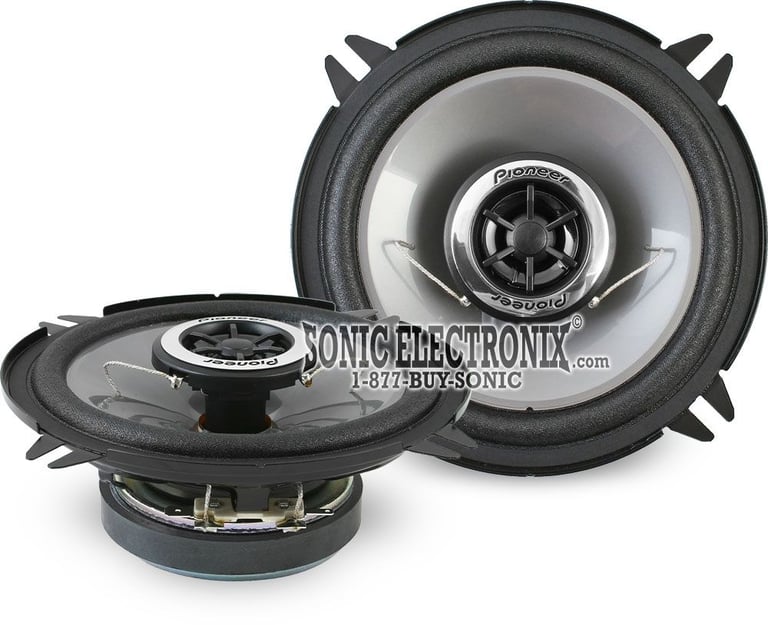

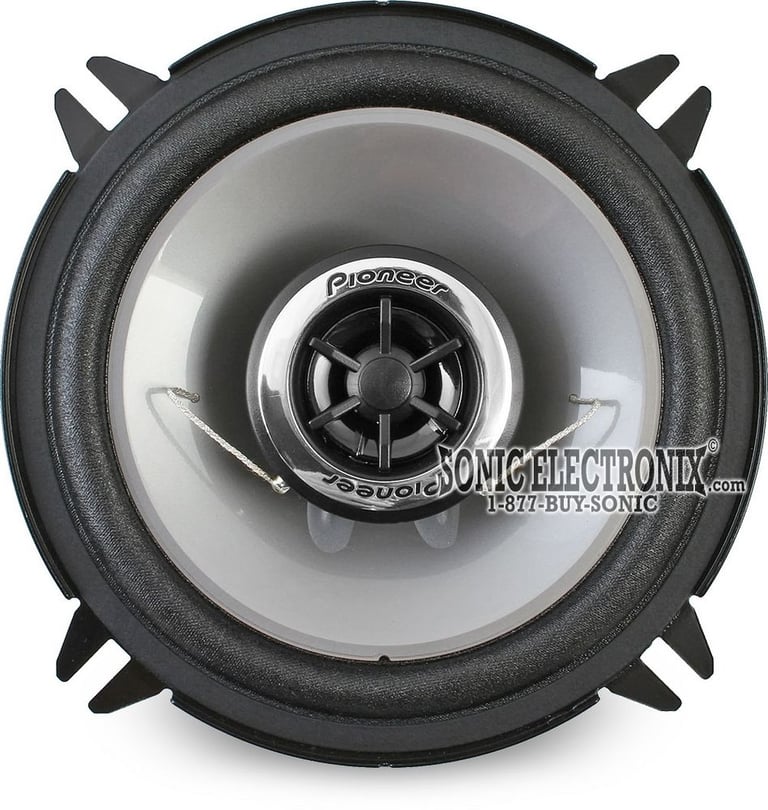

Pioneer TS-G1342R

5-1/4" 2-way Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

5.25" G series Car Speakers • 140W Max • 25W RMS • Composite IMPP Cone • Cloth surround • 1-3/16" PEI balanced dome tweeter • Shallow mounting depth • Neodymium magnet structure and conex damper

Learn more about the tsg1342r

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsg1320s thumbnail

Pioneer TS-G1320S

OUR PRICE: $60.00

View item

Description


Pioneer

Authorized dealer

  • 5-1/4" G series Car Speakers
  • Power Handling:
    • Peak: 280 watts per pair / 140 watts each
    • RMS: 50 watts per pair / 25 watts each
  • Composite IMPP Cone woofer
  • Cloth surround
  • 1-3/16" PEI balanced dome tweeter
  • Shallow mounting depth
  • 4 ohms impedance
  • Poly-ether imide voice coil bobbin
  • Neodymium magnet structure and conex damper
  • Top-mount depth: 1-13/16"
  • Cut-out dimensions: 5-1/8"
  • 1-year SonicElectronix.com warranty

Priced Per Pair

Product history:

Pioneer TS-G1320S thumbnail
(newest, current model)
Pioneer TS-G1345R thumbnail
(previous model, replaced by Pioneer TS-G1320S)
Pioneer TS-G1344R thumbnail
(previous model, replaced by Pioneer TS-G1345R)
Pioneer TS-G1343R thumbnail
(previous model, replaced by Pioneer TS-G1344R)
Pioneer TS-G1342R thumbnail
(previous model, replaced by Pioneer TS-G1343R)
Pioneer TS-G1341R thumbnail
(previous model, replaced by Pioneer TS-G1342R)

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Injection Molded Polypropylene - IMPP
Woofer Surround
Cloth
Peak Power Handling
140 watts
RMS Power Handling
25 watts
Sensitivity
89 dB
Frequency Response
40 - 25000 Hz
Impedance (Per Voice Coil)
4 ohms
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-13/16"
Cutout Dimensions
5-1/8" x 5-1/8"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-G1342R

Weight:

3.75lbs

Internal SKU:

tsg1342r

Internal Product ID:

11198

Customer Ratings & Reviews



5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.3
Value
5
Features
3.8
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great Door Speakers For Price

I just about two of these door speakers to replace my other aftermarket speakers. These things scream, but the only thing I don't like about them is that 25 watts rms is a little scrawny especially when you have your whole system on a amplifier. Just be careful when you are powering these speakers........when/ if these door speakers go out I plan on sticking to the Pioneer name brand.

**NOTE FROM ADMIN: These speakers are indeed are rated at lower RMS power and are not recommended to be amplified. They are mainly intended to be ran off head unit power, not an external amp.**

By JuWan on August 18, 2010

14

found this helpful.

Made in Vietnam

These speakers remind me of most entry level pioneer speakers I have ever heard. The midrange bit pinched and the treble can get a bit fatiguing after a while. But overall, it sounds sufficient, and I think most people would be pleased with speakers like this. I don't feel like these speakers are going to blow 2 weeks after installing them, and they sound great on my Clarion CZ100 head unit without an amp. Yeah, personally I think they could use a bit more soul in the midrange, but for this price, I'm not complaining. This is a very competent speaker, and I am happy with it overall. If you are an audiophile and demand that your speakers sing you lullabies to put your babies to sleep, or envelope you in a world of warmth, I would probably look for something else.

By William on December 5, 2010

11

found this helpful.

94 lebaron

i have 4 of these in my '94 LeBaron with the deh400ub head unit and they sound great. Amazing mids and highs. I love the look of them, and they are a great deal too. My dad's Orion 5.25's are no match for these. These are the best I've ever owned;
I just wish the tweeter would twist or aim up which is why i gave features a 3.

By Justin on January 1, 2009

11

found this helpful.

Great Sounding Speakers!

I have tow of these in my front doors, and two of the 6 1/2" in my rear deck. They sound awesome! Even at the highest volumes, there is no distortion, and the sound quality stays constant. These speakers are the best I've had! The bass is a little lacking, but since most people have a sub or two, that shouldn't matter too much. Would recommend to anyone!

By Gary on September 16, 2008

8

found this helpful.
