Product highlights

• 250 Watts Max, 35 Watts RMS
• 1-3/16" Piezoelectric Tweeter
• Mounting Depth: 1-13/16"
• 4" Polypropylene with MICA Cone Woofer
• 4 Ohms Impedance
• Sensitivity: 89dB

Learn more about the tsg1345r

Description

Authorized dealer

G-Series Coaxial Car Speakers

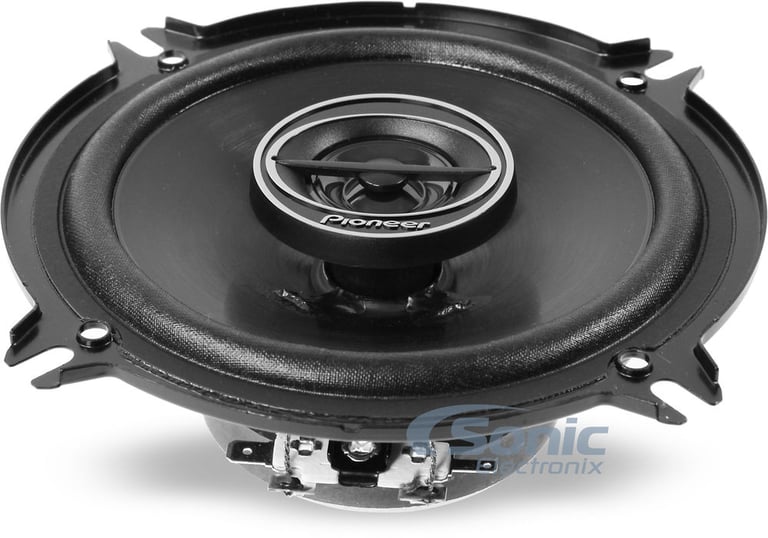

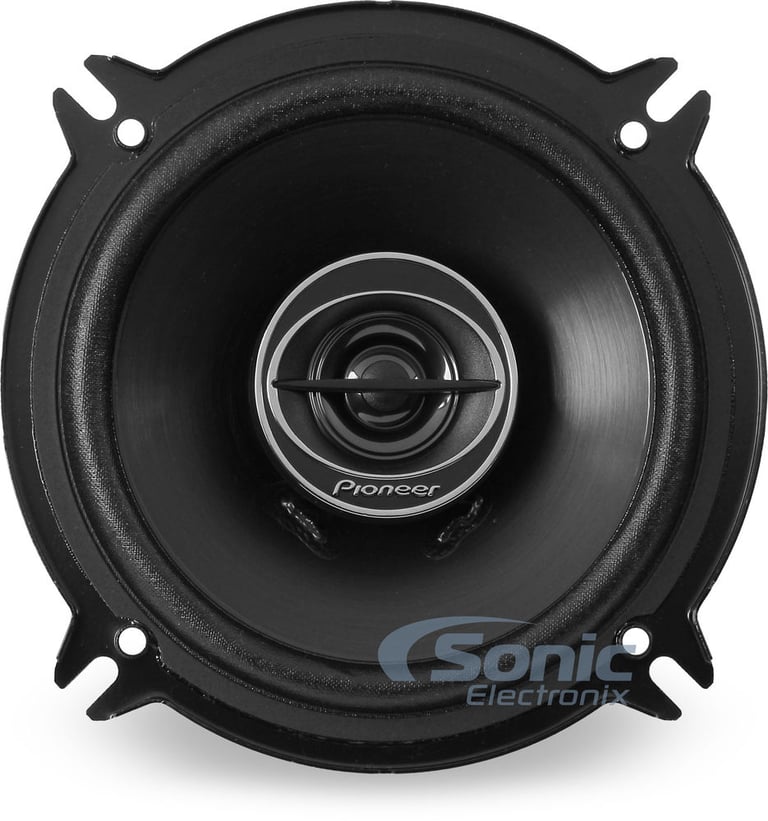

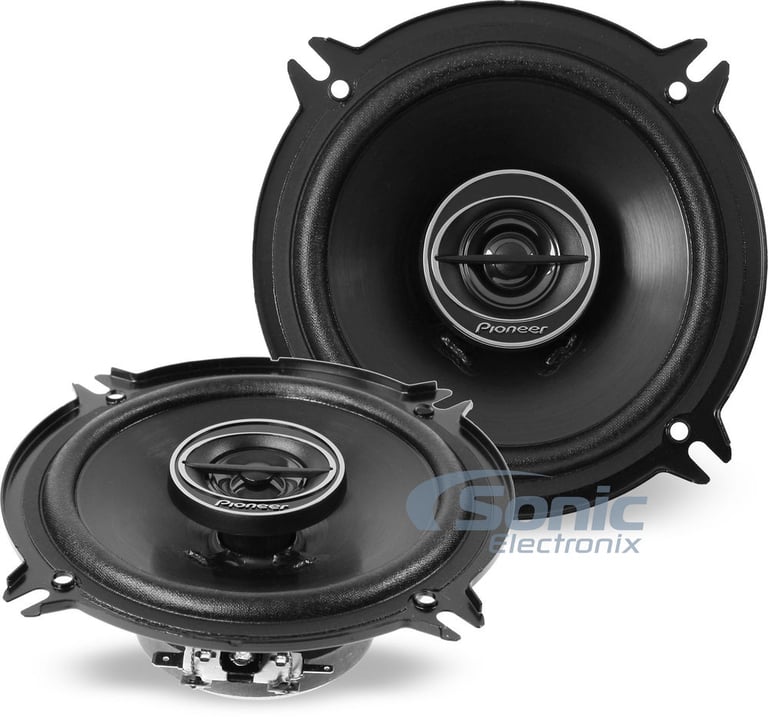

Pioneer's TS-G1345R speakers are excellent choices to replace a bad set of factory 5-1/4" speakers. Their two-way design handles 250 watts max. power (35 watts nominal) and feature Pioneer’s extremely strong and lightweight Injected Molded Polypropylene (IMPP) with MICA composite cone woofer, for improved sensitivity and reduced distortion.

You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the 1-3/16” Piezoelectric tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy install into a wide variety of vehicles. Speaker grilles are not included.

General Features:

5-1/4" G-Series Coaxial Car Speakers
Power Handling:

Peak: 500 watts per pair / 250 watts each
RMS: 70 watts per pair / 35 watts each

Polypropylene with MICA Cone Woofer
Rubber Coated Cloth speaker surround
1-3/16" Piezoelectric Tweeter
Ferrite magnet motor structure
4 ohms impedance
Frequency Response: 45-27,000 Hz
Top-mount Depth: 1-13/16"
Sensitivity: 89dB
1-year Sonic Electronix Warranty

Priced Per Pair

Product history:

	Pioneer TS-G1320S (newest, current model)
	Pioneer TS-G1345R (previous model, replaced by Pioneer TS-G1320S)
	Pioneer TS-G1344R (previous model, replaced by Pioneer TS-G1345R)
	Pioneer TS-G1343R (previous model, replaced by Pioneer TS-G1344R)
	Pioneer TS-G1342R (previous model, replaced by Pioneer TS-G1343R)
	Pioneer TS-G1341R (previous model, replaced by Pioneer TS-G1342R)

Specifications & Details

Speaker Specifications

Series

G-Series (TSG)

Priced Per

Pair

Speaker Size

5-1/4"

Design

2-way Coaxial

Tweeter Design

Dome

Tweeter Size

1-3/16"

Tweeter Composition

PET

Woofer Composition

Injection Molded Polypropylene with Metallic Finish

Woofer Surround

Rubber-Coated Cloth

Peak Power Handling

250 watts

RMS Power Handling

35 watts

Sensitivity

89 dB

Frequency Response

45 - 27,000 Hz

Impedance (Per Voice Coil)

4 ohms

Shallow Mount Installation

Yes

Top-Mount Depth (Mounting Depth)

1-13/16"

Cutout Dimensions

4 3/8"

Number of Speakers

General specifications

Speaker Grilles

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
