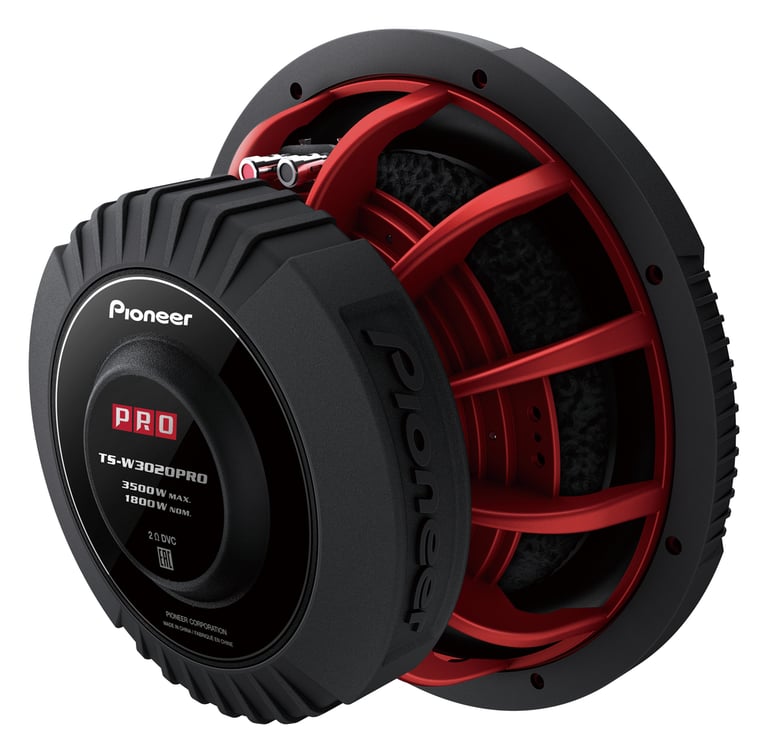

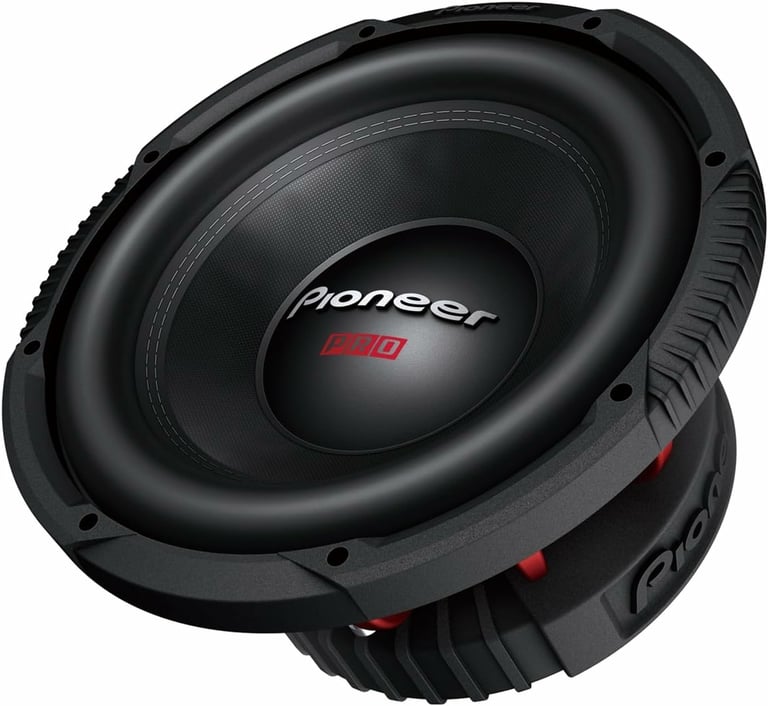

Pioneer TS-W3020PRO

3500W Peak (1800W RMS) 12" PRO Series Dual 2-ohm Car Subwoofer

Pioneer
Shop all Pioneer
highlight-star-icon

• Peak Power: 3500 watts
• RMS Power: 1800 watts
• Blended Pulp Cone
• Urethane Surround
• Impedance: Dual 2 ohm
• Mount depth: 6.06"
• Sensitivity: 86 dB

Learn more about the tsw3020pro

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Description


Pioneer brand icon

Authorized dealer


TS-W3020PRO

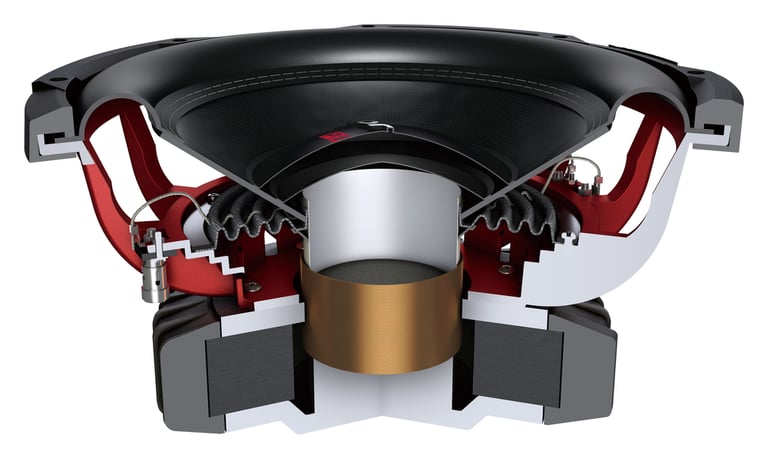

The Pioneer Reference for Open Show series of speakers are designed specifically for those looking to produce serious sound pressure levels. Inspired by Pioneer’s history of record-breaking SPL competition, the new P.R.O. Series line of speakers is constructed with the street enthusiast in mind. With an emphasis on efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output, without requiring an impressive investment. The TS-W3020PRO 12" High Efficiency Subwoofer features 3500 W Max Power (1800 W Nominal) handling, an optimally blended pulp woofer cone, and a motor and basket structure designed for high sensitivity and high power handling.


Product Details:

  • 12" Dual 2 ohm PRO Series Subwoofer
  • Power Handling:
    • Peak: 3500 watts
    • RMS: 1800 watts
  • Blended Pulp Cone
  • Urethane Surround
  • Polycotton spider material
  • 4-layer Copper material voice coil with Aluminum Bobbin
  • 130 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 47.9 Hz
  • Sensitivity: 86 dB
  • Sealed box volume: 1.24 cubic feet
  • Ported box volume: 1.77 cubic feet
  • Top-mount depth: 6.06"
  • Cutout diameter: 11.10"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconPioneer TSW3020PRO owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W3020PRO Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W3020PRO Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W3020PRO Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W3020PRO Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
PRO Series
Subwoofer Size
12"
Peak Power Handling
3500 watts
RMS Power Handling
1800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Copper
Voice Coil Diameter
1"
Frequency Response
20 - 200 Hz
Sensitivity
86 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Blended Pulp
Woofer Surround
Urethane
Magnet Structure
Double Stacked
Magnet weight
130 oz.
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.24 cubic feet
Optimum Ported Box Volume
1.77 cubic feet
Top-Mount Depth (Mounting Depth)
6.06"
Cutout Diameter
11.10"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
47.9 Hz
Equivalent Compliance (Vas)
8.30 liters
Total Speaker Q Value (Qts)
1.30
Electrical Q Value (Qes)
1.45
Mechanical Q Value (Qms)
12.2
What is in the box?
Paperwork
User manual
Quick start guide
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-W3020PRO

Weight:

26.17lbs

Internal SKU:

tsw3020pro

Internal Product ID:

200941

Customer Ratings & Reviews


Pioneer TS-W3020PRO thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

By Anonymous Shopper on November 13, 2023

5 found this helpful


Incredibly under rated sub.

I love how musical this sub is. Your can hear wide range of bass. This sub loves being played low. Was using rockford 2500bdcp to power them but recently upgraded to stinger 4k. Wow they love the power and seem to manage temp quite well.
